most CNC circular saw waste comes from a handful of places: kerf, unnecessary trim, poor cut combinations, unusable end pieces, extra allowance, and rejected parts. The best way to reduce it is to measure those losses separately, then work on the biggest one first. A 0.5 mm kerf difference across 50,000 cuts equals 25 meters of stock, but one badly planned bar can waste hundreds of millimeters in a single cycle.
It helps to separate material into three simple groups:
- Required loss: normal kerf, necessary end trimming, and material that must be left for the next machining step.
- Avoidable or reducible loss: poor cut planning, excessive trim, wrong kerf settings, oversized allowances, dimensional errors, and rejected parts.
- Recoverable material: remnants that can go back into production, plus chips and offcuts that still have recycling value.
A machine's minimum gripping or tail length is a limit, not automatically scrap. Depending on the cutting plan, the final piece may become waste, may be saved as a remnant, or may not be created at all. In general, preventing waste and reusing material keeps more value than producing scrap and recovering part of that value later through recycling.[1]
Measure Where the Material Goes
Before changing blades, software, stock lengths, or machine settings, find out where the material is actually going.
Stock length = Good parts + Rejected part material + Kerf + Trim + Unusable remainder + Reusable remnant
Take a 6,000 mm aluminum bar as a simple example:
- good parts: 5,650 mm;
- kerf: 45 mm;
- front trim: 15 mm;
- unusable tail: 90 mm;
- reusable remnant: 200 mm.
| Material Use | Length | Share of Stock |
|---|---|---|
| Good parts | 5,650 mm | 94.17% |
| Kerf | 45 mm | 0.75% |
| Front trim | 15 mm | 0.25% |
| Unusable tail | 90 mm | 1.50% |
| Reusable remnant | 200 mm | 3.33% |
| Total | 6,000 mm | 100% |
Finished-part utilization is:
5,650 ÷ 6,000 × 100 = 94.17%
The material that is immediately unusable is:
45 + 15 + 90 = 150 mm
That gives an immediate loss rate of:
150 ÷ 6,000 × 100 = 2.5%
The 200 mm remnant should not be counted as scrap if there is a realistic chance of using it again. But there is a catch: putting an offcut on a rack does not automatically make it valuable inventory. If it sits there for two years and is eventually thrown out, the waste was only postponed.
Length works well when you are comparing the same material and cross-section. Once different materials or sizes are mixed together, weight and cost become more useful. One meter of large stainless steel bar is obviously not economically equal to one meter of a small aluminum profile.
Measure the Real Kerf
Kerf is the stock removed by the blade during a cut. On one cut it looks small. Over thousands of cuts, it is not.
| Effective Kerf | 1,000 Cuts | 10,000 Cuts | 50,000 Cuts |
|---|---|---|---|
| 2.5 mm | 2.5 m | 25 m | 125 m |
| 3.0 mm | 3.0 m | 30 m | 150 m |
| 3.5 mm | 3.5 m | 35 m | 175 m |
These are just arithmetic examples, not recommended kerf values. The correct number depends on the blade, machine, material and cutting conditions.
There are three kerf values worth keeping separate:
- Nominal kerf: the value associated with the blade specification.
- Effective kerf: what the process actually removes.
- Programmed kerf: what the CNC control or optimization software assumes.
The trouble starts when the programmed value does not match the real one.
Say the software uses 2.8 mm, but the actual process removes 3.1 mm:
3.1 − 2.8 = 0.3 mm per cut
Across 20,000 cuts:
20,000 × 0.3 = 6,000 mm = 6 m
Six meters matters, but the more annoying problem is day-to-day production: a pattern can look fine on screen and still be too long when the operator actually cuts it.
Effective kerf can move with tooth geometry, blade wear, runout, vibration, stock movement and machine condition. Blade thickness alone is not enough. For example, the PCS-1000NC specification lists a 3.0 mm blade thickness for one machine setup, but that does not mean every real cut will consume exactly 3.0 mm of stock.
Check Kerf Correctly
One cut is a poor test. Use several controlled cuts and measure what actually happened.
Suppose the starting stock measures:
3,100.0 mm
You cut five nominal 600 mm parts. Do not simply write down 3,000 mm because that is what the program asked for. Measure the parts.
If the five pieces together measure 3,000.0 mm and the remaining stock is 85.0 mm:
3,100 − 3,000 − 85 = 15 mm
If five saw cuts caused that loss:
15 ÷ 5 = 3.0 mm average effective kerf
A practical formula is:
Average effective kerf = (Starting stock length − Actual finished-part lengths − Remaining stock − Other known solid losses) ÷ Number of kerf-producing cuts
The word actual matters here. If those five parts really total 3,000.8 mm but you calculate with 3,000.0 mm, the missing 0.8 mm gets blamed on the blade even though it ended up in the finished parts.
Small measurement errors can also distort the result. NIST notes that measurement uncertainty affects manufacturing process-control decisions, so a single measurement should not be treated as perfectly exact.[2]
Also count the cuts the blade really makes. Depending on the job, that may include:
- a front squaring cut;
- a damaged-end removal cut;
- a test cut;
- a remnant-separation cut.
Keep trim and kerf separate. If 10 mm of solid stock is removed from the front, record 10 mm as trim. The kerf from that squaring cut is another loss.
It is worth checking kerf again after a blade change, sharpening, spindle repair, major machine service, or a noticeable change in cutting quality.
Check Whether a Thinner Blade Really Saves Material
A thinner blade often reduces kerf. That part is simple. Whether it actually reduces stock consumption is a different question.
Assume the effective kerf changes from 3.2 mm to 2.8 mm:
3.2 − 2.8 = 0.4 mm saved per cut
| Number of Cuts | Material Length Saved |
|---|---|
| 1,000 | 0.4 m |
| 10,000 | 4 m |
| 50,000 | 20 m |
| 100,000 | 40 m |
Useful, yes. But suppose a 6,000 mm bar already leaves 180 mm after cutting. Saving another 4 or 5 mm does not necessarily reduce the number of bars you buy. It may just turn a 180 mm leftover into a 185 mm leftover.
The situation changes when a few millimeters decide whether a pattern fits.
If a full pattern needs 6,004 mm and an approved blade change removes 5 mm from the total kerf:
6,004 − 5 = 5,999 mm
Now the parts may fit into one 6,000 mm bar, assuming trim, stock tolerance and machine limits are still covered.
There is another side to this. A thinner blade that creates more unstable cuts or rejected parts can easily wipe out the kerf saving.
Take a hypothetical example where the reject rate rises from 0.3% to 1.2% on 50,000 parts:
50,000 × 0.3% = 150 rejects
50,000 × 1.2% = 600 rejects
That is 450 additional rejected parts. At an average length of 800 mm:
450 × 800 = 360,000 mm = 360 m
That is far more material than the kerf saving. These reject percentages are only there to show the calculation; they are not industry benchmarks.
Blade diameter, arbor size, kerf, tooth count, maximum speed, tooth geometry and material range all need to match the job when choosing a saw blade for steel.
Count Every Cut and Allowance
A cutting plan can fail even when the finished-part lengths appear to fit perfectly.
Take a 6,000 mm bar and these parts:
- 2 × 1,500 mm;
- 2 × 1,000 mm;
- 2 × 490 mm.
Finished-part total:
3,000 + 2,000 + 980 = 5,980 mm
Six cuts at 3 mm add:
6 × 3 = 18 mm
So far:
5,980 + 18 = 5,998 mm
Looks fine. Only just.
Now add 10 mm of front trim, one squaring cut, and a required 20 mm rear allowance.
Seven total cuts at 3 mm:
7 × 3 = 21 mm
Total required length:
5,980 + 21 + 10 + 20 = 6,031 mm
It does not fit.
A more realistic planning formula is:
Required stock = Finished-part lengths + Kerf from all cuts + Solid trim + Required machine/process allowance
Then check the usable stock length, not just the nominal number on the purchase order. Uneven ends, supplier tolerance, handling damage or a required squaring cut can reduce what is actually available.
That matters most when a pattern leaves almost nothing. A 150 mm margin is forgiving. A 2 mm margin is not.
Cutting size, blade size, clamping and material loss all need to be considered together when matching a circular saw to steel-block work.
Find the Largest Loss First
Kerf is easy to see, so it often gets blamed first. That can be a distraction.
For illustration, assume a job uses six cuts on a 6,000 mm bar:
| Possible Change | Material Saved |
|---|---|
| Reduce kerf by 0.3 mm across 6 cuts | 1.8 mm |
| Reduce unnecessary front trim by 10 mm | 10 mm |
| Remove 2 mm unnecessary allowance from 5 parts | 10 mm |
| Improve the cutting pattern by 150 mm | 150 mm |
| Avoid one rejected 800 mm part | 800 mm |
The exact numbers will be different in every shop, but this is the right comparison to make. Measure kerf, trim, tail, pattern remainder, extra allowance and rejected parts over a real production period. Then work on the one that costs the most.
Build Better Cutting Patterns
Cut planning is mostly about deciding which parts should share each bar. For bars, tubes and profiles, this is a one-dimensional cutting-stock problem. Research on this subject also treats usable leftovers as material that may be saved for later rather than automatically counted as waste.[3]
Consider three compatible orders:
- 4 × 1,450 mm;
- 4 × 920 mm;
- 4 × 550 mm.
Total finished length:
(4 × 1,450) + (4 × 920) + (4 × 550) = 11,680 mm
Assume 6,000 mm stock, a 3 mm kerf and 12 part cuts, with no extra trim in this example.
Total kerf:
12 × 3 = 36 mm
Total material needed:
11,680 + 36 = 11,716 mm
Two 6,000 mm bars provide 12,000 mm, so the order can fit into two bars.
| Bar | Parts | Part Length | Kerf | Remainder |
|---|---|---|---|---|
| Bar 1 | 1,450 + 1,450 + 920 + 920 + 550 + 550 | 5,840 mm | 18 mm | 142 mm |
| Bar 2 | 1,450 + 1,450 + 920 + 920 + 550 + 550 | 5,840 mm | 18 mm | 142 mm |
Total remainder:
284 mm
Whether the 1,450 mm part is cut first or last is usually not the important part. Which pieces share the same bar is.
If you do not have optimization software, a basic manual method still helps:
- List all parts that can use the same material.
- Place the longest parts first.
- Subtract part length and kerf from the usable stock.
- Use shorter required parts to fill the remaining space.
- Keep adding kerf as cuts are added.
- Decide whether the final piece is scrap or a useful remnant.
More advanced planning can combine current orders, future demand, inventory and usable leftovers in the same model.[4]
Only Combine Compatible Orders
More orders give you more combinations, but only when the material can genuinely be shared.
Check:
- material grade;
- diameter or profile;
- wall thickness;
- heat or lot number;
- material certificate;
- customer traceability rules;
- surface condition;
- due date.
Two bars can be the same size and still belong to different heats or certification requirements. Combining them just to improve yield can create a bigger problem than the material it saves.
Delivery timing matters too. There is little value in building a perfect cutting pattern if the order ships late because you waited three days for another matching job.
Choose the Right Stock Length
Longer stock is not automatically more efficient.
For a 1,950 mm part:
| Stock Length | Parts per Bar | Kerf | Remainder | Remainder per Part |
|---|---|---|---|---|
| 6,000 mm | 3 | 9 mm | 141 mm | 47 mm |
| 4,000 mm | 2 | 6 mm | 94 mm | 47 mm |
Same result per finished part.
Now change the part length to 1,300 mm:
| Stock Length | Parts per Bar | Kerf | Remainder |
|---|---|---|---|
| 6,000 mm | 4 | 12 mm | 788 mm |
| 4,000 mm | 3 | 9 mm | 91 mm |
For 120 finished parts:
6,000 mm stock: 30 bars × 788 mm = 23,640 mm remainder
4,000 mm stock: 40 bars × 91 mm = 3,640 mm remainder
Difference:
20,000 mm = 20 m
That looks like a clear win for the 4,000 mm stock, but not always. If those 788 mm pieces regularly become 700 mm parts later, they are not true waste.
Stock length should be chosen with the real production mix in mind, along with price per meter, supplier availability, minimum order quantity, storage and loading limits.
Set a Practical Remnant Length
There is no useful universal rule such as "keep everything over 500 mm."
A remnant is worth keeping when four things line up:
- The machine can process it safely.
- There is real demand for parts short enough to use it.
- Enough usable length remains after future trim and kerf.
- Its value is high enough to justify storage and handling.
A 305 mm offcut, for instance, is not very useful for a 300 mm part if the next job needs another squaring cut and a few millimeters of kerf.
The best remnant limit usually comes from your own history.
Imagine a factory reviews 500 stored remnants over six months:
| Remnant Length | Pieces Stored | Pieces Reused | Reuse Rate |
|---|---|---|---|
| 200–399 mm | 120 | 8 | 6.7% |
| 400–699 mm | 150 | 39 | 26.0% |
| 700–999 mm | 130 | 78 | 60.0% |
| 1,000 mm+ | 100 | 72 | 72.0% |
These numbers are only an example of the method. If your real records show that pieces below 400 mm are almost never reused, keeping all of them makes little sense.
Record and Reuse Remnants
A remnant has little value if nobody can identify it or find it later.
At minimum, record:
- material grade;
- section size;
- actual length;
- usable length;
- heat or lot number where needed;
- storage location;
- condition;
- date.
For example:
6061-T6 Aluminum
50 × 50 mm Square Bar
Measured Length: 1,180 mm
Rack: A3-12
Lot: 26A071
If 50 mm is damaged at one end, the full 1,180 mm should not appear as available stock in the planning system.
Before opening a new bar, check whether a suitable remnant can do the job. Research on cutting stock with usable leftovers has also studied giving existing remnants priority over new stock.[5]
But there is no point saving everything.
If a shop creates 20 remnants per working day and only reuses 8:
20 − 8 = 12 additional pieces per day
At 22 working days:
12 × 22 = 264 additional remnants per month
After six months:
264 × 6 = 1,584 pieces
That is not a remnant program. It is a storage problem.
Control Front Trim
Front trim is sometimes necessary. Excess front trim is not.
| Extra Trim per Bar | 1,000 Bars | 5,000 Bars | 10,000 Bars |
|---|---|---|---|
| 5 mm | 5 m | 25 m | 50 m |
| 10 mm | 10 m | 50 m | 100 m |
| 20 mm | 20 m | 100 m | 200 m |
If operators remove 20 mm from every bar, but the validated process usually needs only 8 mm:
20 − 8 = 12 mm unnecessary trim per bar
At 5,000 bars:
5,000 × 12 = 60,000 mm = 60 m
The goal is not to push trim toward zero. It is to stop removing material that serves no technical purpose.
Control the Tail
Many automatic saws need a minimum remaining length for safe feeding or gripping. Do not confuse that machine limit with the actual amount lost on every bar.
If production records show an average unusable tail of 180 mm across 10,000 bars:
10,000 × 180 = 1,800,000 mm = 1,800 m
That is large enough to deserve attention. Better patterns may allow another short part to fit before the machine reaches its limit, or they may create a longer remnant that can be reused later.
What should not happen is reducing a required clamp or gripping length just to improve the utilization percentage. Machine limits come first.
Reduce Extra Allowance
Extra length added to every part is easy to ignore because each individual amount looks tiny.
| Extra Length per Part | 10,000 Parts | 50,000 Parts | 100,000 Parts |
|---|---|---|---|
| 0.5 mm | 5 m | 25 m | 50 m |
| 1.0 mm | 10 m | 50 m | 100 m |
| 2.0 mm | 20 m | 100 m | 200 m |
| 5.0 mm | 50 m | 250 m | 500 m |
A 500 mm blank cut to 505 mm contains 5 mm of extra stock.
At 100,000 parts:
100,000 × 5 = 500,000 mm = 500 m
If the next operation needs that 5 mm, fine. It is part of the process. If the shop adds 5 mm only because nobody trusts the saw to hold length, fix the reason instead of paying for the extra stock forever.

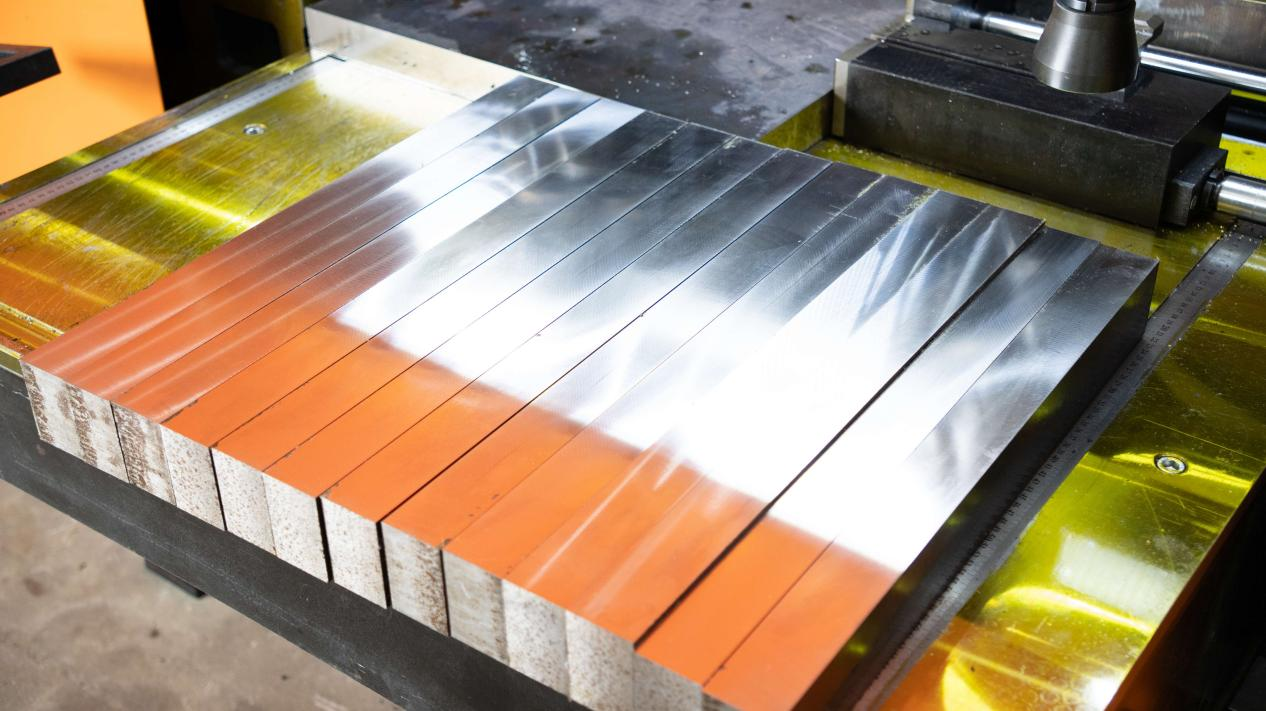

The same issue appears when rough-cut steel blocks carry more machining allowance than later operations actually require.
Reduce Rejected Parts
Rejects can dwarf normal kerf losses.
Assume average part length is 600 mm and annual or batch production is 50,000 parts:
| Reject Rate | Rejected Parts | Rejected Part Length |
|---|---|---|
| 0.2% | 100 | 60 m |
| 0.5% | 250 | 150 m |
| 1.0% | 500 | 300 m |
| 2.0% | 1,000 | 600 m |
Again, those rates are calculation examples, not suggested benchmarks.
Another useful comparison: with a 3 mm kerf, one rejected 1,200 mm part equals the stock length removed by roughly:
1,200 ÷ 3 = 400 cuts
Track the reason for rejection, not just the total kilograms:
- wrong length;
- poor squareness;
- large burr;
- surface damage;
- wrong material;
- wrong program;
- incorrect quantity;
- blade or machine problem.
A slightly long part may still be reworked. A short part often cannot. That difference matters when calculating the real loss.
Watch Blade and Machine Condition
Blade and machine problems usually show up first in the parts.
Watch for:
- more burr than usual;
- part lengths beginning to drift;
- poor squareness;
- rougher cut faces;
- vibration;
- higher motor load;
- cuts moving sideways.
A burr does not automatically mean the blade is dull. Feed, stock support, vibration, alignment and chip removal can create similar symptoms. The possible causes of burrs after metal cutting should be separated before the blade is blamed.
The same applies to a cut that drifts sideways. Blade condition, feed, clamping, spindle condition and circular saw blade deflection can all be involved.
Check Machine Accuracy
A few tenths of a millimeter do not look expensive until the same error is repeated 50,000 times.
| Average Extra Length | 10,000 Parts | 50,000 Parts | 100,000 Parts |
|---|---|---|---|
| 0.2 mm | 2 m | 10 m | 20 m |
| 0.5 mm | 5 m | 25 m | 50 m |
| 1.0 mm | 10 m | 50 m | 100 m |
Suppose the target is 500.0 mm and measured parts repeatedly come out around:
- 500.7 mm;
- 500.8 mm;
- 500.6 mm;
- 500.8 mm.
The process is consistently long. A programmed offset, calibration issue or another fixed cause may be involved.
Now compare that with:
- 500.8 mm;
- 499.4 mm;
- 500.6 mm;
- 499.5 mm;
- 500.7 mm.
This process is moving around too much. Shortening the program by 0.5 mm would not solve the real problem and could create undersized parts.
NIST dimensional-metrology work shows why calibration and reliable measurement matter when small length differences affect production decisions.[6]
Use Real Data in Cutting Software
Optimization software is only as good as the numbers fed into it.
It should know:
- available stock lengths;
- actual remnant lengths;
- part lengths and quantities;
- measured kerf;
- front trim;
- machine tail or gripping limits;
- material grade and profile;
- heat or lot restrictions;
- due dates;
- minimum remnant rules.
The useful output is not just a utilization percentage. It should tell the operator which stock to use, what to cut from it, how much material each cut consumes, and what should remain at the end.
Machine values must come from the actual equipment. For example, the PCS-350NC specification has its own cutting size, blade specification, feed rate, spindle speed and automatic-feed data. Another CNC saw may work very differently.
Measure Savings by Cost, Not Only by Millimeters
Two plans can leave very different-looking remnants and still produce the opposite financial result.
| Plan A | Plan B | |
|---|---|---|
| Full bars used | 10 | 9 |
| Total remainder | 400 mm | 900 mm |
| Reusable remnant | 0 mm | 600 mm |
| Unusable remainder | 400 mm | 300 mm |
Plan B leaves more material at the end, yet it uses one fewer full bar and creates less unusable remainder.
A remnant should not automatically be valued at the same price as new stock. It only creates real savings when it is later used instead of opening or buying another piece of material.
Useful measures include:
- Utilization: good part length ÷ stock issued.
- Scrap rate: unusable material ÷ stock issued.
- Reject rate: rejected material ÷ stock issued.
- Remnant use: how much current production comes from stored remnants.
- Material cost per good output: especially useful when materials and part sizes vary.
Check Whether the Saving Is Real
Suppose a factory uses 2,500 bars per month at an illustrative accounting cost of $120 per bar.
Monthly material cost:
2,500 × $120 = $300,000
If the same production output really needs 1.5% less new stock:
$300,000 × 1.5% = $4,500 per month
Annualized:
$4,500 × 12 = $54,000
That is not automatically $54,000 of profit. Bars are purchased in whole lengths, supplier minimum orders may apply, scrap may have resale value, and remnant handling costs money.
The cleanest check is simple: compare how much new material was issued for the same amount of acceptable output before and after the change.
Worked Example
The following numbers are illustrative, not measured results from a specific factory.
Assume a shop cuts 40 mm stainless steel bar from 6,000 mm stock:
- monthly use: 1,000 bars;
- illustrative internal accounting cost: $95 per bar;
- good part length: 5,480 mm;
- kerf: 42 mm;
- trim and unusable tail: 178 mm;
- remainder: 300 mm.
Check:
5,480 + 42 + 178 + 300 = 6,000 mm
Old utilization:
5,480 ÷ 6,000 × 100 = 91.33%
Now assume the shop improves its cutting patterns, uses suitable remnants, removes an unnecessary allowance and uses shorter stock for some short-part work.
Good output rises to:
5,690 mm per 6,000 mm equivalent of new material
New utilization:
5,690 ÷ 6,000 × 100 = 94.83%
Improvement:
94.83% − 91.33% = 3.50 percentage points
Extra good output:
5,690 − 5,480 = 210 mm per 6,000 mm equivalent
Old monthly accounting cost:
1,000 × $95 = $95,000
If equivalent output really requires about 3.5% less new material:
$95,000 × 3.5% = $3,325 per month
Annualized:
$3,325 × 12 = $39,900
The percentage is not the final proof. Actual bars issued, good output, remnant inventory and scrap recovery should confirm whether the saving is real.
Keep Safety Limits
Material savings are never a reason to remove guards, bypass interlocks, shorten required gripping length without approval, use an unsuitable blade, exceed blade speed limits or manually hold a short remnant near the cutting area.
OSHA's general machine-guarding rule requires protection from hazards including points of operation, rotating parts, flying chips and sparks.[7]
For covered servicing and maintenance where unexpected startup or stored energy could cause injury, OSHA's hazardous-energy standard sets lockout/tagout requirements.[8]
A remnant may still have material value and yet be too short to process safely. If the machine cannot grip or feed it within its approved limits, it should not be treated as usable stock for that machine.
FAQ
Does changing the cutting order reduce kerf?
Usually not. If the same parts still need the same number of cuts, the total kerf stays about the same. The bigger gain comes from deciding which parts share each bar.
Should I use nominal or measured stock length?
Nominal length is usually fine when plenty of stock remains. When a pattern is close to the limit, use reliable usable length and include trim and machine allowances.
Are saw chips reusable remnants?
No. A remnant can go back to the saw as stock. Chips may still have recycling value, but they cannot normally be used again as bar stock.
Can a longer remnant be less useful than a shorter one?
Yes. A 1,500 mm piece of a rarely used custom profile may sit for years, while a 700 mm piece of common material may be used tomorrow.
What should be improved first?
Follow the biggest measured loss. Large remainders point toward cut planning or stock length. High reject loss points toward process stability. Growing remnant racks mean the remnant policy needs work. If patterns repeatedly miss by only a few millimeters, check kerf, trim and usable stock length.
Conclusion
A 3.0 mm kerf removes 30 meters of stock over 10,000 cuts, but kerf is only one part of the picture. An extra 1 mm on 100,000 parts equals 100 meters of material. An average 180 mm unusable tail across 10,000 bars equals 1,800 meters. One rejected 1,200 mm part uses roughly the same stock length as 400 cuts at a 3 mm kerf. Measure these losses separately, compare them by real material cost, and work on the biggest one first. The result that matters is simple: fewer new bars used for the same amount of good production.
