Core Features

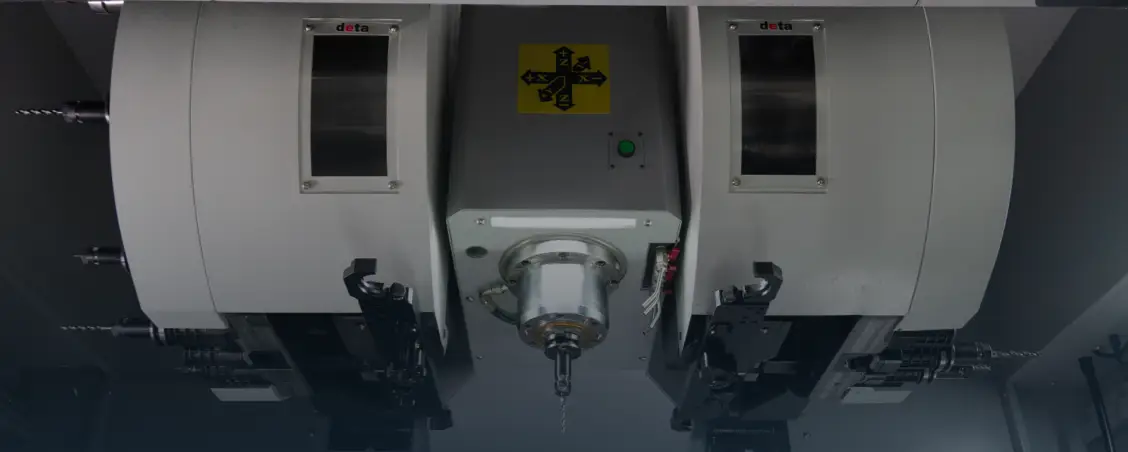

Equipped with a unique Dual-Tool Magazine holding 64 tools
Unlike standard VMCs with 24 or 30 tools, this massive capacity allows you to set up multiple jobs at once or store redundant "sister tools" for long-run operations. It significantly reduces setup time for complex parts requiring many operations, enabling true non-stop production.

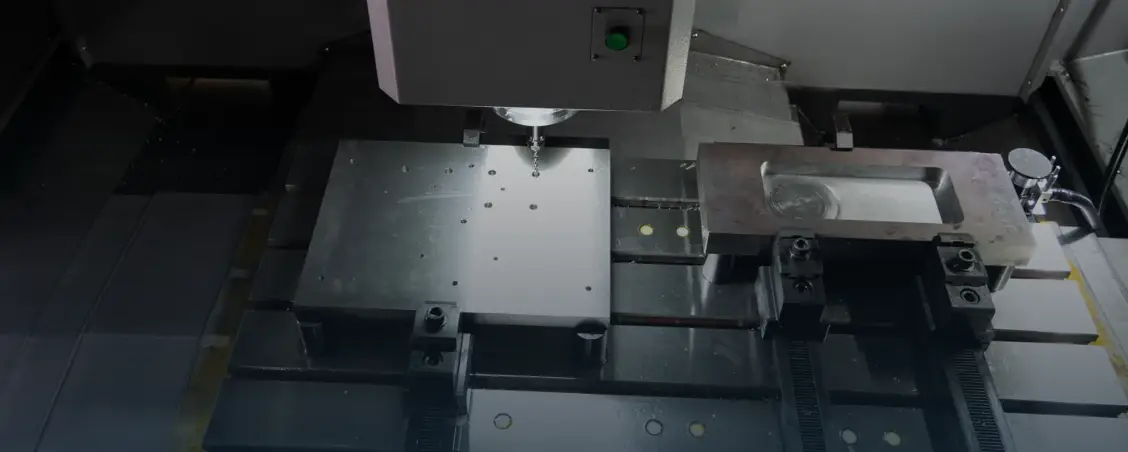

Hybrid Guide System: Speed Meets Rigidity
- The 3 Linear option is perfect for high-speed, high-precision finishing.
- The 2 Linear + 1 Boxway hybrid design is a major selling point. It combines the fast feed rates of linear guides with the superior vibration damping and heavy-cutting capability of a boxway (hard rail). This ensures stability during heavy roughing without sacrificing finishing speed.

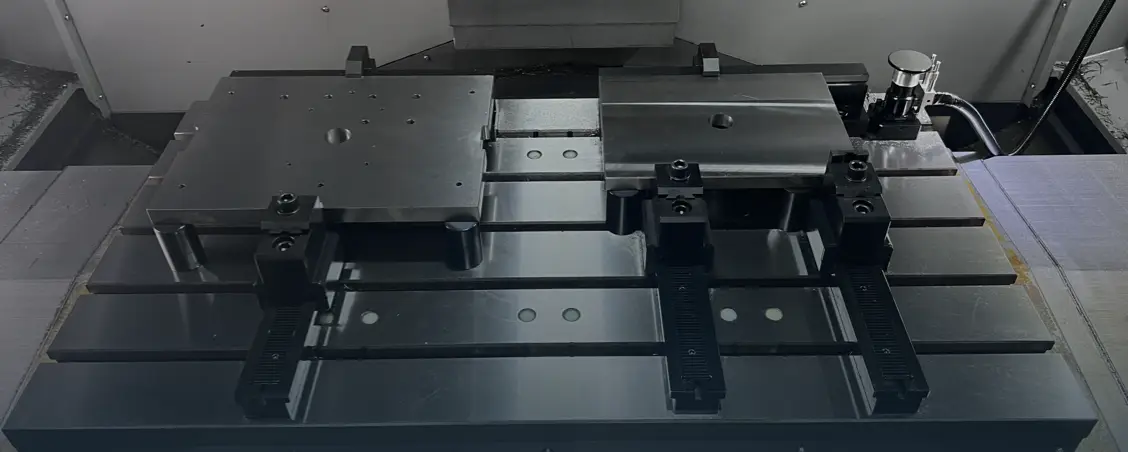

Utilizes genuine THK Linear Guides and Ball Screws (Japan)
THK is the industry standard for precision. This guarantees fast rapid traverse rates, exceptional positioning accuracy, and long-term reliability. Buyers know that branded components mean lower maintenance costs and higher resale value.

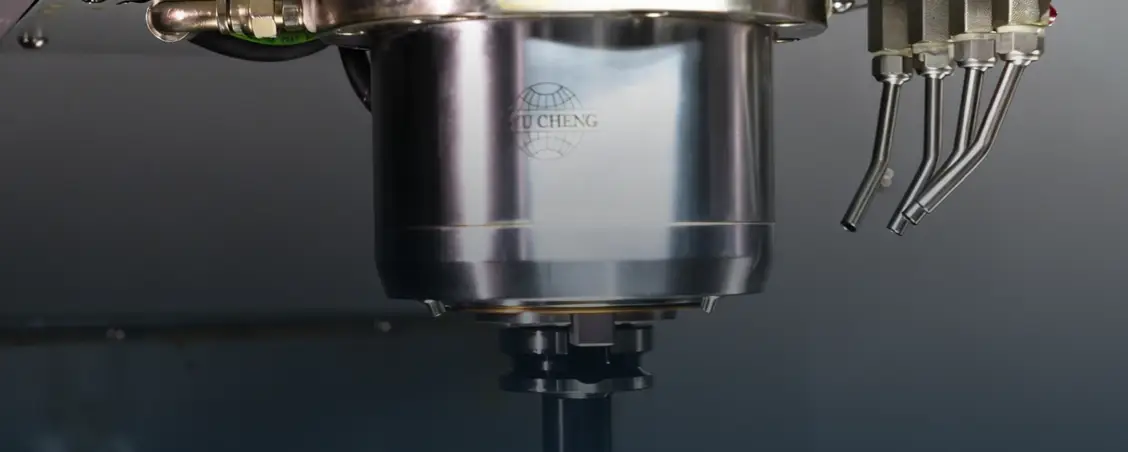

High-rigidity heavy-duty spindle with options for 6000, 8000, or 12000 RPM
Whether cutting tough hardened steel (requiring high torque/low RPM) or aluminum/mold finishing (requiring high RPM), this machine can be tailored to their specific material needs, ensuring the best surface finish and tool life.

Equipped with a unique Dual-Tool Magazine holding 64 tools
Unlike standard VMCs with 24 or 30 tools, this massive capacity allows you to set up multiple jobs at once or store redundant "sister tools" for long-run operations. It significantly reduces setup time for complex parts requiring many operations, enabling true non-stop production.
Hybrid Guide System: Speed Meets Rigidity
- The 3 Linear option is perfect for high-speed, high-precision finishing.
- The 2 Linear + 1 Boxway hybrid design is a major selling point. It combines the fast feed rates of linear guides with the superior vibration damping and heavy-cutting capability of a boxway (hard rail). This ensures stability during heavy roughing without sacrificing finishing speed.
Utilizes genuine THK Linear Guides and Ball Screws (Japan)
THK is the industry standard for precision. This guarantees fast rapid traverse rates, exceptional positioning accuracy, and long-term reliability. Buyers know that branded components mean lower maintenance costs and higher resale value.
High-rigidity heavy-duty spindle with options for 6000, 8000, or 12000 RPM
Whether cutting tough hardened steel (requiring high torque/low RPM) or aluminum/mold finishing (requiring high RPM), this machine can be tailored to their specific material needs, ensuring the best surface finish and tool life.

Parameter Sheet

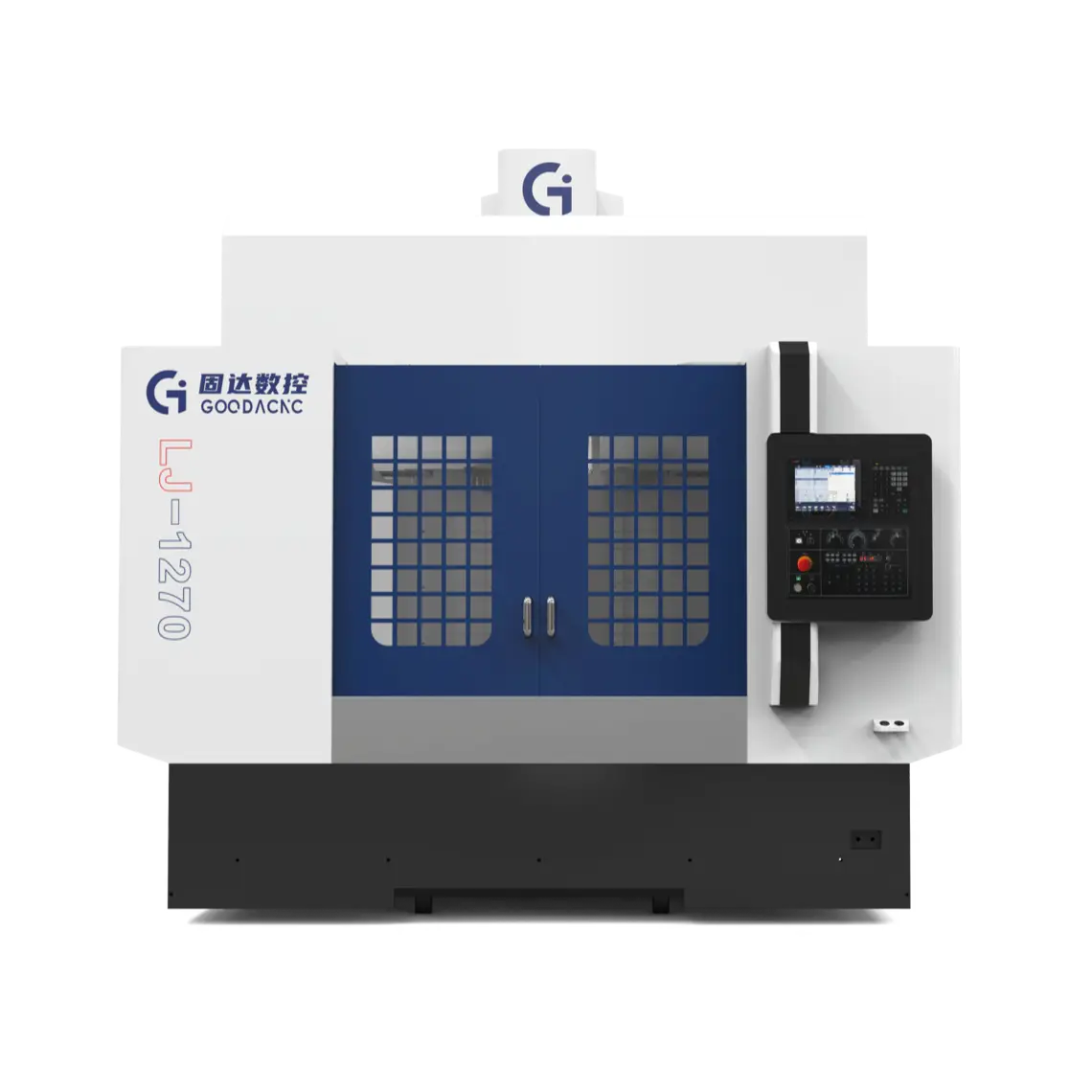

Model	LJ-1270B-2T
Worktable size	1300x700mm
Max.load capacity	800Kg
T-slot size specs	5-18x100mm
X/Y/Z Axis travel	1200/700/680mm
Distance from spindle nose to worktable	120~820mm
Spindle motor power	BT40
Spindle driven mode	7.5/11kW
Spindle drive model	Timing belt(option gear box)rpm
Max.spindle speed	8000(OP direct connect:12000)rpm
X/Y/Z axis rapid move speed	24/24/16m/min
X/Y/Z axis cutting speed	1~12m/min
Tool capacity	2x32T robotic arm
Max.Tool weight	8Kg
Positioning accuracy	±0.005/300mm
Repositioning accuracy	±0.003/300mm
Total power required	25KVA
Machine size	3.1x3.0x3.0m
Machine weight(approx.)	7000Kg

Full Types of Face Horizontal Milling Machines

Our machine portfolio offers the perfect fit for your work - from small parts to large-scale workpieces, ensuring you have the right capabilities for any project.

Model	X/Y/Z Axis travel	Max.load capacity	Worktable size
LJ-855L	800550550mm	500kg	1000*550mm
LJ-1380B	1300800700mm	1000kg	1500*810mm
LJ-1370B	1300700700mm	1500kg	1300*700mm
LJ-1270B-2T	1200700680mm	800kg	1300*700mm
LJ-1580B-2T	1500800700mm	1600kg	1700*810mm

Get Expert Recommendation

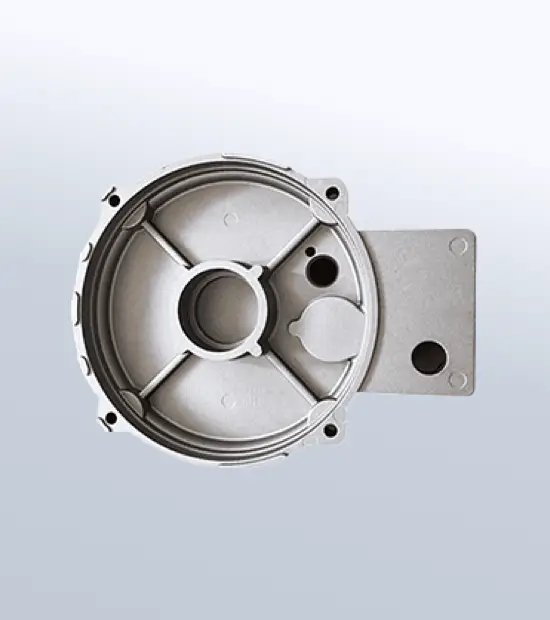

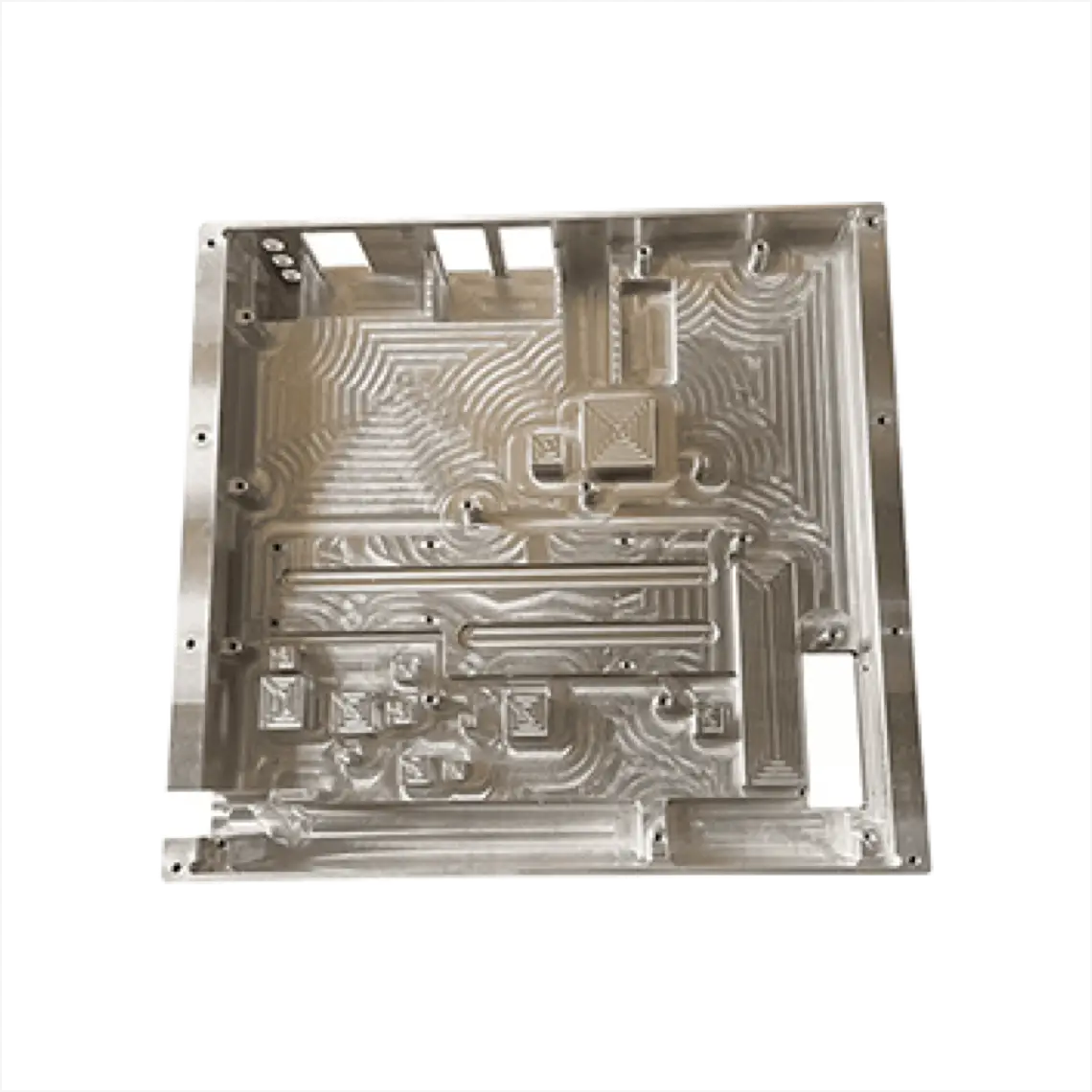

Featured Applications

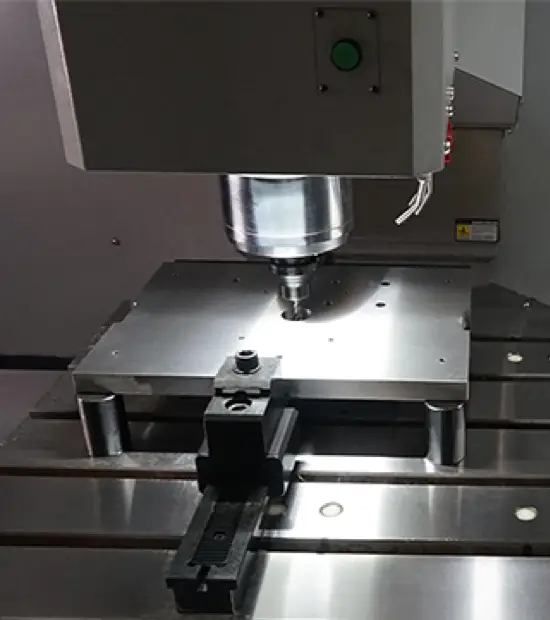

Dual Tool Magazine Vertical Machining Center

Standard Milling Machines vs. ASIATOOLS'

Key Dimension	Standard Milling Machines	ASIATOOLS Horizontal Face Milling Machine	Why us
Processing Capability (Long Workpieces)	Restricted: Limited by table travel. Machining extra-long parts usually requires investing in massive, expensive double-column gantry mills.	Specialized: Designed specifically for Extra-Long Materials. The Movable Column option allows you to machine long beams and rails with a compact footprint.	✔ Save Space & Capital: Handle oversized parts without buying an oversized, overpriced machine.
Workpiece Handling (Efficiency & Safety)	Inefficient & Risky: Requires manual flipping with cranes to machine the other side. This causes significant idle time and safety hazards for workers.	One Setup, Two Sides: Equipped with an Ultra-precise Rotary Index Table. Automatically rotates 180º to machine the second face in one setup.	✔ Safety & Speed: Eliminate dangerous manual lifting. Reduce non-cutting time by 50%+ while ensuring perfect parallelism.
Precision Control (Long Travel)	Open-Loop Issues: Over long machining distances, ball screw thermal expansion often leads to positioning errors and accumulation deviation.	Closed-Loop Assurance: Optional Linear Encoder provides real-time position feedback to automatically compensate for thermal errors.	✔ Guaranteed Accuracy: Maintain micron-level precision even on 2-meter+ workpieces. No "drift" during long runs.
Heavy-Duty Rigidity (Roughing)	General Purpose: Standard designs often vibrate or chatter when cutting the uneven, hard "skin" of castings or forged blocks.	Hydraulic Gantry Design: Engineered with a specialized Hydraulic Gantry structure. It provides immense torque and vibration damping for heavy roughing.	✔ Longer Tool Life: Stable cutting protects your carbide inserts from chipping, reducing consumable costs.
Flexibility (Customization)	Rigid Specs: Usually "one-size-fits-all." Modifications are difficult, expensive, or treated as "non-standard."	Modular Options: Fully customizable. Choose between Movable vs. Fixed Column and Rotary vs. Fixed Table based on your specific needs.	✔ Optimized ROI: You only pay for the configuration that fits your specific production reality.

Discuss Your Machining Needs

Comprehensive After-Sales Service & Long-Term Support

Our partnership with customers continues long after the purchase. We provide comprehensive after-sales services to help you install, operate, and maintain your equipment with confidence.

If You Purchase New Equipment, You Receive:

Shipment scheduling and onsite installation
Customs clearance and forwarding assistance
Equipment commissioning and performance verification
Onsite training for operators and maintenance personnel

For Existing Users, We Provide Ongoing Support:

Preventive maintenance and calibration
Service and repair
Spare parts supply and replacement
Remote diagnostics and troubleshooting
Additional training and skill development
