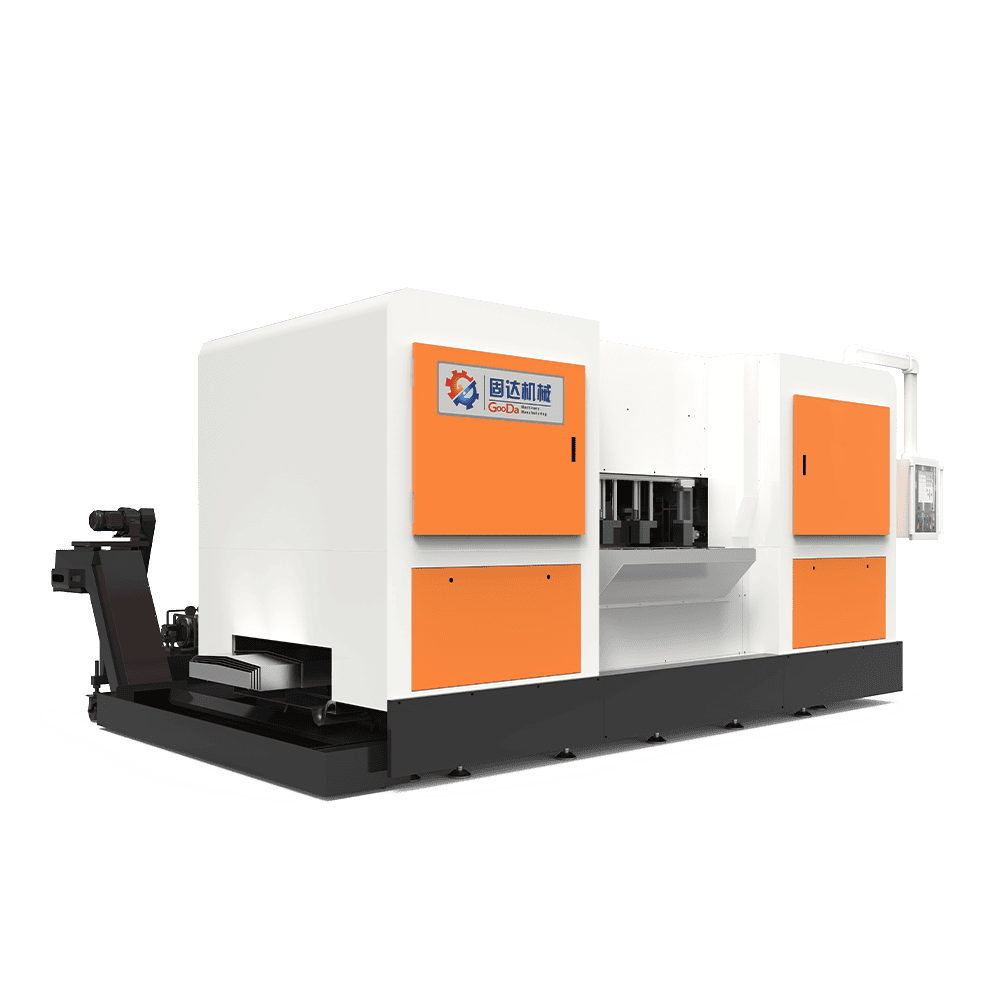

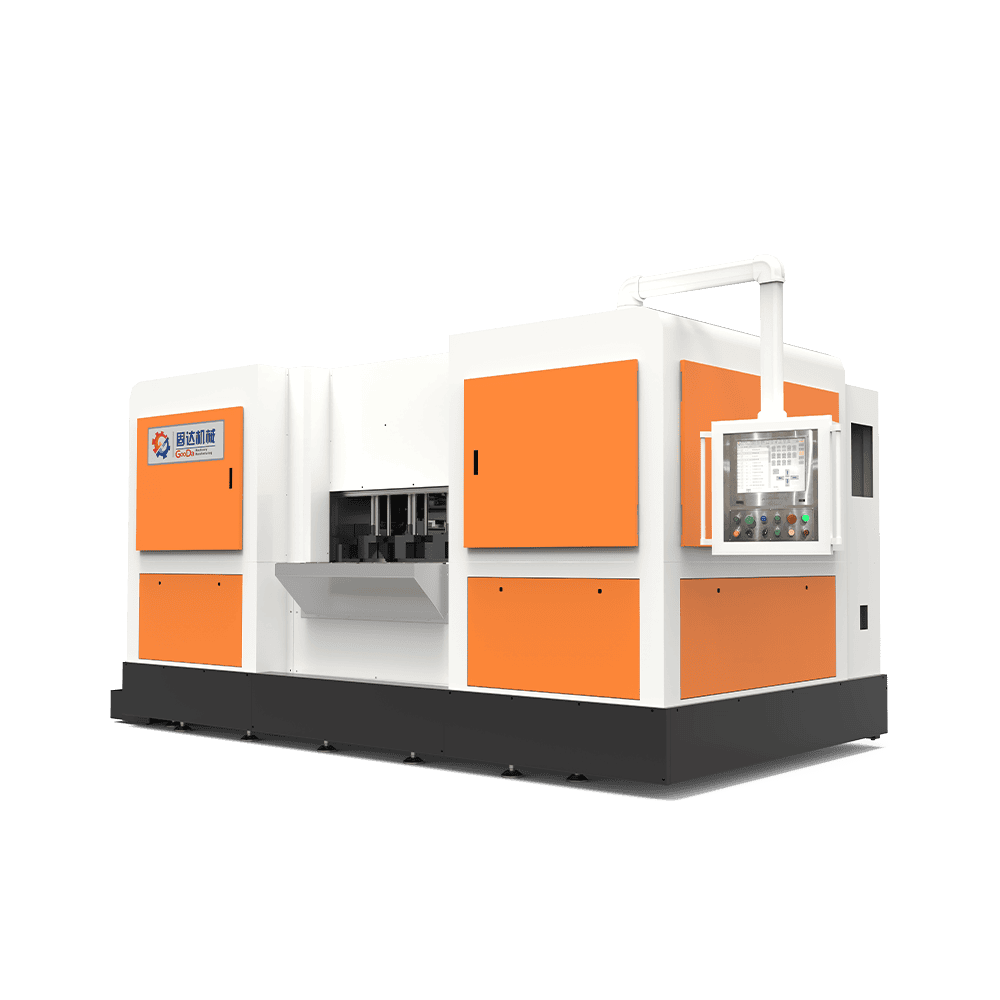

PCS-1000NC

Flat plate Circular Saw Machine

Suitable for high-strength structural steel, stable performance, and precision. PCS-1000NC numerical control high-speed circular saw using carbide saw blade cutting, suitable for high-strength structural steel, tool steel, and alloy steel. The machine has reasonable structure, stable performance, and high precision.

Max.load Capacity 3000Kg
Raw Material Length 2500mm
Cutting Speed 0~460mm/min
X/Y/Z axis Rapid Move Speed 4000/4000/4000mm/min

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

Flat plate Circular Saw Machine

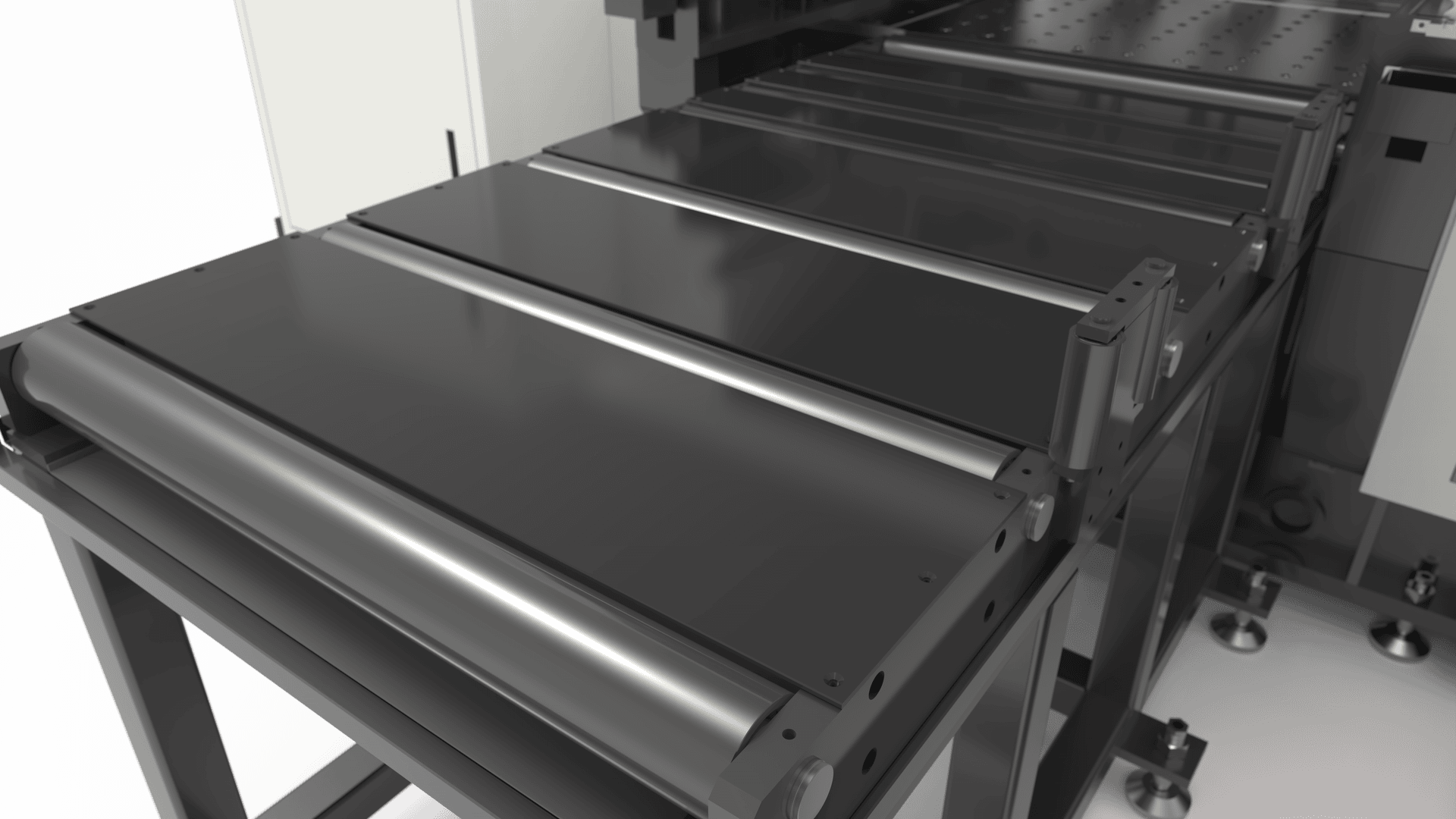

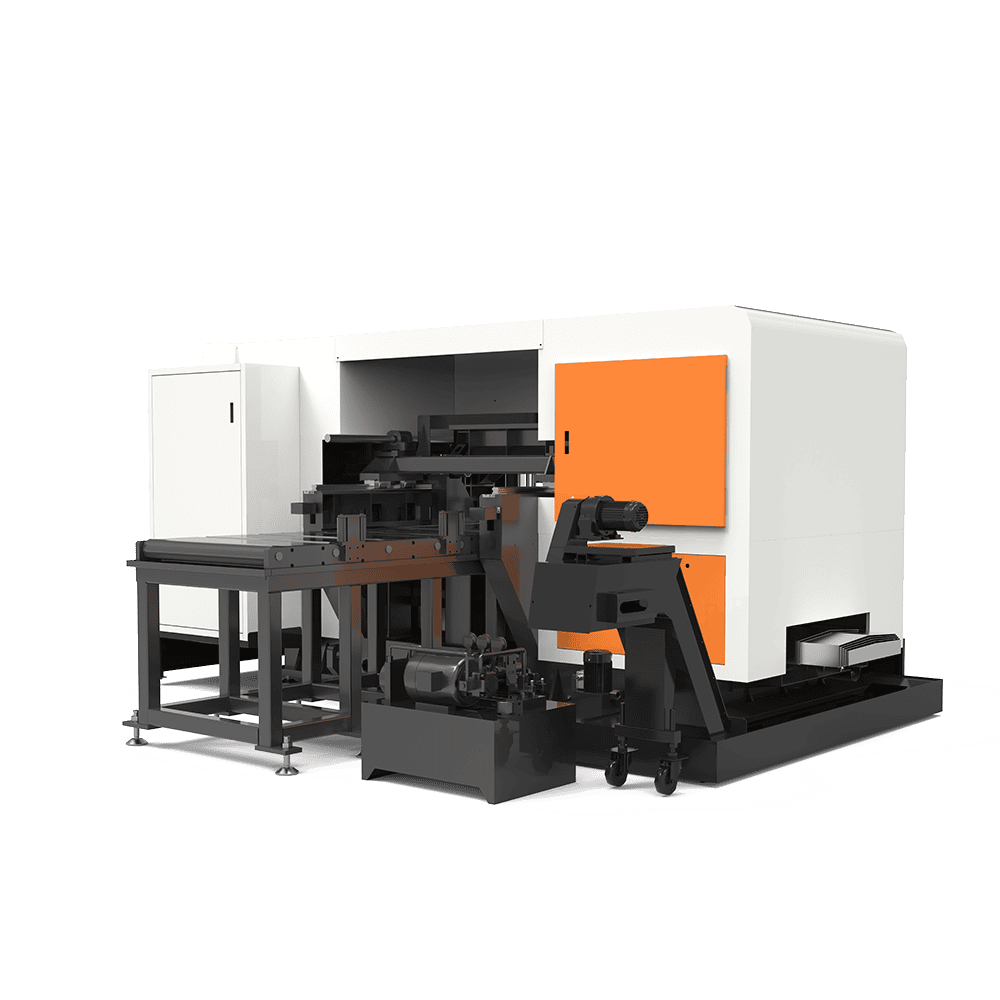

Automatic feeding device

Servo motor drive screw drives feeding jaw feedingpositioning accuracy High, single feeding length of600mm, can be recycled multiple times.

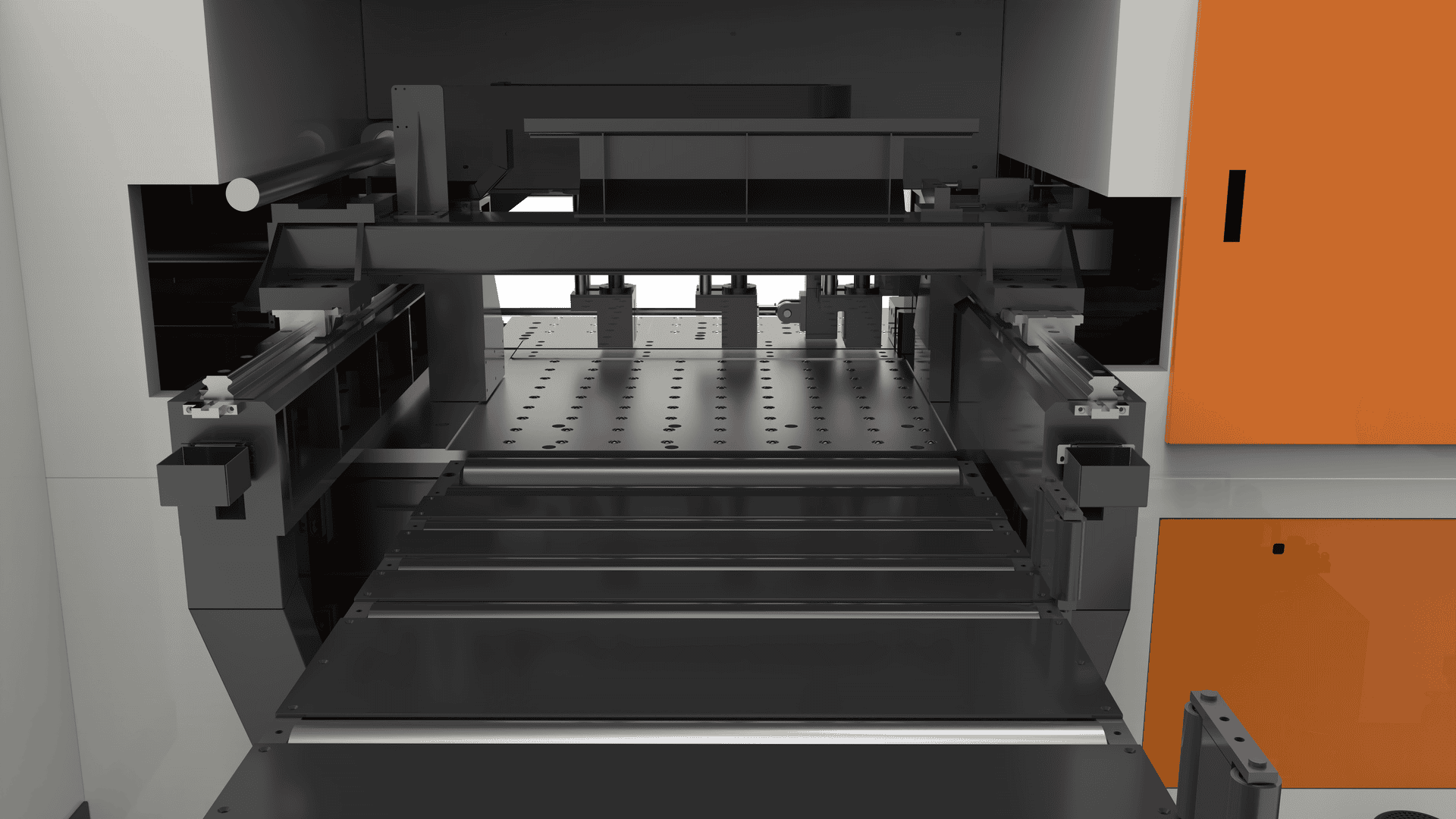

Hydraulic clamping

It is clamped by the upper pressure side top, which is firm and reliable to ensure the sawing accuracy.

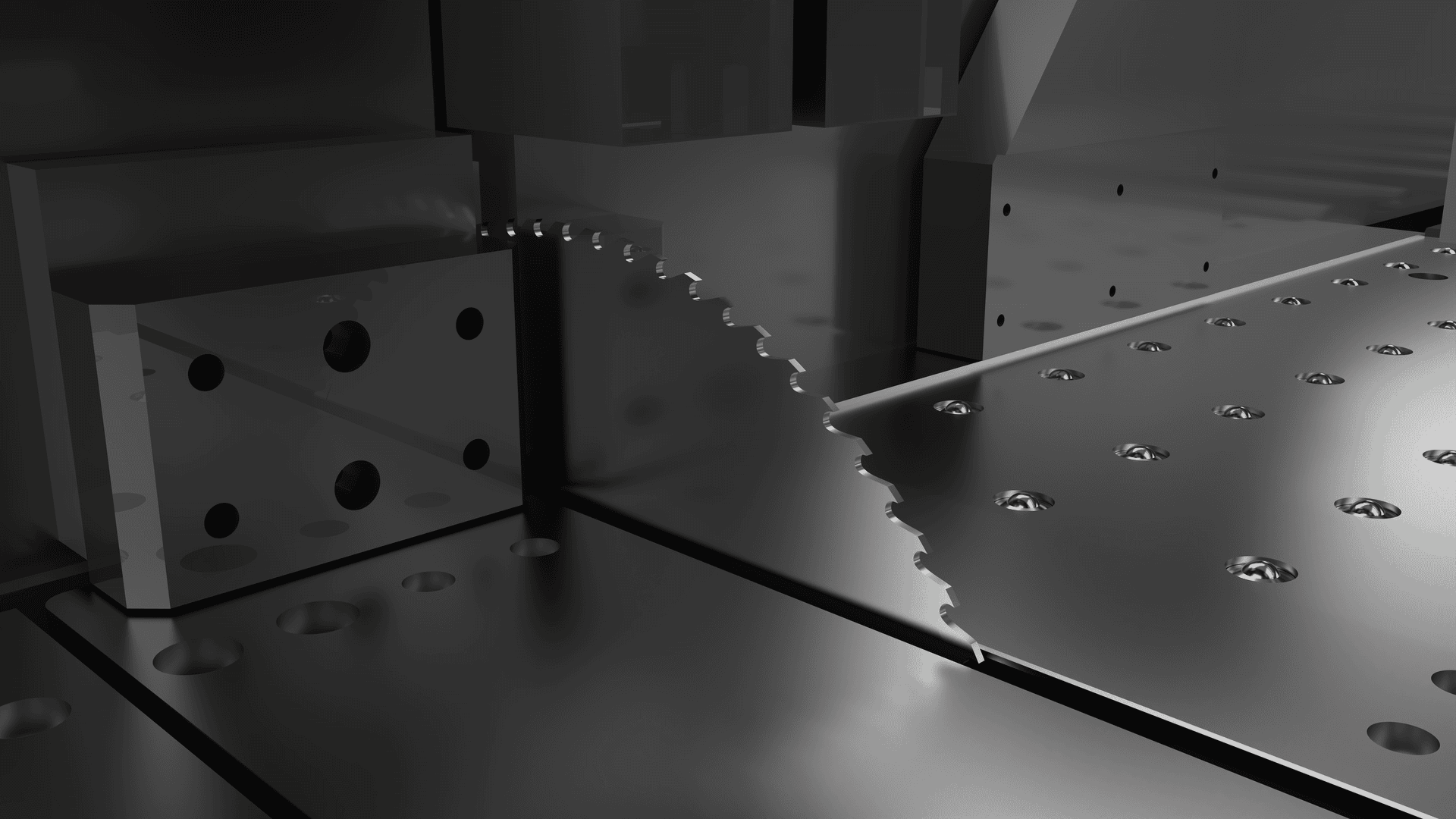

Alloy saw blade cutting

Carbide saw blades are suitable for high-hardness materials, achieving high efficiency, high precision. High surface roughness machining to achieve "sawmilling" effect.

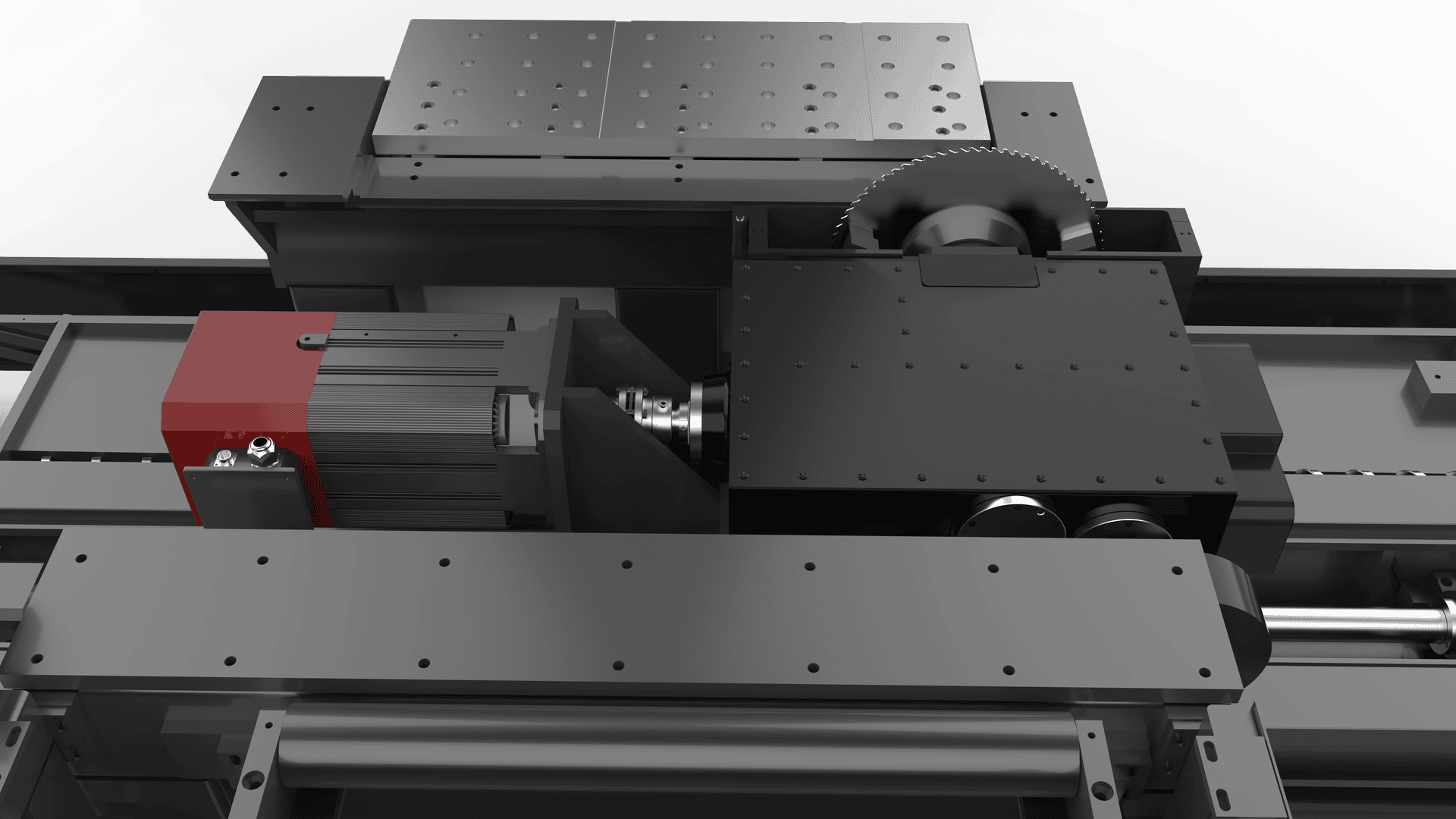

Transmission system

Gear-type headstock structure, with high-power spindle motor to ensure torque the output is strong and stable.

Basic Info

Items	Value
System	LNC System
Sawing Width (mm)	0~1000
Sawing Thickness (mm)	10~(100/125)
Max.load Capacity (Kg)	3000
Raw Material Length (mm)	2500
Cutting Speed (mm/min)	0~460
X/Y/Z axis Rapid Move Speed (mm/min)	4000/4000/4000
Spindle Motor Power (Gear-drive) (kW)	22
Spindle Speed (rpm)	0~120
Blade Size (Thickness*Diameter) (mm)	3.0×φ360/φ390/φ460/φ500
Machine Size (mm)	450035002200
Total Weight (Kg)	12200

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,Asiatools Machinery gets you going!

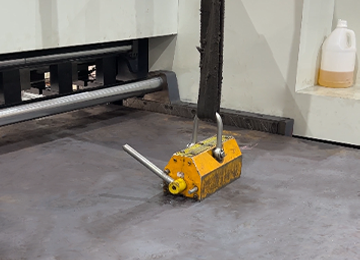

Saw Instead of Milling

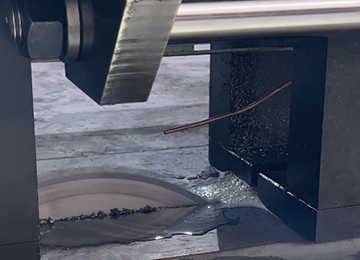

Efficient Cutting

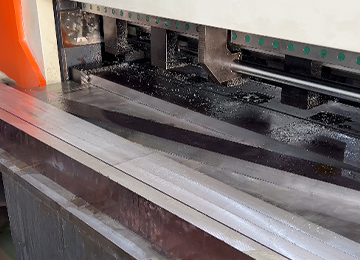

Excellent Cut Surface Finish

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
