Core Features

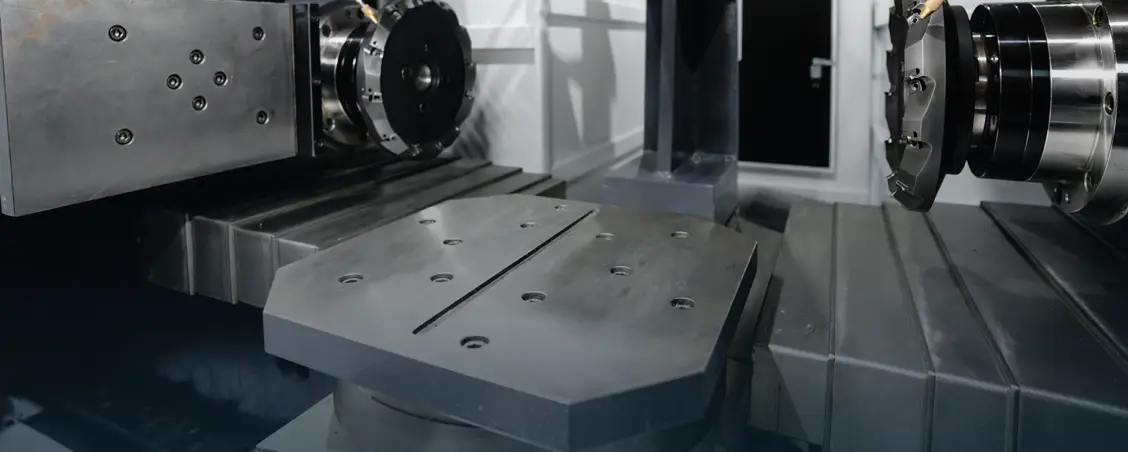

Fully Automatic Chamfering for Maximum Efficiency

Designed for full-auto deburring and chamfering, this machine integrates automatic measuring and cutting, significantly reducing manual work and operator dependency.
Three-Cycle Complete Edge Chamfering

This greatly shortens cycle time while ensuring consistent chamfer quality on every workpiece.
- Chamfer 3 edges at one time
- Only 3 cycles needed to complete all edges
Air-Floating Magnetic Chuck for Multi-Angle Processing

The air-floating magnetic worktable allows effortless rotation and positioning of the workpiece, making multi-angle chamfering faster, safer, and more precise.
Pneumatic & Magnetic Worktable Design

Combines pneumatic support with magnetic clamping to ensure:
- Stable holding
- Quick positioning
- Reduced risk of workpiece movement during chamfering

Fully Automatic Chamfering for Maximum Efficiency

Designed for full-auto deburring and chamfering, this machine integrates automatic measuring and cutting, significantly reducing manual work and operator dependency.
Three-Cycle Complete Edge Chamfering

This greatly shortens cycle time while ensuring consistent chamfer quality on every workpiece.
- Chamfer 3 edges at one time
- Only 3 cycles needed to complete all edges
Air-Floating Magnetic Chuck for Multi-Angle Processing

The air-floating magnetic worktable allows effortless rotation and positioning of the workpiece, making multi-angle chamfering faster, safer, and more precise.
Pneumatic & Magnetic Worktable Design

Combines pneumatic support with magnetic clamping to ensure:
- Stable holding
- Quick positioning
- Reduced risk of workpiece movement during chamfering

Parameter Sheet

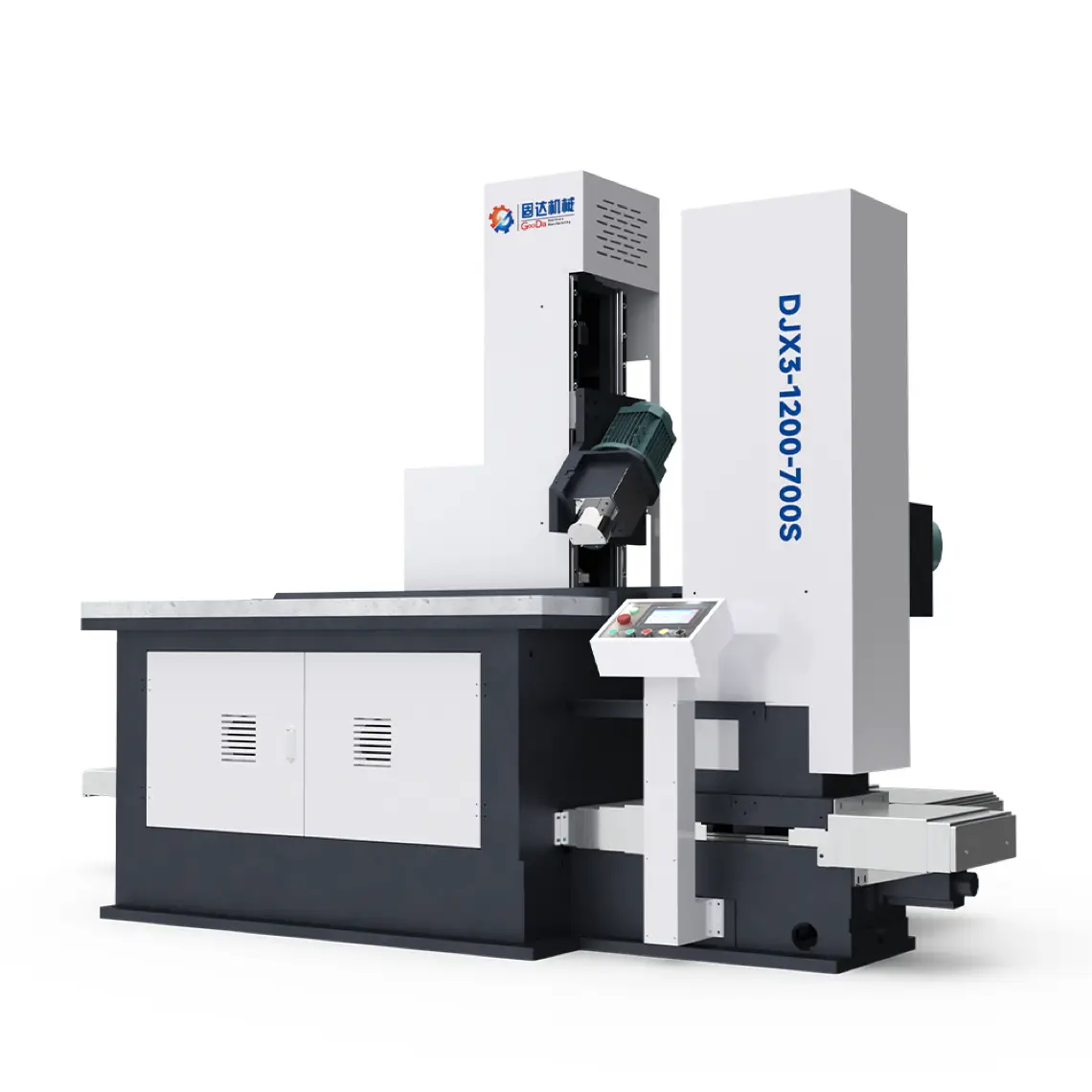

Model	DJX3-1200	DJX3-1000	DJX3-1400
Number of control axes	5	5	5
Max.chamfering size	C4	C4	C4
Processing capacity	(20-300)(150-700)(150-1200)mm	(20-300)(150-600)(150-1000)mm	(20-300)(150-800)(150-1400)mm
Worktable size	700*1350mm	580*1150mm	800*1550mm
Max.load capacity	2000kg	2000kg	2000kg
Spindle motor power	0.75kW	0.75kW	0.75kW
Spindle speed	2825rpm	2825rpm	2825rpm
Cutter diameter	φ90mm	φ90mm	φ90mm
X/N/Z axis rapid feed	4/4/4m/min	4/4/4m/min	4/4/4m/min
Machine size	340017501930mm	318015001930mm	340017002060mm
Machine weight	About 3000Kg	About 2600Kg	About 3400Kg

Full Types of Chamfering Machines

Our machine portfolio offers the perfect fit for your work - from small parts to large-scale workpieces, ensuring you have the right capabilities for any project.

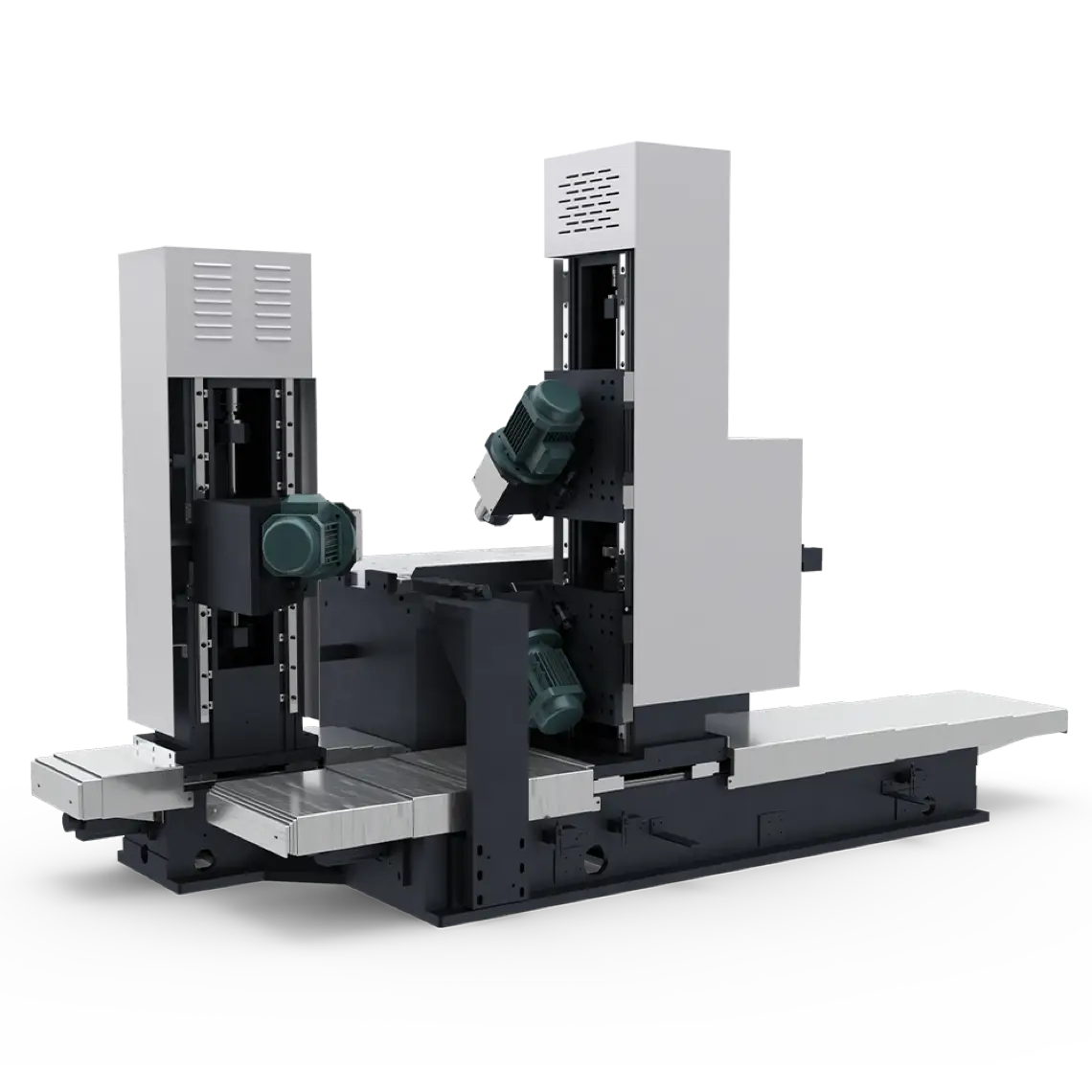

CNC chamfering machine
- CNC Gantry Machining Center
- Automatic measuring and cutting
- Ideal for batch and large-size workpieces
- Minimal operator influence
Get Quote

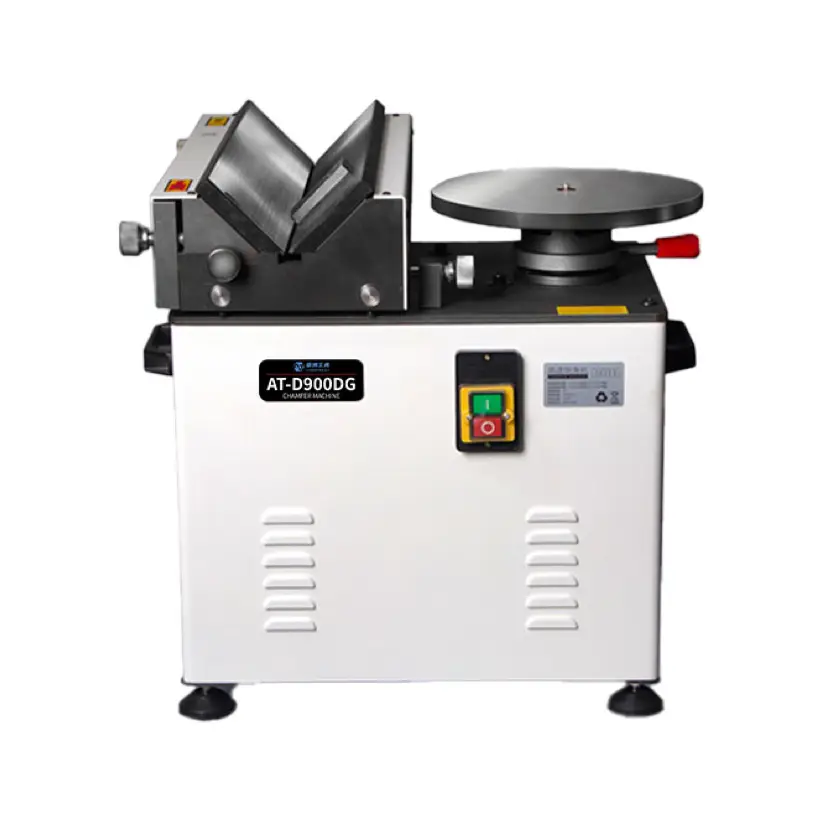

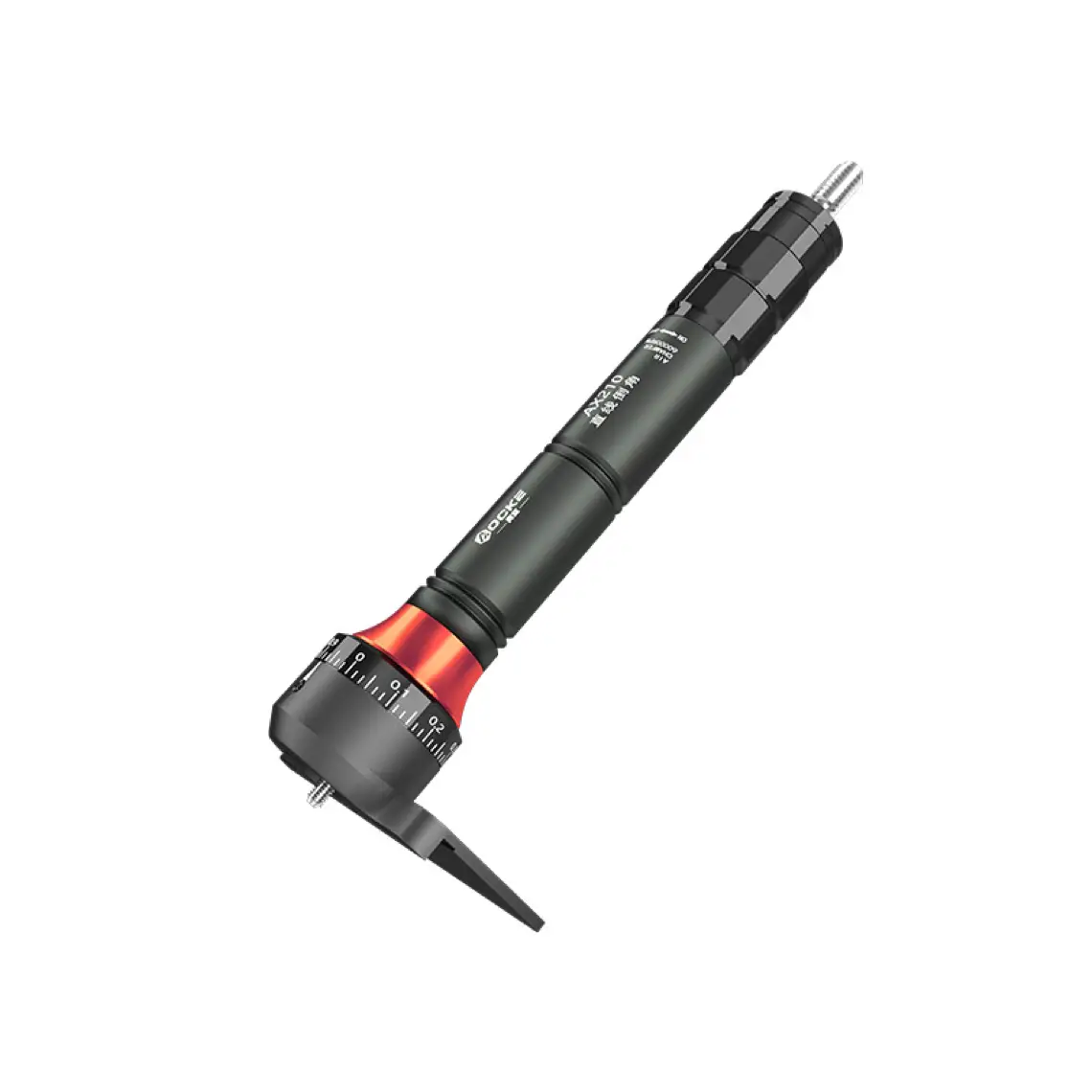

Compund chamerfing machine
- Handheld and lightweight design
- Cost-effective
Get Quote
Portable chamfering machine
- Best for workshops needing multiple chamfering functions in one machine - chamfering straight angles, arcs, and irregular curves
Get Quote

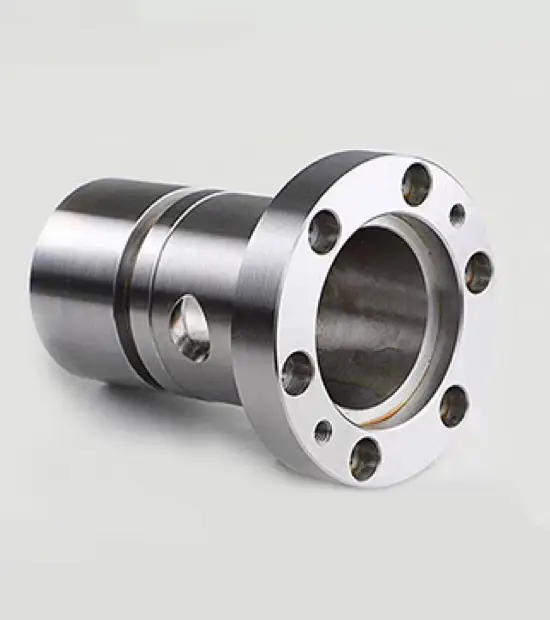

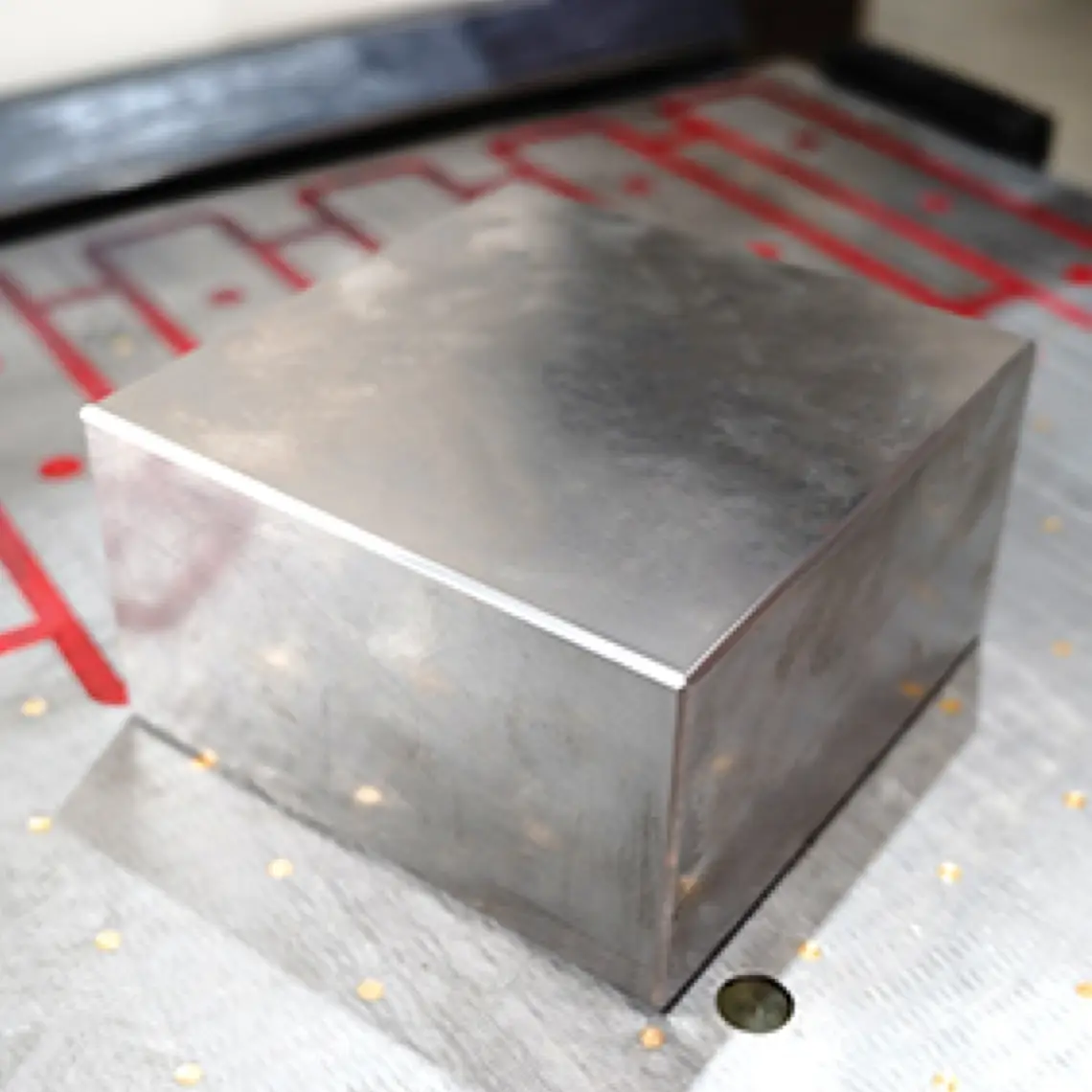

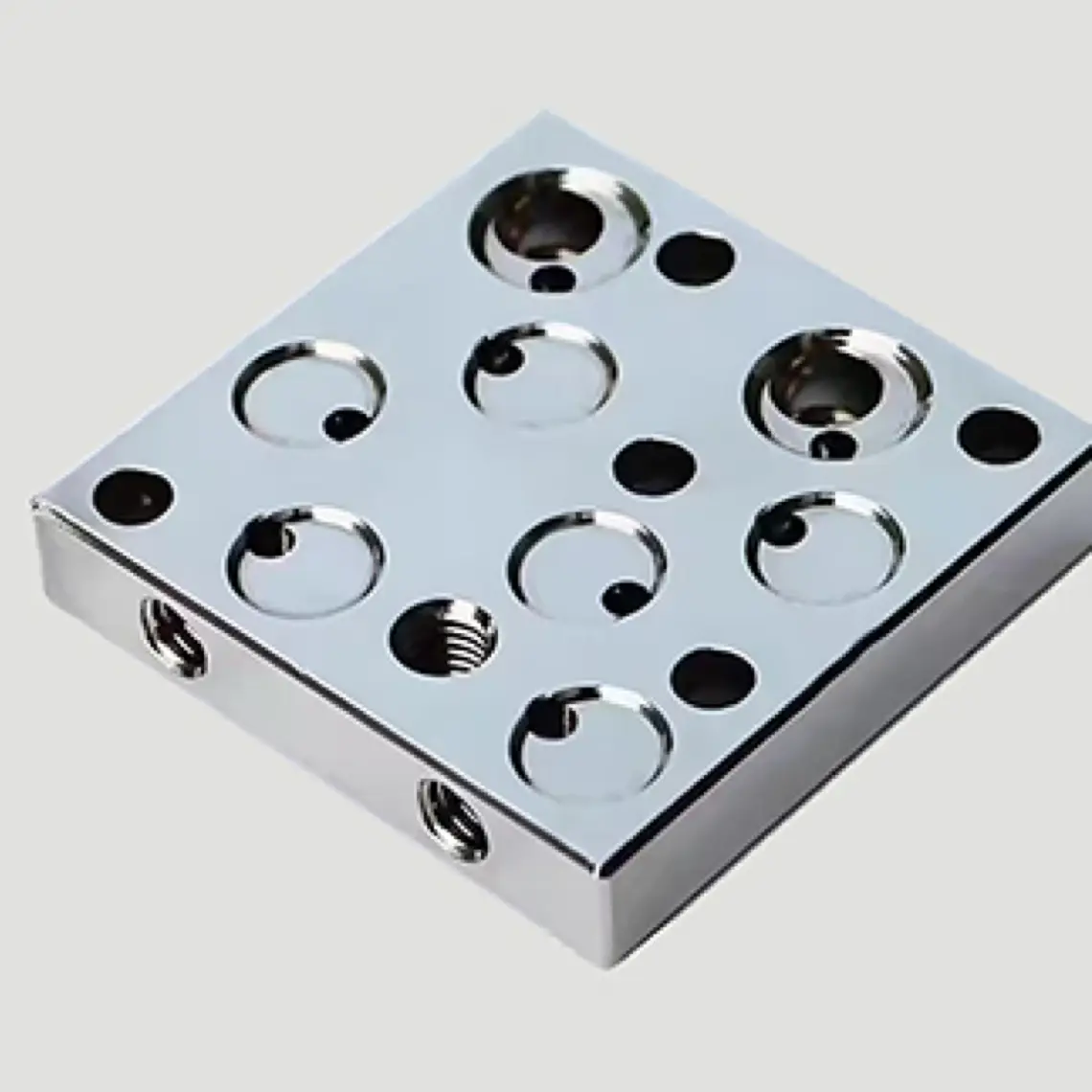

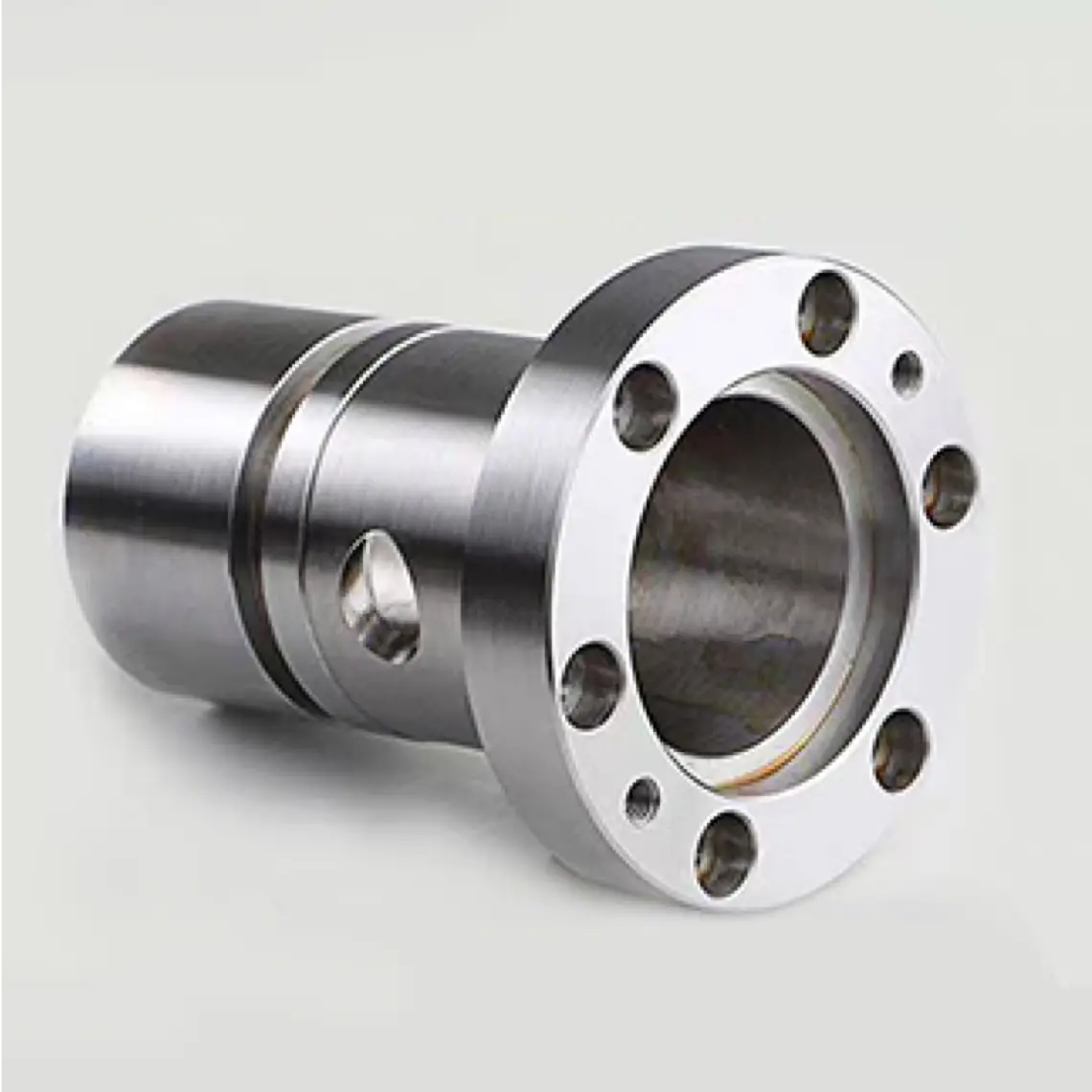

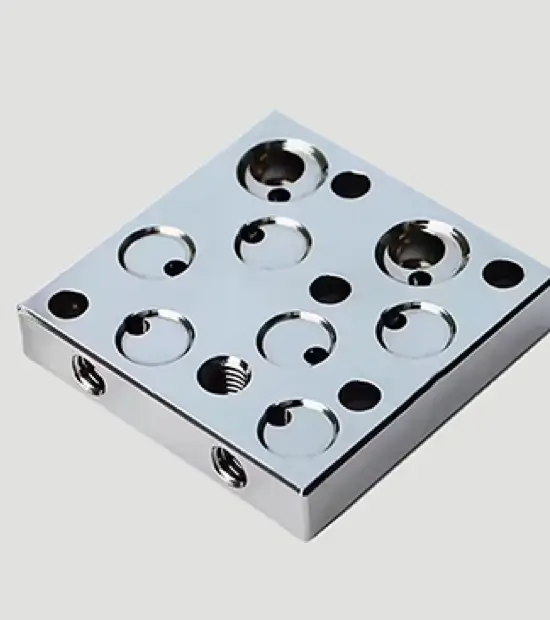

Featured Applications

Comprehensive After-Sales Service & Long-Term Support

Our partnership with customers continues long after the purchase. We provide comprehensive after-sales services to help you install, operate, and maintain your equipment with confidence.

If You Purchase New Equipment, You Receive:

Shipment scheduling and onsite installation
Customs clearance and forwarding assistance
Equipment commissioning and performance verification
Onsite training for operators and maintenance personnel

For Existing Users, We Provide Ongoing Support:

Preventive maintenance and calibration
Service and repair
Spare parts supply and replacement
Remote diagnostics and troubleshooting
Additional training and skill development
