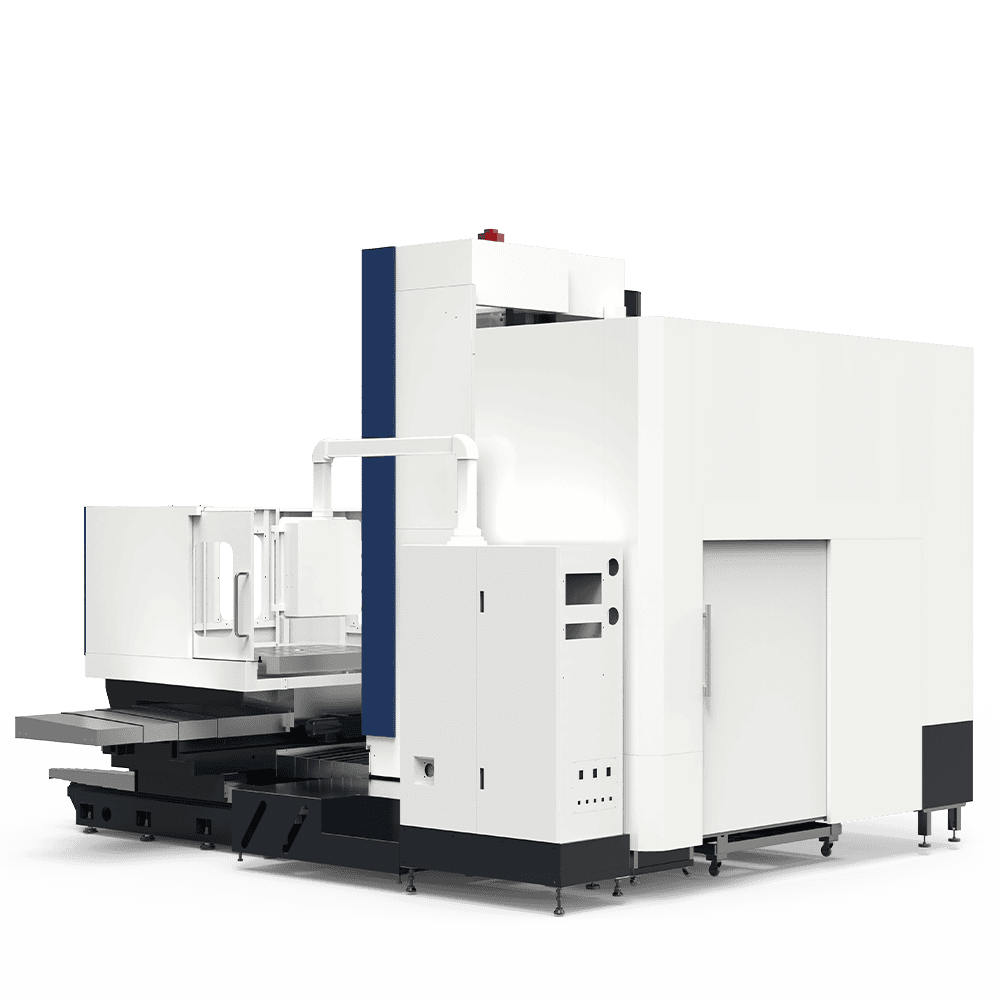

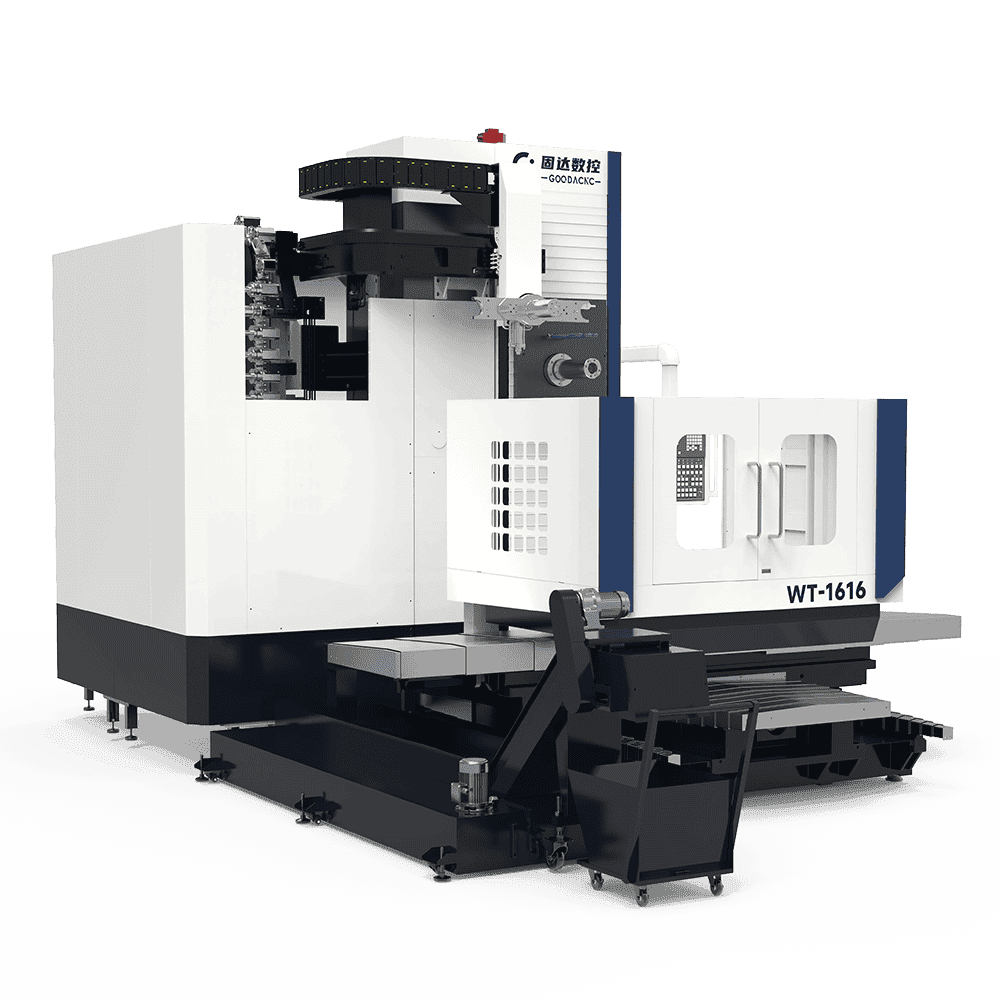

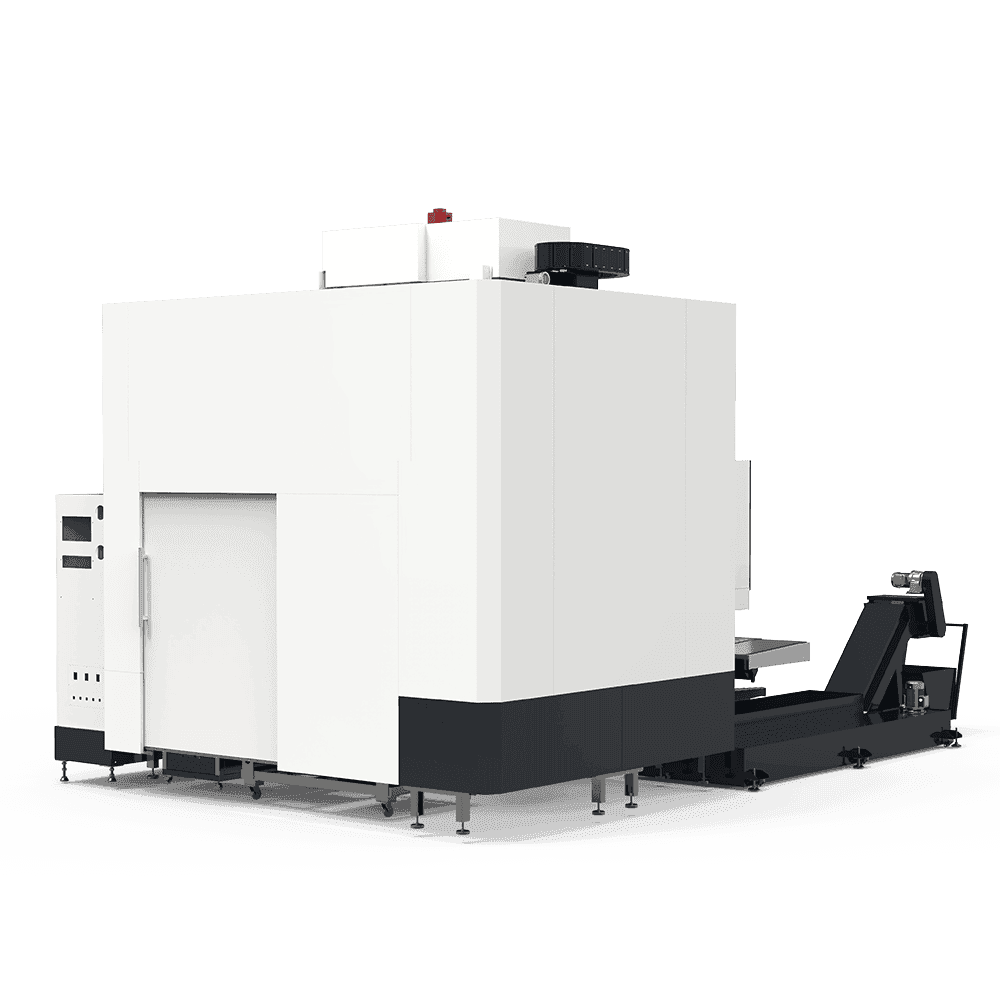

Horizontal Boring & Milling Machining Center

The machine has functions such as boring, milling, drilling (drilling, expanding, reaming), tapping, etc. Travels X-Y-Z: 2000*1200*1500mm. Worktable size: 1400*1200mm.

  • Max. X-axis travel 3500mm
  • Max. Y-axis travel 2000mm
  • Max. Z-axis travel 900mm
  • Max. load capacity 30000Kg

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING
Contact

Horizontal Boring & Milling Machining Center

Basic Info

ItemsUnitWT-3020(Planer-typetable)

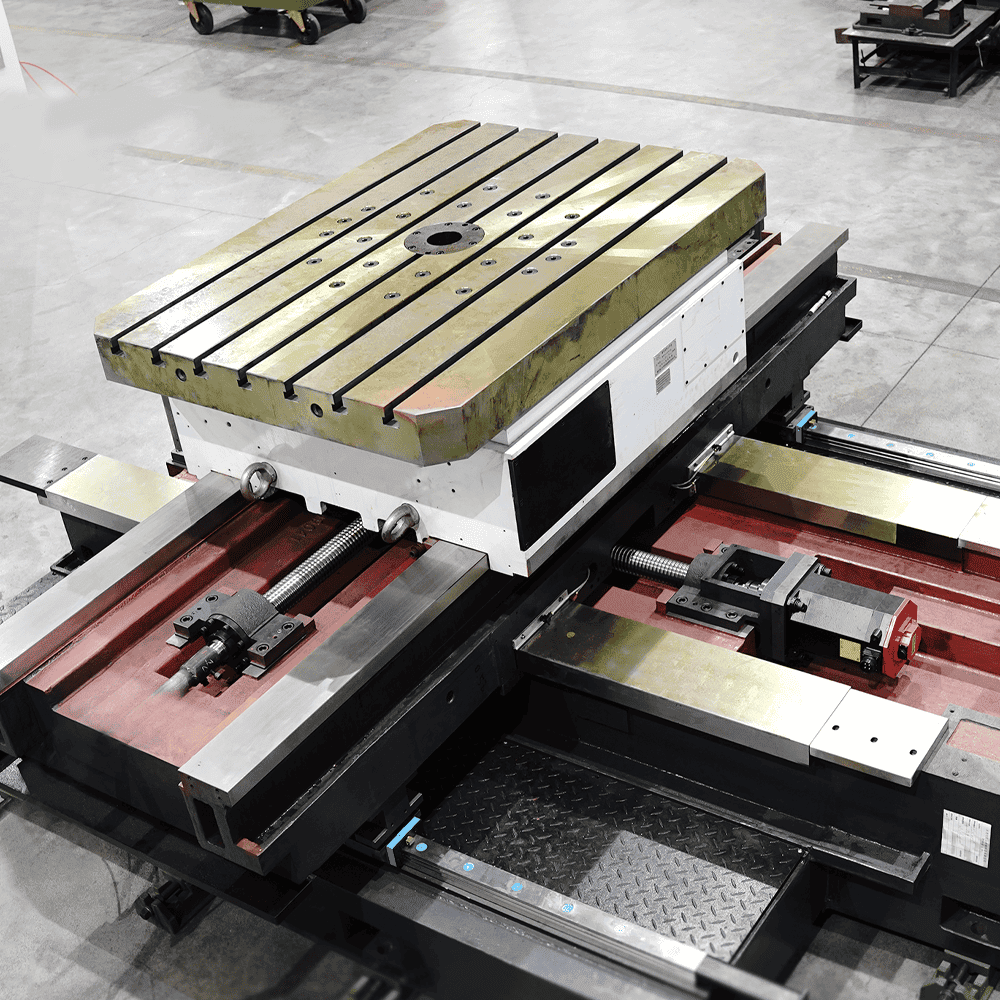

WorktableWorktable sizemm2500×1800
Max.load capacityKg30000
T-slot size specsmm9-28×160
Max.load capacityKg30000
TravelXaxis travelmm3500
Y axis travelmm2000
Zaxis travelmm900(optional1200/1600)
W axis travelmm800

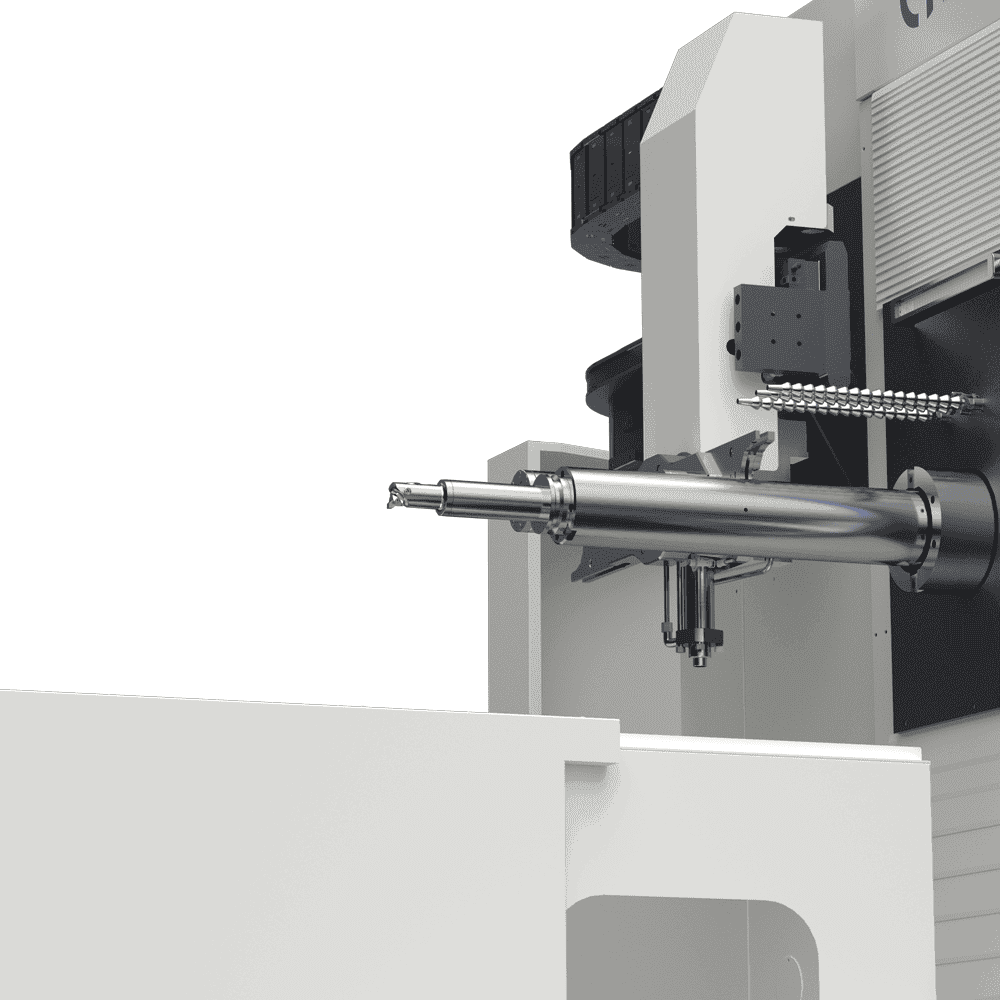

SpindleBoring spindle diameter/ spindle tapermmφ130/BT50
Boring spindle speedrpm10～2000
Spindle motor powerkW22/26
Boring spindle torqueNm3000
Index tableIndex table diameter/ slider stroke(U axis)mmφ600/100
FeedX/Y/Z axis rapid feedm/min10/10/10/5
Tool magazine Tool capacity-40T/60T(optional)
AccuracyX/Y/Z/W positioning accuracymm0.02/1000
OthersMachine sizem7.6×5.4×4.3
Machine weight(approx.)kg38000

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,Asiatools Machinery gets you going!

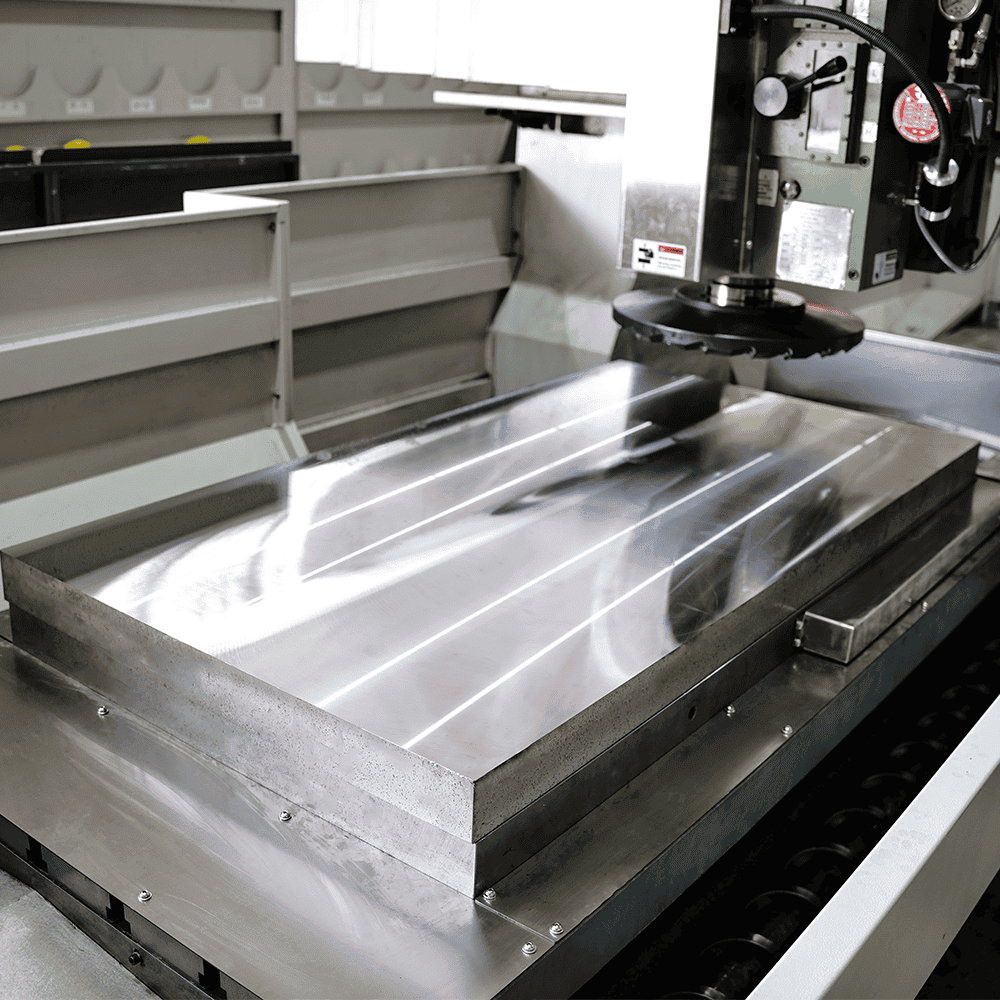

Precision （ground）plate Precision （ground）plate

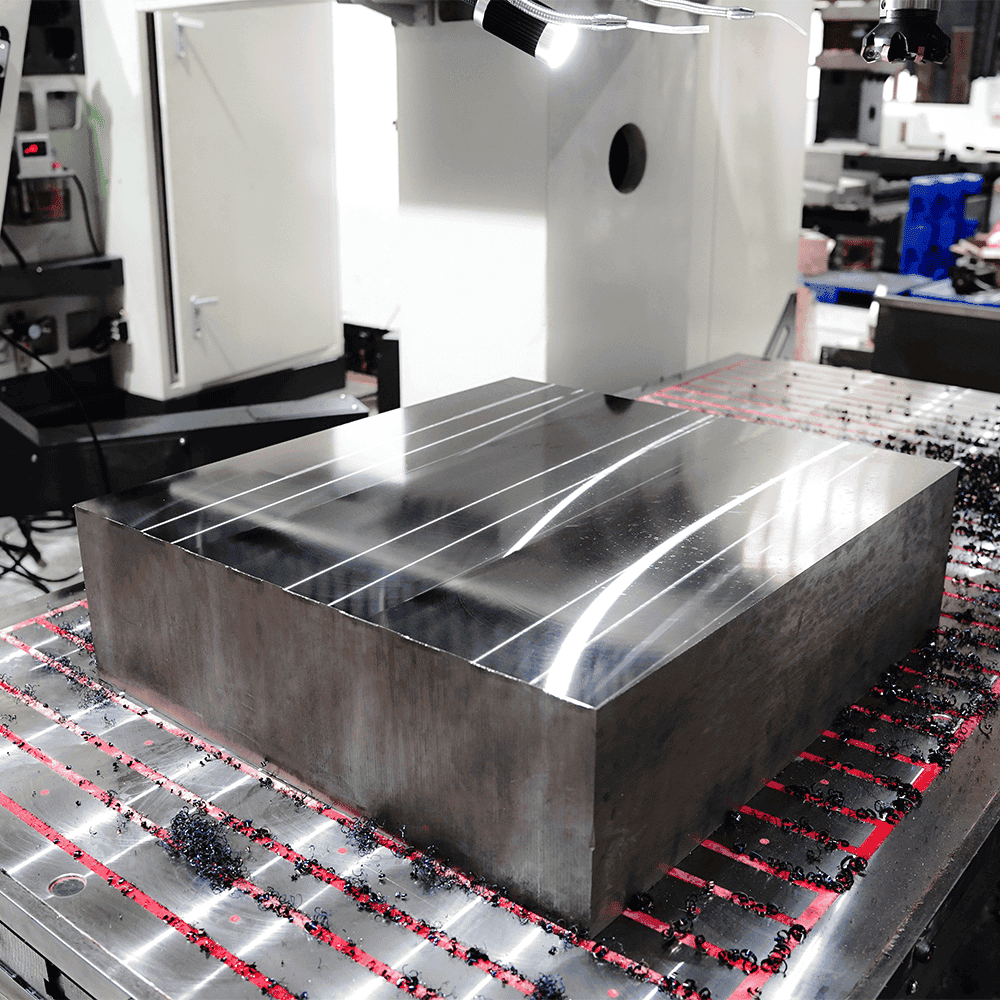

Machining plate Machining plate

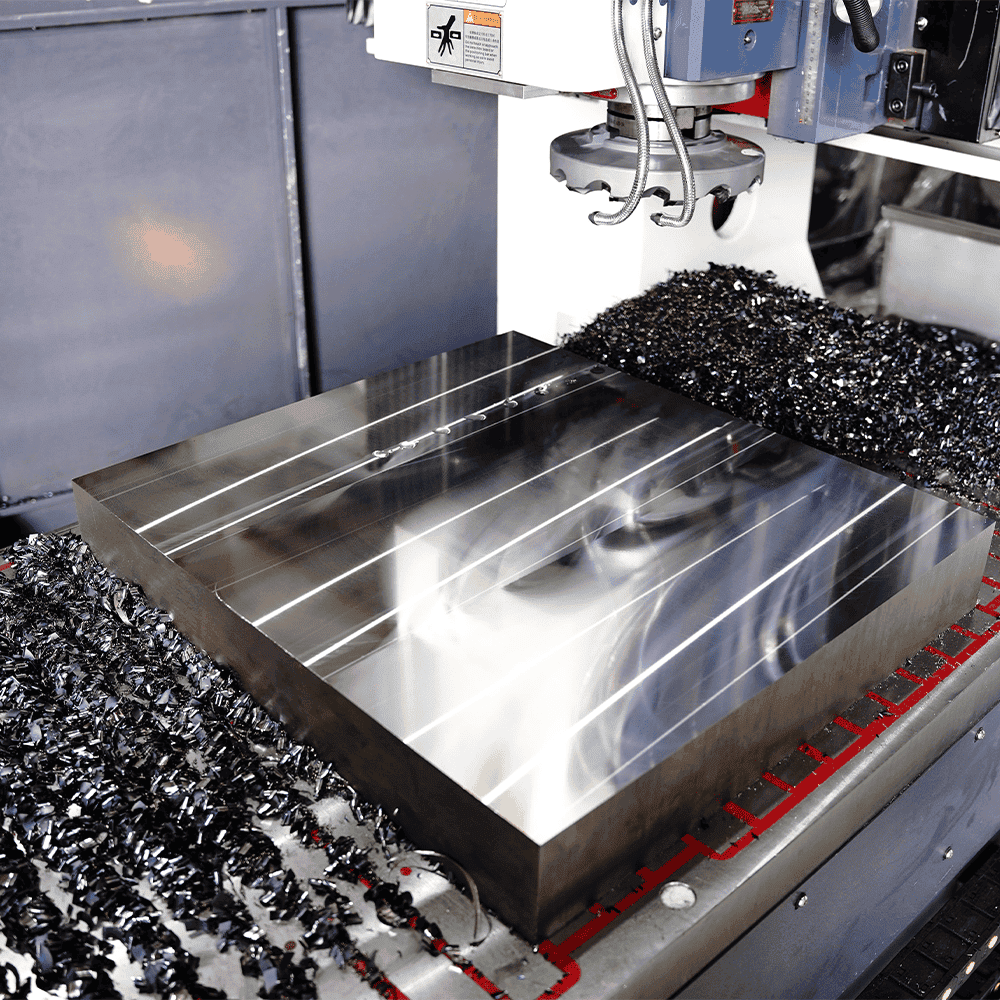

Custom（steel）plate Custom（steel）plate

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.
MITSUBISHI CONTROLLER

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.
CHINA CONTROLLER

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.
