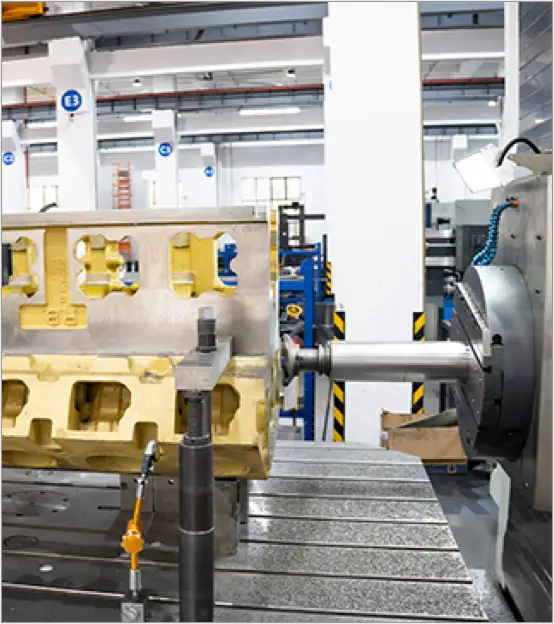

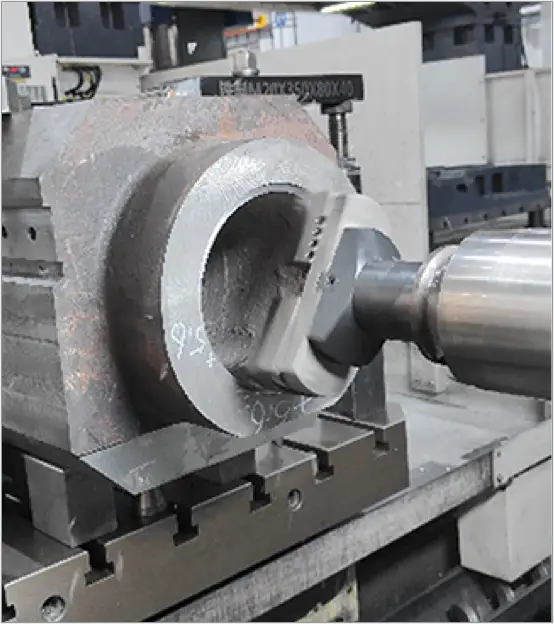

ASIATOOLS Horizontal Boring and Milling Machining Center Series features a high-rigidity, heavy-load base design. The powerful boring bar module designed for robust metal removal, enables efficient deep-hole boring and precision milling of heavy molds and large box parts.

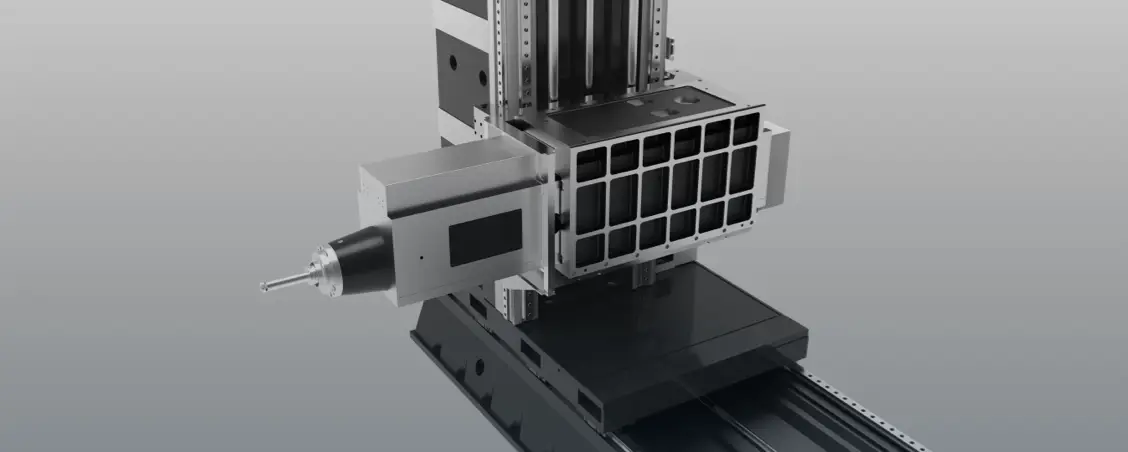

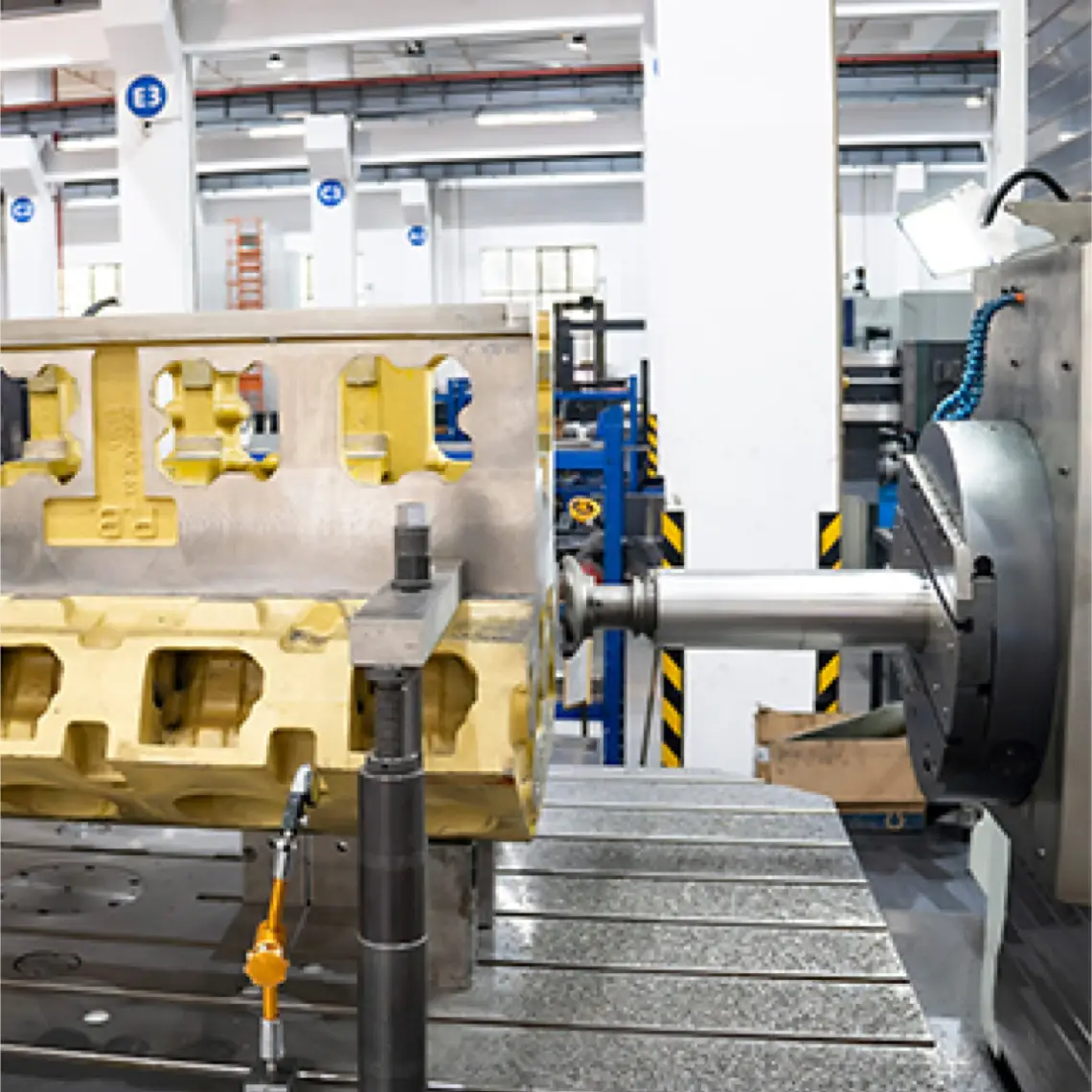

The extendable boring quill (W-axis) allows the machine to reach deep into large gearbox housings or engine blocks to machine internal bores with high precision. Unlike standard mills that require long, unstable tool holders, our boring bar remains rigid even at full extension, ensuring perfect concentricity deep inside the part.

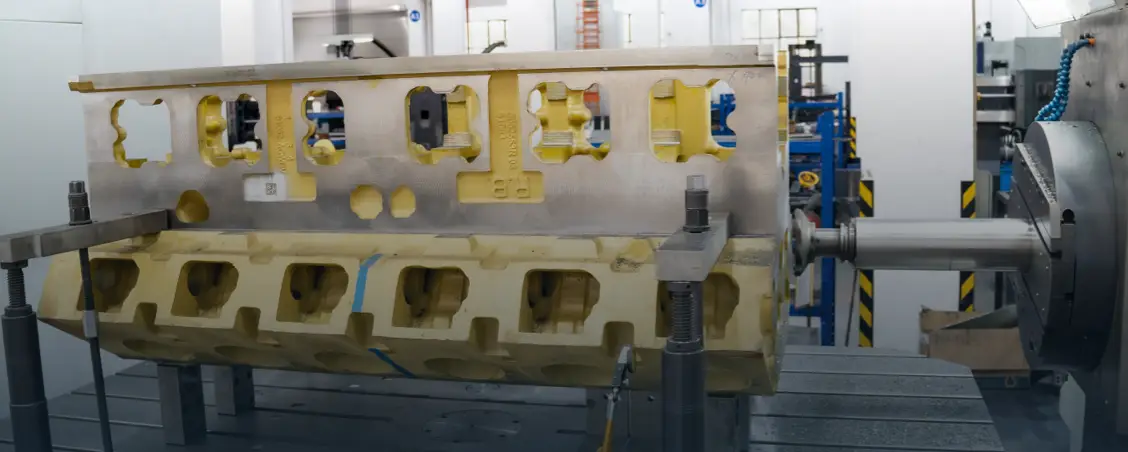

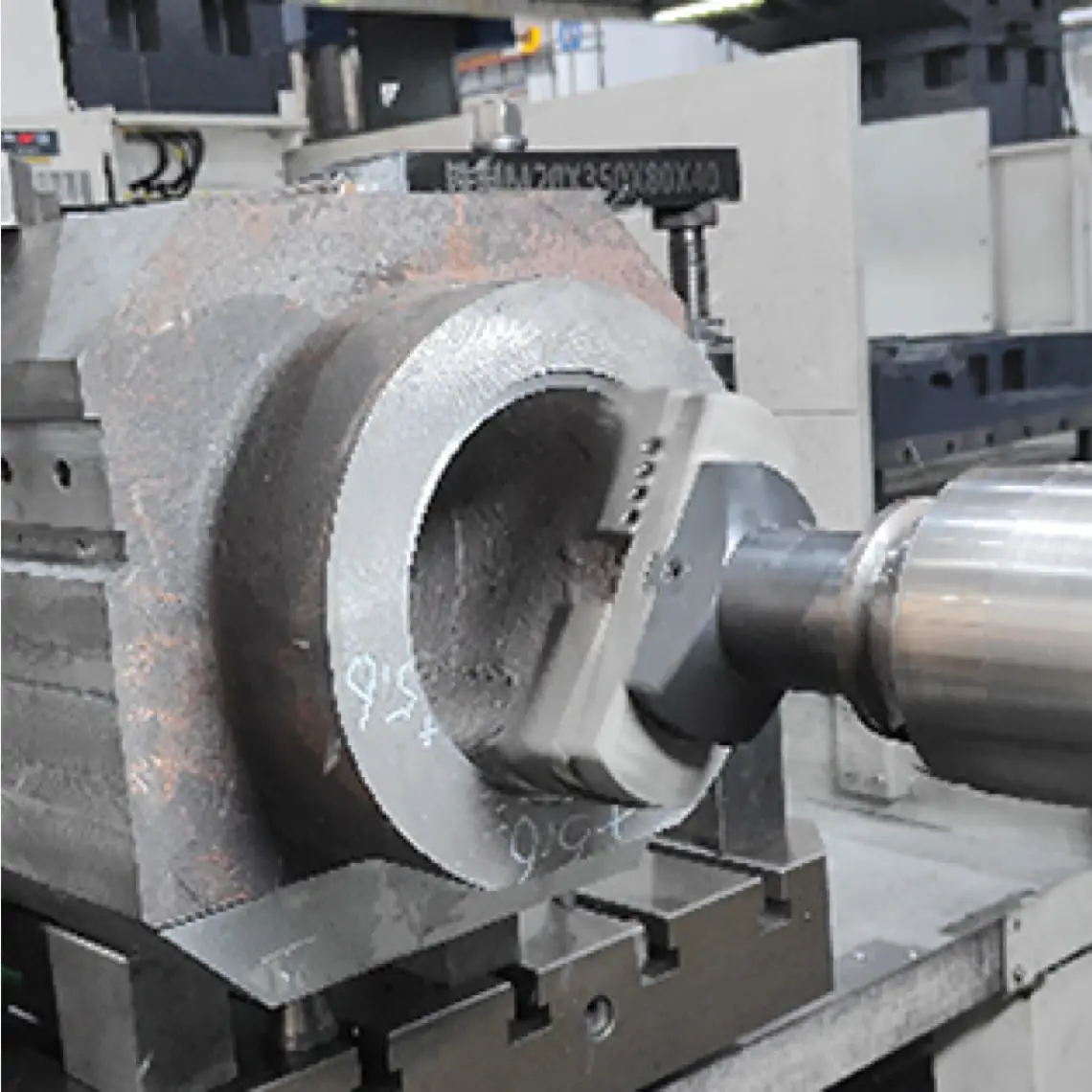

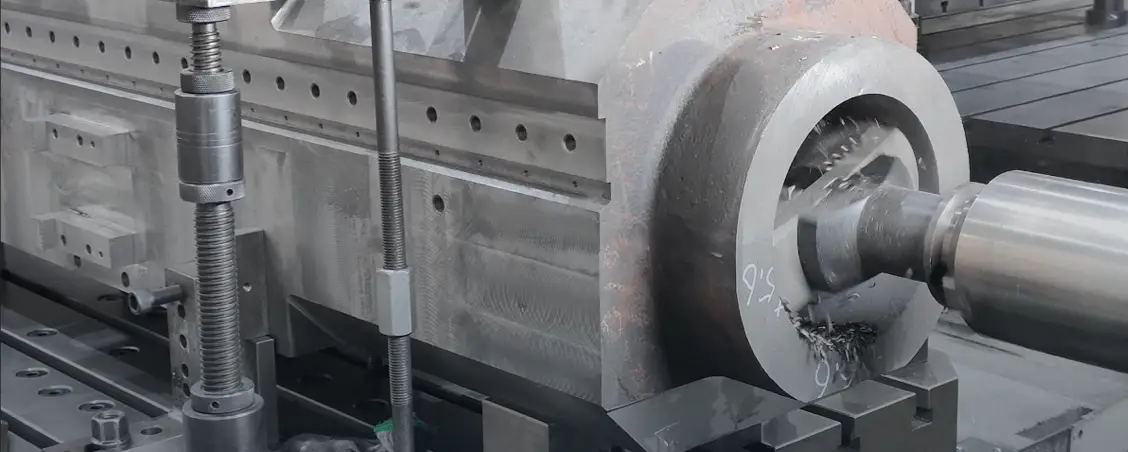

This machine isn't just for finishing; it's a roughing beast. The massive torque allows for robust metal removal on tough forgings and castings. You can take heavy cuts to remove material quickly, drastically reducing cycle times on large-diameter boring operations.

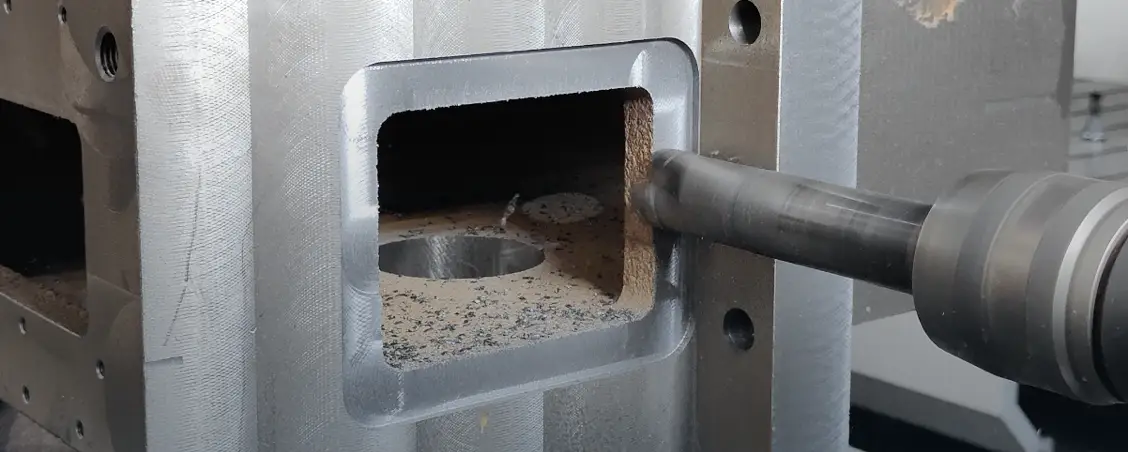

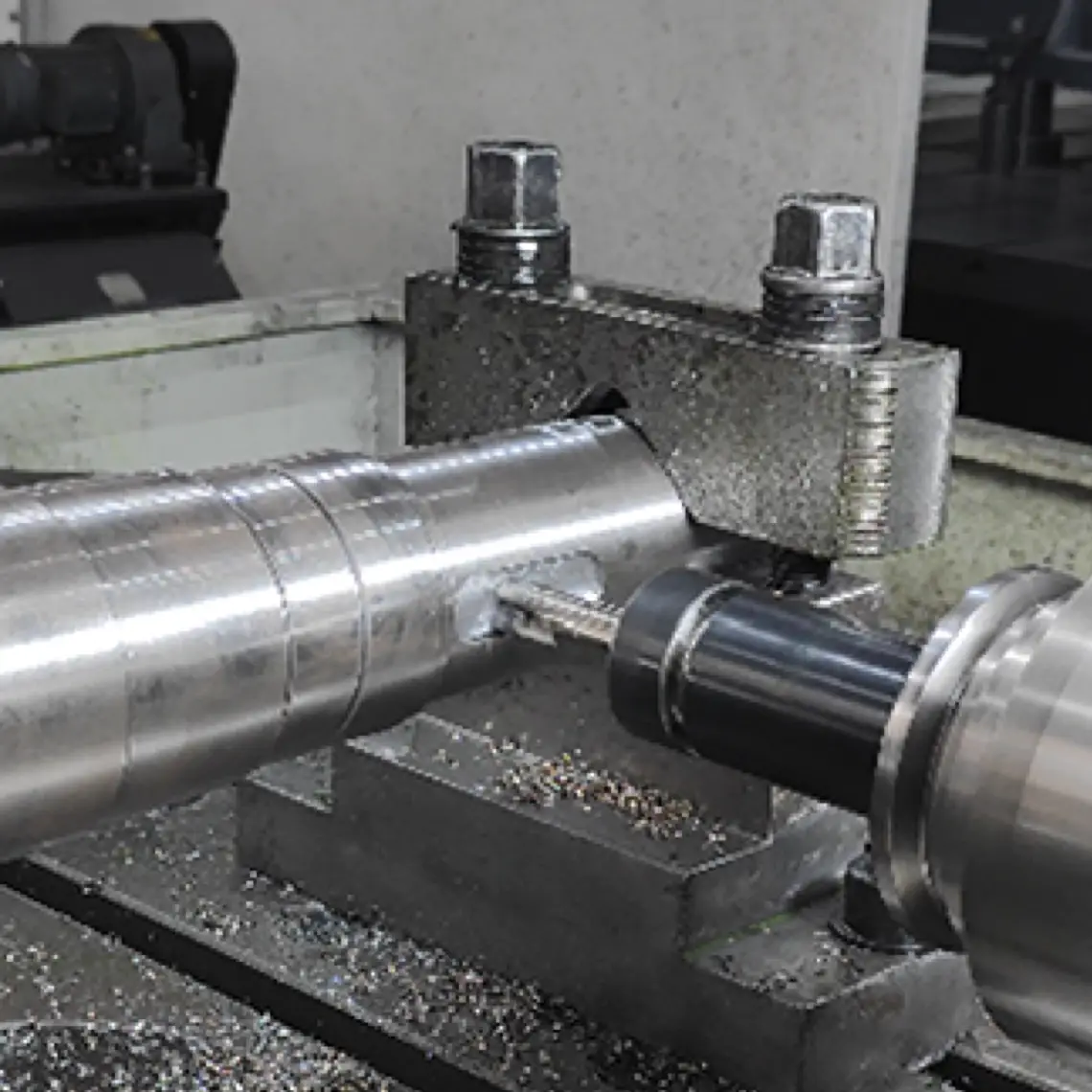

Instead of moving a heavy 5-ton casting from a boring machine to a milling machine, ASIATOOLS handles it all. You can face-mill the surface and line-bore the holes in a single setup. This significantly reduces handling time and cumulative errors caused by re-clamping.

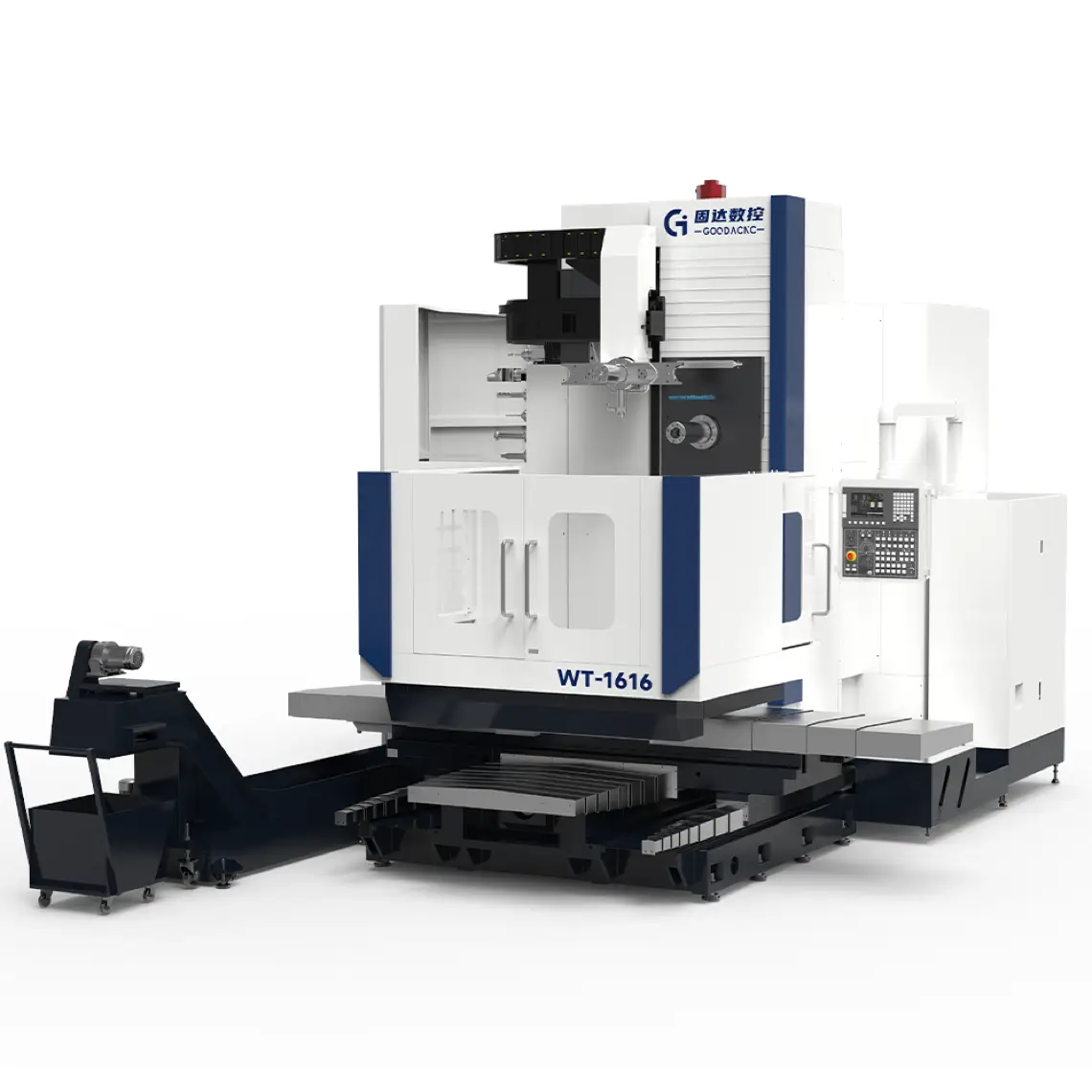

| Model | WT-1616 |
|---|---|
| Worktable size | 1350*1000mm |
| Max.load capacity | 5T |
| T-slot | 7-22×125 |
| X-axis travel | 1600mm |
| Y-axis travel | 1600mm |
| Z-axis travel | 1200mm |
| W-axis travel | 550mm |
| X/Y/Z/W | 6310/6310/6310/5010mm |
| Tool holder specifations | BT50-130-1200 |
| Rapid feed rate X/Y/Z/W | 10/10/10/5m/min |
| Cutting feed rate X/Y/Z/W | 2/2/2m/min |
| Positioning accuracy(X/Y/Z/W) | 0.02/1000mm |
| Repeat positioning accuracy(X/Y/Z/W) | 0.015/1000mm |
| Chain type tool magazine | 40T |
| X/Y/Z/W/B servo motor | 37/37/37/27/27N·m |
| Spindle motor | 15/18.5KW |
| Rated voltage | AC380V±10%V |
| Total power | 40KW |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | 18T |
| Machine size (L*W*H) | 6613*4460mm |

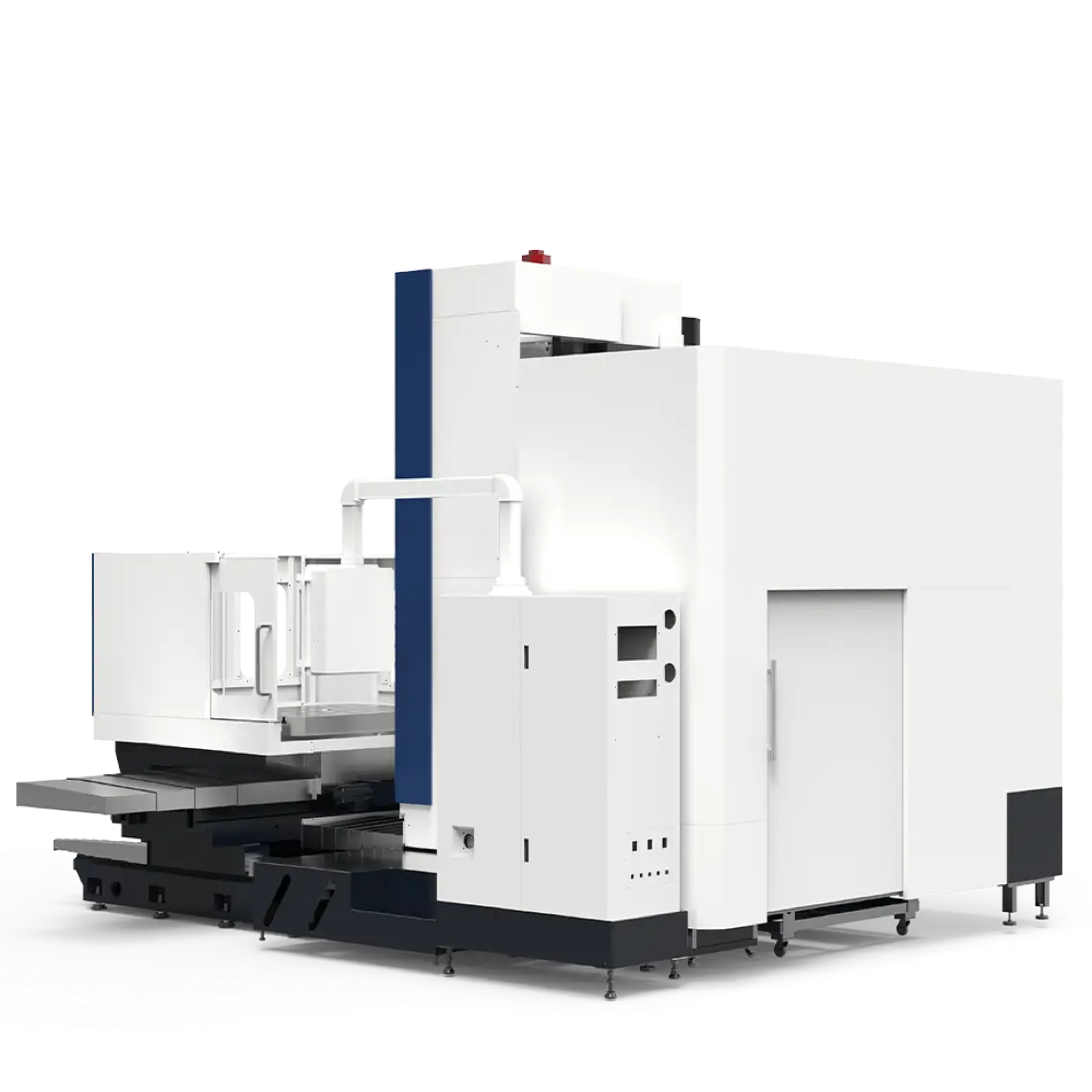

Our machine portfolio offers the perfect fit for your work - from small parts to large-scale workpieces, ensuring you have the right capabilities for any project.
| Model | X/Y/Z Axis travel | Max.load capacity | Worktable size | |
|---|---|---|---|---|
| WT-1616 | 1600*1600*1200mm | 5000kg | 1350*1000mm | |
| WT-2016 | 2000*1600*1600mm | 10000kg | 1800*1600mm | |
| WT-3020 | 3500*2500*900mm | 30000kg | 2500*1800mm | |
| WT-4030 | 4000*3000*2000mm | 30000kg | 2200*2000mm | |
| SWT-4012 | 4000*1500*1200mm | 15000kg | 1300*4000mm | |
| SWT-6012 | 6000*1500*1200mm | 20000kg | 1300*6000mm | |
| SWT-8012 | 8000*1500*1200mm | 25000kg | 1300*8000mm |
Our partnership with customers continues long after the purchase. We provide comprehensive after-sales services to help you install, operate, and maintain your equipment with confidence.
