lm-4032

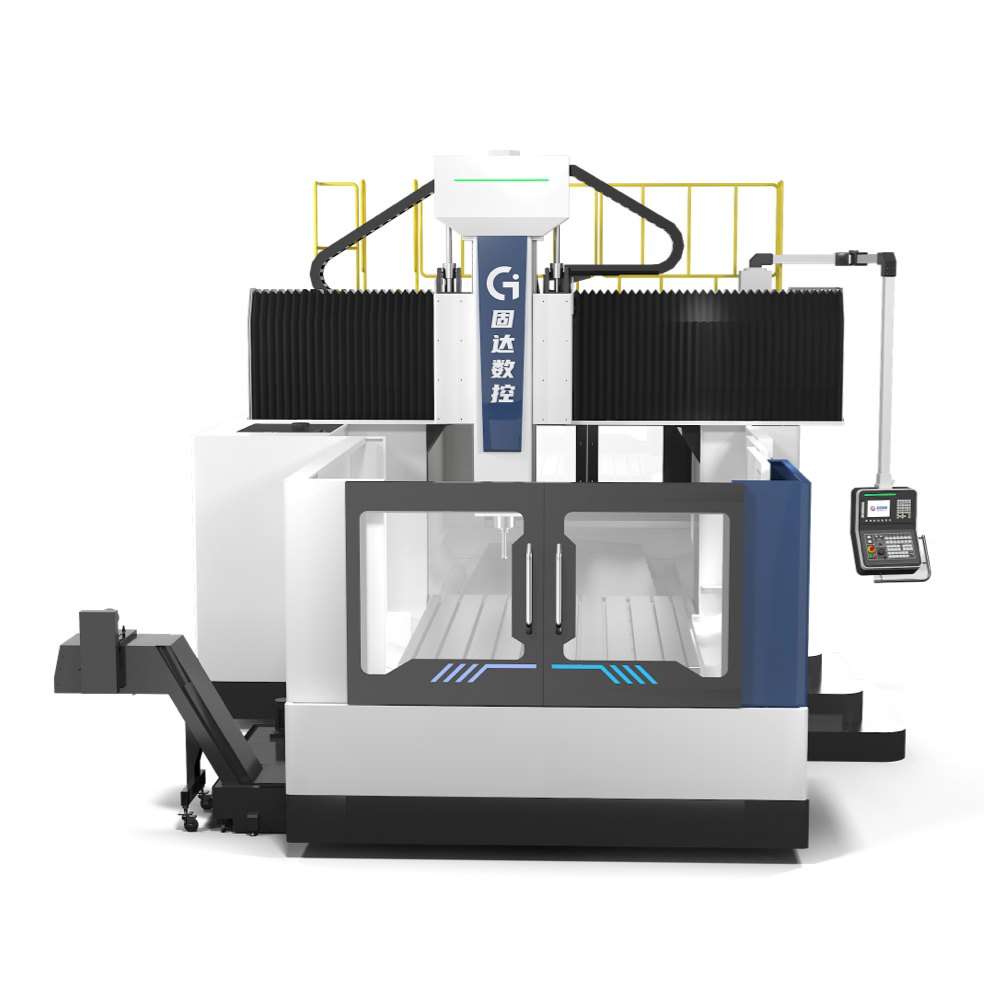

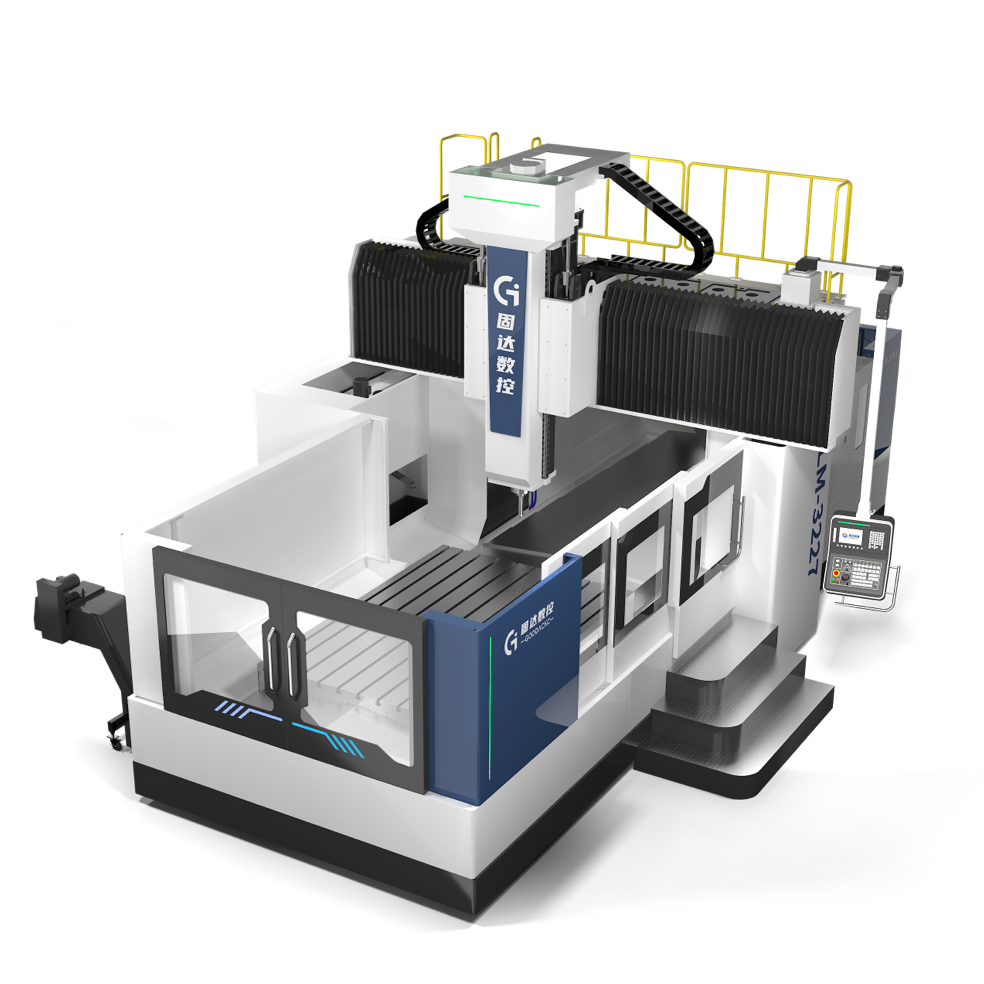

LM-4032

Double-Column Machining Center

A single clamping of the workpiece can complete various processes such as milling, boring, drilling, and tapping. The bed is cast as a whole structure. Optional configurations include tool magazines and 90°angle milling heads as needed. Widely used in the machining of large components in industries such as shipbuilding, aerospace, machinery, transportation, automotive, and petrochemicals.

Max. X-axis travel 3200mm
Max. Y-axis travel 2760mm
Max. Z-axis travel 1000mm
Max. load capacity 10000KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

Double-Column Machining Center

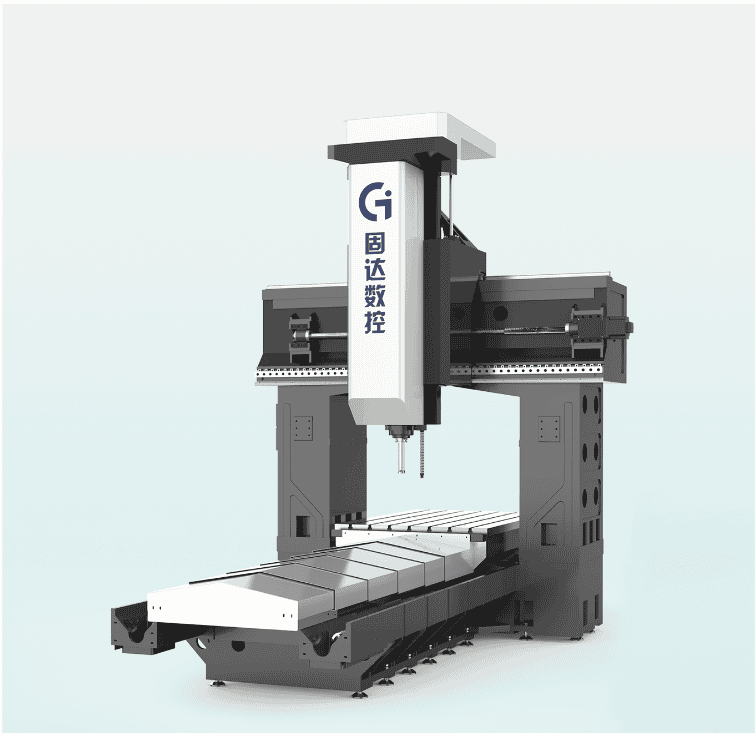

Double column structure

The rigidity of the gantry structure with square columns enables it to withstand loads in multiple directions and torsion, maintaining high precision while heavy cutting.

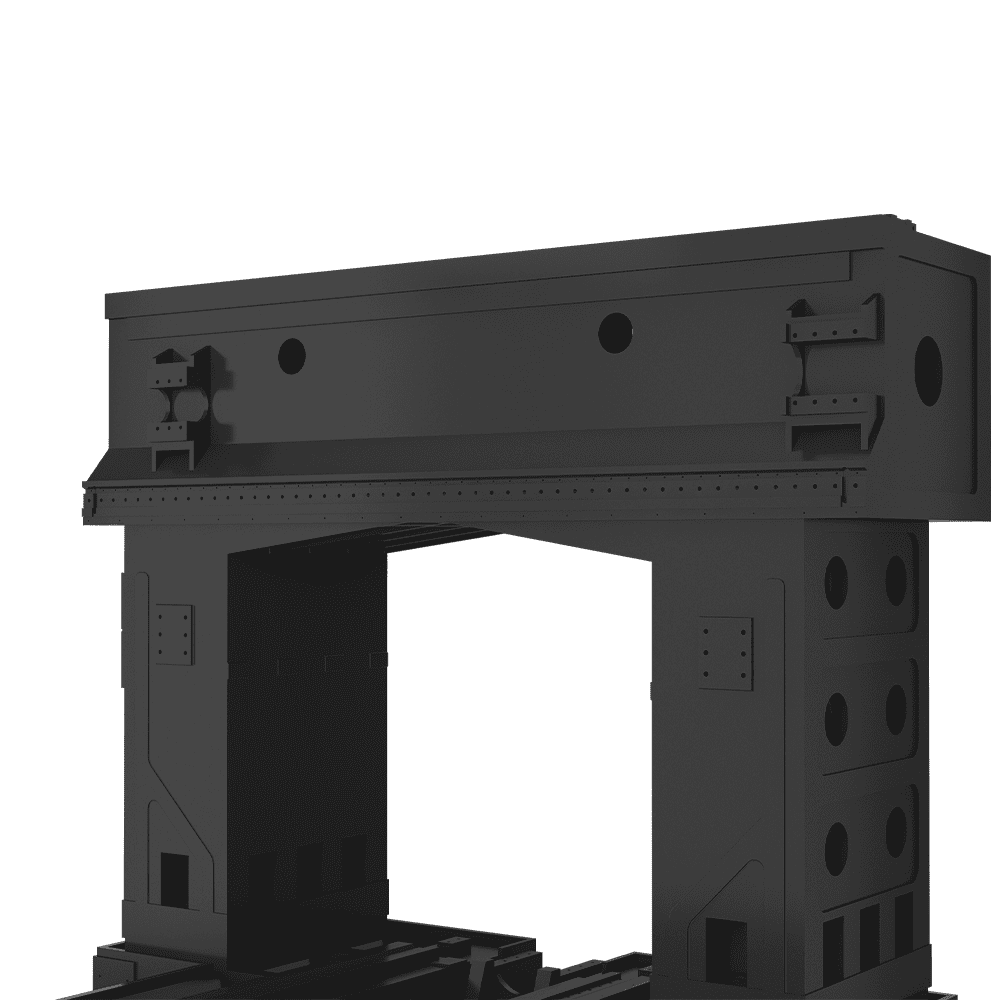

Strong crossbeam

Integration of the top beam and crossbeam achieves a robust construction, ensuring stable machining quality over the long term.
User-friendly design

The protective cover can be optional to effectively prevent the splashing of chips and cutting fluid. Enhanced Chip Handling Capability.

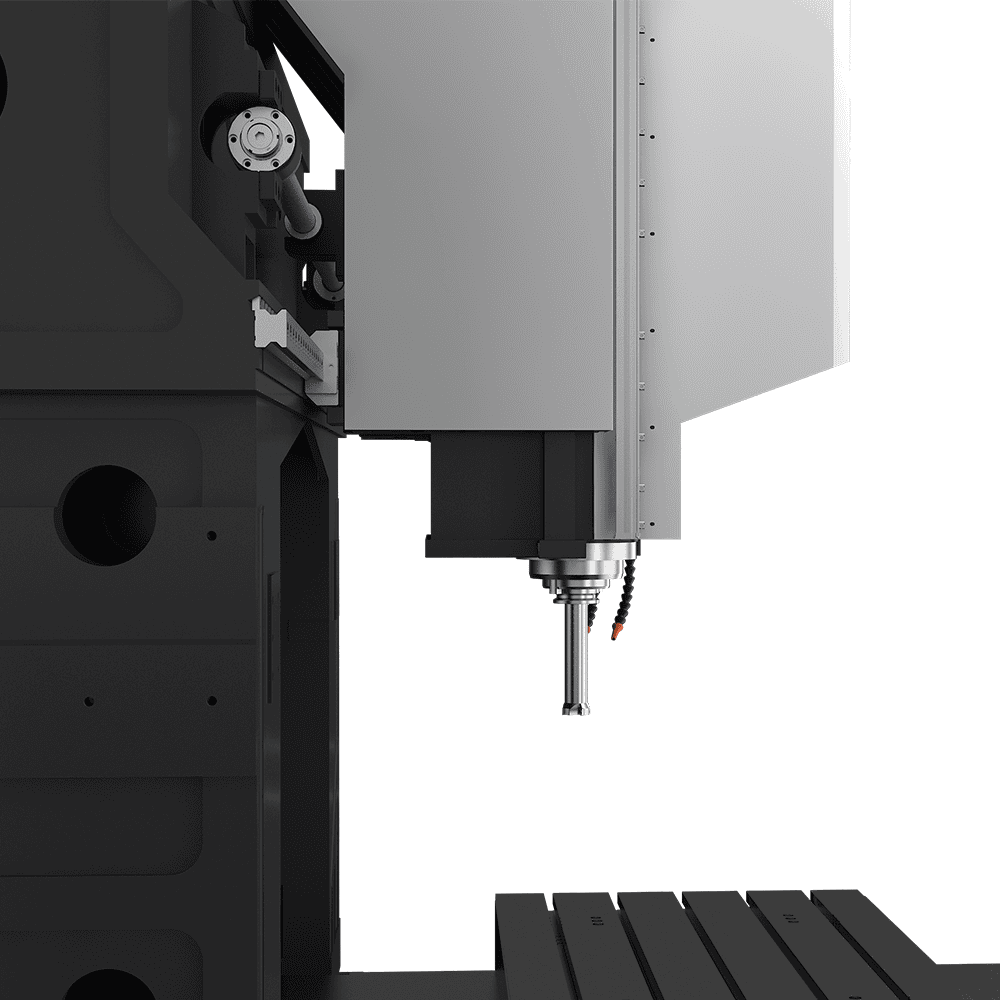

Machine casting

The castings use dovetails and multi-box type structures, allowing for minimal stress and resistance to torsional deformation, and excellent vibration absorption performance.

Basic Info

	Items	unit	LM-4032NC/6032NC/8032NC
Worktable	Worktable size	mm	3000×4000(6000/8000)
Worktable	Max.load capacity	kg	15000(20000/25000)
	X axis travel	mm	4200(6000/8000)
	Y axis travel	mm	3200
Travel	Z axis travel	mm	1250(option 1500)
	Columns net width	mm	3200
	Mininum distance from spindle nose to table	mm	330(option 250/500)
Spindle	Spindle driven mode		Direct connection+GTP gearbox
	Spindle motor power	kW	22/26(option 30/37)
	Spindle taper	-	BT50
	Max.spindle speed	rpm	6000
	Square ram cross-sectional area	mm	500×500(hardened guideway)
Feed	X/Y/Z axis rapid move speed	m/min	10/10/10
Tool Magazin	e Tool capacity	T	32T(option 40T/60T)
Tool Magazin	e Tool capacity	T	32T(option 40T/60T)
Accuracy	Positioning accuracy	mm	±0.003/300
	Positioning accuracy	mm	±0.003/300
	Total power required	KVA	60
Others	Machine size	m	10.2(13.8/18.6)×6.2x5.9
	Machine size	m	10.2(13.8/18.6)×6.2x5.9
	Machine weight (approx.)	kg	46000/58000/70000

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,Asiatools Machinery gets you going!

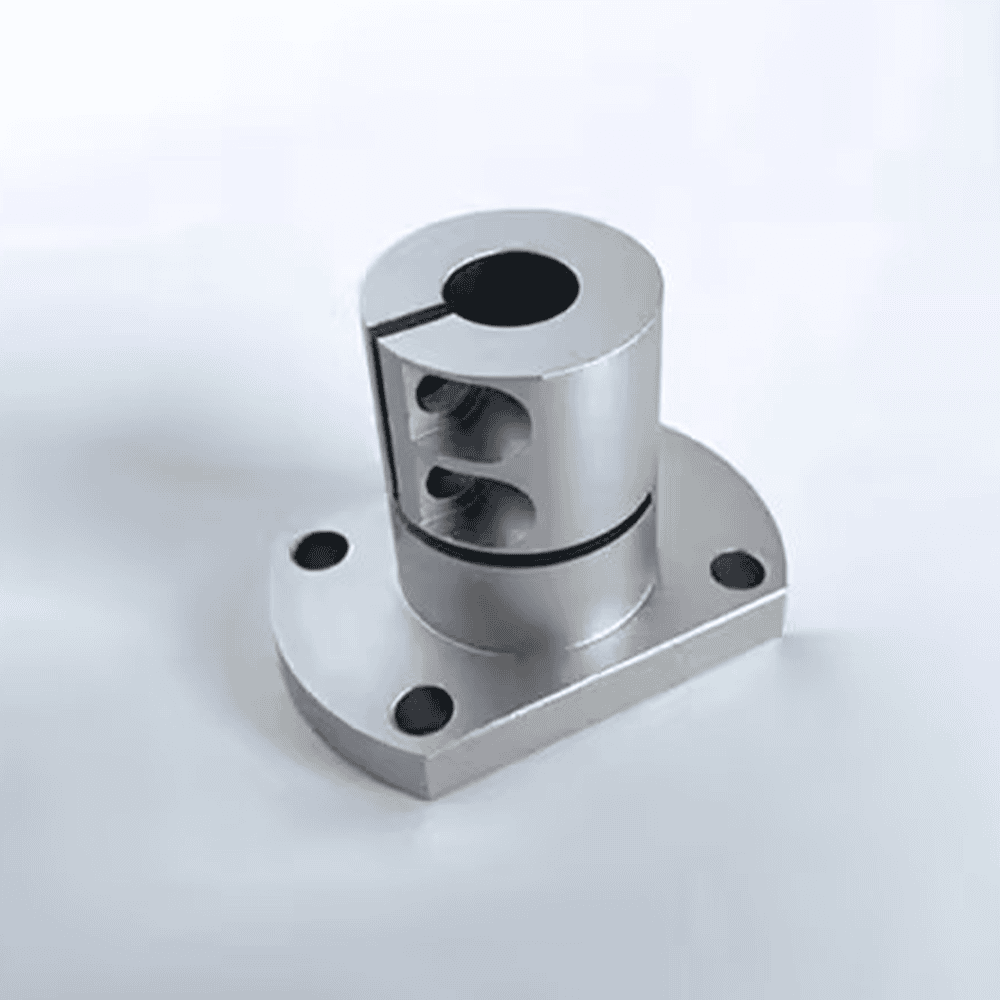

Mold embryo

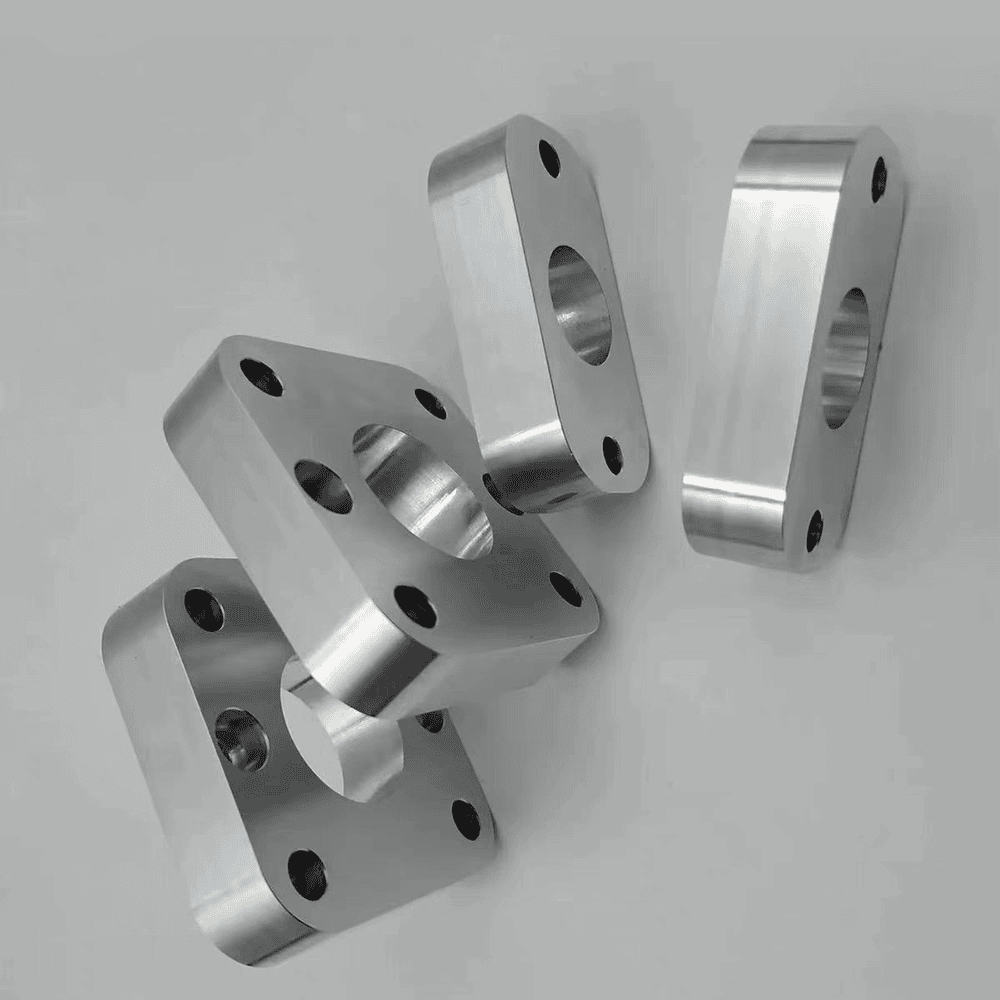

Hardware mold

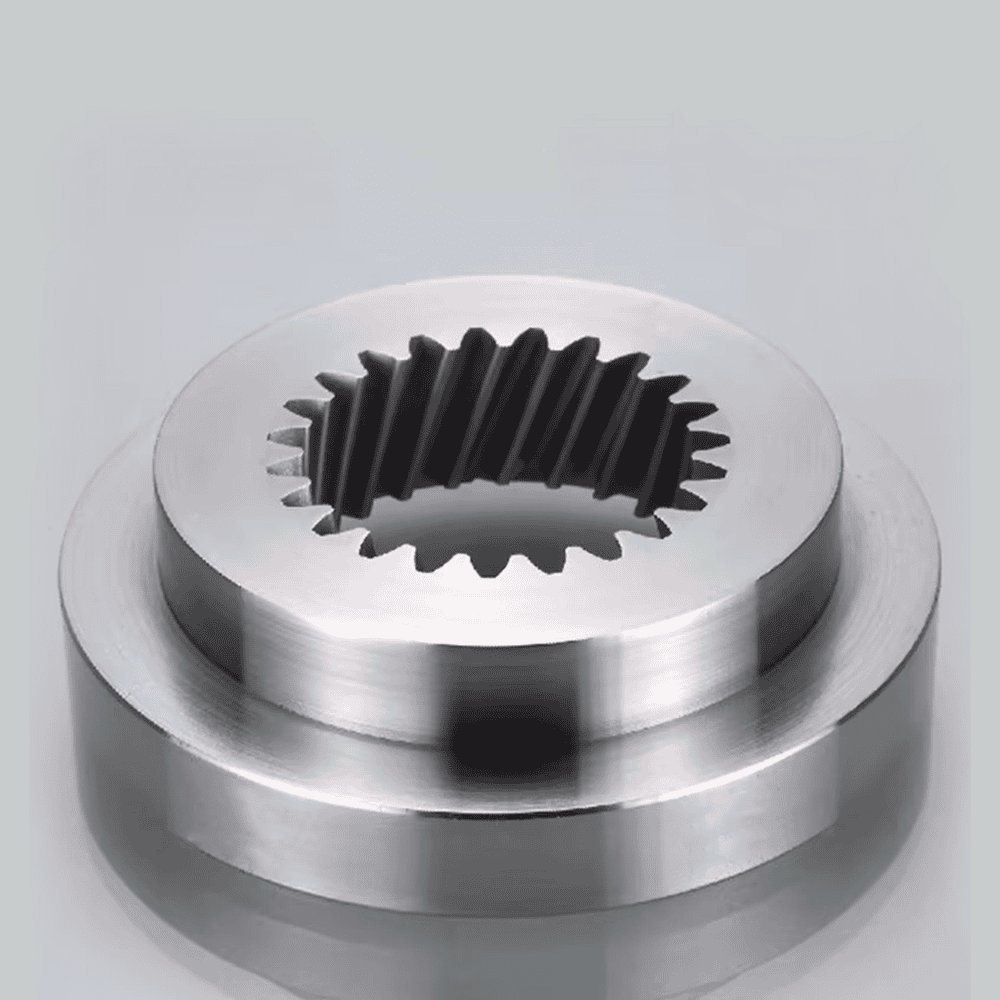

Mold processing

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
