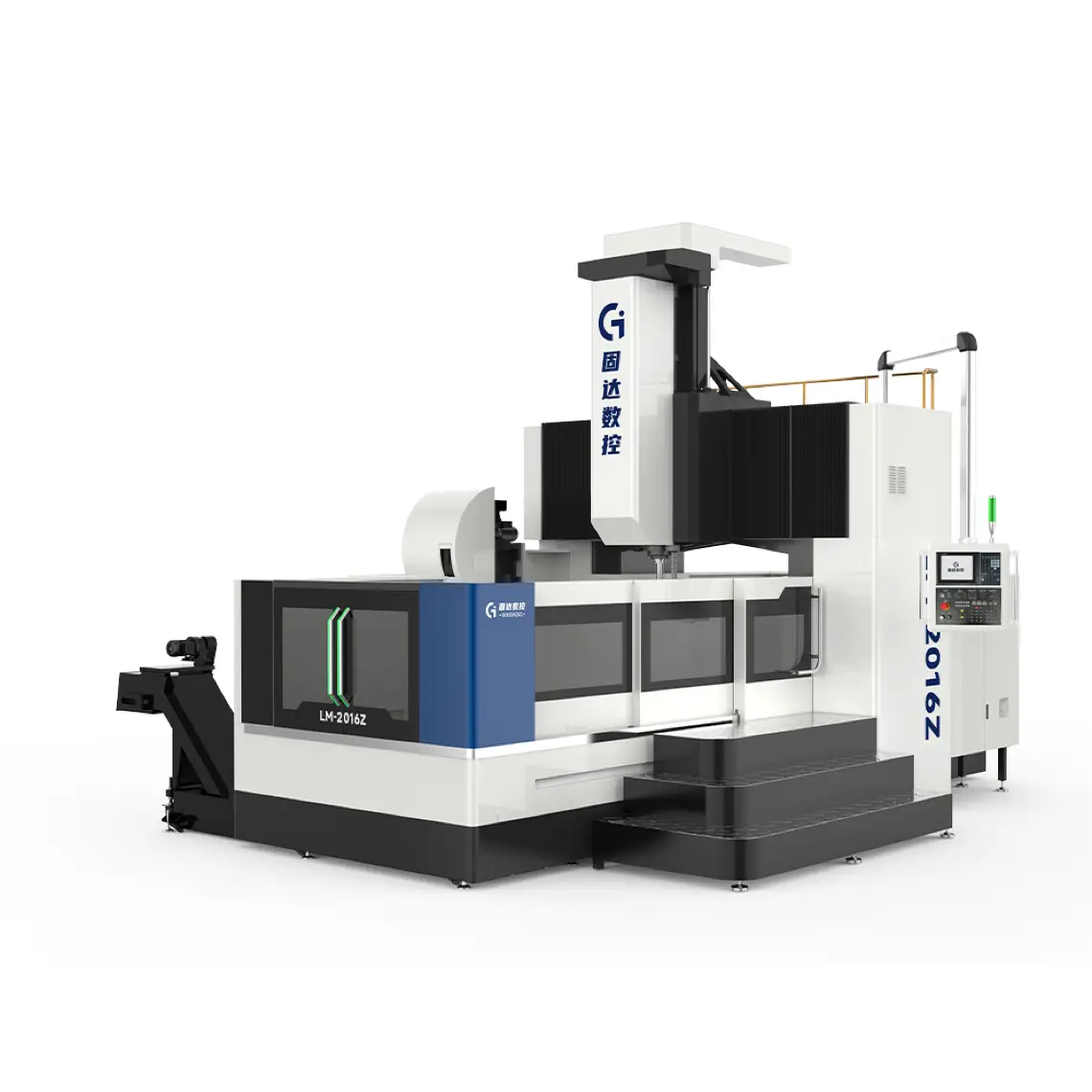

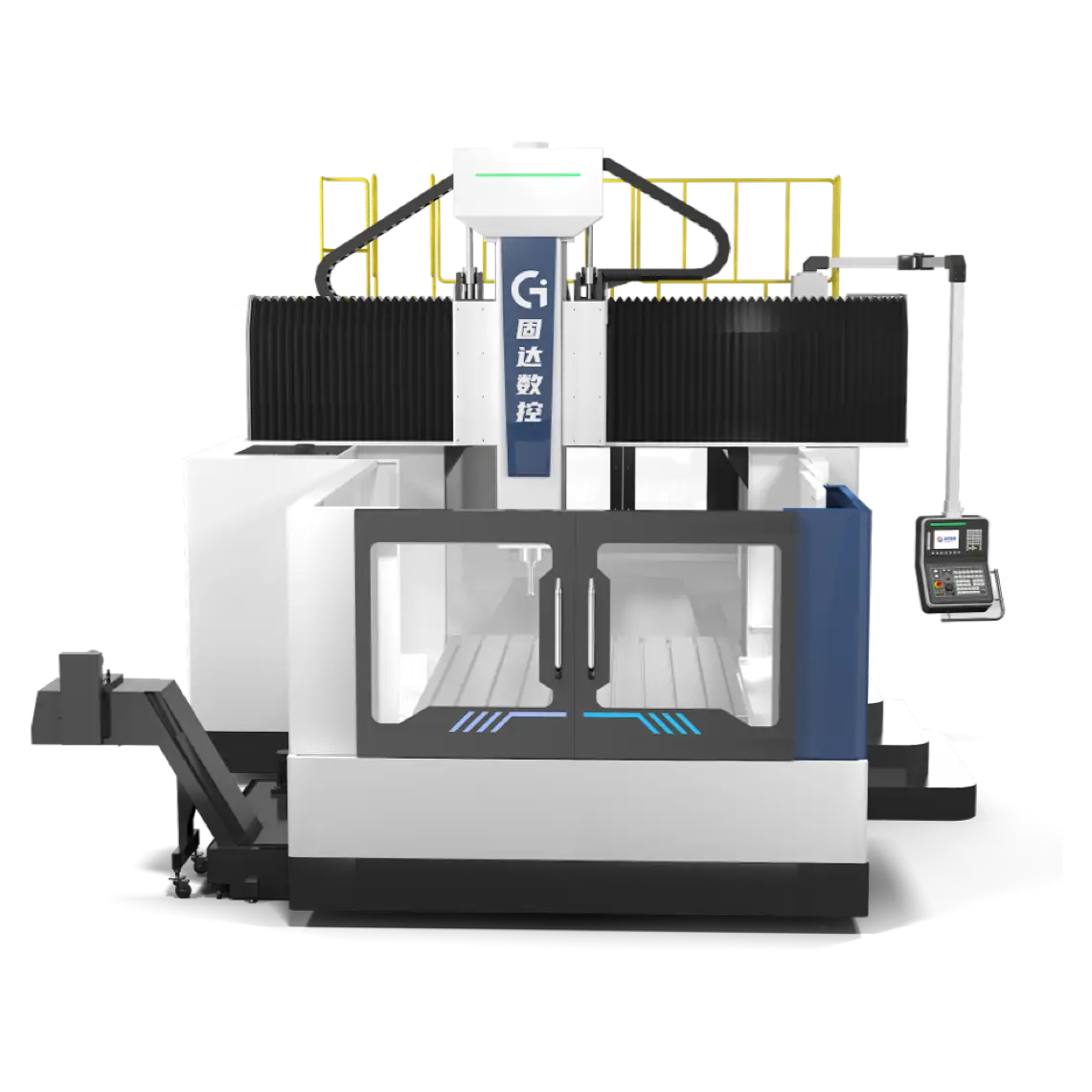

ASIATOOLS Gantry Machining Center (LM Series) performs milling, drilling, and boring operations. Heavy-duty box ways and a double-column structure provide a rock-solid platform for the gantry and spindle. Configurations and designs tailored to specific needs.
The "Rock-Solid Platform" ensures zero vibration even during deep boring or heavy face milling of tough materials. Unlike C-frame machines that deflect under load, this gantry structure guarantees geometric accuracy and superior surface finish on massive castings.

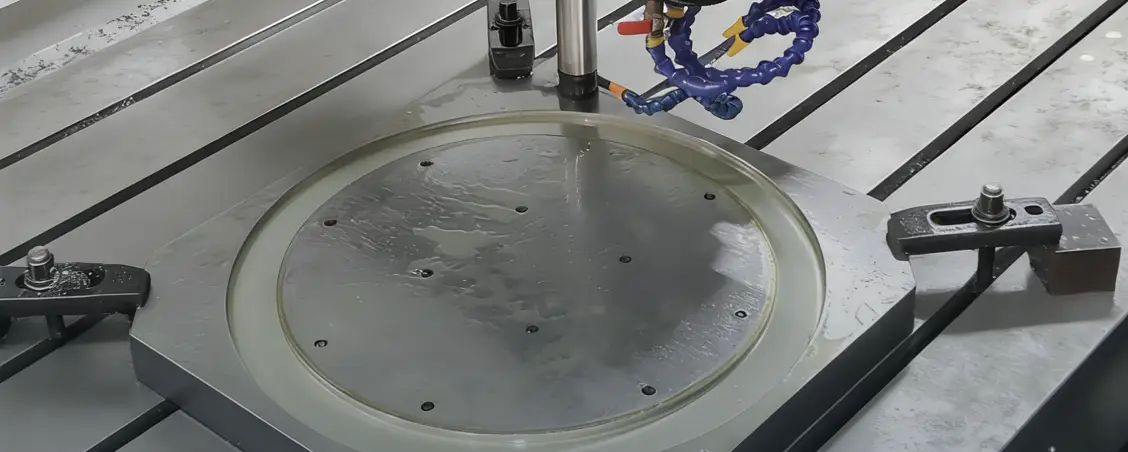

This hybrid design gives you the best of both worlds: efficiency for traversing, rigidity for cutting.

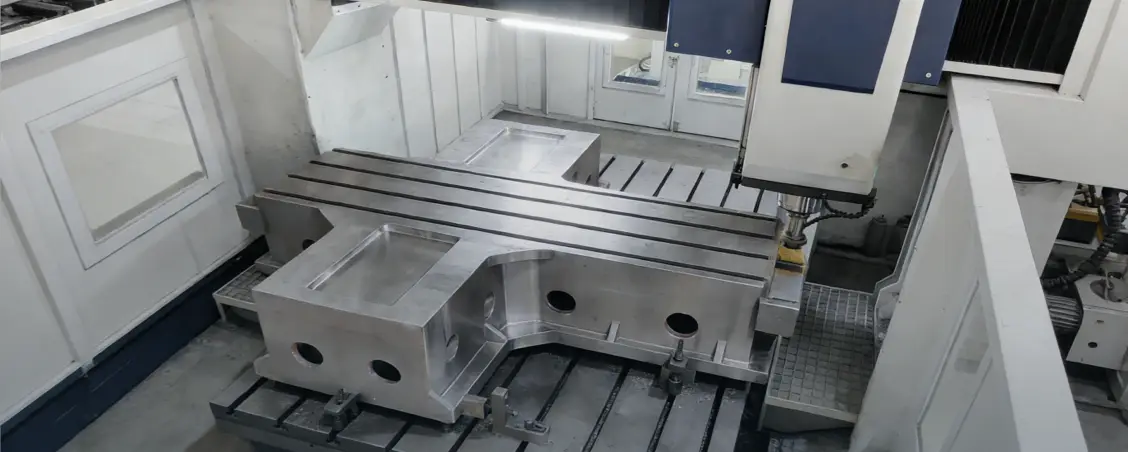

The rigid guideways and oversized beam allow the machine to handle workpieces that would crush standard machining centers. Whether it's a massive mold base or a ship engine component, the LM Series handles the weight without compromising precision.
You choose the power source that fits your material:
| Model | LM-2016NC |
|---|---|
| Worktable size | 1400×2000mm |
| Max.load capacity | 5000Kg |
| T-slot size specs | 7-22×200mm |
| X axis travel | 2000mm |
| Y axis travel | 1600mm |
| Z axis travel | 800mm |
| Columns net width | 1640mm |
| Mininum distance from spindle nose to table | 200mm |
| Spindle driven mode | Synchronous toothed belt |
| Spindle motor power | 15/18.5kw |
| Spindle taper | BT50 |
| Max.spindle speed | 6000rpm |
| X/Y/Z axis rapid move speed | 10/10/10m/min |
| Tool capacity | 24T |
| Positioning accuracy | ±0.02/1000mm |
| Total power required | 40KVA |
| Machine size | 6.2x3.8x3.9m |
| Machine weight(approx.) | 18000Kg |
Our machine portfolio offers the perfect fit for your work - from small parts to large-scale workpieces, ensuring you have the right capabilities for any project.
| Model | X/Y/Z Axis travel | Max.load capacity | Worktable size | |
|---|---|---|---|---|
| LM-1690NC | 1000*1600*800mm | 2500kg | 900*1250mm | |
| LM-1614NC | 1600*1600*800mm | 2500kg | 1200*1700mm | |
| LM-2016NC | 2000*1600*800mm | 5000kg | 1400*2000mm | |
| LM-2518NC | 2500*1900*800mm | 7000kg | 1600*2700mm | |
| LM-3220NC | 3200*2000*1000mm | 9000kg | 1800*3000mm | |
| LM-3025NC | 3000*2700*1000/1200mm | 12000kg | 2300*3000mm | |
| LM-3227NC | 3200/4200/6200*2760*1200mm | 12000/18000/20000kg | 2100*3000/4000/6000mm | |
| LM-4032NC | 4200/6000/8000*3200*1250mm | 15000/20000/25000kg | 3000*4000/6000/8000mm | |
| LM-8040NC | 8200/10200/12200*4200*1500mm | 15000kg | 3000*8000/10000/12000mm | |
| LM-8053NC | 8200/10200/12200*5800*1500mm | 15000kg | 4000*8000/10000/12000mm |
| Key Dimension | Vertical Machining Center (VMC) | Gantry Machining Center (LM Series) |
|---|---|---|
| Structural Design | C-Frame Structure: Compact design with a single column. The spindle overhangs the table, offering excellent accessibility and speed. | Double-Column (Bridge) Structure: The spindle is supported by two columns and a crossbeam. Provides symmetrical support and high stability. |
| Ideal Workpiece | Small to Medium Parts: Perfect for parts usually under 1500mm in length. Ideal for general precision mechanics, automotive parts, and IT components. | Large & Heavy Parts: Designed for oversized workpieces (molds, bases) that exceed the table size or weight capacity of a VMC. |
| Z-Axis Characteristics | Agile & Fast: The Z-axis is lighter and moves quickly, ideal for high-speed drilling, tapping, and light milling cycles. | Consistent Rigidity: The Z-axis ram (Box Way) maintains high rigidity even at full extension, making it better suited for deep cavity milling and heavy boring. |
| Loading & Unloading | Front Access: Easy for operators to load small parts manually or with automation arms. | Open Top Access: The bridge design allows overhead cranes to easily lower massive workpieces directly onto the table without obstruction. |
| Floor Space & Cost | Space-Saver: Occupies less floor space and requires lower initial investment. Easier to install in smaller shops. | Industrial Scale: Requires a larger footprint and foundation, representing a premium investment for heavy industrial capabilities. |
| Best Application | High-Efficiency Production: Best for high-volume production of smaller, lighter components where cycle time is critical. | Heavy-Duty Manufacturing: Best for heavy cutting, large surface flattening, and large-scale mold making where stability is critical. |
Our partnership with customers continues long after the purchase. We provide comprehensive after-sales services to help you install, operate, and maintain your equipment with confidence.
