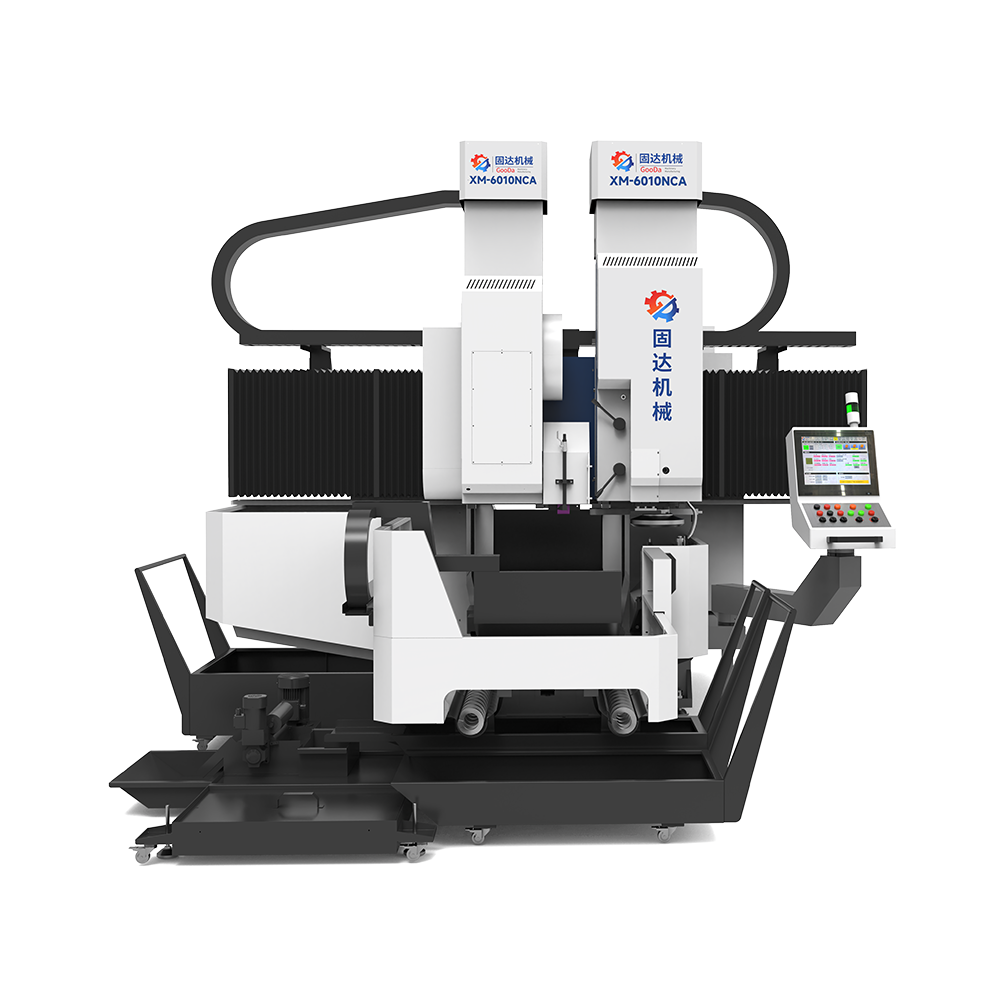

CNC Milling and Grinding Machine Series completes milling and grinding in a single setup on one machine. It performs automatic workpiece clamping, detection, wheel dressing, and tool setting. Dramatically reduce processing time, lower operational costs, and achieve higher quality finishes.

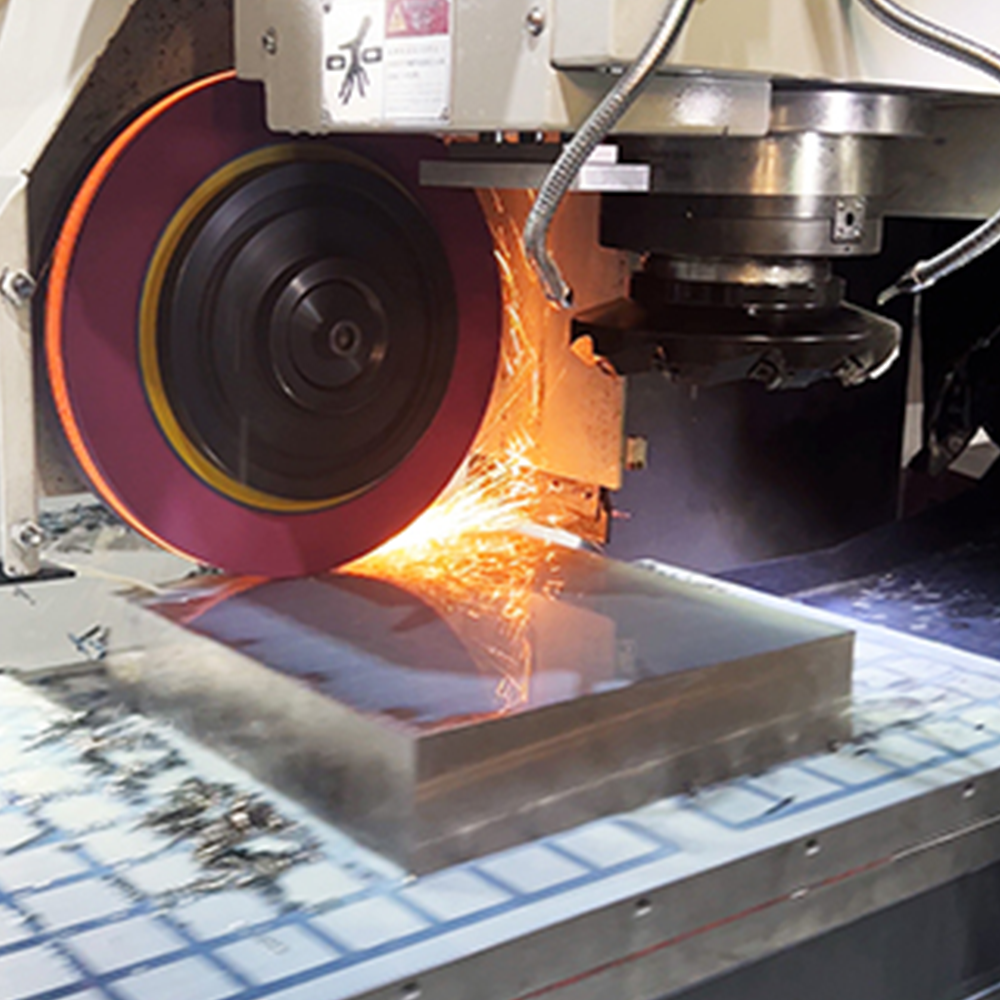

The Power of "One Setup" (Process Integration)
It eliminates the traditional bottleneck of moving parts from a milling machine to a separate surface grinder. By completing both operations in one setup, you reduce total cycle time by up to 40-50%, drastically shortening your lead times for precision plates.

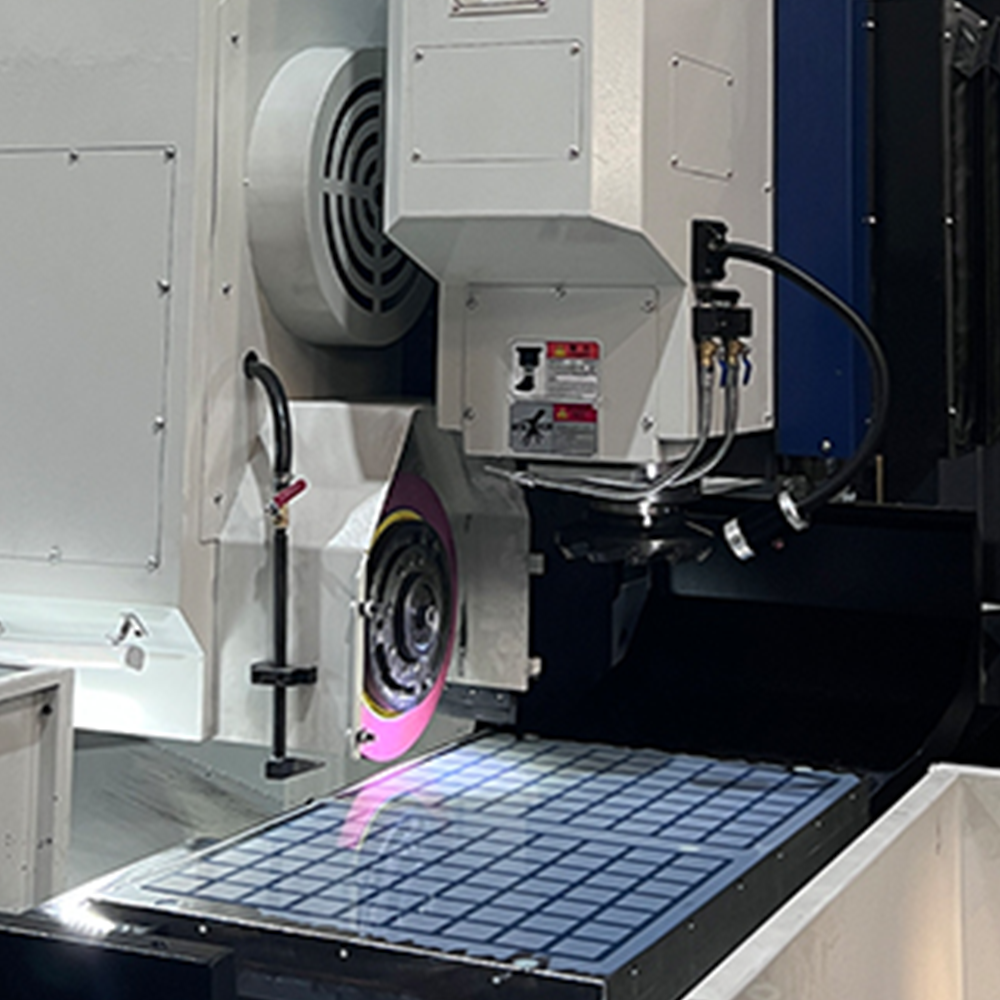

Automatic Precision Assurance
Zero Re-clamping Error: Since the part never leaves the table between milling and grinding, cumulative positioning errors caused by re-clamping are eliminated.

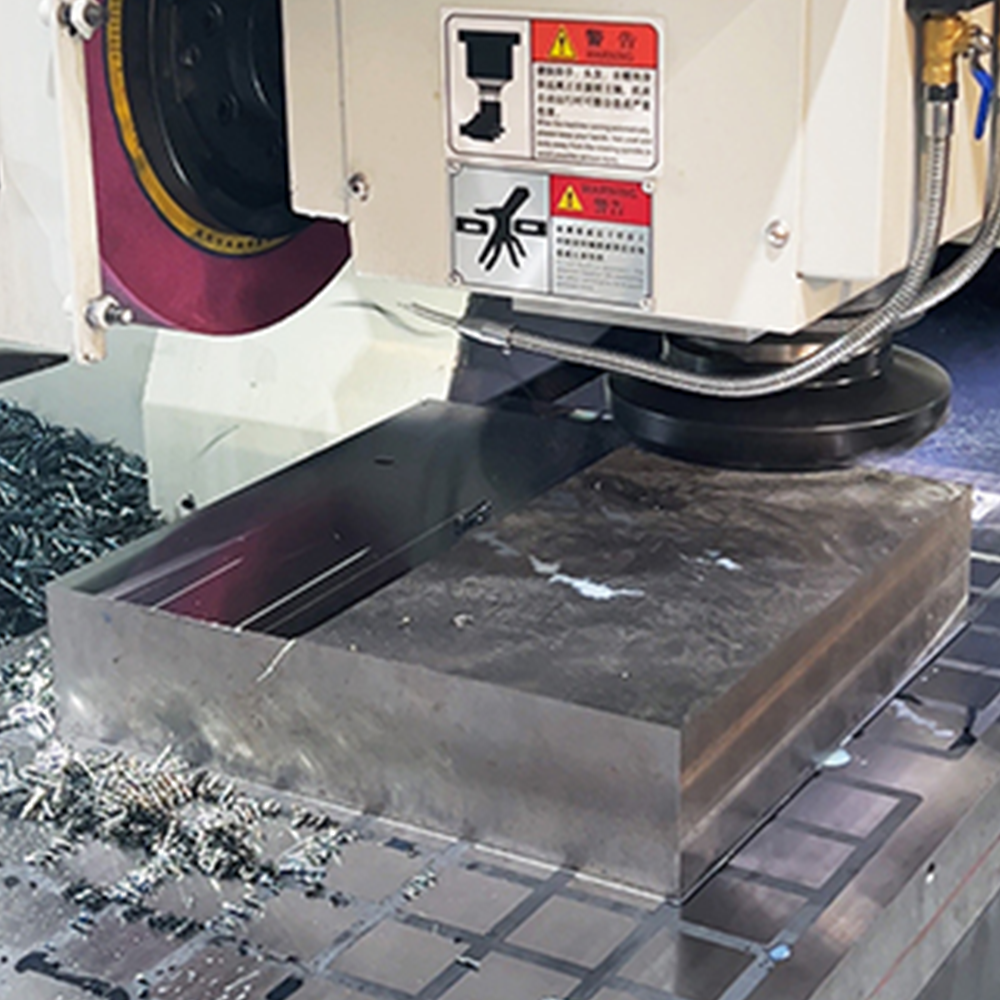

Maximum ROI & Space Efficiency
You save valuable floor space, reduce electricity consumption, and lower labor costs (one operator instead of two). This "2-in-1" capability delivers higher output per square meter, significantly lowering your operational costs.

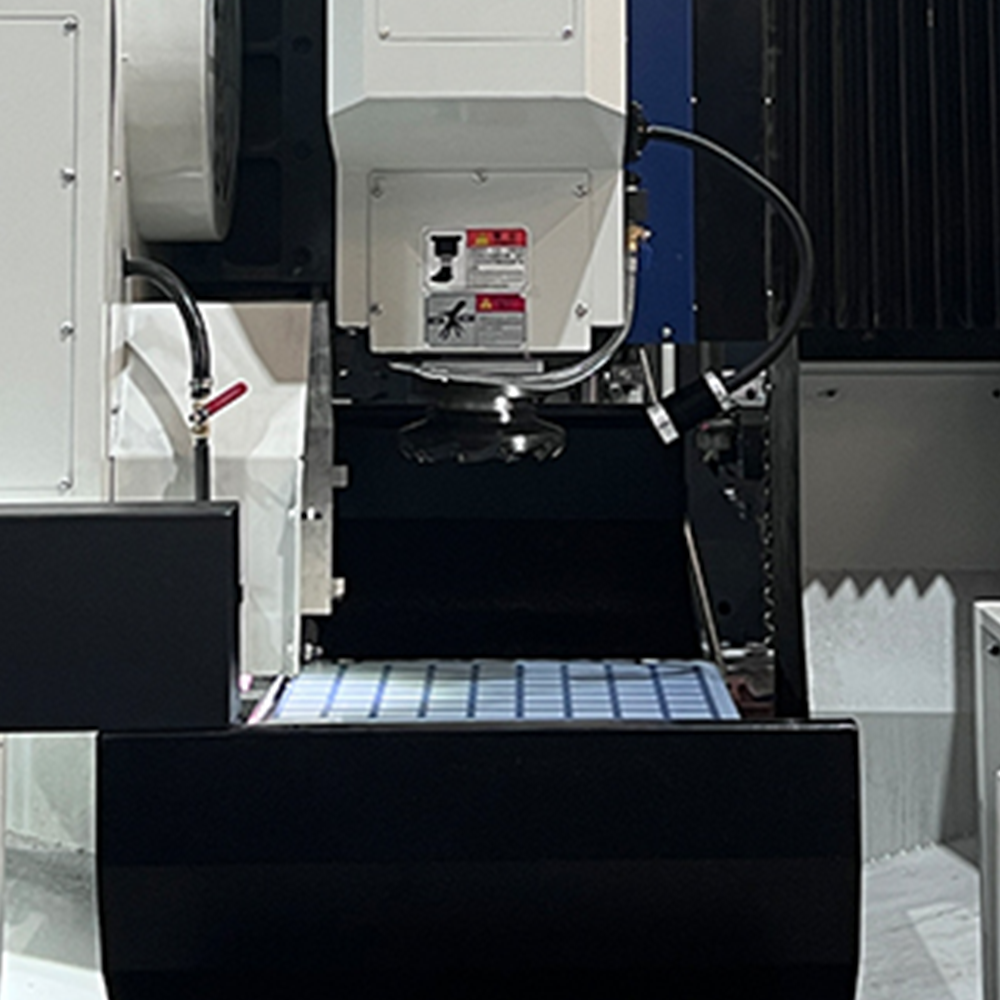

Intelligent Workflow for Pre-Squaring
Ideal for producing precision mold bases and manifold blocks. The CNC system (Fanuc/Mitsubishi) orchestrates the transition from heavy milling (material removal) to fine grinding (surface finishing) seamlessly, delivering a mirror-like finish with high flatness straight off the machine.

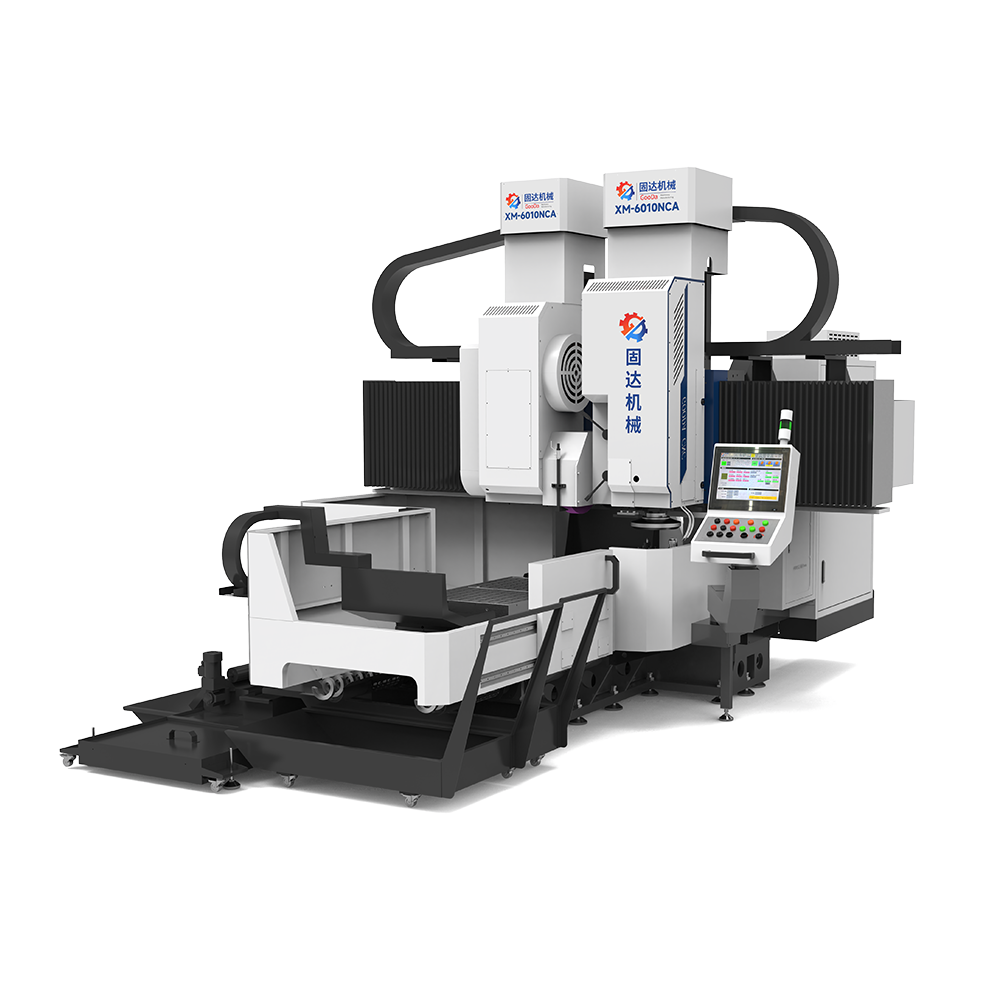

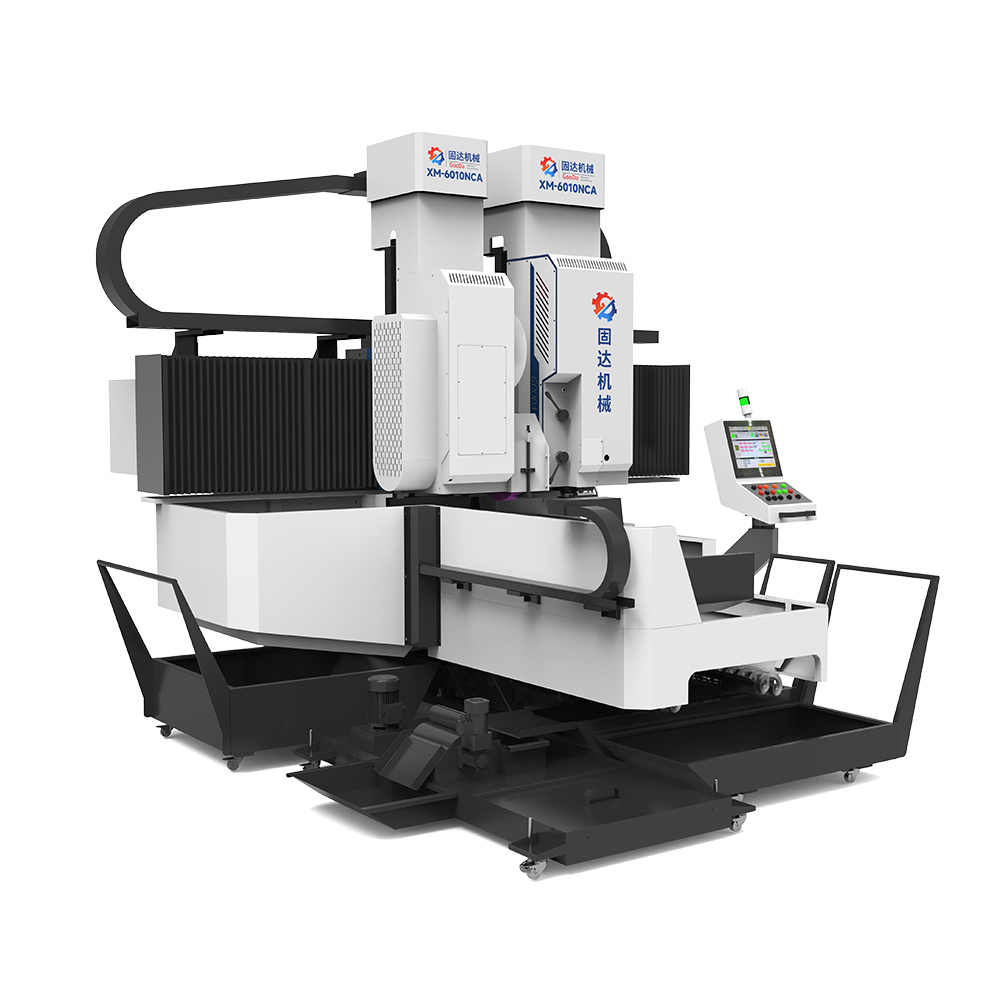

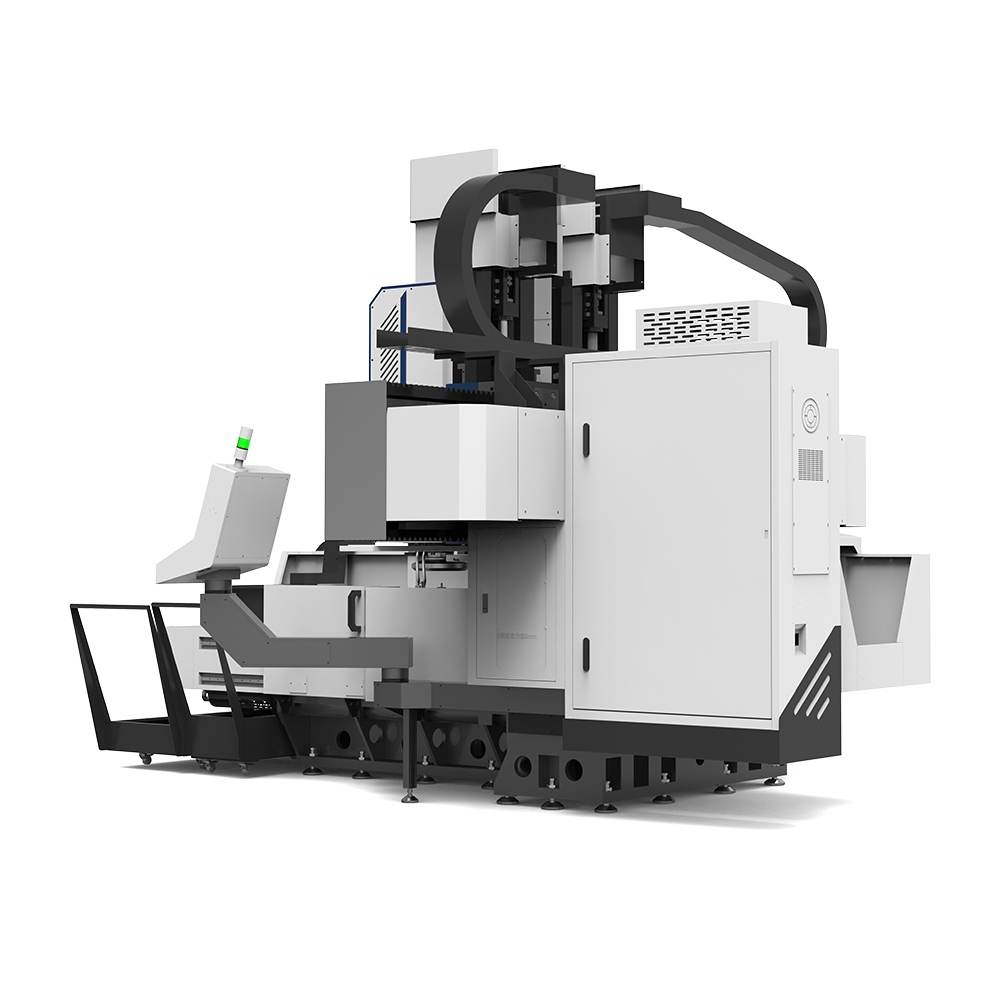

| Model | XM-8015NCA | unit | |
| Worktable | Workatble size | 800x1500 | mm |
| Max.load capacity | 2000 | kg | |
| Powerful waterproof magnetic table | 800x1500 | mm | |
| Capacity | Processing capacity | 800x1500 | mm |
| Max.processing height | 350 | mm | |
| Milling Head | Spindle speed | 50-650 | rpm |
| Milling head type | Gear | - | |
| Cutter diameter | 250 | mm | |
| Spindle motor power | 22 | kW | |
| Grinding Head | Spindle speed | 1200 | rpm |
| Grinding wheel size | 400*203*63 | mm | |
| Spindle motor power | 15 | kW | |
| Speed | Xaxis rapid move speed | 5-25 | m/min |
| Yaxis rapid move speed | 5 | m/min | |
| Z1/Z2 axis rapid move speed | 6/6 | m/min | |
| Accuracy | X axis | 0.01/1000 | mm |
| Y axis | 0.01/300 | mm | |
| Roughness | Ra0.8 | ||
| X/Y/Z1/Z2 Axis motors | 4.5/2.3/1.3/1.3(With brake) | μm | |
| Power | Total power required | 48 | kW |
| Transmission mechanism | X/Y/Z1/Z2 Transmission mechanism | Ball screw | - |
| Others | Machine size | 4.2x3.95x3.3 | m |
| Machine weight(approx.) | 10500 | kg | |
Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,Asiatools Machinery gets you going!

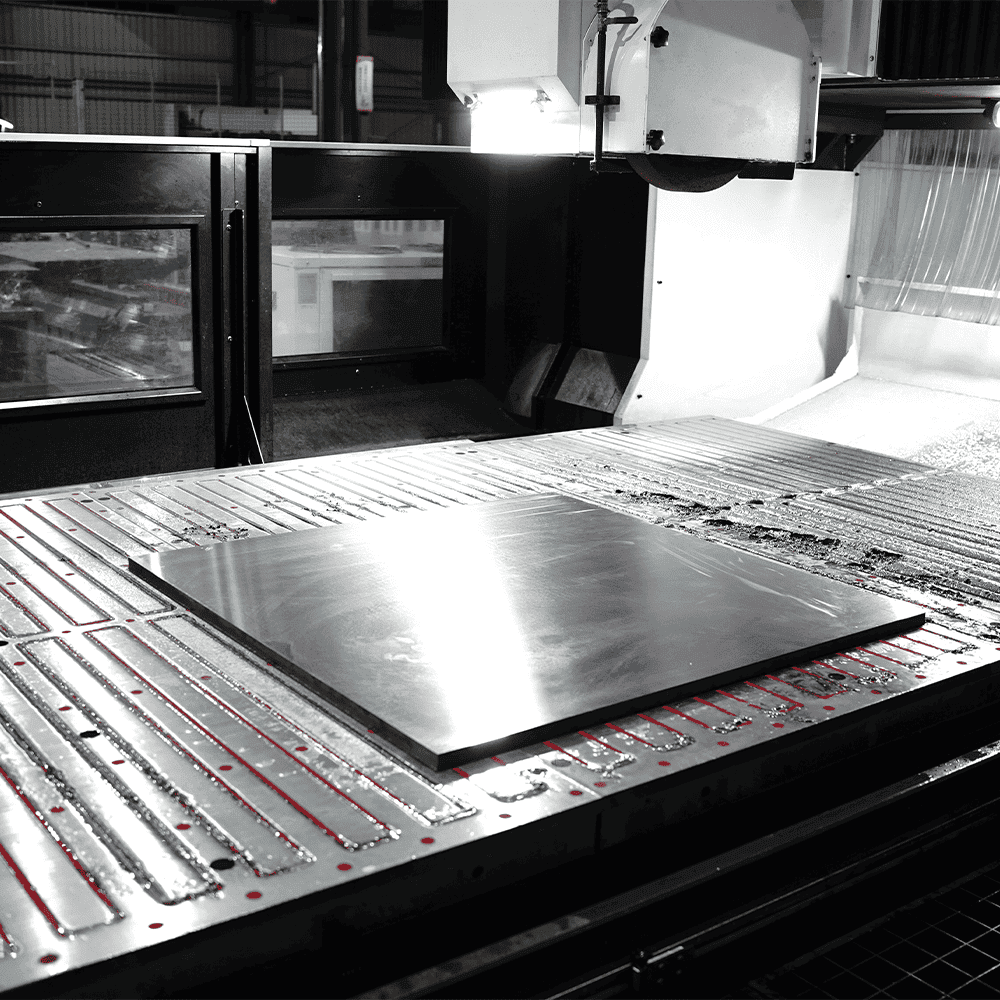

Custom（ steel）plate

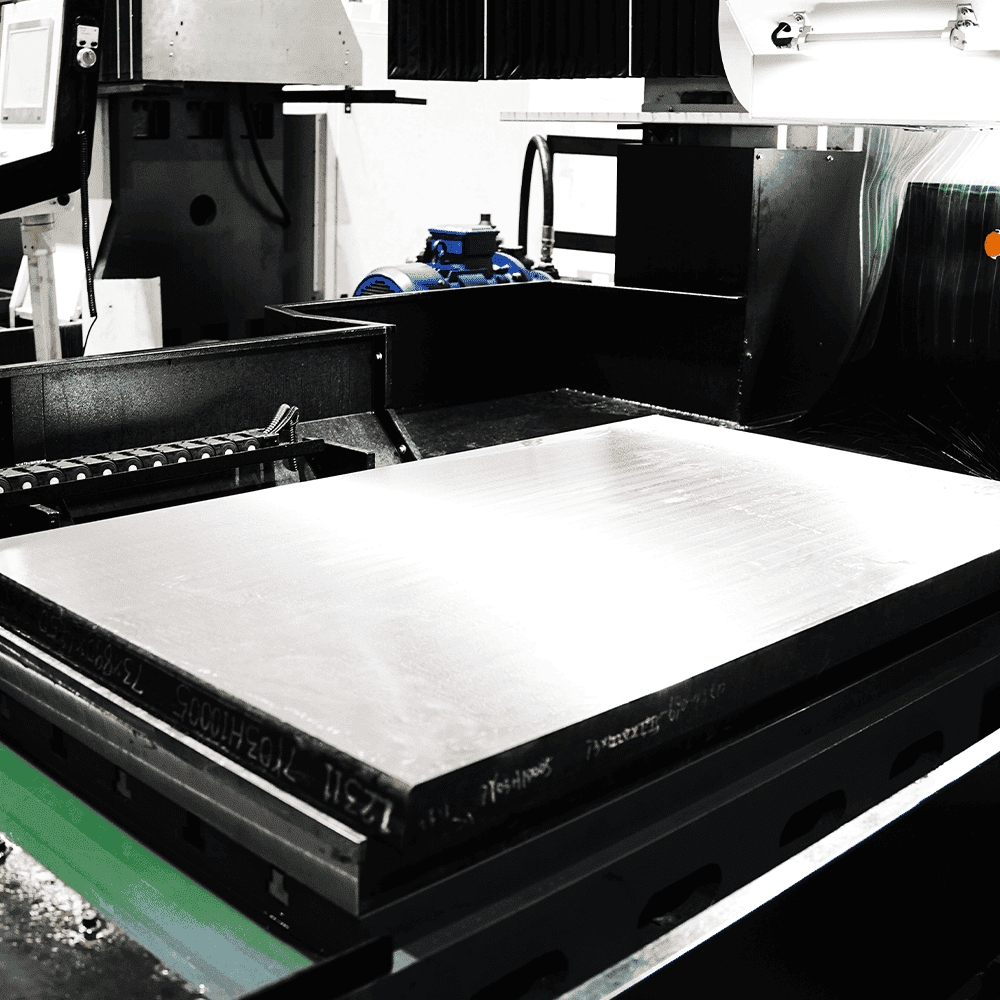

Machined plate
Machining plateTo meet your different processing needs, we provide three widely used systems on the market for you to choose.
FANUC CONTROLLER
Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.
MITSUBISHI CONTROLLER
Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.
CHINA CONTROLLER
JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
