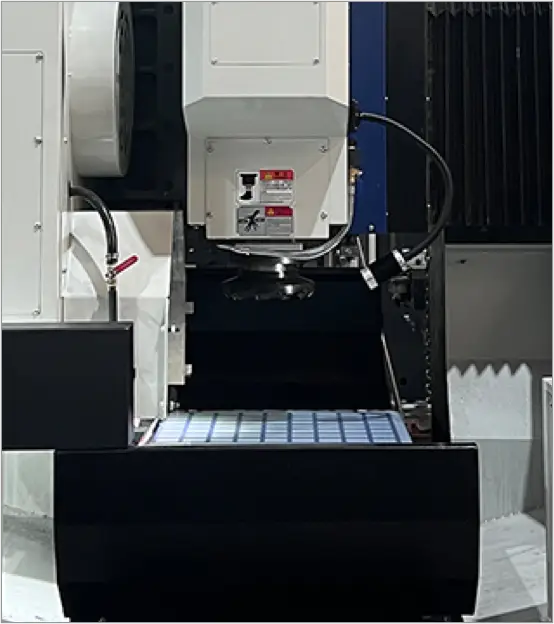

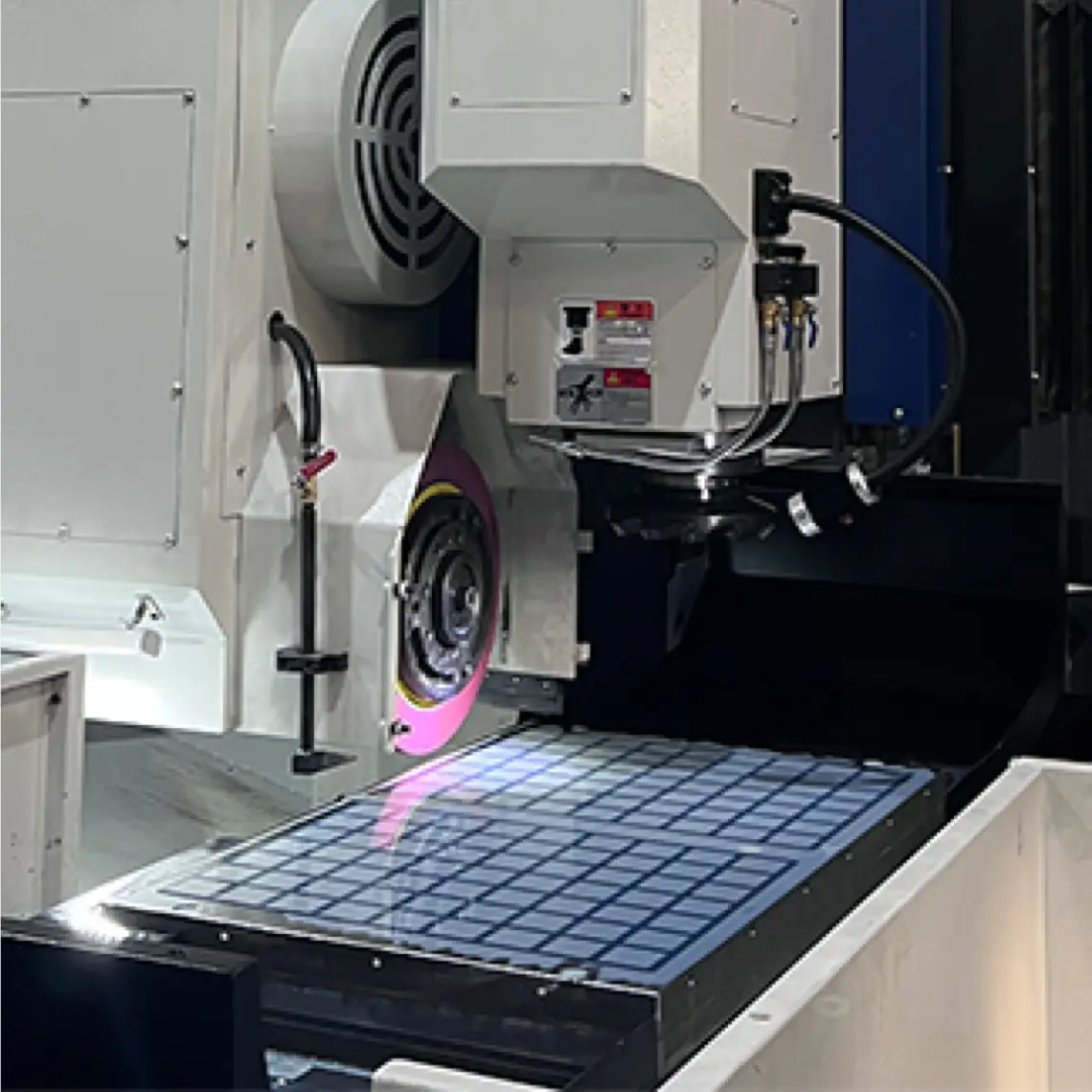

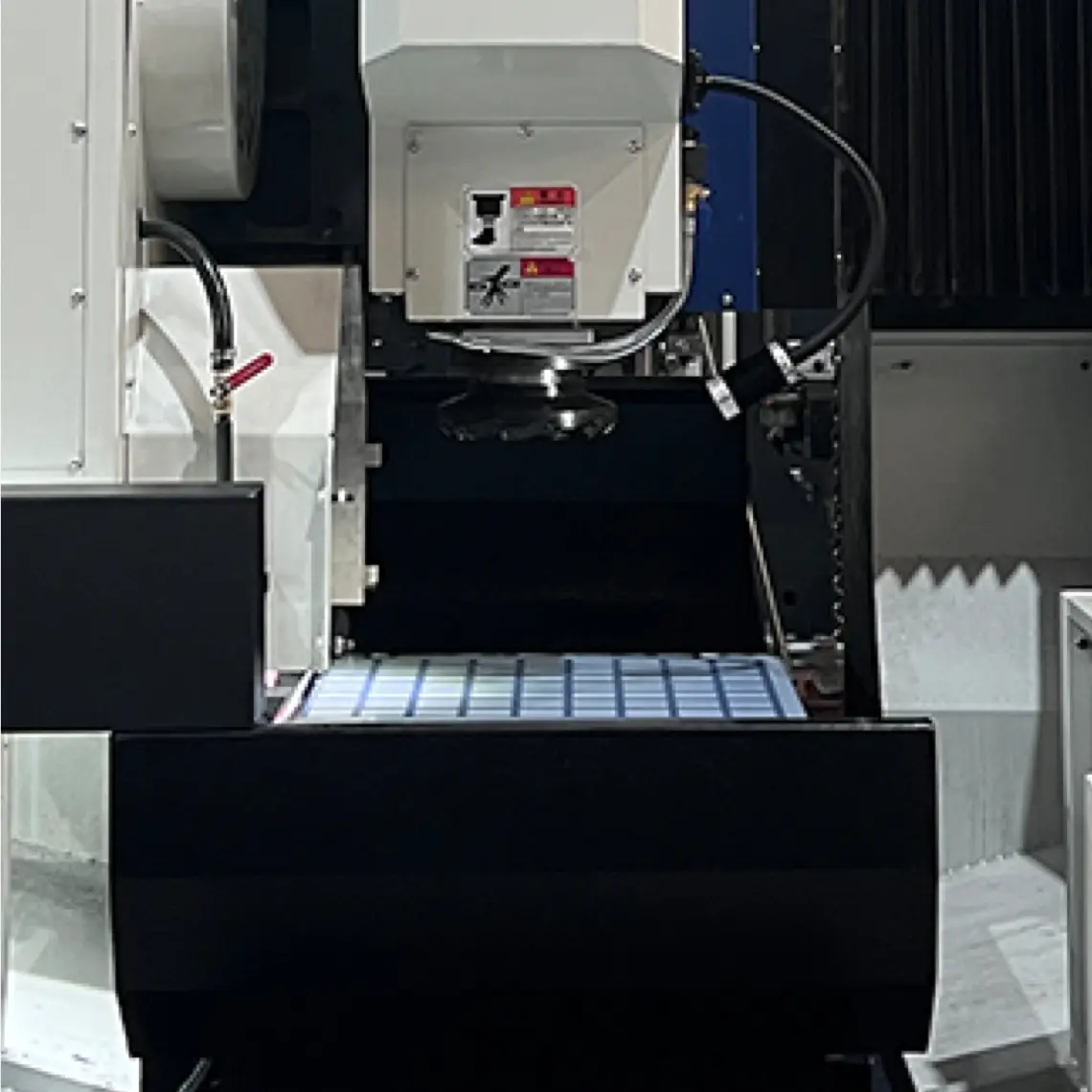

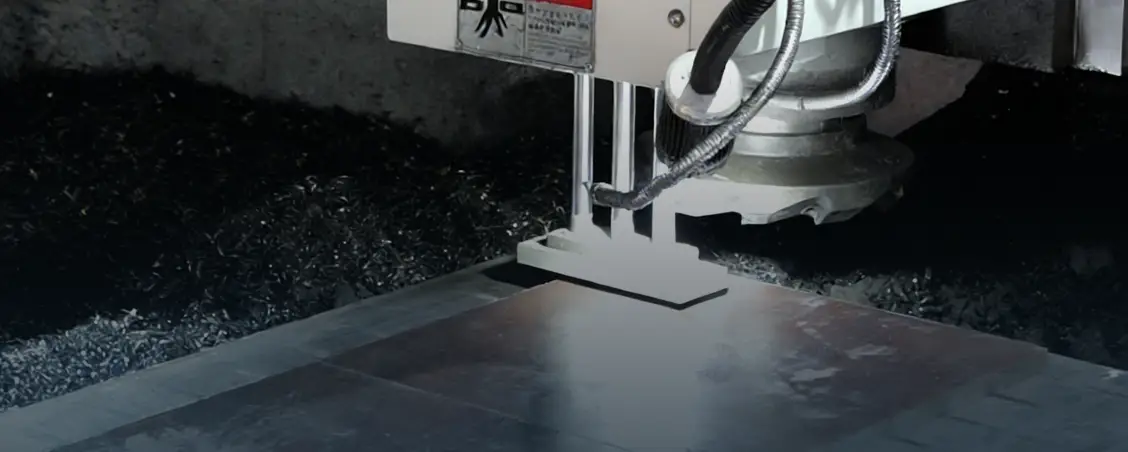

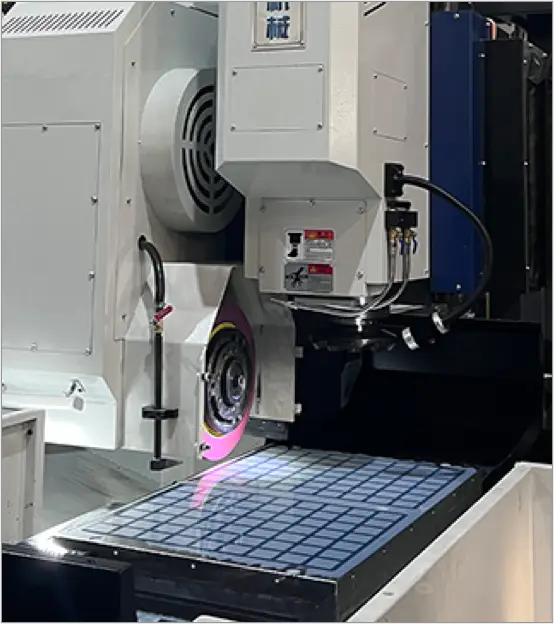

ASIATOOLS CNC Milling and Grinding Machine Series completes milling and grinding in a single setup on one machine. It performs automatic workpiece clamping, detection, wheel dressing, and tool setting. Dramatically reduce processing time, lower operational costs, and achieve higher quality finishes.

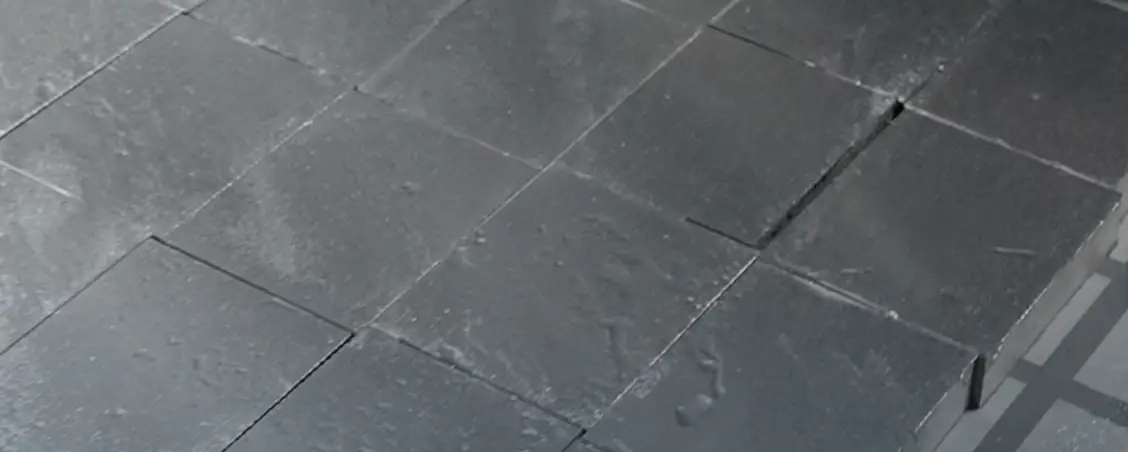

It eliminates the traditional bottleneck of moving parts from a milling machine to a separate surface grinder. By completing both operations in one setup, you reduce total cycle time by up to 40-50%, drastically shortening your lead times for precision plates.
Instead of moving a heavy 5-ton casting from a boring machine to a milling machine, ASIATOOLS handles it all. You can face-mill the surface and line-bore the holes in a single setup. This significantly reduces handling time and cumulative errors caused by re-clamping.

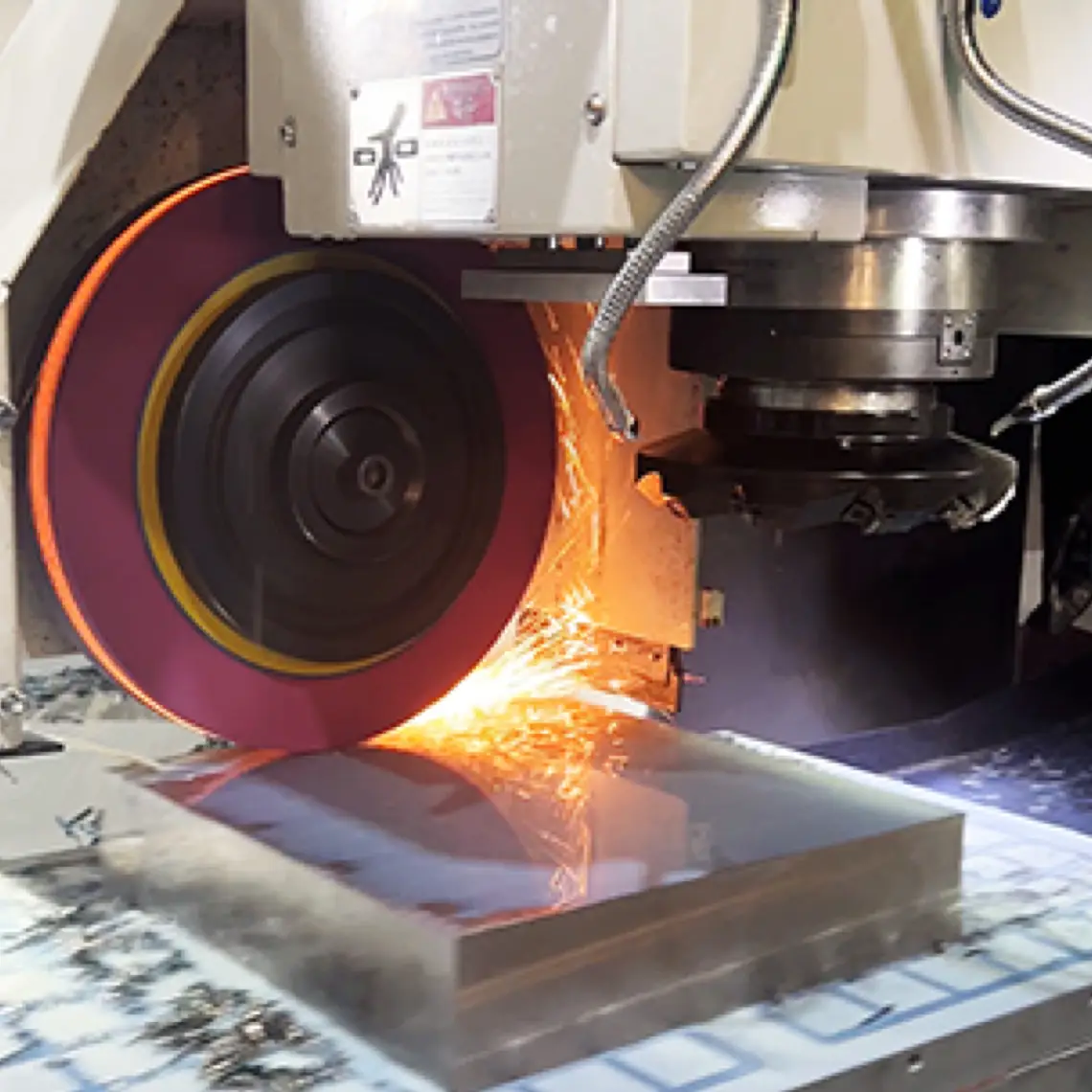

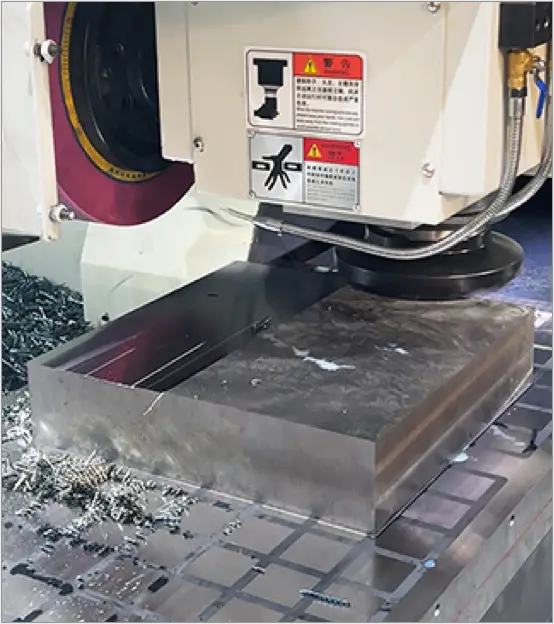

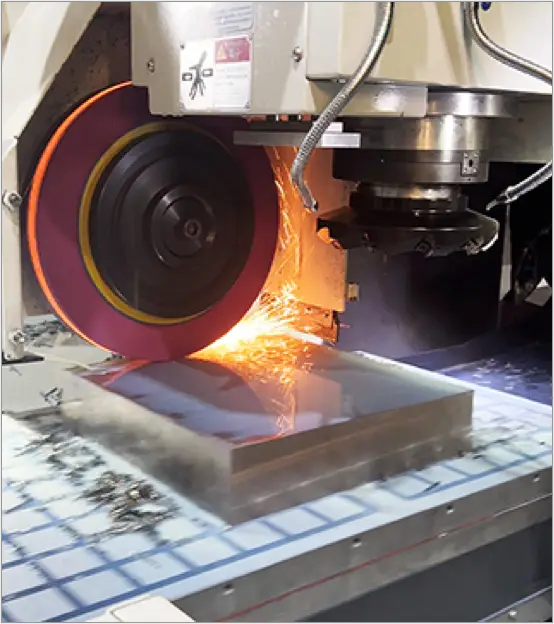

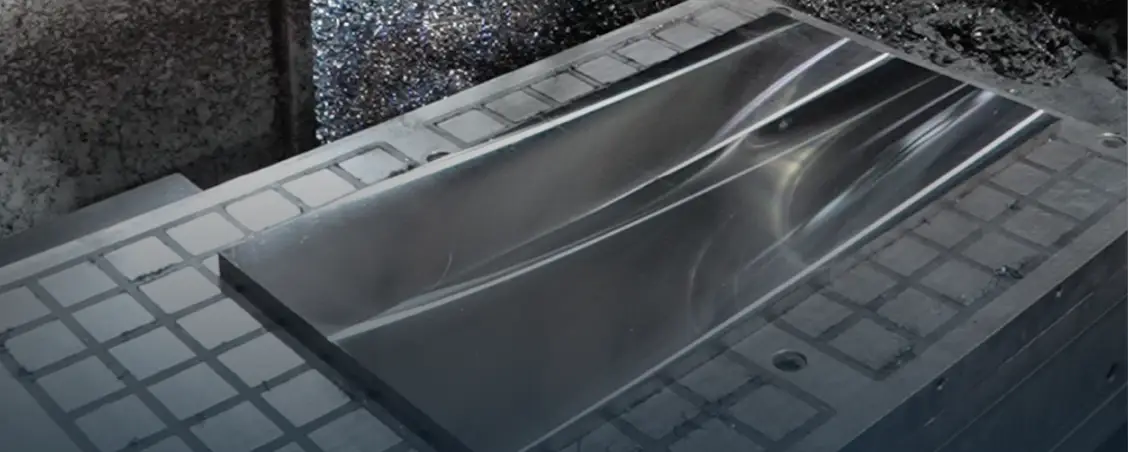

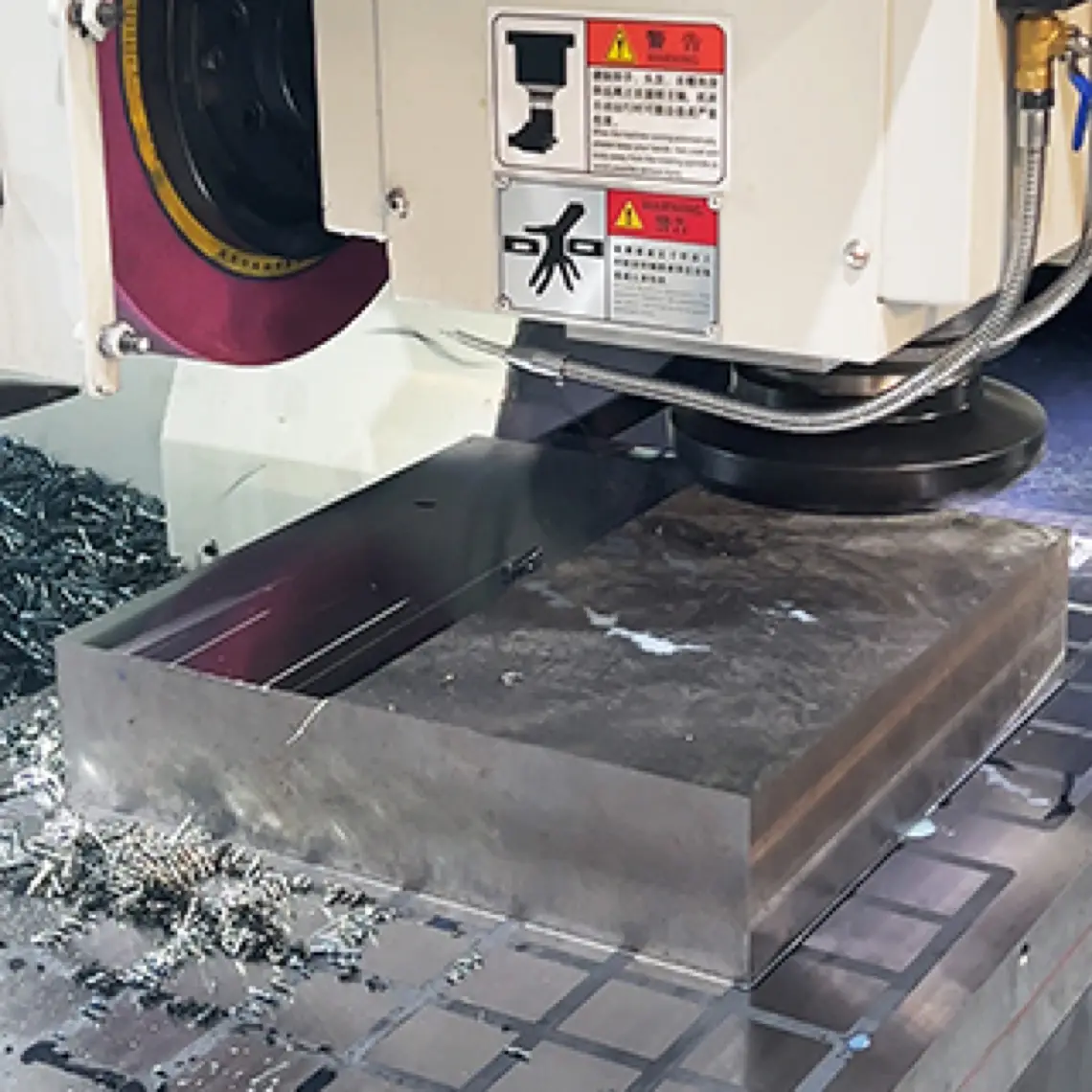

Ideal for producing precision mold bases and manifold blocks. The CNC system (Fanuc/Mitsubishi) orchestrates the transition from heavy milling (material removal) to fine grinding (surface finishing) seamlessly, delivering a mirror-like finish with high flatness straight off the machine.

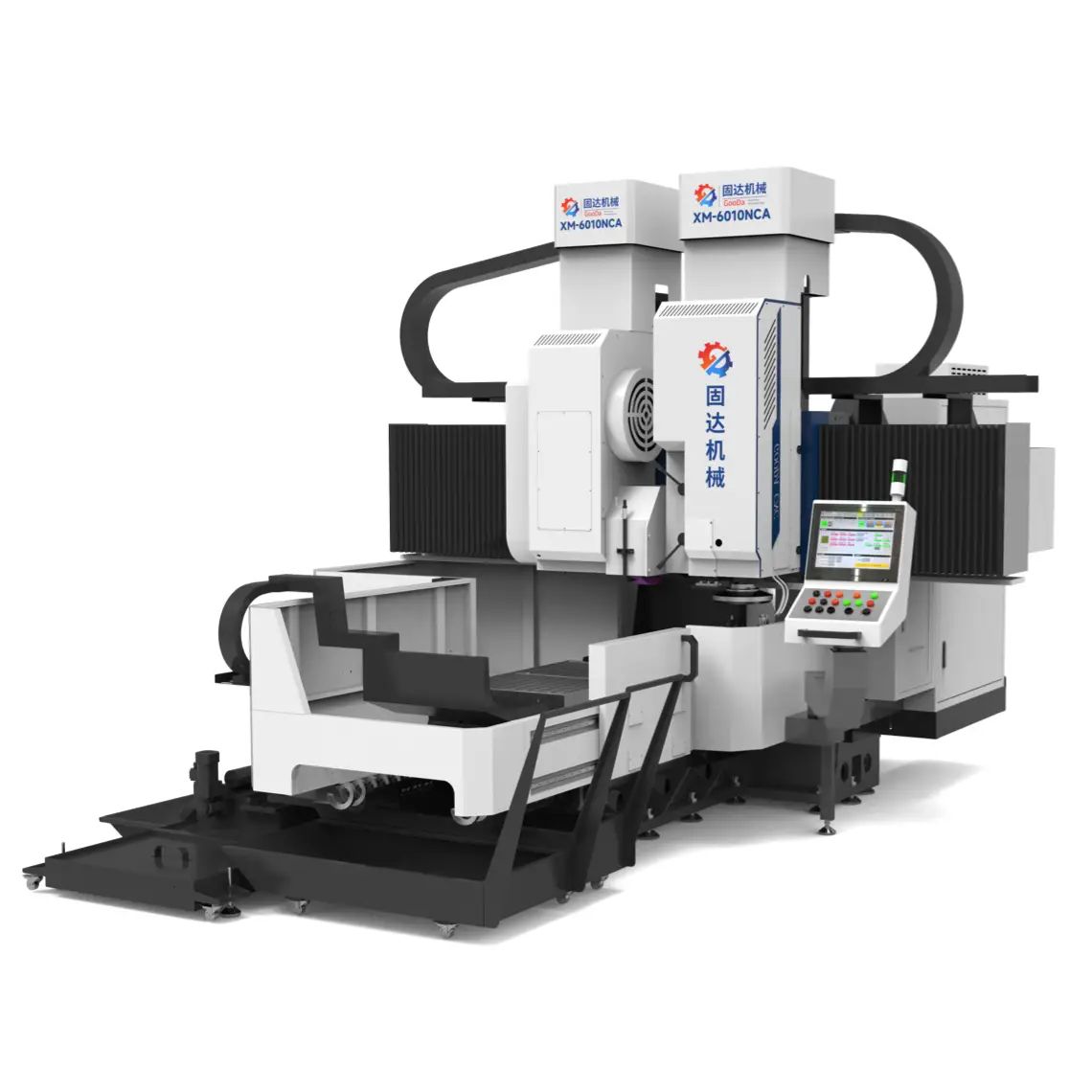

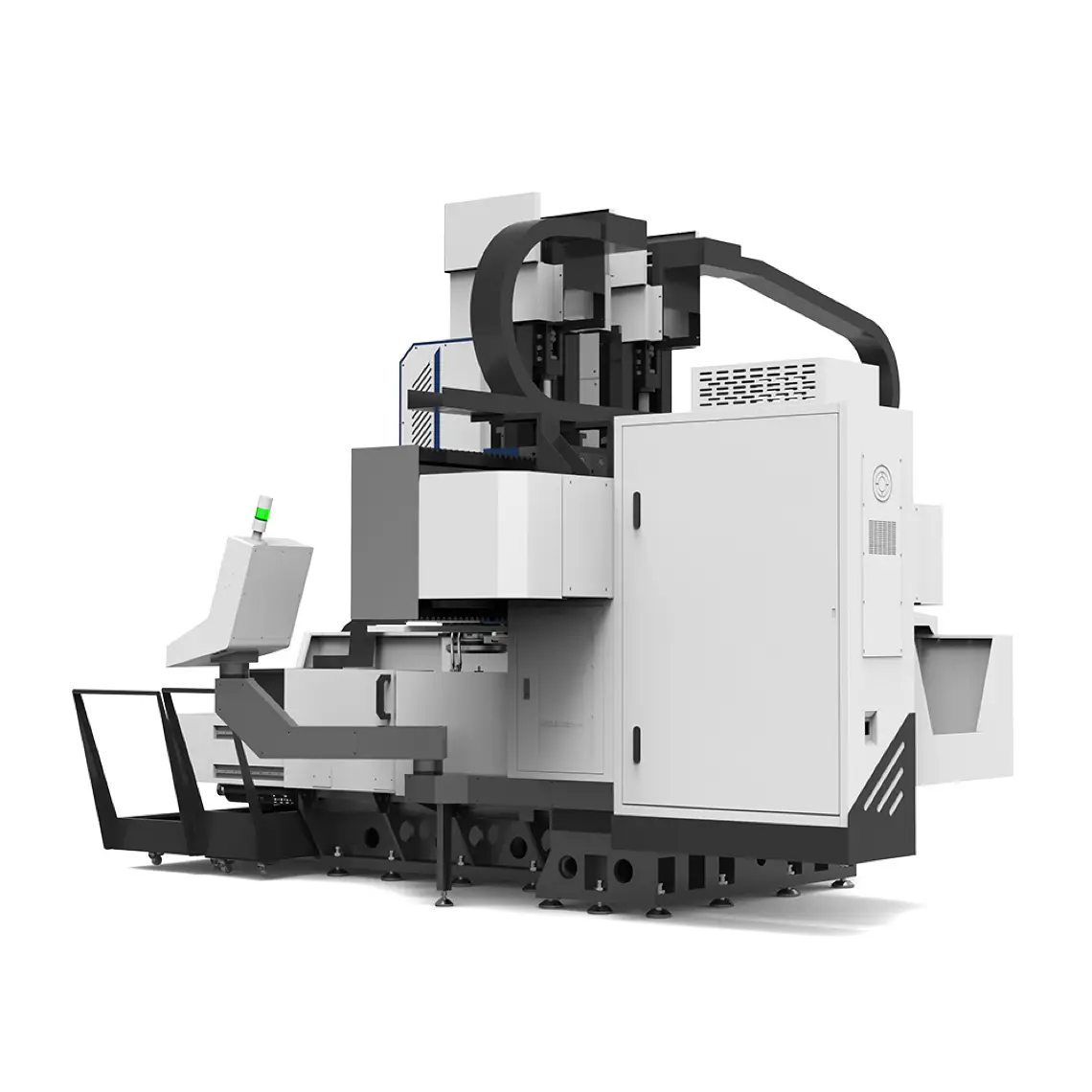

| Model | XM-6010NCA |
|---|---|
| Worktable size | 600x1000mm |
| Max.load capacity | 1000kg |
| Powerful waterproof magnetic table | 600x1000mm |
| Processing capacity | 600x1000mm |
| Max.processing height | 250mm |
| Spindle speed | 50-650rpm |
| Milling head type | Gear |
| Cutter diameter | 200mm |
| Spindle motor power | 22kW |
| Spindle speed | 1200rpm |
| Grinding wheel size | 400*203*63mm |
| Spindle motor power | 15kW |
| X axis rapid move speed | 5-25m/min |
| Y xis rapid move speed | 5m/min |
| Z1/Z2 axis rapid move speed | 6/6m/min |
| X axis | 0.01/1000mm |
| Y axis | 0.01/300mm |
| Roughness | Ra0.8μm |
| X/Y/Z1/Z2 Axis motors | 4.5/2.3/1.3/1.3(With brake)kW |
| Total power required | 48kW |
| X/Y/Z1/Z2 Transmission mechanism | Ball screw |
| Machine size | 3.8x3.65x3.2m |
| Machine weight(approx.) | 9500kg |
Our machine portfolio offers the perfect fit for your work - from small parts to large-scale workpieces, ensuring you have the right capabilities for any project.
| Model | Processing capacity | Accuracy | Worktable size | |
|---|---|---|---|---|
| XM-6010NCA | 600*1000mm | 0.01/1000*0.01/300mm | 600*1000mm | |
| XM-8015NCA | 800*1500mm | 0.01/1000*0.01/300mm | 800*1500mm |
Our partnership with customers continues long after the purchase. We provide comprehensive after-sales services to help you install, operate, and maintain your equipment with confidence.
