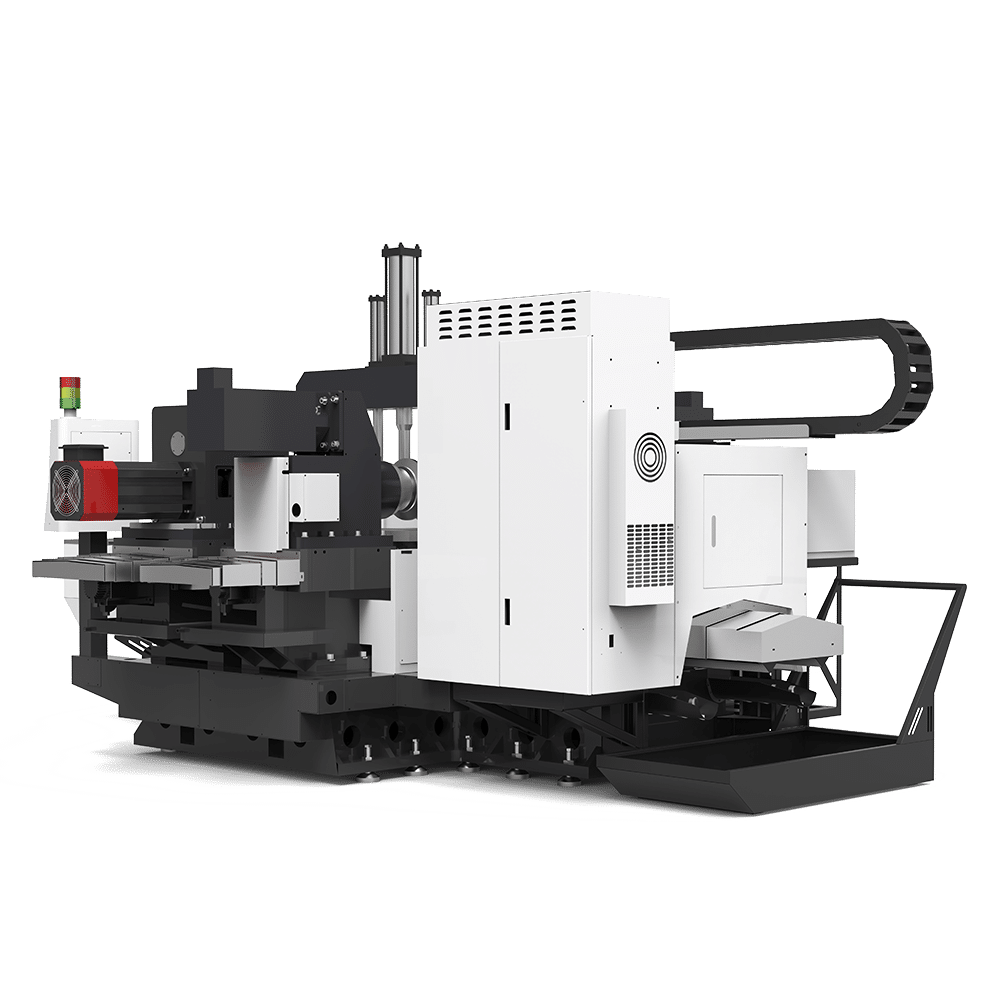

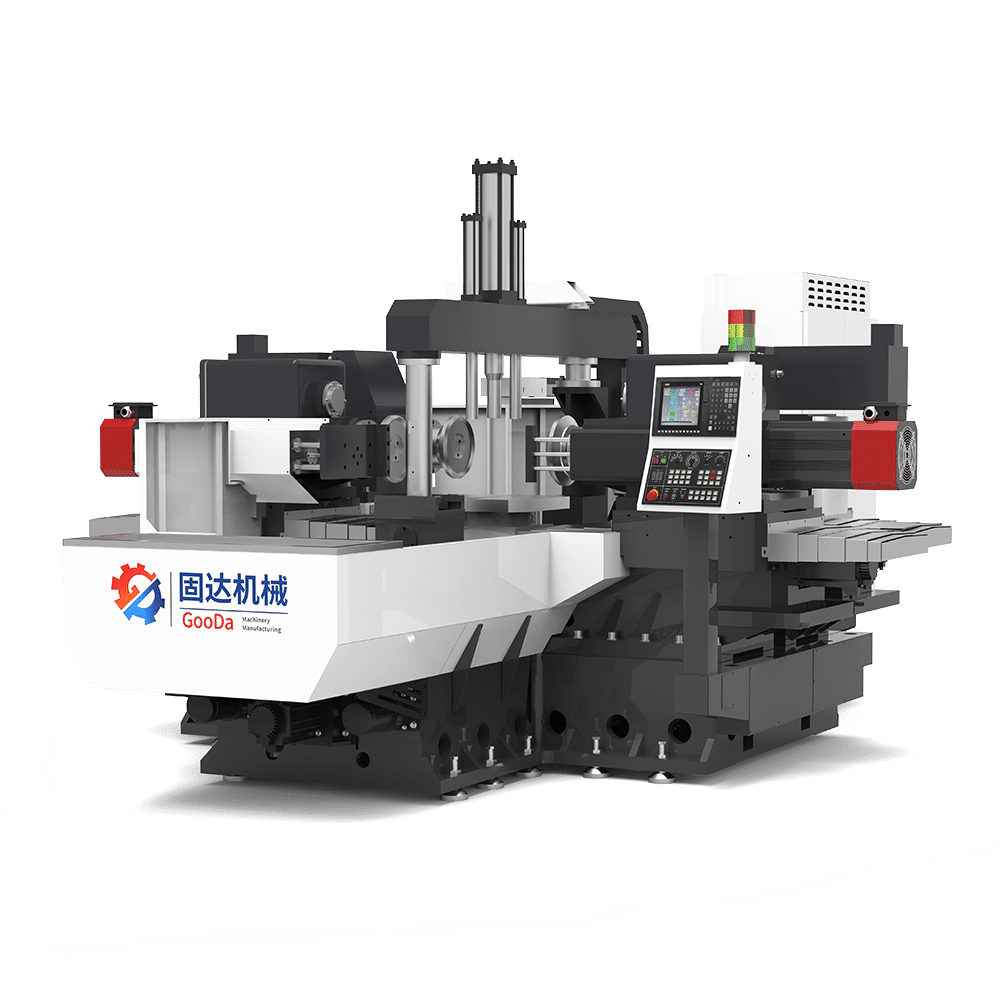

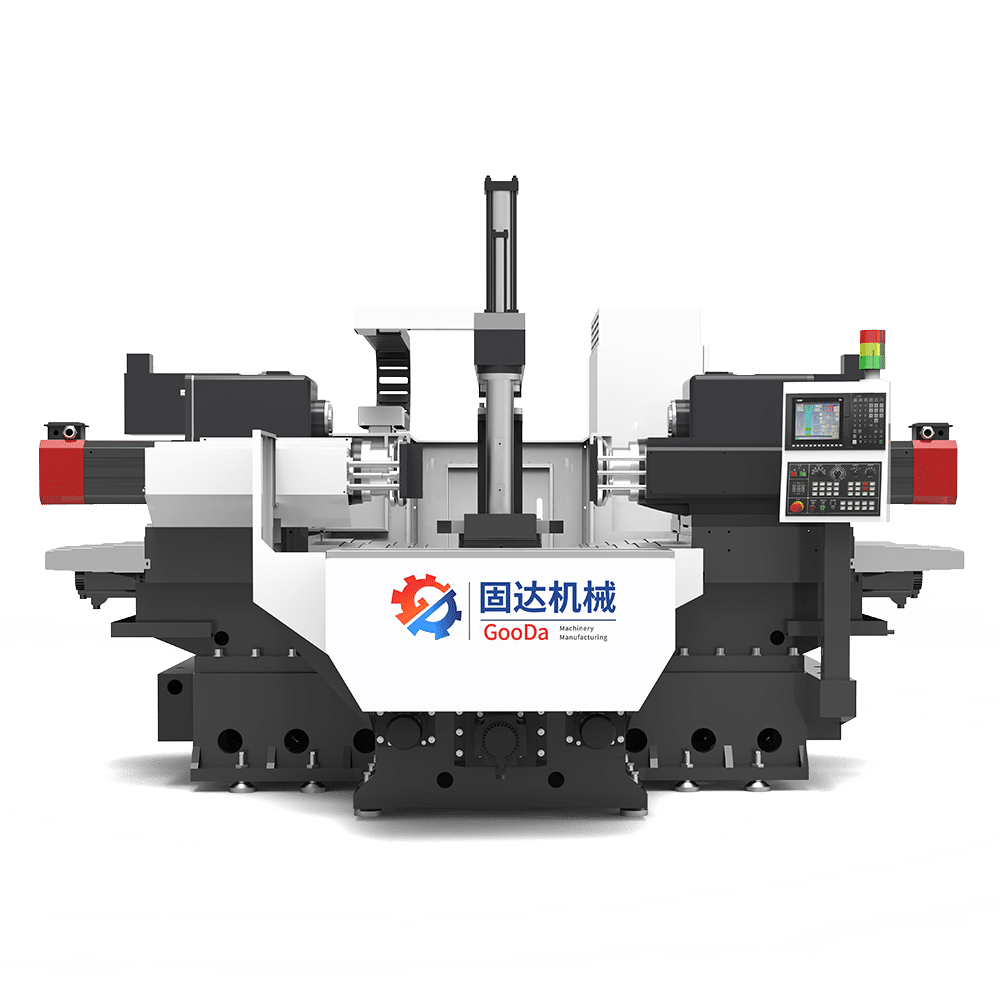

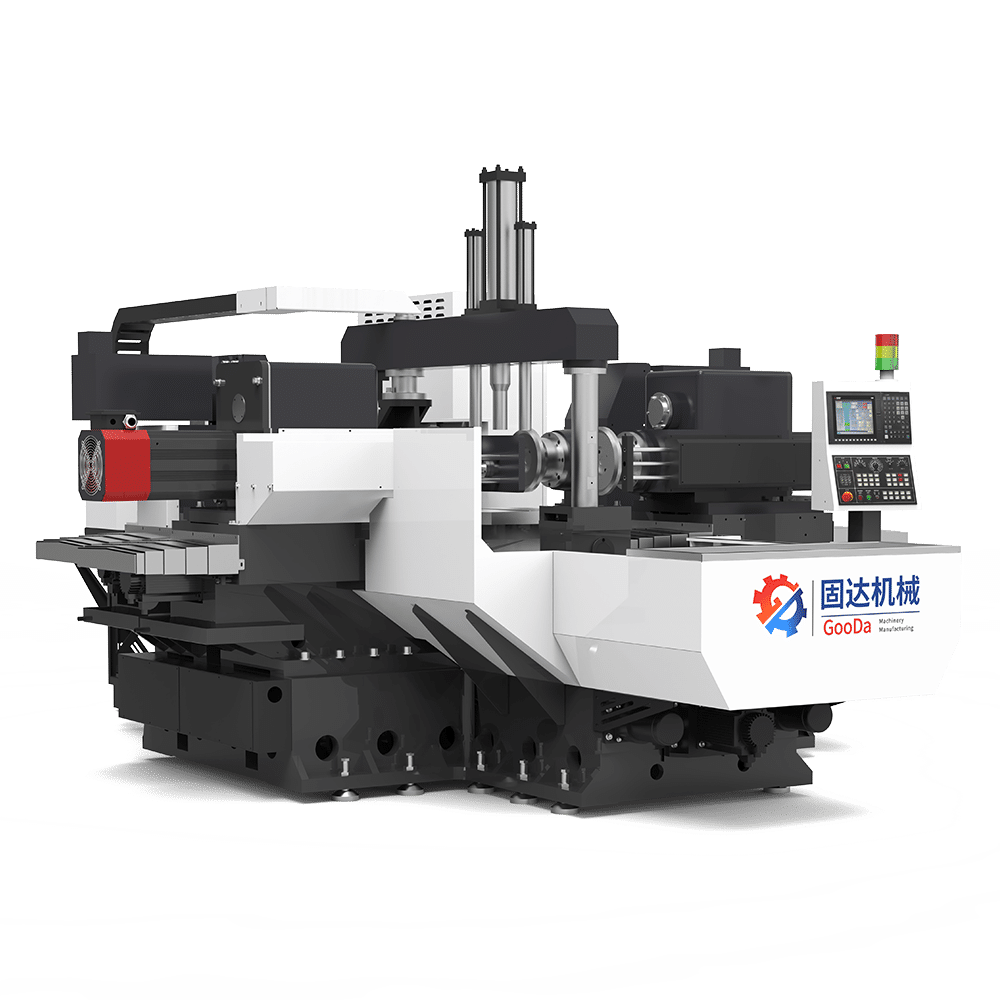

CNC four-headed milling machine(Rough&fine), double fine milling cutters, double rough milling cutters, heavy cutting, and fine cutting, customized on demand, cutting size 80-850mm, cutter diameter φ250mm.
Processing capacity
80*80-850*850mm.
One time clamping
Automatically complete four-sided rough and fine milling.
Automatic measurement
Easy to operate, improve efficiency and reduce operating costs.
A-high-end CNC system
Ensures the dimensional accuracy, parallelism and perpendicularity.
| Items | Value | Unit | |||||
| Processing capacity | Number of control axes | 6 | / | ||||
| Cutting capacity | 2*3 | mm | |||||
| Cutting size | 80-850 | mm | |||||
| Worktable | Worktable size | 600*600 | mm | ||||
| Max. load capacity | 2000 | KG | |||||
| Spindle | Spindle motor power | 2*22 | KW | ||||
| Spindle taper | BT50 | / | |||||
| Spindle speed | 50-1500 | rpm | |||||
| Spindle power | 7.5/11 | KW | |||||
| Cutter diameter | Φ250 | mm | |||||
| Feed speed | Servo motor | 2.9/2.9/1.8/1.8/1.8 | KW | ||||
| Maximum rapid feed rate | 8000/8000/8000/8000/6000 | mm/min | |||||
| Accuracy | Squareness | 0.02 | mm/300mm | ||||
| Accuracy for dimension | 0.02 | mm/300mm | |||||
| Tank capacity | Hydraulic oil tank | 50 | L | ||||
| Lubrication oil tank | 4 | L | |||||
| Size & weight | Machine weight | About 13000 | KG | ||||
| Machine size (L*W*H) | 4960*3700*2300 | mm | |||||
Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!
Mold accessories
Mold base
Non-ferrous metals
Oil blocks
Self-lubricating plate
Mould base pocket
To meet your different processing needs, we provide three widely used systems on the market for you to choose.
FANUC CONTROLLER
Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.
MITSUBISHI CONTROLLER
Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.
CHINA CONTROLLER
JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
