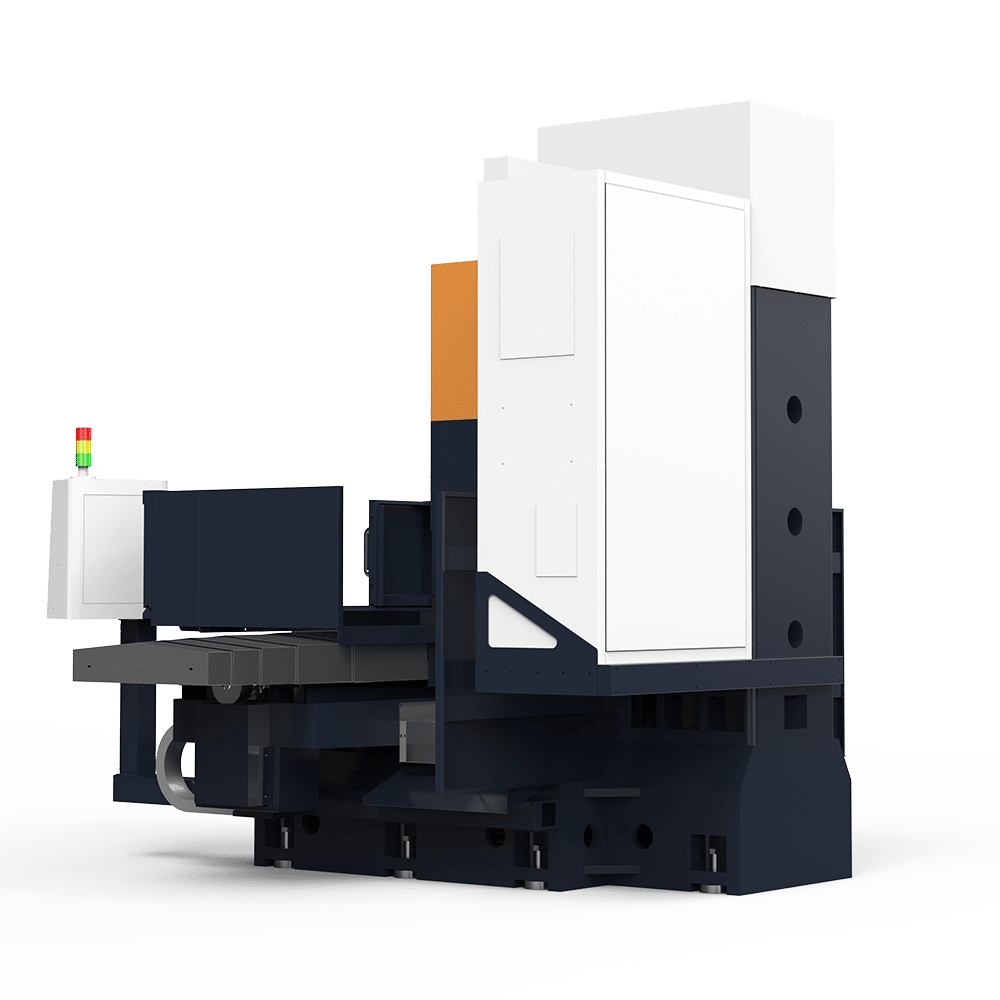

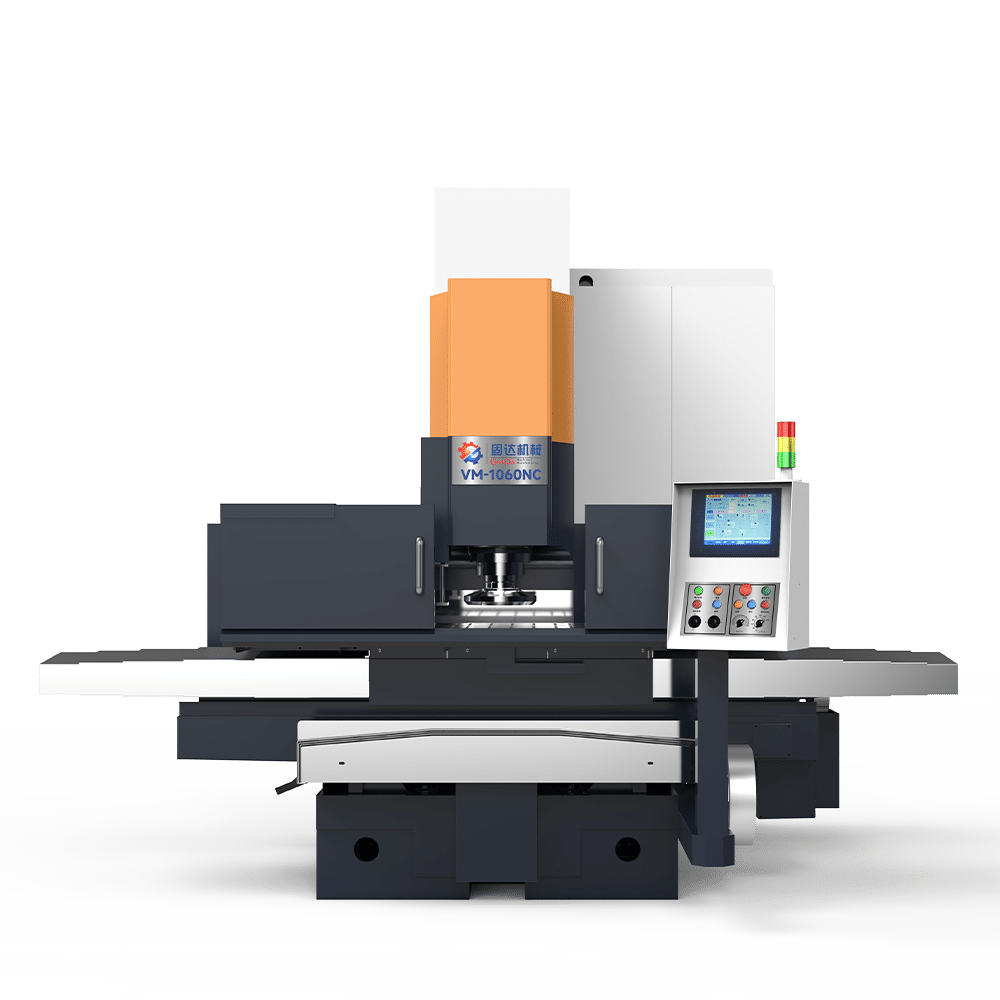

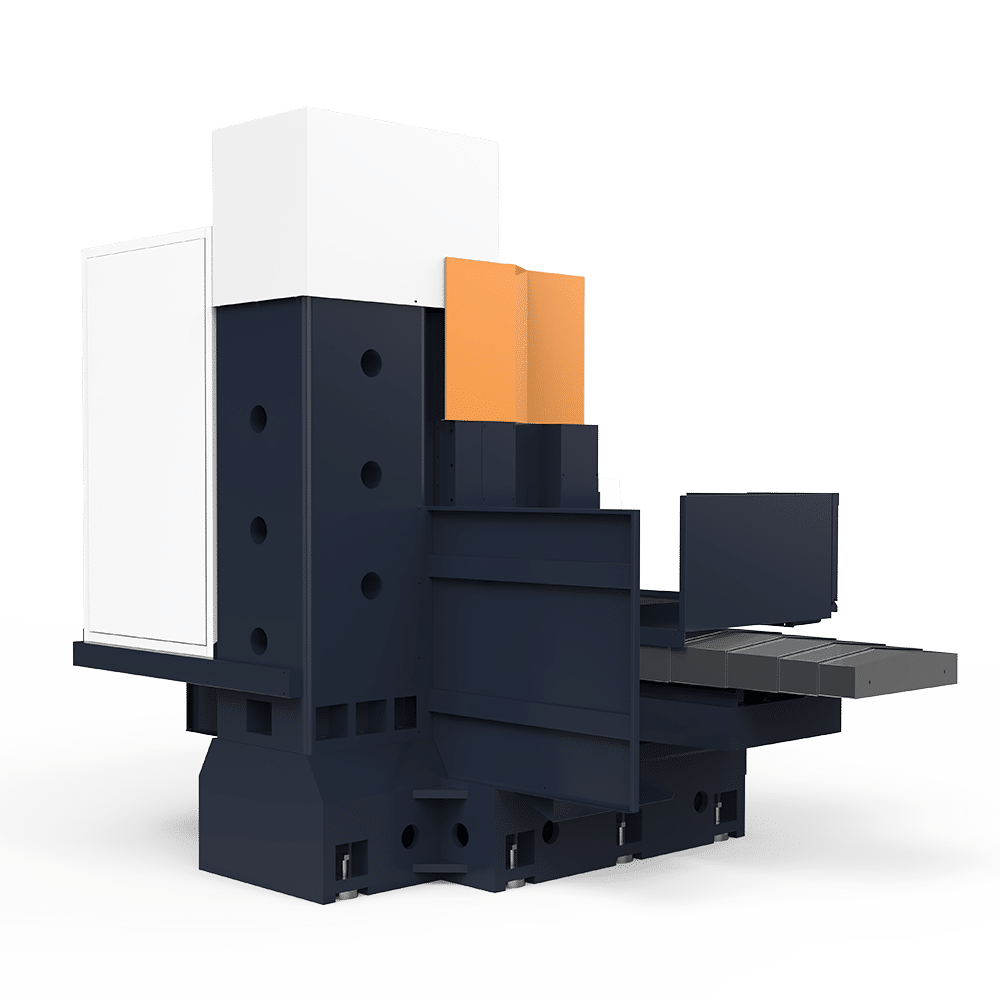

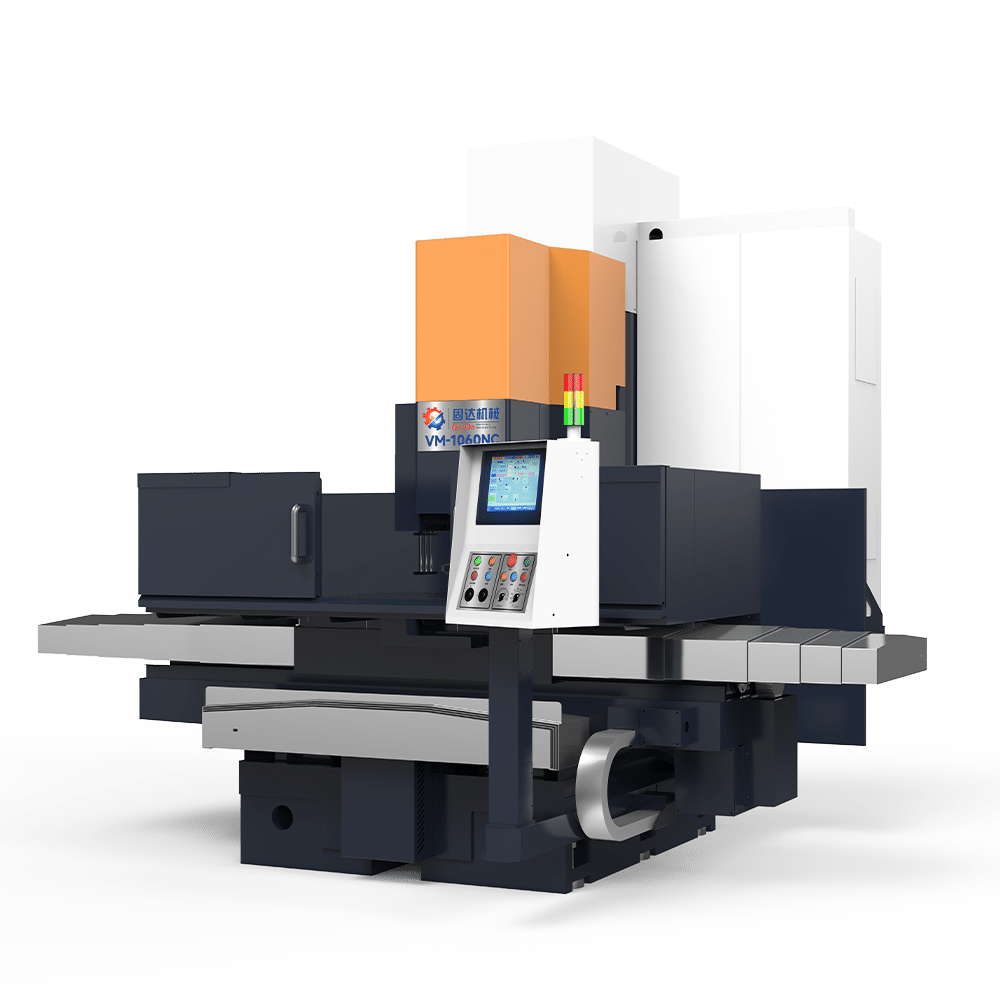

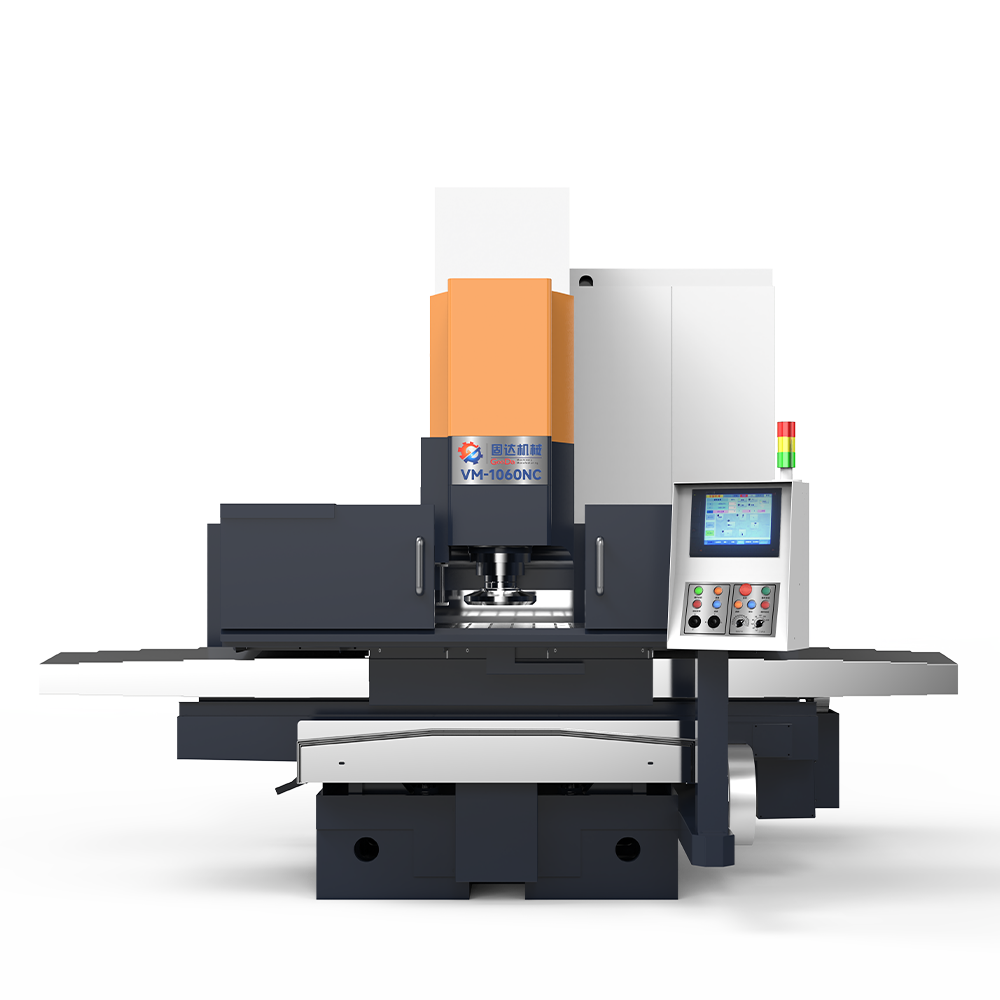

VM-1060NC

CNC Vertical Milling Machine

CNC precision vertical milling machine VM-1060, CNC system controls, one-time data setting, automatic positioning & measurement, automatic processing, reduces the time of operator measurement and manual tool setting, improves processing efficiency, and ensures the flatness of the workpiece.

Number of control axes 3
Max. processing thickness 300mm
Processing range 1000*600mm
Max. load capacity 1500KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

CNC Vertical Milling Machine

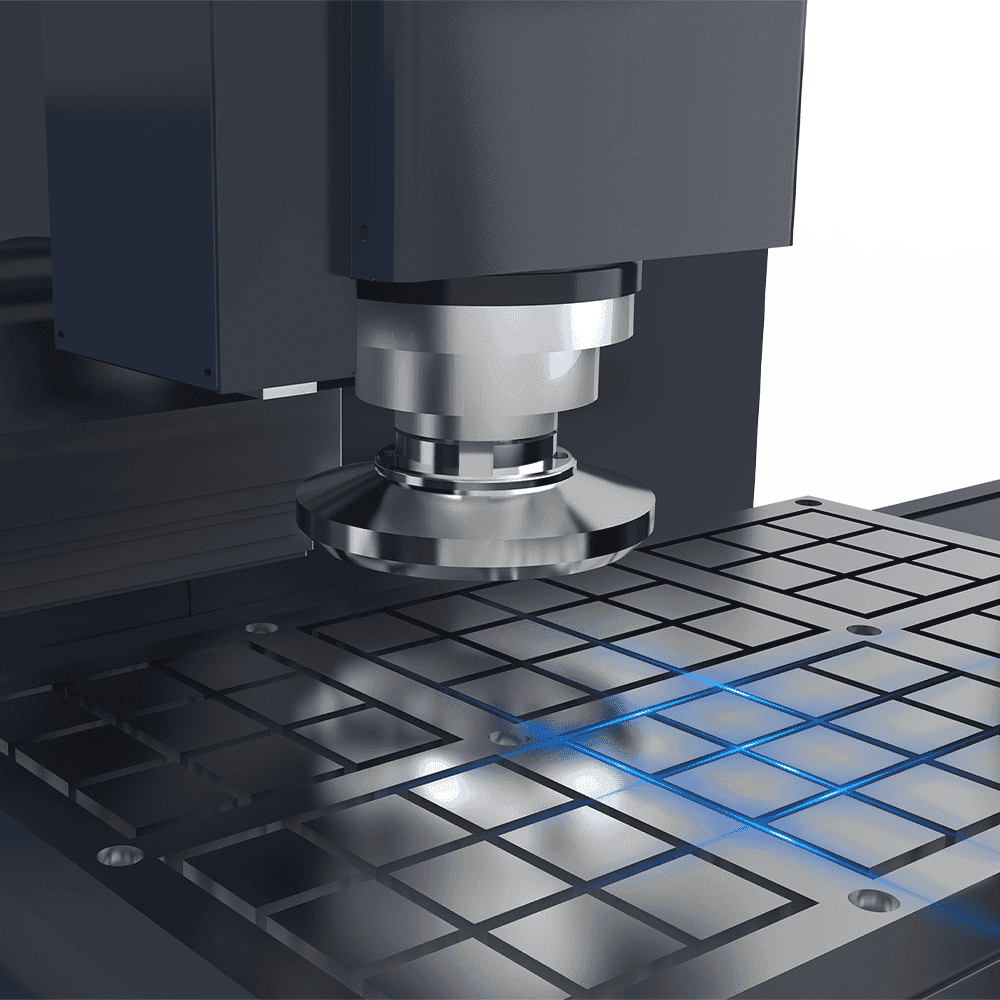

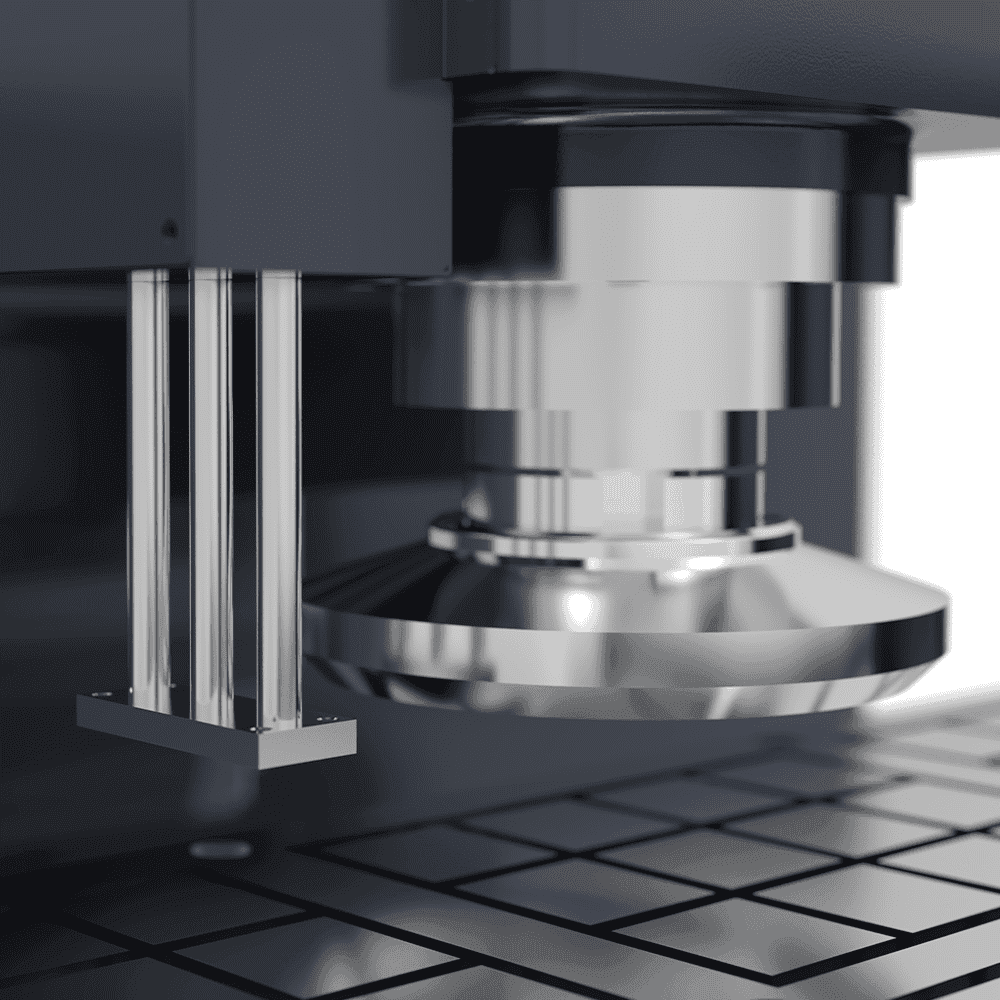

Automatic measurement

Shorten processing time and improve processing accuracy.

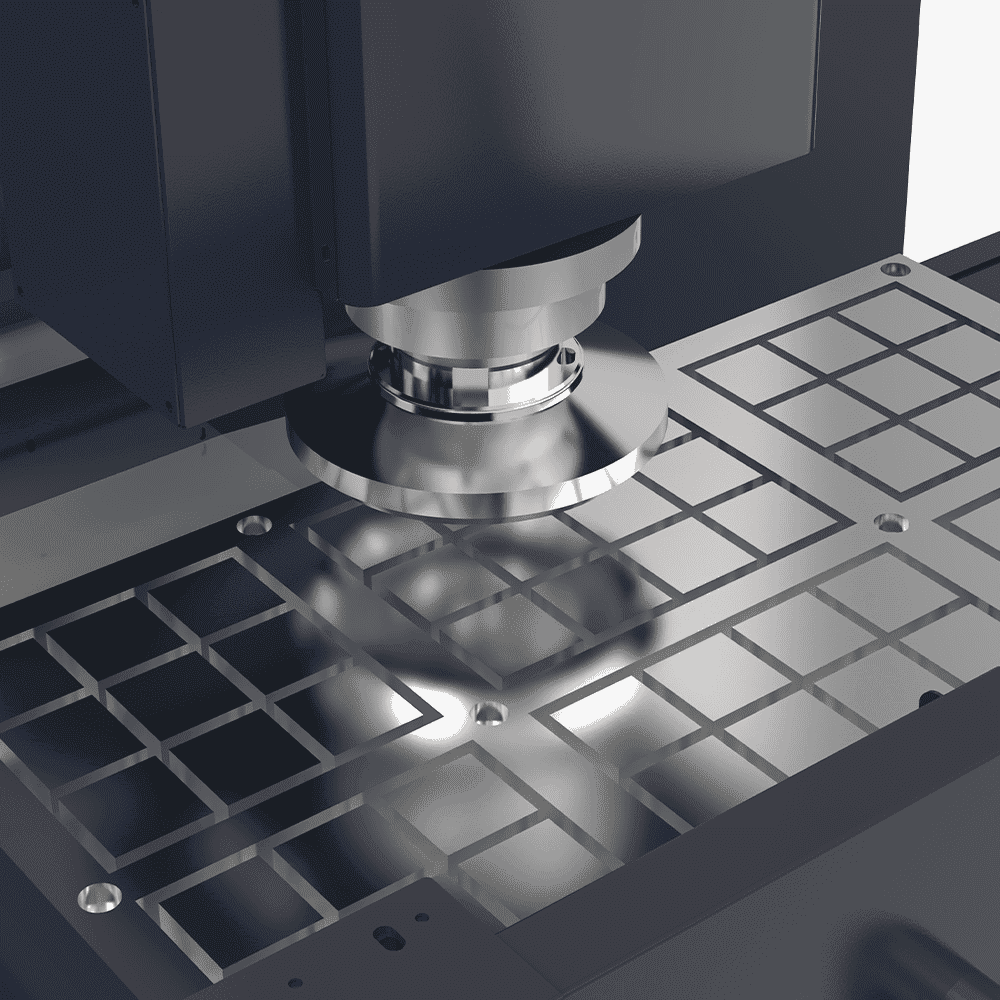

Automatic cutting

Reduce non-processing time, improve productivity, and increase tool change speed.

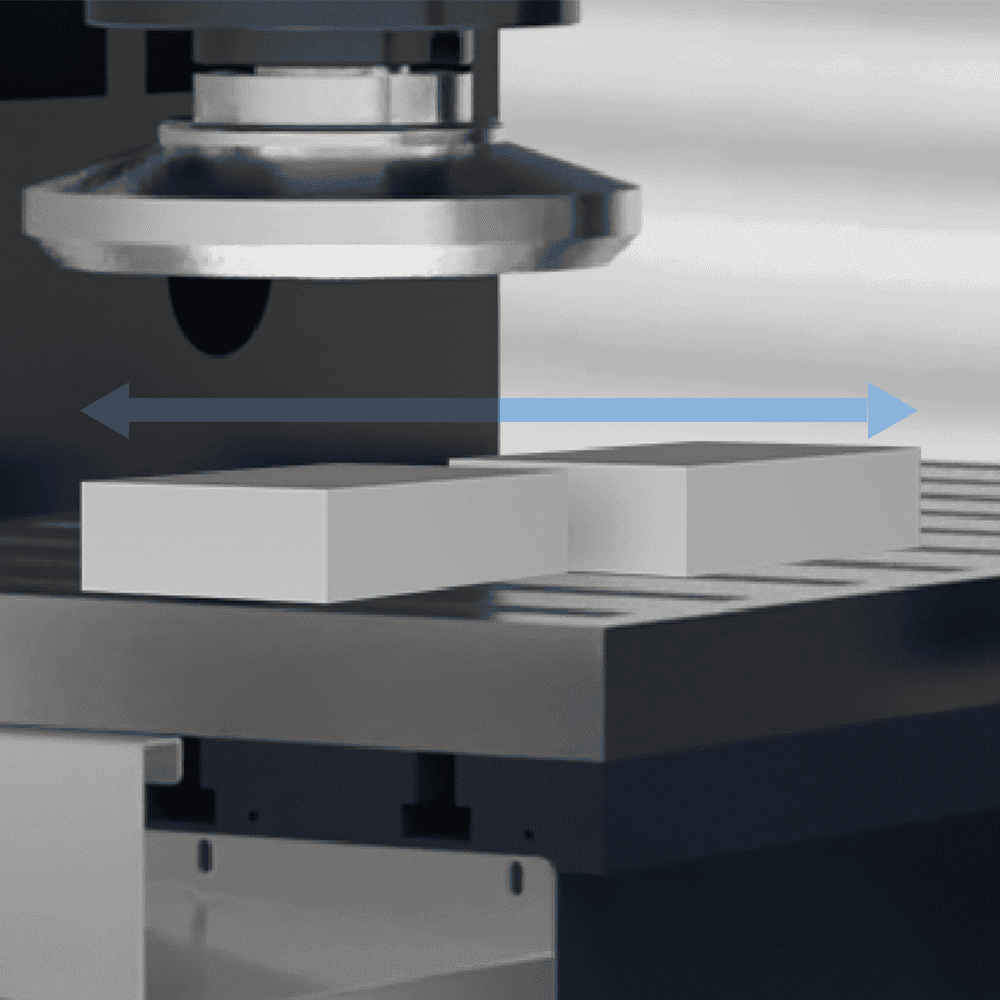

Batch processing of small workpieces

High precision in repeated tool positioning and reasonable tool storage capacity in the tool magazine.
Grid encrypted disk

Strong security measures.

Basic Info

Items		Value	Unit
Worktable	Worktable size	1000*600	mm
	Max. load capacity	1500	KG
	Magnet chuck size	Electro permanent	/
Processing range	Number of control axes	3	/
	Max. processing thickness	300	mm
	Processing range	1000*600	mm
Belt - driven spindle	Spindle speed	50-500	rpm
	Spindle motor power	11	KW
	Spindle taper	/	mm
	Cutter diameter	Φ200	mm
Feed speed	X / Z servo motor	/	kw
	X / Z maximum rapid feed rate	8000/8000	mm / min
	X / Z maximum cutting feed rate	6000/6000	mm / min
Accuracy	Flatness	0.01	mm
Fuel tank capacity	Lubricating oil tank	4	L
Size & weight	Machine weight	About8000	KG
Size & weight	Machine size ( LWH )	340028002800	mm

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

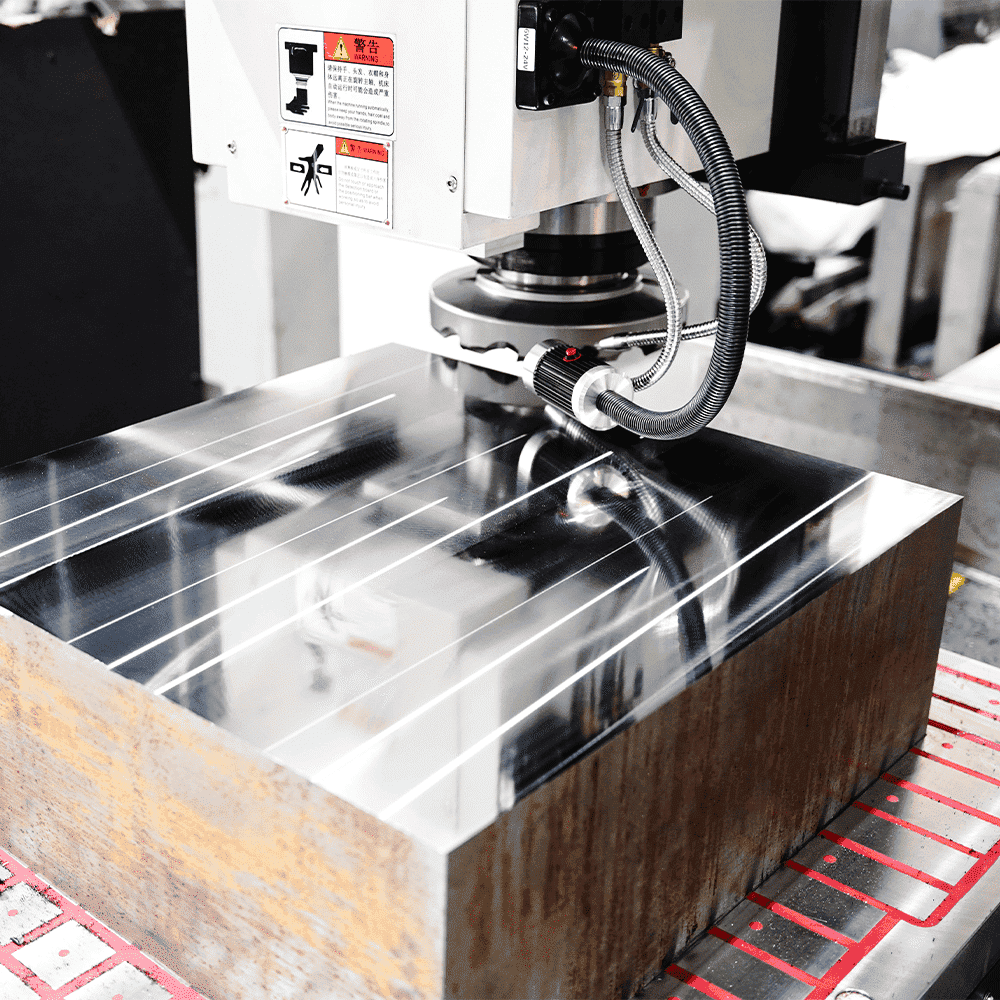

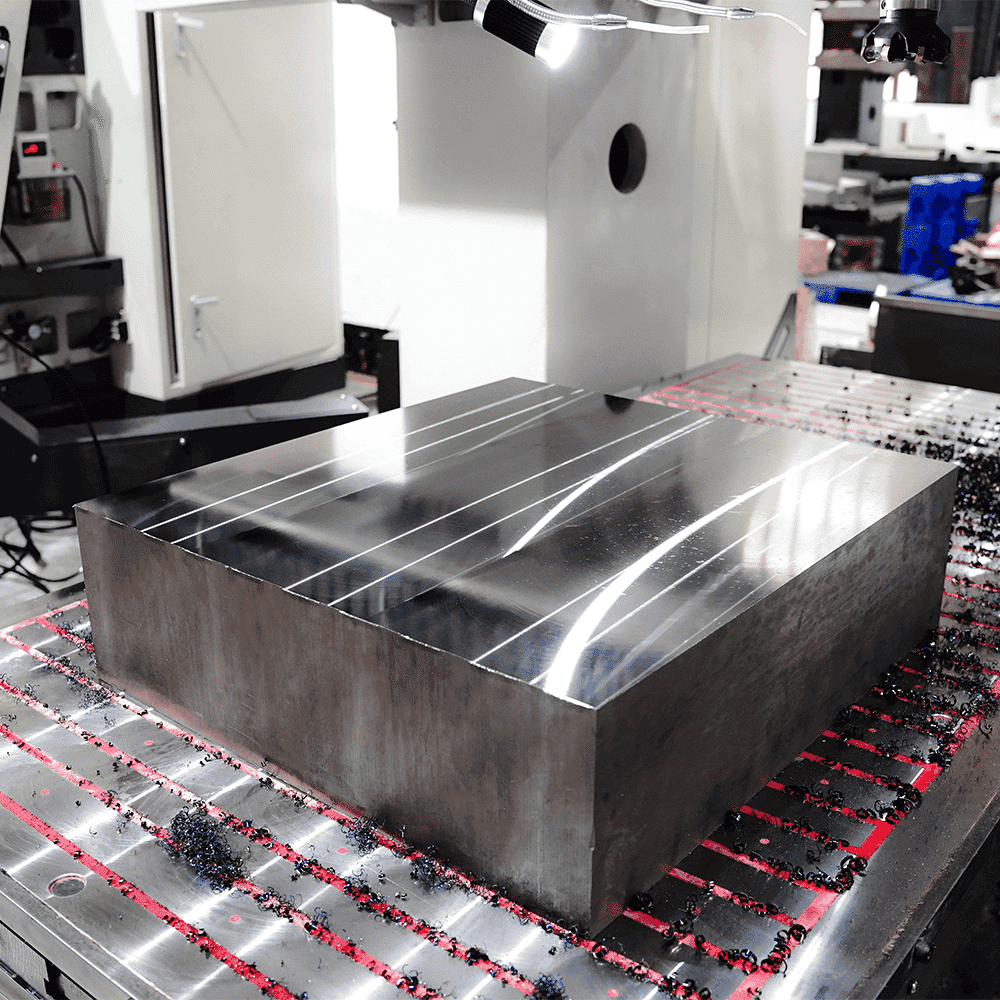

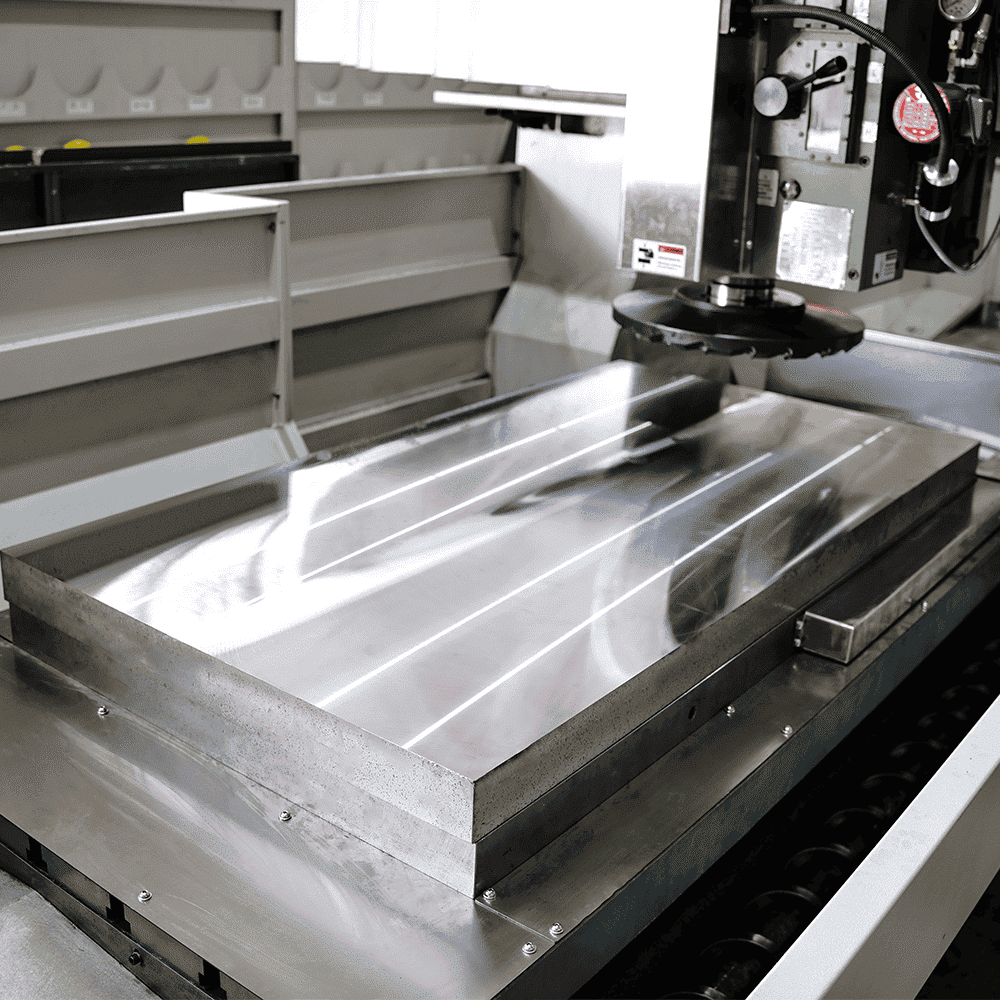

Steel mold processing

Hydraulic valve block processing

Mold base processing

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
