TH-5015NC

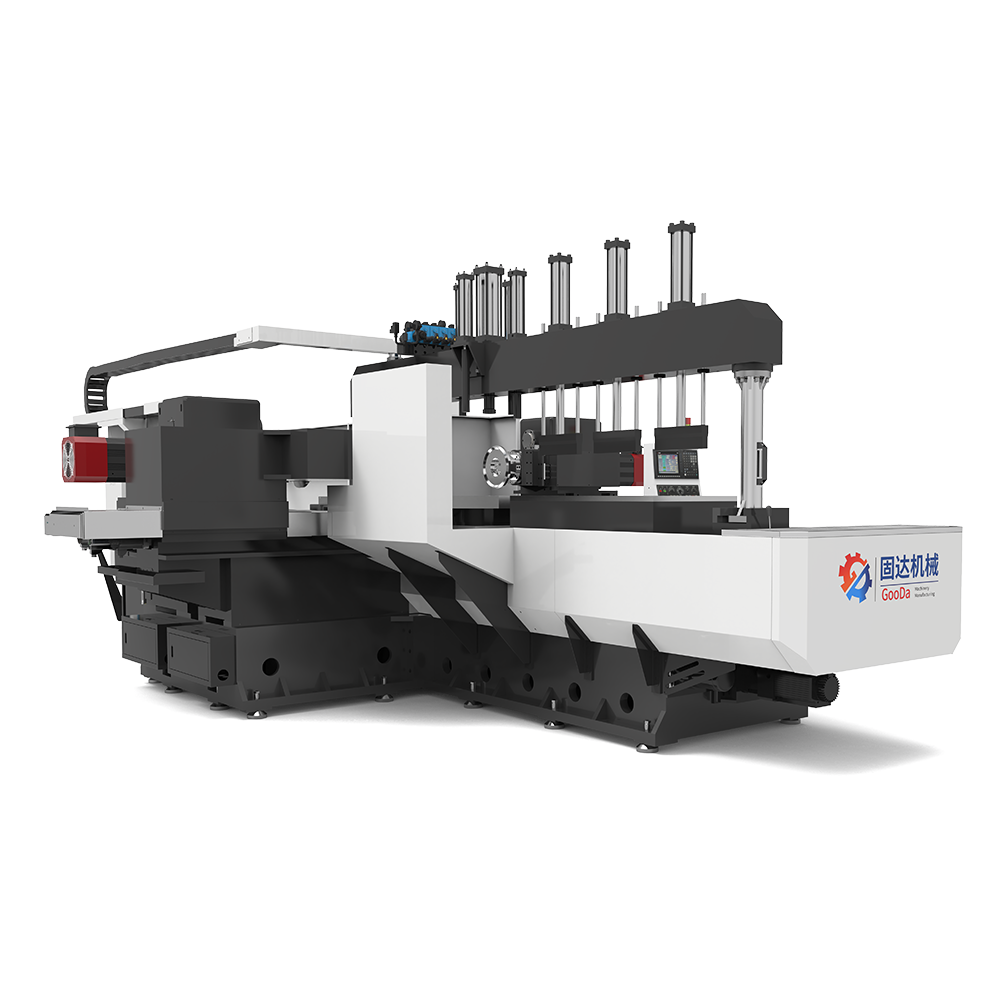

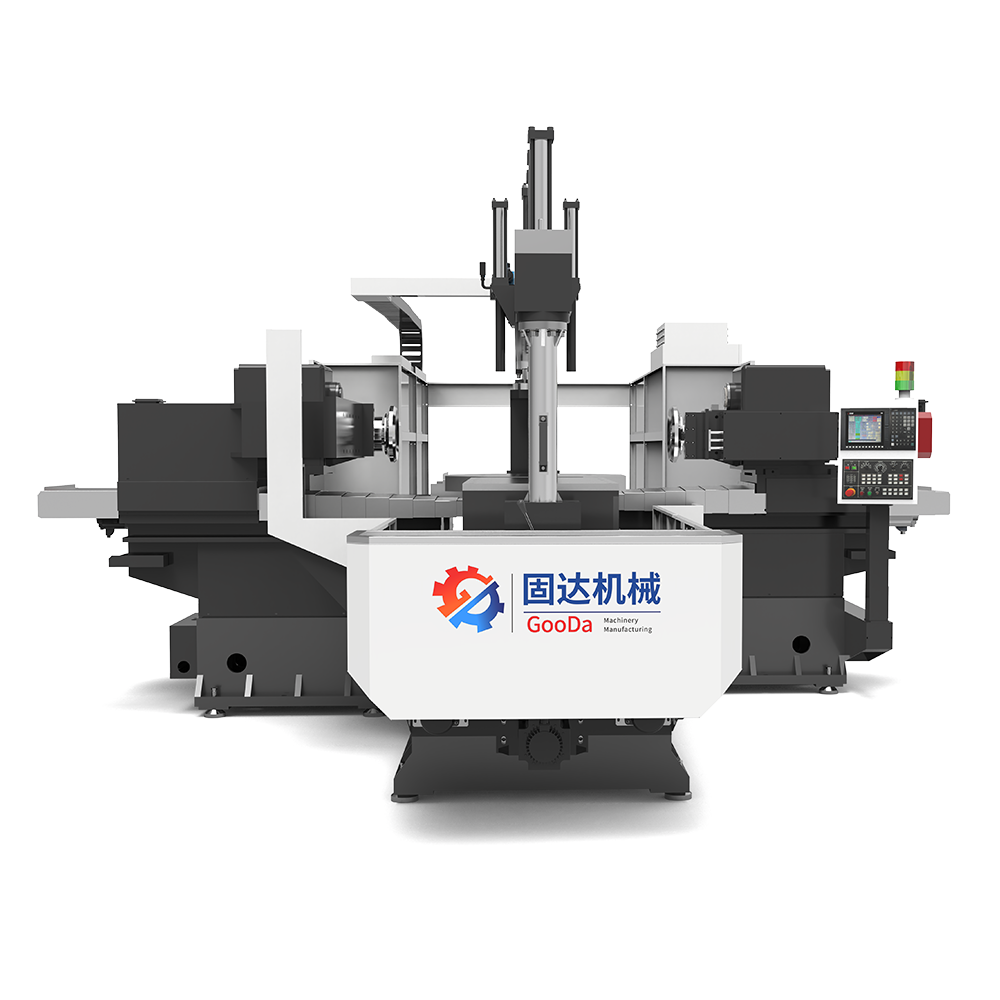

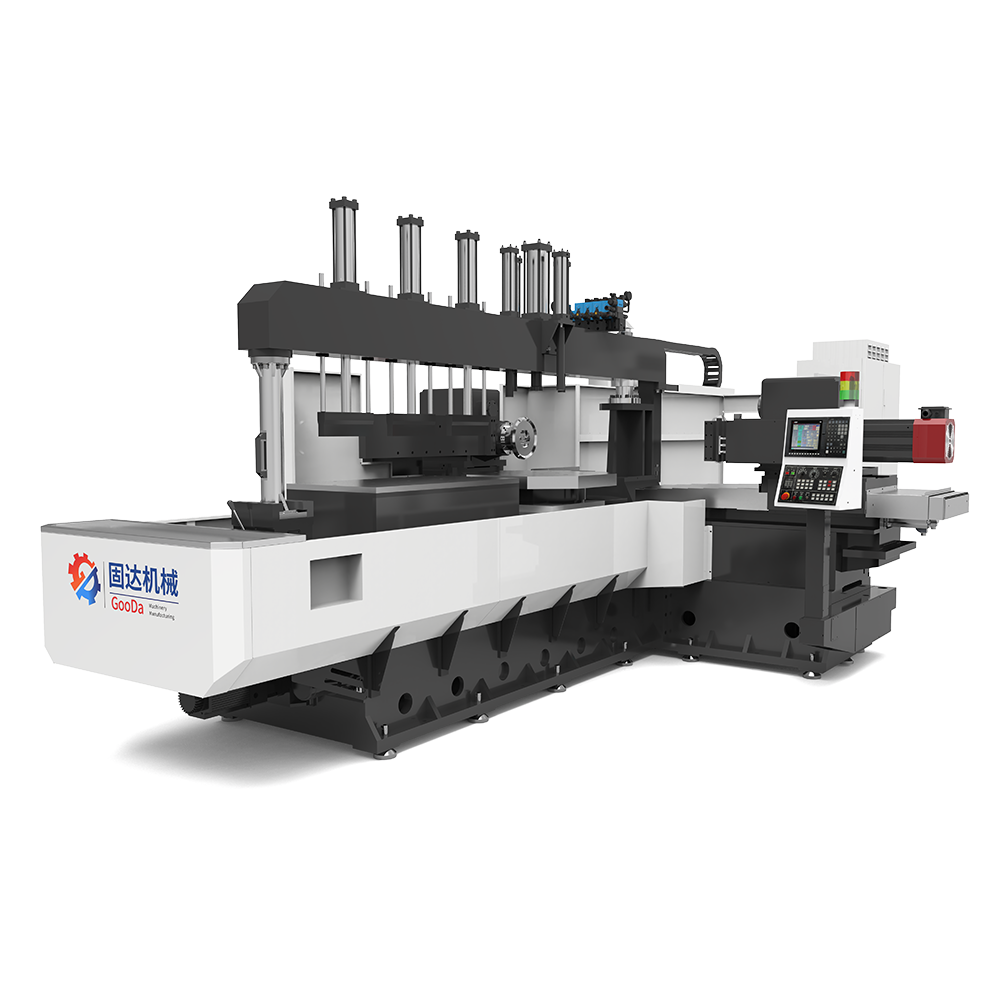

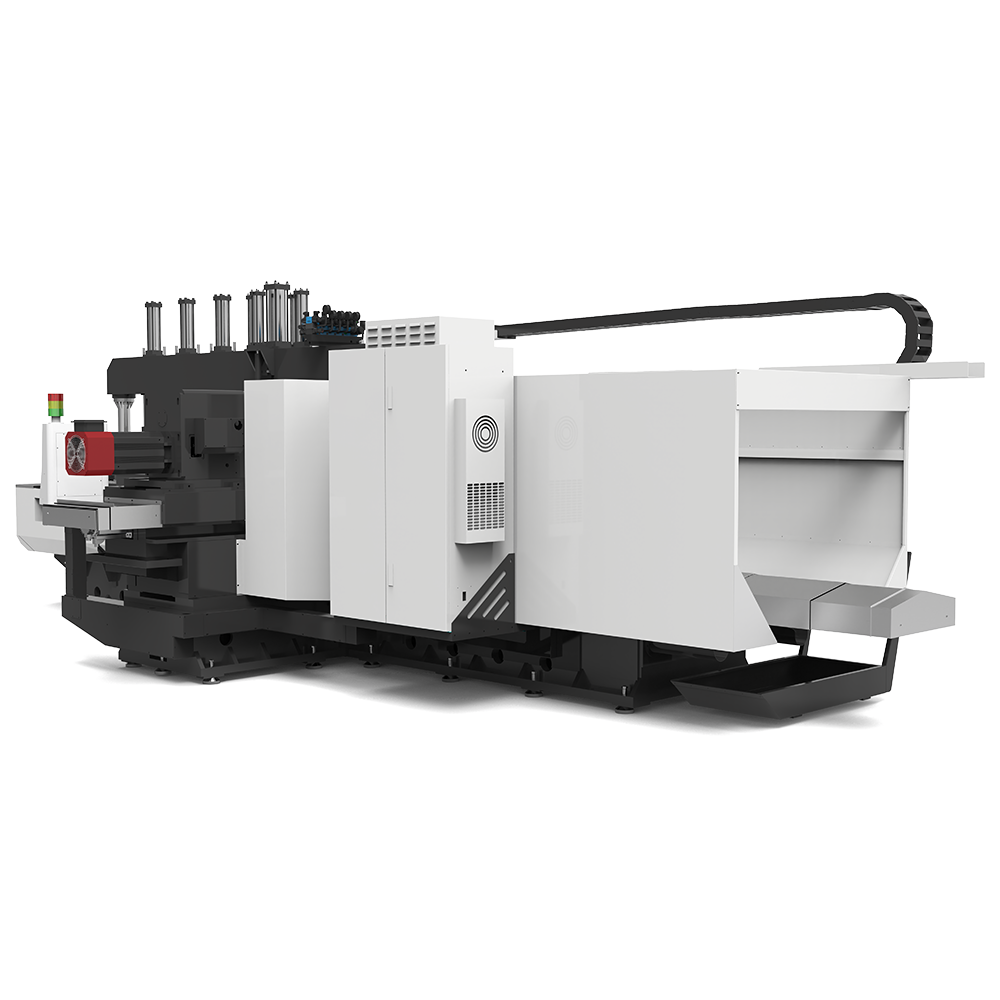

CNC Duplex Milling Machine

CNC duplex milling machine - dual-use machine. Four-side milling processing can rotate: 20-500mm and the nonrotating processing range for both sides is: width (20-500mm) * length (20-1500mm). Widely used in the processing field of long steel flat.

Four-side mode 20-500mm
Two-side mode W20-500mm L20-1500mm
Cutter diameter Ф200/Ф250mm
Max. load capacity 1200KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

CNC Duplex Milling Machine

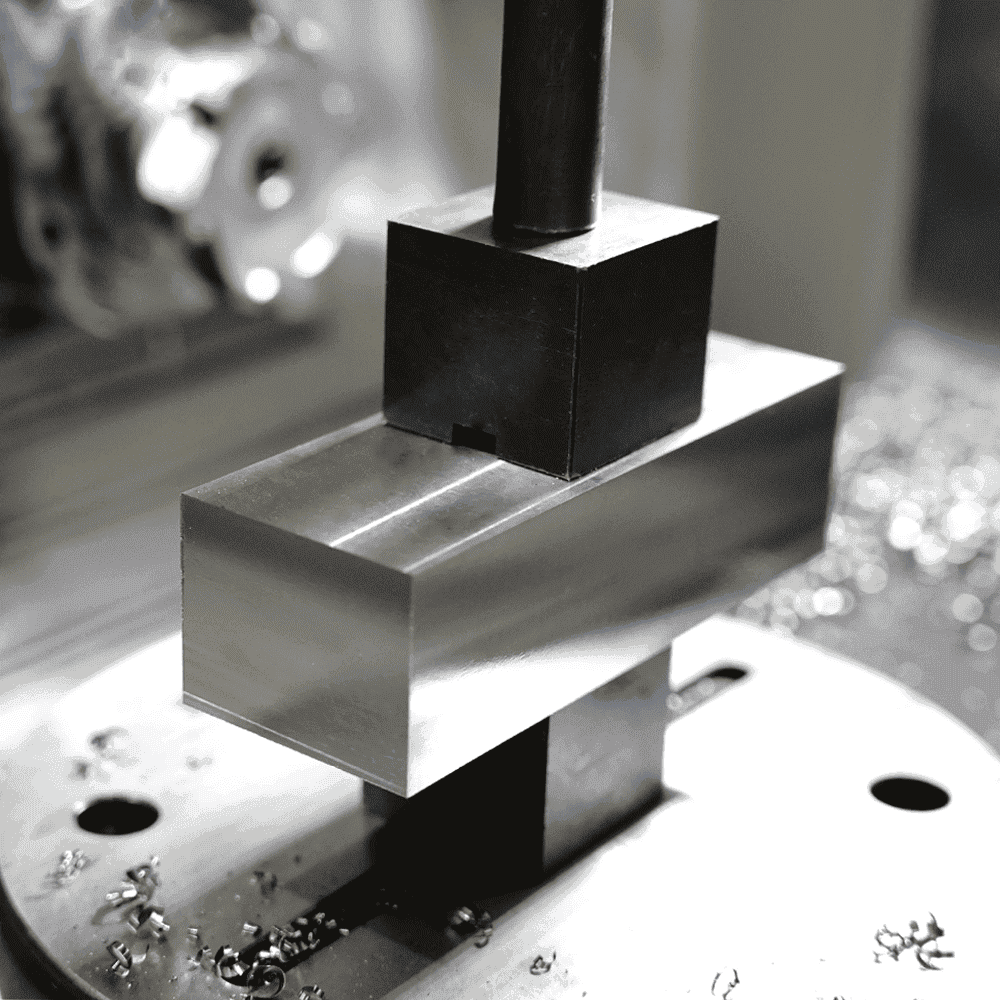

Processing capacity

Cutting range 20-500mm, cutting diamater φ200/φ250mm(St.).

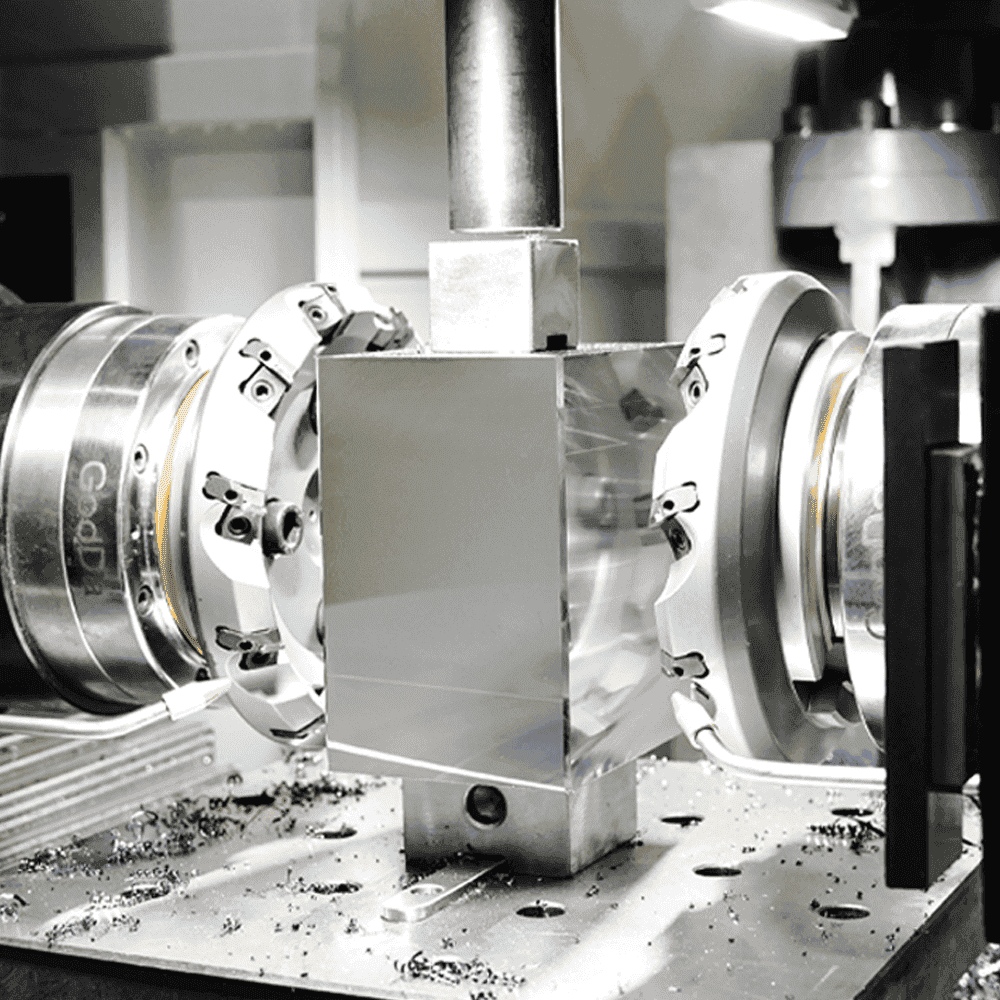

One time clamping

Automatically complete four-sided rough and fine milling.

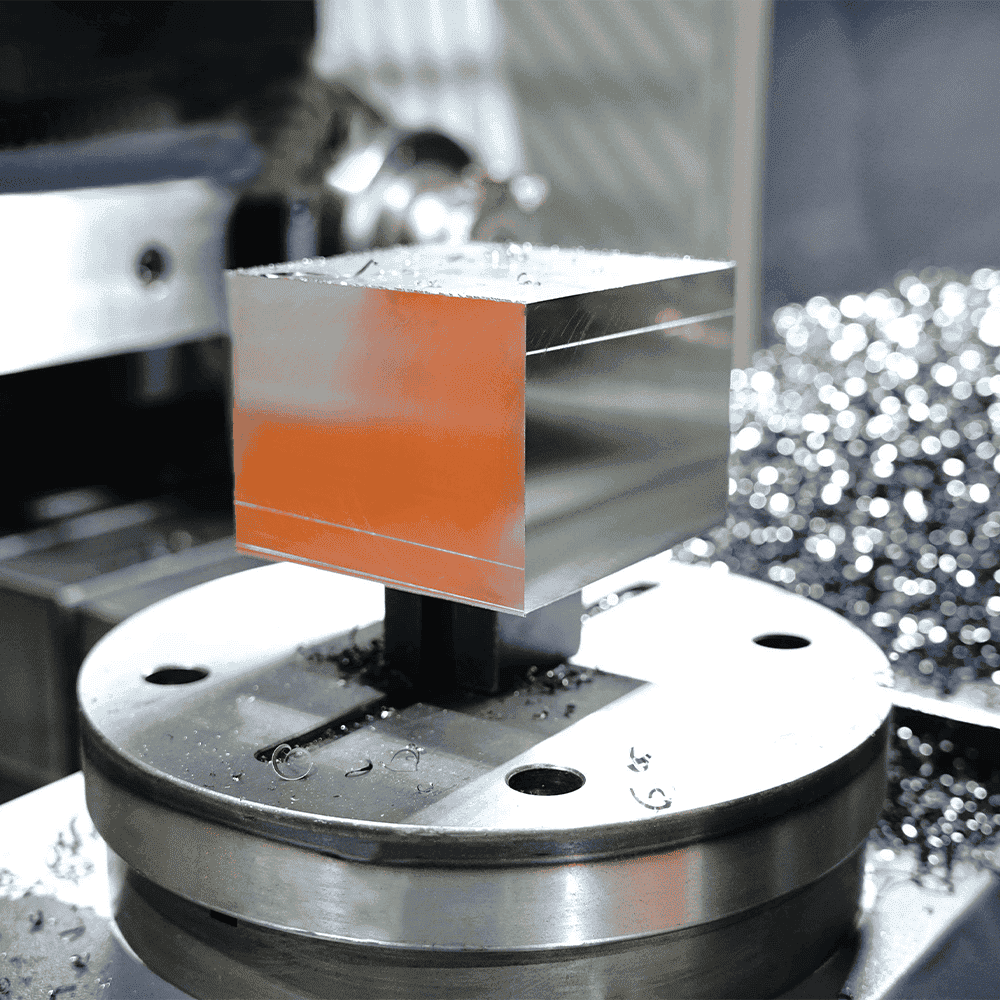

Automatic measurement

Easy to operate, improve efficiency and reduce operating costs.
A-high-end CNC system

Ensures the dimensional accuracy, parallelism and perpendicularity.

Basic Info

Items		Unit
Processing capacity	Four-side mode	20-500	mm
	Two-side mode	W20-500mm	mm
		L20-1500mm	mm
Worktable	Worktable size	400400+4001000	mm
	Max. load capacity	1200	KG
Spindle	Spindle speed	50-500	rpm
	Spindle power	215/222	KW
	Cutter diameter	Φ200/Φ250	mm
Motor Power	X/Y/Z servo motor	10000100008000*10000	mm/min
Size & weight	Machine size (LWH)	664040002300	mm
	Machine weight	About 14000	KG

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

Mold accessories

Mold base

Non-ferrous metals

Oil blocks

Self-lubricating plate

Mould base pocket

Control & Software

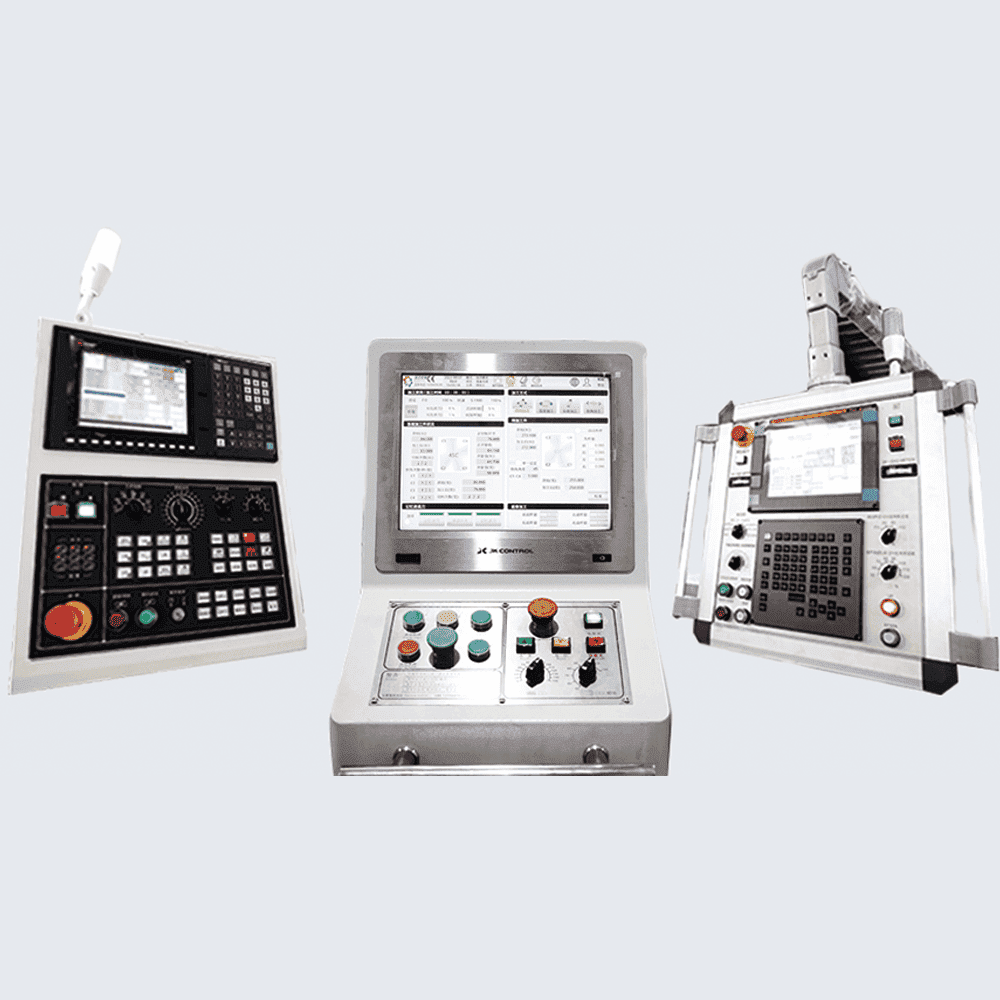

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.
