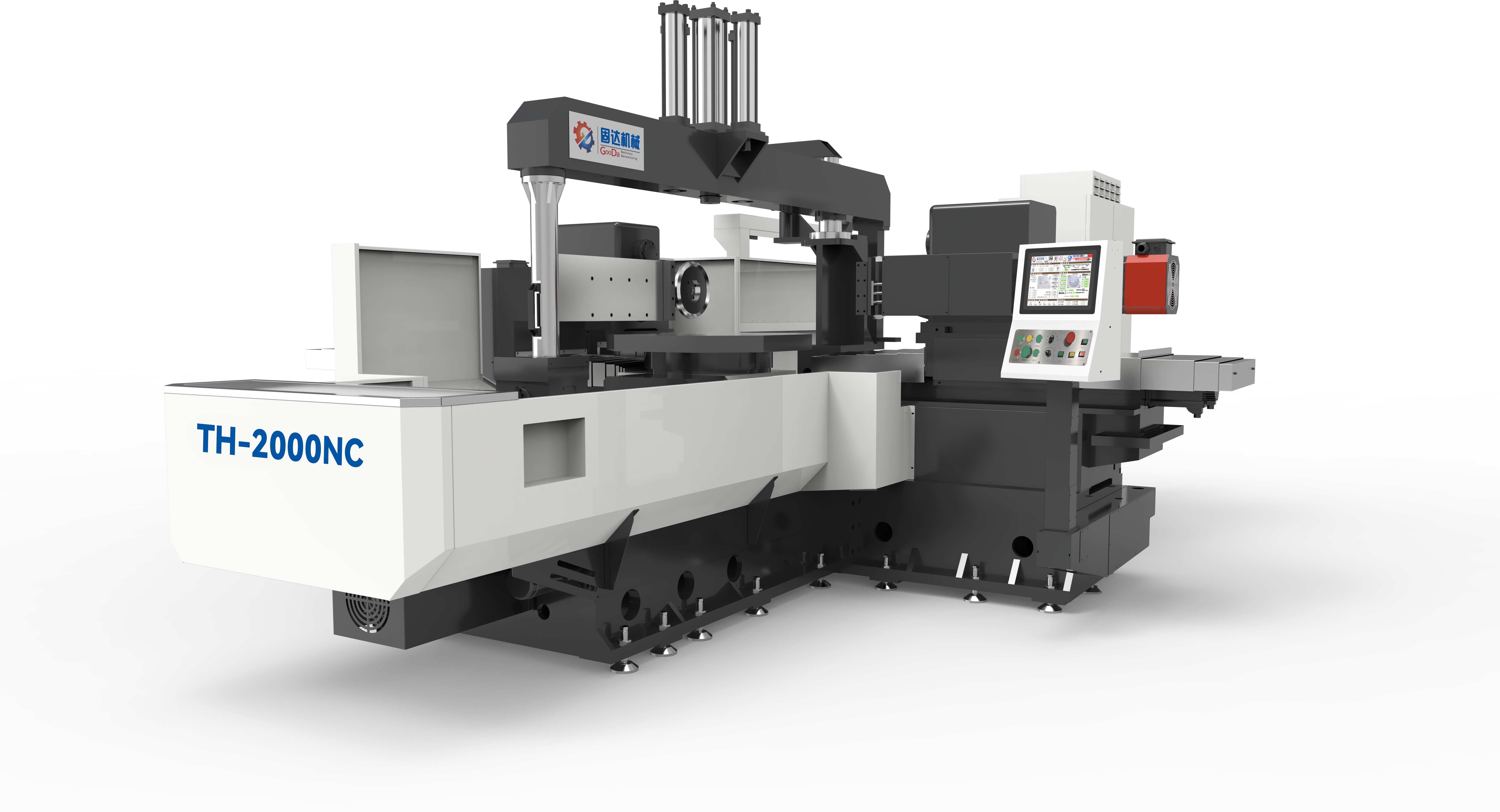

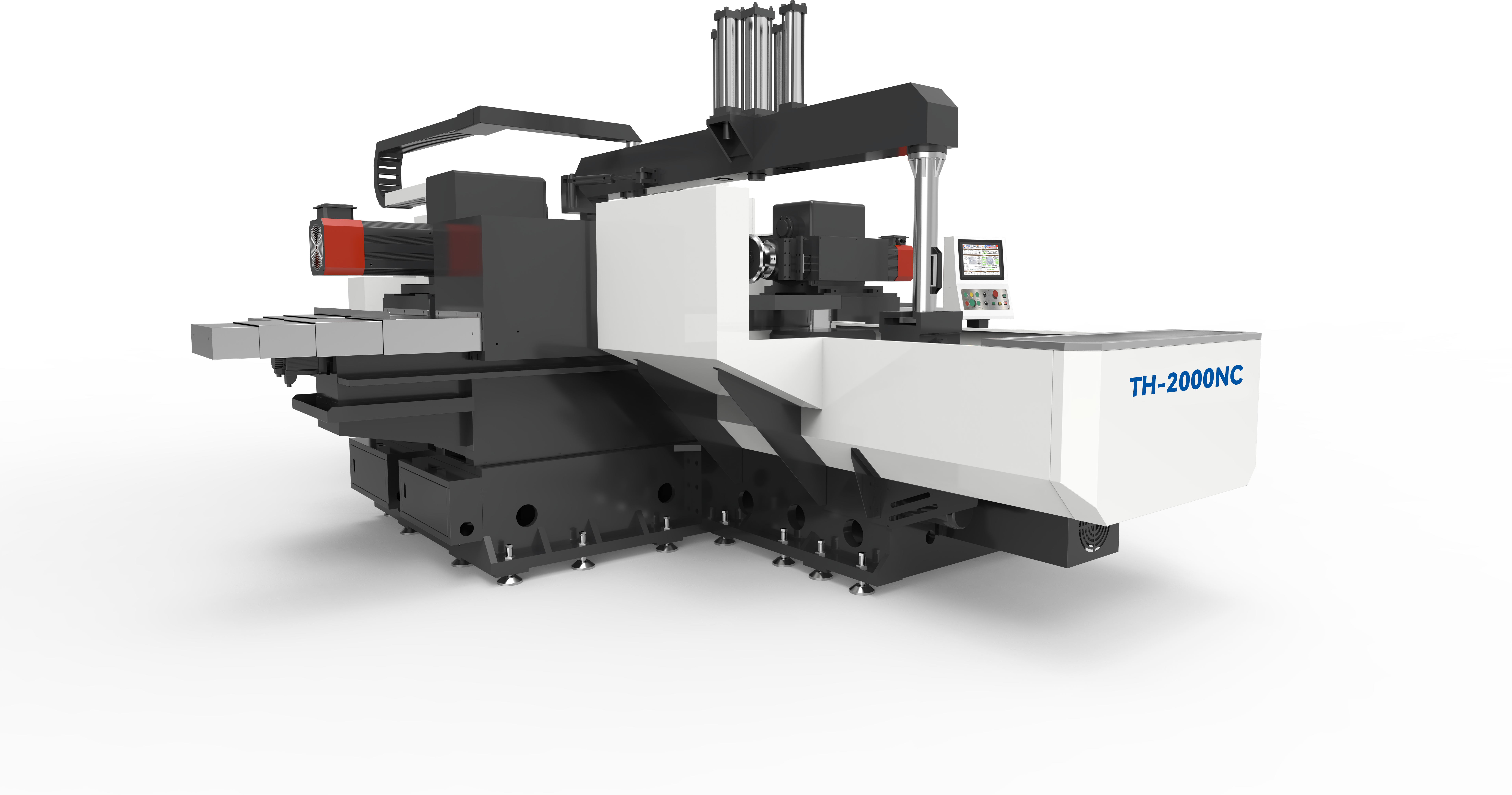

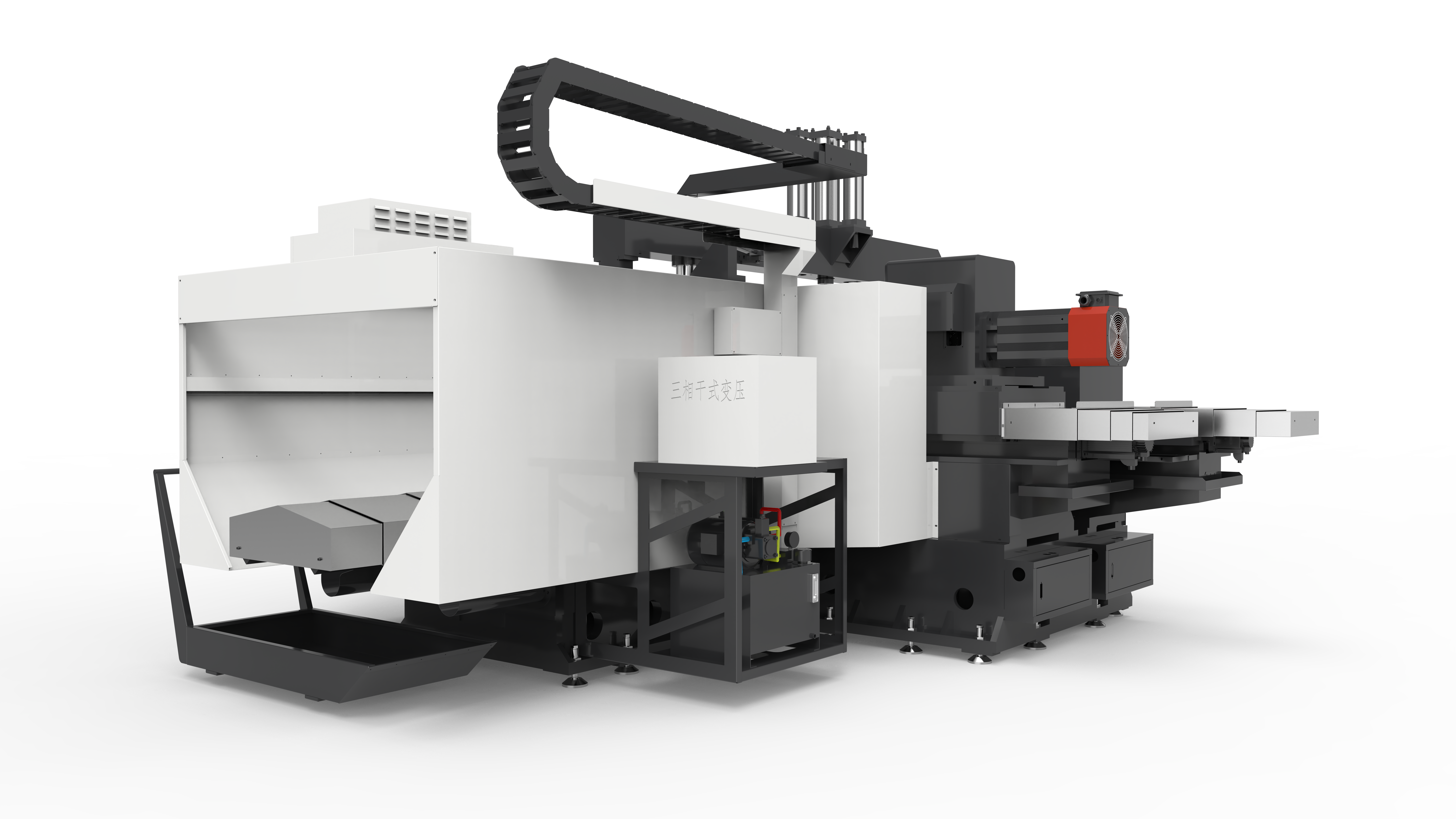

TH-2000NC

CNC Duplex Milling Machine

The machine is equipped with double milling heads, with 2nd transmission and rotary table, which is convenient and efficient to operate, with excellent cutting performance! Cutting range 200-1600mm, cutting diameter φ350mm(St.).

Number of control axes 5
Cutting capacity 2*3mm
Cutting size 500-2000mm
Max. load capacity 9000KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

CNC Duplex Milling Machine

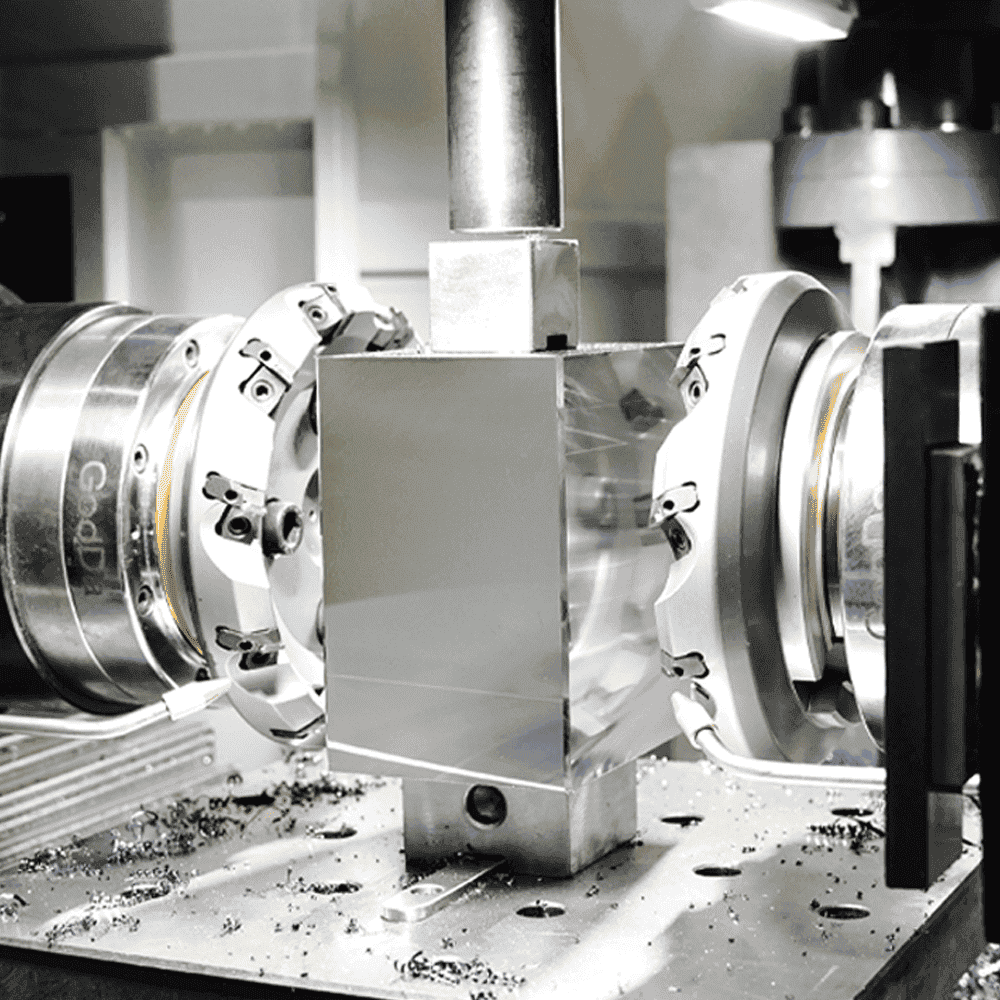

Processing capacity

Cutting range 200-1600mm, cutting diamater φ350mm(St.).

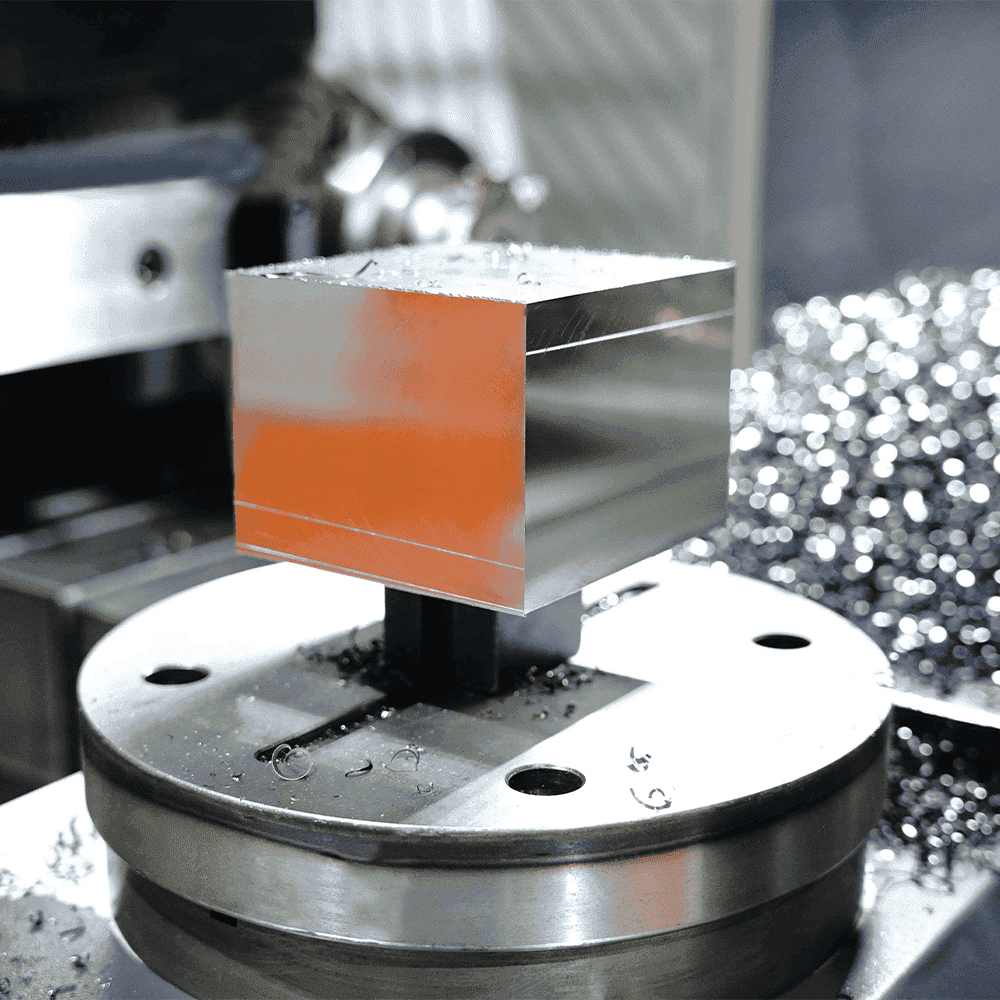

One time clamping

Automatically complete four-sided rough and fine milling.

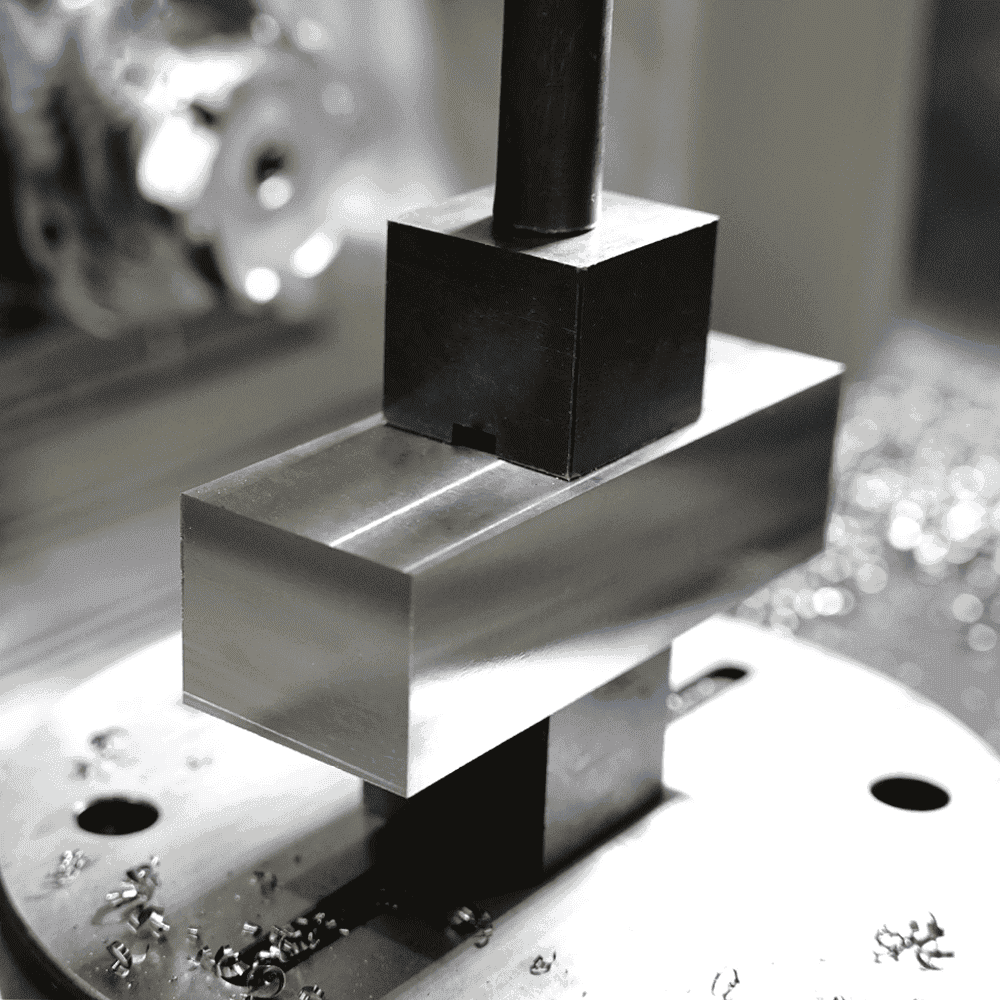

Automatic measurement

Easy to operate, improve efficiency and reduce operating costs.
A-high-end CNC system

Ensures the dimensional accuracy, parallelism and perpendicularity.

Basic Info

Items		Value	Unit
Feed speed	X/Y/Z maximum rapid feed rate	6000/6000/6000	mm/min
Processing capacity	Number of control axes	5	/
	Cutting capacity	2*3	mm
	Cutting size	500-2000	mm
Worktable	Worktable size	1300*1300	mm
Worktable	Max. load capacity	9000	KG
Spindle	Spindle speed	50-500	rpm
	Spindle power	230/237	KW
	Cutter diameter	Φ250	mm
Servo positioning plate	Independent positioning plate	1000*350(optional)	/
Motor Power	X/Y/Z servo motor	5.5/4.4/4.4/2.9/1.8	KW
Accuracy	Squareness	0.02	mm/300mm
Accuracy	Accuracy for dimension	0.05	mm/300mm
Tank capacity	Hydraulic oil tank	80	L
Tank capacity	Lubrication oil tank	4	L
Main power	Power supply	AC3P380V/3P220V	V
Size & weight	Machine weight	About24000	KG
Size & weight	Machine size (LWH)	780058003100	mm

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

Mold accessories

Mold base

Non-ferrous metals

Oil blocks

Self-lubricating plate

Mould base pocket

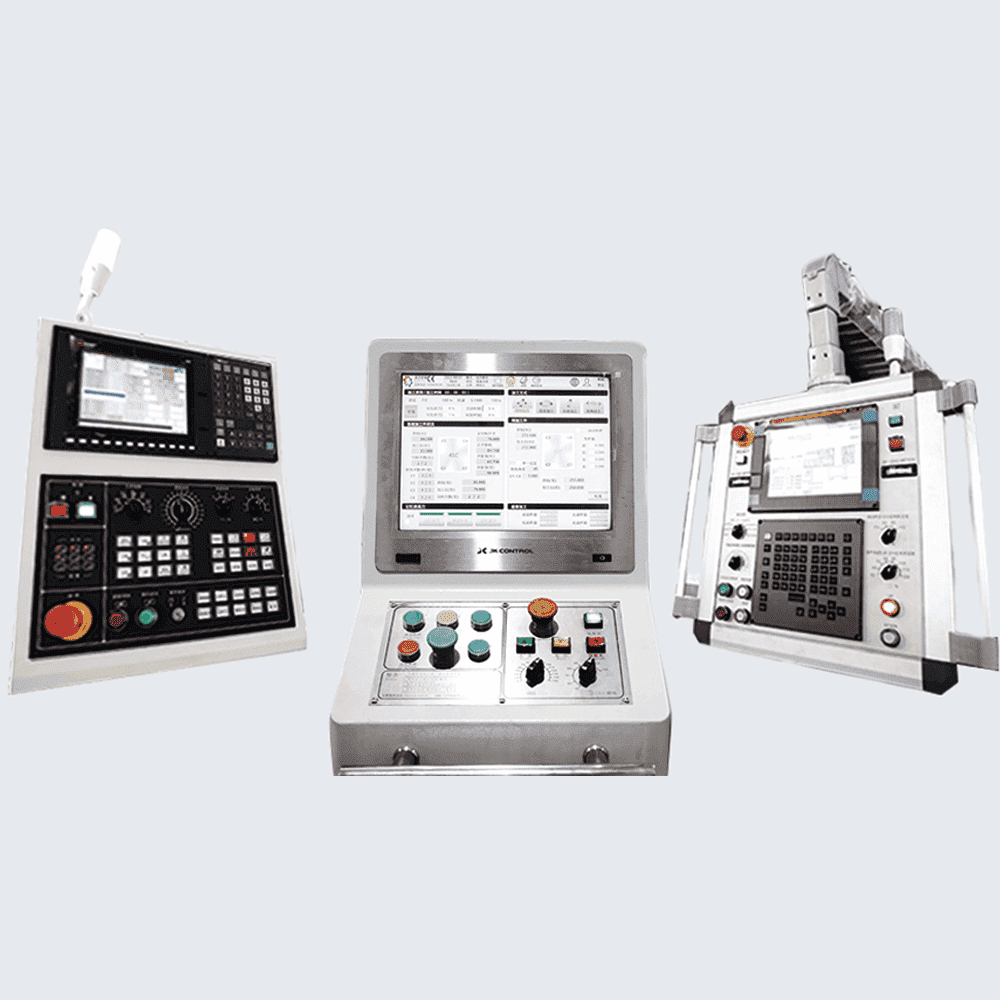

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
