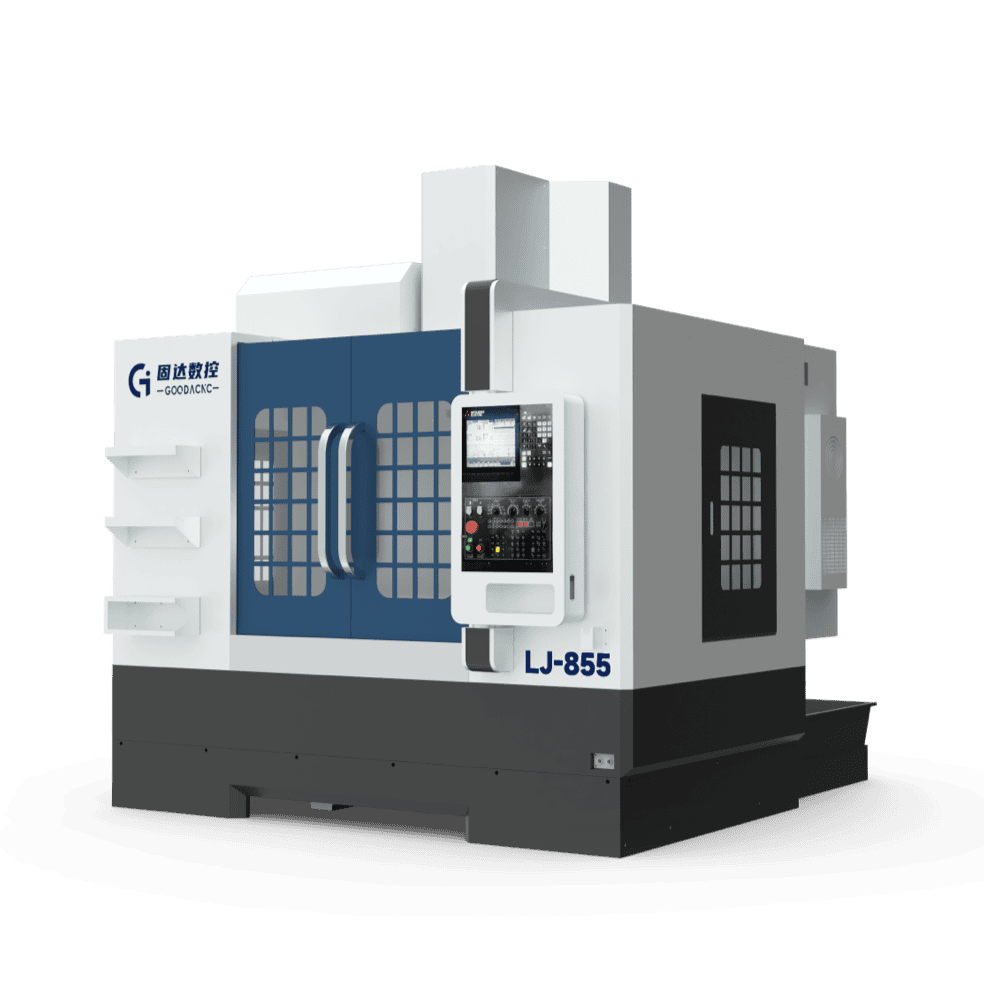

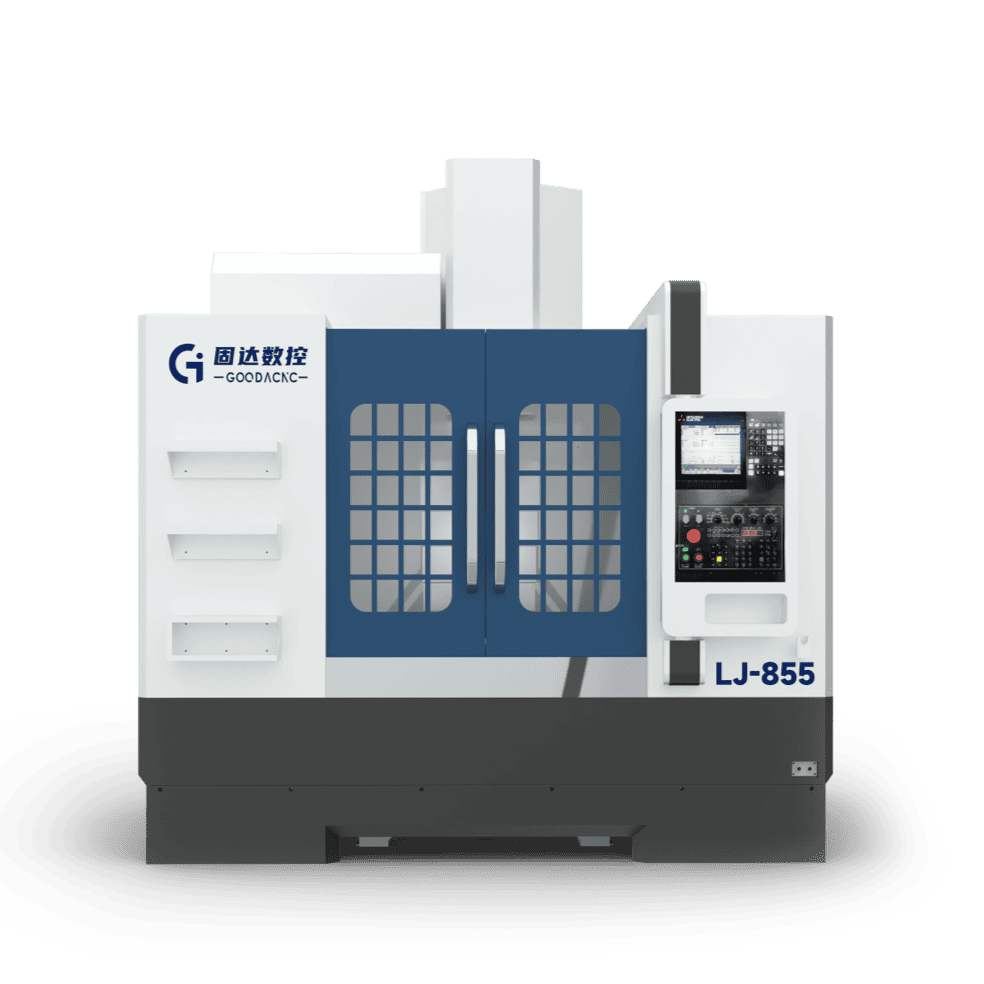

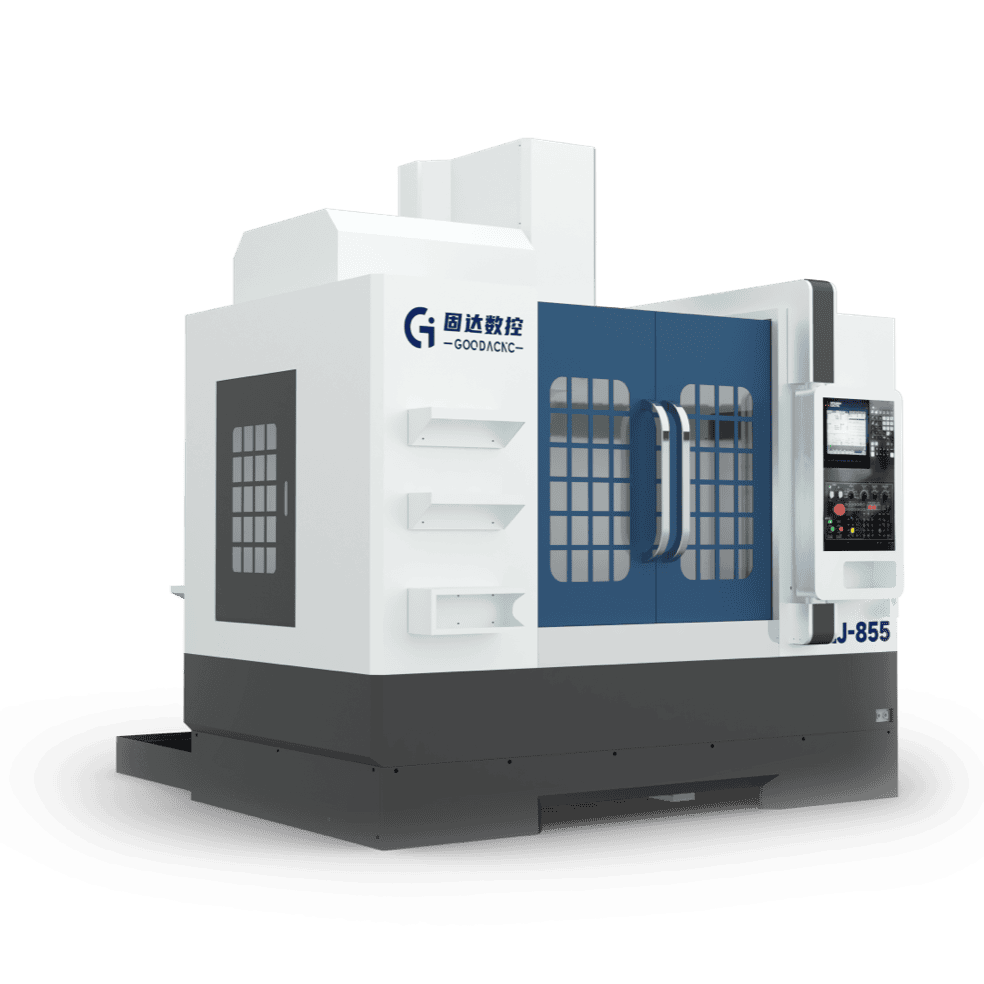

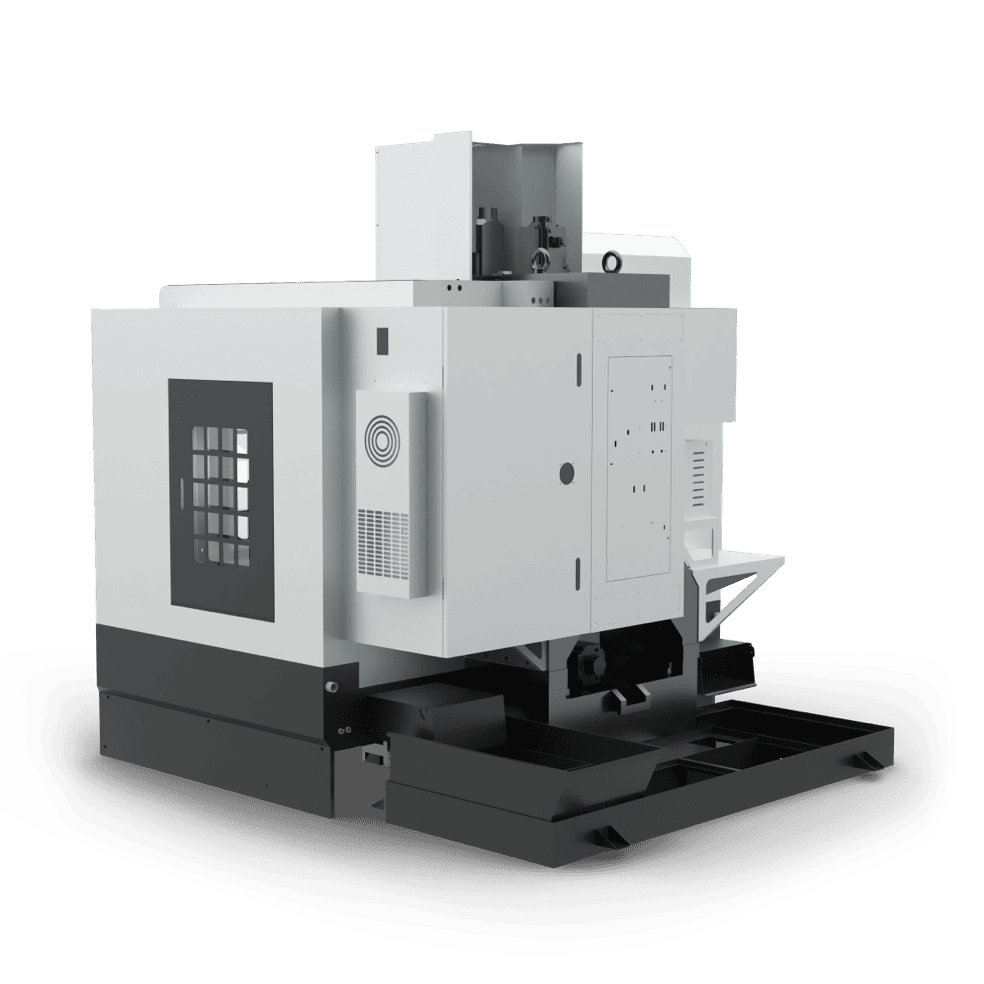

LJ-855

Vertical Machining Center

The small to medium-sized VMC can provide single-setup complete part machining such as milling, drilling, boring, tapping, and thread milling. This machine tool is suitable for small to medium-batch processing of complex parts such as small and medium-sized cabinets, plates, disks, valves, housings, molds, etc.

  • Max. X-axis travel 800mm
  • Max. Y-axis travel 550mm
  • Max. Z-axis travel 550mm
  • Max. load capacity 500 KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING
Contact

Vertical Machining Center

Basic Info

ItemsValueUnit
WorktableTable Area (L × W)1000*550mm
Max. load capacity500KG
T-slots (Qty - Size × Pitch)5-18/
3-Axis TravelX-axis Travel800mm
Y-axis Travel550mm
Z-axis Travel550mm

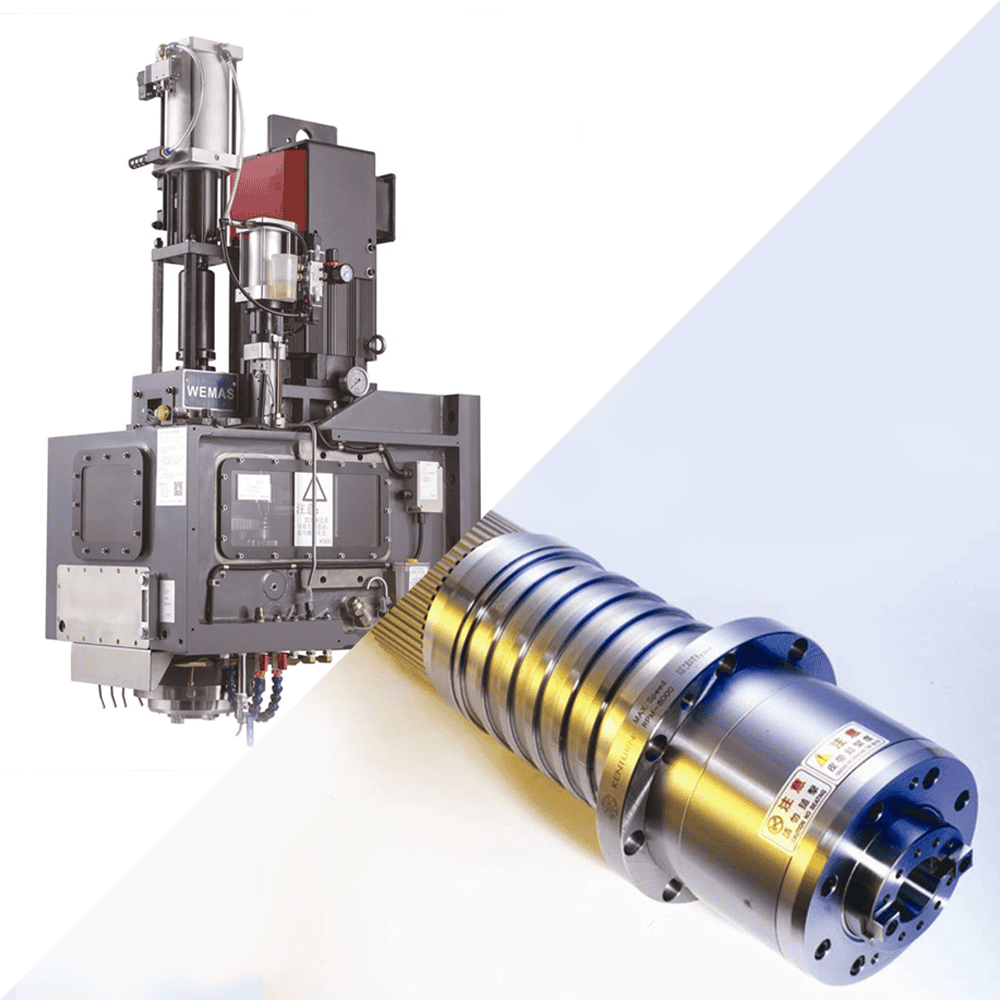

SpindleSpindle Taper Specificationφ150 － BT40/
Distance from Spindle Nose to Worktable120-670mm
Distance from Spindle Center to Column Guideway590mm
Max. Spindle Speed8000r/min
Spindle Motor15kwKW
Feed RateMax. Rapid Feed X/Y/Z48/48/48m/min

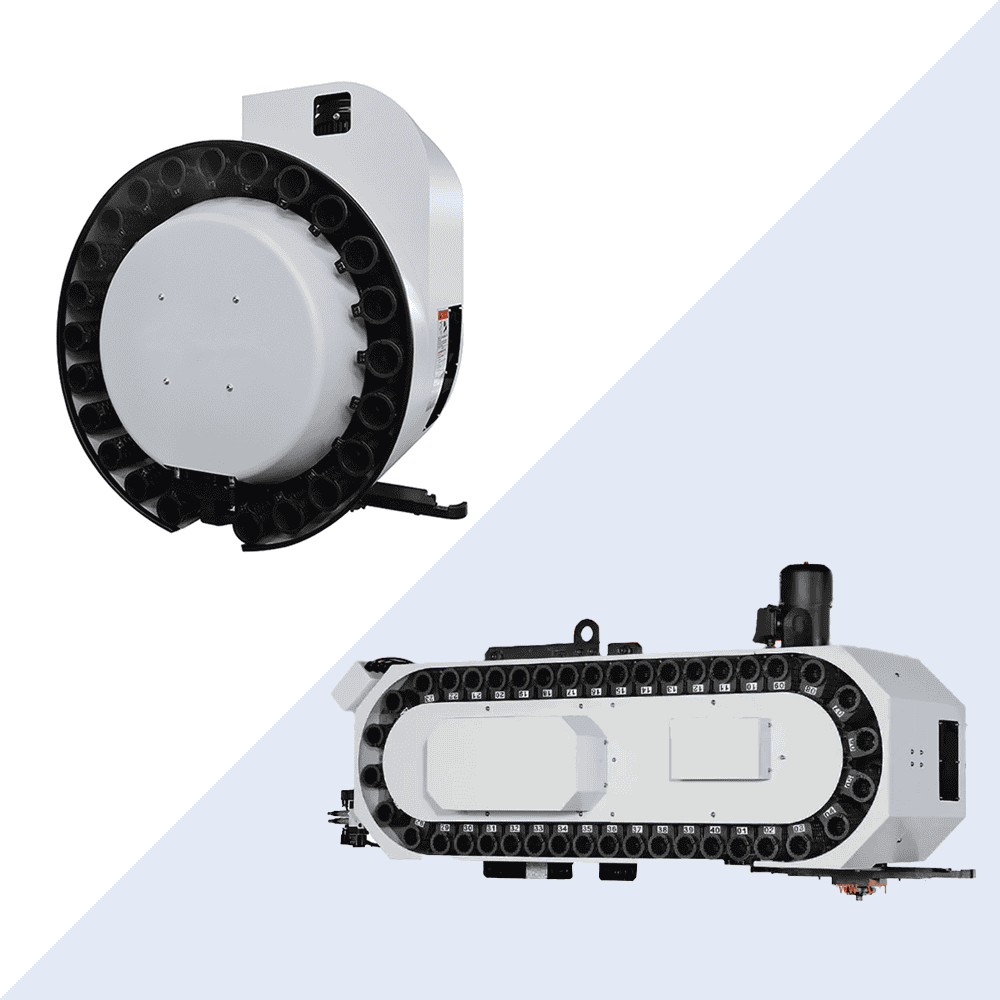

Tool Magazine ParametersTool Magazine Capacity24T
Full Tool Size × Tool Lengthφ80 × 300mm
Adjacent Empty Tool Size × Tool Lengthφ150× 300mm
Max. Tool Weight8KG
AccuracyMachine Positioning Accuracy (X/Y/Z)±0.005/300mm
Machine Repeat Positioning Accuracy (X/Y/Z)±0.005/300mm
Power RequirementRated Machine Voltage380V
Total Machine Power (Approx.)20KW
Required Air Pressure0.6-0.8MPa
Overall Dimension & WeightFloor Space L×W×H2.6*2.3*2.3m
Machine Weight (Approx.)4.7T

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,Asiatools Machinery gets you going!

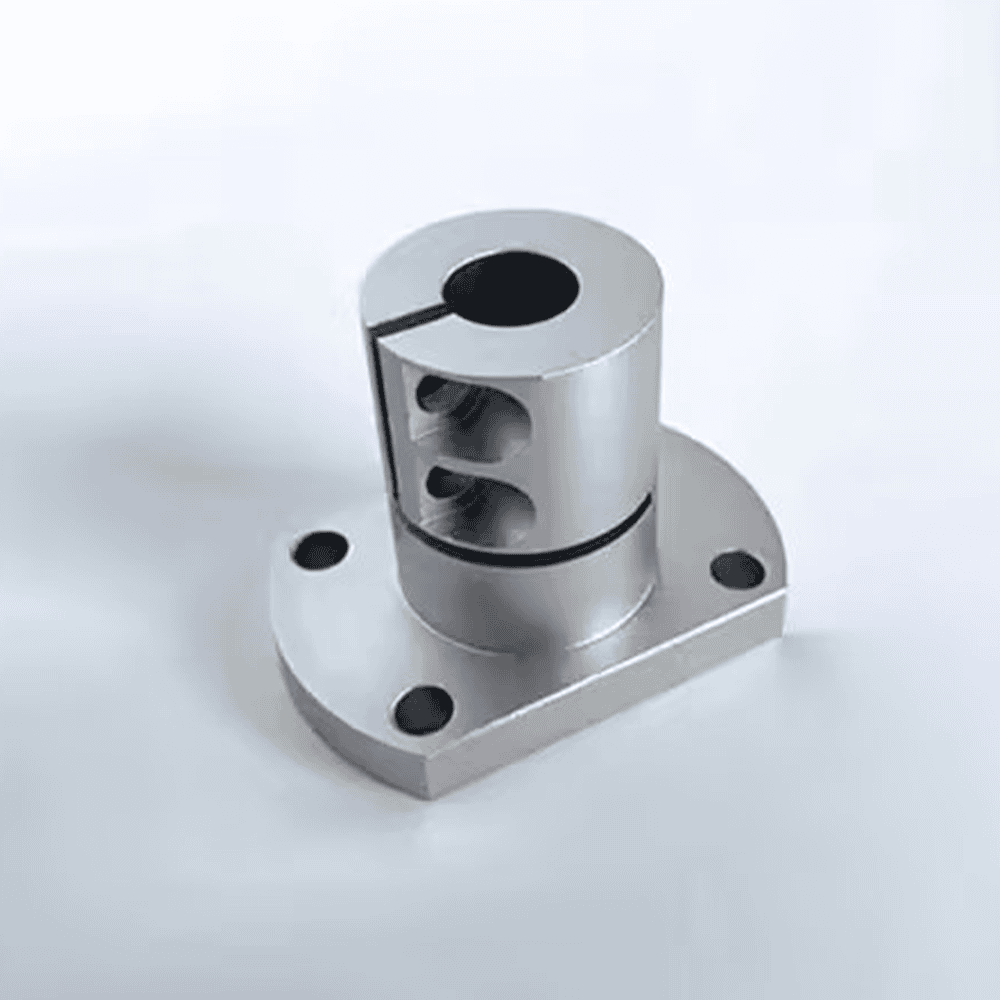

Valve processing Valve processing

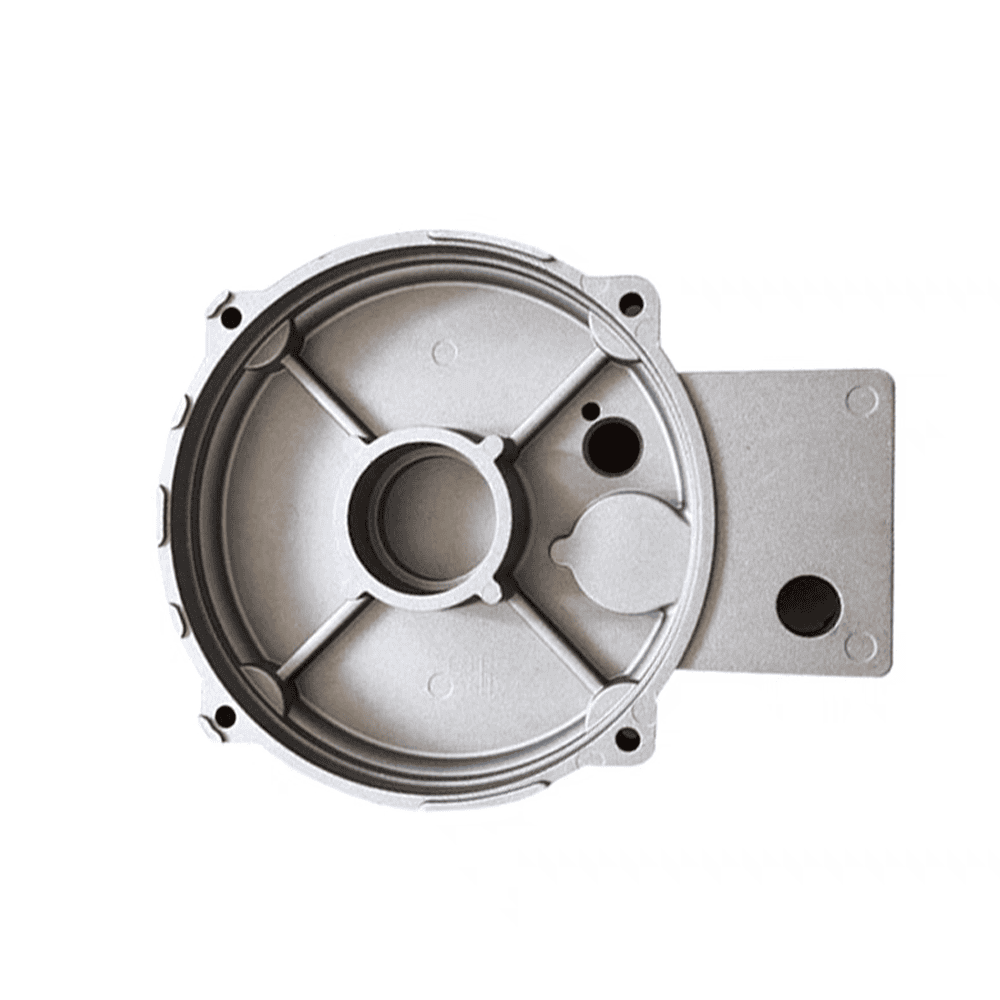

Hardware mold Hardware mold

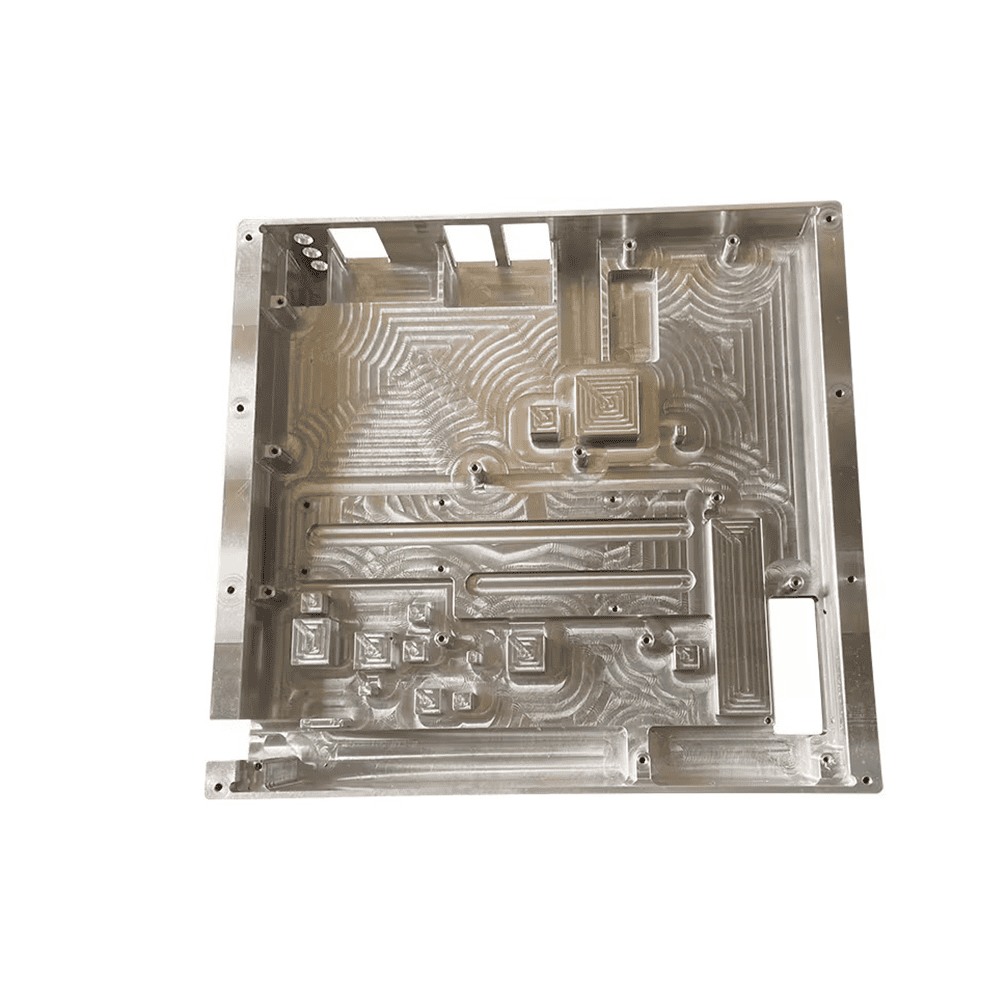

Mold processing Mold processing

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.
MITSUBISHI CONTROLLER

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.
CHINA CONTROLLER

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.
CONTACT US

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly

Service & Training

Get A Free Quote

If you are interested in our services, please fill out the form below, we will get in touch as soon as possible

Related Products

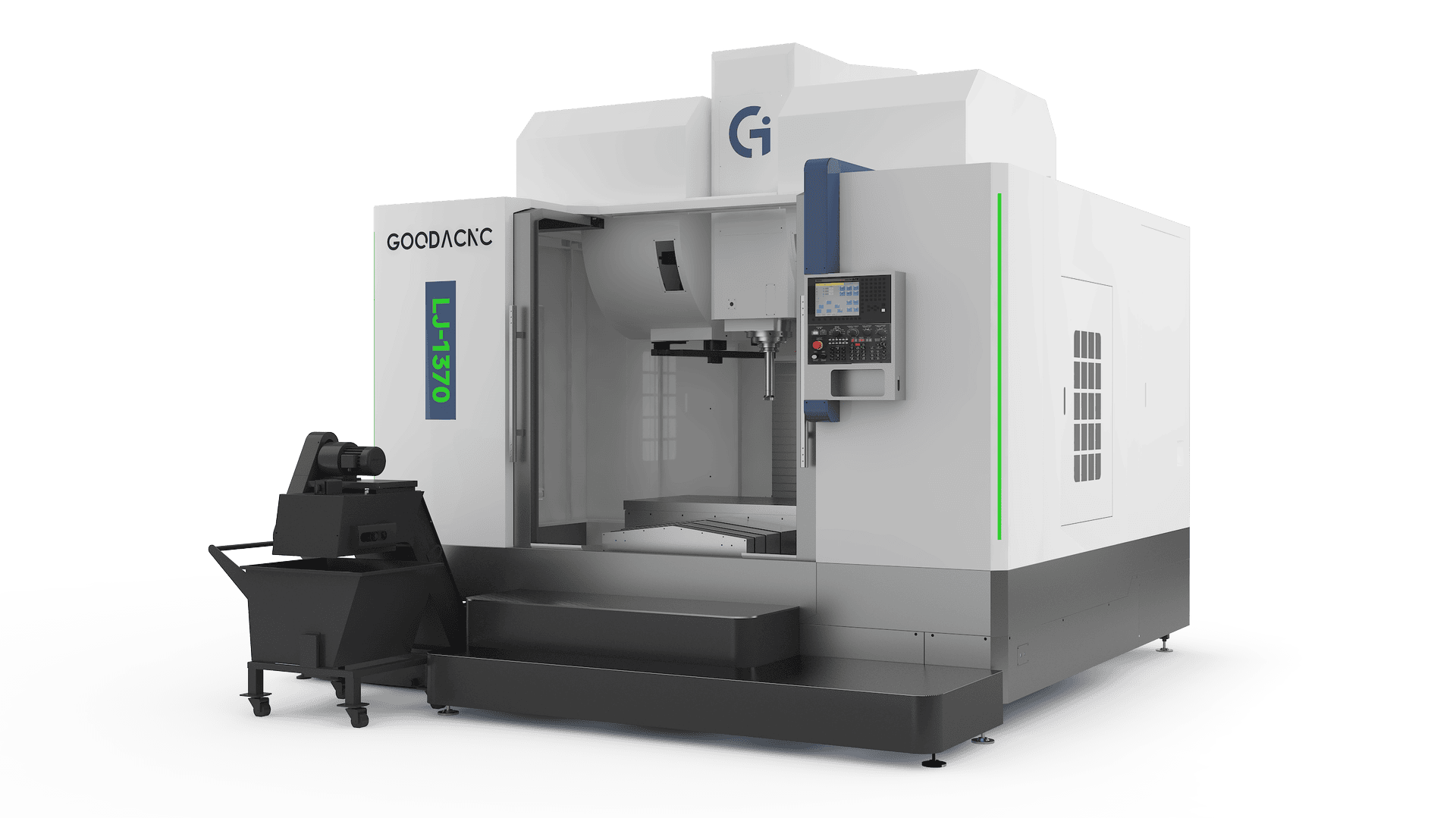

LJ-1370
LJ-1370

Vertical Machining Center

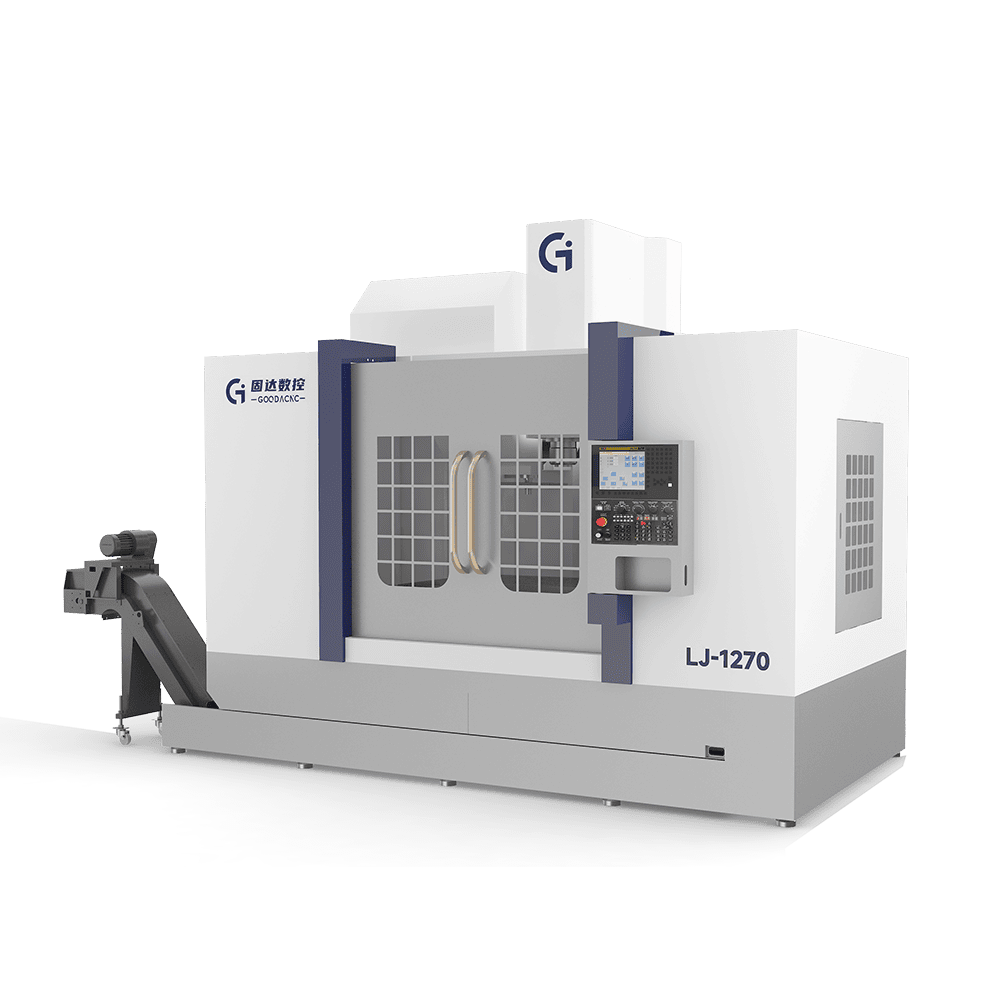

LJ-1270
