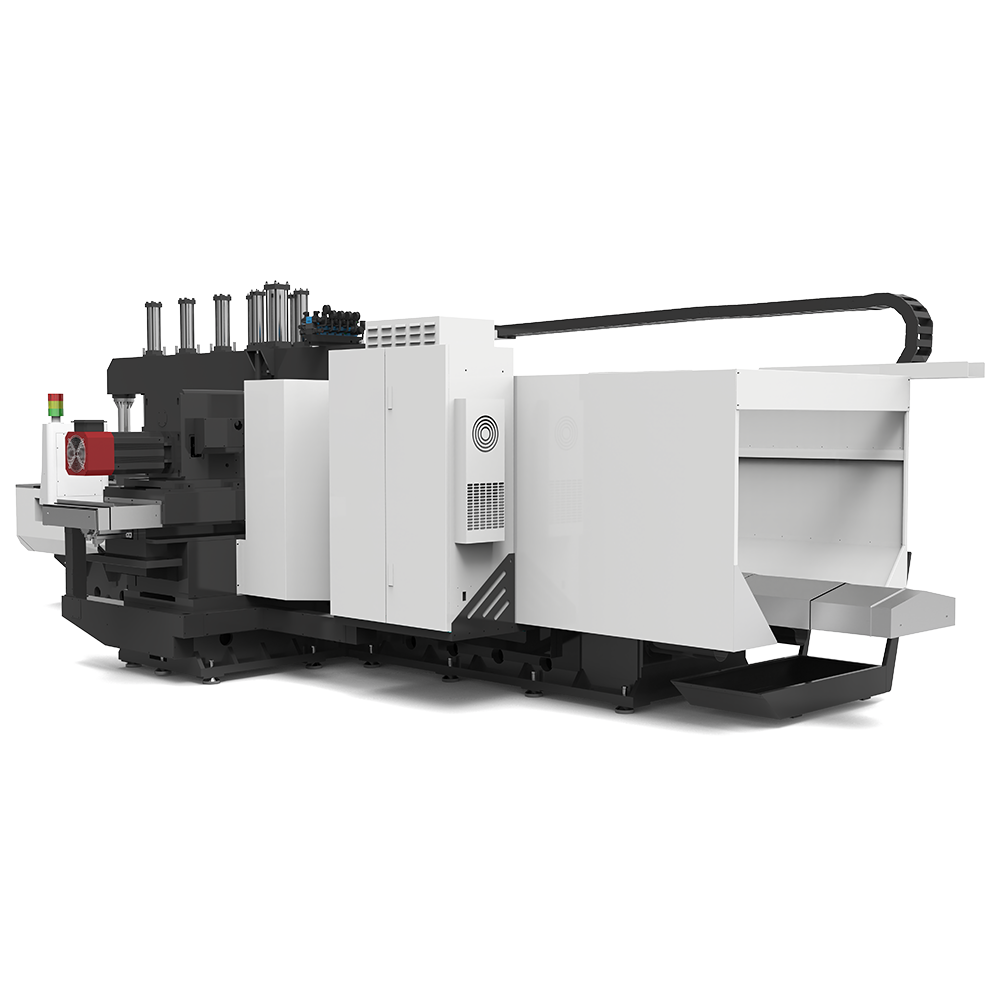

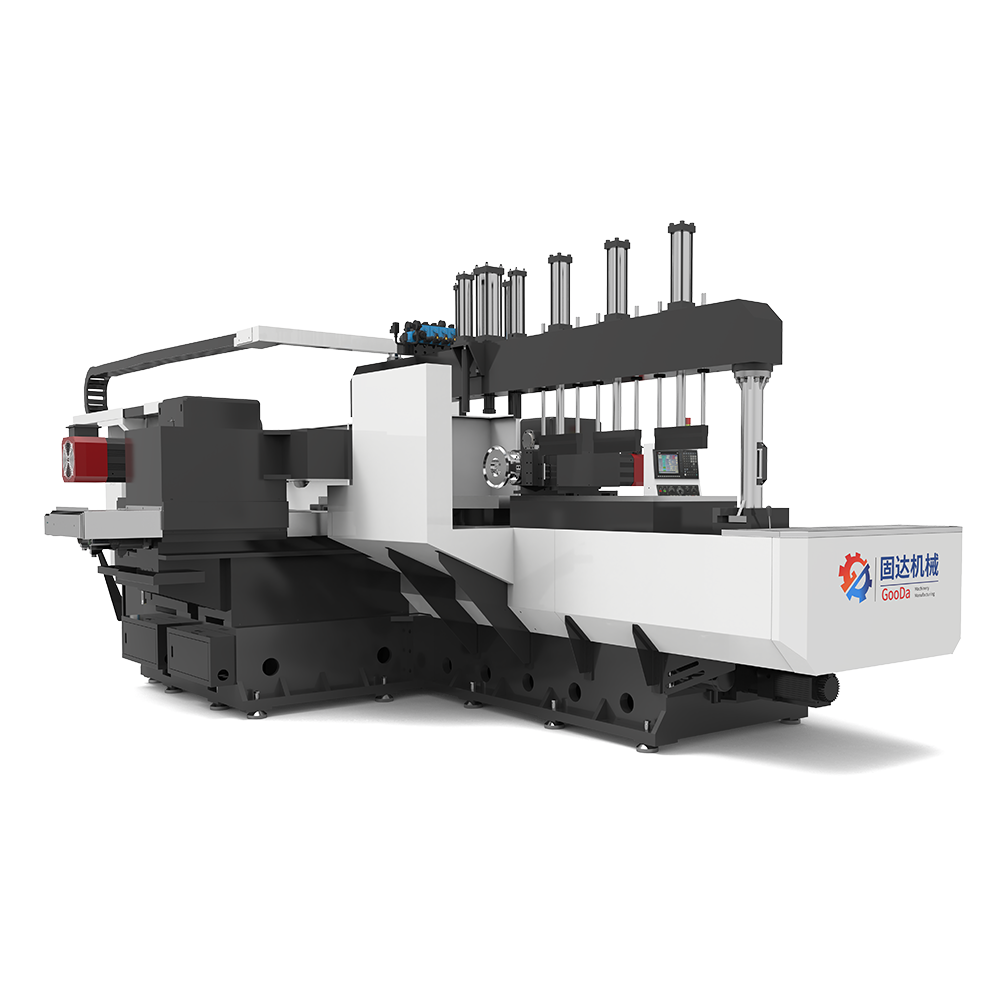

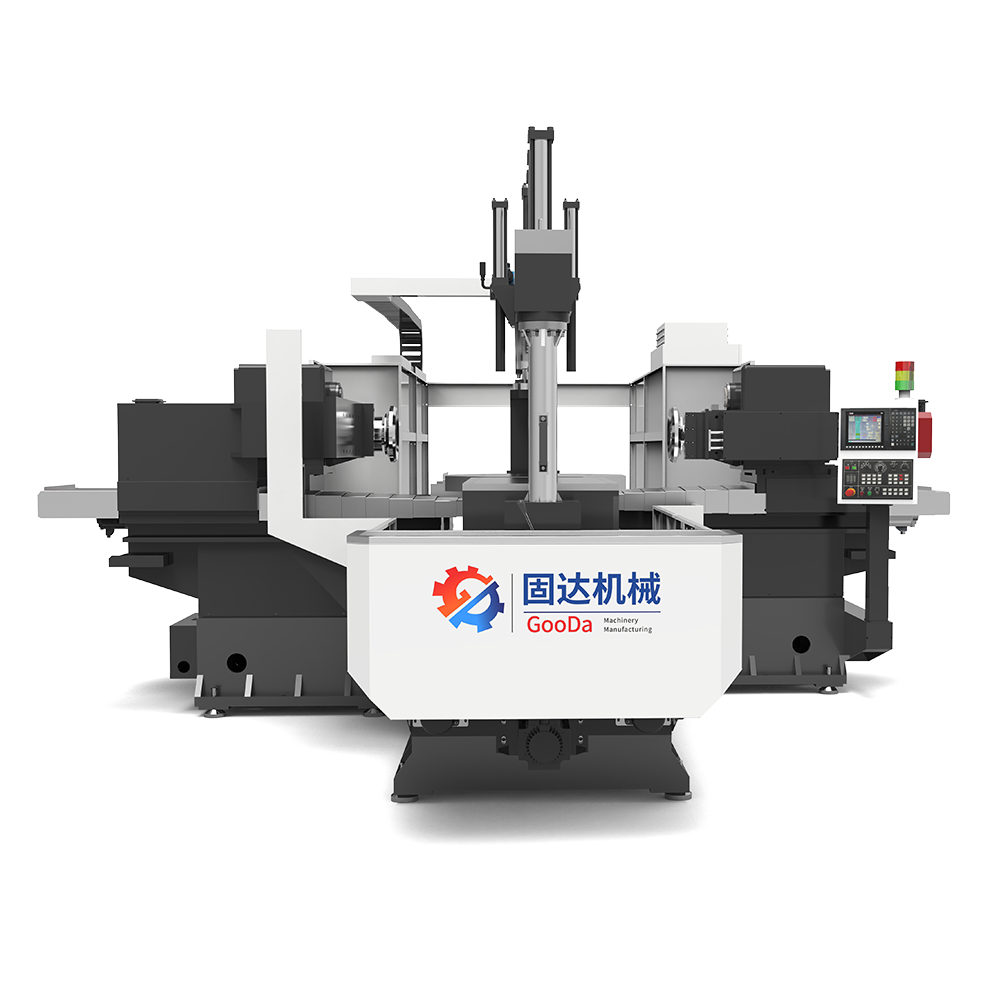

TH-7015NCH

CNC Duplex Milling Machine

CNC duplex milling machine - dual-use machine. Four-side milling processing can rotate: 150-700mm and the nonrotating processing range for both sides is: width (150-700mm) * length (150-1500mm). Widely used in the processing field of long steel flat.

Four-side mode 150-700mm
Two-side mode 150-1500mm
Cutter diameter Ф250mm
Max. load capacity 1200KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

CNC Duplex Milling Machine

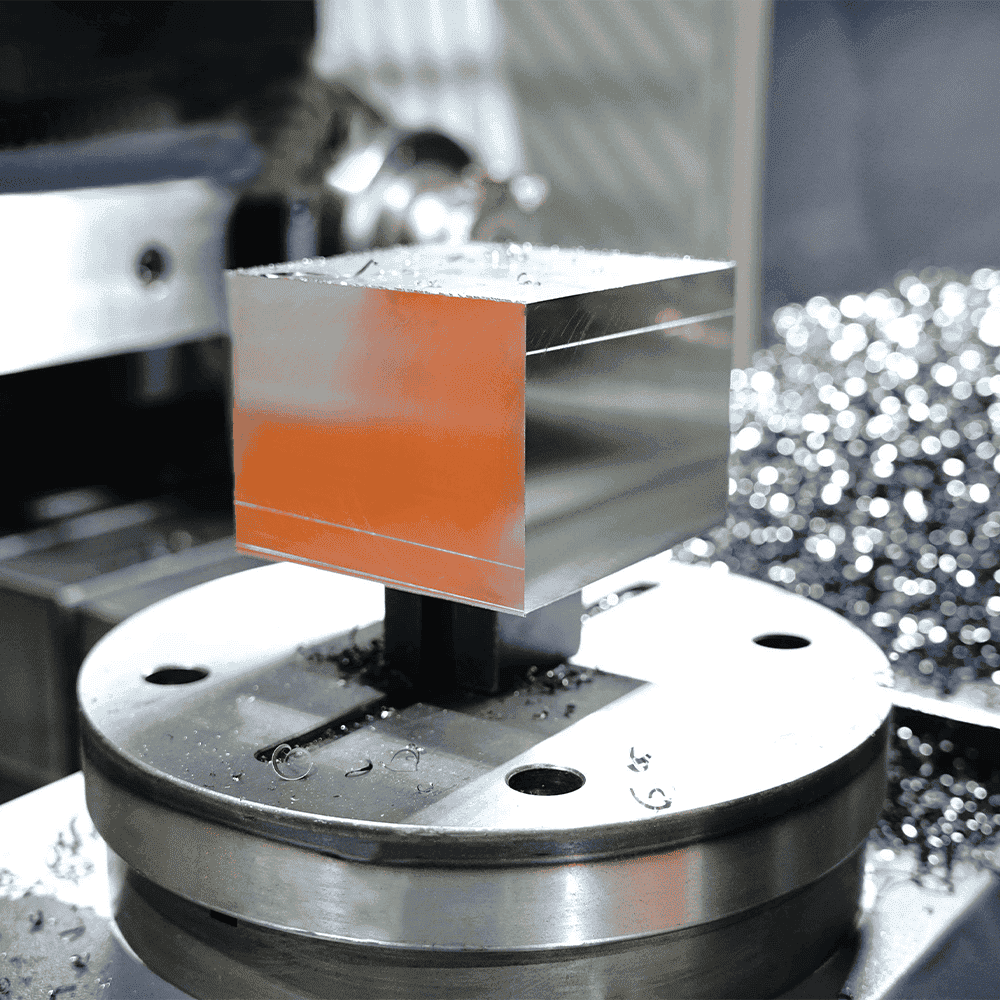

Processing capacity

Cutting range 20-500mm, cutting diamater φ250mm(St.).

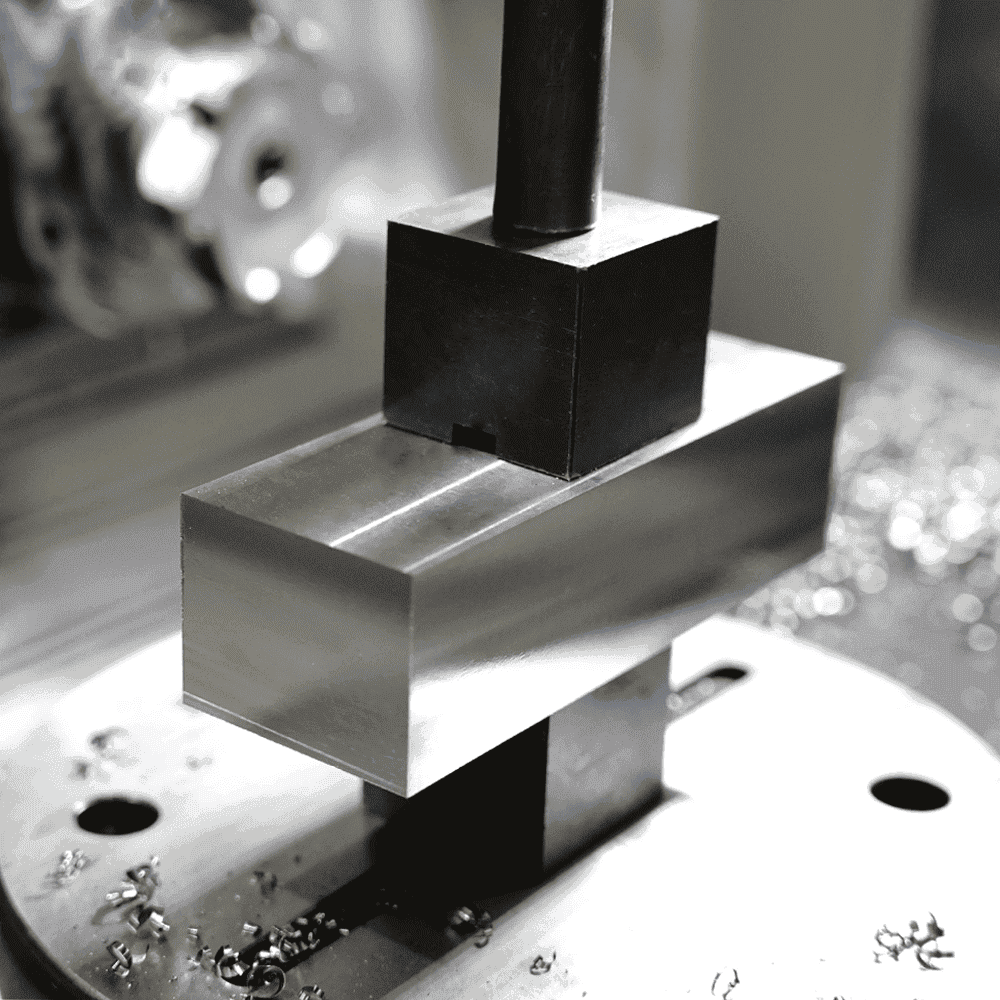

One time clamping

Automatically complete four-sided rough and fine milling.
Automatic measurement

Easy to operate, improve efficiency and reduce operating costs.

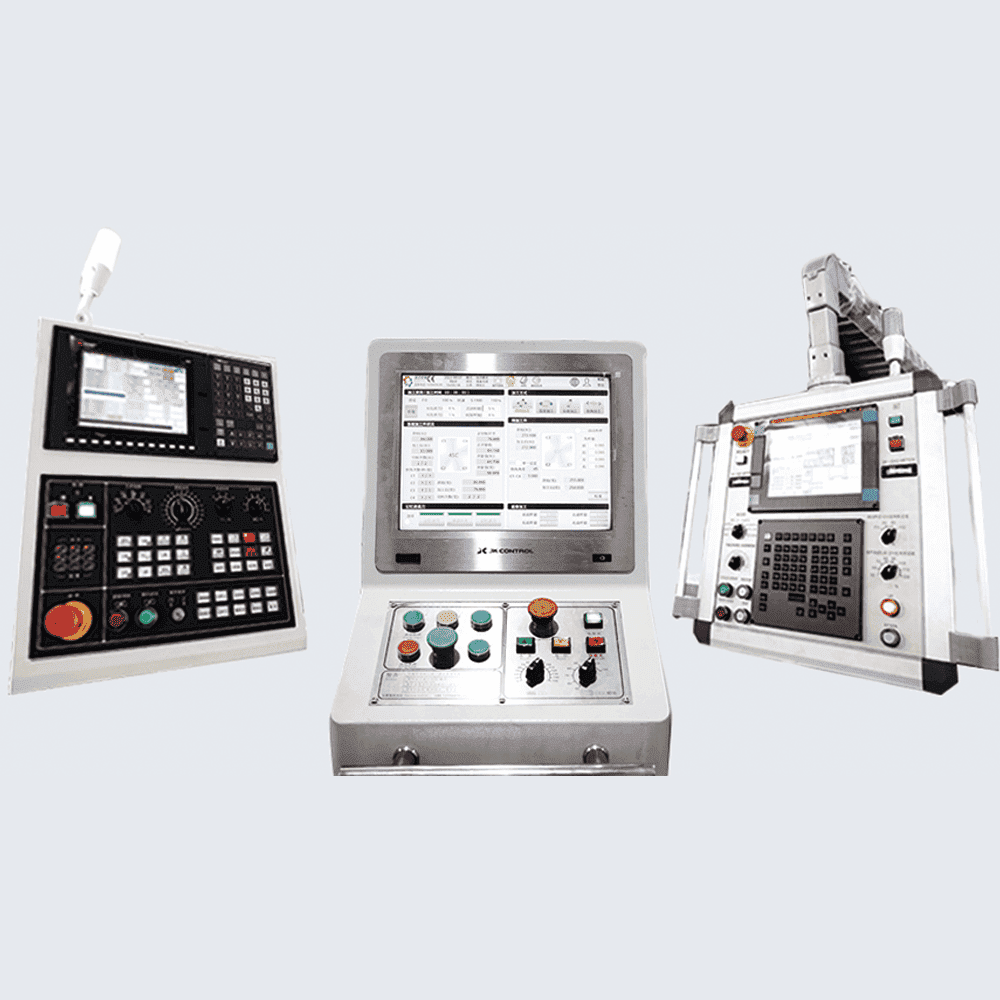

A-high-end CNC system

Ensures the dimensional accuracy, parallelism and perpendicularity.

Basic Info

Items	Value	Unit
Max.machining height	600mm	mm
Maxcuting capacity	Four-side mode 150-700mm	mm
Maxcuting capacity	Two-side mode 150-1500mm	mm
Worktable size	600*600mm	mm
Max.load capacity	1200Kg	KG
Spindle motor power	2*15KW	rpm
Spindle speed	50-500rpm	KW
Cutter diameter	φ250mm	mm
X/Y/Z axis rapid feed	800080008000mm/min	mm/min
Machine size	634039203100mm	mm
Machine weight	About 16500Kg	KG

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,Asiatools Machinery gets you going!

Mold accessories

Mold base

Non-ferrous metals

Oil blocks

Self-lubricating plate

Mould base pocket

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
