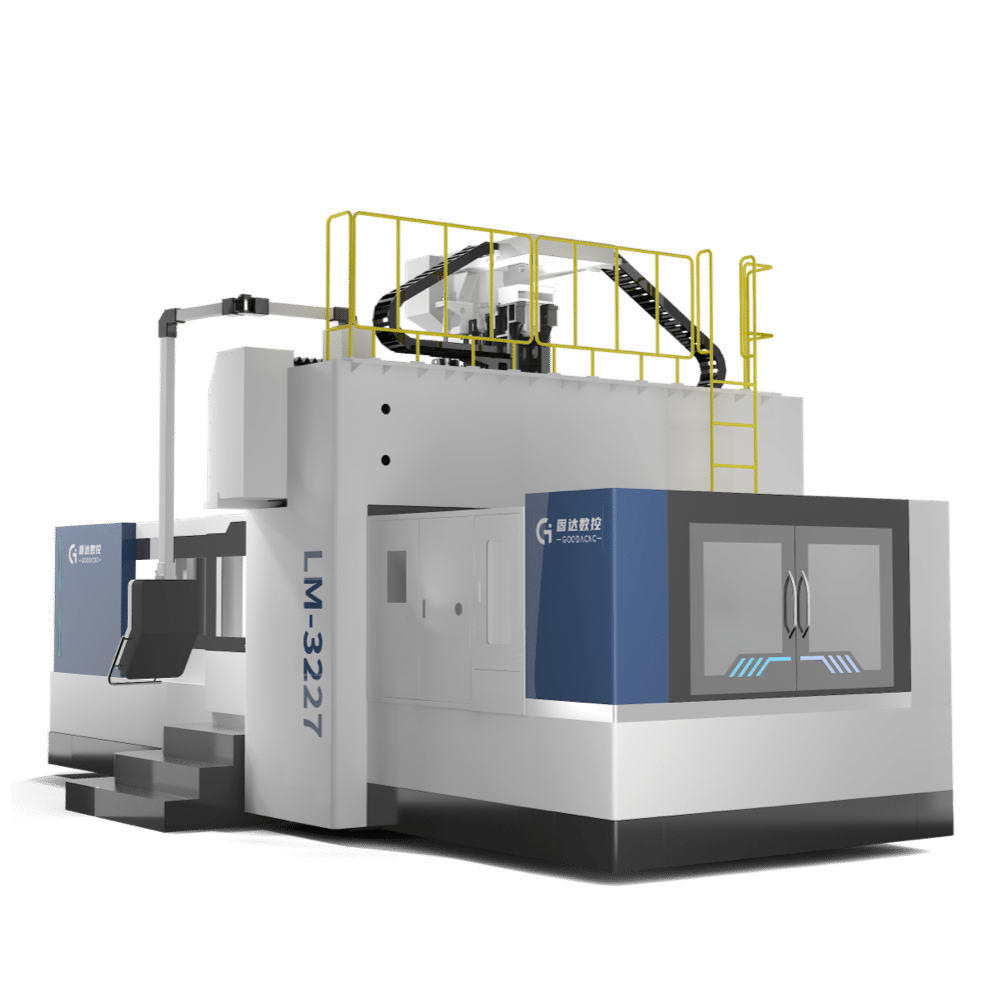

LM-3227

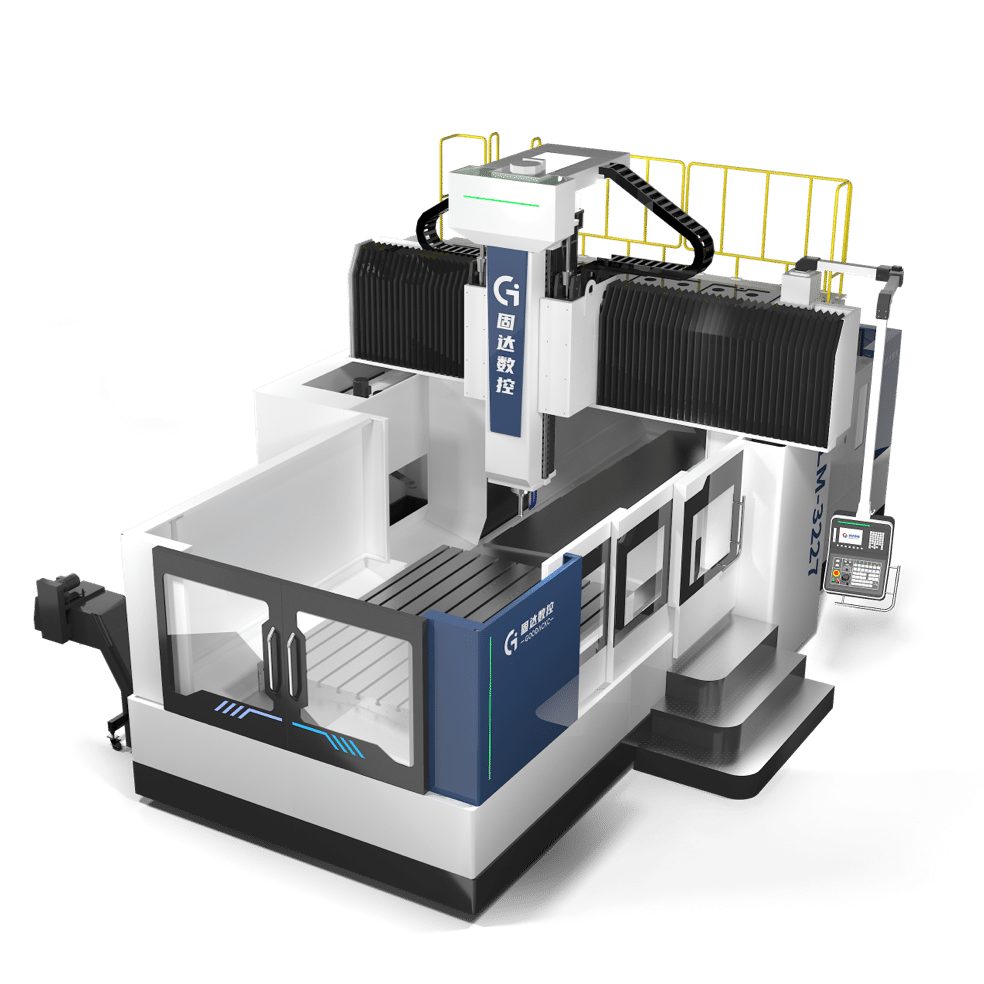

Double-Column Machining Center

A single clamping of the workpiece can complete various processes such as milling, boring, drilling, and tapping. The bed is cast as a whole structure. Optional configurations include tool magazines and 90°angle milling heads as needed. Widely used in the machining of large components in industries such as shipbuilding, aerospace, machinery, transportation, automotive, and petrochemicals.

Max. X-axis travel 3200mm
Max. Y-axis travel 2760mm
Max. Z-axis travel 1000mm
Max. load capacity 10000KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

Double-Column Machining Center

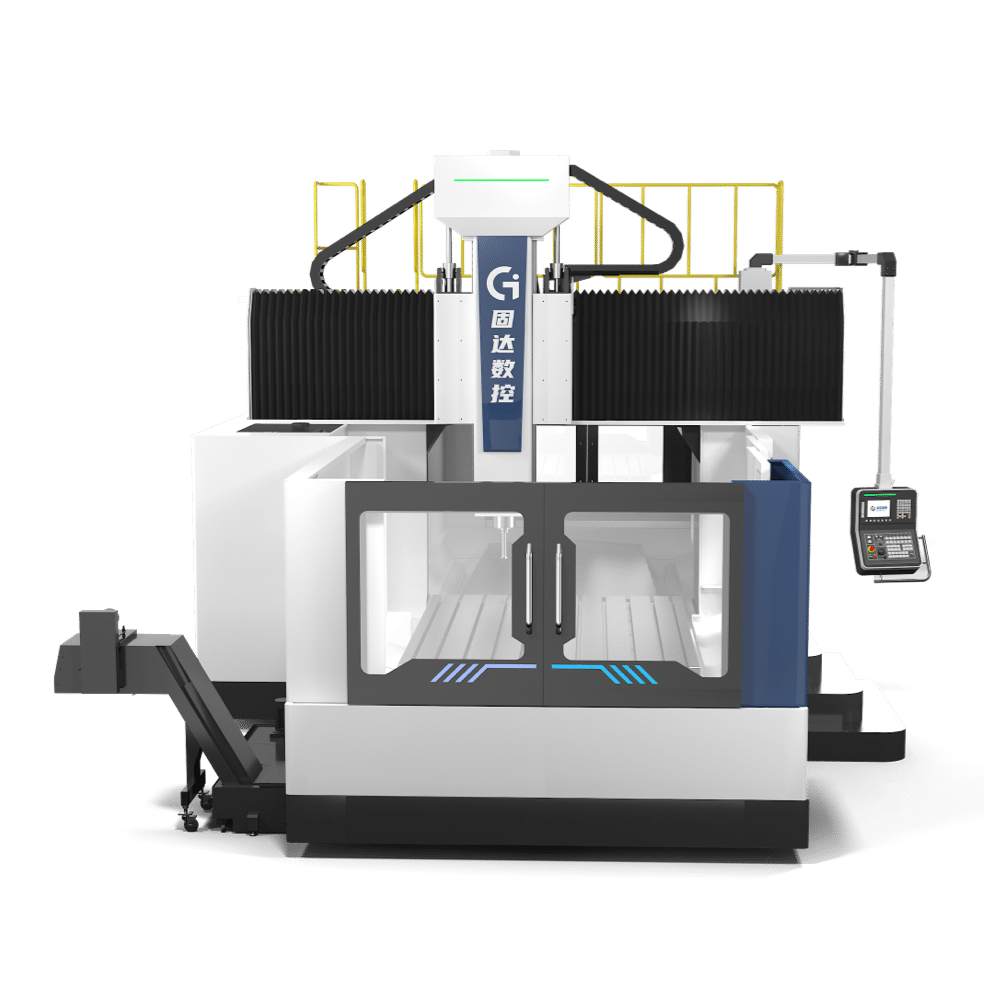

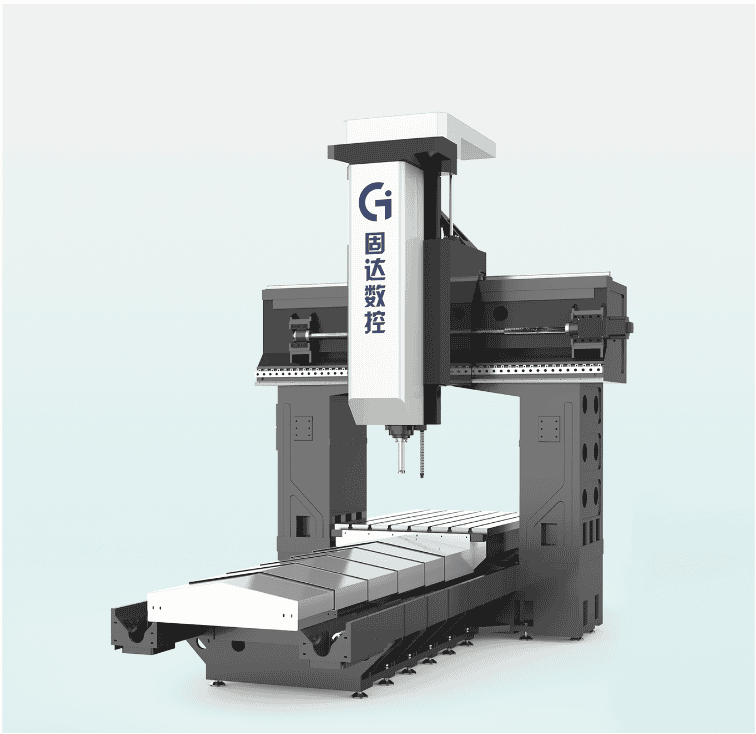

Double column structure

The rigidity of the gantry structure with square columns enables it to withstand loads in multiple directions and torsion, maintaining high precision while heavy cutting.

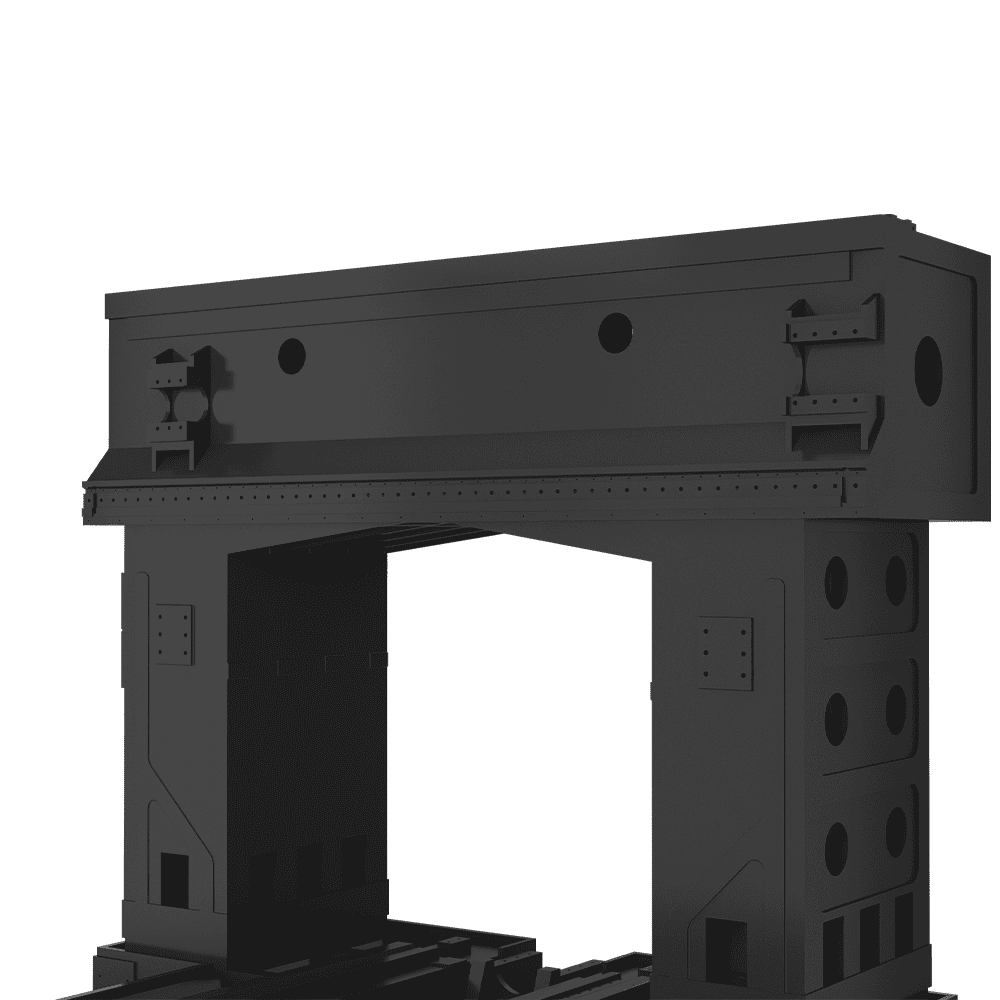

Strong crossbeam

Integration of the top beam and crossbeam achieves a robust construction, ensuring stable machining quality over the long term.
User-friendly design

The protective cover can be optional to effectively prevent the splashing of chips and cutting fluid. Enhanced Chip Handling Capability.

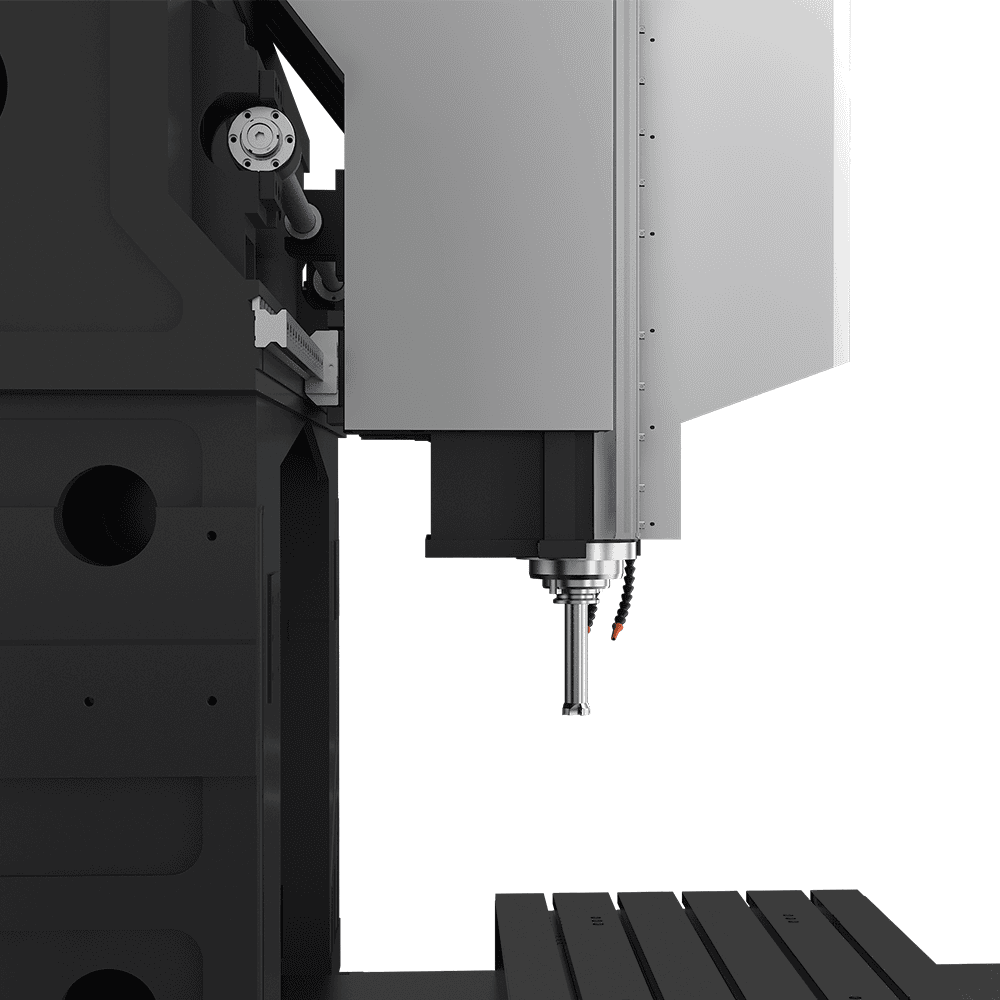

Machine casting

The castings use dovetails and multi-box type structures, allowing for minimal stress and resistance to torsional deformation, and excellent vibration absorption performance.

Basic Info

Items		Value	Unit
Worktable	Worktable size	3000*2100	mm
	Max. load capacity	10000	KG
	T-slot	8-28200-2-28160	mm
Processing range	Distance between columns	2500	mm
	Workpiece through height	1200	mm
	Distance from spindle nose to table(St.)	150-1150	mm
Travel	X-axis travel	3200	mm
	Y-axis travel	2760	mm
	Z-axis travel	1000	mm
Feed speed	Guideway	X/Y: Roller linear guideway	/
	Guide rail specifications	X: 55 rollers * 10 sliders Y: 65 rollers * 5 sliders Z: 255 rollers 6 sliders+245 rollers 4 sliders	/
	Rapid feed rate	12/12/12	m-min
	X/Y/Z cutting feed rate (MAX.)	10/8/8	m-min
Drive	X/Y/Z-axis ball screw (direct connection)	8020/6316/6312	/
	Spindle motor	22/26	KW
	X/Y/Z servo motor	X:36;Y:36;Z:36	N.m
Positioning accuracy	Positioning accuracy (X/Y/Z)	0.02/1000	mm
Repeat positioning accuracy	Repeat positioning accuracy (X/Y/Z)	0.015/1000	mm
Size & weight	Machine space	905052755415	mm
Size & weight	Machine weight	38	T

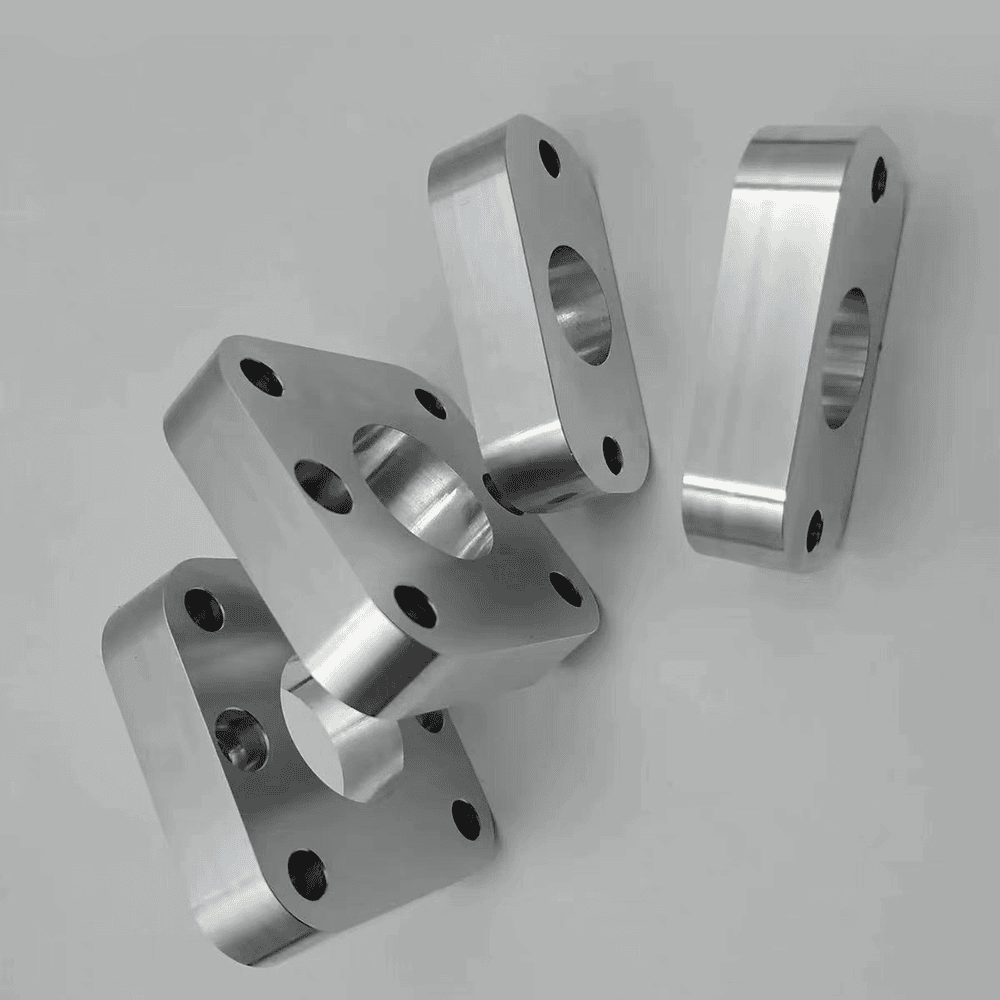

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

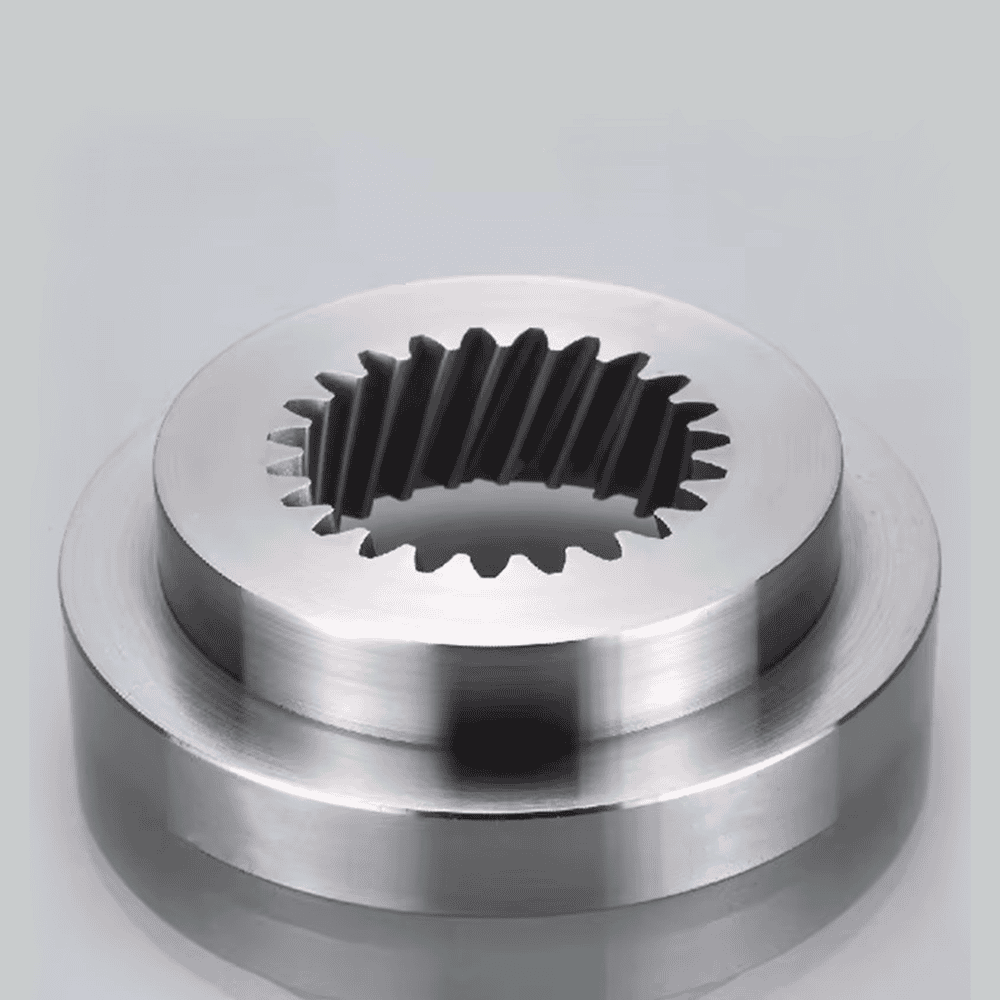

Mold embryo

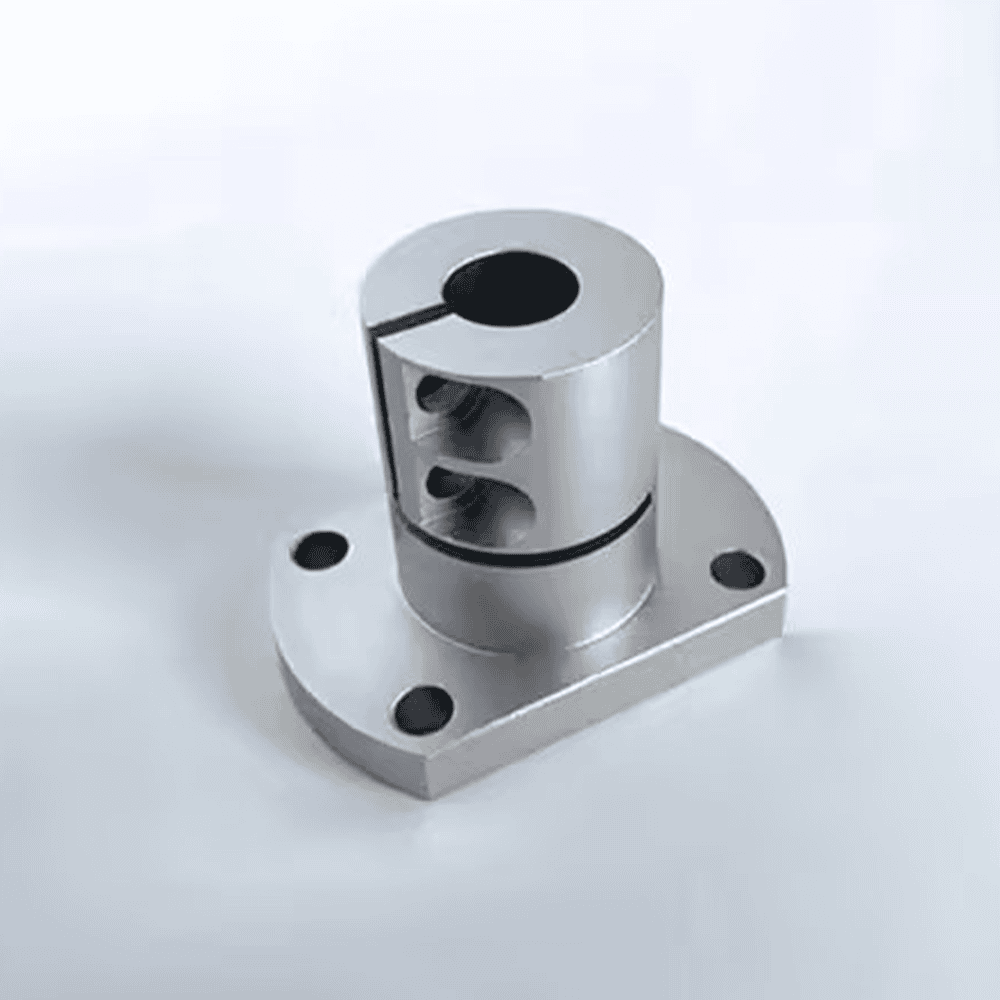

Hardware mold

Mold processing

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
