LM-1690

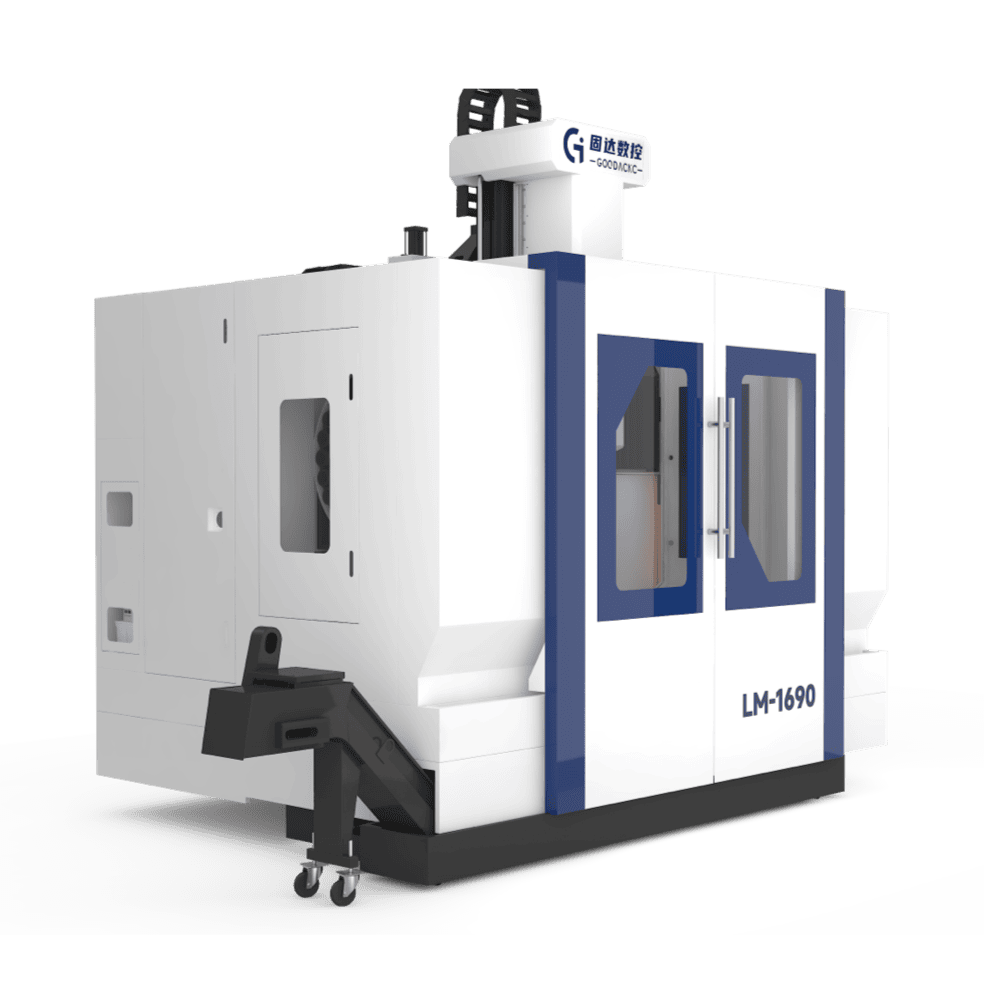

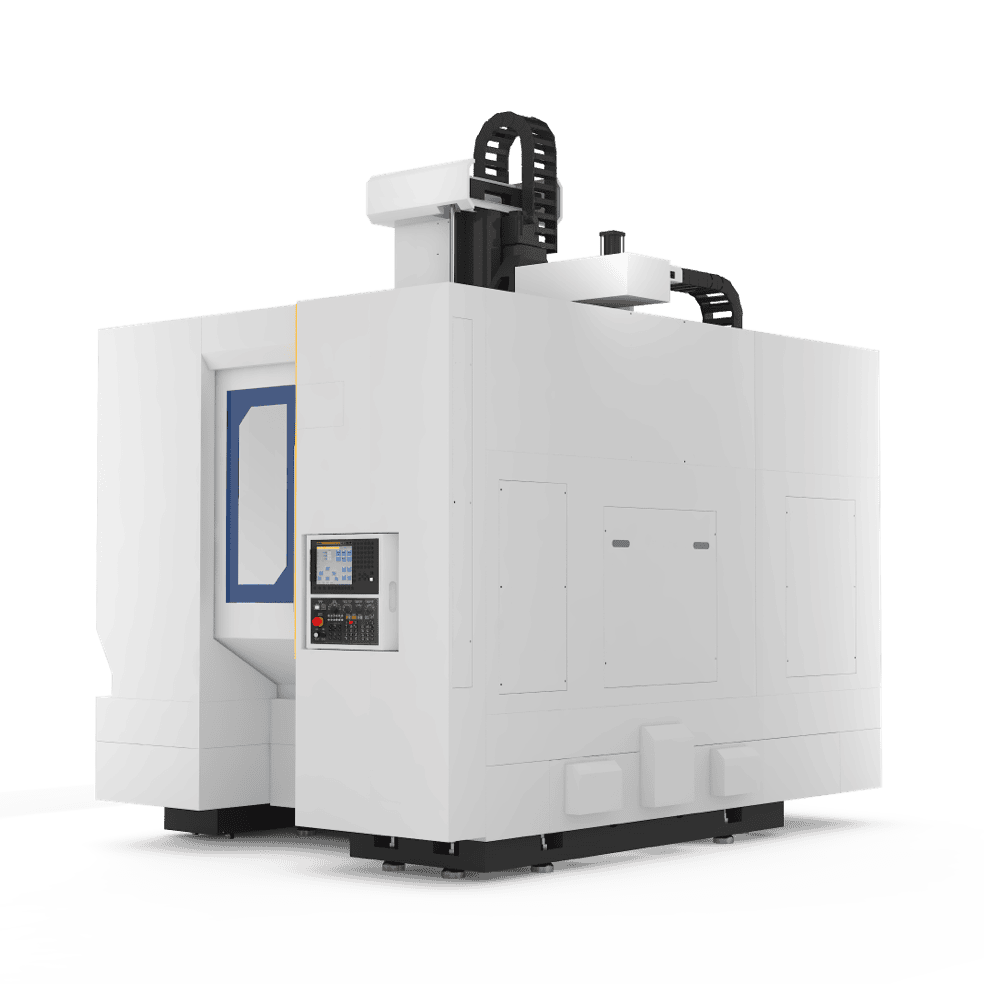

Double-Column Machining Center

Designed by senior engineers with years of expertise and the latest technology. High speed and accurate performance. Travels X/Y/Z: 1600/900/800mm. Table size: 1520×900mm. Spindle speed: 6000min-1.

Max. X-axis travel 1600mm
Max. Y-axis travel 900mm
Max. Z-axis travel 800mm
Max. load capacity 2500KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

Double-Column Machining Center

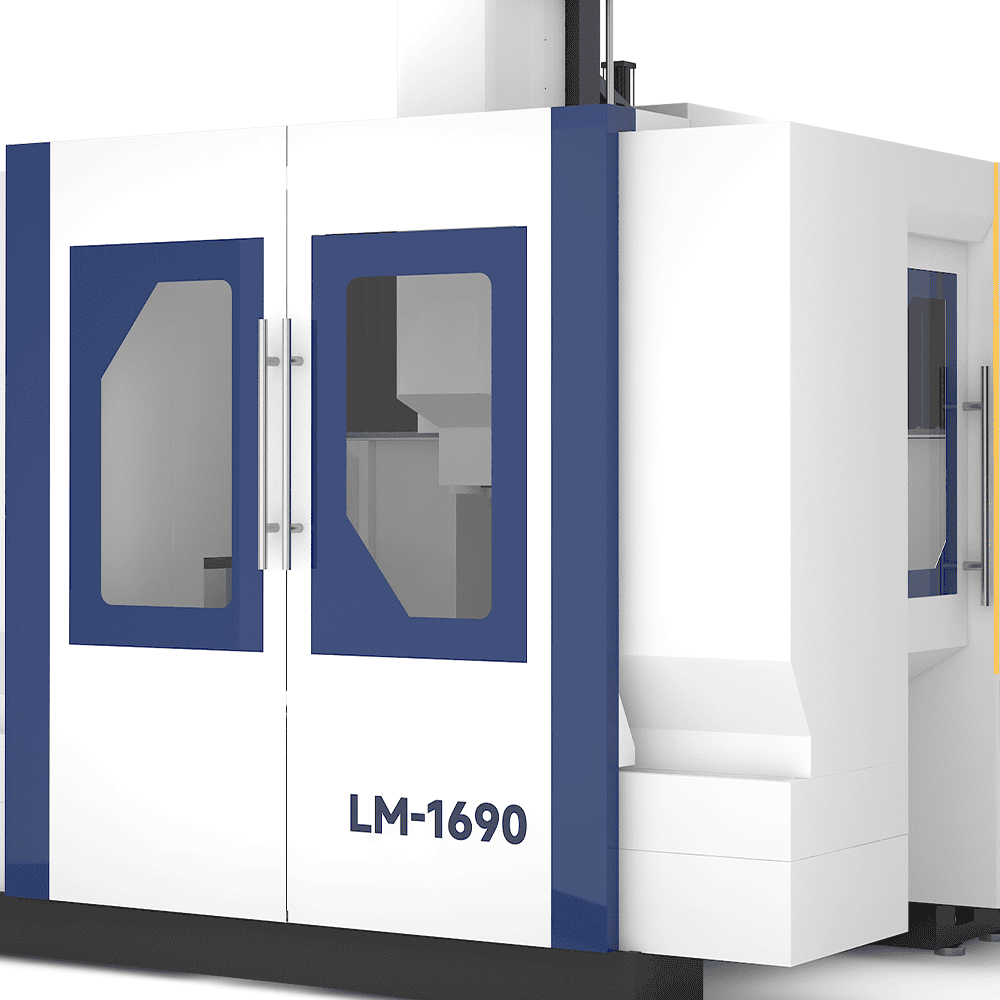

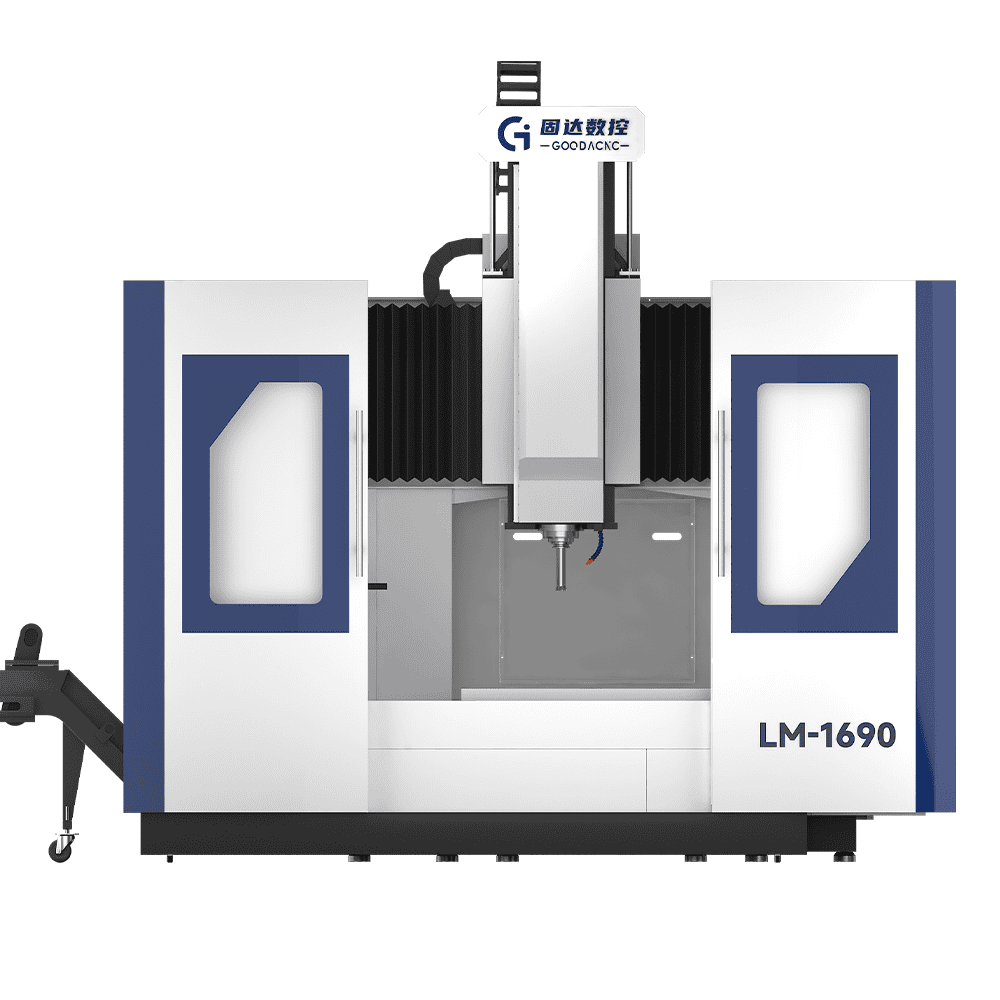

Double column structure

The rigidity of the gantry structure with square columns enables it to withstand loads in multiple directions and torsion, maintaining high precision while heavy cutting.

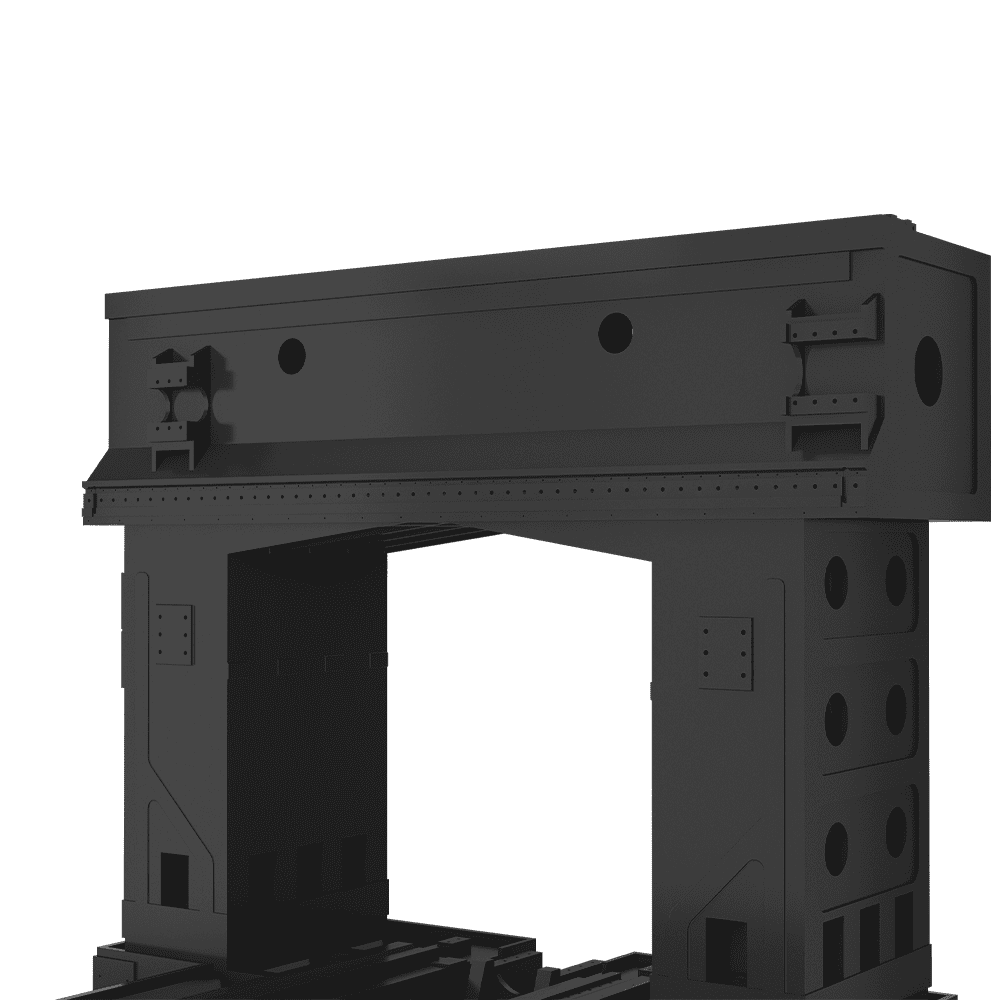

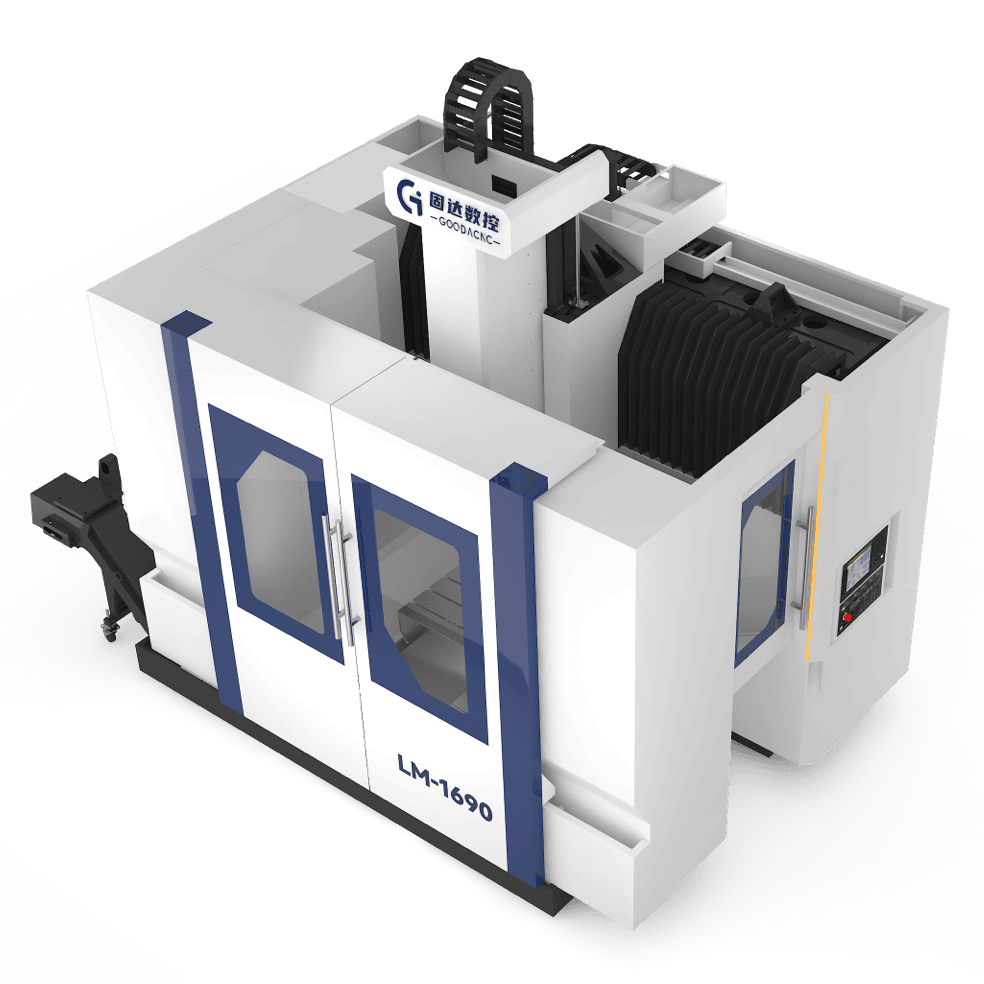

Strong crossbeam

Integration of the top beam and crossbeam achieves a robust construction, ensuring stable machining quality over the long term.

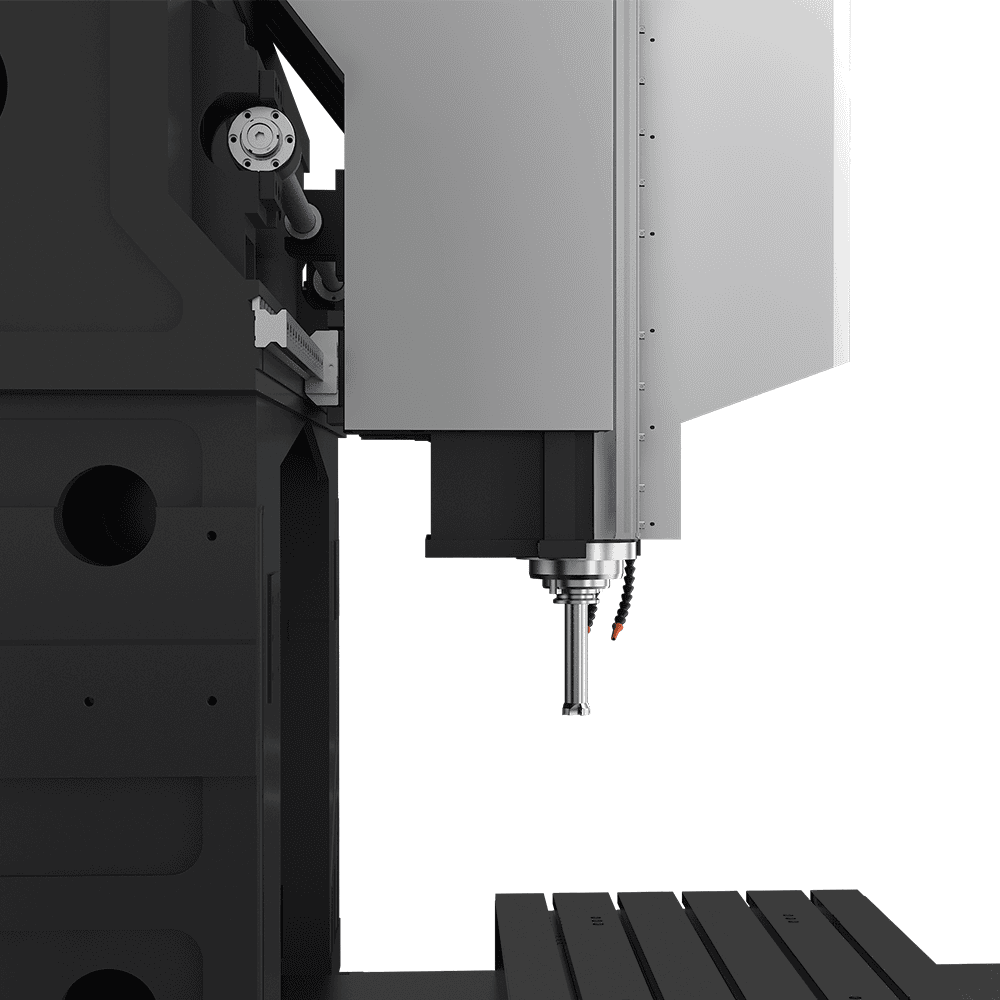

User-friendly design

The protective cover can be optional to effectively prevent the splashing of chips and cutting fluid. Enhanced Chip Handling Capability.
Machine casting

The castings use dovetails and multi-box type structures, allowing for minimal stress and resistance to torsional deformation, and excellent vibration absorption performance.

Basic Info

Items		Value	Unit
Worktable	Worktable size	1520*900	mm
	Max. load capacity	2500	KG
	T-slot	5-22*160	mm
Processing range	Distance between columns	1600	mm
	Workpiece through height	1000	mm
	Distance from spindle nose to table(St.)	200-1000	mm
Travel	X-axis travel	1600	mm
	Y-axis travel	900	mm
	Z-axis travel	800	mm
Feed speed	Guideway	X/Y: Roller linear guideway Z: Rectangular guideway	/
	Guide rail specifications	X/Y: 55 rollers *6 sliders	/
	Rapid feed rate	12/12/12	m-min
	X/Y/Z cutting feed rate (MAX.)	8/8/8	m-min
Drive	X/Y/Z-axis ball screw (direct connection)	6312/5010/5010	/
	Spindle motor	15/18.5	KW
	X/Y/Z servo motor	X:36;Y:36;Z:36	N.m
Positioning accuracy	Positioning accuracy (X/Y/Z)	0.02/1000	mm
Repeat positioning accuracy	Repeat positioning accuracy (X/Y/Z)	0.015/1000	mm
Size & weight	Machine space	550038004500	mm
Size & weight	Machine weight	17	T

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

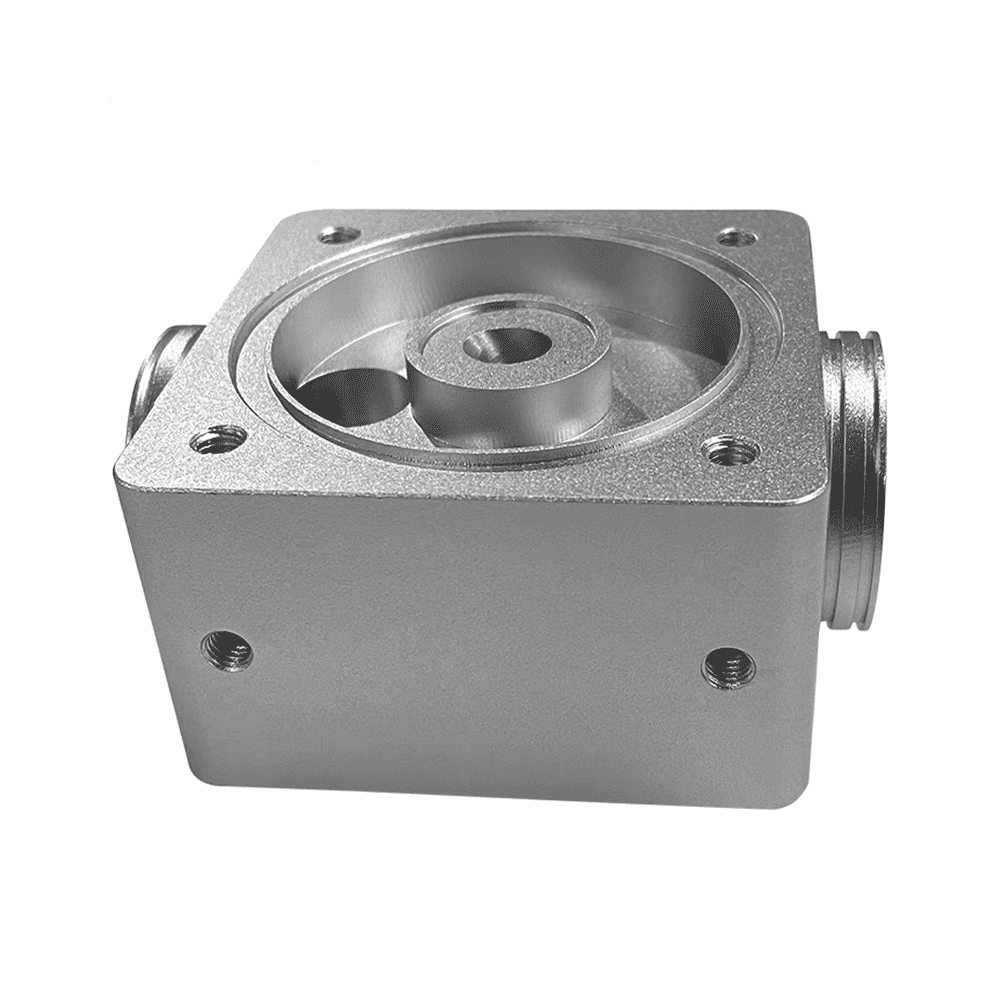

Valve processing

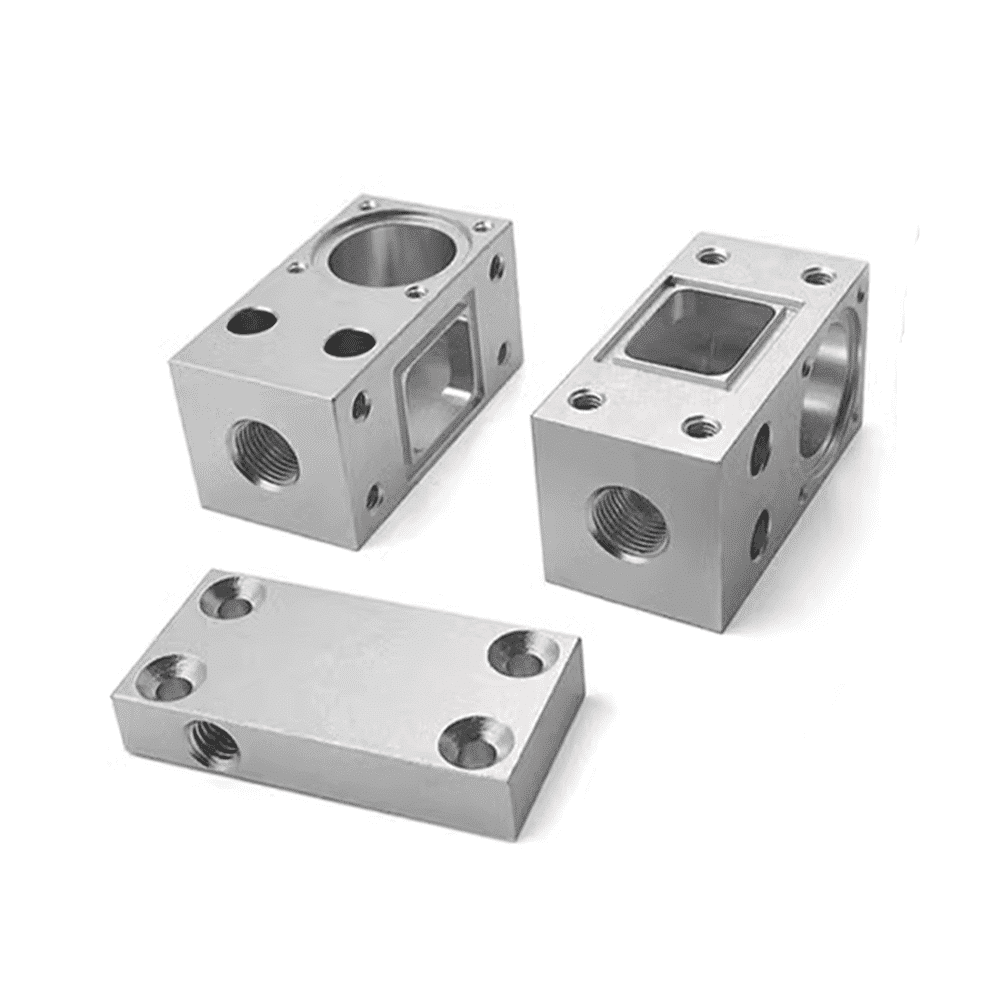

Hardware mold

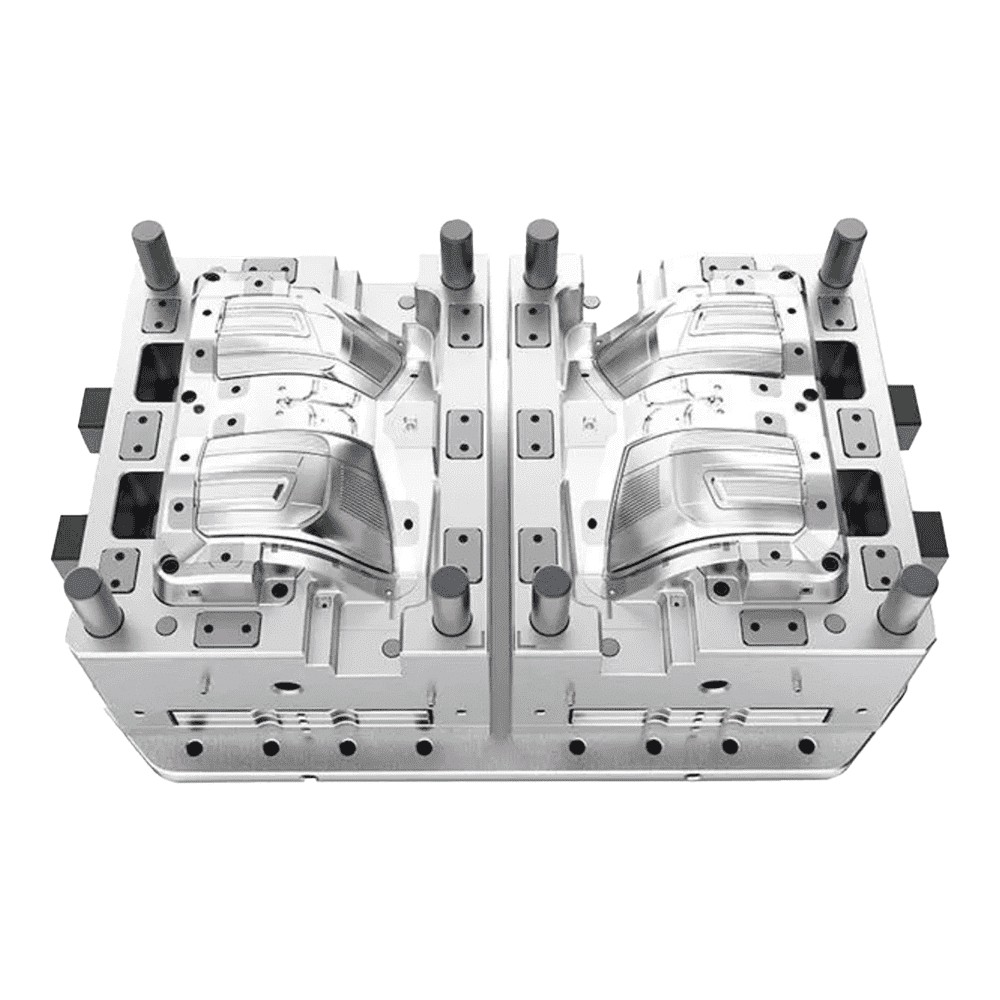

Mold processing

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.
