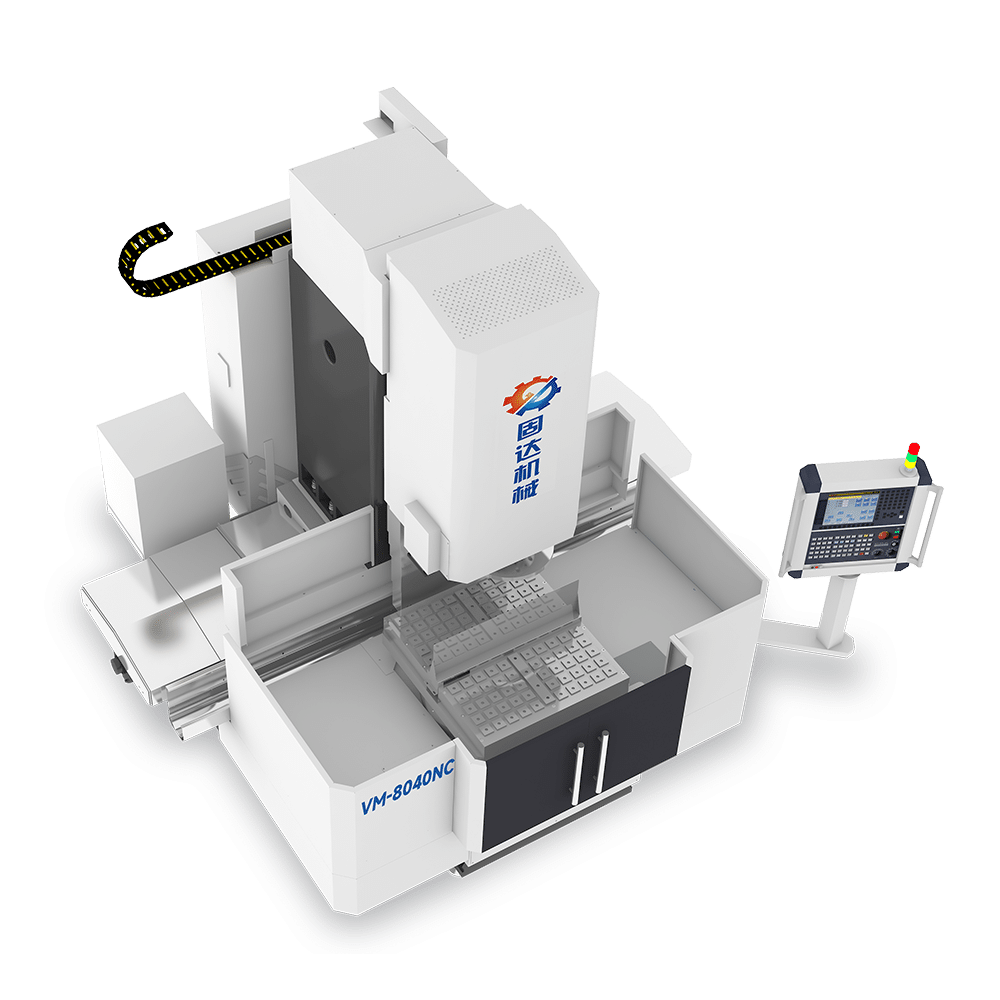

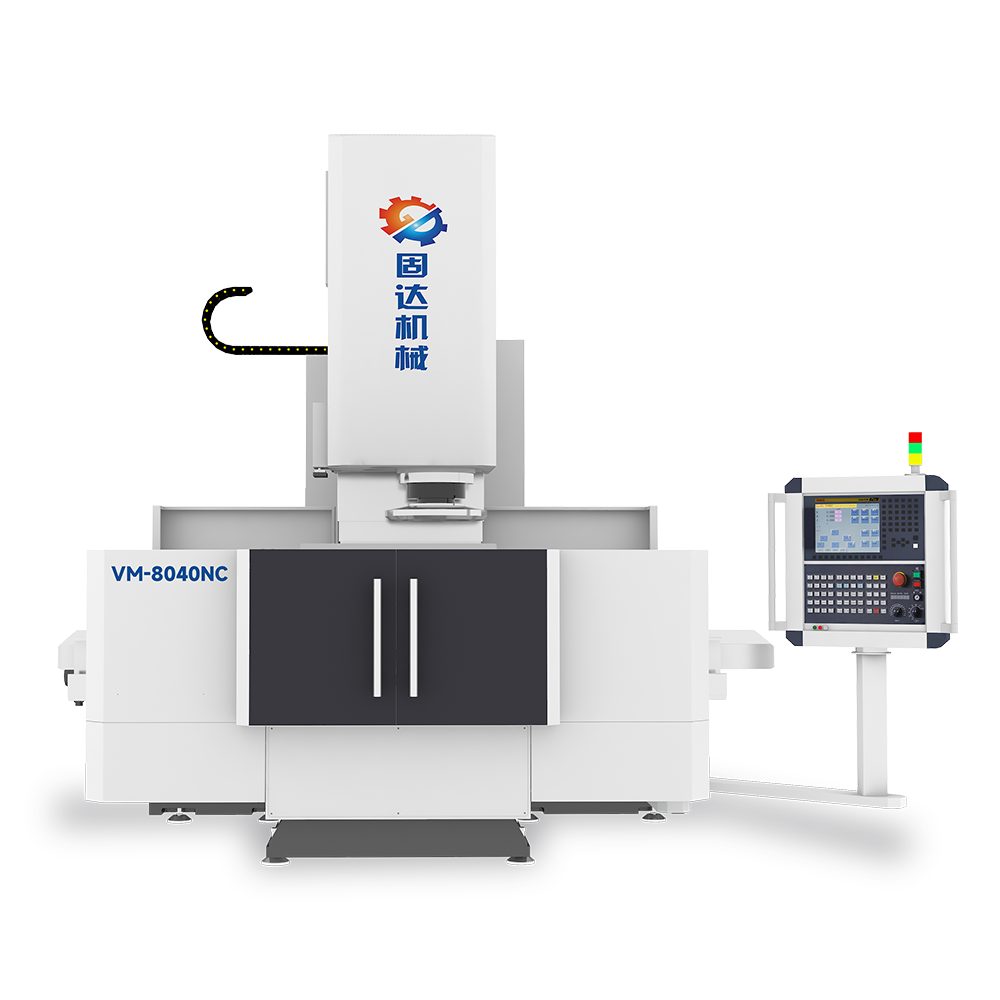

vm-8040nc

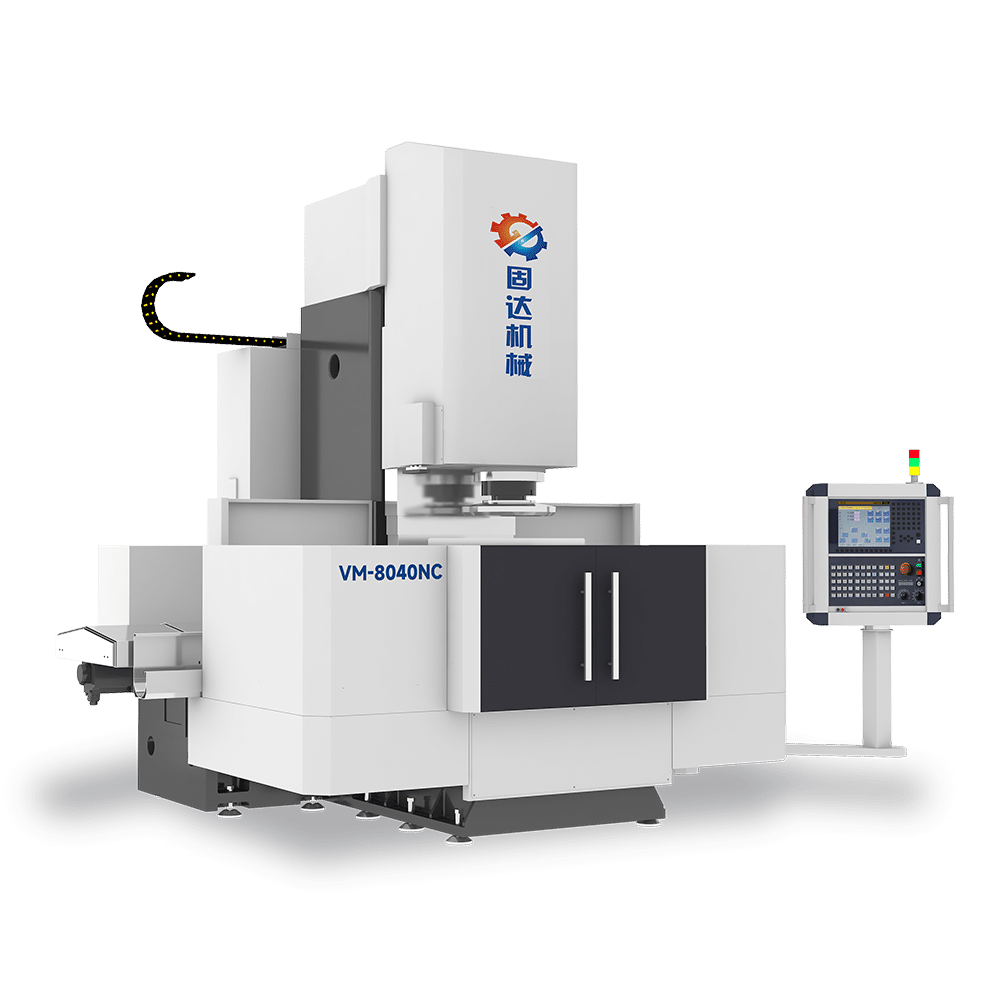

VM-8040NC

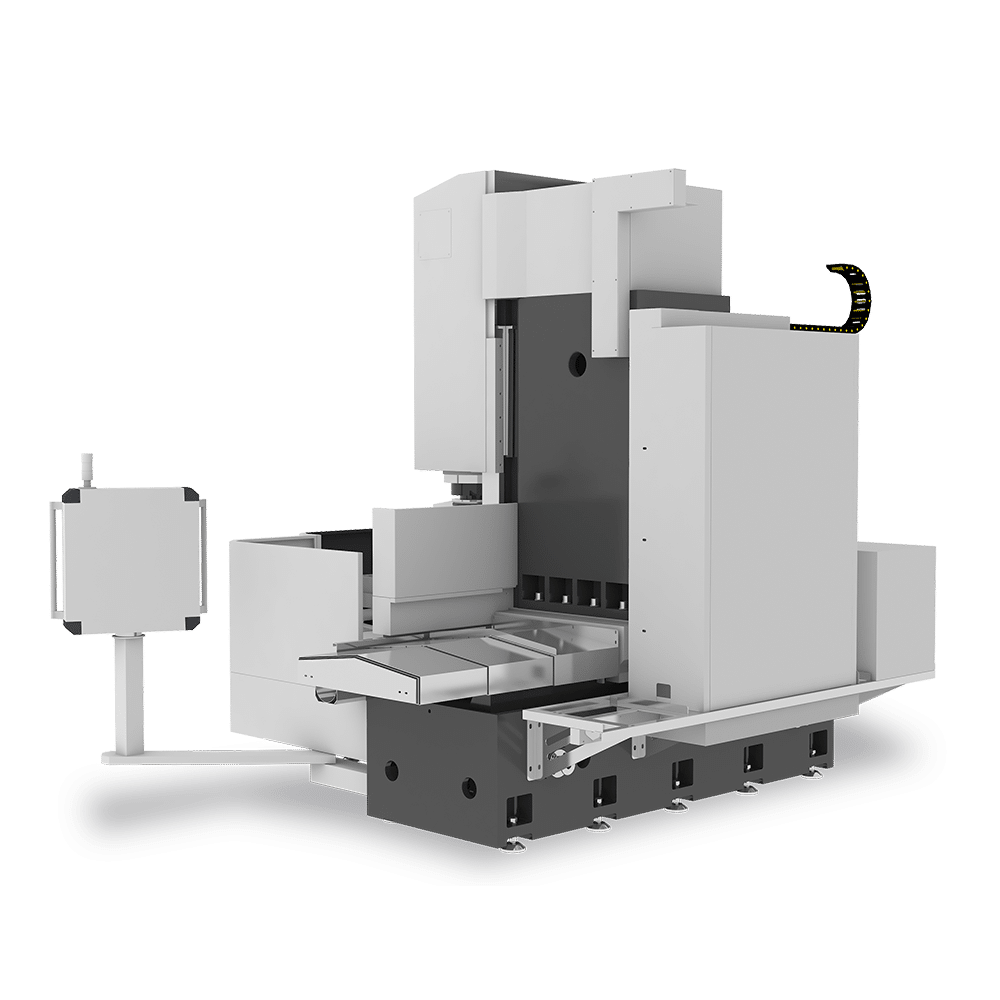

CNC Vertical Milling Machine

CNC vertical milling machine with a double worktable can clamp and process simultaneously. Its efficiency is over 4 times that of traditional machines.

Number of control axes 2
Max. processing thickness 350mm
Processing range 390*800mm
Max. load capacity 3000KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

CNC Vertical Milling Machine

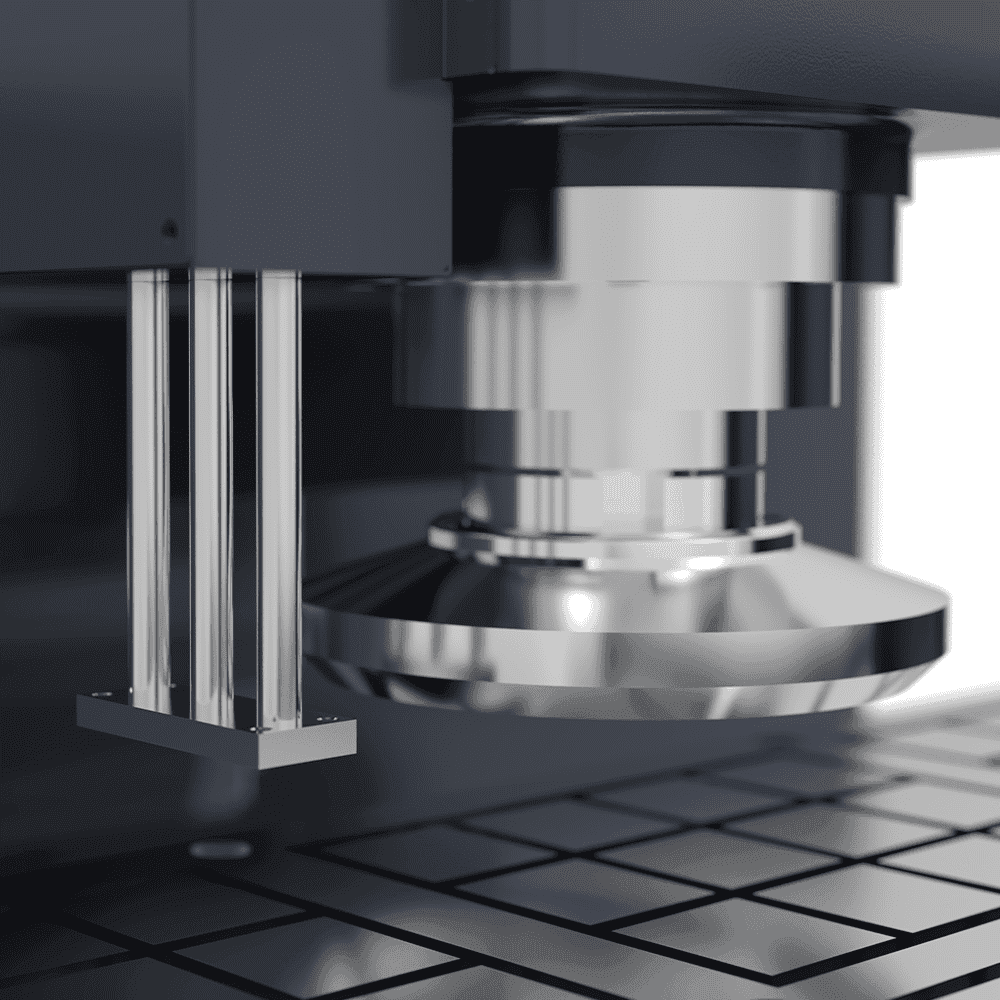

Automatic measurement

Shorten processing time and improve processing accuracy.

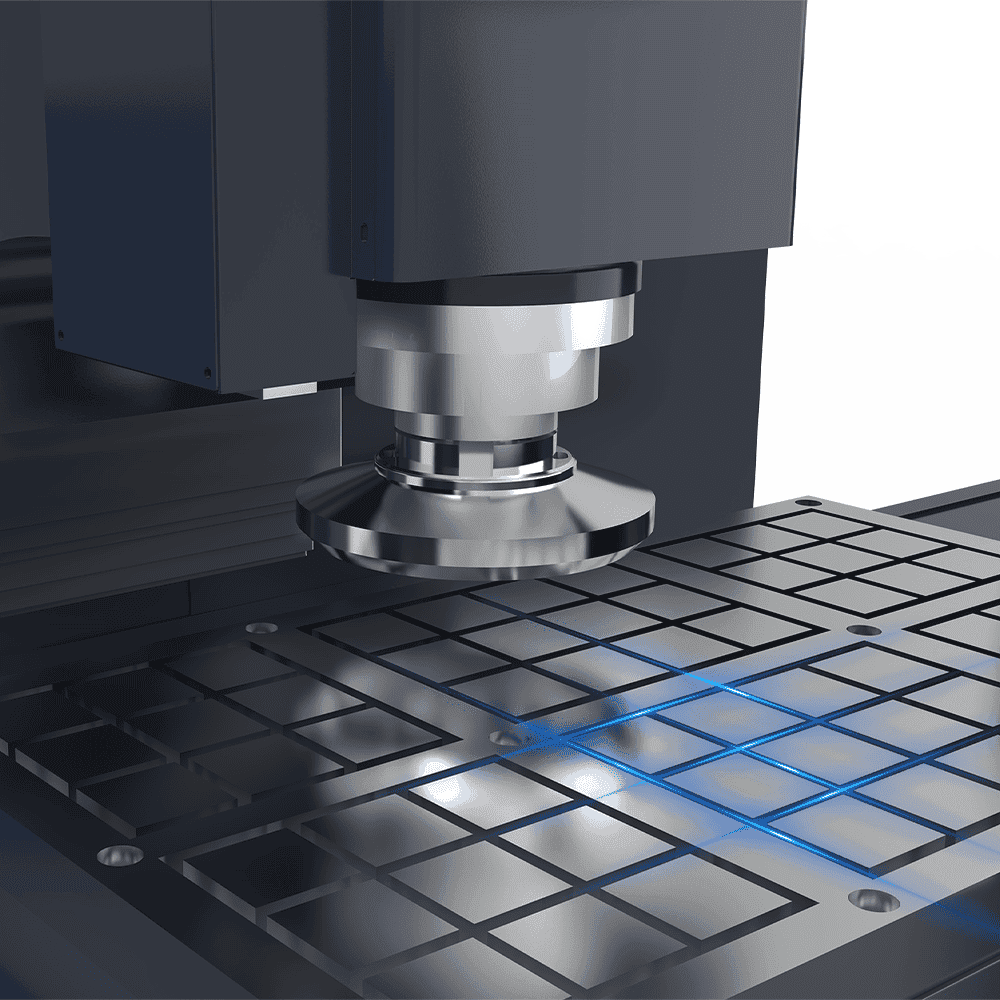

Automatic cutting

Reduce nonprocessing time, improve productivity, and increase tool change speed.

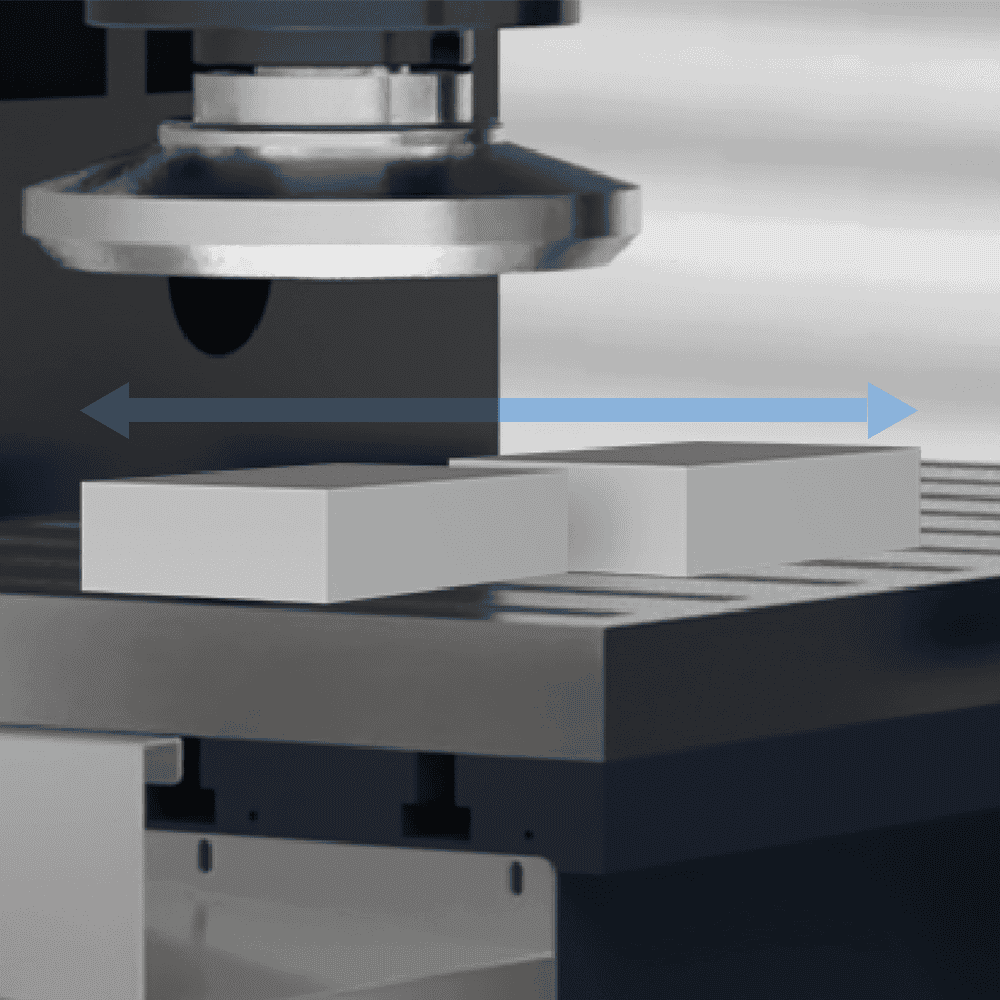

Batch processing of small workpieces

High precision in repeated tool positioning and reasonable tool storage capacity in the tool magazine.

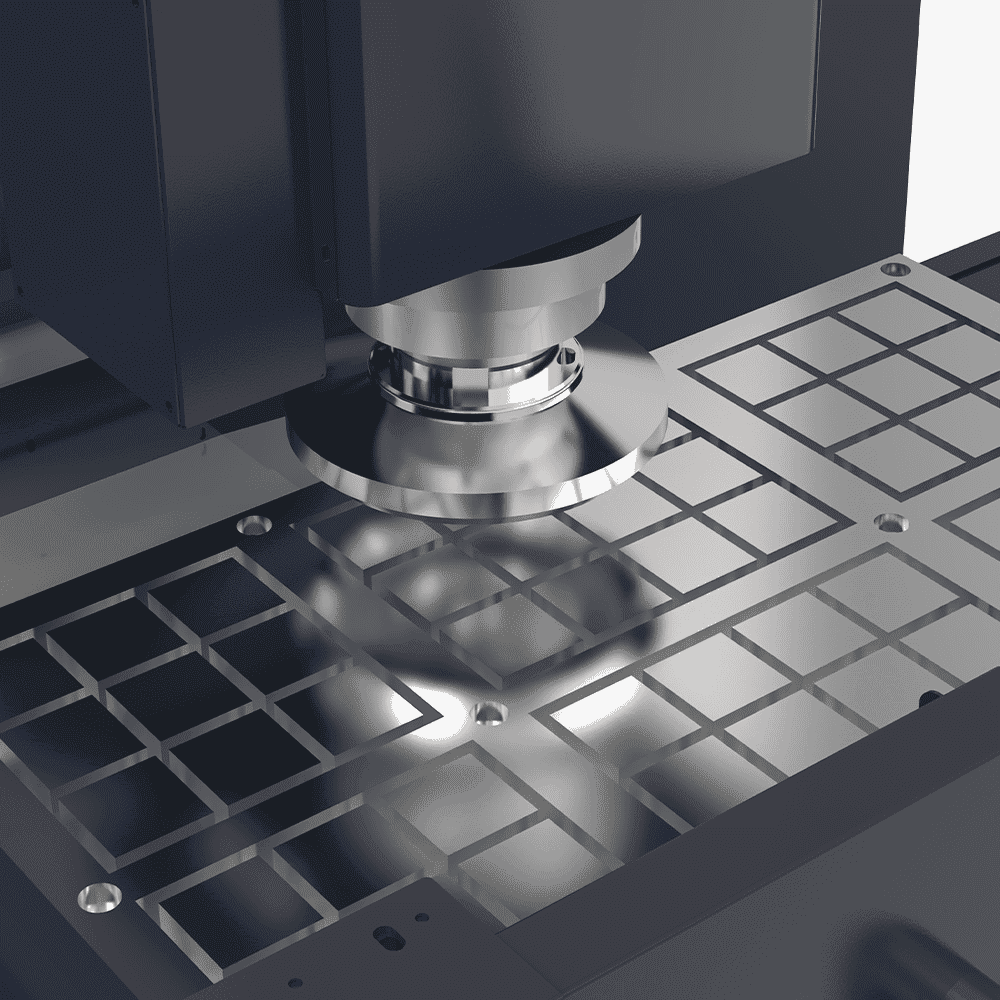

Grid encrypted disk

Strong security measures.

Basic Info

Ltems		Value	Unit
Worktable	Worktable size	390*800	mm
	Max. load capacity	3000	KG
	Magnet chuck size	Electro permanent	/
Processing range	Number of control axes	2	/
	Max. processing thickness	350	mm
	Processing range	390*800	mm
Belt - driven spindle	Spindle speed	50-300	rpm
	Spindle motor power	30	KW
	Spindle taper	BT50	mm
	Cutter diameter	Φ400	mm
Feed speed	X / Z servo motor	3/3	kw
	X / Z maximum rapid feed rate	8000/8000	mm / min
	X / Z maximum cutting feed rate	6000/6000	mm / min
Accuracy	Flatness	0.03	mm
Fuel tank capacity	Lubricating oil tank	4	L
Size & weight	Machine weight	About9500	KG
Size & weight	Machine size ( LWH )	350032003200	mm

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

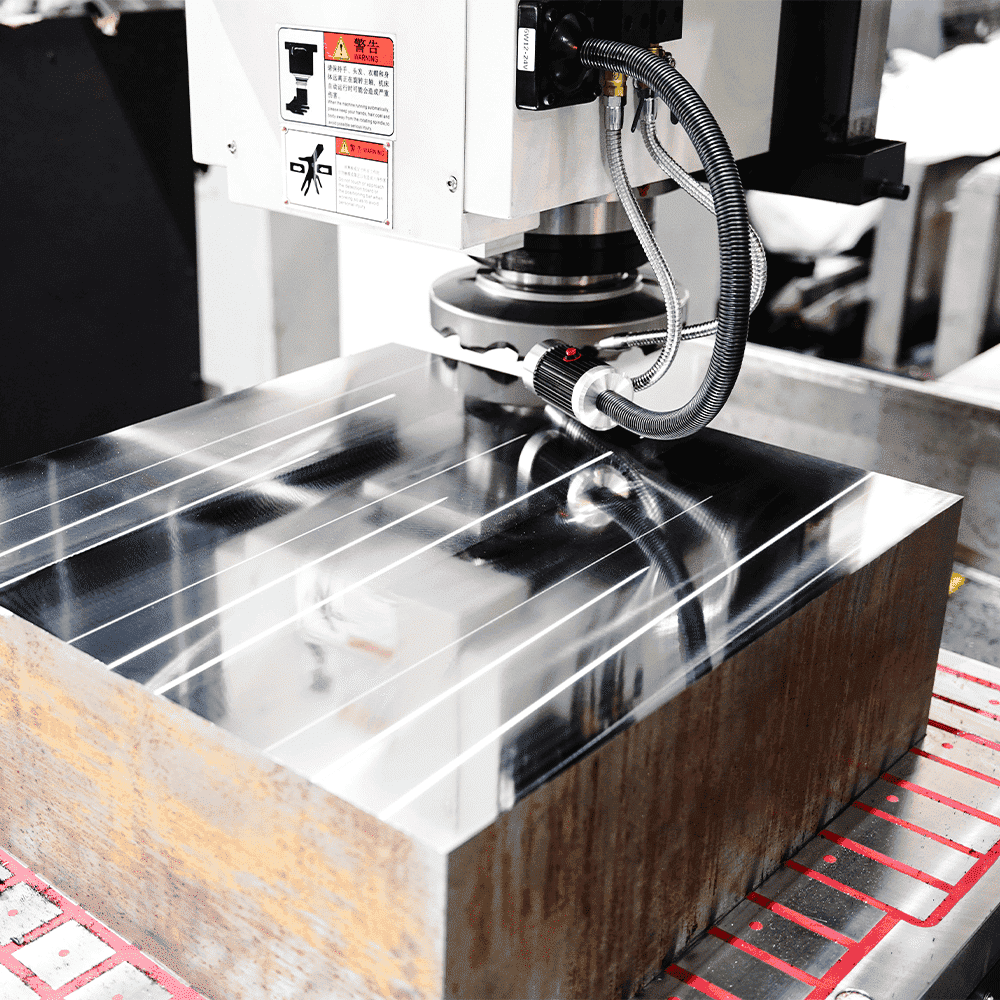

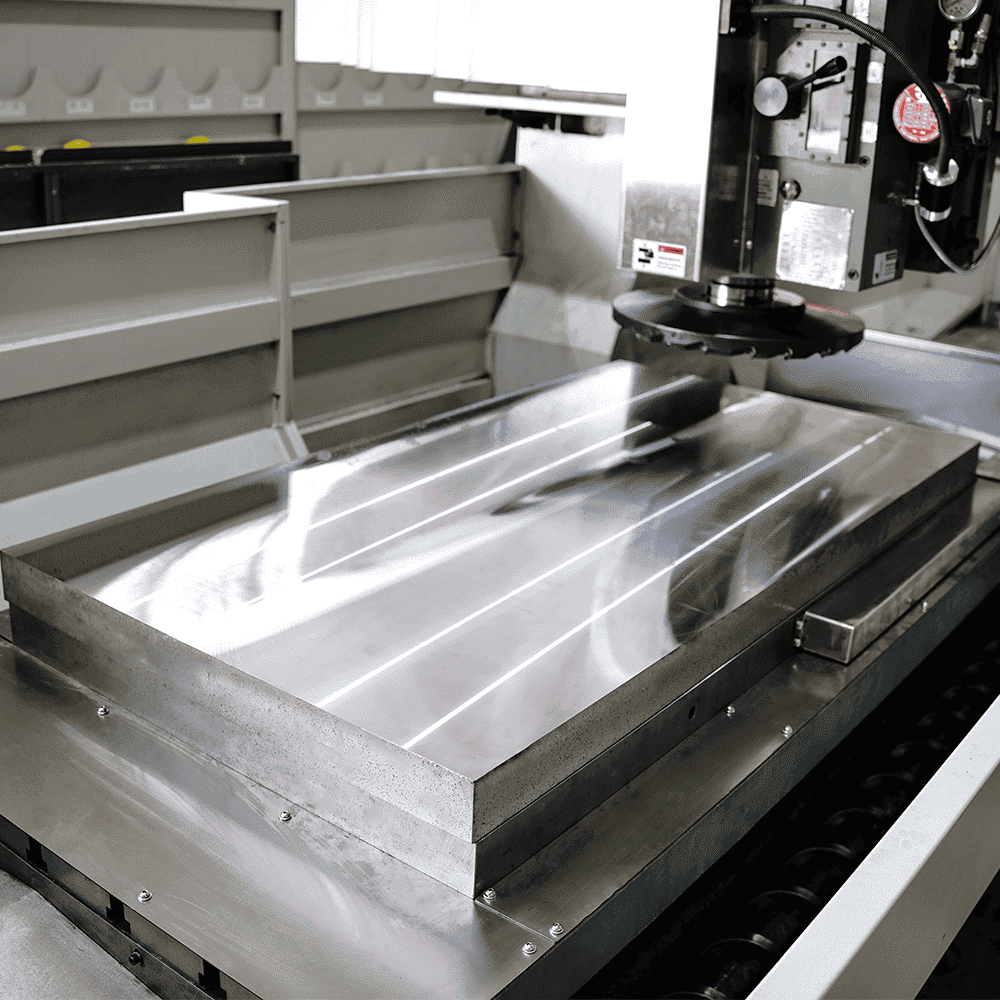

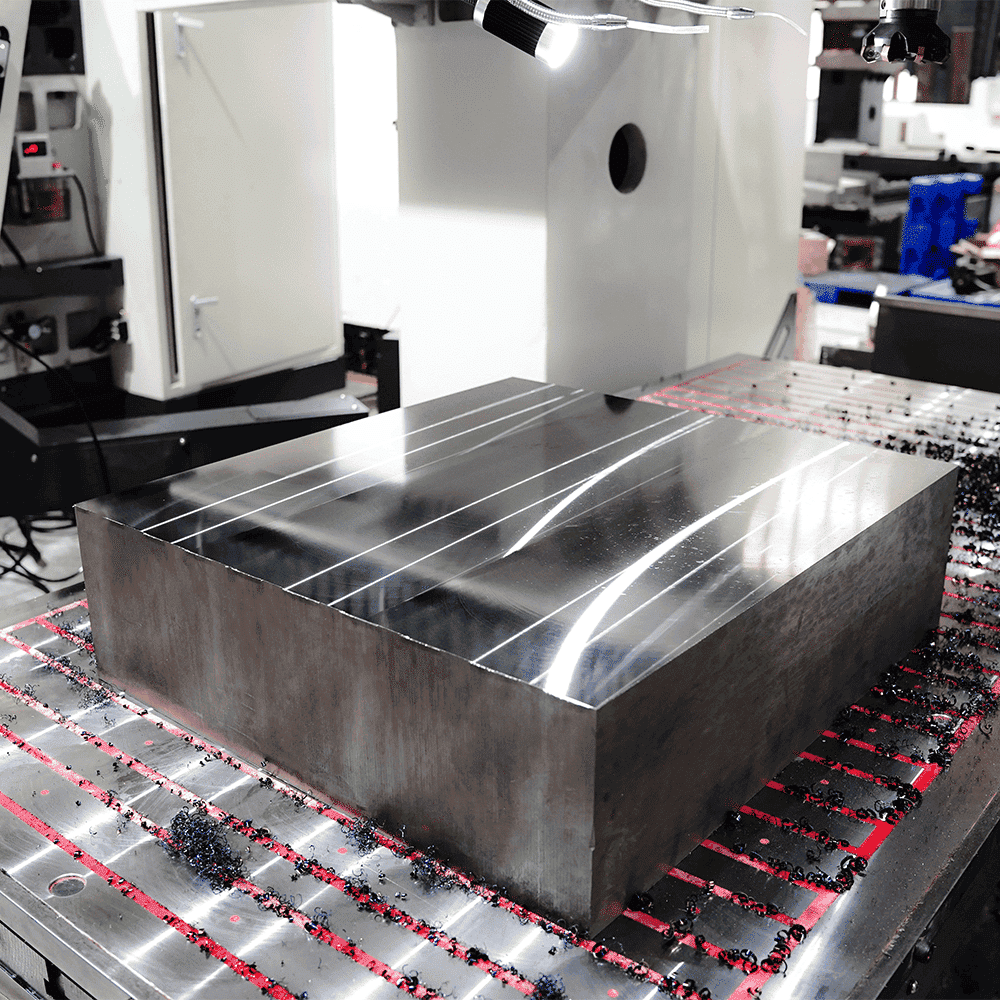

Steel mold processing

Hydraulic valve block processing

Mold base processing

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
