VM-5025NC

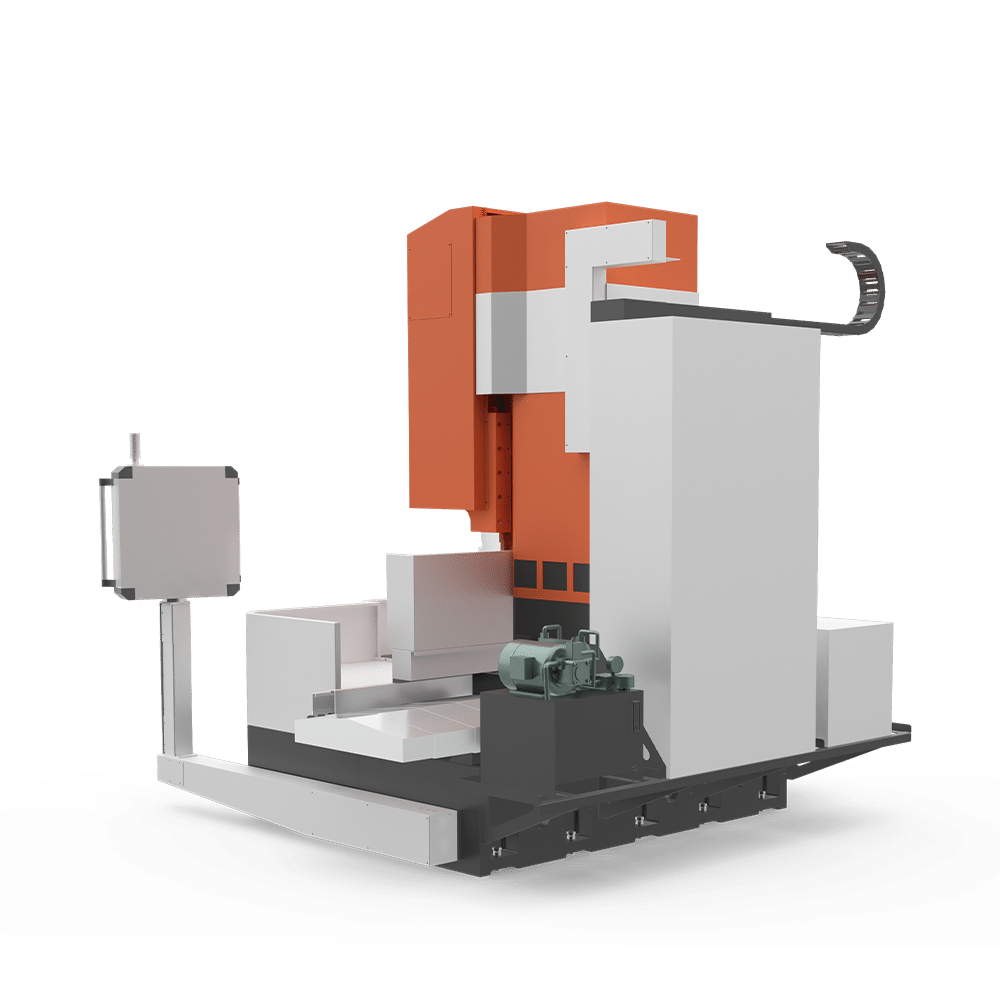

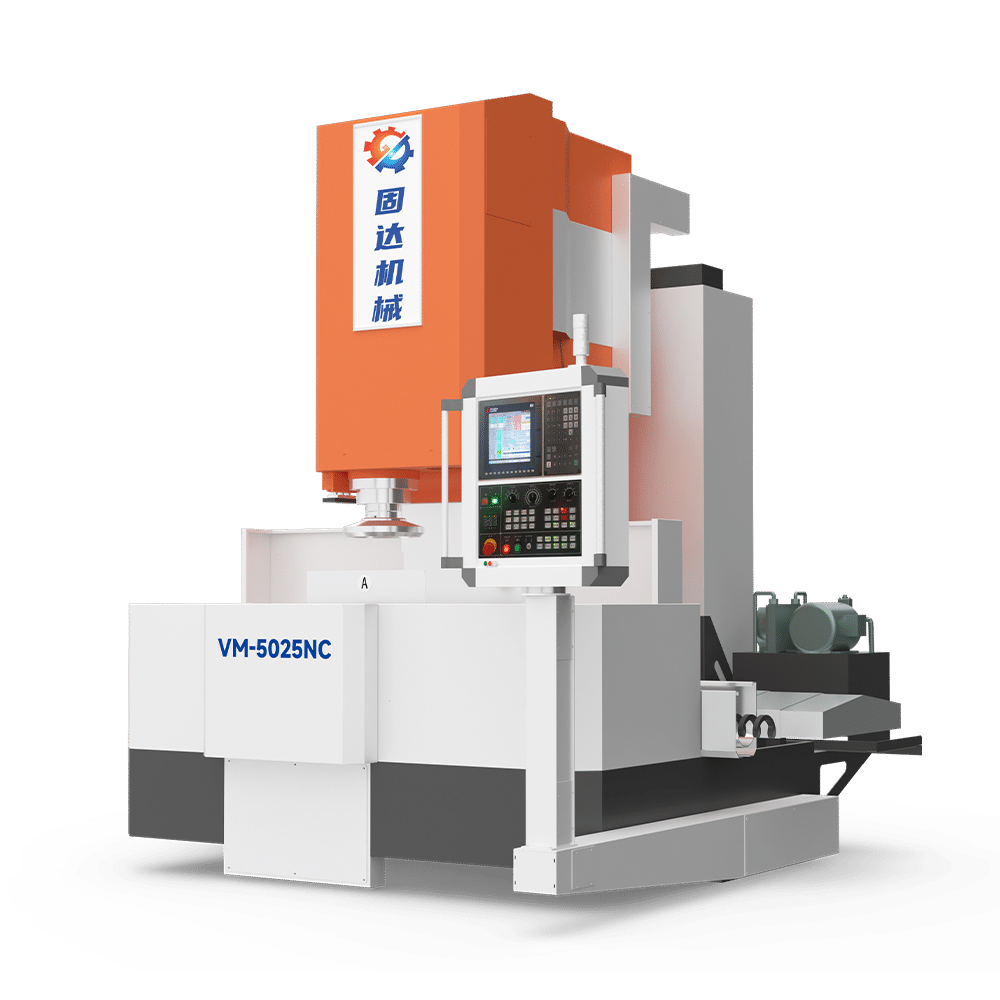

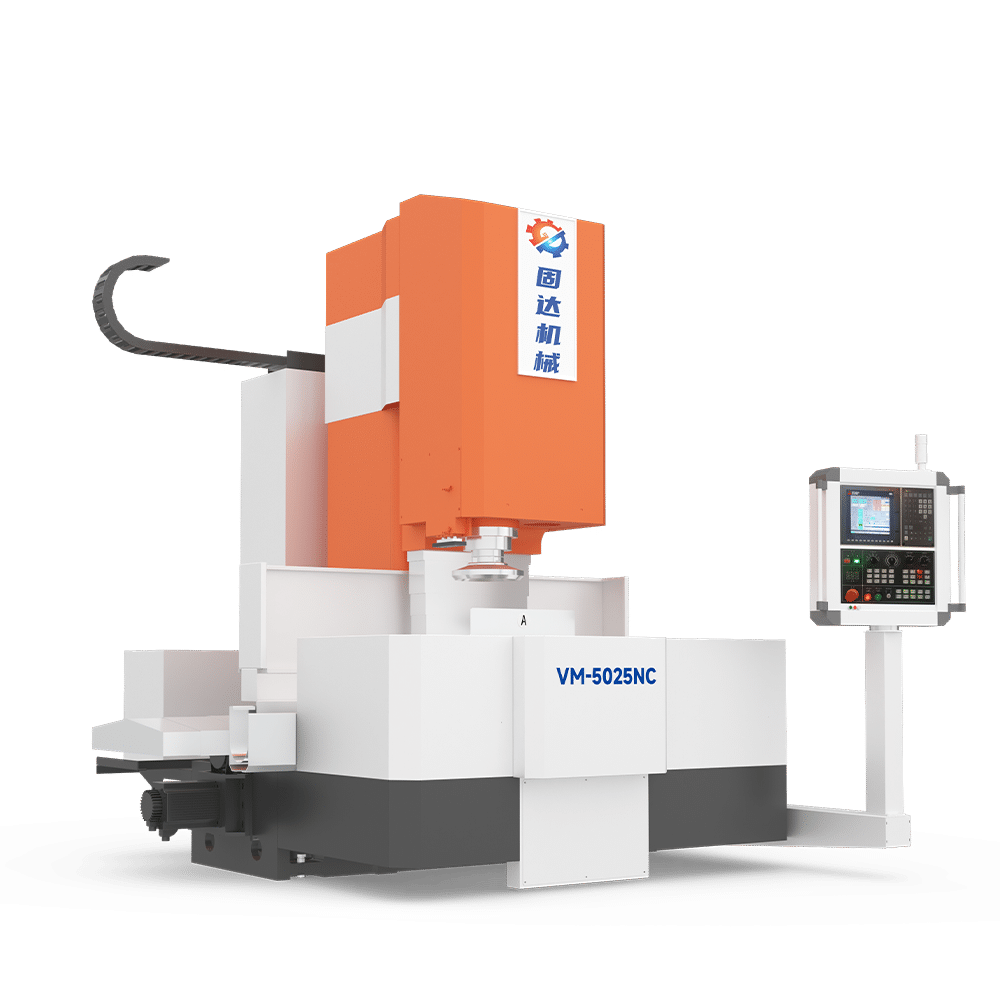

CNC Vertical Milling Machine

CNC vertical milling machine with a double worktable can clamp and process simultaneously. Its efficiency is over 4 times that of traditional machines.

Number of control axes 2
Max. processing thickness 250mm
Processing range 245*500mm
Max. load capacity 1200KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

CNC Vertical Milling Machine

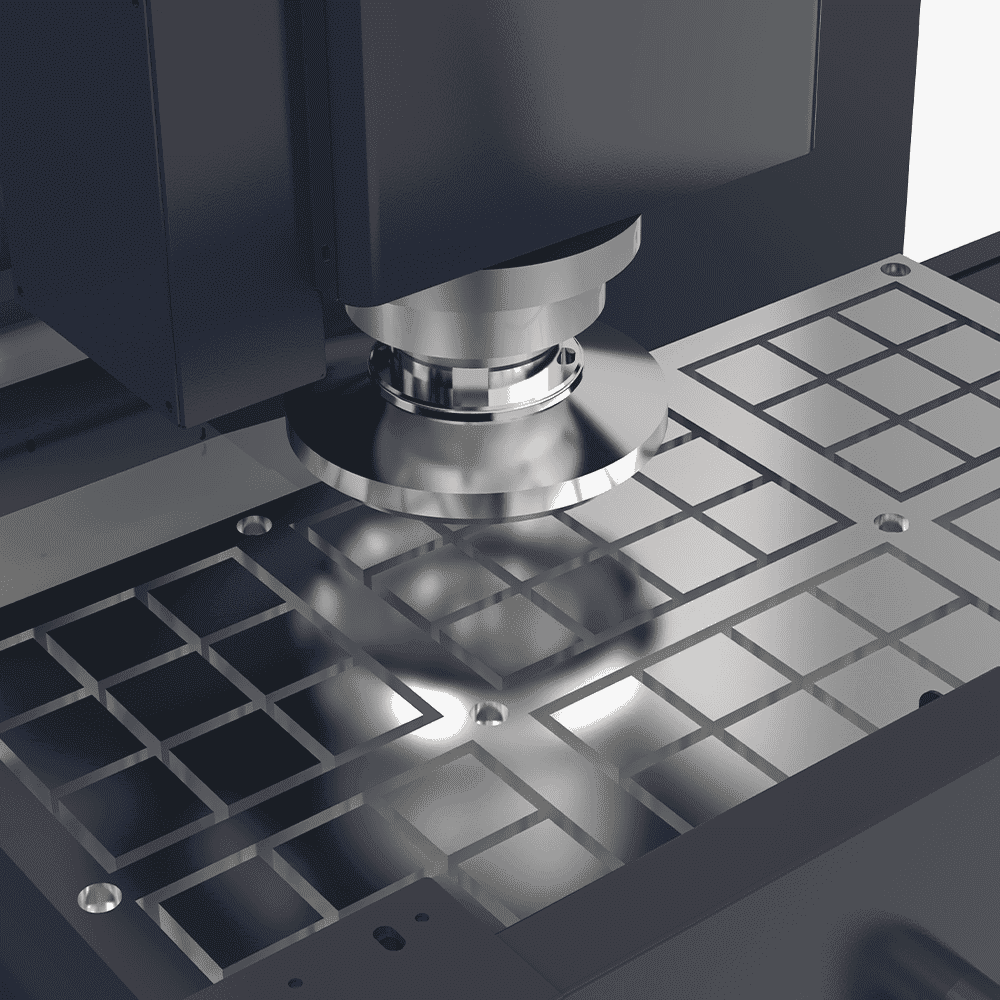

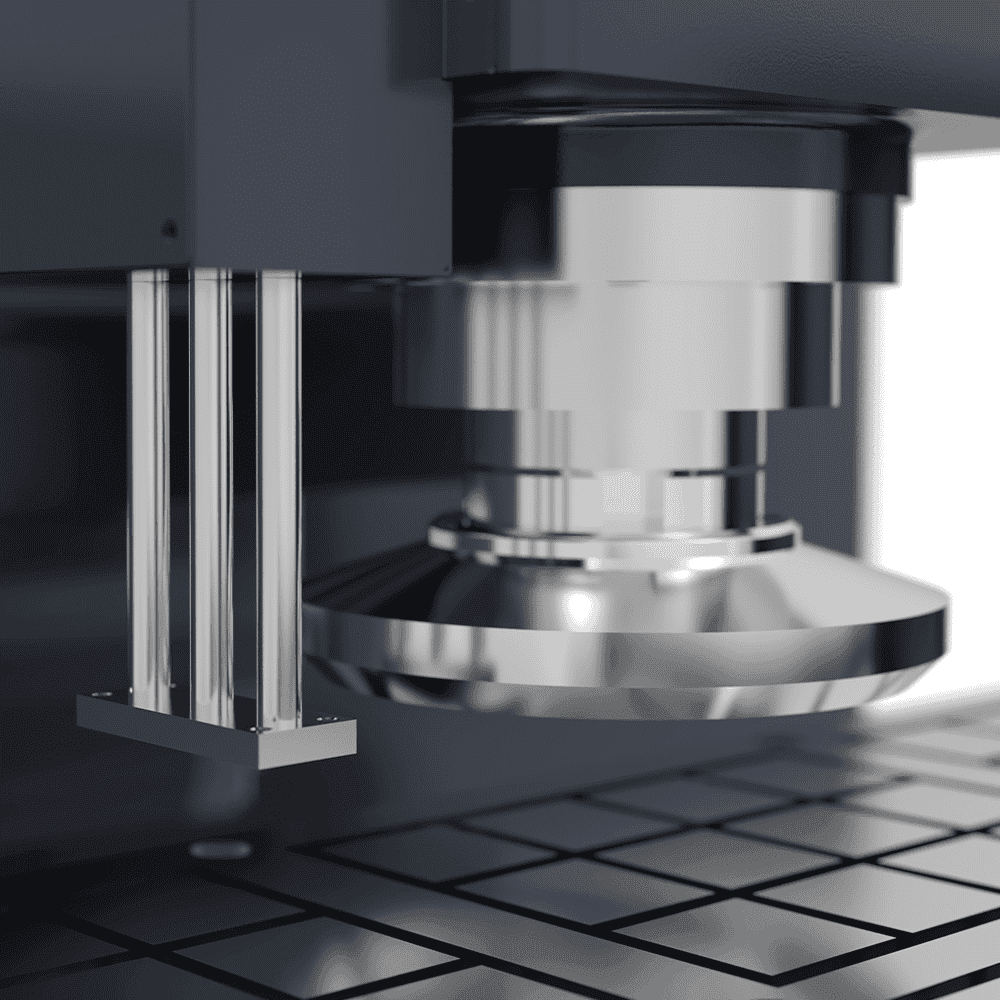

Automatic measurement

Shorten processing time and improve processing accuracy.
Automatic cutting

Reduce nonprocessing time, improve productivity, and increase tool change speed.

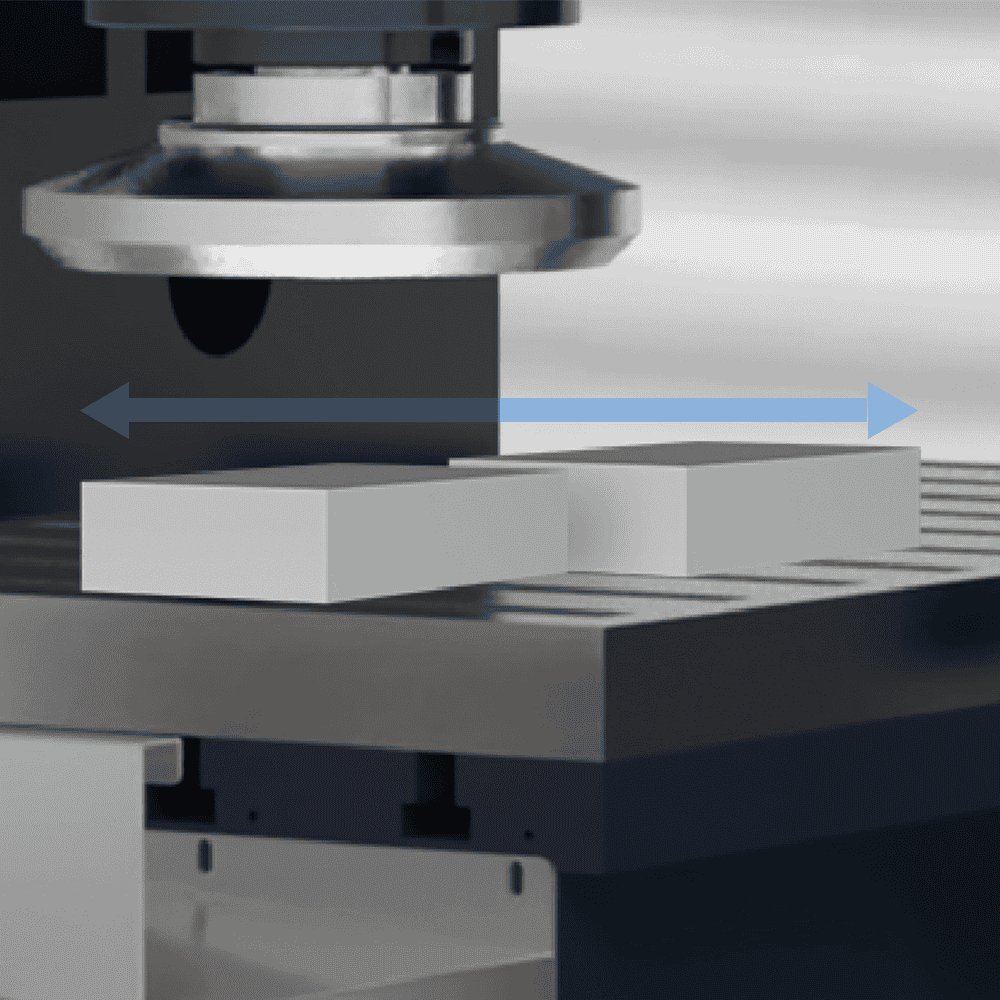

Batch processing of small workpieces

High precision in repeated tool positioning and reasonable tool storage capacity in the tool magazine.

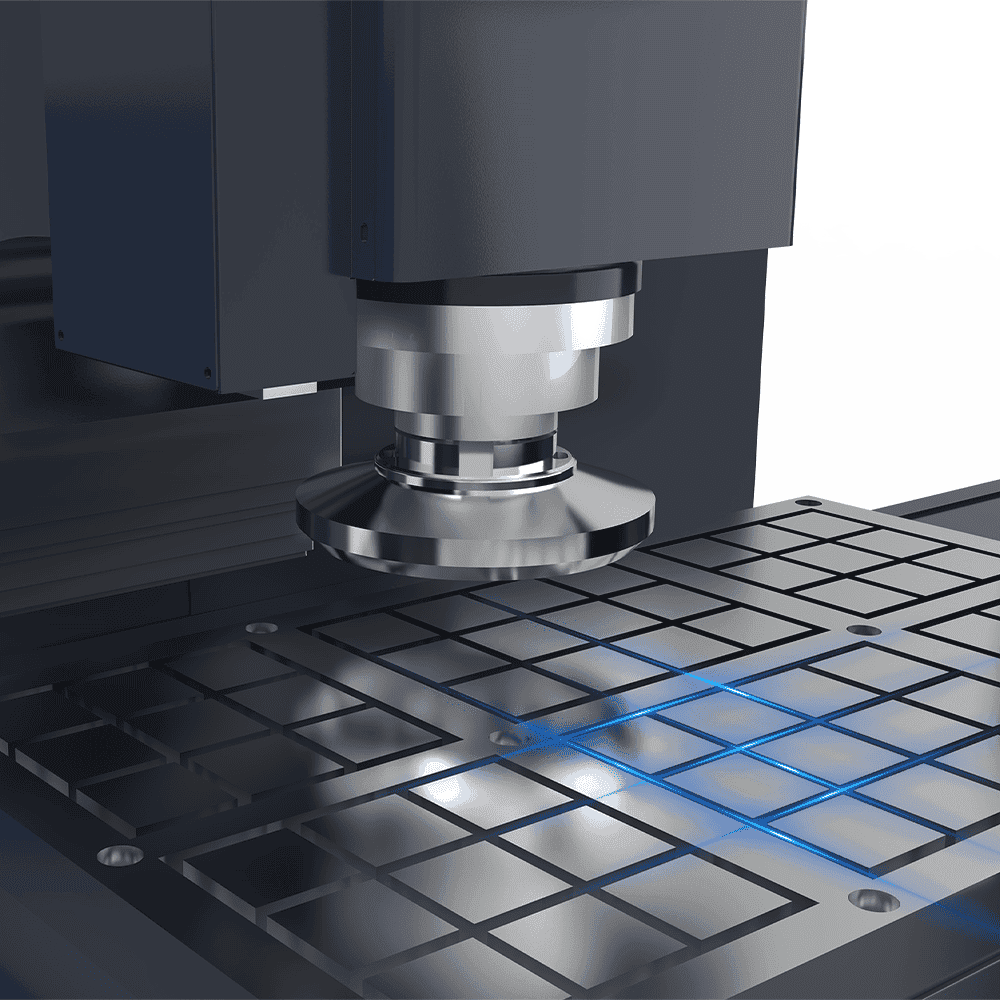

Grid encrypted disk

Strong security measures.

Basic Info

Items		Value	Unit
Worktable	Worktable size	245*500	mm
	Max. load capacity	1200	KG
	Magnet chuck size	Electro permanent	/
Processing range	Number of control axes	2	/
	Max. processing thickness	250	mm
	Processing range	245*500	mm
Belt - driven spindle	Spindle speed	50-500	rpm
	Spindle motor power	11	KW
	Spindle taper	BT50	mm
	Cutter diameter	Φ250	mm
Feed speed	X / Z servo motor	2.5/3	kw
	X / Z maximum rapid feed rate	8000/8000	mm / min
	X / Z maximum cutting feed rate	6000/6000	mm / min
Accuracy	Flatness	0.02	mm
Fuel tank capacity	Lubricating oil tank	4	L
Size & weight	Machine weight	About8000	KG
Size & weight	Machine size ( LWH )	277322903200	mm

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

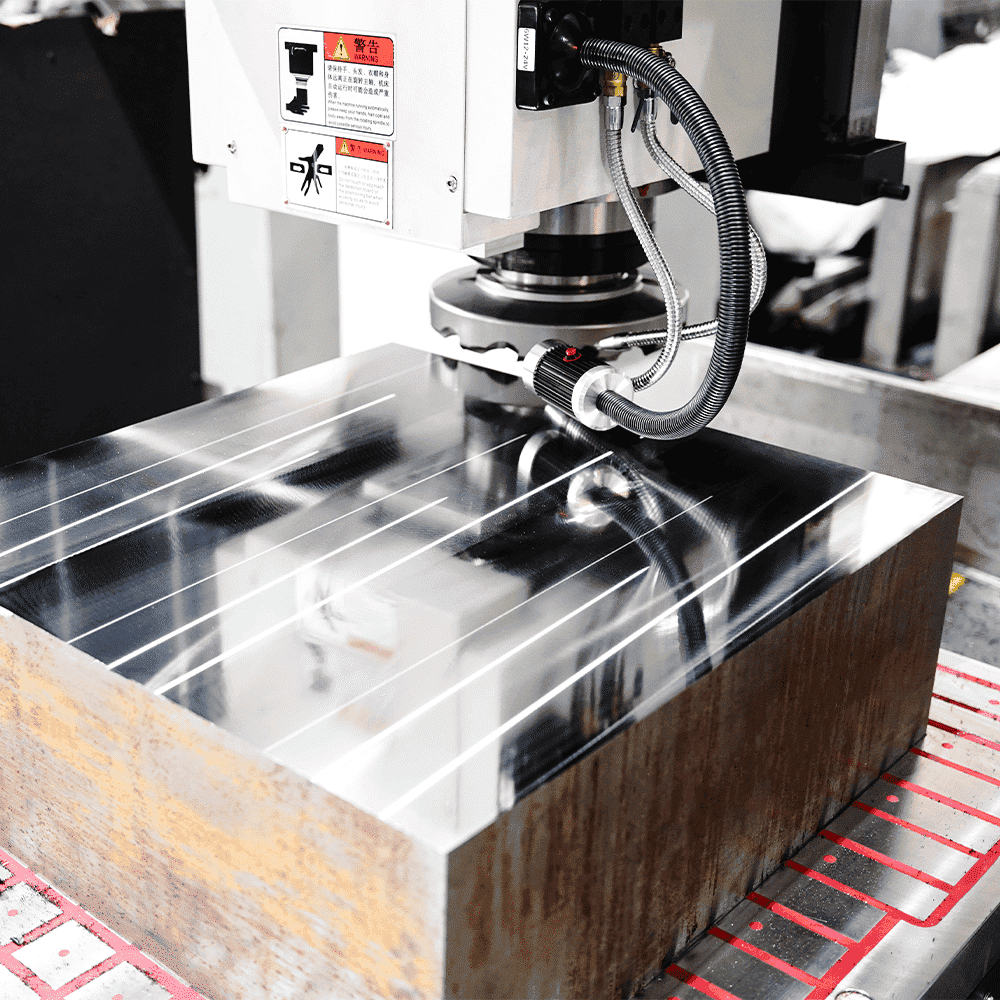

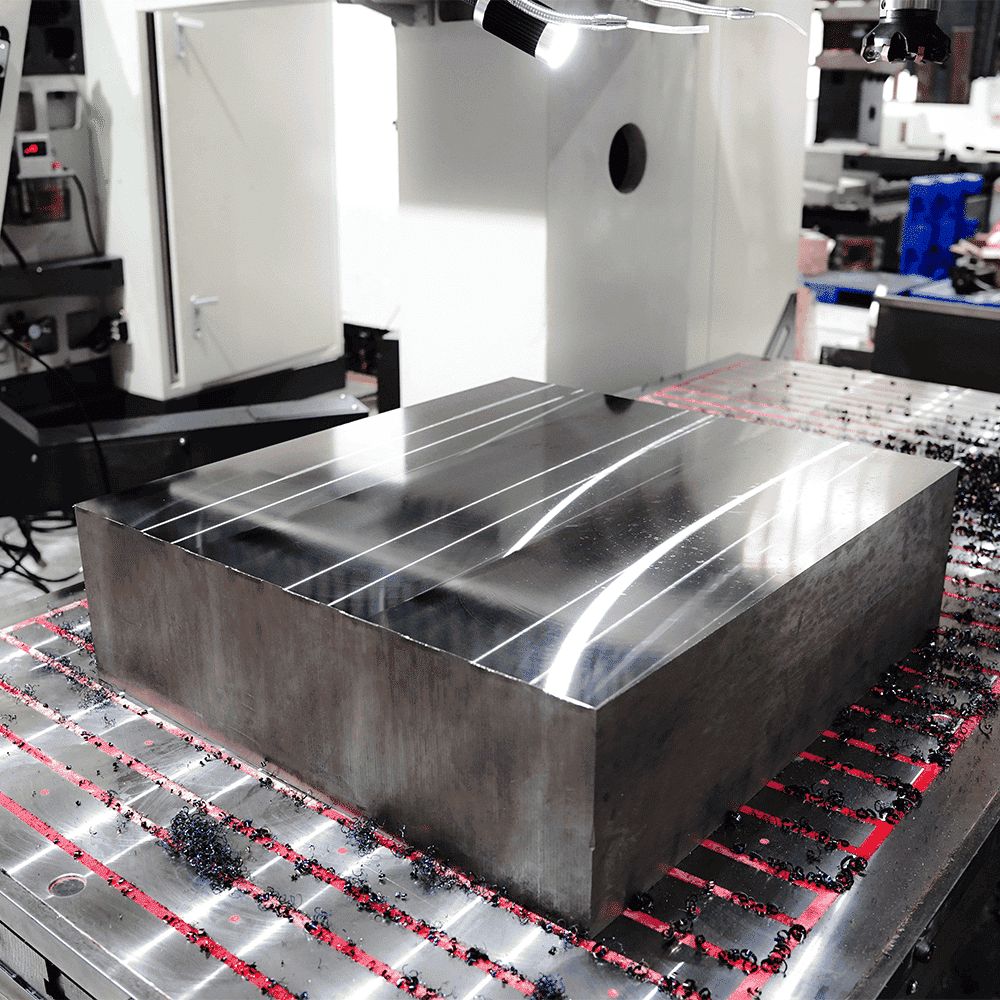

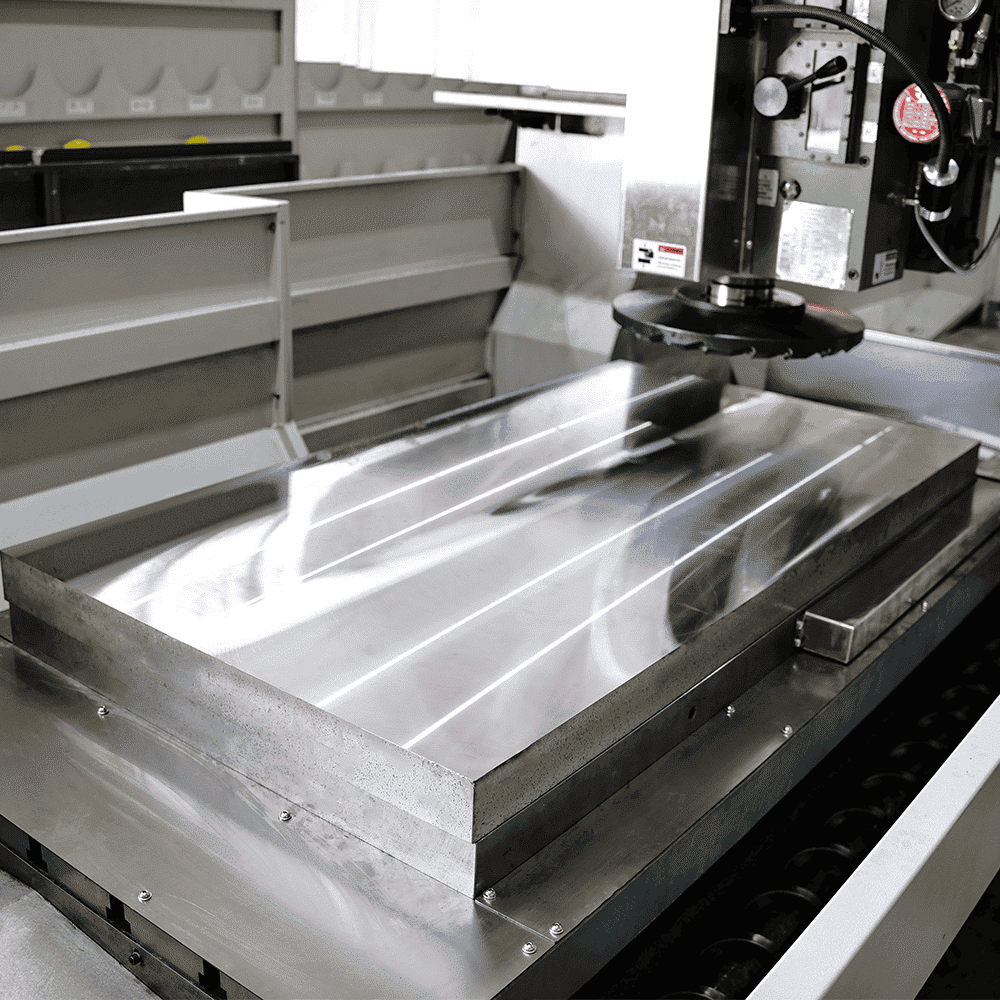

Steel mold processing

Hydraulic valve block processing

Mold base processing

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.
