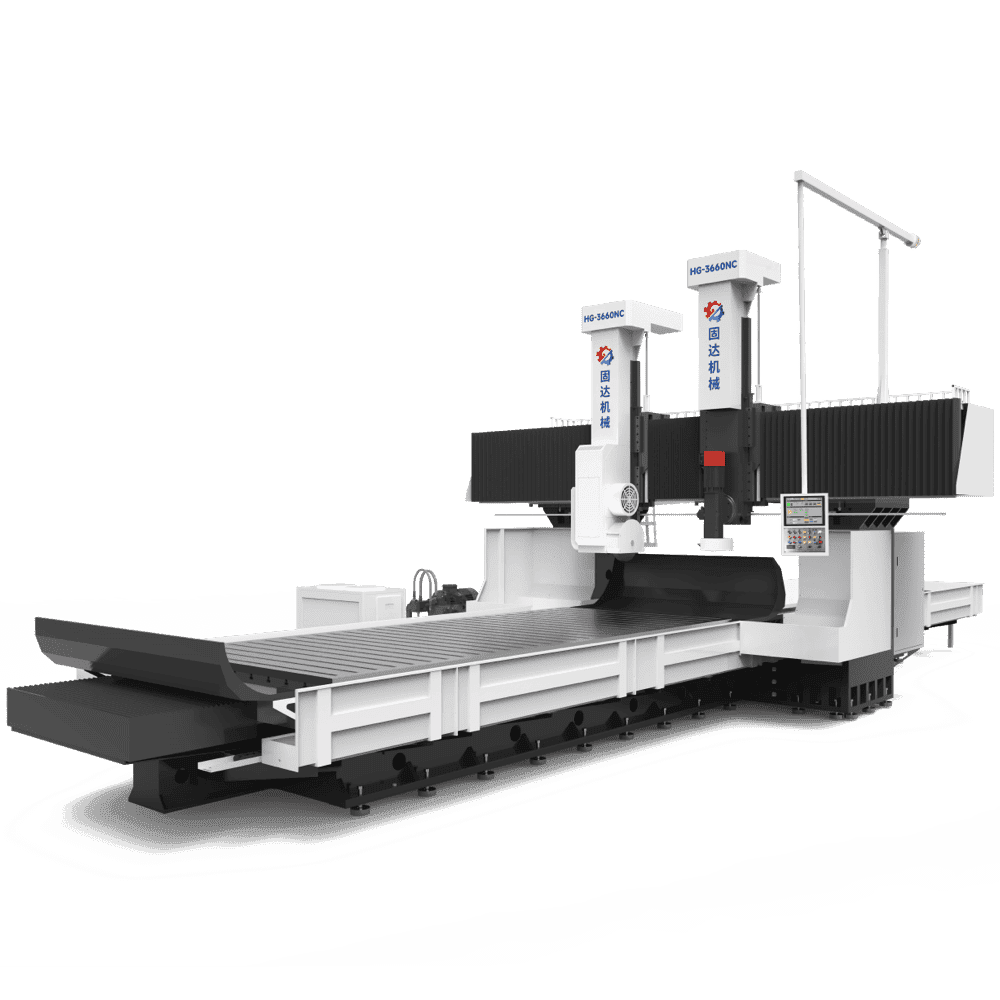

HG-3660NC

CNC Surface Grinding Machine

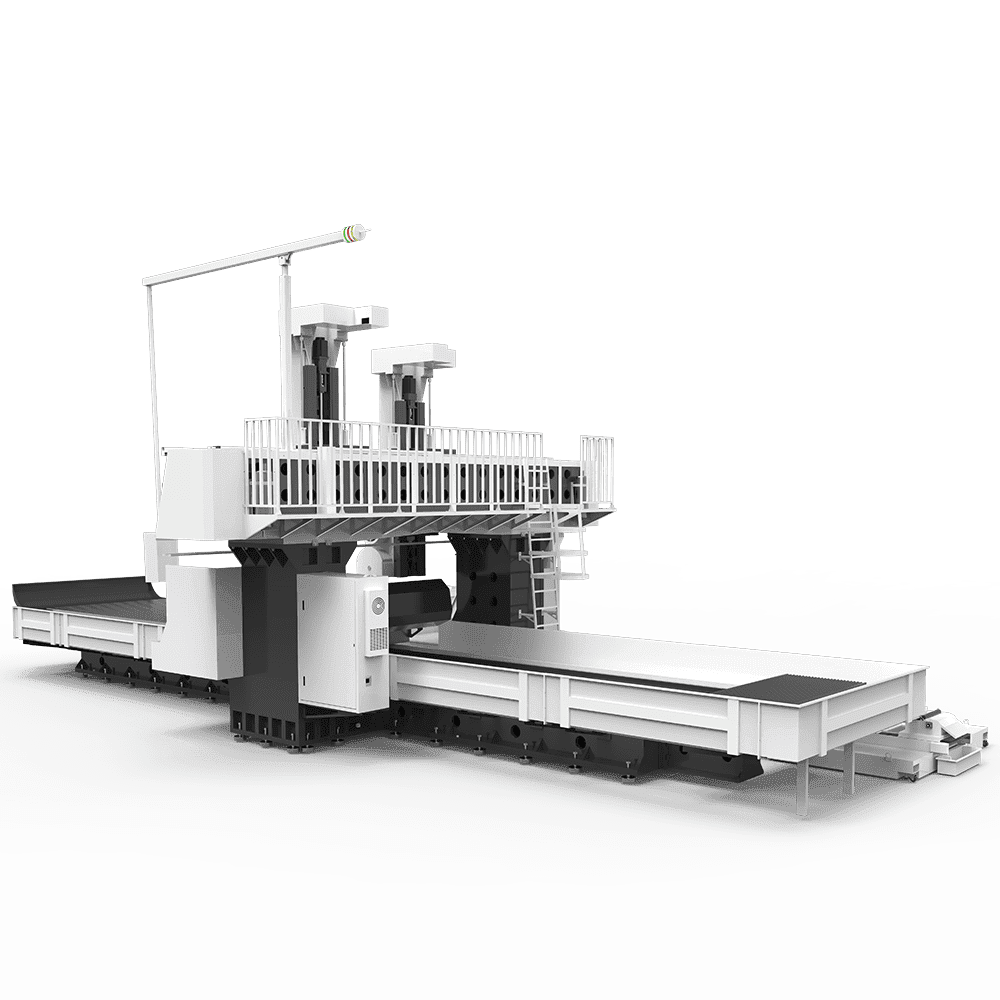

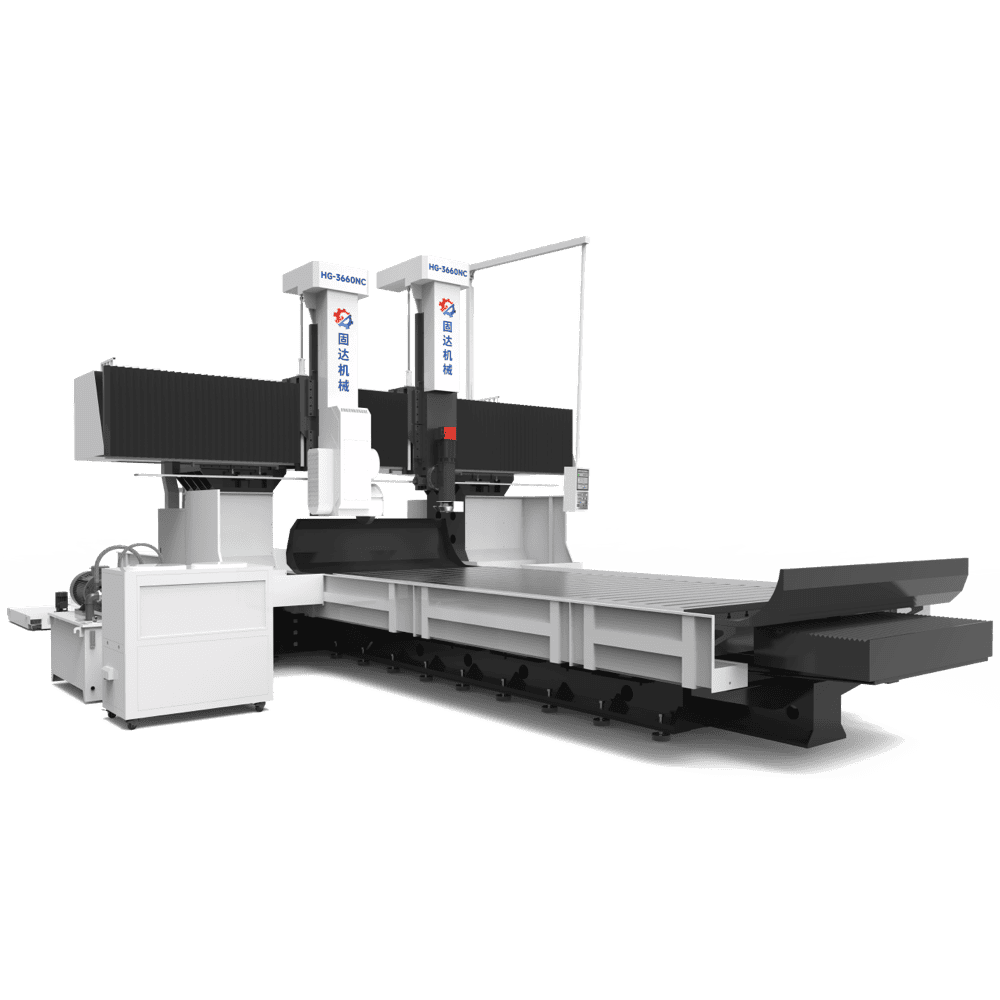

Large guide rail grinding machine, gantry layout, automatic cutting division, automatic grinding. Both the flat grinding head and the rotating grinding head use the original Taiwan spindle and high-quality precision castings. Easy to operate, and beautiful.

Maximum grinding length 6000mm
Maximum grinding weidth 3200mm
Maximum grinding height 1200mm
Max. load capacity 22000 KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

CNC Surface Grinding Machine

Hydraulic oil cooling system

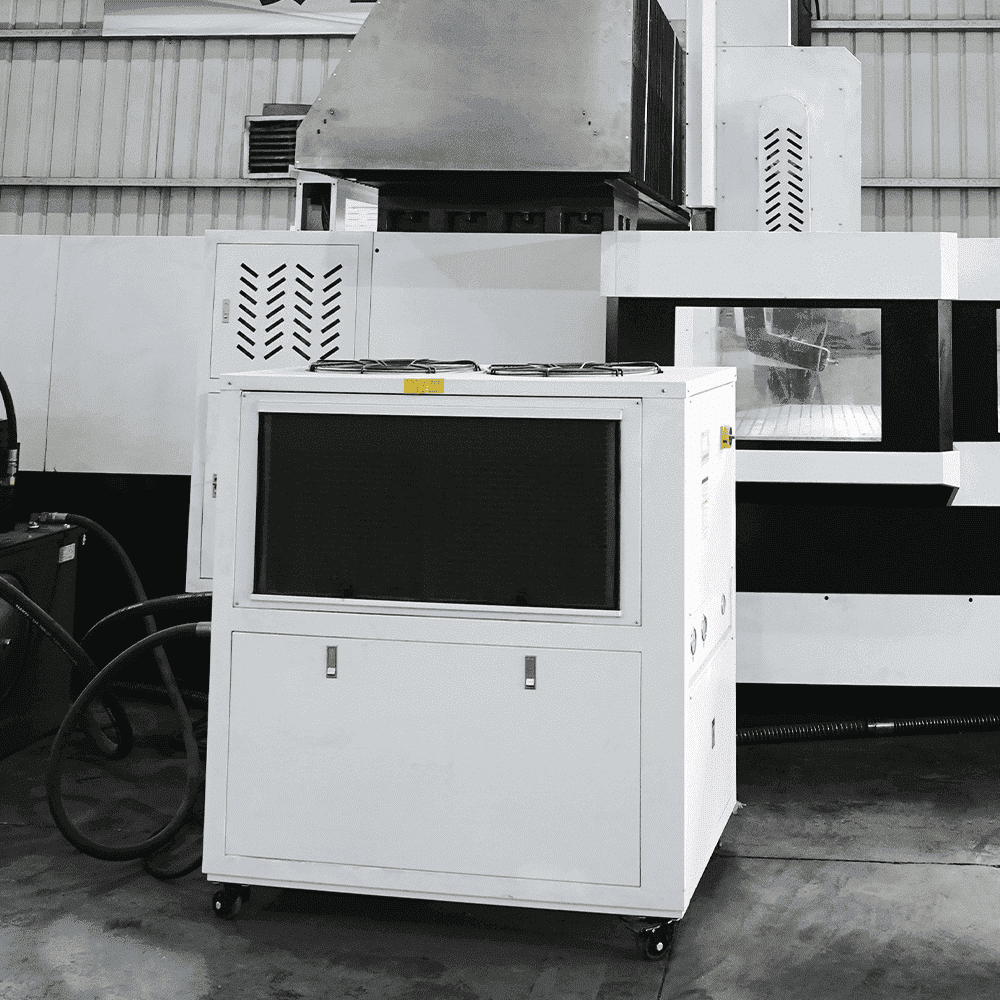

The independent hydraulic station system is adopted, the transmission is stable, and the independent cooling system ensures that the oil cylinder will not generate heat during work, which will cause accuracy changes.

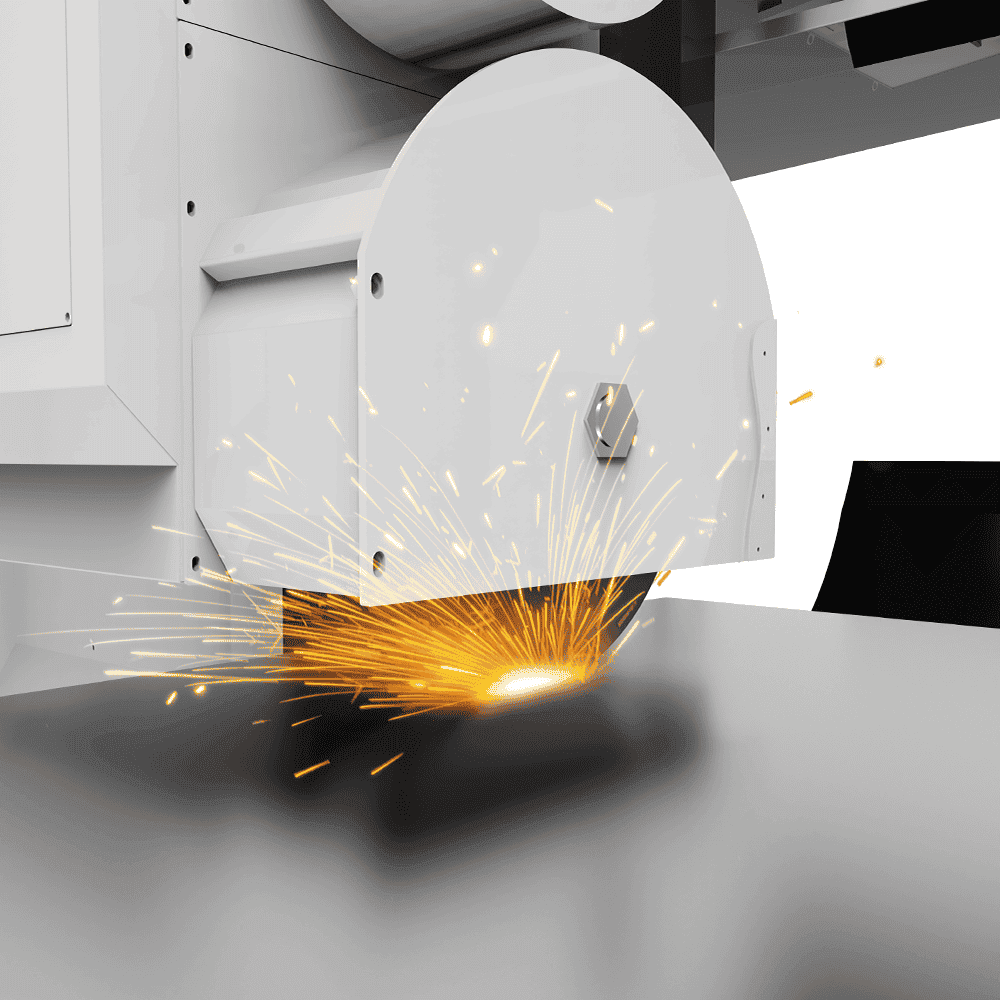

Grinding head transmission

The main shaft of the grinding head adopts a static pressure structure, with stable processing, high motion precision, good shock resistance, and heavy-duty grinding.
Worktable feed

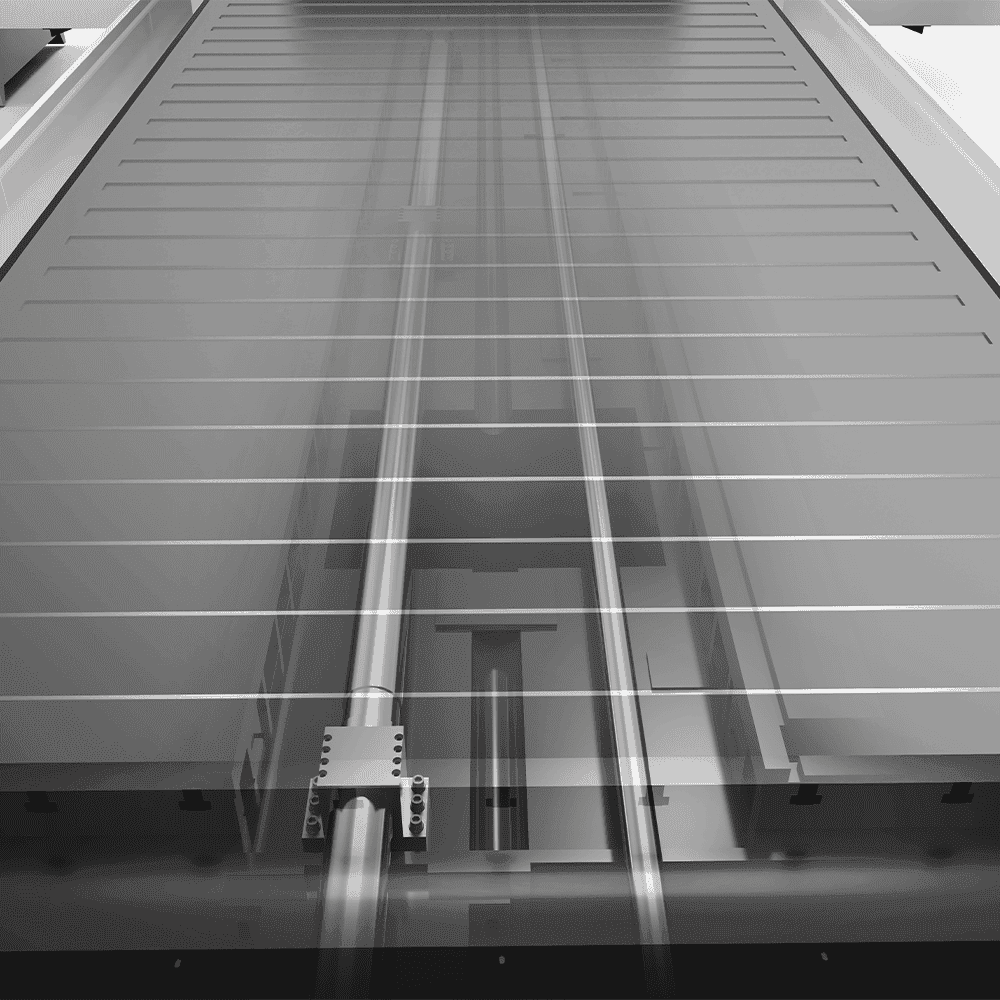

The worktable is driven by an oil cylinder, a high-power motor, large torque, stepless speed regulation, stable movement, and low noise.
Control system

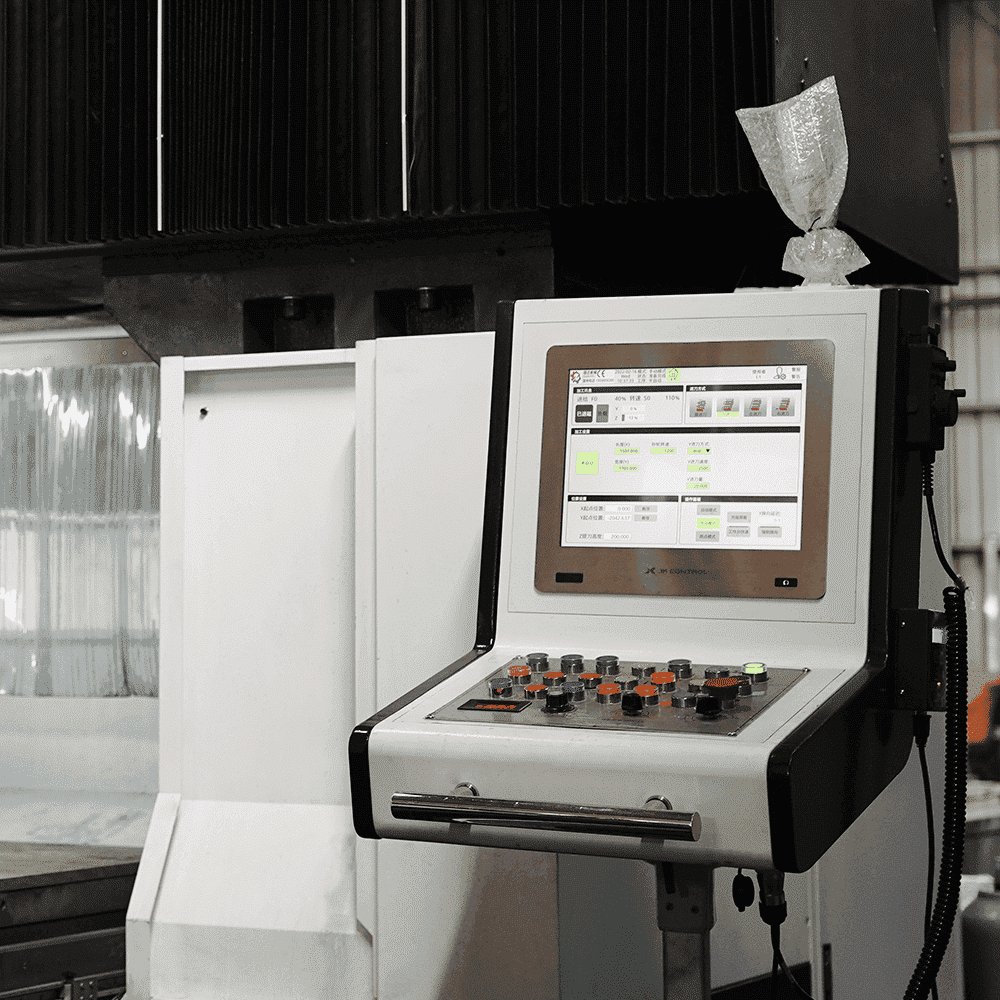

Matching adopts a mainstream control system and, a new style touch panel, which is easy and efficient to operate, and can realize various automatic grinding workpieces.

Basic Info

Items		Value	Unit
Processing capacity	Maximum grinding length	6000	mm
	Maximum grinding weidth	3200	mm
	Maximum grinding height	1200	mm
	Maximum grinding height of retary grinder	800	mm
Worktable	Worktable size	3000*6000	mm
	Max. load capacity	22000	KG
	Table T-slot specification	15*28	mm
Spindle	Spindle motor power	22	KW
	Spindle speed	1400	rpm
	Grinding wheel	50020375	mm
Rotary grinding head	Rotary grinding head angle	±90°	°
	Spindle motor power	11	KW
	Spindle speed	1400	rpm
	Grinding wheel size	40050127	mm
Feed speed	X axis movement speed	5-28	m/min
Oil pump motor	X axis oil pump motor	37	KW
Size & weight	Machine net weight	About 90000	KG
Size & weight	Machine size (LWH)	1650066008800	mm

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

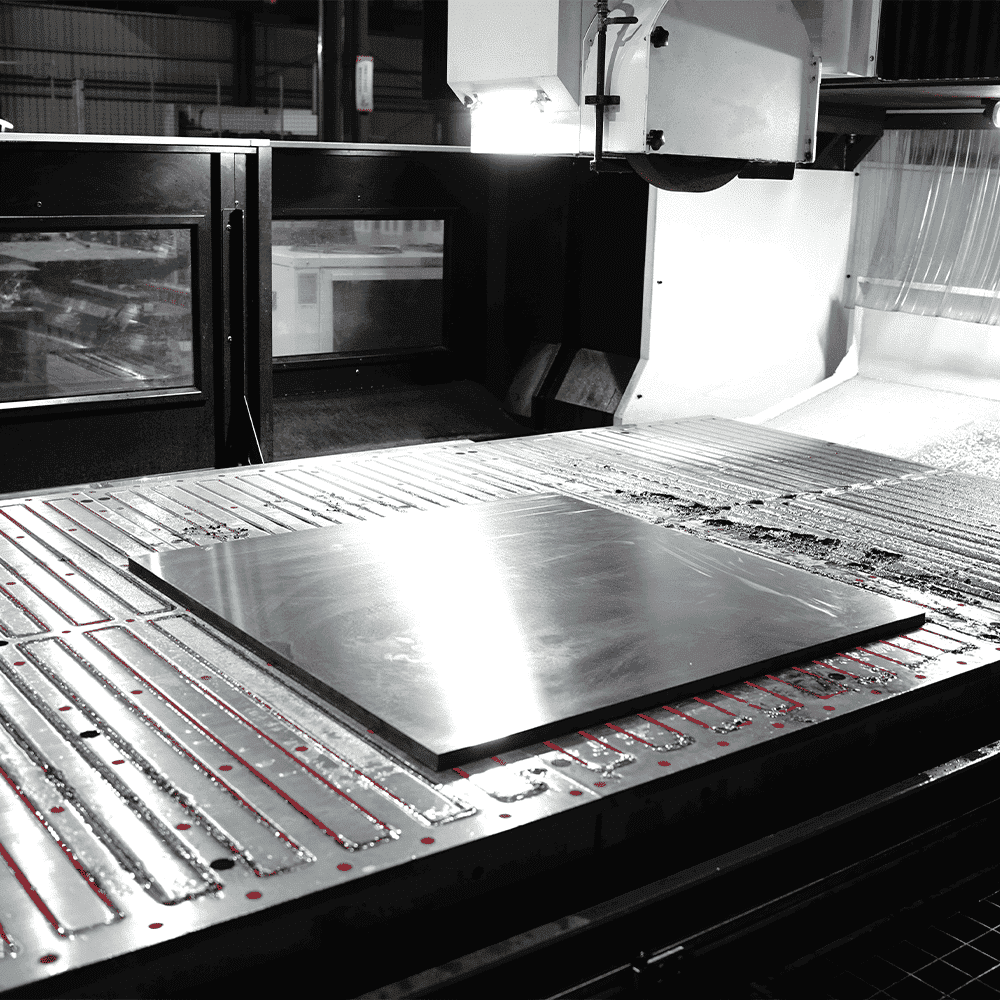

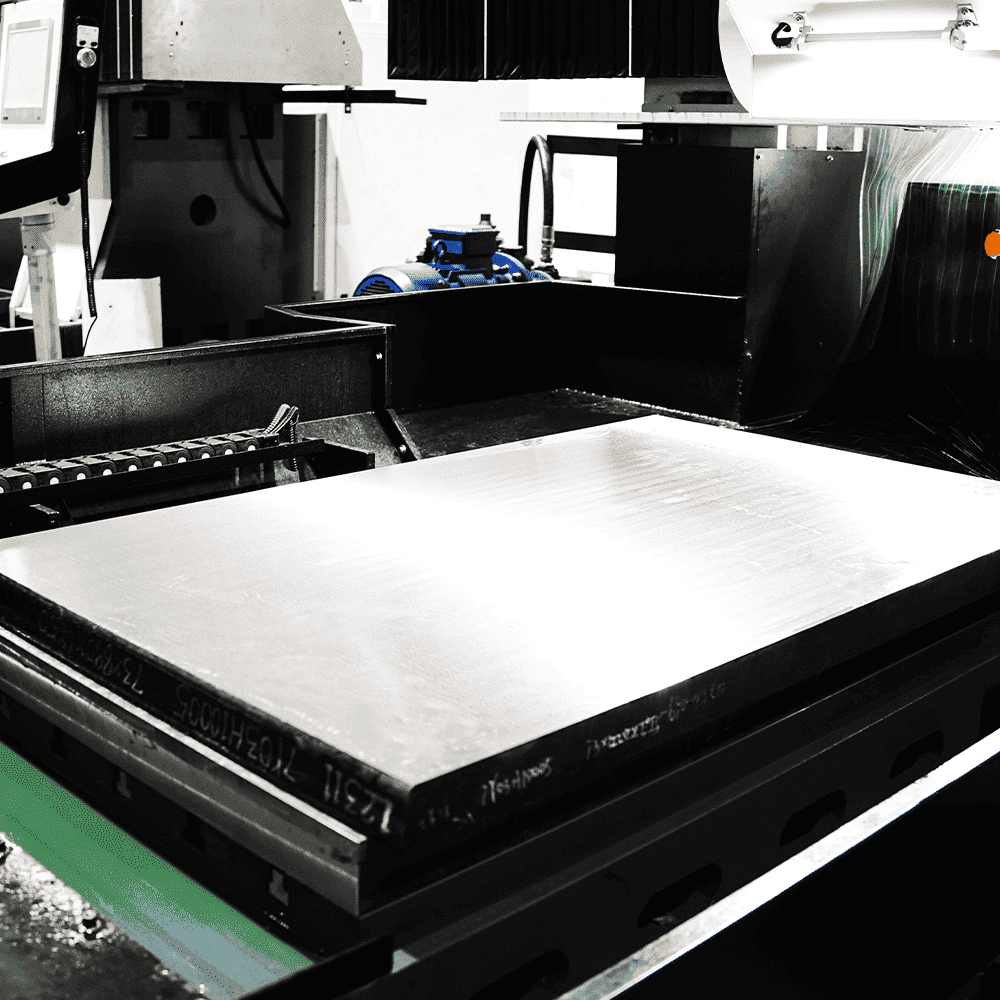

Custom（ steel）plate

Machined plate

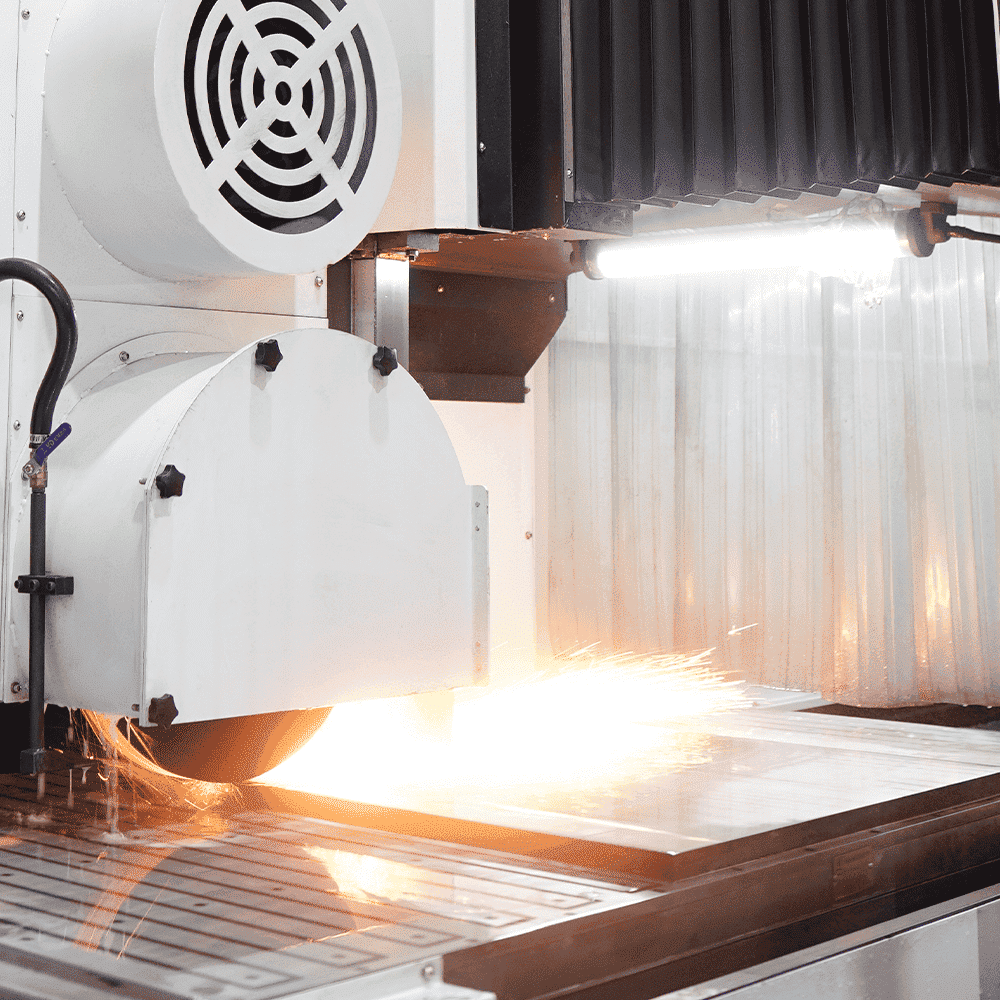

Machining plate

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
