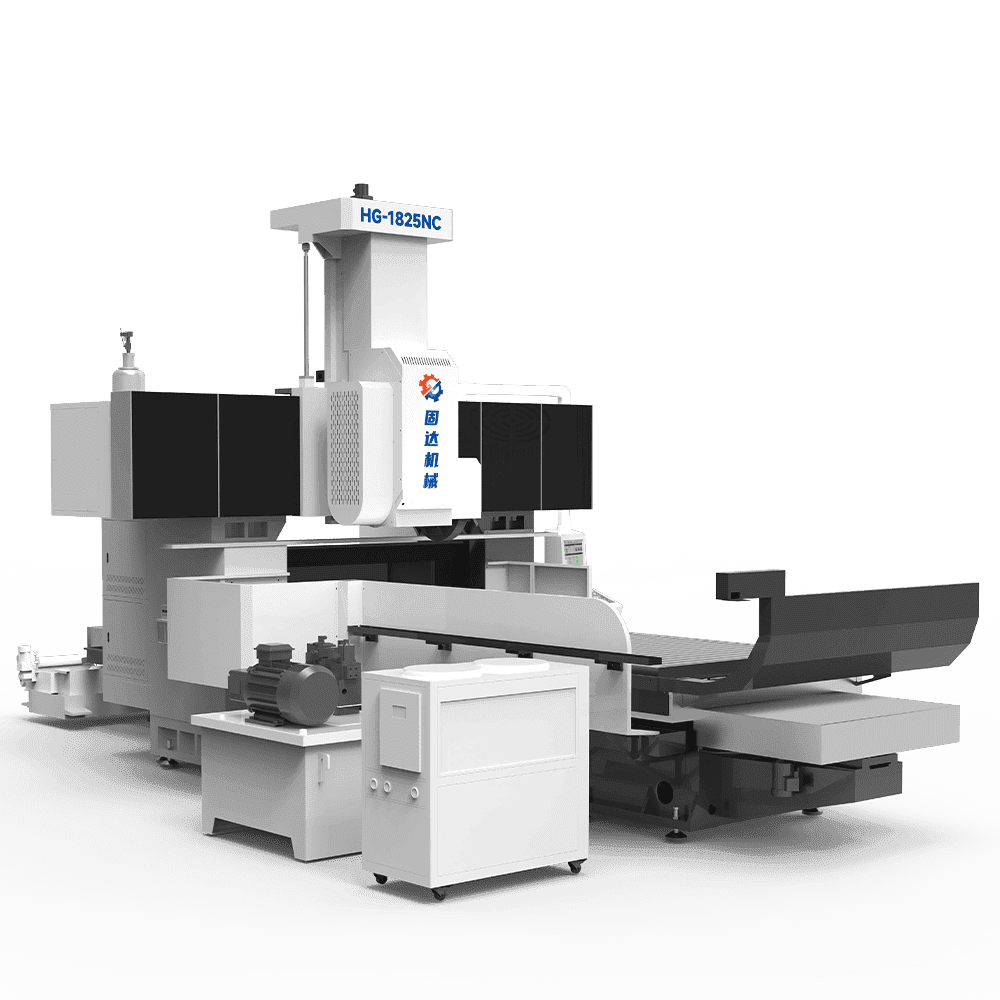

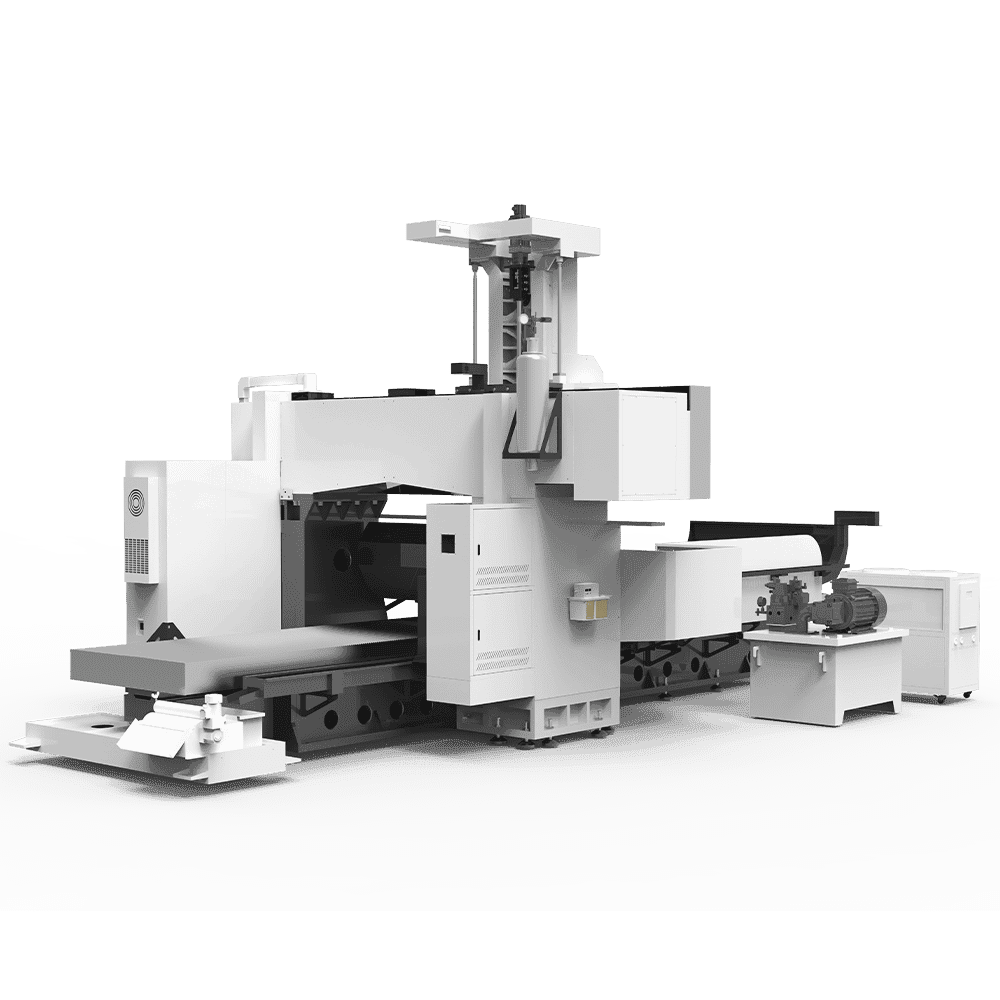

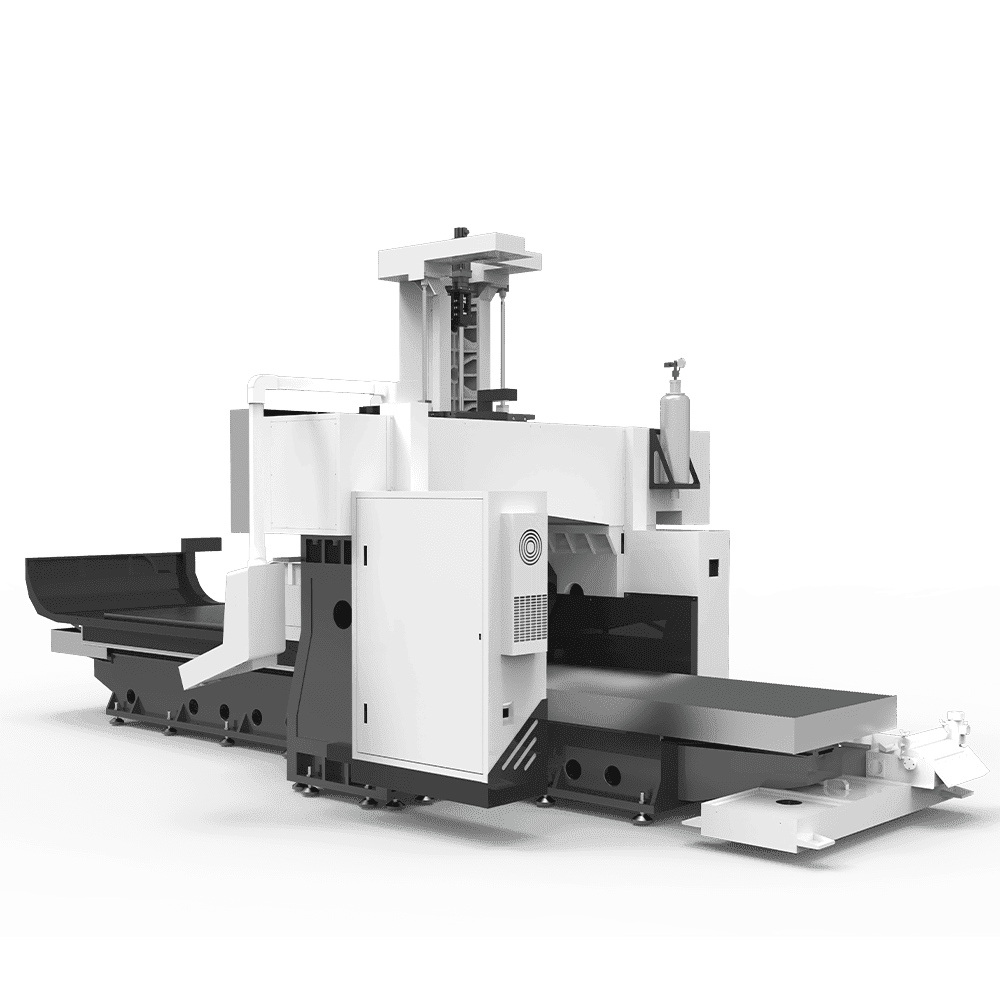

HG-1825NC

CNC Surface Grinding Machine

Large guide rail grinding machine, gantry layout, automatic cutting division, automatic grinding. Both the flat grinding head and the rotating grinding head use the original Taiwan spindle and high-quality precision castings. Easy to operate, and beautiful in appearance.

Maximum grinding length 2500mm
Maximum grinding weidth 1600mm
Maximum grinding height 600mm
Max. load capacity 9000 KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

CNC Surface Grinding Machine

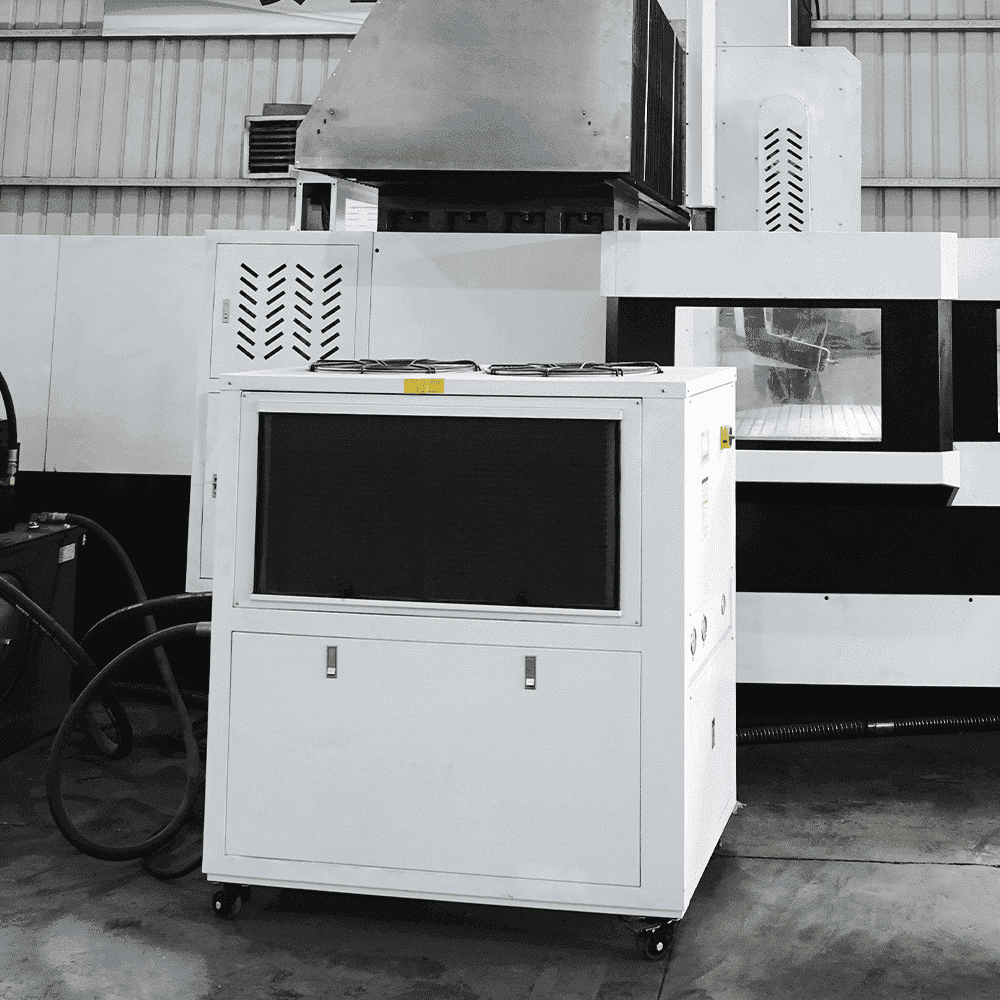

Hydraulic oil cooling system

The independent hydraulic station system is adopted, the transmission is stable, and the independent cooling system ensures that the oil cylinder will not generate heat during work, which will cause accuracy changes.

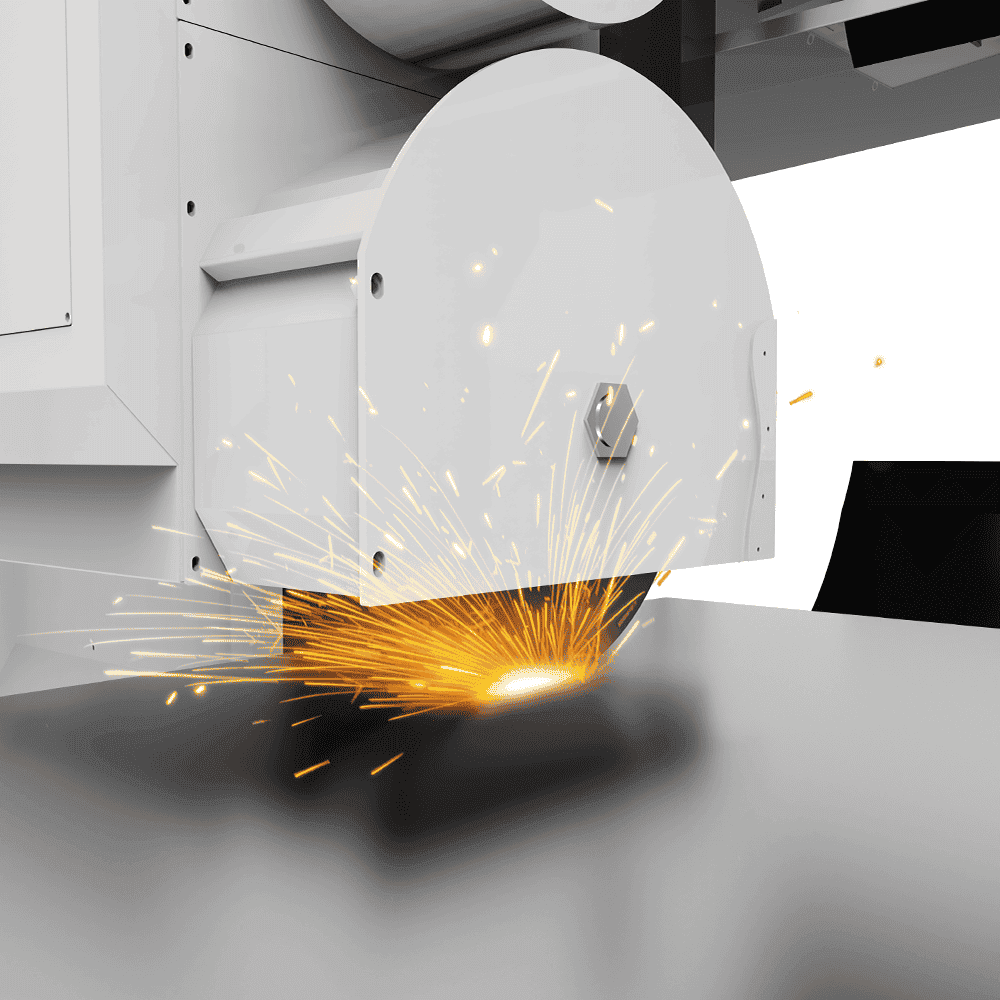

Grinding head transmission

The main shaft of the grinding head adopts a static pressure structure, with stable processing, high motion precision, good shock resistance, and heavy-duty grinding.

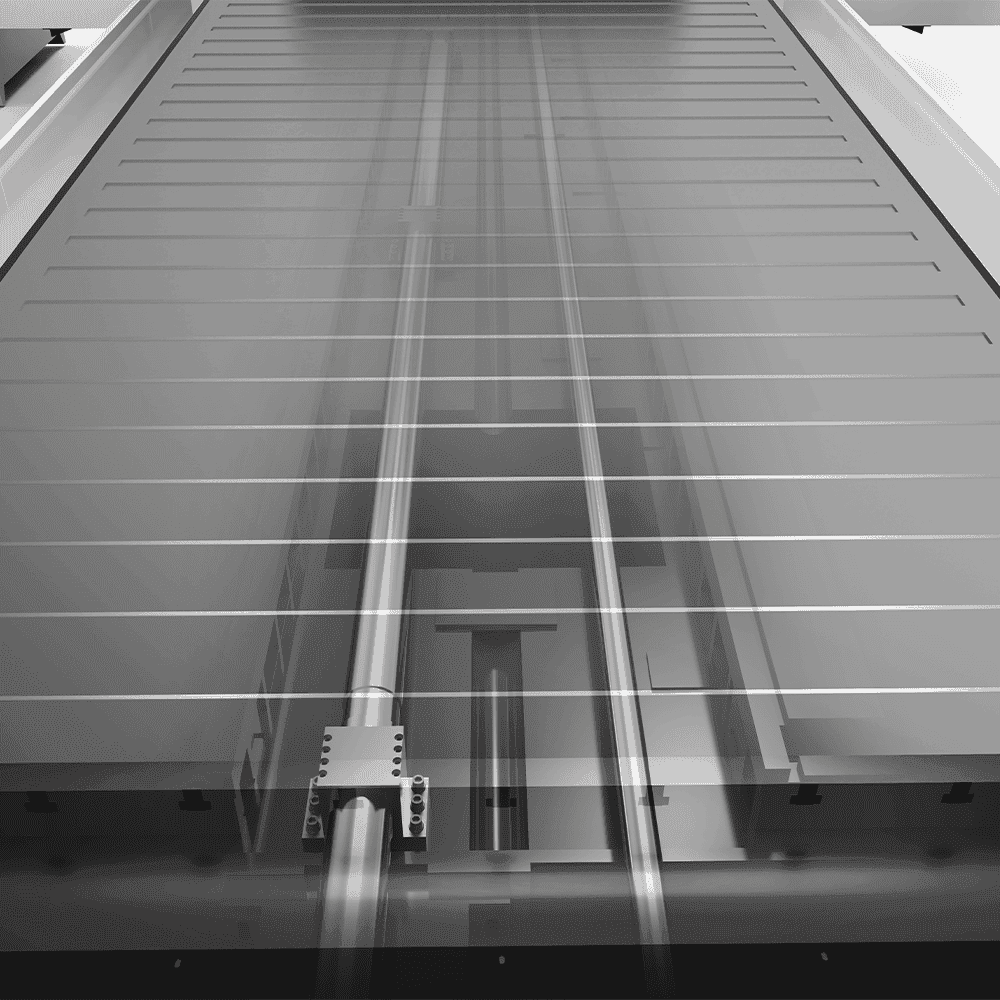

Worktable feed

The worktable is driven by an oil cylinder, a high-power motor, large torque, stepless speed regulation, stable movement, and low noise.

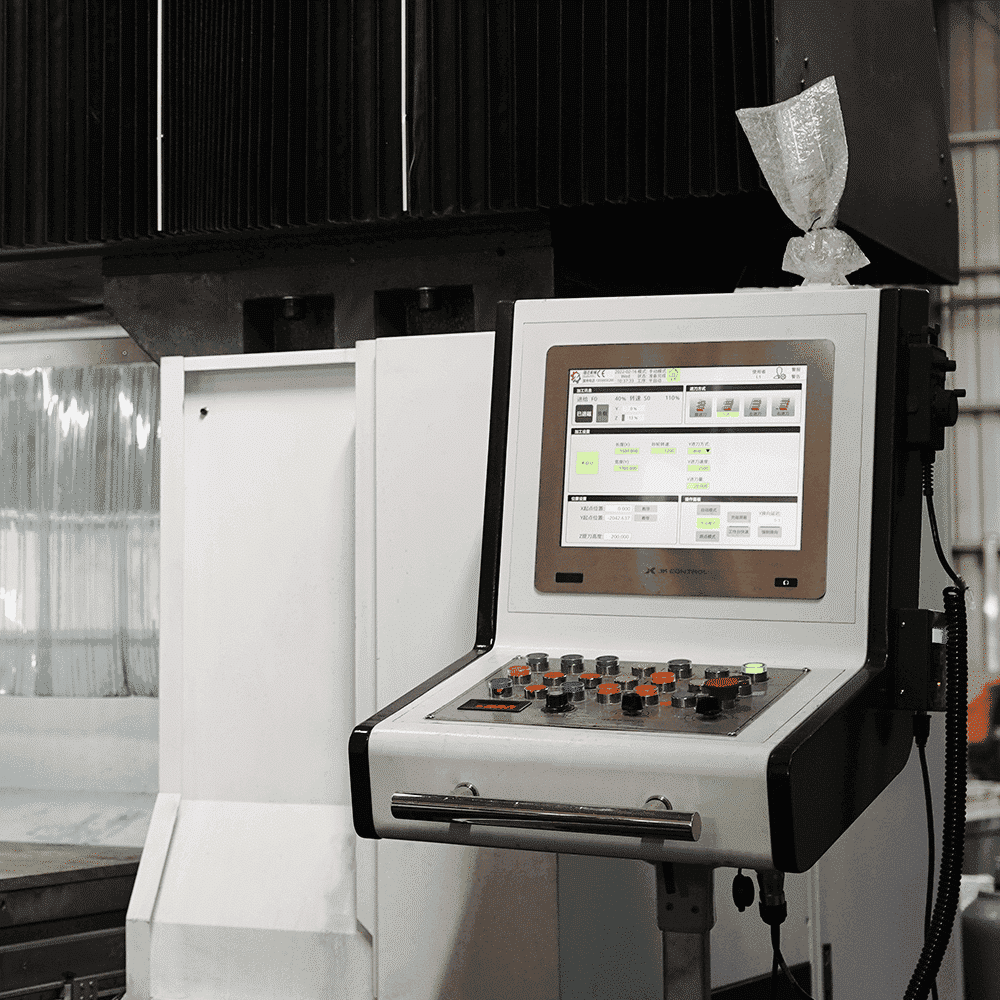

Control system

Matching adopts a mainstream control system and, a new style touch panel, which is easy and efficient to operate, and can realize various automatic grinding workpieces.

Basic Info

Items		Value	Unit
Processing capacity	Maximum grinding length	2500	mm
	Maximum grinding weidth	1600	mm
	Maximum grinding height	600	mm
Worktable	Worktable size	1500*2500	mm
	Magnet chuck size	1500*2500	mm
	Max. load capacity	9000	KG
	Table T-slot specification	22*150	mm
Spindle	Spindle motor power	22	KW
	Spindle speed	1400	rpm
	Grinding wheel	50020375	mm
Accuracy	Accuracy	X0.01/1000 Y0.015/1000	mm
Accuracy	Roughness	Ra0.8	㎛
Feed speed	X axis movement speed	5-28	m/min
	Y axis movement speed	0-5000	mm/min
	Z axis movement speed	0-5000	mm/min
Oil pump motor	X axis oil pump motor	22	KW
Axis motor	Y/Z axis motor	2.3/2.3	KW
Size & weight	Machine net weight	About 22000	KG
Size & weight	Machine size (LWH)	800050003900	mm

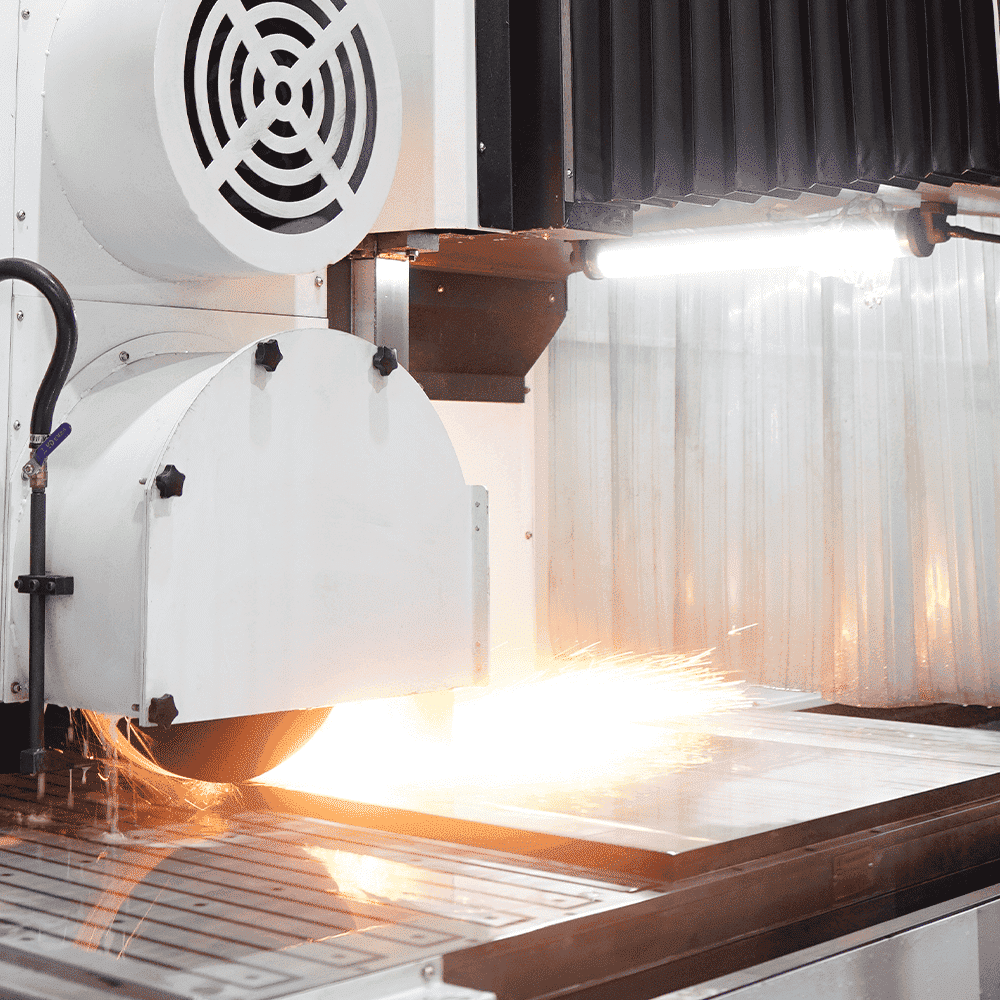

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

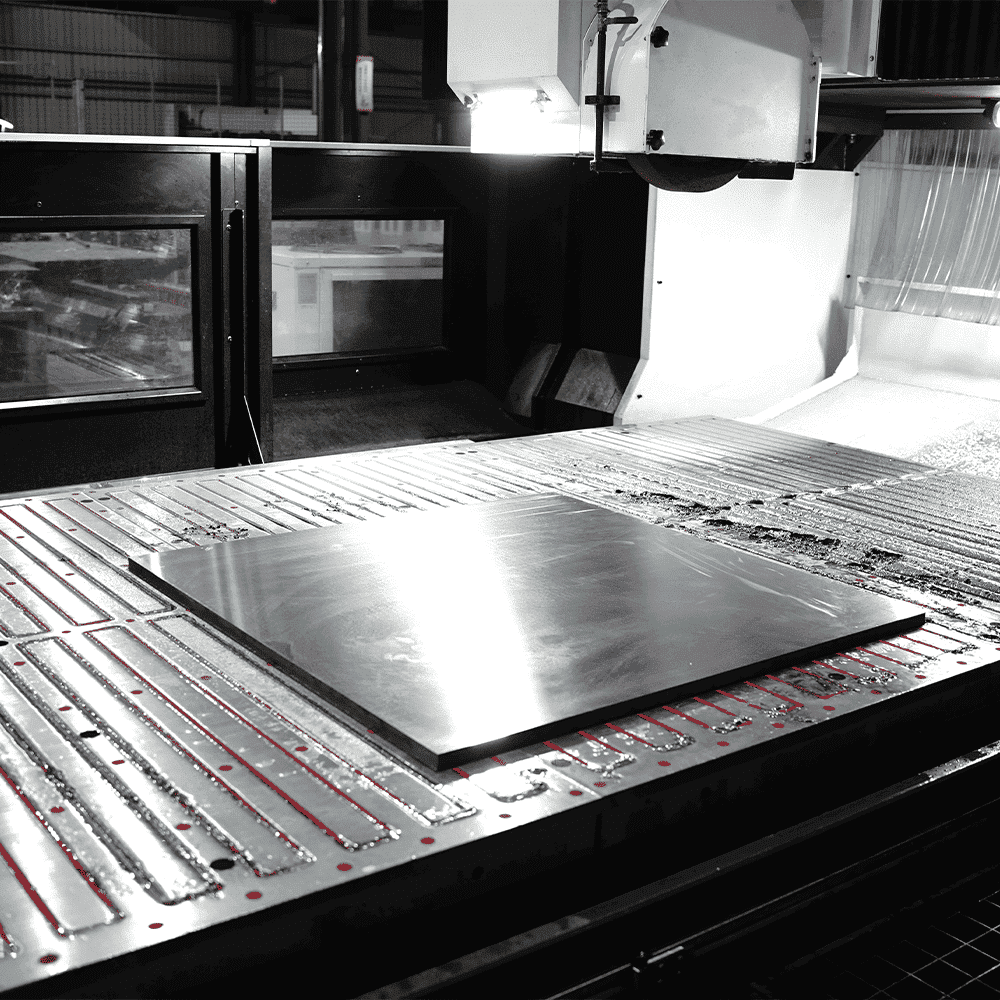

Custom（ steel）plate

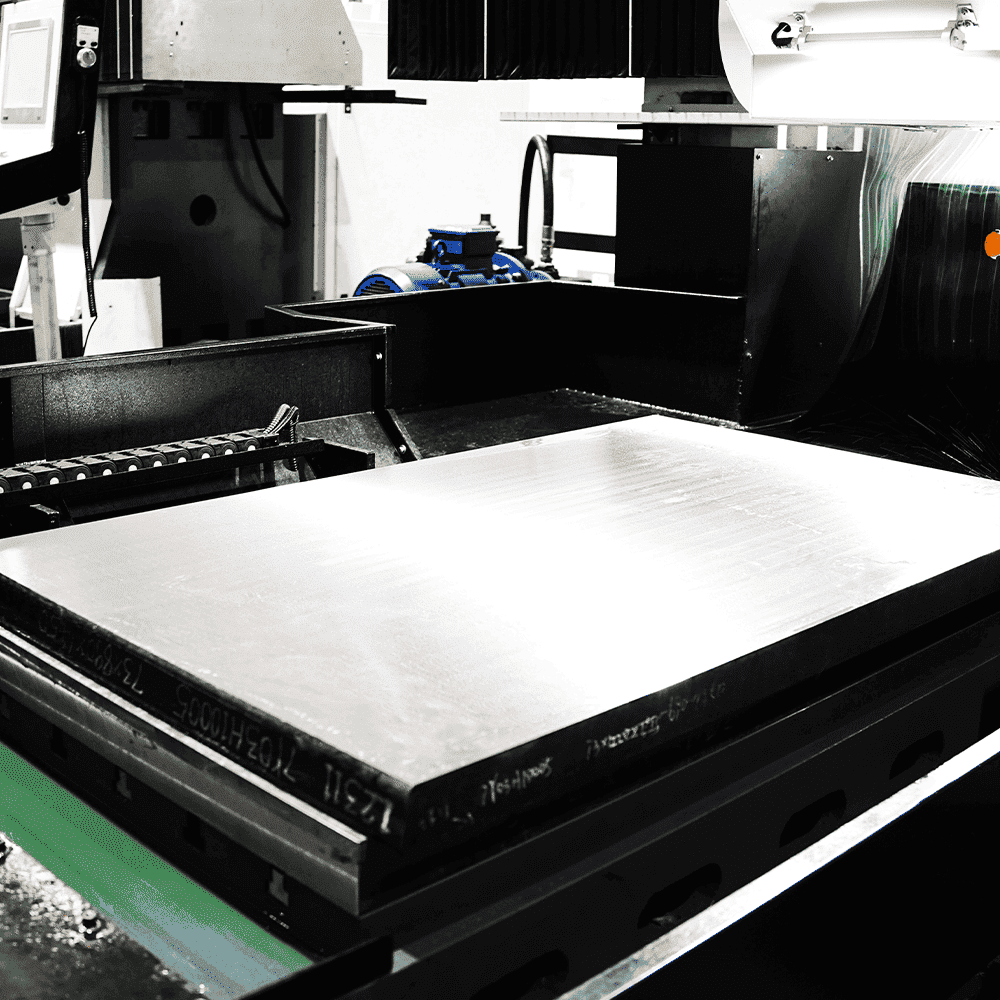

Machined plate

Machining plate

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
