CP-26010PRO

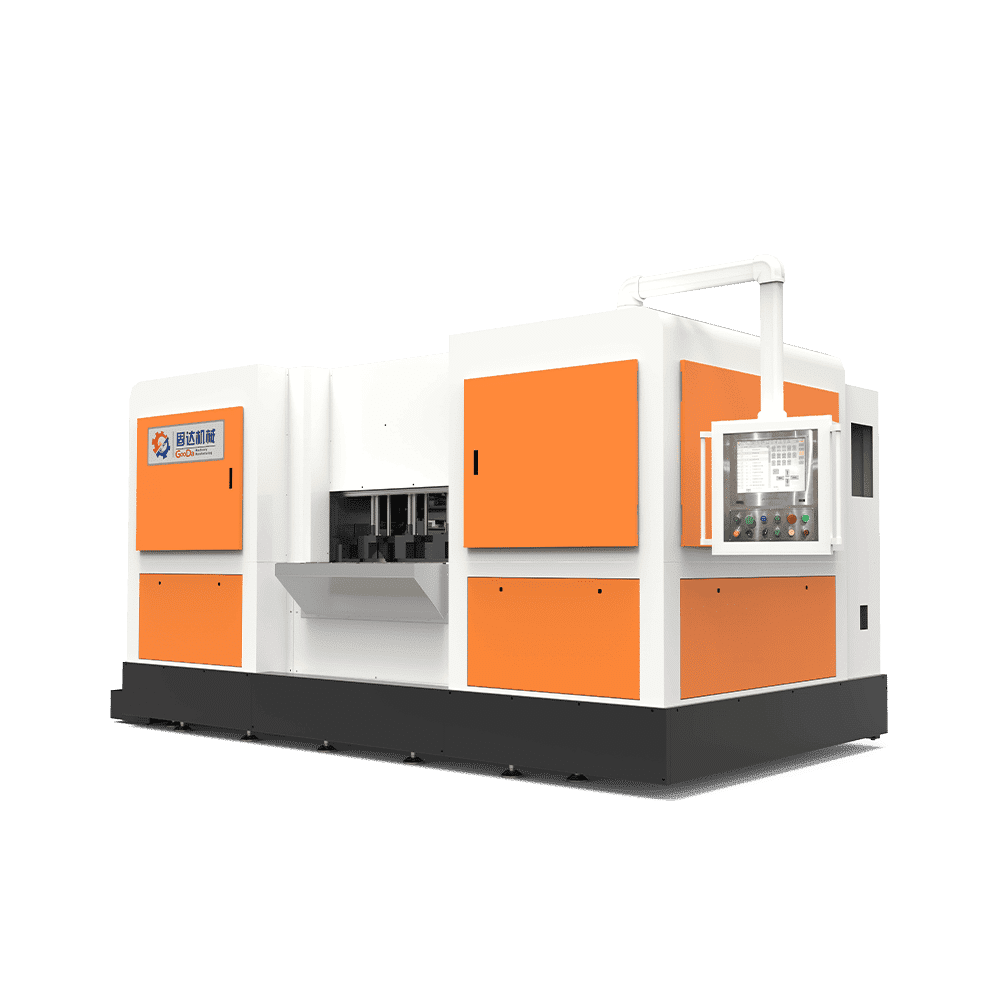

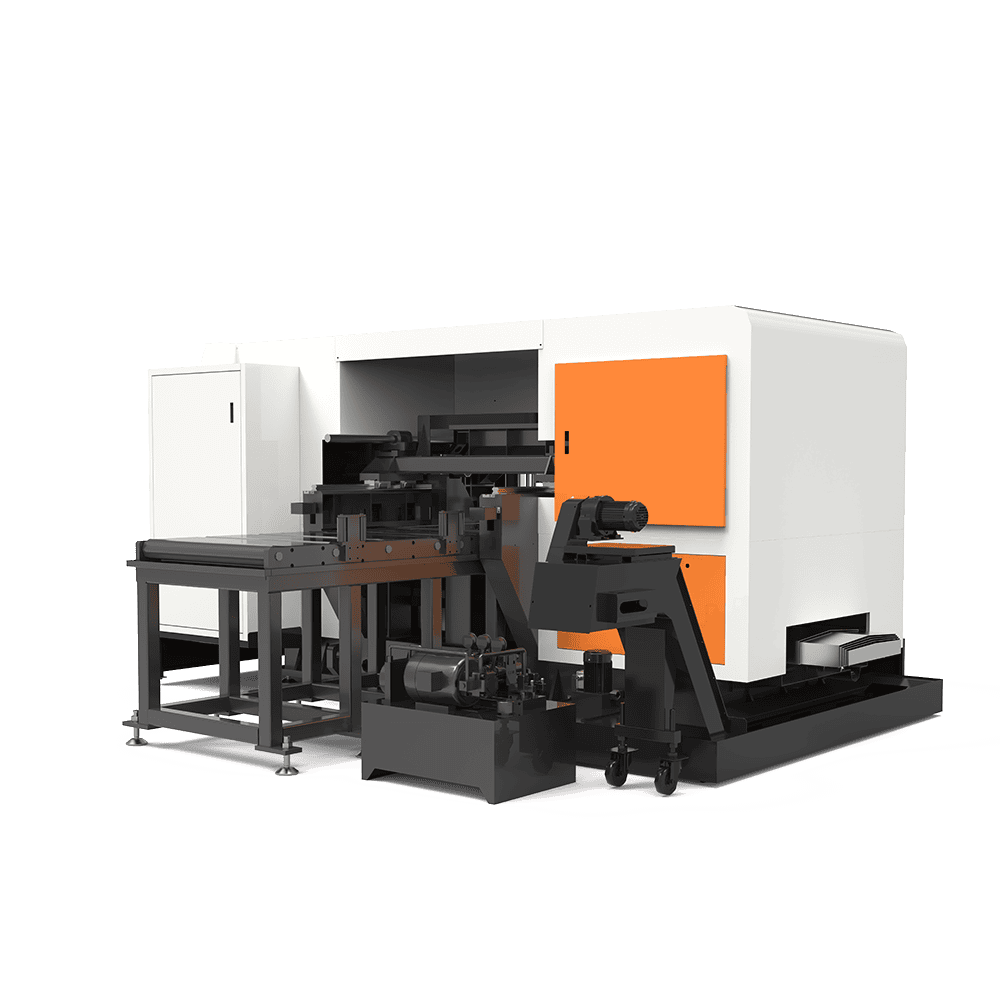

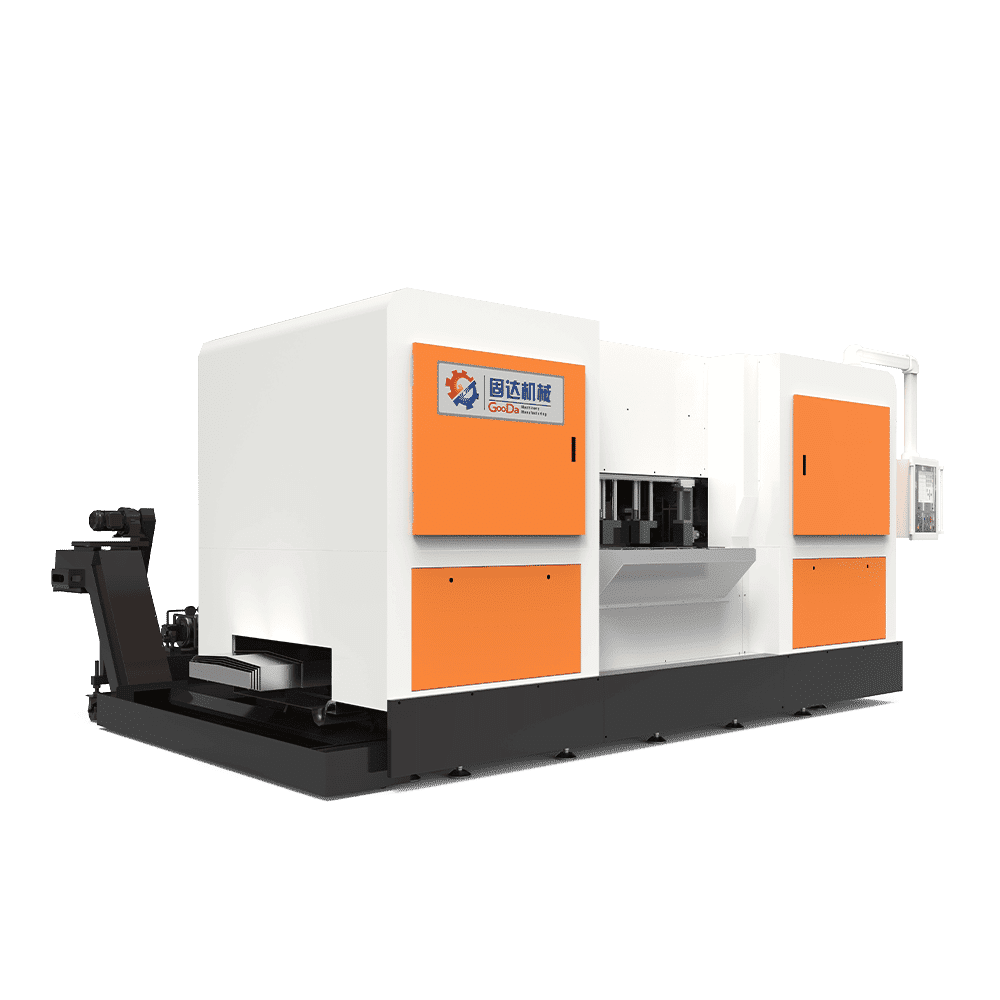

CNC Circular Saw Cutting Machine

Suitable for high-strength structural steel, stable performance, and precision. CP-26010PRO numerical control high-speed circular saw using carbide saw blade cutting, suitable for high-strength structural steel, tool steel, and alloy steel. The machine has reasonable structure, stable performance, and high precision.

  • Cutting range square (W x H) 2600*100mm
  • Shortest length of cut-off piece 1100*20mm
  • Shortest remnant length in automatic operation 400mm
  • Total weight 28000KG

Control & software alternatives

CNC Circular Saw Cutting Machine

Basic Info

ItemsValueUnit
Cutting range square (W x H)2600*100mm
102*4in
Shortest length of cut-off piece1100*20mm
43.3*0.8in
Shortest remnant length in automatic operation400mm
15.7in
Shortest remnant length individual cut40mm
1.6in
Length10050mm
395.7in
Width incl. chip conveyor6300mm
248in
Height2900mm
114.2in
Material support height720mm
8.4in
Total weight≈28000kg
≈61729lb
Total connected load41kw
54.6hp
Power of saw motor30kw
40hp
Hydraulic motor7.5kw
10hp
Cutting speed infinitely variable with40-100rpm/min
Saw feed speed1 - 700mm/min
0.04-27In/min
Automatic material feed length, single stroke800mm
31.5in
Automatic material feed length, multiple stroke9999mm
393.66in
Saw blade diameterφ425mm
φ16.73
Saw blade boresφ50mm
φ1.96
Saw blade thickness2.7mm*2.25mm
0.1in*0.08in

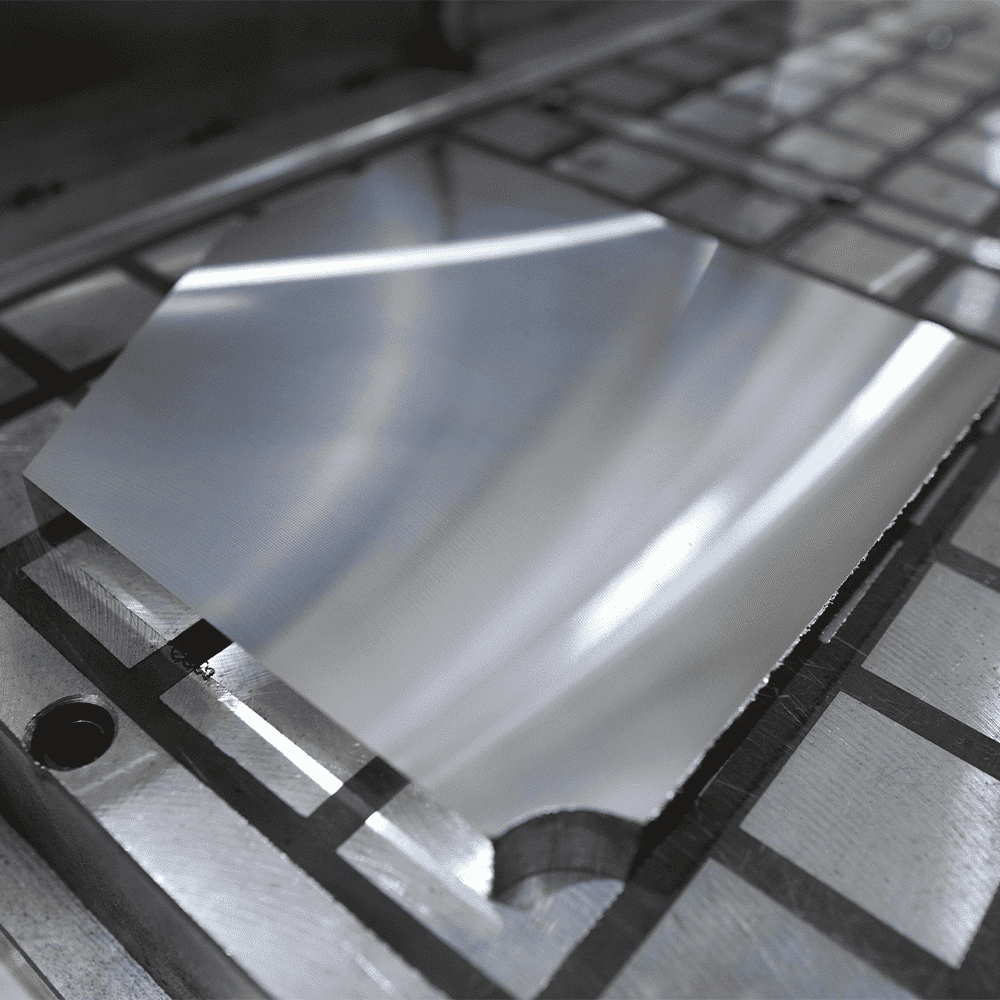

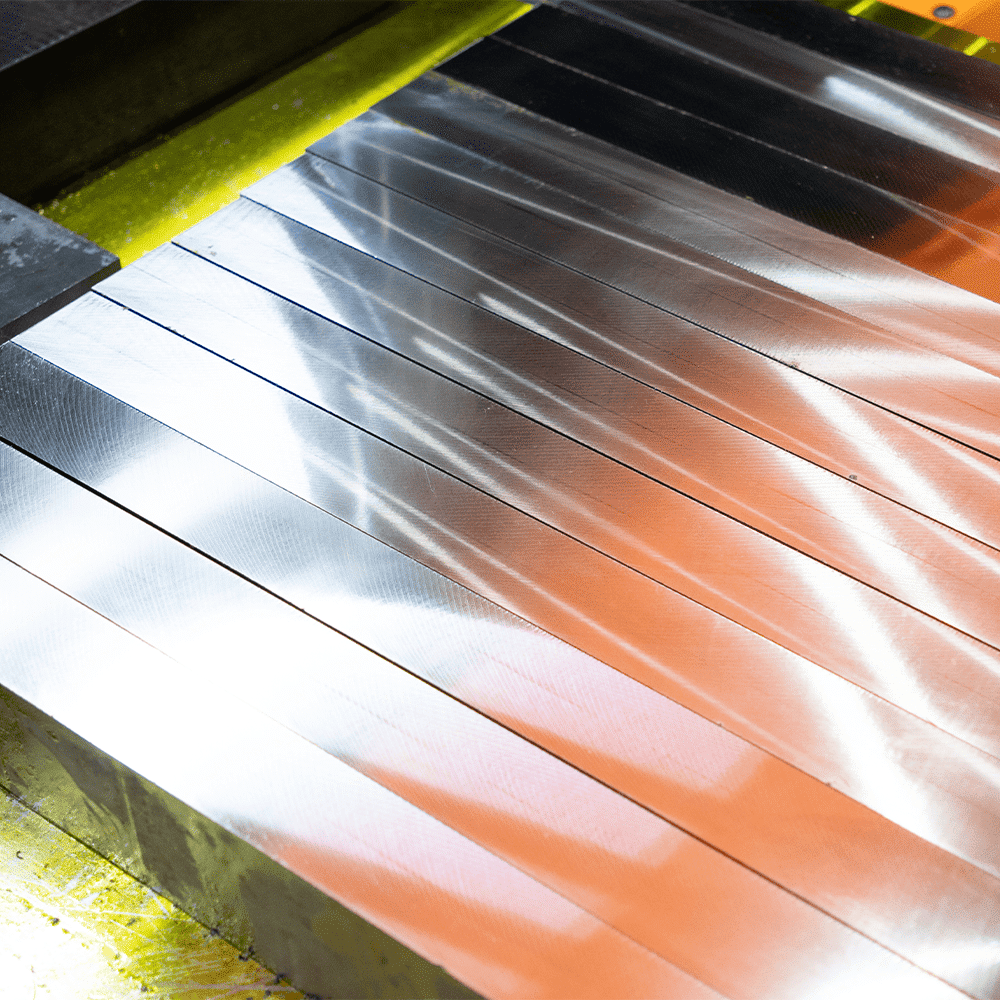

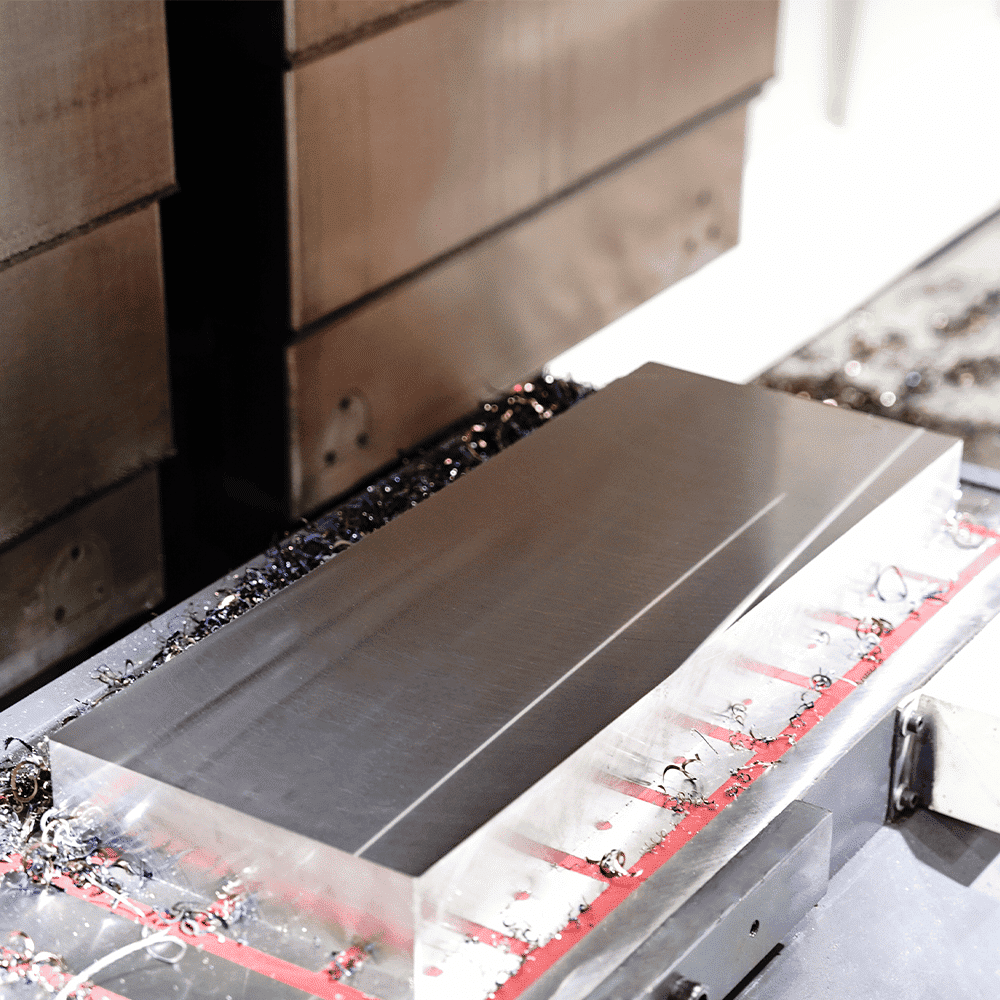

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

Metal sheet Metal sheet
Nonferrous metals Nonferrous metals
Ferrous metal Ferrous metal

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.
MITSUBISHI CONTROLLER

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.
CHINA CONTROLLER

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.
