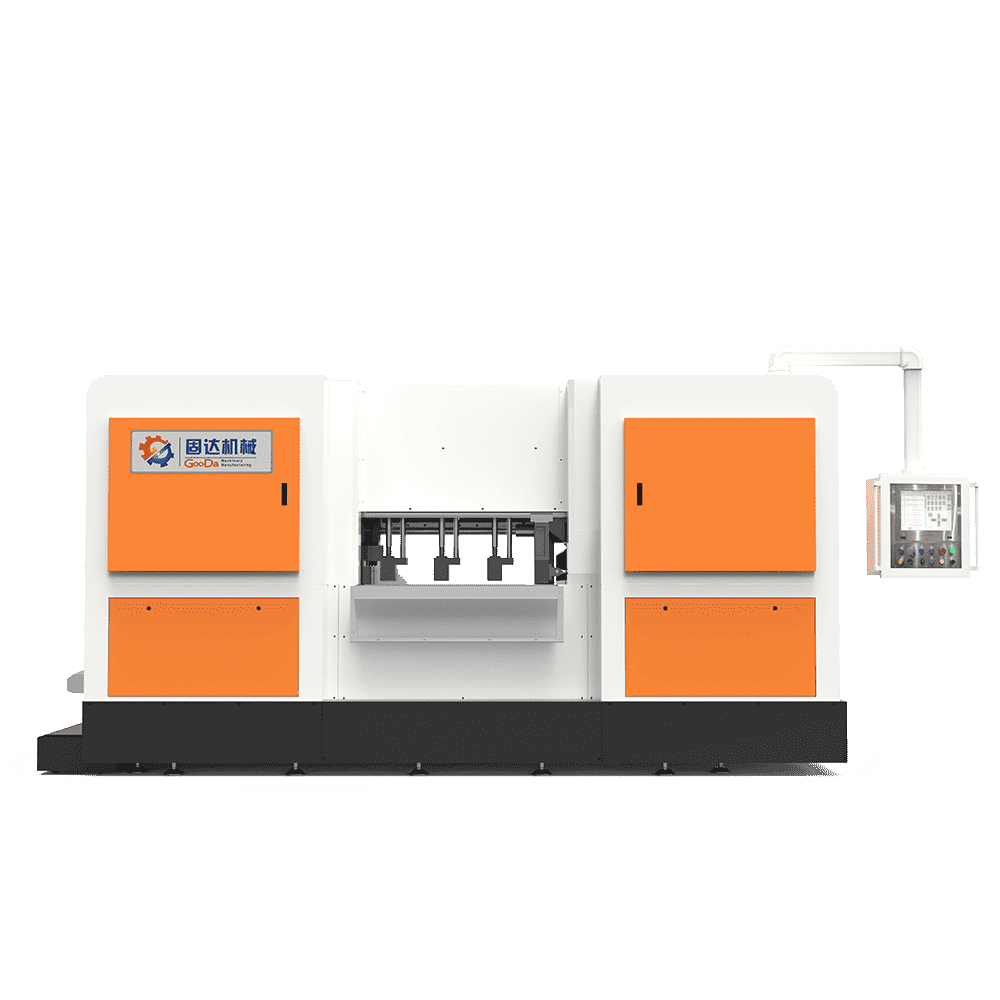

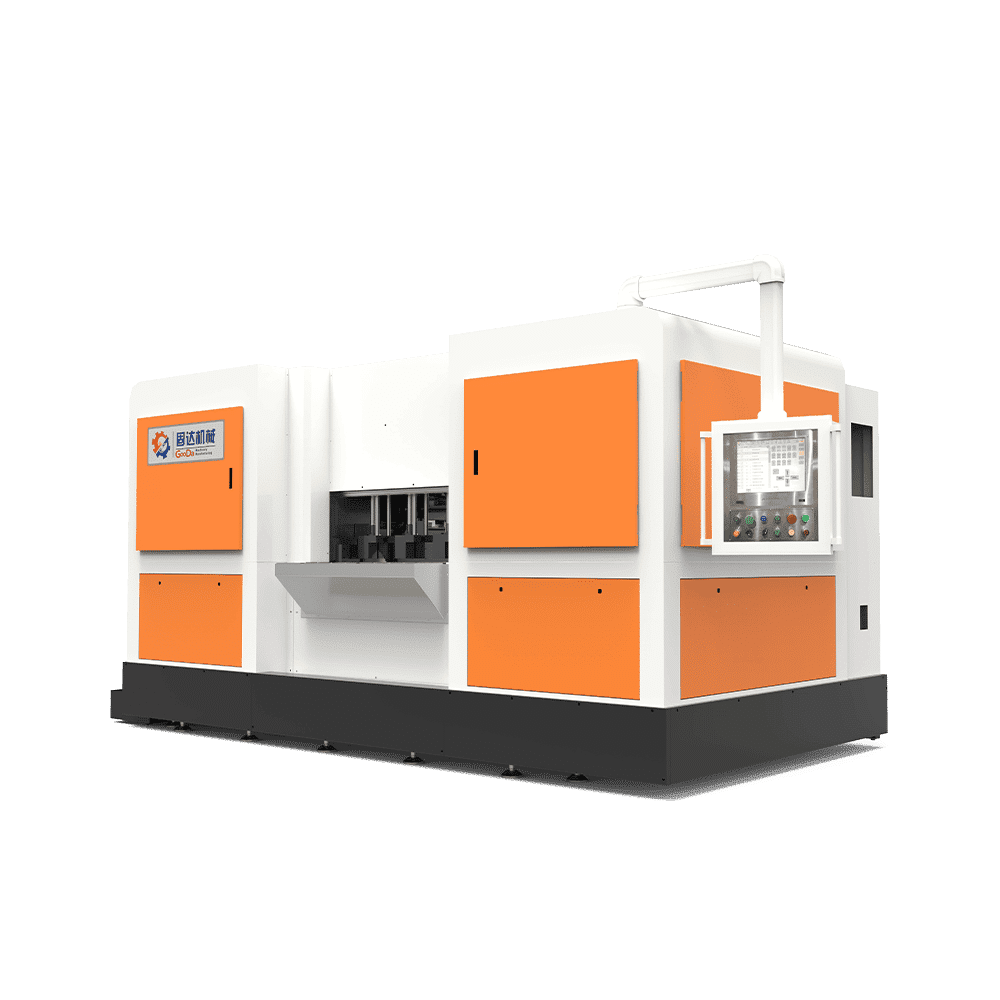

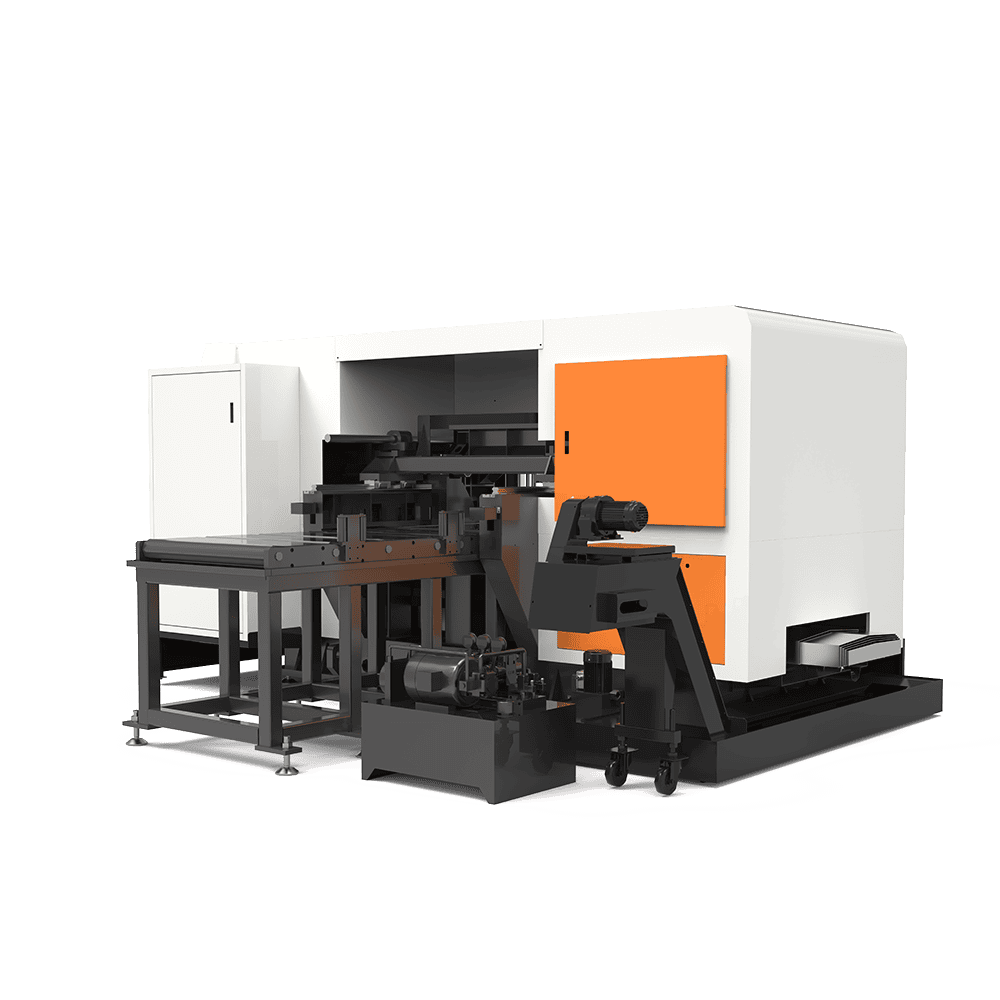

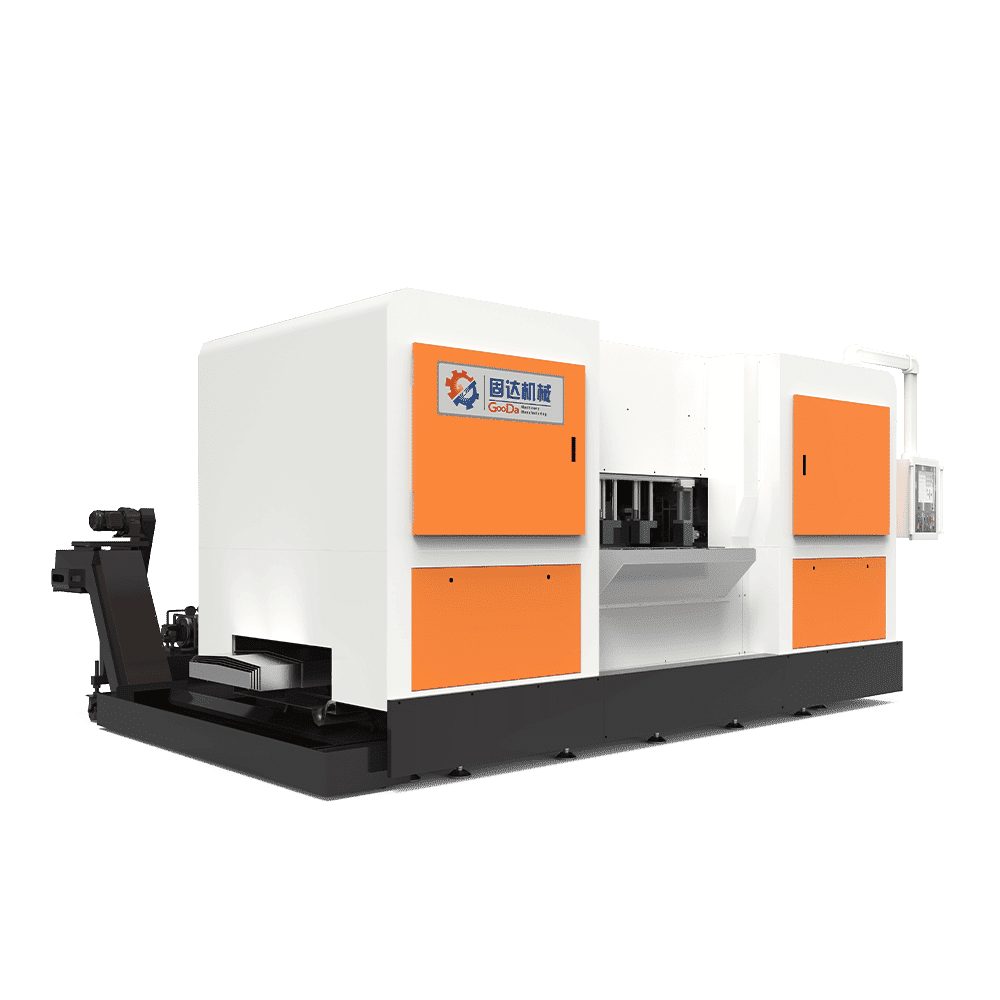

CP-10010PRO

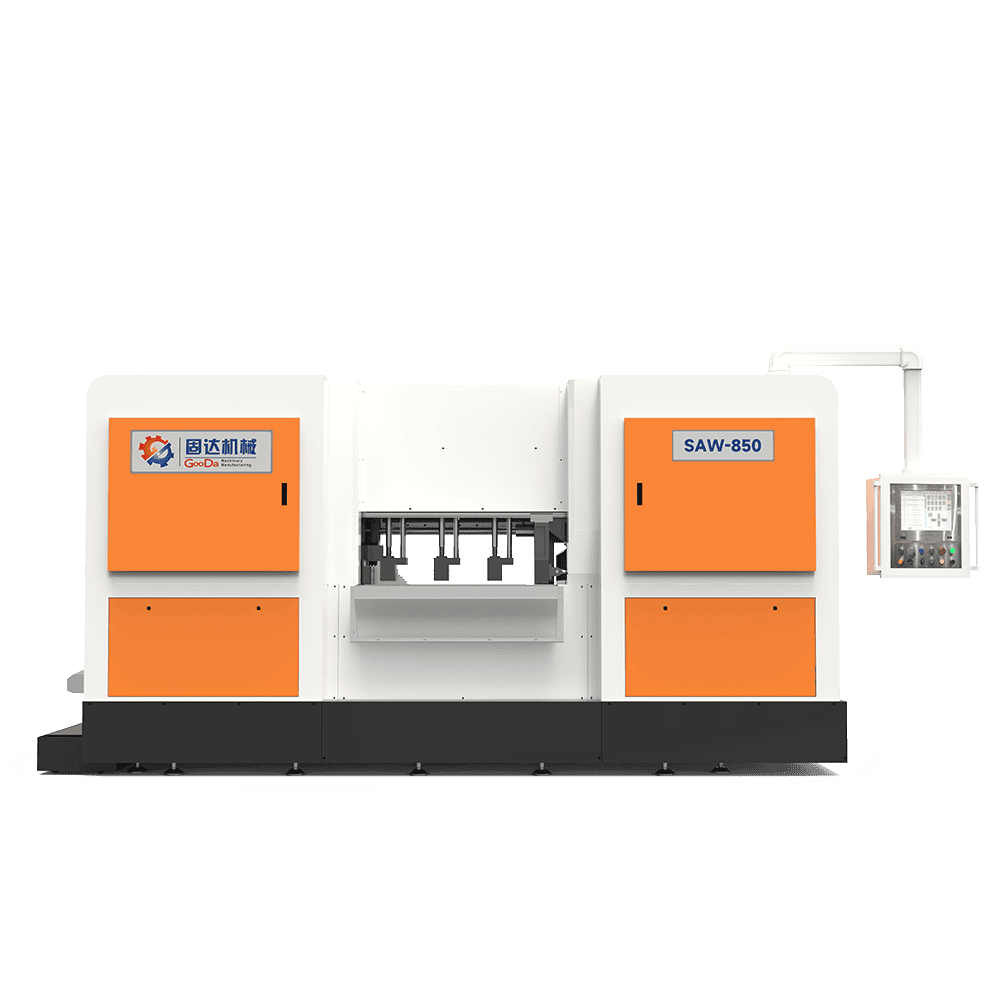

CNC Circular Saw Cutting Machine

Suitable for high-strength structural steel, stable performance, and precision. CP-10010PRO numerical control high-speed circular saw using carbide saw blade cutting, suitable for high-strength structural steel, tool steel, and alloy steel. The machine has reasonable structure, stable performance, and high precision.

Cutting range square (W x H) 1000*100mm
Shortest length of cut-off piece 20*20mm
Shortest remnant length in automatic operation 100mm
Total weight 10500KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

CNC Circular Saw Cutting Machine

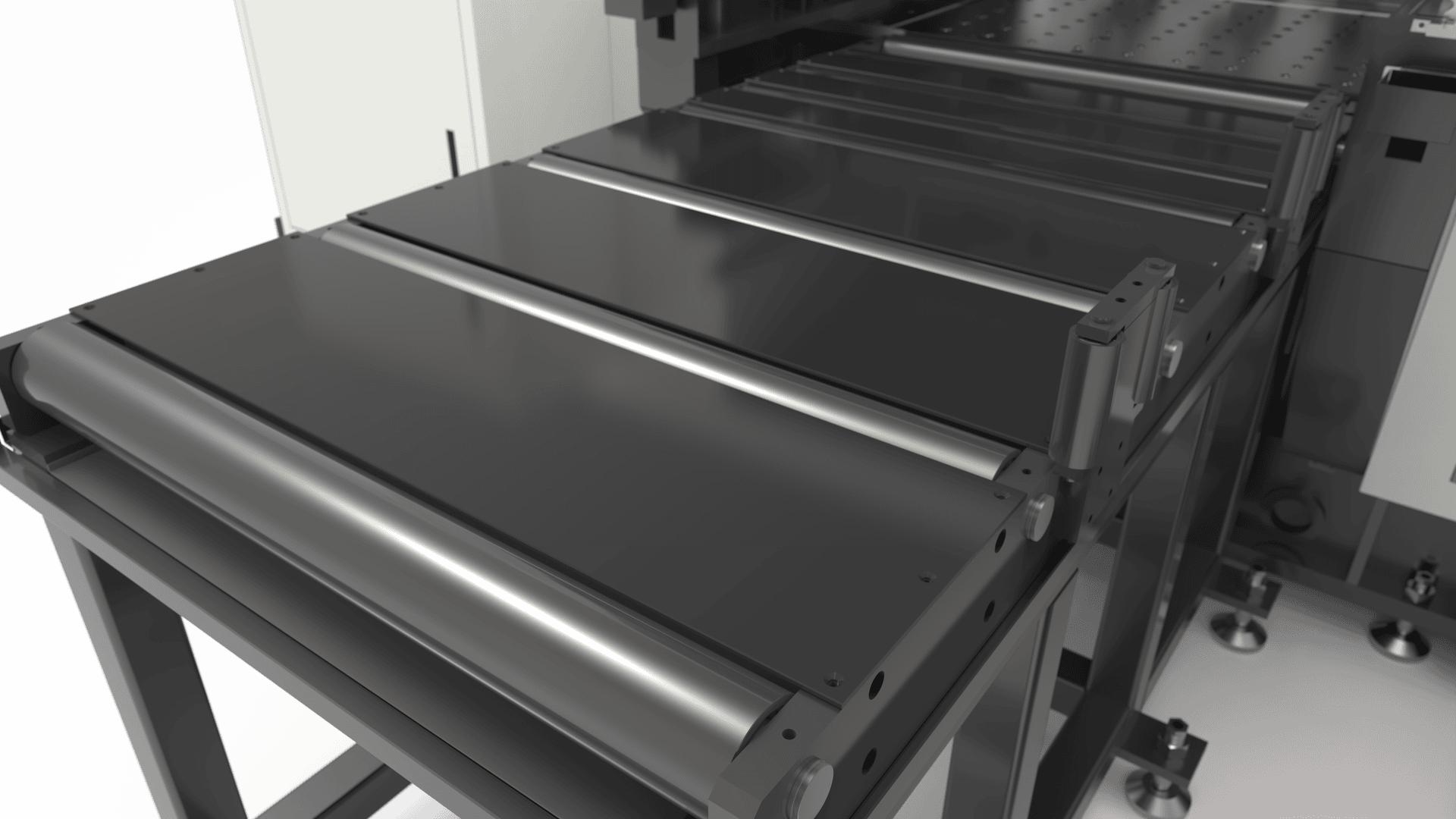

Automatic feeding device

Servo motor drive screw drives feeding jaw feedingpositioning accuracy High, single feeding length of600mm, can be recycled multiple times.

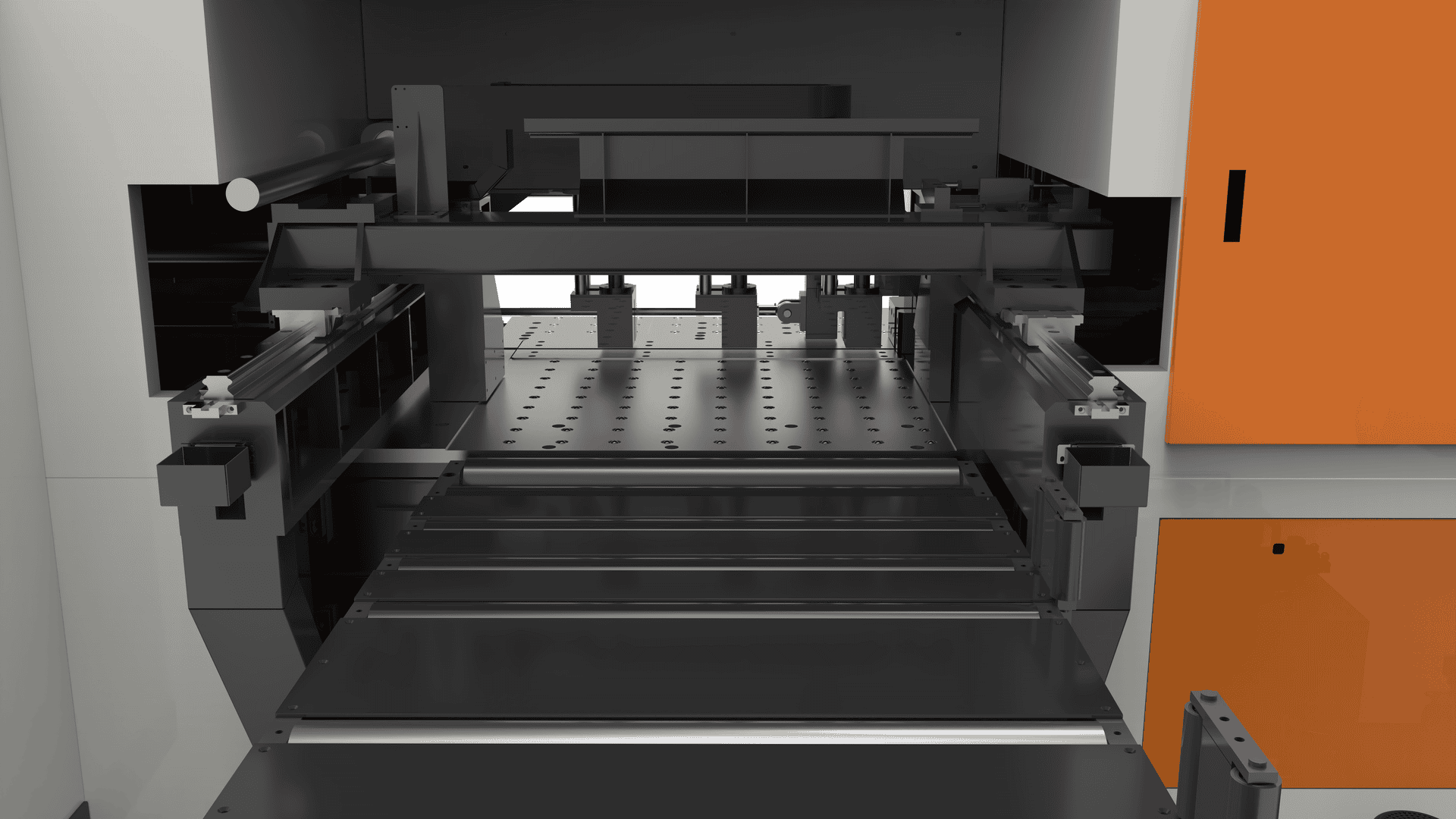

Hydraulic clamping

It is clamped by the upper pressure side top, which is firm and reliable to ensure the sawing accuracy.

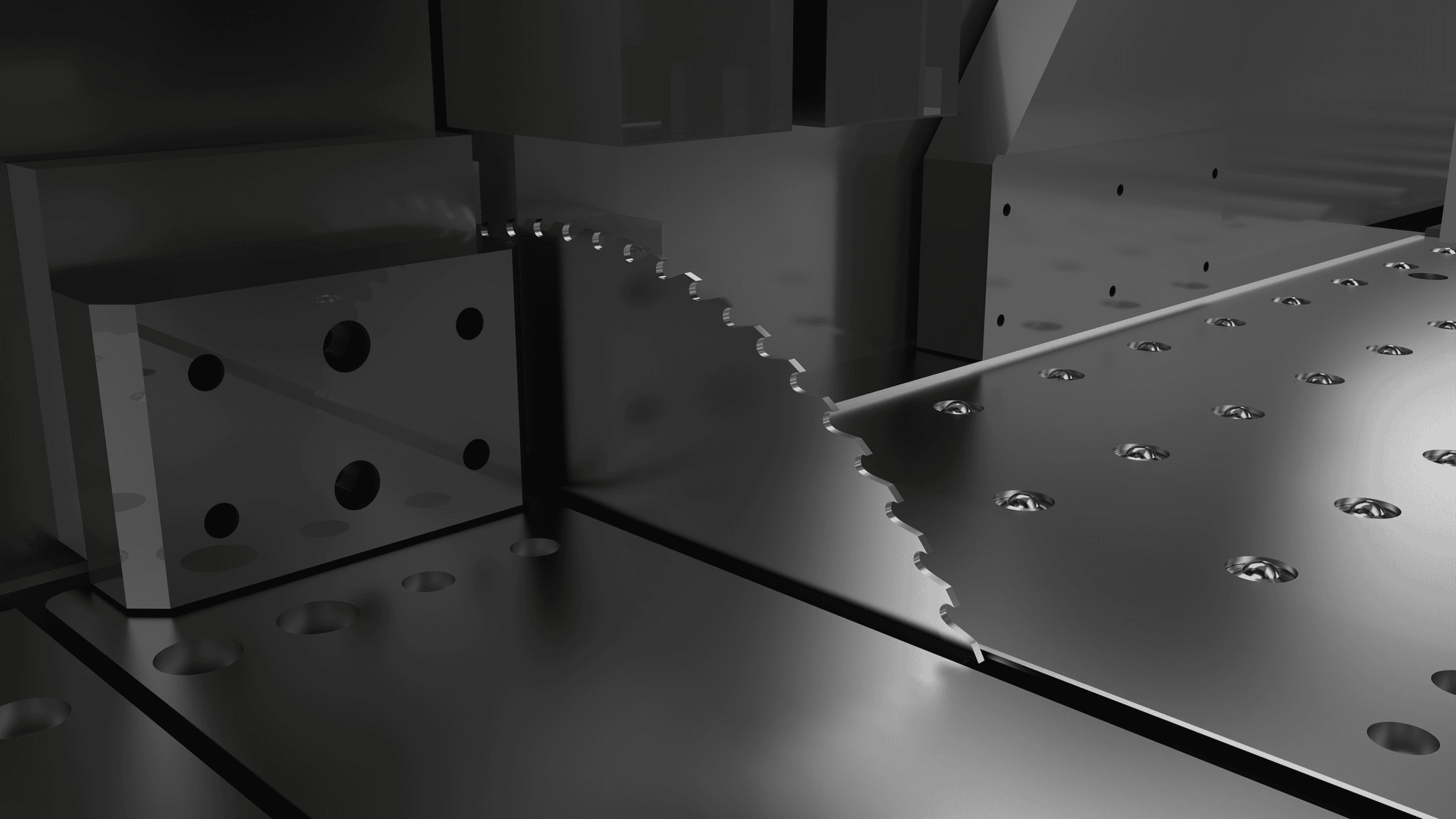

Alloy saw blade cutting

Carbide saw blades are suitable for high-hardness materials, achieving high efficiency, high precision. High surface roughness machining to achieve "sawmilling" effect.

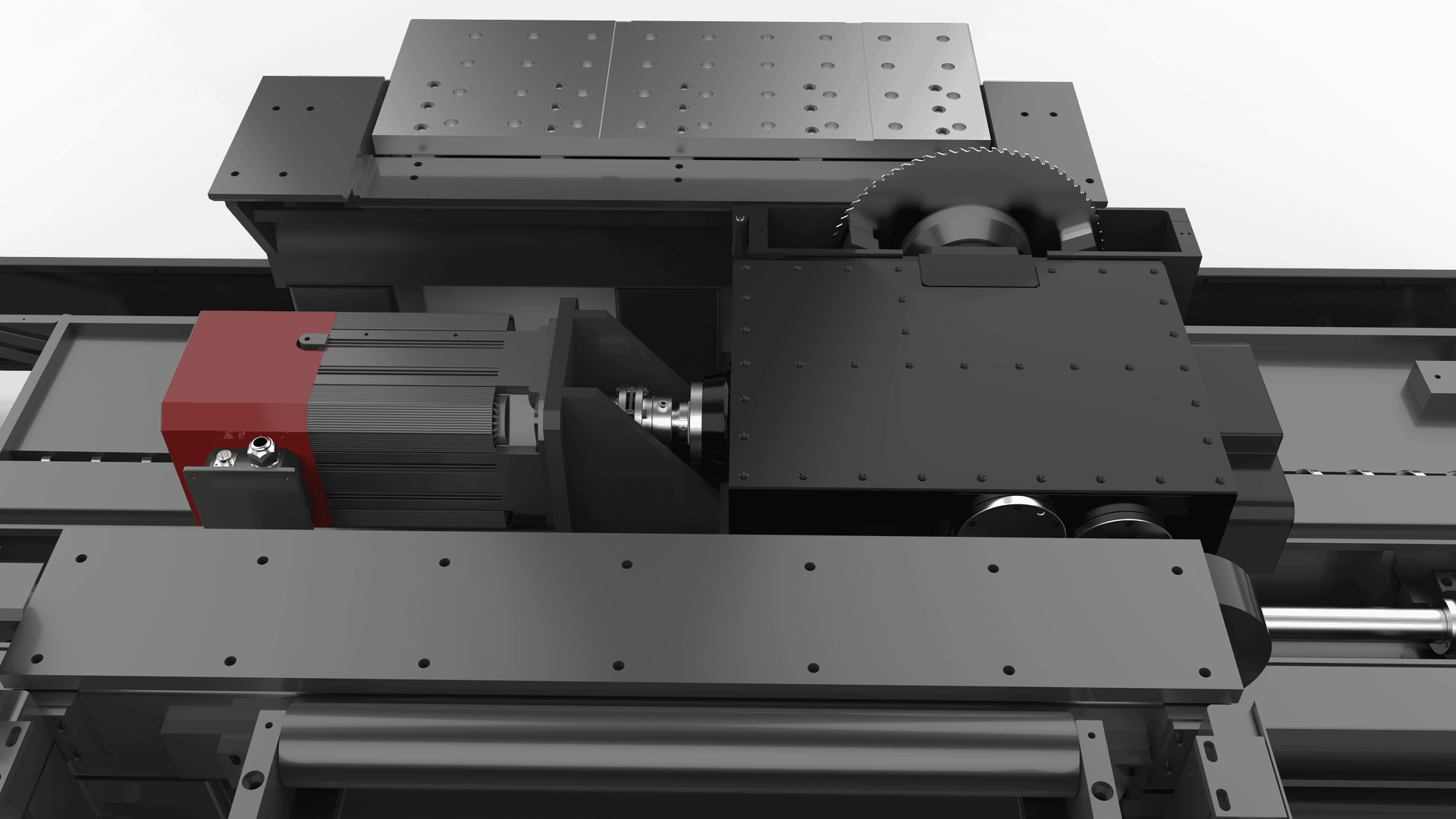

Transmission system

Gear-type headstock structure, with high-power spindle motor to ensure torque the output is strong and stable.

Basic Info

Items	Value	Unit
Cutting range square (W x H)	1000*100	mm
Cutting range square (W x H)	39*4	in
Shortest length of cut-off piece	20*20	mm
Shortest length of cut-off piece	0.8*0.8	in
Shortest remnant length in automatic operation	100	mm
Shortest remnant length in automatic operation	4	in
Shortest remnant length individual cut	40	mm
Shortest remnant length individual cut	1.6	in
Length	2500	mm
Length	98.4	in
Width incl. chip conveyor	4480	mm
Width incl. chip conveyor	176.4	in
Height	2650	mm
Height	104.3	in
Material support height	720	mm
Material support height	8.4	in
Total weight	≈10500	kg
Total weight	≈23148	lb
Total connected load	35	kw
Total connected load	46.7	hp
Power of saw motor	30	kw
Power of saw motor	40	hp
Hydraulic motor	2.2	kw
Hydraulic motor	2.9	hp
Cutting speed infinitely variable with	40-100	rpm/min
Saw feed speed	1 - 700	mm/min
Saw feed speed	0.04-27	In/min
Automatic material feed length, single stroke	500	mm
Automatic material feed length, single stroke	19.69	in
Automatic material feed length, multiple stroke	9999	mm
Automatic material feed length, multiple stroke	393.66	in
Saw blade diameter	φ425	mm
Saw blade diameter	φ16.73
Saw blade bores	φ50	mm
Saw blade bores	φ1.96
Saw blade thickness	2.7mm*2.25	mm
Saw blade thickness	0.1in*0.08	in

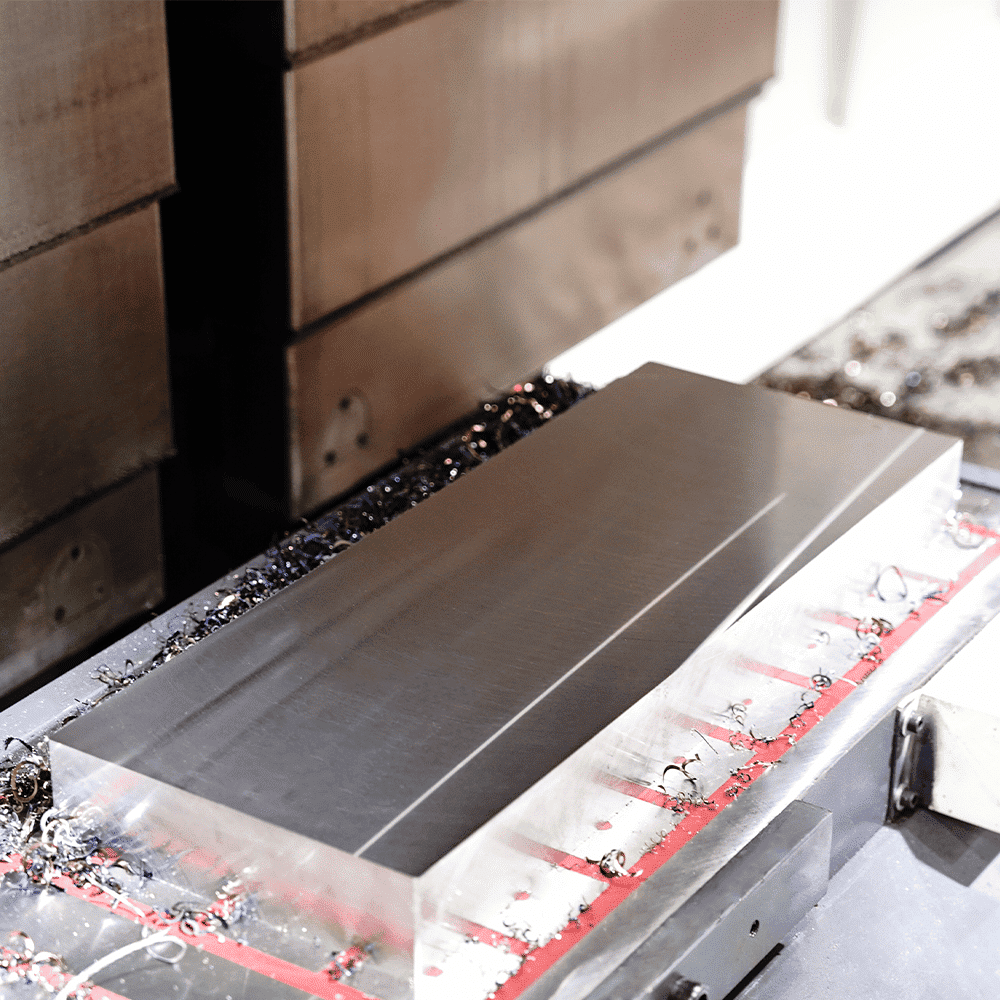

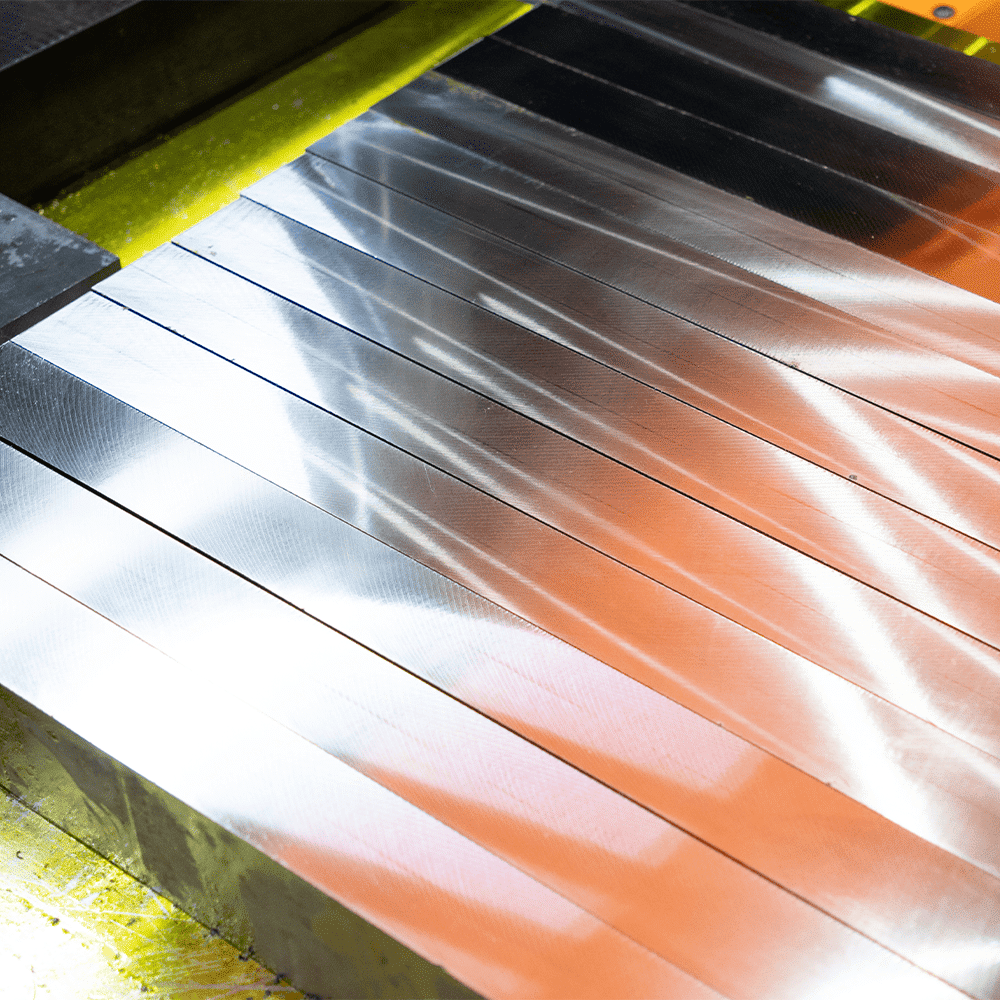

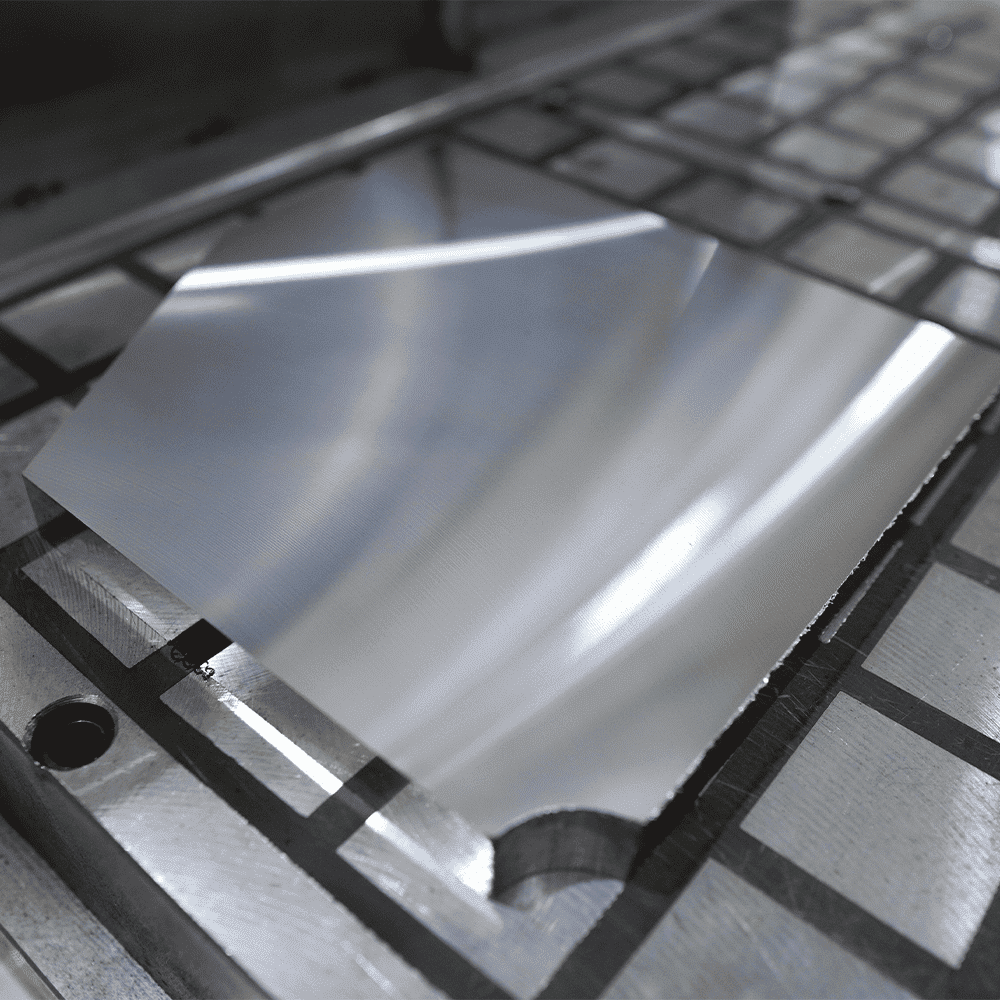

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

Metal sheet

Nonferrous metals

Ferrous metal

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
