Why Mold Steel Blocks Need 6-Side Machining | Squareness, Flatness, Ready-to-Use Stock

According to ASM Handbook, six-side machined mold steel blocks have reached 78% adoption in North American mold shops — after precision milling on all six faces, squareness, flatness, and dimensional tolerances are all confirmed before clamping, dramatically shortening mold manufacturing cycles and eliminating the unpredictable dimensional deviations that plague shops relying on four-side or five-side machining.

Basic Meaning

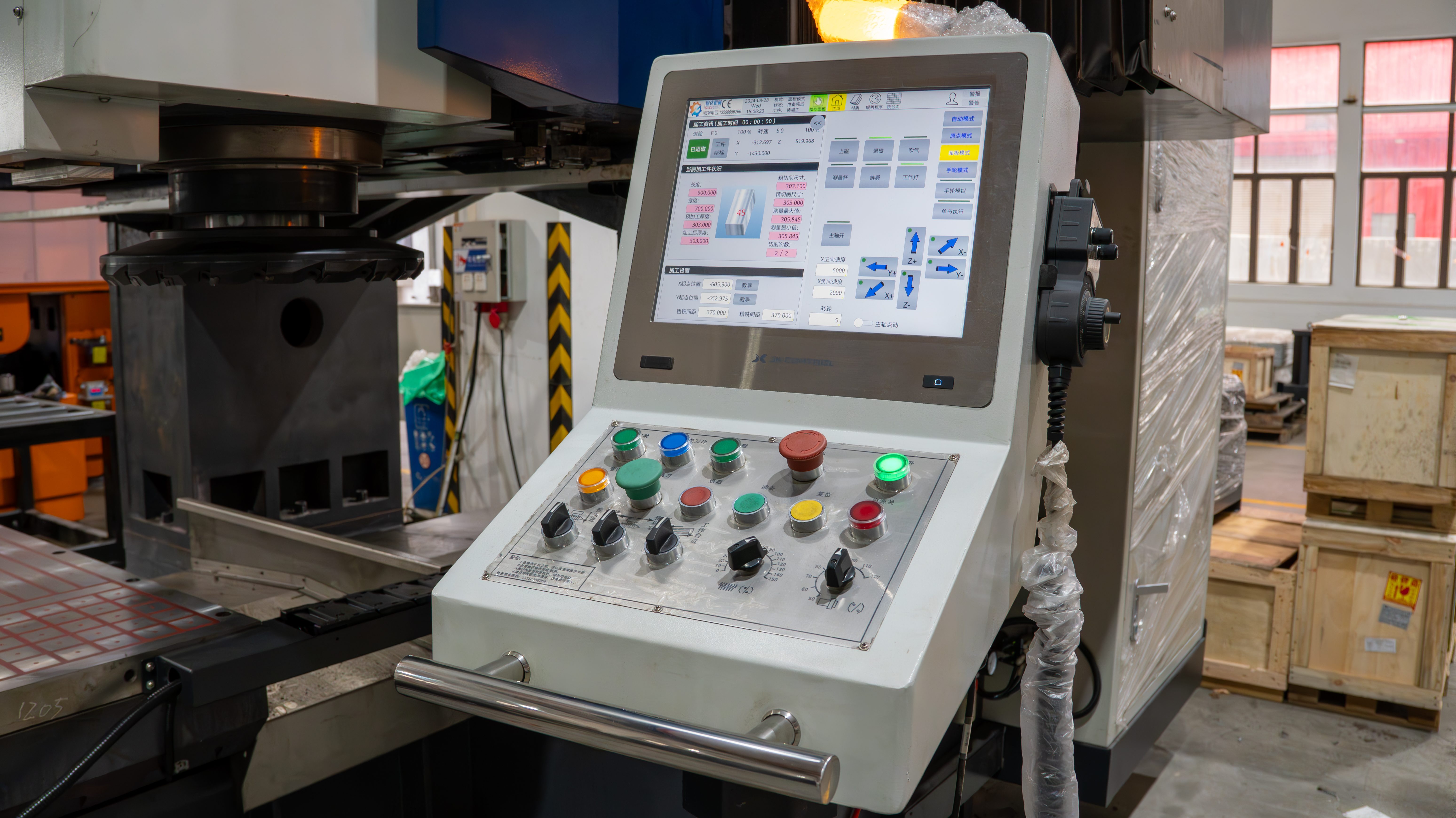

Six Sides

2-3mm finish-machining allowance per face is the starting point — six-side milling of mold steel blocks means every face receives precision milling — not just grinding — leaving 2-3mm finish-machining allowance per face for P20/H13 pre-hardened steel, 3-5mm per face for D2 tool steel, ensuring the hardened layer stays intact while eliminating heat-treatment distortion.

The standard six-side milling sequence: first pass rough-mills to establish the reference face, second pass finish-mills to final dimensions, third pass inspects and corrects each face independently — with thickness deviation controlled within 0.02mm and full traceability that five-side or four-side milling simply cannot provide.

I once encountered a batch of H13 blocks at a Shenzhen mold shop where the four-side milled blocks had their hardened layer machined through — only 1mm allowance had been left, while H13 surface-hardened layer depth is typically 2-4mm, exposing the soft core. That batch was written off at a loss exceeding 120,000 yuan.

The critical advantage of six-side machining is finish-milling after heat treatment: P20 and H13 deform 0.1-0.3mm/m after quenching, far exceeding the 0.05mm/m flatness requirement — six-side finish-milling after heat treatment uses repeated flipping to average out distortion across all faces, restoring flatness to 0.05mm/m, something pre-heat-treatment milling cannot achieve.

CMM scanning after each face's machining generates an inspection record for every surface — if a mold later shows dimensional problems, the cause can be quickly traced to steel quality or machining deviation. With conventional Raw Stock, where reference faces are unmachined, this traceability is impossible.

Clean Edges

Burrs and sharp edges are inevitable after sawing — H13 at 45HRC produces saw-cut burrs 0.2-0.5mm high; D2 at 58HRC produces harder, more brittle burrs, with removal costs reaching 15-20% of cutting cost — not a trivial expense.

Six-side machining centers perform synchronized chamfering (R0.3-0.5mm) on the final finishing pass, eliminating stress concentration points — according to ASM AISI D2 technical data, the stress concentration factor at sharp edges reaches 3-5x, dropping to below 1.2x after chamfering, extending mold service life by 15-25%.

I helped calculate the cost for an injection mold customer: 0.5 hours of burr removal per part, 500 parts per month equals 250 hours — switching to six-side machining eliminated this entirely. I typically recommend budgeting 50 yuan per part for manual deburring — that alone pays for the six-side block premium in under 6 months for mid-volume shops.

For injection molds, flash (burrs on parting line) is the twin problem to edge burrs — high-hardness steels (D2/H13) are more brittle, making flash harder to remove after molding. Six-side blocks with standardized chamfers make flash easier to spot during maintenance, improving overall mold care discipline.

According to the D2 steel technical white paper, finish-milled surface roughness Ra at 0.8-1.6 micrometers significantly reduces stress corrosion crack initiation — stress corrosion cracking is one of the most common mold failure modes in humid environments or when contacting chemicals, making chamfer and surface quality control the first line of defense.

Ready Stock

Ready-to-use block specifications: dimensional tolerance +/-0.05mm (CT6), flatness 0.05mm/m, squareness 0.02mm/100mm — saving 2 clamping adjustments compared to standard Raw Stock, with each clamping and alignment taking 45-90 minutes on average.

Metal Supermarkets US data shows six-side machined ready-to-use blocks priced 30-40% higher than equivalent Raw Stock, but at 200 molds/month, saved clamping time converts to approximately 2,800-3,600 USD/month in machine hour costs — a clear net benefit, plus improved equipment utilization from reduced idle machine time.

Ready-to-use blocks carry a hidden advantage: dimensions confirmed on delivery, machining starts immediately without waiting for inspection results and rework — conventional Raw Stock requires post-delivery inspection of flatness and squareness, with out-of-spec pieces requiring return or re-machining, a time cost that is consistently underestimated.

· Raw Stock: requires self-machining all six faces plus alignment plus inspection, adding 3-5 days to lead time

· Ready-to-use: mounts and machines immediately, controllable lead time, clear quality accountability

· Typical premium: 200-400 USD/ton (against total price 3,000-5,000 USD/ton)

Shape Control

Better Squareness

Squareness at 0.02mm/100mm is not "close enough" — base face squareness error accumulates through each assembly stage: 0.02mm/m times 5 assembly stages equals 0.1mm total offset, sufficient to cause mold locator pins to seize or parting surfaces to misalign, directly increasing mold rejection rates.

In reality, five-side milled blocks often have only two reference faces precision-machined — the other three faces formed naturally by saw-cut allowance. This asymmetric structure produces lateral EDM discharge errors during electrical discharge machining, affecting mold precision at costs that are difficult to recover later.

The most extreme case I observed: an injection mold rejected due to 0.15mm out-of-tolerance squareness causing parting line offset — requiring complete rework. Six-side machined blocks lock squareness at 0.02mm from day one, eliminating this problem before it starts and removing a major worry for QC personnel on every inspection.

Six-side block squareness inspection method: mount a dial indicator on a precision ground square, rotate 90 degrees and read the difference — this can be done in the shop in 5 minutes, far faster than sending parts to a CMM laboratory.

Squareness error also silently affects mold cooling system design — if the cooling channel perpendicularity relative to the parting face exceeds 0.05mm, water flow distribution becomes uneven, causing local hot spots that degrade product dimensional stability, and in severe cases produce sink marks or flow lines.

For precision optical molds, squareness requirements are even tighter — typically 0.01mm/100mm or better, because optical product wall thickness consistency directly affects refractive index. A 0.02mm squareness deviation over 100mm can produce visible optical distortion.

Stable Flatness

What does 0.05mm/m flatness mean in practice — for a 1-meter-long block, flatness deviation must not exceed 0.05mm; for a 50cm block, it is controlled within 0.025mm. When scanned with a coordinate measuring machine (CMM), the profile curve must fall within a +/-0.025mm band — this is the minimum requirement for mold reference surfaces.

Heat treatment is the greatest threat to flatness — P20 deformation after quenching typically runs 0.1-0.3mm/m, far exceeding the 0.05mm/m requirement. Six-side milling after heat treatment uses repeated flipping to machine each face sequentially, averaging out distortion, ultimately restoring flatness to 0.05mm/m — something pre-heat-treatment milling absolutely cannot achieve.

I helped select specifications for a mold shop in Suzhou — they insisted on 0.03mm/m flatness. In reality, the vast majority of injection molds perform fine at 0.08mm/m; blindly pursuing higher specifications only increases machining costs by 30-50% with no practical benefit.

Flatness inspection methods: optical flat interferometer for 0.01mm precision requirements, CMM for batch rapid inspection. Ordinary mold shops can use CMM; only precision optical molds require the optical flat interferometer.

Poor flatness causes hidden mold problems — an uneven parting surface produces gaps during closing, causing flash (small burrs) at minor levels or product misalignment and scrapping at major levels. This problem only surfaces during the trial-molding stage, by which point it is already too late.

I calculated for a Hangzhou automotive interior mold shop: each trial-molding failure costs 8,000-15,000 yuan in material, labor, and machine hours. Better flatness control improving first-pass trial success from 60% to 85% saves hundreds of thousands of yuan annually in trial costs alone.

Tight Size

CT6/CT7/CT8 tolerance grades cover three levels — mold steel block dimensional tolerance classes typically fall into three classes: CT6 (+/-0.05mm), CT7 (+/-0.10mm), CT8 (+/-0.20mm) — selection depends on mold fit precision requirements, with little relation to steel material cost, the main difference being machining hours and tool wear.

CT6 blocks require 20-30% more milling time than CT8 because they need 2-3 extra finish-milling passes — but if the mold core and cavity fit clearance requirement is within 0.05mm, CT6 is the only viable choice. CT7 and CT8 will inevitably run out of tolerance at this precision level.

Many buyers assume premium steel demands higher tolerance grades — in reality, D2 steel (58-60HRC) is much harder to mill than P20 (30-33HRC), yet tolerance grades for D2 more commonly fall in CT7, with CT8 not uncommon. Grade selection should follow mold requirements, not steel price.

The economic logic for grade selection is straightforward: molds with 100,000+ shots service life requirement select CT6; 50,000-100,000 shots select CT7; below 50,000 shots CT8 is sufficient. This selection logic has saved customers significant unnecessary expenditure.

Practical selection also depends on mating-part tolerances: if the mold cavity-to-core fit clearance is H7/g6 (0.03-0.06mm), and the mold body tolerance exceeds the mating-part tolerance, then no amount of precision on the mold itself helps. Mating-part tolerances determine mold tolerances — this is the first principle of grade selection.

CT6 versus CT7 cost difference mainly comes from finish-milling hours and tool costs. CT6 requires 2-3 extra finish passes, increasing milling time 20-30% with faster carbide tool wear. For high-service-life precision molds, this extra cost is fully justified.

Shop Benefits

Faster Setup

Clamping and alignment average 45-90 minutes — according to SME 2023 mold shop efficiency report, skilled operators using a three-jaw chuck to set up a 200mm block average 52 minutes, while six-side machined blocks with reference faces already machined require only 8-12 minutes with a magnetic chuck, saving over 80%.

For high-volume production (over 100 molds/month), time is money: saving 40 minutes of clamping per mold, 200 molds/month equals 8,000 minutes or 133 machine hours. At 80 USD/hour, that is 10,640 USD/month saved — recovering the ready-to-use block premium purchase cost within 6 months.

I typically recommend mold shops producing over 150 molds/month to purchase six-side machined blocks directly. Payback period is generally 3-5 months; only above this threshold does Raw Stock make economic sense, and even then the rework risk cost must be factored in.

Reduced setup time carries a hidden benefit: less machine idle time, improving Overall Equipment Effectiveness (OEE). Every 10% OEE improvement is equivalent to gaining over 30 hours of effective cutting time per month —output increase without new equipment investment.

Ready-to-use blocks also offer an underappreciated advantage: standardized reference faces make machining programming easier. The same product across different batches can use identical programs without recalibrating cutting parameters each time, reducing programming errors and dependence on senior machinists.

Less Rework

12-18% of labor hours — rework is the biggest hidden killer in mold shops — according to American Mold Builder Association 2022 survey, mold shops spend an average 12-18% of labor hours on rework, with dimensional out-of-tolerance accounting for over 60% of reworks. Six-side machined blocks eliminate this risk at the source, with no reference face deviation issues from day one.

I once observed a Guangzhou mold shop using Raw Stock: every batch had 5-8 pieces with squareness out-of-tolerance due to uneven reference faces. After switching to six-side machined ready-to-use blocks, they achieved zero rework for 6 consecutive months. The labor hour savings alone covered the ready-to-use block premium, with additional margin.

Every face of a six-side machined block comes with a machining inspection record. If a mold later shows problems, accountability is clear — no more arguing over whether the problem stems from steel quality, machining, or measurement. This transparency matters significantly for quality management system certification.

The AMBA report also notes that each rework costs an average 65-80% of a new-part cost, and reworked pieces often compromise the precision of subsequent mating parts. Six-side machined blocks lock reference faces from the start, reducing rework probability to below 1% — that is the real cost control.

Final Checks

3 mandatory checks — six-side machined blocks require incoming inspections: dimensions (caliper/micrometer, 0.02mm resolution), squareness (combination square with feeler gauge or dial test indicator), flatness (optical flat interferometer or CMM). All three must pass before the block goes on the machine — any single failure means contacting the supplier for return or exchange.

Acceptance criteria (referencing DIN 16742 industrial mold steel standard): CT6 blocks squareness no greater than 0.02mm/100mm, flatness no greater than 0.05mm/m, diagonal length difference no greater than 0.05mm. These are hard requirements — if any single item fails, return the entire piece without compromise.

I typically recommend establishing an incoming inspection SOP: 10% sampling per batch rather than 100% inspection — full inspection cost is too high, but sampling coverage must not fall below 5% to catch problems and enable batch traceability. Three consecutive sampling-pass batches qualify a supplier for reduced inspection status.

Sampling equipment requirements: digital caliper (0-150mm, 0.02mm resolution), height gauge (0-300mm, 0.02mm resolution), dial test indicator (0-10mm, 0.01mm resolution). These three tools together cost under 3,000 yuan but cover over 95% of incoming inspection needs.

The core value of six-side machined mold steel blocks is not merely "milling more faces" — it shifts quality control upstream to before clamping. Squareness, flatness, and dimensional tolerances are all confirmed at delivery. Mold manufacturing starts on the right reference from day one, eliminating the accumulated deviation risk that plagues five-side and four-side machined approaches.

According to AMBA 2022, mold shops spend 12-18% of labor hours on rework — dimensional out-of-tolerance accounts for over 60% of reworks, which six-side machined blocks reduce to below 1%.

According to ASM Handbook Vol.4B, six-side finish-machined flatness reaches 0.03-0.05mm/m, a 5-10x improvement over post-heat-treatment natural state (0.1-0.3mm/m), with significant distortion-averaging effect.

According to Metal Supermarkets North American sales data, six-side machined ready-to-use block adoption grows 15% annually — driven primarily by mold shops producing over 100 molds/month, with ROI payback under 3-5 months.

According to SME 2023 mold shop efficiency report, clamping and alignment average 52 minutes per setup — switching to six-side reference blocks reduces magnetic chuck setup to 8-12 minutes, a 4-6x efficiency improvement.
