Why Buyers Choose P20 Steel | Machinability, Lead Time, Mold Applications

Buyers choose P20 steel because it comes pre-hardened to 28–32 HRC, allowing it to go straight into CNC machining without any secondary heat treatment.

That not only eliminates the risk of mold distortion, but also shortens total lead time by more than 20%.

In injection mold manufacturing, operators can achieve a surface finish of Ra 0.2 μm with routine polishing using diamond paste, striking an excellent balance between machining efficiency and molding quality.

Machinability

Cutting Mechanics

When the spindle is running at 8,000 rpm and a carbide insert first engages a block of P20 steel, the machine’s main cutting force typically holds steady at 1,200 to 1,500 N. Experienced operators glance at the load meter and expect the needle to stay within a fluctuation range of no more than 5%.

This steel has a tensile strength of around 1,000 MPa and a yield strength of roughly 800 MPa, giving it excellent resistance to deformation. In roughing operations, shops often use a 50 mm corn milling cutter with a 25 mm radial depth of cut and a 3 mm axial depth. Under those conditions, the machine runs smoothly and without strain.

Programs are usually set with a feed per tooth of 0.15 to 0.25 mm. Chips fly out through the conveyor in C-shaped or short spiral forms. Measured with calipers, they are generally 10 to 20 mm long, silver-white in color with lightly heat-tinted edges.

Seasoned machinists can estimate cutting temperature just by looking at chip color. An infrared thermometer often shows 600°C to 700°C right at the tool tip as it contacts the steel. Under heat, the coating on the insert forms an alumina layer several microns thick, which helps isolate and block heat.

Common cutting parameters in daily production include:

· Roughing speed: 100 to 120 m/min

· Finishing surface speed: 150 to 180 m/min

· Drilling spindle speed: 1,200 to 1,500 rpm

· Tapping speed: 8 to 12 m/min

Because the main cutting force stays within a stable and comfortable range, the machine’s ball screws and guideways are subjected to very little hard impact. A 1.5-ton mold core can be milled continuously for 48 hours, and when checked on a CMM, dimensional deviation can remain below 0.02 mm.

Factory hardness is 28 to 32 HRC, equivalent to 280 to 320 HB. The elongation before fracture stays around 15%. As the tool pushes forward through the metal layer, the internal lattice breaks cleanly along the applied force path, so very little machine energy is wasted.

In very deep mold cavities, the toolholder may need an extension length of 150 mm. With an R0.8 bull-nose cutter cutting downward, the sound in the shop remains deep and even. A sound level meter placed nearby will typically show the noise level staying below the safety threshold.

In most shops, an insert is considered worn out when flank wear reaches 0.3 mm. When machining P20, a standard coated carbide insert can usually cut continuously for 45 to 60 minutes without issue.

Compared with untreated 45 steel, P20 rarely produces built-up edge on the tool tip. Under an electron microscope, the torn metal surface left by the cutting edge appears shallow and even. That gives polishing and finishing work an exceptionally flat foundation.

Consumable usage over a full mold build is also very economical:

· Roughing with a 20 mm flat end mill: up to 4,000 cm³ of metal removed

· Finishing with an 8 mm ball nose cutter: up to 30,000 cm² of surface covered

· Standard alloy drill: 150 holes at 30 mm depth per regrind

· Deep-hole gun drill: nearly 20 meters of drilling in one uninterrupted run

At 500x magnification, the micron-scale carbide particles inside the steel are distributed very evenly. Every cut encounters nearly identical resistance, so the edge does not suddenly hit hard spots. The risk of chipping is extremely low.

Production schedulers often assign P20 jobs to unmanned overnight shifts. Machines equipped with a 7 MPa through-spindle coolant system deliver high-pressure coolant directly to the cutting zone, instantly removing much of the heat generated by cutting friction.

As hot chips roll away, thermal imaging shows the bulk steel temperature staying below 40°C year-round. After finishing a 2-meter automotive bumper mold, the total dimensional error caused by thermal expansion and contraction can still be held within 0.05 mm.

When a surface roughness tester runs across a machined parting line, the screen will typically show an Ra value between 1.6 and 3.2 μm. A fitter can then make a few passes with a 400-grit oilstone along the cutter marks, and the metal surface immediately develops a fine reflective sheen.

Typical roughness readings look like this:

· Milled bottom face: Ra 1.8 μm

· Finished sidewall: Ra 2.4 μm

· After light manual stoning: Ra 0.4 μm

With 0.3% carbon, 1.5% manganese, and 0.3% molybdenum, this steel is very forgiving to machine. Even if a new apprentice sets the spindle speed 10% too high, the worst outcome is usually that the tool wears out about 5 minutes earlier. It is very unlikely to ruin mold steel worth hundreds of thousands of RMB.

Longer Tool Life

When fresh inserts are removed and measured with calipers, chipped areas are usually around 0.2 mm. Imported tooling that costs well over RMB 100 per piece often has to be discarded once it fails.

P20 steel leaves the mill at a stable hardness of 280 to 320 HB, with no hidden hard spots anywhere in the plate that could chip a cutting edge. Under 500x magnification, the carbon, manganese, and chromium distribution appears highly uniform.

At 6,000 rpm, a TiAlN-coated four-flute end mill can cut continuously into a P20 plate for 240 minutes without stopping. By contrast, irregular low-grade steel with inconsistent hardness may dull and burn the tool tip red in as little as 40 minutes.

Every tool change means downtime. Re-establishing the Z-axis zero point with a tool setter costs at least 15 minutes. Typical shop-floor limit parameters include:

· 10 mm ball end mill on curved surfaces: 8 hours of continuous full-load cutting without damaging the edge

· 50 mm face mill for aggressive roughing: more than 300 minutes of cutting life

· Cobalt deep-hole drill for cooling channels: one-pass drilling to 800 mm depth

· M10 forming tap: 200 threaded holes with no seizure

Chip shape clearly reflects tool loading. The chips coming out often curl into spring-like forms, with a measured thickness of around 0.15 mm.

The spindle motor load meter stays steady at 35%, with almost no needle movement. Infrared thermal imaging shows the hottest part of the cut staying below 500°C.

The coating on the insert remains intact and continues to protect the tungsten carbide substrate beneath it. If H13 mold steel has not gone through a 24-hour annealing cycle, cutting into it can feel like filing stone.

The reactive force P20 sends back into the machine screw is only a few hundred newtons, and in practice it feels more like cutting a tough hardwood than cutting steel. Monthly tooling inventory records often look like this:

When cutting very low-carbon soft 45 steel, the chips are sticky and tend to weld to the cutting edge. Once built-up edge forms, the milled surface is immediately scratched with ridges and valleys as deep as 0.05 mm.

P20 cuts cleanly and does not stick to the tool. Water-soluble coolant at 8 MPa pours down around the spindle, flushing the chips straight into the chain conveyor below.

Monthly insert purchases can drop sharply, from 200 boxes to 120 boxes. Over the course of a year, the savings on consumables alone can be enough to buy a brand-new domestic radial drilling machine.

On the night shift, mold shops especially like running batch jobs in P20. A mold base measuring 1,200 mm by 800 mm is clamped down, the green cycle-start button is pressed, and the operator can step into the next room with confidence.

Servo system records show spindle vibration remaining in the low-frequency safe zone over the long term. Even with an anti-vibration toolholder extended 100 mm, the machined metal surface remains smooth and consistent.

A brand-new milling cutter can hold the dimensional difference between the first workpiece and the fiftieth within a tolerance band of 0.01 mm. CMM contact data typically forms an almost perfectly straight line.

Leaving 0.15 mm of stock per side after roughing gives the finishing toolpath a solid foundation. There is no need to worry that excessive wear in the roughing stage will force the finishing pass to remove too much material.

Fitters can push a 400-grit diamond oilstone across the mold parting surface without any dragging. By reducing tooling consumption, minimizing downtime, and cutting labor hours, P20 can lower the book cost of mold machining by nearly 20%.

Surface Finish & Polishing

After roughing, the machinist switches to an 8 mm four-flute ball end mill for surface finishing. Feed is reduced to 800 mm/min and spindle speed is raised to 12,000 rpm. Once the code finishes running and the machine door is opened, the white mist of coolant clears and the cutter marks left on the P20 surface are as fine and regular as the grooves on a vinyl record.

A surface roughness tester with a sapphire stylus is placed on the steel and run 30 mm along the cutter path. The display typically reads between Ra 1.2 and 1.6 μm. Rubbing the shiny surface firmly with a fingertip reveals none of the sharp burr-like tearing that tools often leave behind on inferior materials.

With a flat, well-prepared base, the polishing team’s work becomes far easier. On cheap steel that still contains impurities, the post-machining Ra value can easily exceed 3.2 μm. Under magnification, the surface is full of tiny pits about 0.05 mm deep, and the only remedy is to grind aggressively with a coarse oilstone until the surface is leveled.

Veteran mold makers often say that whether a block of steel can command a good price depends 30% on how it is cut and 70% on how it is polished. If the surface finish is not right on a 1,000 mm × 800 mm automotive center-console mold, the molded plastic part will inevitably come out with obvious wave marks.

Under the bright strip lights at the polishing bench, a worker takes a sheet of 400-grit silicon carbide paper, adds a few drops of kerosene, and strokes in one direction. In under 20 minutes, the micron-scale tool marks are flattened out. With nearly 2% chromium, P20 offers strong wear resistance during this process.

At 200x magnification, carbide particles smaller than 2 μm are seen tightly packed within the ferritic matrix. As the abrasive paper moves back and forth, no hard particles break free to gouge the surface. After one hour of cross-polishing with 800-grit paper, the roughness drops obediently to Ra 0.8 μm.

Typical polishing steps are:

· 400-grit coarse sanding for base leveling: about 45 minutes, removing 0.02 mm of material

· 800-grit mid-stage sanding: about 60 minutes, producing a matte finish

· 1,200-grit fine wet sanding: about 40 minutes, reducing roughness to Ra 0.4 μm

· W3.5 diamond paste with a wool wheel: pneumatic polisher running at 15,000 rpm

The polishing paste contains 3 to 5 μm diamond powder, which is applied to a pure wool head and pressed firmly against the steel. The pneumatic tool emits a sharp cutting sound, and surface temperature rises to around 60°C. Because the internal hardness of the material is so uniform, the steel will not soften or discolor under localized heat.

After three continuous hours of polishing, a skilled worker can make the base of a 500 cm² phone shell mold clearly reflect a human silhouette. Rechecking with an instrument shows the Ra value fixed between 0.1 and 0.2 μm. Under overhead light, there is no diffuse whitening at all; the surface is as flat as freshly cleaned glass.

By contrast, with cheap steel that has excessive sulfur, leaving the wool wheel in one spot for just 5 seconds too long can create a patch of orange-peel texture. Once that happens, the only fix is to go back two stages and sand away the entire 0.01 mm surface layer with 800-grit paper.

A single round of rework costs at least half a day. At current rates, a skilled fitter earns no less than RMB 350 a day. If a single plate needs to be reworked three times because of orange peel, the few hundred RMB saved on cheap steel disappears immediately into labor cost.

A highly polished P20 mold can then be lifted by crane into an injection molding machine with 250 tons of clamping force. ABS pellets melted at 220°C are driven into the cavity by the screw under 120 MPa of pressure. The extremely smooth metal cavity walls keep flow resistance very low, allowing even 0.5 mm deep latch details to fill in under 2 seconds.

Once 15°C circulating cooling water is running through the mold, temperature drops and the ejector pins push on schedule. There is almost no friction between the mirror-like steel surface and the solidified plastic. The shop hears a crisp click, and a plastic housing with a high-gloss Class A surface falls out cleanly, with no whitening or drag marks anywhere.

Typical demolding comparisons are:

· Standard mold at Ra 1.6: about 300 N demolding force, easily causing local whitening defects

· Smooth mold at Ra 0.4: demolding force drops to 80 N, and each molding cycle is 3 seconds shorter

· Mirror-grade mold at Ra 0.1: molded parts can exceed 90 GU on a gloss meter

Mold shop owners understand the economics clearly. In the past, polishing an H13 mold often required two skilled fitters working around the clock for two full days. With pre-hardened P20 at 280 HB, even a young apprentice with just one year of experience can deliver an excellent base finish within a single 8-hour shift.

Polishing time is effectively cut in half. On the production board, the build cycle for a robot vacuum cleaner housing mold can drop from 35 days to 28 days. Those extra 7 days are enough for a salesperson to take glossy injection-molded samples to a client and lock in the deposit for the next order.

Lead Time

Pre-Hardened Condition

A truck delivers a 2.5-ton block of P20 steel to the mold shop. The overhead crane lifts it onto the machining center table. The surface still shows the rough mill marks from the steel mill, and a quality inspector taps a hardness tester against it. The screen holds steady at 28–32 HRC. A few lines of CNC code are entered, and the spindle—fitted with a 50 mm carbide cutter—begins cutting into the block at 800 rpm while chips and coolant spray outward.

If the shop were using untreated annealed soft steel instead, the incoming hardness would only be 15–20 HRC. The CNC machine would first need to remove about 70% of the stock to produce a rough mold blank. Once roughing was complete, the heavy block would be unloaded, trucked out, and sent to a professional heat-treatment facility, where trucks often queue outside industrial heat-treatment parks on the edge of the city.

At outsourced plants, industrial vacuum hardening furnaces typically have chamber capacities of 1.5 to 3 tons. Multiple mold shops’ jobs are usually combined until there is enough weight to justify a furnace run.

Typical time losses include:

· Round-trip logistics for multi-ton steel blocks: 24–48 hours

· Waiting for enough load to justify a furnace cycle: 3–5 days

· Heating the furnace to 850°C with electric elements: 12–18 hours

· Oil quenching followed by two tempering cycles at 500°C: 72 hours

P20 eliminates that entire outsourced step because the specialty steel mill completes quenching and tempering in-house. The steelmaker melts the charge in a 100-ton ultra-high-power electric arc furnace, then uses vacuum degassing equipment to reduce hydrogen to below 2 ppm. A hydraulic press with a forging ratio greater than 1:4 repeatedly works the red-hot ingot, breaking up clustered carbides.

P20 plates hundreds of millimeters thick are then loaded into a 20-meter car-bottom heat-treatment furnace and held there for dozens of hours. Before shipment, inspectors measure hardness at multiple points across a 500 mm-thick section. The hardness difference between the outer surface and the center is kept within a tight 2 HRC tolerance band.

Once the material arrives in the mold shop, programmers can write toolpaths around a fixed hardness target of 30 HRC. A machining center may run continuously for 120 hours to cut a cavity 300 mm deep, with no concern that a later heat-treatment step will distort the block. When checked inside the cavity with a ruby stylus on a CMM, the dimensions remain stable.

The process savings are significant:

· Large molds go on and off the machine only once instead of three times

· Semi-finishing allowance drops from 1.5 mm to 0.2 mm per side

· EDM time is reduced by 40 hours because there is no hardened black scale to remove

In the assembly shop, fitters can use 400-grit diamond files to touch up machined areas by hand. After cutting, P20 can already achieve a surface finish of Ra 0.8 μm, so a quick switch to 800-grit sandpaper is enough for polishing. There is no need for an expensive jig grinder to correct warping caused by hardening.

When the upper and lower mold halves are fitted together for spotting, the red lead paste transfers cleanly and evenly.

Typical results include:

· Contact area easily exceeds the 85% benchmark

· Manual fitting time is cut by 40%

· Coarse grinding can be skipped in favor of direct 800-grit sanding

A mold for an automotive front bumper with a shot weight of 1,200 g might take 45 days to build in annealed soft steel. With P20, the entire outsourced heat-treatment step disappears, and the shop’s three-axis or five-axis machining centers can run 24 hours a day. The first trial on the injection molding machine (T0) can be brought forward by a full 14 days.

Dimensional Stability

The spindle turns at 1,200 rpm as it cuts into a P20 blank that arrived just the day before. Fine chips fall onto the conveyor while Lao Li watches the coordinate display on the screen. He is working on a mold for a 55-inch TV back cover measuring 1,200 × 800 mm. If this were untreated soft steel, no one would dare cut directly to final size. Programmers would leave a safety stock of 1.5 mm.

That extra 1.5 mm exists solely to compensate for expansion and contraction during outsourced heat treatment. A 2-ton block heated through in an 850°C vacuum furnace and then dropped into quenching oil undergoes violent structural transformation. The material can expand uncontrollably by 0.1% to 0.3%. By the time the truck brings the darkened block back to the shop, the once-square mold blank may already be badly twisted.

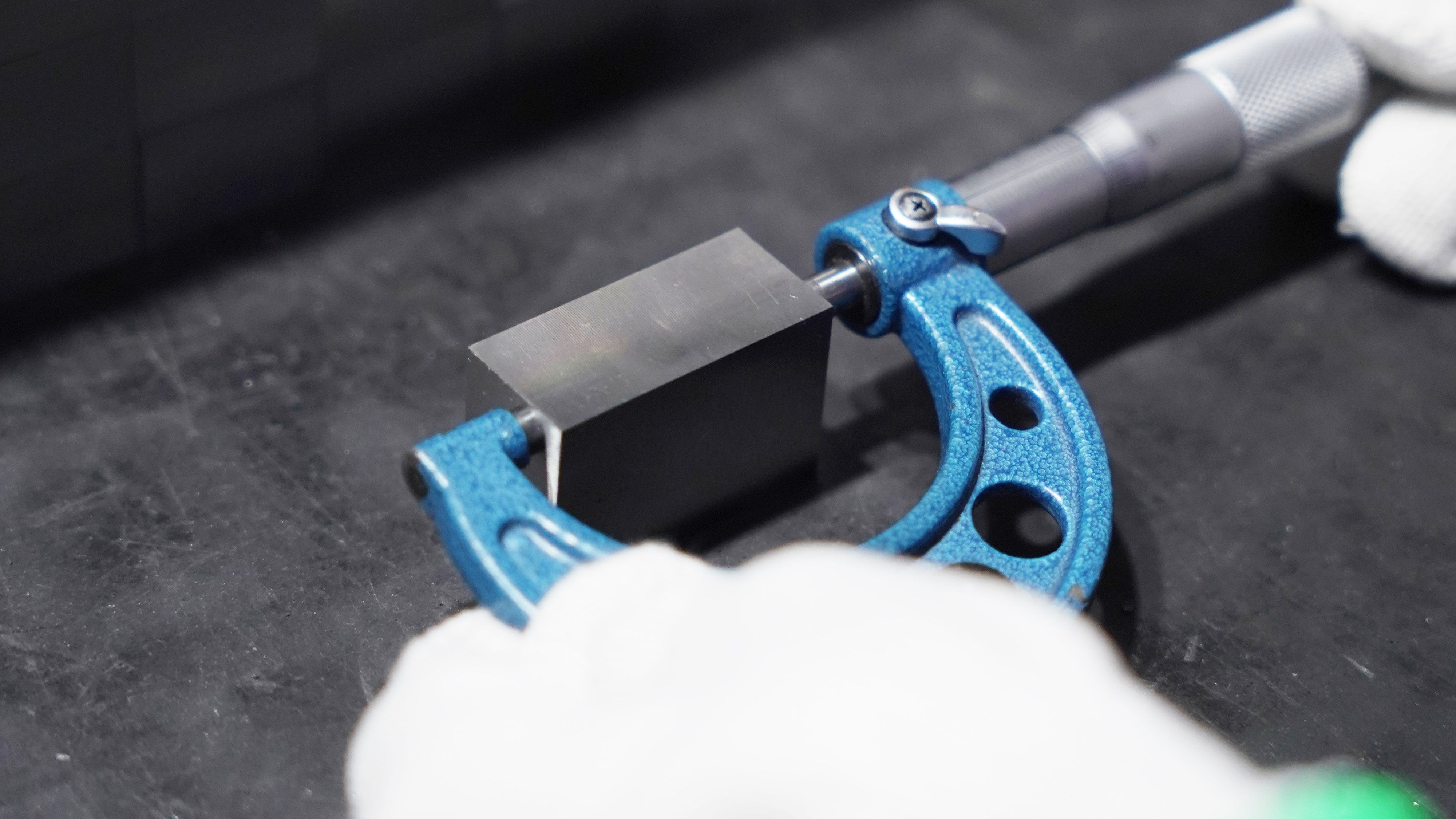

The distortion is too small to judge by eye, but a micrometer will reveal diagonal discrepancies of 3 to 5 mm. From there, the downstream team suffers. The block can no longer sit steadily on the machine table, so it must first be flattened on a large surface grinder for 8 hours, removing only 0.02 mm per pass because the hardened layer is so difficult to grind.

When cutters can no longer handle the hardened shell, shops must switch to copper electrodes and run a high-power EDM machine for 48 hours straight. More than a dozen copper electrodes may be burned through just to bring the warped dimensions back. In severe cases, a steel block worth RMB 30,000 ends up being sold as scrap.

P20 avoids all of this. The 20-meter car-bottom furnace at the steel mill has already released internal stress thoroughly. After roughing, the machinist switches to an R5 ball end mill for semi-finishing. If the drawing calls for a depth of 150 mm, the tool simply cuts to shape and leaves 0.15 mm per side for final finishing.

The steel is clean throughout, with no uneven hard spots caused by thermal cycling. When a gun drill opens an 800 mm cooling channel, the bit does not encounter alternating soft and hard regions. The hole stays straight, avoids breaking into the cavity, and never risks ruining the entire block.

After finishing, the inspector wheels over a Hexagon CMM for reinspection. In a 20°C metrology room, a 2 mm ruby stylus touches the four corners of the cavity. The deviation displayed on the monitor remains within 0.015 mm. Because the steel has never gone through a second high-temperature cycle, it stays exactly as the machine cut it.

A real shop-floor time comparison looks like this:

Assembly fitters feel the difference immediately. In the past, when two mold plates were spotted together and the guide pillars would not enter the bushings, it usually meant heat distortion had shifted hole spacing by 0.5 mm. Workers had to beat on the assembly with multi-kilogram copper hammers and enlarge holes bit by bit with carbide rotary burrs. Fitting one large mold could take two or three skilled workers a full 7 days of overtime.

With P20 used for both the backing plate and cavity, CNC-bored hole spacing can be held within ±0.005 mm. Workers apply oil to four 60 mm guide pillars, lift the upper half with a crane, and it slides smoothly into the lower half. What once took 7 days of heavy fitting can now be completed in a day and a half, including drilling, tapping, and full assembly. The shutoff between the upper and lower halves is so tight that even a 0.01 mm feeler gauge cannot be inserted.

Material Removal Rate

An 850 machining center rumbles across the shop floor. A 63 mm face mill bites hard into a freshly unloaded block of P20. The load meter needle sits steady at 35%.

At the steel mill, the melt is adjusted with 1.4% to 1.7% chromium and 0.3% to 0.5% molybdenum. Those precisely weighed alloy additions give the finished steel an especially obedient cutting feel. Experienced machinists value that feel highly, because whether the insert enters smoothly depends heavily on the alloy design.

The operator sets a depth of cut of 2.5 mm and raises spindle speed to 650 rpm. Each revolution of the coated carbide insert removes 0.8 mm of metal in feed. The thick steel surface is stripped away layer by layer at high speed, and the sound is deep and powerful rather than shrill.

“Untreated soft steel tends to stick to the edge, while very hard heat-treated steel destroys inserts. P20 sits right around 30 HRC, the chips break cleanly, and the machine runs at its smoothest.”

When machining hardened mold steel at 50 HRC, everything has to be recalculated. Depth of cut must be reduced to less than 0.5 mm, and spindle speed drops to a crawling 200 rpm. The operator cannot step away for a second, for fear that a broken edge will destroy a mold workpiece worth tens of thousands of RMB.

In terms of real production economics, the difference in material removal is obvious. When cutting P20, a machine can remove 150 cm³ of metal per minute. On very hard steel, that number collapses to just 30 cm³ per minute.

A quick look at the scrap cart tells an expert exactly what material was being cut:

· Chips from soft steel come off as long spring-like spirals that easily wrap the spindle, and clearing them costs 15 minutes of downtime

· Chips from P20 break into C-shaped or 6-shaped fragments that flow smoothly out on the conveyor

· A square insert costing RMB 45 can run at full load on P20 for 4 hours before needing indexing

To hollow out the same cavity volume, machining P20 may consume 3 boxes of inserts at a cost of RMB 1,350. On difficult specialty steel, insert wear rises sharply and tooling cost can exceed RMB 3,000.

A 22 kW spindle motor is expensive to run at full load. On P20, machine power draw often stays around 10 kW. If one machine runs for 28 days a month, the electricity savings alone can reach RMB 1,500. Heavy cutting forces also damage transmission components over time, but even after 5 years of cutting P20, an older machine can still hold X-axis accuracy at 0.008 mm.

“With high spindle speed and aggressive feed, you can rough out a 400 mm square cavity in a single morning. At that point, the machine has already earned back its electricity cost and depreciation for the day.”

After rough milling, the operator switches to a ball end mill for finishing and raises spindle speed to 4,000 rpm. The toolholder’s internal coolant holes blast cutting fluid at 20 kg of pressure, keeping the cutting zone below 150°C. The finished cavity floor shines silver, with no burn marks, blackening, or blue discoloration.

A surface roughness tester shows Ra 0.8 μm. To the touch, the surface feels even smoother than one finished on a conventional large grinder. A fitter can wet it lightly and wipe it twice with 600-grit sandpaper to bring out a mirror-like reflection.

Deep, narrow holes are a true test of a material’s cutting behavior. When a gun drill opens an 800 mm cooling channel, chips rush out cleanly through the flute without clogging. Because hardness inside P20 is so uniform, the drill can advance at a stable 50 mm/min, finishing a full channel in half an hour.

Mold Applications

Large Automotive Parts

A mold for an automotive front bumper shell alone can weigh 15 to 25 tons, almost the size of a small bedroom at 2.5 m by 1.5 m. The starting material purchased by the mold shop is often a solid steel block weighing 30 tons. The machine must hollow it out and sculpt the flowing outer profile of the vehicle. Several large CNC milling machines may run day and night for two to three weeks just to remove the excess steel.

If ordinary steel is used, the hollowed block must then be hardened in a 1,000°C furnace. A 30-ton mass of steel undergoing that kind of thermal shock can crack or warp by more than 5 mm, wiping out hundreds of thousands of RMB in material and machining cost. The advantage of P20 is that it already arrives with a pre-hardened condition of 28–32 HRC, so that entire furnace cycle can be skipped.

Typical shop-floor performance includes:

· A 250 mm face mill can remove hundreds of kilograms of chips per day

· Heavy machine spindles can run steadily at 8,000 to 12,000 rpm

· Dimensional error over a 2-meter part can be held within 0.05 mm

· Headlamp assembly gaps can be controlled to less than 0.1 mm

In conventional P20 (grade 1.2311), sections thicker than 400 mm may soften in the center, with hardness dropping to 25 HRC. In dashboard production, those soft zones can wear into depressions. German mills improved this by adding 1% nickel to create grade 1.2738. Even in a 30-ton block, the center still measures above 29 HRC.

Molten plastic enters the mold at up to 240°C and must then be cooled quickly. Workers drill dense networks of 15 mm water channels through the solid steel using 2-meter gun drills. Because sulfur content in P20 is below 0.03% and the structure is highly uniform, a 2-meter-deep hole can stay within 0.5 mm of straightness.

Many automotive door panels have leather-like textures formed by acid etching on the mold surface. The acid creates a fine grid pattern 0.02 to 0.05 mm deep. With chromium content around 1.9% distributed evenly through the steel, P20 etches at a consistent rate, producing a door panel with a soft, uniform reflection rather than patchy tonal variation.

Material characteristics include:

· Carbon content consistently held at 0.35% to 0.45%

· 1.5% manganese added for greater structural strength

· Hardness difference of less than 2 HRC through a 1-meter-thick block

· Yield strength reaching 1,000 MPa, with excellent resistance to tearing

Before producing this leather-like texture, experienced workers polish the curved mold surface entirely by hand with 800-grit wet sandpaper. If the steel contains even a 0.1 mm sand hole, several days of polishing labor are wasted. Vacuum-degassed P20 is highly pure, with those internal defects already removed.

A large vehicle door mold can cost as much as RMB 3 million and is typically expected to serve through a full five-year vehicle lifecycle. At a production rate of 1,000 vehicles a day, the mold may see 300,000 high-pressure closing cycles. With a compressive strength above 850 MPa, P20 can withstand the repeated force of a 3,000-ton injection molding machine, and even after 300,000 cycles, edge damage and flash formation remain minimal.

Imported German 1.2738 steel typically costs around RMB 25 to 35 per kilogram. Just the raw 30-ton block can require an investment of RMB 700,000 to 800,000. Many domestic P20 grades now sell closer to RMB 15 per kilogram. For newer carmakers that refresh models every two or three years, domestic P20 offers major cost savings.

Typical molding conditions include:

· Bumper molding requires 3,000 to 4,000 ton presses

· Melt pressure spikes to 40 to 60 MPa as plastic enters the mold

· The steel must withstand impact from a mold-closing speed of 50 mm/s

· Under loads exceeding 10,000 tons, plate deformation stays below 0.1 mm

Home Appliances & Consumer Electronics

If you flip over the back shell of a 65-inch LCD TV, the black plastic housing you see corresponds in a Guangdong mold shop to a solid specialty steel block weighing about 8 tons. Workers use a 5-ton overhead crane to lift the block—heavier than a small car—onto the machine table. The TV back cover dissipates heat from the internal motherboard through two to three thousand narrow ventilation slots. Cutting those thousands of fine holes accurately into an 8-ton steel block places enormous demand on the cutting tools.

P20 arrives at roughly 30 HRC, which is exactly within the workable range for carbide tools. With the spindle in a 12,000 rpm high-speed range, the cutting speed can reach 150 m/min. Under those conditions, two thousand ventilation slots can be finished in about five days. If the shop had to cut quenched specialty steel at 50 HRC, cutting speed would fall below 30 m/min, and the same five-day job could drag out to nearly a month, multiplying labor and electricity costs.

Competition in the appliance industry is brutal. For a new air conditioner panel, a mold shop may be given only 45 days from drawing approval to mass production. With P20’s strong machinability, the factory can recover more than three weeks of machine time. Around the edge of a TV housing there is often a ring of plastic snap features that engage the front panel, with the thinnest sections measuring just 1.2 mm. During molding, molten plastic floods into the cavity at 80 MPa, and those 1.2 mm steel sections endure intense lateral flow impact every cycle.

With carbon content stably held at 0.38%, pre-hardened P20 offers tensile strength of around 1,000 MPa. Even after 300,000 high-pressure injection cycles, those thin latch features are very unlikely to crack or break away.

Real production data for a TV panel mold looks like this:

The control panel on a front-loading washing machine feels smooth to the touch and reflects a soft sheen. Workers polish the mold surface from 400-grit up to 800-grit using diamond paste. Because P20 contains less than 0.4% silicon and very few impurities, a skilled polisher wearing gloves can work the surface for three or four days and bring it to the SPI B2 finish level.

If poor-quality steel contains sulfide inclusions as small as 0.05 mm, the polisher immediately produces visible dark streaks. Thousands of RMB in high-end polishing labor are wasted, and the damaged surface must be milled away by 0.5 mm and redone. P20 made by vacuum degassing (VD) is much cleaner internally, allowing the molded washing machine panel to come out flat and even like a calm lake.

The housings of gigabit routers and set-top boxes are only palm-sized, but the fit at the seam is critical. The gap between the upper and lower plastic shells must be held within 0.05 mm or the edge will feel sharp. Mold shops use EDM to cut extremely sharp and precise shutoff edges into P20. Because the steel’s electrical conductivity and discharge wear are highly stable, copper electrode loss can be kept below 0.1%, reducing copper cost.

A household air fryer priced at only RMB 300 to 400 often uses heat-resistant plastic containing 15% glass fiber. That glass-filled material acts like liquid sandpaper, continuously scouring the mold cavity wall at 250°C. At 30 HRC, P20 cannot resist endless abrasion forever, and over time the surface will wear. But air fryer product cycles often last only one or two years, and a production run may stop after 300,000 units. That 300,000-shot life fits very closely with the practical wear limit of P20.

If a factory bought dozens of tons of hard corrosion-resistant specialty steel such as S136 at RMB 60 per kilogram, and the mold was retired within two years, millions of RMB in tooling cost could never be amortized over a low-cost appliance. Most domestic appliance makers calculate this very carefully. At RMB 15 to 20 per kilogram, P20 can handle 500,000 cycles and then retire right on schedule, keeping the profit model clean and rational.

A microwave oven front panel often includes a transparent viewing window made from PC (polycarbonate). That transparent area requires an extremely high Class A mirror finish. P20’s polishing ceiling is effectively at the B level; no amount of polishing will make it as optically clear as glass. The common solution is to machine a square pocket in a large P20 plate and insert a smaller block of imported premium mirror-polish steel. The large structural frame of the microwave mold is still made from easy-to-machine P20, which accounts for more than 95% of the mold’s total weight.

Daily-Use Plastics & Turnover Crates

A 240-liter green municipal trash bin, including its lid and wheel base, can easily require an injection mold weighing over 12 tons. The raw specialty steel block delivered to the mold shop is like a solid chunk of iron as tall as a two-story building. During roughing, the machine may remove nearly 500 kg of scrap steel per day. If the shop used hardened corrosion-resistant steel at RMB 60 per kilogram for a 12-ton mold of this size, even the purchasing manager would hesitate to sign the order. By comparison, economical pre-hardened P20, at RMB 15 to 18 per kilogram, can save the plastics factory owner nearly RMB 500,000 in tooling cost on raw material alone.

Even for cold-chain insulated boxes used to carry fresh produce, buyers rarely allow a mold payback period longer than 18 months. No one on the shop floor cares whether that giant steel block can last ten years.

Factory managers calculate this every day. A medium-sized plastic storage box may retail for only RMB 20 to 30, and margins are razor thin. If hundreds of thousands of RMB in tooling cost are spread across an order of 500,000 boxes, each box carries only a few jiao of mold depreciation. P20’s physical wear life happens to sit right around that 500,000-shot mark. Once the order is finished, the worn mold can be scrapped without regret, and the factory can still recover more than RMB 20,000 by selling the steel as scrap.

Vented produce crates used in wet markets are surrounded by grid-like reinforcing ribs to withstand heavy loads and repeated impacts. The deepest rib grooves can be 150 mm deep, forcing the machinist to switch to a 0.5 mm extra-long end mill and cut deep into the steel little by little. In low-grade steel with uneven hardness, a slender tool can hit a hard spot 150 mm down and snap instantly, wasting RMB 300 on a single cutter. In well-balanced P20, hardness variation stays within 2 HRC even 300 mm below the surface, so broken-tool incidents remain rare even over a full year of production.

When a molding machine injects HDPE at 240°C into the cavity, the shop has to cool it with chilled water immediately. If cooling is delayed by just a few seconds, the entire large bin can collapse before setting. On a line running 24 hours a day, every extra second means losing hundreds of units per day. With thermal conductivity of about 29 W/(m·K), P20 offers especially strong heat dissipation for a value-grade mold steel. Workers drill dozens of 20 mm water channels around the mold, and with aggressive chilled-water circulation, the cycle time for a large trash bin can be held under 90 seconds.

Typical production outcomes include:

· Build time for a 12-ton mold cut to just over 40 days

· P20 withstands the impact of 2,000-ton clamping force

· A 3 mm bin edge deforms by less than 0.1 mm even after 500,000 cycles

· Insulation around the outside keeps cavity temperature stable at 45°C

Large plastic turnover boxes used for heavy automotive components are so big that they may need as many as six gates at the bottom. Six streams of hot melt meet inside the cavity, creating intense pressure and thermal fluctuation that test the heat resistance of the steel. With 0.38% carbon, the P20 mold base is robust enough that even after long-term thermal impact, the areas around the six gate locations rarely develop fine cracking. In low-grade carbon steel costing only a few RMB per kilogram, the gate area can start flaking apart like broken glass before 100,000 shots.

In wholesale markets, plastic washbasin styles may change every three to five months. When demand is surging, nothing is more dangerous than missing the market because mold delivery drags on indefinitely.

The larger the steel block, the riskier it becomes to harden it after machining. If a 12-ton block is reheated red-hot and then quenched, the size can shrink by several millimeters. Large plastic boxes have very low sealing requirements, and even a 0.5 mm gap in the lid makes no difference when market vendors use them to carry seafood or heavy goods. By skipping the ten-plus days of furnace hardening, the factory can go straight from machining to molding. Every day saved means the boss can get plastic basins onto Yiwu market shelves that much earlier.

Typical cost-saving measures include:

· Basin wall thickness fixed at 1.5 mm, saving 20% in plastic material cost

· Only 400-grit coarse polishing needed, cutting three days of polishing labor

· Two-cavity layout, producing two basins per molding cycle

The children’s slides and rocking horses often sold during the New Year season are also made in giant P20 molds weighing several tons. Because children have delicate skin, the molded plastic edges cannot have even the slightest sharp flash, and the parting line between the two mold halves must remain extremely tight. Even after 300,000 high-pressure closing cycles, the two parting surfaces can still fit together as tightly as two stacked sheets of A4 paper. In the noisy environment of the shop, steel plates up to 400 mm thick quietly endure more than 30,000 hours of machine work, turning out thousands upon thousands of everyday plastic products.
