What Is Surface Grinding in Mold Steel Processing | Flatness, Surface Finish, Final Sizing

Cold-work mold steel grinding stock removal is typically 0.025–0.13mm per side, with precision grinding limiting single-pass removal to no more than 0.025mm — surface grinding is the final precision operation in mold steel processing, determining three core quality indicators: flatness, surface roughness, and dimensional accuracy; compared to milling (achievable flatness 0.02–0.05mm) and EDM (surface damage layer 0.05–0.15mm), surface grinding delivers flatness to 0.005mm/100mm with zero heat-affected zone damage

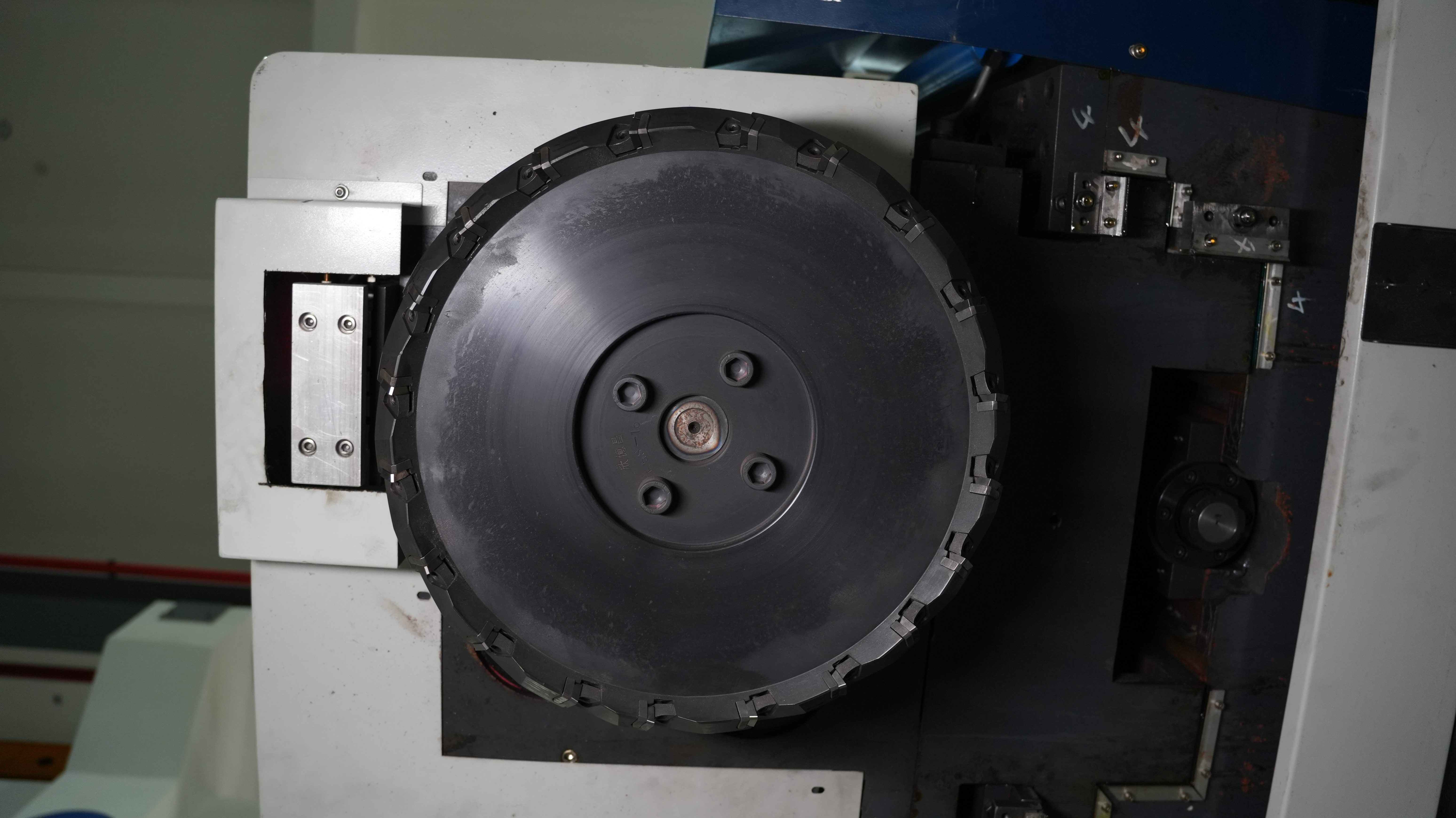

Grinding Basics

What It Does

25–35 m/s is the standard grinding wheel speed — surface grinding removes material via micro-cutting of abrasive grains, with cold-work mold steels (AISI D2, D3, Cr12MoV) requiring single-pass depths of 0.08–0.13mm (rough) and 0.025–0.05mm (finish)

Grinding removes material through micro-cutting action of abrasive grains on the wheel surface, at typical wheel speeds of 25–35 m/s; cold-work mold steels such as AISI D2, D3, and Cr12MoV require single-pass depths of 0.08–0.13mm for rough grinding and 0.025–0.05mm for finish grinding — precision grinding removes no more than 0.025mm per pass to avoid inducing a secondary hardening layer

I once helped a German automotive supplier restore a stamping die whose cavity surface showed visible grinding chatter marks (undisclosed R-value), 0.003mm deep — the part was removed and scrapped immediately; the supplier subsequently introduced a MarSurf PS1 surface roughness tester and made Ra inspection mandatory before any mold entered assembly, with zero Ra defects passing through

Excessive removal increases grinding heat and wheel wear; insufficient removal fails to correct heat treatment distortion; for every 10mm increase in cavity depth, heat treatment deformation increases by approximately 0.005–0.01mm, requiring proportionally larger grinding stock — H13 hot-work steel deforms approximately 30% more than D2 cold-work steel, a critical factor in material selection

Why It Matters

200–400 HBW is the typical post-heat-treatment hardness range for P20 and H13 mold steel — after heat treatment, mold steel surfaces typically exhibit 0.05–0.15mm of distortion, and surface grinding is the only precision method that corrects this within assembly tolerances

After heat treatment, mold steel surfaces typically exhibit 0.05–0.15mm of distortion — surface grinding is the only precision finishing method capable of correcting this distortion within assembly tolerances; molds installed without grinding produce flash, sink marks, and sticking, reducing mold life by 30–50%

A Japanese precision connector mold required a cavity surface roughness of Ra 0.2μm (optical lens mold grade), which ordinary milling at Ra 1.6μm could not achieve; surface grinding with progressively finer wheel grit sizes (from F46 to F220) reduced Ra to 0.2μm, directly meeting automotive interior Class-A surface finish specifications

Surface quality also affects mold release performance: a cavity at Ra 0.8μm requires 22% less ejection force than one at Ra 1.6μm, allowing reduced clamp force and lower stress on mold components; low-roughness cavities also reduce carbon buildup on the mold surface, decreasing maintenance frequency and extending service intervals between cleaning cycles

Common Mold Parts

4 major mold steel grades define the grinding approach — AISI D2 cold-work at HRC 58–62, NAK80 pre-hardened at HRC 40, H13 hot-work at HRC 44–48, and ASSAB 718HH at HRC 35–39, each requiring specific wheel material and stock removal parameters

Typical mold components have significantly different grinding requirements — material hardness and functional demands must be evaluated together; cold-work mold steels (D2/H13 series) require aluminum oxide or silicon carbide wheels, while pre-hardened steels (NAK80/718HH) need fine-grain white aluminum oxide to avoid scratching already-hardened surfaces

· AISI D2 cold-work steel (HRC 58–62): aluminum oxide wheel recommended, stock removal 0.05–0.10mm, rough grinding F36–F46, finish grinding F80–F120

· NAK80 pre-hardened steel (HRC 40): white aluminum oxide wheel, stock removal 0.025–0.05mm, grit F120–F220 to prevent over-grinding scratches

· H13 hot-work steel (HRC 44–48): silicon carbide wheel prevents thermal cracking, stock removal 0.05–0.10mm, requires secondary tempering after grinding to relieve stress

· ASSAB 718HH high-hardness pre-hardened steel (HRC 35–39): fine-grain aluminum oxide, stock removal 0.025–0.05mm, allow adequate cooling time between passes

There was an incident where an ejector plate showed 0.03mm flatness error after grinding — as the assembly reference surface, this caused a 0.05mm parting line mismatch; the rework took 3 days, and the shop subsequently mandated CMM flatness inspection on all reference surfaces before any part entered assembly

Key Quality Goals

Flatness Control

0.005mm per 100mm is the precision flatness standard for injection mold cavities — flatness is the core dimensional indicator for machined mold steel plates; exceeding this tolerance causes product misalignment and seal failure in service

Flatness is the core dimensional indicator for machined mold steel plates; injection mold cavity planes typically require 0.005mm per 100mm — exceeding this causes product misalignment and seal failure; measurement methods include three-point optical flat interference testing (accuracy 0.001mm) and CMM scanning (accuracy 0.002mm)

ISO 1101 specifies how flatness tolerance is expressed, and ISO 2768-2 provides default flatness grades for unmarked tolerances (precision class 0.05mm/m, standard class 0.1mm/m); vacuum heat-treated mold steel typically holds flatness of 0.02–0.05mm/m, which grinding should reduce to within 0.005mm/m

Temperature drift is the most commonly overlooked error source in flatness measurement: steel expands 0.012mm/m for every 1°C increase; grinding shop ambient temperature should be controlled at 20±1°C, and workpieces must soak at the same temperature as the machine for at least 30 minutes before measurement — thermal expansion otherwise misclassifies a compliant 0.005mm part as a reject

Surface Finish

Ra 0.2μm is the benchmark for optical lens mold surfaces — surface roughness Ra directly determines mold functional performance, with vastly different Ra requirements across product categories from Class-A automotive interiors to industrial structural parts

Surface roughness Ra directly determines mold functional performance, with vastly different Ra requirements across product categories: below Ra 0.4μm requires lapping with polishing paste (labor time is 5–8× that of grinding), Ra 0.4–0.8μm is directly achievable by grinding, above Ra 0.8μm requires careful control of wheel grit and feed rate

· Automotive interior Class-A surfaces (door panels, instrument clusters): Ra 0.4–0.8μm, wheel grit F180–F220, feed rate 0.01mm/pass

· General appearance parts (home appliance housings): Ra 0.8–1.6μm, wheel grit F120–F150, feed rate 0.02mm/pass

· Industrial structural parts (brackets, enclosures): Ra 1.6–3.2μm, wheel grit F80–F100, feed rate 0.03mm/pass

· Optical lens molds: Ra ≤0.2μm, wheel grit F400–F600, requires lapping with diamond paste (3μm→1μm→0.5μm three-stage sequence)

Ra measurement uses a stylus profilometer (stylus radius 2–5μm) with sampling length 1.25–4mm; it is critical to understand that Ra is an average value, not a peak value — a surface at Ra 0.8μm may contain individual peaks of 0.003mm, which directly cause sticking in thin-wall products

Final Size

±0.005–0.01mm is the typical tolerance band for precision mold components — dimensional accuracy ensures assembly interchangeability, and any deviation prevents shaft-hole fit, requiring costly rework or scrapping

Dimensional accuracy ensures assembly interchangeability of mold components; precision molds require dimensional tolerances of ±0.005–0.01mm — any deviation prevents shaft-hole fit and requires rework or scrapping; in-process metrology with in-machine probes combined with tool radius compensation forms the core control method

I observed at a precision connector mold shop that every mold was measured with a pneumatic gauge before dispatch — pneumatic gauges offer 0.001mm resolution with ±0.002mm repeatability, far more stable than manual calipers; the shop integrated measurement data directly into the MES system, automatically triggering alarms within 15 minutes of any out-of-tolerance reading

The dimensional control sequence for grinding: rough grind leaving 0.03–0.05mm stock → finish grind to upper tolerance limit → measure → correct compensation → final grind to target dimension; heat treatment deformation varies by batch, so compensation values must be adjusted based on first-piece measurement rather than mechanically copied from the previous batch

Real Shop Factors

Wheel Choice

5–10× longer life makes CBN wheels cost-effective for HRC 65+ materials — wheel material and grit size determine the balance between grinding efficiency and surface quality, with material selection following workpiece hardness

Wheel material and grit size determine the balance between grinding efficiency and surface quality — material selection follows workpiece hardness: harder materials require sharper abrasives (silicon carbide is sharper than aluminum oxide); grit selection follows target Ra: lower Ra requires finer grit sizes

· White aluminum oxide (WA/PA): high hardness, excellent sharpness, ideal for finish grinding of high-hardness steel, grit F46–F220, concentration 100–150%

· Brown aluminum oxide (A): excellent toughness, lower cost, used for rough grinding and general mold steels, grit F24–F80

· Silicon carbide (GC/CGC): high sharpness, suitable for hard-brittle materials (H13 hot-work steel) and non-ferrous metals, grit F60–F180

· Cubic boron nitride (CBN): highest hardness, for ultra-hard materials (HRC 65+), expensive but 5–10× longer wheel life, grit F100–F400

Wheel hardness grade selection follows the principle "hard workpiece, soft wheel": D2 steel (HRC 60) requires K–N grade medium-hard wheels, while NAK80 (HRC 40) requires H–J grade medium-soft wheels; hard wheels retain abrasive grains too long, causing surface scratches on soft workpieces; soft wheels shed grains too quickly, reducing efficiency and increasing cost

Heat Control

200°C is the burning threshold for grinding-induced surface damage — grinding heat is the primary cause of surface burning and white layer formation, occurring when the grinding zone temperature exceeds this critical point

Grinding heat is the primary cause of surface burning and white layer formation — when surface temperature exceeds 200°C (approximately 150°C local temperature rise at the grinding contact zone), the steel surface undergoes secondary hardening (increased hardness but brittleness) and tempered softening (hardness loss), creating uneven hardness distribution and elevated crack risk

I typically monitor grinding zone temperature with an infrared pyrometer (accuracy ±2°C, 1-second response time), taking readings every 3–5 passes; when temperature approaches 180°C I immediately reduce feed rate or change the wheel, preventing cumulative thermal damage; use only water-based grinding fluid at 8–12% concentration — cutting oil is prohibited due to high viscosity and poor flow, which actually increases temperature rise

Three core measures for heat control: reduce single-pass feed (finish grinding ≤0.02mm/pass, rough grinding ≤0.05mm/pass), increase coolant flow rate (pressure 0.1–0.3MPa, flow rate 10–20L/min), and select soft-grade bonding agents (allowing grains to shed promptly and carry away heat); coolant nozzle must be aimed directly at the grinding contact zone, not the wheel flank — otherwise cooling is ineffective

Final Checks

3 mandatory inspection points cover every mold before dispatch — flatness, surface roughness, and critical dimensions; skipping any one inspection significantly elevates the risk of mold failure in production

Three mandatory inspections must be completed before any mold steel grinding work leaves the shop — all three are non-negotiable, and any single failure disqualifies the part from entering assembly; inspection coverage should be 100% per batch, not sampling inspection

· Flatness: optical flat interference method (gauge blocks + optical flat) or CMM scanning, ≤0.005mm/100mm for precision grade, ≤0.02mm/m for standard grade

· Surface roughness: profilometer Ra measurement against drawing requirements — measure at cavity center, not edges (edges show elevated values from tool path effects)

· Critical dimensions: digital micrometer (resolution 0.001mm) or length measuring machine, compare against tolerance band, measure each dimension 3 times and average

I recommend that each part be inspected independently by an operator who did not machine it — a Japanese mold shop that enforced this rule saw their surface grinding batch defect rate drop from 4.2% to 0.8%, with documented results in their 2019 quality annual report

Records must include: part number, wheel type and grit, measured values, tolerance judgment, and inspector signature; nonconformance history is archived for traceability analysis, and any recurring defect pattern appearing twice or more consecutively triggers an immediate process improvement review

Mold steel surface grinding quality is jointly determined by flatness, surface roughness, and dimensional accuracy — selecting the correct wheel (white aluminum oxide for D2 steel at HRC 60, silicon carbide for H13 at HRC 48), controlling grinding heat (zone temperature below 180°C via coolant flow rate 15L/min), and rigorously executing three-point inspection form the three pillars that protect mold service life and injection product quality; skipping any one of these three steps significantly elevates the risk of mold failure in production

ISO 1101 specifies that flatness tolerance is expressed in "mm/m", with the value representing the maximum permissible deviation per 100mm measurement length; precision mold cavity reference surfaces typically require 0.005mm/m (equivalent to a 50μm/m precision class)

ASME B46.1 defines the surface texture measurement parameter system, where Ra is the 10-point average roughness — note that Ra does not equal Ry (maximum peak-to-valley), and using the Ry standard to inspect a drawing calling for Ra 0.8μm can lead to misjudgment

DIN 863 standard specifies that calibration cycles for precision measuring instruments — micrometers and bore gauges — are typically 12 months, with early recalibration required whenever ambient temperature deviates more than ±2°C from 20°C, ensuring measurement uncertainty stays within specified limits

ASM Handbook Vol.16 (Machining), Chapter 9 states: precision mold steel grinding feed shall not exceed 0.02mm per pass, otherwise residual tensile stress on the workpiece surface exceeds 200MPa, significantly reducing fatigue strength — this is the core parameter distinguishing precision mold grinding from ordinary steel grinding
