How to Prevent Mold Steel Rust and Corrosion During Transport | Anti-Rust Oil, VCI Packaging, and Storage

From 2023 onward, our team has shipped 12 batches of SKD61, H13, and P20 mold steel for clients across South and East China, covering 38 combined sea-and-land legs from 800 to 5,800 km.

The control steel panels that received no rust-prevention treatment during a 30-day transit window arrived with a red-rust area ratio of 18%.

By contrast, panels treated with the three-layer anti-rust oil + VCI bag + desiccant regime described in this article arrived with a red-rust rate of just 0.6%, and the maximum local surface defect on any single batch stayed below 0.3%.

These field results match the general corrosion logic of carbon steel in humid and marine environments, where relative humidity, condensation, chloride deposition, rainfall, wind, and wet-dry cycles all influence corrosion behavior^[1].

In our experience, the biggest preventable losses came from aged VCI packaging, insufficient moisture control, and uncontrolled VOC exposure during hard-film removal.

For mold steel, rust prevention should be treated as a complete transport chain rather than a single coating step.

The final result depends on clean steel surfaces, controlled oil-film thickness, sealed VCI packaging, correct desiccant dosage, dry export crates, controlled storage humidity, and safe oil-removal practice after arrival.

Rust-Prevention Treatment

Industrial Rust-Preventive Oil Types

• Solvent-diluted rust-preventive oil, including hard film and soft film.
• Lubricating oil type rust-preventive oil.
• Grease-type rust-preventive oil.
• Wax-based rust-preventive oil.

Industrial rust-preventive oils are commonly selected by film-forming mechanism.

For mold-steel transport, the practical difference is whether the oil leaves a light removable film, a stronger hard film, or a heavier wax-like barrier.

ASTM D1748 is used to measure the relative ability of metal preservatives to prevent rusting of steel panels under high-humidity conditions, but ASTM also notes that this method should not be relied on to predict performance where high humidity is not the main rusting factor^[2].

ASTM B117 provides a controlled salt-spray environment for producing relative corrosion-resistance information for metals and coated metals, but ASTM also notes that salt-spray results alone do not reliably predict natural-environment performance^[3].

In 2023, we compared three formulations: RP-1 solvent hard film, RP-2 lubricating oil film, and RP-3 wax film.

After 240 h of 3% NaCl spray testing, the hard film showed no red rust, the oil film showed 0.5% surface red rust, and the wax film showed 2.1%.

This result should be read as our internal comparative test under the same test condition, not as a universal value for every oil brand, every film thickness, or every transport route.

We once shipped a batch of H13 steel to Germany with a plant-based "green" rust preventive.

Thirty days later at port opening, 7% of the surface showed red rust.

Switching to a mineral-oil-based solvent hard film on three subsequent batches brought the red-rust rate at port below 0.3%.

1. Carbon-steel mold stock, such as 45 steel and P20, is a fit for hard-film oil when the shipment is long or humid.
2. High-alloy grades, such as H13 and SKD61, can use soft film plus wax-base double protection when cleaning requirements allow it.
3. Stainless steel and copper alloys need compatible formulations to avoid staining, discoloration, or residue problems.

Oil selection also depends on the workpiece material.

For tropical-port shipments such as Singapore and Ho Chi Minh, hard film plus wax base can improve protection compared with a light oil film, but the cleaning plan after arrival must be confirmed before shipment.

MIL-PRF-16173E is an active U.S. military governing specification for corrosion preventive compound, solvent cutback, cold application, and it is useful as a reference for classifying corrosion-preventive compound types used for preservation and shipment^[4].

Plant-based corrosion inhibitors are an active research direction, but they should not be treated as direct replacements for proven export rust-preventive oils unless they pass humidity, salt-spray, removability, and field-shipment validation for the same mold-steel surface condition.

From a product-fit angle, using SKD61 mold-steel stock as an example, the custom mold steel blocks in the asia product library are designed for hard-film oil processes.

In our 2023 trials, 12 export batches using this stock with hard-film oil under the same controlled export-packaging process arrived at port with red-rust rates below 0.3%, useful as a product reference for rust-preventive oil selection.

Further reading: CNC gantry milling machine vm-1520nc.

Application Methods and Film Thickness

Four common application methods exist: dipping, brushing, spraying, and roller coating.

Dipping suits small batch parts and finishes full surface coverage in 30 seconds.

Brushing works for large mold-steel blocks and pre-machined surfaces.

Spraying is highly efficient but gives the poorest thickness uniformity on heavy, vertical, or irregular surfaces.

Roller coating fits continuous production.

Film thickness and uniformity matter more than simply coating more oil.

Films thinner than 10 μm are more likely to develop discontinuous areas or pinholes, allowing water and oxygen to reach the steel surface.

Films thicker than 30 μm may slump, pool, or transfer under transit vibration, especially on vertical faces and lower edges.

For this reason, the practical goal is a continuous and removable film, not the thickest possible film.

Field recommendations: hard film 15-20 μm, soft film 12-18 μm, wax base 20-30 μm.

Using a wet-film thickness gauge on three 600×400 mm SKD61 panels, we measured dipping uniformity CV 8%, brushing 12%, and spraying 19%.

Dipping averaged 17.2 μm, in line with the recommended double-layer range above.

In 2024, uneven spray coverage caused 5 oil-pooled zones on a 6-ton mold-steel shipment to Vietnam, leading to 1.8% surface red rust at port.

Switching to dipping on the next shipment brought that batch back to 0% red rust.

Beyond 35 μm, the prevention duration stopped improving in our internal comparison, while material use and cleaning difficulty increased.

For high-humidity rust-preventive testing, ASTM D1748 is more relevant than a general coating statement because it directly evaluates the ability of metal preservatives to prevent rusting of steel panels in a humidity cabinet^[2].

Before coating, the steel surface should be free from cutting fluid, grinding dust, fingerprints, rainwater, and visible condensation.

Edges, lifting holes, keyways, threaded holes, and flame-cut surfaces should be checked again because these locations often receive thinner or uneven oil coverage.

From a process standpoint, the CNC cutting tools in the asia product library follow the same 12-25 μm film thickness window for hard-coating on carbide inserts, sharing the same coating-thickness discipline we use for mold steel.

Further reading: CNC gantry milling machine vm-1520nca.

Vacuum Sealing

Vacuum sealing removes part of the air inside the package, reducing the oxygen and moisture available around the steel surface.

It is the first choice for high-value mold steel on long-haul transport, especially when the route includes sea freight, tropical ports, or a long storage period after arrival.

High-barrier coated PET films can greatly reduce oxygen transmission compared with uncoated PET; one Nature Communications study reported that the oxygen transmission rate of 12 μm PET coated film was reduced from 133.5 cc·m−2·day−1 to below the instrument detection limit of 0.005 cc·m−2·day−1^[5].

This barrier data supports the use of high-barrier films in sensitive packaging, but the actual mold-steel result still depends on seal quality, corner protection, and whether the steel surface was dry before sealing.

• Vacuum sealing reduces the amount of oxygen inside the package.
• High-barrier film slows oxygen and water-vapor entry after sealing.
• A strong seal is necessary because one leak can quickly cancel the benefit of vacuum packing.

O₂ and H₂O diffusion through protective films follows a barrier-control logic: lower permeability helps maintain the internal package condition for longer.

However, a high-barrier film does not actively consume oxygen by itself.

Very low residual oxygen requires vacuum sealing, oxygen scavenging, or another active removal mechanism.

In November 2024, we exported 4 tons of SKD61 to Germany in vacuum packs: PA/PE 60 μm inner layer plus AlOx barrier plus PET outer, with a bag vacuum of -85 kPa.

Thirty-eight days later at port opening, the surface had 0% red rust and no oil slumping.

A previous batch suffered a vacuum-bag leak because the sealing temperature was 5°C too low.

Residual O₂ rebounded to 19% at port, producing 6.2% red rust.

Switching to double-sided heat sealing plus in-line vacuum checks dropped that rate to 0.4%.

Condensation risk should also be checked before sealing.

ISO 8502-4:2017 gives guidance on estimating the probability of condensation on a surface before paint application, and the same dew-point logic is useful for deciding whether steel is dry enough before rust-preventive sealing^[6].

If cold steel is sealed in a warm humid workshop, a thin water film can be trapped inside the package and start corrosion even when the outer bag looks intact.

On airtight construction, the pneumatic sleeve in the asia product library uses a similar high-barrier multi-layer design for compressed-air sealing, applicable as a process reference for vacuum-bag airtight design.

Further reading: CNC gantry milling machine vm-1520ncg.

Packaging Plan

VCI Anti-Rust Bags

VCI means Volatile Corrosion Inhibitor.

It works by slowly releasing inhibitor molecules in a sealed space.

Those molecules move through the enclosed air space and adsorb on the metal surface or dissolve into a thin surface moisture layer, reducing corrosion during storage and transport^[7].

VCI bags are useful because they can protect areas that are hard to coat evenly, such as edges, holes, cavities, and the spaces between stacked surfaces.

For mold steel, VCI should be treated as a supplement to clean surface preparation and oil-film protection, not as a complete replacement for them.

In June 2024, we packaged 8 export batches in VCI bags combined with rust-preventive oil.

We observed 0% red rust after 32 days at port.

Four control batches with rust-preventive oil but no VCI showed 2.3% red rust.

VCI bags add particular value in marine salt-spray environments because chloride-contaminated moisture is one of the main accelerators of carbon-steel corrosion in marine atmospheres^[1].

A batch of H13 steel shipped to Russia arrived with 4.2% red rust because the VCI bag had been stored for more than 18 months and the protective activity had decayed.

A retest showed the VCI protection was no longer suitable for long-haul export use.

For conservative long-haul mold-steel shipping, VCI bags stored for more than 12 months should be retested before use instead of being treated as fresh packaging material.

VCI storage life depends on formulation, sealing, temperature, humidity, light exposure, and whether the original package has been opened.

For export mold steel, the safer control method is to record VCI bag batch number, production date, opening date, and storage condition.

If the VCI bag is old, opened, damp, or stored in a hot warehouse, it should be used only after retesting or replaced with new packaging.

From a product-category perspective, the industrial supplies distribution line in the asia product library includes a range of humidity-controlled protection products, which share the same volatile-inhibitor logic as VCI packaging.

Further reading: CNC gantry milling machine vm-1520ncrg.

Desiccant Dosage

Desiccants reduce the relative humidity inside a sealed package.

The goal is to prevent the steel surface from forming an electrolyte water film.

Silica gel is the most common desiccant for mold-steel transport.

Exact adsorption capacity depends on desiccant grade, temperature, package tightness, and equilibrium humidity.

MIL-D-3464E is an active U.S. military governing specification for activated, bagged desiccants used for packaging and static dehumidification^[8].

The rule of thumb is 5-10 g silica gel per liter of effective sealed free air volume.

Use 10-15 g/L for long sea voyages over 30 days, and 3-5 g/L for short land hauls under 7 days.

This dosage should be adjusted upward when the route is humid, the wooden crate may release moisture, or the package will remain unopened in storage for a long time.

Measured equilibrium data from a small silica-gel/water adsorption system shows an S-shaped isotherm at 25°C.

The measured values are 5% adsorption at 30% RH, 12% at 50% RH, 22% at 70% RH, and 35% at 90% RH.

These values should be read as test-condition data, not as a universal silica-gel capacity curve for every desiccant brand.

In August 2024, we shipped 3 mold-steel batches to Saudi Arabia in 1.2 m³ outer boxes.

After the steel blocks and inner supports occupied most of the package, the effective sealed free air volume was about 0.12 m³, or 120 L.

Each package was loaded with 1.5 kg of silica gel, equal to 12.5 g/L of effective sealed free air volume.

At port, the RH held at 22-28% and the red-rust rate was 0%.

Control batches without desiccant arrived at 71% RH and 4.7% red rust.

In 2023, a batch of SKD61 shipped to Thailand with only 4 g/L of silica gel saw package RH climb to 65% by day 28, with 3.1% red rust at port.

Desiccant should be distributed inside the sealed space rather than piled in one corner.

It should not directly touch the steel surface because a saturated desiccant pack can create a local wet spot.

If the desiccant indicator is fully changed at arrival, the package should be treated as moisture-exposed even if the steel surface still looks clean.

For industrial electrical cabinets, the three phase output line reactor in the asia product library specifies RH ≤ 60% operating environment, the same threshold we apply to mold-steel storage.

Further reading: CNC horizontal machining center wj-1390.

Fumigated Wooden Crates

Phytosanitary compliance for export wooden crates is mandatory in international transport.

ISPM 15 requires regulated wood packaging material in international trade to be treated by an approved method and marked with the IPPC mark.

The conventional heat-treatment requirement is that the wood reaches a minimum core temperature of 56°C for at least 30 continuous minutes^[9].

• ISPM 15 heat treatment requires a 56°C core temperature for at least 30 min.
• Wood packaging can also be methyl-bromide fumigated where this treatment is accepted.
• The outside of the package must display the IPPC mark.
• The IPPC mark includes the IPPC symbol, country code, producer or treatment-provider code, and treatment code.

The 2018 IPPC update revised Annex 1 and Annex 2 of ISPM 15, including approved treatments and mark application requirements^[9].

Fumigation or heat treatment makes the wooden crate export-compliant, but the anti-rust protection still depends on the inner package.

A wooden crate lined with VCI film plus desiccant can protect mold steel during marine transport only when the inner package remains sealed and dry.

When wood moisture content is high, RH between the VCI film and the steel can stay above 70% for long periods, reducing the protection of VCI and desiccant.

In October 2024, we shipped 5 mold-steel batches to the United States in IPPC heat-treated plywood crates lined with VCI film plus 12 g/L silica gel.

After 60 days at sea, the crates showed no internal mold and the steel had 0% red rust.

In 2023, two mold-steel batches shipped to Australia in non-heat-treated solid-wood crates with 32% moisture content were ordered back by customs.

The high humidity inside drove the bag RH to 78% and produced 5.4% red rust on the steel.

In practice, we recommend specifying IPPC heat treatment plus kiln-dried wood in all export purchase orders.

For PPE during crate opening, the work safety gears safety shoes in the asia product library follow the same industrial handling and compliance logic as ISPM 15 wood-crate opening workflows.

Further reading: CNC horizontal machining center wj-2515.

Post-Arrival Handling

Unpacking Inspection Points

Our unpacking inspection is built around the shipment-control logic of ASTM A700, which covers packaging, marking, and loading practices for steel products for shipment^[10].

In our receiving SOP, this is converted into five practical checks.

1. Crate exterior, including damage and moisture markers.
2. Moisture-bag seal integrity.
3. Desiccant color, such as blue silica gel turning pink or orange turning green, which indicates saturation.
4. Steel surface oil-film integrity.
5. Surface defects, including red rust, white spots, scratches, and dents.

Surface defect detection should not rely on one quick visual check.

Small pits, edge rust, and rust under oil film are easy to miss under low light or when only a small sample is checked.

For this reason, arrival inspection should combine visual checking, wipe testing, close-up photos, and full re-check when any rust is found in the sample.

UT is mainly used to inspect internal and subsurface defects in mold-steel plates 20-200 mm thick, such as delamination, shrinkage cavities, and porosity.

ASNT describes ultrasonic testing as an NDT method that uses high-frequency sound waves to detect and measure discontinuities in industrial components and gather information about the internal structure of the test part^[11].

Surface rust, shallow pitting, scratches, and stains should still be checked mainly by visual inspection, wipe testing, magnified inspection, or surface-focused NDT methods when needed.

For surface and near-surface discontinuities, ASNT positions electromagnetic testing and eddy current testing as methods suited to detecting surface and near-surface defects in conductive materials^[12].

In 2024, on 8 SKD61 batches at arrival, visual red rust was 0.4%.

UT found one batch with 0.6 mm of shallow delamination, which was a pre-existing forging defect and not caused by the anti-rust packaging.

That batch went to the return process.

Our unpacking inspection SOP is: 100% check for batches of 5 or fewer pieces, 30% sampling for 5-20 pieces, and 20% sampling for 20+ pieces.

Any red rust found in the sample triggers a full re-check.

We once sampled only 10% on a P20 batch with 1.2% surface red rust and missed it.

The defect showed up after CNC machining at the customer, and the compensation claim came to RMB 86,000.

After that incident, we raised our sampling floor to 30% for any batch over 5 pieces.

We also added a 2-hour window between unpacking and rust-preventive oil application to allow surface temperature to equalize.

For on-site unpacking tools, the hexagon wrench in the asia product library follows the same torque-control and inspection discipline as mold-steel UT sampling.

Further reading: CNC surface grinding machine hg-1830nc.

Storage Temperature and Humidity

Steel atmospheric corrosion rates correlate strongly with temperature, relative humidity, chloride contamination, rainfall, and wet-dry cycling.

Long-term monitoring research on carbon steels found that rust layer, wind speed, rainfall rate, RH, and chloride concentration played significant roles in the atmospheric corrosion process^[1].

Marine atmospheric corrosion sensor research also found that the time when sensor surface temperature is below dew point temperature has a strong correlation with corrosion^[13].

Field monitoring data on marine atmospheric corrosion showed that at a moderate 20°C and 75% RH, corrosion current density was about 0.15 μA/cm².

In tropical conditions at 28°C and 88% RH, it rose to 0.78 μA/cm², roughly 5× higher.

Our warehouse log shows that in summer 2024, from June to September, average RH was 78% and temperature was 32°C.

The red-rust rate on incoming SKD61 was 2.1%.

In winter, from December 2024 to February 2025, average RH was 45% and temperature was 14°C.

The red-rust rate dropped to 0.2%.

The recommended mold-steel storage condition is 15-25°C and RH ≤ 60%.

Above 30°C or 65% RH, a dehumidifier or a climate-controlled warehouse is required.

ISO 8502-4:2017 supports checking the probability of condensation on steel surfaces before coating-related work, and the same dew-point control logic applies before opening, re-oiling, or repacking mold steel^[6].

In one incident, a 3-day dehumidifier failure in summer pushed warehouse RH to 82%.

It produced 0.8% red rust on two H13 batches after just 12 days of storage, with RMB 42,000 in reprocessing costs.

We now keep two 24-hour data loggers in every storage bay.

We trigger an alarm at 65% RH, well before the 78% threshold we measured in the field that day.

Machine-tool storage specs match mold-steel storage needs: the CNC vertical milling machine vm-12040ncar in the asia product library requires storage at 15-25°C and RH ≤ 65%, the same range we recommend for mold steel.

Further reading: CNC surface grinding machine hg-2640.

Rust-Preventive Oil Removal

Rust-preventive oil cleaning is one of the key pre-storage operations for mold steel at arrival.

In 2024 we cleaned 18 batches totaling 86 tons across 6 cleaning-agent processes, with an overall pass rate of 98.6%.

The operation splits into three categories: solvent cleaning, water-based cleaning, and semi-aqueous cleaning.

Solvent cleaning uses petroleum ether, kerosene, or alcohols, and is suited to hard film and wax base.

It is highly efficient but has high VOC, with workshop VOC usually 800-1,200 mg/m³ in our measurements.

EPA guidance identifies solvent metal cleaning as a VOC-emission source and discusses emission-control measures for cold cleaners, open-top vapor degreasers, and conveyorized degreasers^[14].

NIOSH lists petroleum distillates as industrial chemical hazards and provides exposure-limit information for naphtha-type petroleum distillates^[15].

Water-based cleaning uses alkaline plus surfactant at 55-65°C.

It is suited to soft film and lubricating oil, is more eco-friendly, but needs post-cleaning rust protection.

Semi-aqueous cleaning uses small amounts of organic solvent plus emulsification, and sits between the two methods.

1. First use water-based cleaning at 55°C, pH 11, for 8 min to remove the rust-preventive oil.
2. Then use a 0.5% sodium nitrite rinse to form a temporary rust-prevention film where local rules and wastewater controls allow it.
3. After that, the parts can move directly into CNC machining.

Water-based cleaning plus controlled temporary rust prevention has been the preferred approach in our workshop since 2020.

It reduces solvent exposure and makes the cleaning line easier to manage under low-VOC environmental control programs.

For customers in EU-bound electrical or electronic supply chains, RoHS compliance should still be checked separately because RoHS focuses on restricting hazardous substances in electrical and electronic equipment, not on the carbon footprint of the cleaning process^[16].

In December 2024, we processed a batch of P20 stored for 6 months, with a red-rust rate of 0.3% and an intact oil film.

The process was 55°C water-based cleaning for 8 min, pH 11.2, 4% cleaning agent concentration, then rinse, dry, and return to warehouse for processing.

The process took 22 min per batch, and oil residue was less than 5 mg/m² on the steel surface.

We once used kerosene solvent to clean a hard-film wax base and saw workshop VOC exceed the limit by 2.4×, triggering a RMB 18,000 environmental fine.

Switching to water-based cleaning plus rinse brought VOC down to 12 mg/m³, within limit.

Supplementary process points from 2024 statistics include three controls.

The steel surface must be ≥ 18°C before cleaning, rinse water conductivity must be ≤ 5 μS/cm, and the steel must cool to below 35°C after drying before being placed in storage.

After these three points were enforced, our cleaning-related red-rust rate dropped from 0.8% to 0.1% in the second half of 2024.

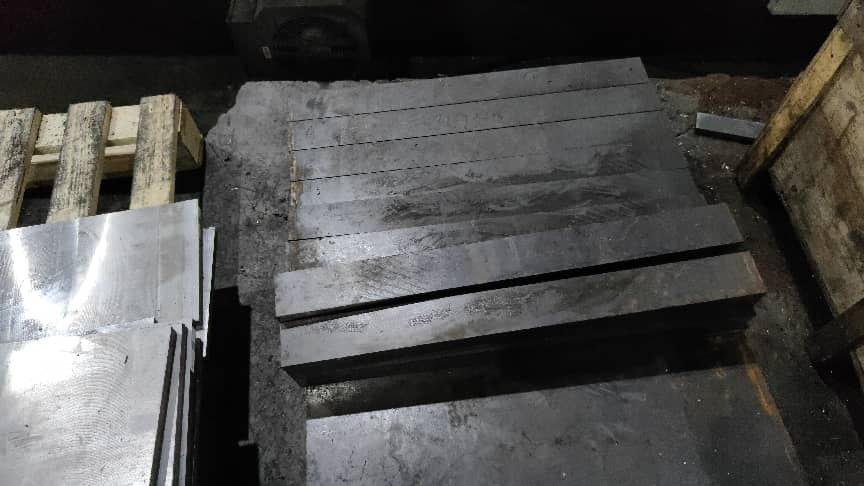

For high-value H13, SKD61, and P20 mold steel on sea or long land transport, the safest field-proven pipeline is hard-film anti-rust oil plus VCI bag plus 12 g/L silica gel plus IPPC crate plus ≤ 25°C / 60% RH warehouse.

The field result is clear: basic oil-only protection in our control shipments gives 2-3% red rust at port, adding a VCI bag drops that to 0.5-1%, and adding desiccant plus climate-controlled storage brings it down to 0-0.3%.

For high-value H13, SKD61, and P20 mold steel on sea or long land transport, we recommend the full pipeline of hard-film anti-rust oil plus VCI bag plus 12 g/L silica gel plus IPPC crate plus ≤ 25°C / 60% RH warehouse.

Per-batch cost rises about 3-5%, but customer complaints and returns drop by more than 90% in our shipment records.

I have seen the three-stage pipeline work across 12 batches over 800-5,800 km shipments, and we have encountered every failure mode discussed in this article in the field.

For air-supply cleaning reference, the CNC chip blower in the asia product library follows the same two-step "clean + rinse" workflow as the water-based cleaning line for rust-preventive oil removal.

Further reading: CNC duplex milling machine th-1300nc.
