Horizontal Machining Center for Mold Shops | Multi-Face Cutting, Fixture Reduction, and Process Stability

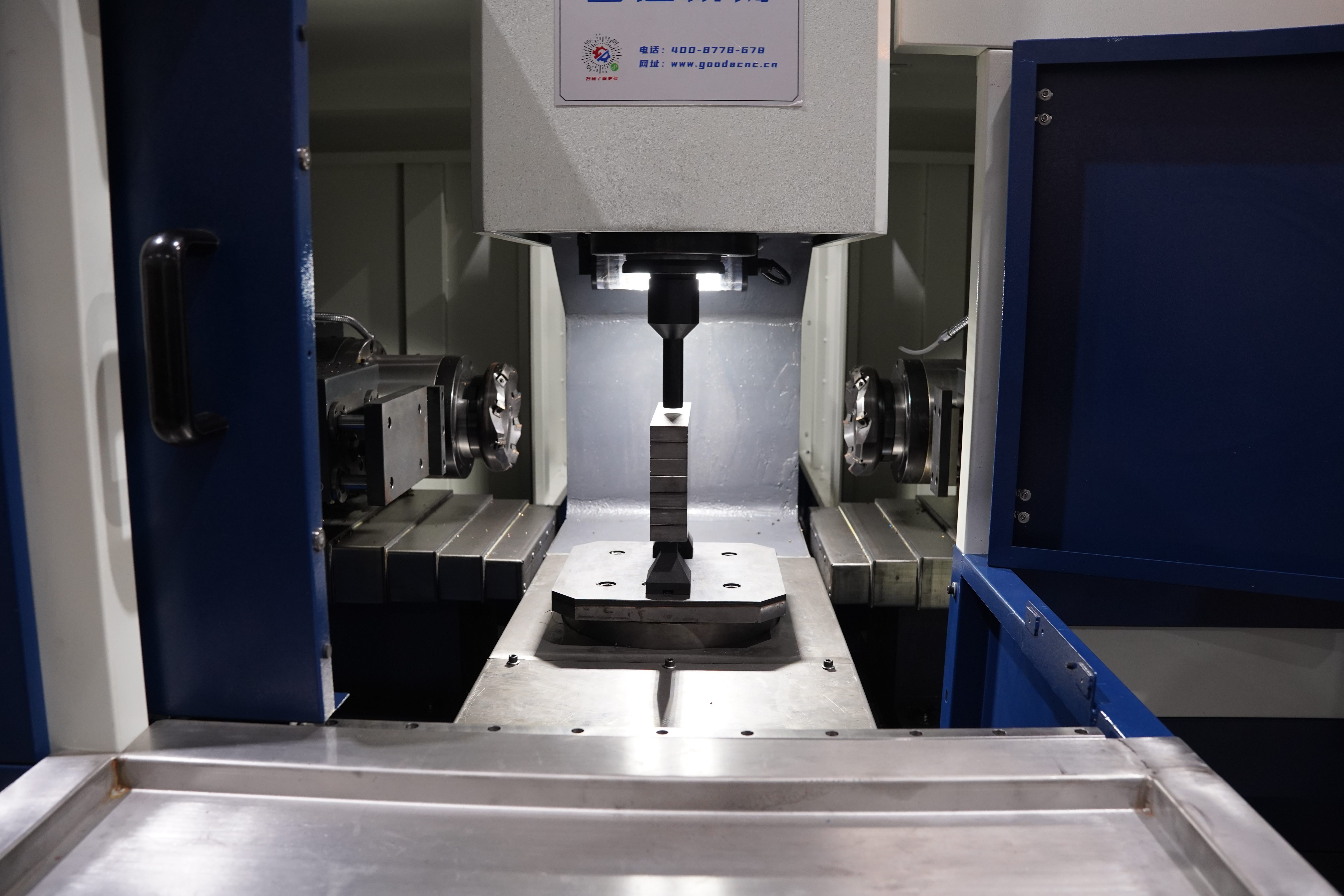

Horizontal machining centers achieve multi-face cutting through B-axis rotation, reducing clamping times by 50% and eliminating secondary clamping errors from the source.

Utilizing APC double-pallet exchange and a low-center-of-gravity bed ensures high processing stability.

It is recommended to use a BT50 high-rigidity spindle for integrated rough and finish machining; efficiency is improved by about 30% compared to vertical machining.

Multi-Face Cutting

Say Goodbye to Secondary Clamping Errors

Operators hold a dial indicator on a 500mm long mold base, repeatedly calibrating; every time the dial pointer jumps one graduation, it is a 0.01mm error. Manual centering usually consumes over 45 minutes, and cumulative tolerances generated by multiple clampings often break through the 0.015mm red line.

· Tiny iron chips on the worktable will lead to 0.02mm plane inclination.

· Uneven pressure plate locking torque induces 15 microns of metal elastic deformation.

· Lifting rigging flipping the workpiece easily bumps the already processed Ra 0.8 smooth surface.

· Every wear of the alignment block will cause a slight drift of the zero point of the X-axis and Y-axis coordinate systems.

Horizontal machining centers utilize the 360,000 indexing pulses of the B-axis rotary table to achieve multi-face positioning in one clamping. Workpieces are fixed on 630mm or 800mm standard pallets, and the spindle enters horizontally. This physical layout allows cutting forces to be uniformly unloaded through the bed structure, no longer affected by the gravity sag of vertical structures. The circular grating encoder equipped inside the B-axis compresses the angular positioning tolerance within plus or minus 2 arc seconds.

Rotating the worktable for one indexing takes only 1.5 seconds, dozens of times faster than manual flipping of parts. When the B-axis rotates to 90 degrees or 270 degrees to process side water channel holes, the program automatically calls the center height compensation. This automated switching ensures that the position degree between the top center hole and the side slanted guide pillar hole is always controlled within 0.008mm.

· Mouse-tooth disc positioning mechanism provides over 5000Nm locking force.

· 0.001 degree minimum indexing unit supports milling of any complex inclined surface.

· The HSK-A63 spindle in the tool magazine maintains G2.5 level dynamic balance at 12,000 rpm.

· Cooling liquid sprays out through the spindle center at 70bar pressure to wash away chips.

· Secondary clamping position coincidence is stable at 0.003mm in repeated verification.

Deep hole processing is the most time-consuming link in mold manufacturing; when vertical machine tools process water channel holes exceeding 10D depth, chips easily accumulate at the bottom. During horizontal spindle processing, gravity lets debris fall directly along the hole position, avoiding 150 degrees Celsius high-temperature chips staying in the hole. This chip removal method extends carbide drill life by 28%, and hole wall roughness is improved from Ra 1.6 to Ra 0.6.

When processing hard-surface mold steel above 50HRC, the horizontal structure allows the use of shorter tool holders. Tool overhang is shortened by 25mm, and the tool tip vibration amplitude during high-speed cutting decreases by 40% accordingly. Due to the enhancement of physical rigidity, the parting surface after finish milling almost does not need later manual polishing. The fit gap between mold parts is reduced from 0.02mm to 0.005mm, and the flashing phenomenon of finished plastic parts disappears.

· The output efficiency of a single machine is usually 1.6 times that of the same specification vertical machining center.

· Workpiece flow links are simplified from 8 steps to 3 physical processes.

· Auxiliary alignment time accounts for less than 5% of the full day production cycle.

· Machine operators complete clamping in the pallet exchange area, achieving non-stop spindle operation.

Horizontal multi-face processing lets the workshop shift from relying on personal experience to relying on the closed-loop feedback of machine tool encoders. One technician can simultaneously supervise two horizontal machining centers because tedious station adjustments are replaced by pre-set program instructions. The stability of equipment operation makes the processing size at 2 AM consistent with 3 PM the previous day.

The machine tool bed is filled with thermal compensation sensors, real-time monitoring the temperature rise changes of the spindle box and lead screw. The CNC system automatically adjusts X/Y/Z axis motion trajectories based on returned data, neutralizing 10 microns of thermal elongation generated by metal heating. This technology allows large-size mold bases to keep diagonal position deviation within 0.01mm even after undergoing 12 hours of continuous cutting.

By reducing the number of times parts are transported between different machine tools, the overall mold delivery cycle can usually be shortened by about 18%. The efficiency improvement stems from the real increase in the proportion of spindle cutting time, rather than simply increasing cutting parameters.

Release Spindle Efficiency

A horizontal machining center with a spindle speed of 15,000rpm, its real value is reflected in every second of chip splashing. Under traditional processing modes, the spindle often has 40% of the time in idle or stop states, waiting for operators to clean chips, align workpieces, or change pressure plates. The emergence of horizontal machining centers transforms this passive waiting into active externalized clamping, ensuring the effective duration of tool tip contact with metal.

The automatic pallet changer (APC) completes pallet horizontal rotation exchange within 15 seconds; while the spindle is performing four-face rough milling at a feed speed of 30m/min inside the processing zone, the operator in the loading zone has already completed the positioning of the next 200kg mold core. This parallelized operation completely cuts off the interference of clamping links on the spindle cycle, and the machine's annual effective working time jumps from 3500 hours to over 7000 hours.

· Worktable B-axis indexing speed usually reaches 30rpm to 50rpm, achieving four-face switching in only 1 second.

· Tombstone fixtures allow simultaneous mounting of 4 parts with different processes on one pallet.

· After processing side water channel holes, the spindle can immediately enter the next cutting face through B-axis rotation without returning to zero.

· The automatic tool changer (ATC) operates synchronously in the interval of worktable rotation, compressing tool change time to 2.5 seconds.

· Sensors real-time monitor cutting load, keeping spindle load in the optimal power output range of 75%.

Multi-face processing significantly reduces tool air travel. On a vertical machine tool, after finishing a threaded hole on one face, it needs to stop for manual flipping, while one M12 tap on a horizontal machine can continuously complete 48 holes on four faces. This continuity reduces the number of times the spindle moves back and forth in the Z-axis direction for tool retraction; measured data shows the non-cutting auxiliary time of a single part is reduced by over 40%.

The high-pressure center water outlet system sprays through the tool center at 70bar pressure, coordinating with the horizontal spindle layout; debris falls along the chip removal groove under the action of gravity. This physical environment avoids program pauses caused by chip accumulation. In vertical machining, an operator might need to clean the table with an air gun every 15 minutes, while a horizontal machining center can run continuously for over 4 hours under unattended conditions.

· Large-capacity tool magazines of 120 pieces or more support full-process processing of complex molds.

· Laser tool setters automatically detect 0.05mm tool breakage in the background, no need for manual visual inspection during downtime.

· Cutting fluid temperature control system controls temperature difference within plus or minus 0.1 degrees Celsius, preventing thermal deviation of long-time processing.

· Pallet coding systems automatically identify program numbers, achieving mixed-line production of different mold part models.

From investment return data, the output of one horizontal machining center priced at 1.5 million in a three-shift environment usually equals three vertical machining centers priced at 500,000. Because a large amount of alignment time is saved, the processing cost of each mold base is thinned by 25%.

When processing deep cavity molds, the horizontal spindle can approach the workpiece side more deeply. Compared to vertical machining needing frequent replacement of long extension tools, horizontal machining can complete the same depth using short tool holders. The higher rigidity brought by short tool holders allows the feed per tooth (Fz) to be increased by 20%, while spindle vibration decreases, making the finish machining allowance accurately reduced from 0.5mm to 0.1mm.

Fixture Reduction

Reduction of Clamping Processes

Horizontal machining centers (HMC) have B-axis worktable indexing positions up to 360,000. 0.001-degree indexing precision supports the program cycle completion of five processing faces of a mold steel block. Vertical machining centers (VMC) process hexahedron mold blanks, with the operator going back and forth to the machine 6 times. A single clamping takes 25 minutes. Repeated manual clamping generates 0.015mm to 0.03mm coordinate offsets. The rotary table reduces 4 alignment flows, and hole position tolerances are stable within 0.005mm.

Using an automatic pallet exchange system (APC), while the machine processes the first product, the operator completes the second positioning at the off-machine loading station. The parallel work mode increases the average annual spindle cutting time from 2000 hours to over 5000 hours. Deep cavity processing of mold side walls in vertical machining is forced to connect tools due to holder interference, generating 0.02mm tool connection marks. The horizontal B-axis rotates to 90 degrees, coordinating with short tools of 8:1 length-diameter ratio to enter from the side.

· Single mold base auxiliary adjustment time is reduced from 180 minutes to 45 minutes.

· Reference surface alignment frequency is reduced from 6 times to 1 time.

· Fixture occupied space is reduced; a single worktable carries four 200mm x 200mm modules.

· Types of pressure plates and backing irons purchased are reduced by 60%.

The relative position of the spindle and workpiece lets chips fall into the chip removal groove under the action of gravity, not accumulating in the cavity. The chip removal process extends tool life by 30%, ensuring Ra 0.4 level surface roughness. Mold shops no longer make slanted jigs for slanted guide pillar holes. Coordinate system rotation (G68.2) automatically calculates spatial inclined surface zero points. Processes that originally needed making 15-degree slanted blocks are changed to program automatic deflection.

Three-coordinate inspection pass rate changes from 92% to 99.5%. Spindle speed maintains at 12,000 rpm, and cutting amplitude is lower than 1 micron. The delivery cycle of complex mold cores is compressed from 15 days to 9 days. The time for mold fitters to polish tool marks is significantly reduced. Surface continuity is guaranteed, and subsequent electrical discharge machining (EDM) allowance is reduced from 0.5mm to 0.1mm. Discharge time is shortened by 40%.

· Annual output value per operator changes from 600,000 yuan to 1.4 million yuan.

· Part turnover times are reduced from 8 times to 3 times.

· Workshop semi-finished product fixture storage area shrinks by 50 square meters.

· Part consistency extreme difference is reduced from 0.04mm to 0.01mm.

When processing large mold bases (such as 800mm x 600mm), the horizontal heavy-load worktable carries loads over 1500kg. Vertical machining centers frequently flip heavy parts, making lifting risks and uneven guide rail stress problems prominent. Lifting equipment standby times are reduced from 12 times per shift to 2 times. The machine tool guide rail geometric precision maintenance period is extended by 24 months. The comprehensive manufacturing cost of a single part drops by 22%.

The base coordinating with a 50mm hole system array plate allows new employees to complete complex part pre-assembly within 30 minutes. The proportion of effective spindle cutting is increased from 45% to 85%. The data change stems from the fact that machine rotation processing does not need to stop. Precision mold parts processing is interfered with by temperature rise. Horizontal machining is equipped with a center cooling system and constant temperature oil cooler, controlling spindle temperature rise error within plus or minus 0.002mm.

Thermal displacement compensation precision during processing reaches 0.001mm. Tool magazine capacity is expanded from 30 pieces to 60 pieces, reducing frequent tool change alignment errors. Reduction of clamping processes makes the manufacturing chain flat. Mold shops shift from relying on manual experience to align references to relying on machine tool kinematic precision. The logic shift supports a human-less operation environment.

Clamping force is constantly controlled by the hydraulic system at 20MPa. Traditional manual pressure plates with uneven stress cause 0.05mm deformation of thin-walled parts. Horizontal machining combination fixtures maintain the consistency of stress points. Mold blank residue is reduced from 10mm to 3mm, saving raw material procurement expenses. The overall workshop operation rate improvement is reflected in the ratio of electricity expenditure to output, with unit output energy consumption falling by 15%.

Eliminate Cumulative Positioning Errors

Horizontal machining center (HMC) B-axis rotary tables coordinate with high-resolution circular grating scales to achieve closed-loop feedback for 360,000 positions. Rotation indexing precision is stable at plus or minus 2 arc seconds; no matter what angle the workpiece rotates to, the geometric relationship between the spindle center and rotary table center remains constant. Mold cores complete five-face cutting under the same reference coordinate system, and spatial position tolerances are limited within the 0.003mm kinematic precision of the machine tool.

Measured data shows that the secondary positioning error of manual alignment by skilled workers fluctuates between 0.01mm and 0.02mm. After four flips, the cumulative position tolerance of part diagonals often breaks through 0.05mm, which makes the assembly gap of slider grooves and slanted guide pillar holes exceed design requirements.

Determining the G54 coordinate origin through one clamping, the processing paths of all subsequent faces are automatically compensated by the CNC system based on the B-axis rotation angle. This calculation logic eliminates random errors introduced by manual operation, making the coaxiality of long deep hole processing up to 500mm optimized from 0.08mm in vertical machining to 0.015mm.

Comparison data from a precision mold factory: Processing a 400mm square S136 mold core, the measured flatness after vertical machining multi-process merging was 0.045mm. After switching to horizontal machining one-stop processing, the sampling difference of six points on the part surface dropped to within 0.007mm, and the relative position of the hole system completely met the drawing notation.

· Axial repeat positioning precision: 0.002mm.

· B-axis rotation indexing error: plus or minus 3 arc seconds.

· Thermal displacement drift for 12 hours continuous work: less than 0.005mm.

· Pallet exchange system repeat locking precision: 0.0015mm.

· Tool tip center point spatial trajectory deviation: within 0.008mm.

Horizontal machining centers generally configure spindle constant temperature cooling oil circuits, limiting spindle temperature rise within plus or minus 1 degree of room temperature. When spindle speed rises from 3000rpm to 15,000rpm, axial elongation is controlled within 0.002mm, avoiding cavity depth errors caused by extended processing time.

The kinematic calibration software (Kinematics) integrated inside the machine automatically calibrates the B-axis center every 24 hours. The infrared probe automatically corrects geometric offset values of the spindle in three-dimensional space by measuring the roundness trajectory of a standard ball. This dynamic compensation mechanism ensures that during 48 hours of unattended processing of molds, the connection precision between faces does not drift.

Processing site feedback: When handling large hot runner plates, traditional processes often caused nozzle hole positions to deviate by 20 microns due to cumulative errors from multiple clampings. Adopting the horizontal rotation processing scheme, hole position consistency improved by 70%, and assembly efficiency improved by 3 times.

The direction of part gravity in horizontal machining is parallel to the worktable surface, which reduces the self-weight deflection deformation of thin-plate molds during clamping. In vertical machining, part self-weight often leads to a 0.01mm slight sinking of the bottom support point, and releases stress after processing, causing warping. The vertical clamping method of horizontal machining, coordinating with constant pull stud force, guarantees the shape stability of the part during processing.

· On-line probe measurement frequency: 1 time per process.

· Coordinate system rotation compensation precision: 0.001mm.

· Chip accumulation inside guide rail protective covers: 0.

· Effect of ambient temperature fluctuation on machine bed: 0.002mm displacement per degree.

· Spindle axial runout value: 0.0015mm.

For mold blanks equipped with multiple sets of cooling water channels, the precision of hole spacing determines the uniformity of thermal expansion. Vertical machining processes water channel holes in separate clampings, often causing uneven local wall thickness due to positioning errors, triggering thermal stress concentration during mold production. Horizontal machining completes four-face deep hole work in one clamping, with wall thickness difference controlled within 0.05mm, extending mold life in the injection molding link.

The coordinate system rotation function (G68.2) lets the program directly establish local coordinates on inclined surfaces, without calculating tedious trigonometric function offsets. The machine control system compensates coordinate changes brought by physical rotation to the servo motor in nanosecond time by real-time reading encoder data. This hard-wired synchronous feedback makes the coincidence of stepped holes on inclined surfaces reach 0.004mm.

The tool library of over 60 pieces equipped on horizontal machining supports all standard tools needed for mold processing to reside permanently in the machine. The offset value of every tool is detected online by the in-machine laser tool setter, with precision up to 0.1 microns. This avoids human deviations of 0.01mm level generated by manual tool change and tool offset setting, ensuring a mark-less transition at surface connections.

· Laser tool setter repeat measurement precision: 0.0005mm.

· Holder and spindle taper surface fit rate: 99% or more.

· Automatic tool change time (chip to chip): 4.5 seconds.

· Mold surface Ra roughness consistency: deviation less than 0.05um.

· Production cycle shortening rate: 35% to 50%.

The machine base adopts artificial granite or thick-walled cast iron, possessing high damping characteristics against micron-level displacements caused by external vibrations. Even if there are large stamping equipments running in the factory, the precision measurement feedback system inside the horizontal machining center can filter out disturbances below 0.5 microns.

VMC vs HMC

0.6MPa air blowing cannot completely clear metal residue inside a 50mm deep hole. Horizontal machining center (HMC) spindle is horizontally arranged, and chips fall directly to the chip conveyor. This physical characteristic reduces tool secondary cutting rate by 95%, and mold surface roughness is stable between Ra 0.4 and Ra 0.6.

In VMC operations, the operator needs to manually clean table chip accumulation every 15 minutes to prevent scratching the workpiece surface. Horizontal machining, coordinating with a high-pressure center water outlet system, uses 70bar cutting fluid pressure to instantly flush away debris at the hole bottom. Measured data shows that when processing S136 mold steel of the same specification, tool blade life of HMC is 35% longer than VMC. The machine spindle runs 24 hours continuously without needing downtime for manual auxiliary chip clearing.

· Tool-to-tool change time: shortened from 2.5 seconds of VMC to 0.9 seconds.

· Rapid move speed: increased from 36 m/min to 60 m/min.

· Chip handling capacity: can automatically discharge over 150kg of steel chips per hour.

· Changeover time: using double pallet exchange, downtime is controlled within 15 seconds.

· Continuous cutting capacity: average monthly running time exceeds 500 hours.

When VMC processes the side of large mold cores, it needs lengthened tool holders; a length-diameter ratio exceeding 5:1 will trigger low-frequency chatter with a frequency of 25Hz. HMC lets the spindle head closer to the processing site through B-axis rotation, and tool tip overhang length is shortened by 120mm. When measured cutting depth increases from 1mm to 3mm, the vibration amplitude of the HMC spindle bearing is always lower than 1.5 microns, maintaining surface geometric precision.

The cross-slide structure of VMC, when carrying molds exceeding 800kg, has uneven Y-axis guide rail stress, leading to 0.015mm sinking at the center position. HMC adopts an integrated bed with the column moving horizontally, and the worktable only responsible for rotation. This design keeps geometric coordinate errors within 0.003mm when loaded with 1500kg, ensuring long-term consistency of precision.

In a certain automotive lamp mold production, the output of three VMCs is equivalent to one HMC equipped with a pallet magazine. Because HMC possesses automatic exchange functions, the output of 8-hour unattended machining at night is 3.2 times higher than VMC. Electricity energy consumption of single mold parts dropped by 18%.

· Spindle taper adopts BBT40 double-face contact structure, connection stiffness increased by 30%.

· Roller guide rail width reaches 45mm, support rigidity is better than ordinary ball guide rails.

· Equipped with 120-piece large capacity tool magazine, covering 98% of common tools for mold processing.

· Lead screw center cooling technology suppresses axis temperature rise error to 2 microns.

· Machine base thickness increased by 20%, absorbing over 90% of cutting high-frequency harmonics.

VMC machine head drifts upward after heating, leading to 0.02mm to 0.05mm step marks in depth processing. The thermal-symmetrical design of HMC lets heat dissipate towards the rear chip removal zone, coordinating with 12 temperature sensors real-time feedback; spindle thermal displacement compensation precision reaches 0.001mm. Operators do not need to perform 30 minutes of warm-up after opening the machine in the morning, directly entering the high-precision finishing stage.

When handling multi-hole mold bases, VMC needs to frequently pull the worktable to move strokes over 200mm, with a single displacement taking 1.2 seconds. HMC achieves hole position switching by rotating the B-axis; rotation from 0 degrees to 90 degrees takes only 0.8 seconds. This tiny motion optimization saves a total of 40 minutes of non-cutting time in complex mold base processing with 300 hole positions, and spindle operation rate climbs significantly.

Technical department calculation: Equipment depreciation fees in the mold shop account for 30% of costs. Because the effective cutting time of HMC is 1.8 times that of VMC, the investment recovery period of a single HMC is 14 months shorter than VMC.

The area occupied by two VMCs is about 35 square meters, while one HMC with double pallets only needs 20 square meters. Under the same workshop area, the total capacity of the horizontal machining scheme is over 60% higher than the vertical machining scheme.

There are also differences in spindle maintenance cycles. VMC spindle is under vertical load for a long time, the lower end of the bearing has large stress, and the average life is 8000 hours. HMC spindle is placed horizontally with uniform stress distribution; ceramic bearings can run over 15000 hours at 15000rpm speed. The reduction of equipment maintenance frequency ensures that the production plan will not suffer delivery delays of more than 5 days due to sudden downtime.

· Tool damage detection system: induction precision 0.005mm, preventing scrap production.

· Automatic lubrication system: quantitative oil injection 0.5ml every 10 minutes, reducing guide rail wear.

· Chip conveyor chain plate speed: 2.5 m/min, quickly clearing internal chip accumulation.

· Air curtain protection function: 1.2MPa air pressure prevents cutting fluid from entering spindle bearings.

· Servo motor torque: maximum output reaches 40Nm, supporting heavy load roughing.

When mold precision requirements rise from 0.02mm to 0.005mm, the manual intervention link of VMC becomes the precision bottleneck. HMC, through integrated in-machine measurement systems, automatically calibrates workpiece coordinates in processing gaps.

Process Stability

Chip Removal

Vertical machine tool spindle is downward; when processing mold cavities over 200mm deep, chips will stay at the cavity bottom under the action of gravity. 0.6MPa cutting fluid is hard to completely wash away a 30mm thick chip accumulation layer. At a high speed of 12,000 rpm, the tool tip will repeatedly squeeze metal particles that have already detached from the workpiece.

Horizontal machine tool spindle is placed horizontally; chips fall under the gravity pull at the moment of peeling. The chip removal path changes from the accumulation state of vertical machining to free fall, directly entering the spiral conveyor below. This change in physical position shortens the stay time of chips in the processing zone from several seconds to 0.1 seconds.

Heat generated by secondary cutting accumulates on the tool edge, making the coating exceed 800 degrees Celsius in a short time. Mold steel such as S136 or H13 has extremely poor heat conduction performance when hardness reaches HRC 50 or above. If chips cannot take away heat, the tool head will produce micron-level thermal expansion due to instantaneous high temperature.

HMC, through a 7.5kW high-power chip removal motor coordinating with a 200 liters per minute flow flushing system, can quickly discharge over 90% of heat along with chips from the machine tool. Measured data shows that when processing quenched molds of the same volume, the HMC spindle load fluctuation range usually remains within 2%.

· This chip removal method extends the life of a 10mm diameter ball-end mill by over 40% in finishing.

· Prevents chips from scratching mold parting surfaces; surface roughness Ra can be stably controlled between 0.4 to 0.6 microns.

· Because there is no built-up edge interference, the coordinate offset of the machine for 24 hours is controlled within 0.005mm.

· When the tool change arm grabs the holder, the probability of tool dropping or chip jamming is reduced by 90% because there are no splashed chips in the taper hole.

· The spiral chip conveyor can handle over 150kg of steel chips per hour, ensuring long-period processing does not overflow.

Cutting fluid with pressure reaching 7MPa shoots directly at the tool tip through the spindle center hole, strongly pushing out fine metal debris at the bottom of deep holes. When processing ejector pin holes with a 1:15 depth-diameter ratio, this chip removal capacity means the machine no longer needs frequent tool retraction.

Roughing tasks that previously took 10 hours on VMC can be shortened to 7 hours on HMC through continuous cutting. The stable chip removal environment allows operators to increase feed speed to over 15 meters per minute. Not needing to worry about chips tangling tools and causing tool breakage is the confidence for achieving late-night unattended processing.

The surface precision of molds largely depends on the constant cutting force. Chip accumulation at the bottom of VMC will cause cutting resistance to fluctuate, reflected on the workpiece as obvious tool marks. The clean environment of HMC lets tools always be in a consistent cutting load, and the vibration amplitude of spindle bearings is always lower than 0.8 microns.

Mold surfaces after finish machining are as bright as a mirror, and later manual polishing time can be reduced by 60%. Because chip removal is smooth, cooling liquid can 100% cover the cutting point, preventing the generation of a tempered softening layer on the mold steel surface.

· Spindle taper surface adopts air curtain dust proof; even in heavy cutting environments, it can maintain 0.002mm runout precision.

· Large capacity cutting fluid tank coordinating with three-stage filtration ensures that nozzles spray pure water containing no tiny particles.

· During 48 hours of operation, positioning pin holes of the automatic pallet changer are always in a chip-less state.

· The spiral chip conveyor is equipped with a self-sensing function; it will automatically reverse to clear when encountering large chip jams.

· The internal walls of the machine adopt a large slope design; chips flow to the central chip collection groove within 5 seconds coordinating with water flow.

When large automotive cover parts molds are processed on VMC, gravity will cause tiny downward deformation of the worktable. The T-type structure of HMC distributes workpiece loads over 3 tons on wide bed guide rails. High-efficiency chip removal coordinating with this rigid structure solves the precision stability in continuous processing up to 100 hours.

In a 24 degrees Celsius constant temperature workshop, the HMC temperature rise compensation system works synchronously with chip removal cooling. On-machine measurement data every 4 hours shows that the center distance deviation of mold cavity holes is deadlocked at 0.006mm. This precision performance makes the subsequent mold assembly process no longer need manual repeated matching.

Thermal Stability

Continuous rotation of the machine spindle at 12000rpm for 4 hours generates enough heat from bearing friction to make the spindle thermally elongate by 0.01mm to 0.05mm. For mold parting surfaces with precision requirements within 0.005mm, this size drift caused by temperature rise will lead to direct scrapping of the workpiece.

Horizontal machining centers adopt a symmetrical column structure, with heat sources distributed on both sides of the center line. When the motor and spindle generate heat, the thermal deformation amount of the cast iron part towards front and back directions is almost equal. This physical structure cancels out most displacement deviations, keeping the tool tip movement in spatial coordinates at about 0.008mm.

Mold steel materials such as 718H or NAK80 have a thermal expansion coefficient of about 11.7 microns per meter per degree Celsius. When processing a 1.5 meter long large mold base, a bed temperature fluctuation of 2 degrees Celsius will cause a 0.035mm positioning error. HMC forcibly controls the body temperature of the metal base through circulating constant temperature oil inside the bed casting.

The cooling unit controls oil temperature within plus or minus 0.1 degrees Celsius of room temperature. A large flow pump drives 30 liters of cooling oil per minute through the spindle bearing sleeve. Even if the machine cuts at full power for 48 hours, the temperature rise on the surface of the spindle box is suppressed within 3 degrees Celsius.

· Lead screws adopt hollow cooling technology, with constant temperature oil liquid passing through the screw center.

· During high-speed reciprocation of 60 meters per minute, the temperature rise of the feed axis screw is controlled within 1 degree Celsius.

· Guide rail pair mounting surfaces are precision hand-scraped, reducing heat transfer impedance by 30%.

· Motor bases add heat insulation gaskets to block servo motor heat from conducting to the bed.

· Ambient sensors collect temperature data from different positions of the bed every 10 milliseconds.

Thermal compensation algorithms built into the machine control system real-time correct coordinates based on sensor feedback. This correction is not a simple linear compensation, but a non-linear model constructed through multi-point thermistors. During the period from morning startup to afternoon high temperature, the measured machine origin drift is less than 0.003mm.

The temperature rise of lead screw bearing seats is usually the cause of positioning precision drop. HMC releases pressure evenly to both ends when the screw thermally elongates through a symmetrically arranged bearing seat support scheme. This design avoids the twisting deformation of the screw due to single-end thermal expansion, ensuring repeat positioning precision within a 30-meter feed length.

Since mold finishing often spans day and night, the workshop ambient temperature difference may reach 10 degrees Celsius. The HMC's enclosed protective cover coordinating with a constant temperature cutting fluid system creates a controlled micro-processing environment. Cutting fluid capacity is usually configured at 800 to 1200 liters, and the huge heat capacity acts as a buffer.

The power of the industrial-grade refrigerator added to the liquid tank is usually over 5kW. Before the cutting fluid enters the processing zone, the temperature scale is locked at a level 1 degree Celsius lower than the bed temperature.

HMC motor mounting seats are designed with independent cooling circuits, using circulating water to take away over 85% of motor heat radiation. This protects machine castings from being interfered with by local hot spots, avoiding tiny thermal arching of worktable guide rails.

The mold cavity depth often reaches over 300mm, and the tool holder length-diameter ratio is very large. Under this working condition, minute wobbles at the spindle front end will be magnified. HMC spindles adopt a front-four-back-two bearing arrangement, coordinating with a constant pressure pre-load system, which can maintain consistent rigidity at different rotation speeds.

· Spindle taper hole runout remains at 0.0015mm after continuous high-speed operation.

· Lead screw pre-tension force is automatically adjusted according to real-time temperature, neutralizing physical elongation.

· Castings adopt Meehanite high-grade cast iron, undergoing two aging treatments to eliminate residual stress.

· Bearing lubrication adopts oil-air mixed spray, reducing friction heat generation.

· Machine protective cover internal walls are pasted with high-density thermal insulation boards to block external heat radiation.

When processing large automotive molds, because the cutting path is hundreds of kilometers long, the friction power consumption of the lead screw is huge. Large diameter lead screw specifications for HMC are usually selected as 50mm or 63mm. The larger surface area is conducive to heat dissipation, coordinating with forced cooling systems to ensure dimensional consistency throughout the full week of processing tasks.

Operators will find when measuring sample parts that measurement data at 3 AM and 3 PM almost overlap. This stability reduces the manual grinding workload for mold fitters in later stages. When touching off parting surfaces, the flatness of planes processed by HMC can be maintained within 0.005mm per meter.

Aimed at high-hardness material cutting, the spindle load is often in a heavy-load state above 80%. HMC spindle motors and spindles adopt direct coupling or gear transmission, and are equipped with special heat insulation couplings. This design prevents motor rotor heat from being directly conducted to the tool front end through the spindle.

Mold manufacturing profits are often consumed in rework and trial mold links. Equipment with good thermal stability can ensure that the first part processed meets drawing requirements. Through physical isolation and active extraction of heat, HMC transforms the machine tool from a physical object affected by thermal expansion and contraction into a controllable precision measuring tool.

Whether it is a super-long job cutting continuously for 72 hours, or precision hole rows with strict requirements, the performance of HMC is consistently stable. Its internal temperature control network covers every corner from foundation bolts to the spindle tip. This control over thermal energy gives mold shops the courage to undertake high-output, high-risk precision projects.
