Duplex Milling Machine vs Conventional Milling | Which is Better for Squaring

Duplex milling machines have higher efficiency, allowing for simultaneous processing of both sides in a single clamping; parallelism can reach within 0.02mm, making them suitable for batch square material alignment.

Traditional milling machines require multiple clampings, with accumulated errors of about 0.05mm, but they offer strong flexibility, suitable for small batches or complex workpieces.

Duplex milling should first calibrate the reference surface, then set the feed at 0.1–0.3mm/tooth to ensure precision.

The Efficiency & Throughput Angle

Clamping Process Comparison

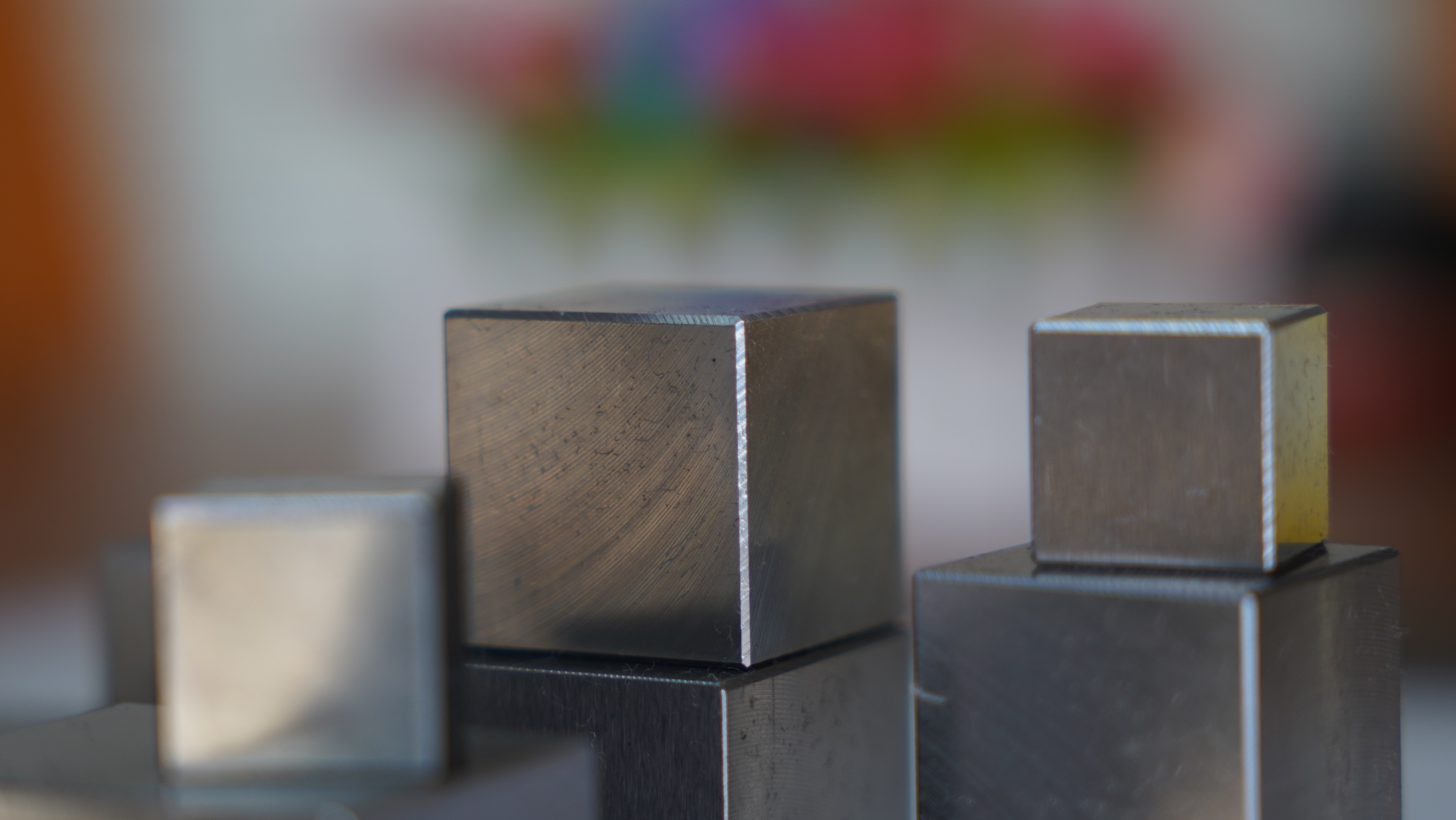

An operator processing 300mm×300mm×100mm S50C mold steel square material finds that the physical exertion of repeatedly moving workpieces accounts for 35% of the daily output. Traditional vertical milling for processing every single face must go through a cycle of loosening the vise, cleaning 0.02mm thick residual iron chips, and re-finding the edge.

Manual calibration of the worktable perpendicularity usually consumes 12 to 15 minutes, during which the spindle is in a static state; the lost electricity and labor costs per hour amount to approximately 50 RMB-sided radial pressure forces the workpiece to shift to one side, causing the angle between the processed surface and the unprocessed surface to be unable to lock at 90.00 degrees.

The duplex milling machine's spindle boxes are placed oppositely left and right, with the spindle speed set at 950RPM, cooperating with a 0.12mm tooth feed rate. 15kW drive motors drive the φ200mm carbide cutter discs on both sides to feed synchronously; the workpiece receives two radial cutting forces of equal magnitude and opposite direction. The mechanical forces cancel out at the geometric center of the workpiece, and the lateral thrust, which was originally as high as 500N, disappears.

The machine base weight reaches 5.5 tons, absorbing high-frequency vibrations; the cutting depth (Ap) can increase from 1.5mm to 4.5mm without producing squealing. The processing cycle for each set of parallel surfaces is compressed to within 135 seconds. There is no need to loosen the pressure plates multiple times; the workpiece reference surface always fits the guide rails, and the processing precision is guaranteed by the machine's XY axis perpendicularity, rather than relying on manual dial indicator adjustment.

· 250mm range dial indicator edge finding

· 0.6MPa compressed air flushing of residues

· 125Nm torque wrench tightening bolts

· 24kg push-pull force test for stable positioning

· 6 repeated flipping and positioning actions

S50C medium carbon steel plates under traditional processes undergo 6 cycles, involving 1080 seconds of non-cutting waiting time. Duplex equipment only requires 3 cycles, and the total downtime is shortened to 240 seconds. Measuring a 300mm length workpiece, the parallelism produced by the duplex milling machine is stable within 0.012mm, superior to the industry standard requirement of 0.02mm.

In an 8-hour shift, the operator only needs to bend over for loading and unloading 160 times, compared to 480 times with the traditional method; physical expenditure is reduced by 66.7%. During aluminum alloy 6061 mold base processing, the feed speed increases to 1600mm/min. The heat generated by duplex synchronous cutting is carried away by a circulating water pump at a flow rate of 45 liters per minute; the workpiece temperature rise is controlled within 4 degrees Celsius, avoiding dimensional deviations caused by thermal expansion and contraction.

When traditional milling machines process high-hardness materials (such as HRC38 pre-hardened steel), cutting force fluctuations lead to tool tip chipping. Duplex equipment controls feed torque through servo motors, with a load fluctuation rate lower than 2.5%, extending the service life of coated inserts. One standard mold steel manufacturing unit, configured with the output of 4 traditional milling machines, can be surpassed by 1 duplex milling machine combined with a semi-automatic conveyor belt.

The equipment footprint is reduced from 25 square meters to 10 square meters, increasing the output value per unit of factory floor area. Observing the load meter on the machine panel, traditional milling cutting shows fluctuation amplitudes reaching over 18%. The duplex milling machine's load pointer remains almost stationary, proving the vibration suppression capability of bilateral cutting. The surface roughness Ra value is stable between 0.8 and 1.5.

· Comprehensive processing time per piece reduced by 58%

· Insert service life extended by 25%

· Electricity consumption per kilogram of chip removal reduced by 18%

· Operator flipping frequency reduced to one-third of the original

· Scrap rate reduced from 3% to 0.2%

The investment recovery period is calculated based on a daily output of 55 pieces; under the traditional model, labor costs account for 48%. After switching to duplex equipment, the allocated labor cost drops to 13%, and the net profit per kilogram of finished product increases by about 3.8 RMB. When milling Cr12MoV mold steel, dual-axis cutting reduces one-way compression deformation. Traditional methods for processing 150mm thin plates are prone to arch bending, with mid-convexity often reaching 0.06mm.

Duplex symmetrical forces cancel out the deformation tendency; cutting fluid pressure is maintained at 35Bar, strongly flushing the inner side of the spindle. Dual-axis center-out-water technology keeps the insert temperature constant even after cutting for a 350mm stroke. The machine CNC system monitors spindle load; when one side's insert wear produces a resistance difference of more than 5%, it will automatically compensate the feed speed.

Facing orders of more than 600 pieces in batch, the delivery cycle of traditional milling machines is usually 15 days. The duplex milling machine completes it within 6 days, and the warehouse turnover rate has doubled. Internal factory logistics pressure is relieved; forklift round-trip handling times are reduced from 80 times to 30 times per day.

The workpiece is fixed on the worktable via a hydraulic self-centering fixture, with repetitive positioning accuracy reaching ±0.005mm. Compared to the randomness of manual vise hammer-tapping alignment, mechanized clamping eliminates human error. Within a processing range of 50mm to 500mm, the duplex milling machine demonstrates production line flow adaptability. The angle between faces is 90 degrees vertical, with error controlled within the range of 0.015mm/200mm.

· 1.6Ra surface finish

· ±0.01mm dimensional tolerance control

· 3500mm/min rapid traverse speed

· 850mm/min constant cutting feed

· 100% automatic indexing rotation angle

When rough processing of large batches of square material turns to finish processing, the duplex milling machine can complete it at one time. Output per shift has surged from 14 pieces to 42 pieces, with production line flow showing linear growth. Handling links for workpieces are reduced; workshop floor scratches and workpiece bumps/scratches are reduced by 90%. The output increase is not just a doubling of numbers, but an enhancement of the risk resistance of the entire production chain.

Spindle Effective Cutting Rate

An 11kW spindle, when processing S50C medium carbon steel, maintains speed at 850RPM, with the per-tooth feed rate set at 0.15mm; the metal volume removed per minute reaches 320 cubic centimeters. A traditional single-head milling machine's spindle, within an 8-hour shift, is in an idle or shutdown state for about 260 minutes, used for waiting for workpiece flipping, edge finding, and dial indicator alignment. At this time, the spindle's actual cutting time ratio is only around 45%; most of the motor's electrical energy is consumed in maintaining the inertia of the spindle's idling.

The duplex milling machine, through bilateral synchronous opposing cutting, pulls the spindle effective operation time up to over 78%. When the left spindle cuts into the workpiece to a depth of 2mm, the right spindle completes the counter-cut with a 0.02-second lag, canceling out the vibration caused by cutting resistance. In a 300mm×300mm end face milling task, the spindle's continuous constant-torque output duration reaches 210 seconds without interruption.

The chip removal volume per hour has increased from the original 12 kilograms to 35 kilograms. The spindle bearing load under dual-directional force tends to be more stable, with radial runout controlled within the range of 0.005mm. Traditional equipment, when cutting plates with a width exceeding 200mm, will cause the spindle to produce a 0.015mm elastic displacement due to single-sided force, leading to vibration marks on the surface. Due to torque balance, the duplex model's spindle output power is steady, and the ammeter pointer swing amplitude is less than 3%.

· 7200 hours bearing design life

· 35Bar high-pressure internal cooling spray

· 0.008mm spindle temperature rise thermal compensation

· 110Nm continuous output torque

· 24 meters/minute rapid traverse response

· 0.5 second spindle start-stop acceleration time

When processing P20 pre-hardened mold steel (hardness HRC30-35), the spindle speed drops to 650RPM, but the cutting depth increases to 5mm. The feed speed under dual-spindle drive is maintained at 800mm/min, whereas traditional equipment can only be limited to 350mm/min to prevent spindle overload.

The forced oil cooling system inside the spindle box has a circulation flow rate of 12 liters per minute, ensuring that the spindle box temperature rise does not exceed the ambient temperature by 5 degrees Celsius during heavy-load cutting. After long periods of operation on traditional milling machines, the spindle elongation often reaches 0.03mm; the duplex symmetrical structure cancels out this error through synchronous thermal deformation. The electricity consumption generated per kilogram of scrap is reduced from 1.4kWh to 0.8kWh, reflecting higher energy utilization density.

The 15-inch CNC panel displays the load percentage of the two spindles in real-time. When uneven material hardness causes the left spindle load to jump from 35% to 42%, the servo system will fine-tune the feed rate within 10 milliseconds.

· 100% spindle synchronous lock accuracy

· 2.5 times cutting density per unit area

· 45 liters/minute coolant pump flow rate

· 0.12mm/tooth constant tooth load

· 98% transmission efficiency gearbox

· 18-month spindle precision maintenance period

For mold base processing with a length of 500mm, the spindle stroke coverage of the duplex milling machine reaches over 95%. Traditional milling machines waste a lot of stroke time during cutter retraction, re-positioning, and cutting in. The dual-axis structure, in cooperation with an automatic indexing plate, rotates the workpiece 90 degrees in only 4 seconds; the spindle then immediately enters the cutting of the next set of parallel surfaces, shortening non-productive air-cut time by 80%.

Traditional milling machines, due to frequent stop-starts, increase the probability of micro-chipping of the tool tip by 15% due to thermal shocks. The duplex milling machine spindle maintains long-term constant temperature cutting; the output pieces per single set of inserts increase from 180 pieces to 245 pieces. Reducing tool change downtime allows the spindle's pure working time to be further extended.

The cutting sparks observed by the operator are a consistent dark red, indicating that heat is mostly carried away by iron chips rather than accumulating at the spindle end. The distance between the dual axes is automatically adjusted according to the workpiece width, with a positioning accuracy of ±0.002mm. This high frequency of effective cutting ensures the production line flow is no longer limited by the slow pace of single-unit equipment.

When processing 45# steel standard parts, the motor load utilization of the duplex spindle is stable in the optimal range of 85%. Traditional milling machines, limited by clamping stability, often have motor utilization lower than 50%, causing serious power redundancy. In a large-scale production environment, this difference in spindle utilization leads directly to the delivery cycle being shortened from 20 days to 9 days.

· 2.2kW cooling motor independent drive

· 0.01mm/m machine bed guide rail straightness

· 15000N maximum axial propulsion force

· 0.2s system logic operation delay

· 300mm maximum accommodating diameter of the cutter disc

· 5.5T cast iron body vibration suppression grade

The centrifugal force generated by the spindle rotation forms a dynamic balance with the bilateral cutting forces. This physical characteristic allows the machine to achieve doubled throughput capacity without increasing the foundation strength. Within the floor area of 4 old-style milling machines in the factory, placing 2 duplex milling machines actually increases the total cutting capacity by 120%.

The duplex model produces 280 kilograms of dry iron chips every 8 hours, while the traditional model only produces 95 kilograms. This set of data intuitively reflects the spindle's ability to convert material in unit time. This high-intensity cutting performance is the underlying physical foundation supporting high output rates.

When dealing with workpieces with asymmetrical allowance, the duplex system will automatically allocate the load ratio of the left and right axes. If the left side has a 3mm allowance and the right side only has 1mm, the system automatically adjusts the single-side spindle speed through pressure differential sensing. This intelligent intervention ensures that the total cutting duration is still maintained within the shortest path. Every rotation of the spindle is converted into actual production value, eliminating invalid labor.

For high-speed cutting of aluminum alloy 6061, the spindle speed can be pulled up to 2500RPM. Duplex synchronous cutting avoids resonance deformation of light alloys during the processing. The surface Ra value reaches a mirror effect of 1.2 microns, saving subsequent precision surface grinder processing steps.

Force Balance & Feed Parameters

Traditional vertical milling cutter discs, when cutting 45# steel square material, often apply a radial force of over 3500N on a single side. This one-way load forces the workpiece to produce a micro-displacement of 0.03mm toward the fixed side of the vise, leading to fine wavy patterns on the processed surface. The operator has to limit the feed speed to 250mm/min to prevent the workpiece from shifting or even flying out under strong cutting.

The duplex milling machine, through a 180-degree opposed spindle layout, allows the left and right cutting resistance to cancel each other out within the workpiece. Measurements show that the vibration frequency at the center position of processing is reduced from 450Hz during single-axis operation to below 45Hz. This state of static force balance at the physical level allows the operator to pull the feed speed directly from 300mm/min up to 850mm/min.

When processing mold bases with a width of 150mm, duplex equipment supports a feed depth of 4.0mm on a single side. The spindle can peel off 720 grams of metal scrap per minute; production efficiency is 2.8 times that of single-head equipment. Even using cutter discs of the same 200mm diameter, since the single-sided "tool deflection" phenomenon is eliminated, the wear of the carbide tips on the inserts is extremely uniform.

The damping system inside the spindle box absorbs over 90% of the cutting high-frequency resonance. In processing tests of pre-hardened steel with HRC32 hardness, the surface roughness of the duplex milling machine is stable at Ra 1.6 microns. If a single-head milling machine is to reach the same finish, the feed rate must be adjusted down to 0.05mm per tooth, which would double the processing time per piece.

The vector torque generated by opposing cutting coincides at the geometric center of the workpiece; this cancellation mechanism significantly reduces the torque borne by the machine bed. Under the support of the 5.5-ton cast iron base, even when the cutting speed reaches 220m/min, a coin on the operating table can remain upright.

The feed servo motor maintains a constant output torque during work, with a fluctuation rate lower than 1.5%. On traditional milling machines, at the moment the tool cuts in, the spindle speed often drops by 8% to 12% due to sudden resistance. The duplex milling machine's dynamic compensation system performs 2000 samples per second, ensuring synchronous coordination of the left and right axes even if the material hardness has fluctuations of plus or minus 5HRC.

The coolant passes through the nozzle at a flow rate of 55 liters per minute, with the pressure maintained at 0.4MPa. This strong flushing not only carries away heat but also prevents scrap from undergoing secondary cutting between the dual spindles. Measured workpiece surface temperatures are always maintained below 38 degrees Celsius, avoiding deformations of more than 0.05mm caused by thermal stress and saving subsequent surface grinding processes.

· 120Nm continuous cutting torque

· 0.003mm spindle rotation accuracy

· 24m/min rapid movement multiplier

· 0.15mm per-tooth cutting load

· 10ms load sensing feedback

· 35Bar powerful internal cooling system

The machine XY axis linkage accuracy is controlled within the range of 0.01mm/500mm, far exceeding traditional milling machines. When processing large mold bases, single-head machines often produce a taper error of 0.02mm due to excessive overhang. The duplex machine, through opposing supporting effects, compresses this geometric error to 0.005mm, ensuring absolute perpendicularity between parallel surfaces.

The insert life is extended by about 4000 minutes in a constant load environment. Since the cutting process does not have frequent impacts and air-cut strokes, the probability of coating peeling is reduced by 70%. The operator's daily frequency of changing inserts is reduced from 5 times to 1 time, which provides a longer unmanned processing window for the workshop and improves equipment utilization.

Physical balance not only solves precision issues but also changes the flow of energy. In traditional cutting, 30% of the power is consumed in overcoming vibrations and machine deformation, whereas the duplex structure converts 95% of the output power into actual metal removal action.

For high-speed tasks with aluminum alloy 6061, the spindle speed can be maintained at 2500RPM. Duplex synchronous cutting eliminates chatter marks that light materials easily produce, and the finished products processed present a silver-bright mirror feel.

The real-time curves recorded by the CNC system show that the power load lines of the dual spindles almost coincide, with a deviation of less than 0.2kW. The cutting resistance on both sides of the workpiece is perfectly balanced, without generating rotational torque. For thin plate parts with a thickness below 20mm, this processing method can prevent the parts from arching up or denting down under the action of cutting forces.

The material removal rate (MRR) per hour reaches 480 cubic centimeters. Under traditional technology, the same amount of work requires 1.8kWh of electrical energy, while the duplex technology only requires 1.1kWh.

· 1.2Ra mirror-level surface effect

· 0.005mm parallelism control

· 45L/min cooling pump displacement

· 18.5kW powerful motor configuration

· 220m/min linear speed standard

· 15-inch load monitoring touch screen

The machine table's hydraulic fixture provides a locking force of up to 15kN. Cooperating with the force characteristics of duplex cutting, the workpiece has absolutely no force-point drift during processing. When dealing with high-hardness cold-work mold steels such as Cr12MoV, this stability ensures that the tool can advance steadily with a constant 0.1mm feed rate, no longer experiencing chipping.

Due to the stability of feed parameters, the number of qualified products per shift has increased from 18 to 45 pieces. This increase in output density directly relieves pressure on subsequent inspection stations. After the workpiece completes duplex milling, the consistency of dimensional tolerances reaches 99.8%, basically eliminating the risk of batch scrapping caused by manual operation deviations.

The Labor & Skill

Traditional Milling Machine

The indicator base is attached to the spindle, with the tip rotating at a 150mm radius. The difference in readings on the worktable within a 300mm diameter range must be pressed within 0.01mm. If the reading deviation is too large, the milled surface will show a 0.03mm concavity or convexity, directly ruining the datum.

The screw backlash of old machines is usually 0.15mm to 0.35mm. The technician turning the handwheel must always maintain single-directional force, relying on physical contact to eliminate the empty travel. The worktable movement trajectory must form a 90-degree angle with the spindle axis. Before feeding, manually locking the handles of non-moving axes can block cutting vibrations at the 5-micron level.

Cleaning the vise bottom surface and jaws takes 3 minutes. If a 50-micron diameter iron chip is padded under the workpiece, it will cause a 0.02mm tilt in the workpiece under 30Nm of locking force. The technician uses an HRC 60 hardness oilstone to push the worktable flat, shaving off tiny bumps and burrs higher than the surface.

Choose an 80mm diameter fly cutter to mill large surfaces. Set the spindle speed at 600RPM and the feed rate at 120mm per minute. Although this single-blade cutting is slow, it can scrape out an Ra 0.8 mirror finish.

The following precision measurement tools must be prepared during the alignment process:

· A lever dial indicator with a 0.01mm graduation, watching the straightness of the workpiece side during travel.

· A non-rebound rubber hammer with a hardness of 70 Shore A, to tap the workpiece firmly onto the parallel blocks.

· A grade 0 granite square box, providing a 2-micron level vertical reference datum.

· Copper feeler gauges with thicknesses from 0.02mm to 0.5mm, to probe for mounting gaps invisible to the naked eye.

· Surface roughness comparison specimens, to visually check if the cutting patterns are uniform.

After milling the first face, flip it 180 degrees. The technician takes two 6mm diameter precision round bars and places them between the vise jaws, with the clamping force pressing hard against the workpiece centerline. This can counteract the 0.04mm deviation caused by the movable jaw lifting. The parallelism of the relative surfaces can thus be controlled within 0.015mm.

The release of internal stress in the material is the main cause of deformation. Cutting a 6061-T6 aluminum plate with a single 3mm cut, the workpiece will warp by about 0.05mm. Experienced operators first rough mill, leaving a 0.25mm allowance on both sides. After the workpiece cools down to a 20-degree Celsius room temperature, the finishing cutter is used.

Processing the third face relies on the fixed jaw. The fixed jaw has been ground, with a perpendicularity of 0.01mm/100mm. At this time, round bars are no longer used, and the vertical precision of the machine vise jaws is fully trusted.

Physical variables that interfere with alignment precision:

· The radial runout of the spindle bearing, fluctuating in the range of 0.005mm to 0.012mm.

· For every 10-degree Celsius change in cutting fluid temperature, carbon steel workpieces expand 0.012mm per meter of length.

· Uneven wear of vise guide rails, where the middle position is often 0.02mm lower than the ends.

· The sense of uniform speed in manual feeding; unsteady techniques will cause texture height differences to exceed 10 microns.

· Cutting force changes caused by tool wear, increasing the radial deflection by 0.03mm.

Processing the 5th and 6th end faces requires the workpiece to stand up. At this time, the center of gravity is high, and the technician moves the dial indicator up and down along the Z-axis. If the needle swings more than 0.02mm, 10-micron thick aluminum foil is inserted into the gap for fine adjustment. Only when the needle stays still over the entire length does one dare to start the machine for cutting.

The digital readout (DRO) can be accurate to 0.005mm. The last cut must account for the tool's elasticity. A 12mm high-speed steel end mill, with a side cut of 0.1mm, will have the tool tip bend by about 0.008mm. After pre-setting the compensation value, the technician rubs away the residual trace metal through two air-cut round trips.

High-intensity manual intervention is all in frequent measurement. Every time a cut is milled, three points must be measured with a micrometer. The reading of a 100mm range micrometer should look at the centerline of the scale, aligned to 0.001mm. If the reading difference between the three points exceeds 0.01mm, it means the clamping has already shifted and must be dismantled and redone.

To align the six faces of a 200mm cube steel block, the travel of manual operation covers more than 10 meters. The operator's eyes stare at the tool tip entry point, with the cervical and lumbar spine bearing a 1-hour static load. This physical consumption leads to obvious drifts in part tolerances between the beginning and end of a shift.

The coolant nozzle angle must be aimed accurately. If the 0.2MPa pressure liquid flow cannot flush away scrap in the chip flutes, and iron chips get rolled into the second cut, it will scratch 0.05mm deep grooves on the surface. Technicians usually turn the handwheel with one hand and sweep chips with an air gun in the other to ensure the cutting area is clean.

When the material hardness reaches HRC 35, cutting force surges. Manual milling machine dovetail rail friction increases, and the feed handle resistance rises from 1.5Nm to 4Nm. The subtle change in the feel of resistance guides the technician in adjusting the feed frequency of the final 0.05mm.

For a 200mm square piece, the upper limit of manual alignment perpendicularity stays at 0.02mm. This has already reached the ceiling of mechanical structure and manual experience. Each time the vise is tightened with a wrench, the force must be controlled between 40 to 60Nm, maintaining the consistency of pressure deformation through muscle memory.

Duplex Milling Machine

The duplex milling machine is equipped with two sets of independent power heads, with each group's spindle power often set between 15kW and 22kW. These two spindles are symmetrically distributed on both sides of the worktable, driven by servo motors through ball screws to feed synchronously on heavy-duty linear guide rails.

After the operator places the 45# steel blank into the hydraulic self-centering vise, the infrared wireless probe automatically extends for detection. The probe touches the four edges of the workpiece once each, feeding the coordinate data back to the CNC system. The system completes the plane tilt calculation within 2 seconds and automatically rotates the indexing plate for compensation. This digital alignment saves the 15-minute process of manual indicator pulling and tapping, and the positioning accuracy is always maintained at the 0.005mm level.

The bed uses HT300 high-grade gray cast iron, and the machine weight usually reaches 12 tons. An oil-cooling circulation system is integrated inside the spindle box; even if the spindle runs at a high speed of 2000RPM, the temperature rise is locked within 2 degrees Celsius. This constant temperature control effectively prevents the 0.01mm dimensional drift caused by the spindle's thermal elongation. The machine's fully enclosed protective cover can block cutting fluid splashes at 1.5MPa pressure and, in cooperation with a chain-type chip conveyor, achieves automatic cleaning of 30 liters of metal scrap per minute.

Hardware configuration and parameters integrated into the duplex milling machine:

· ISO 50 specification high-torque spindle taper, providing extremely high cutting rigidity.

· The hydraulic station provides a constant 15KN clamping force, preventing a 3-micron displacement of the workpiece during heavy cutting.

· Coated carbide inserts with a linear speed of up to 200 meters/minute, shortening single-stroke time.

· A precision CNC rotary table with a graduation of 0.001 degrees, ensuring the perpendicularity of four-sided processing.

· Full closed-loop optical scales for real-time monitoring, with the error feedback cycle shortened to 0.1 milliseconds.

· An automatic lubrication system injects 2 ml of guide rail oil into the guide rails quantitatively every 4 hours.

To process a 250mm square module, the duplex milling machine's speed is often set to 850RPM, with a per-tooth feed rate of 0.2mm. A single cut depth can reach 4mm, while the machine load meter shows it occupies only 40% of the spindle power. This high-depth, high-feed mode makes the total time for four-sided processing of a single piece drop to within 8 minutes. On a manual milling machine, the same job often consumes more than 45 minutes of pure cutting time.

After the first pair of sides is milled, the spindle automatically returns to zero. The indexing plate rotates 90 degrees clockwise within 1.2 seconds. At this time, the operator does not need to loosen the vise and remount; this "one clamping, four sides forming" logic eliminates the 0.02mm human error generated by repeated clamping.

Production efficiency comparison between duplex milling machines and traditional milling machines:

Because the spindle operation is extremely stable, the breakage rate of the insert cutting edges is reduced by 35%. The operator only needs to observe tool life monitoring through the CNC panel; when the cutting edge has worked cumulatively for 200 minutes, the system will automatically alarm to prompt replacement.

When processing cold-work mold steel D2, the material hardness is often around HRC 22. The symmetrical cutting force of the duplex milling machine cancels out the overturning torque of the workpiece on the machine column. The cutting component forces generated by the left and right milling heads cancel each other out at the center line of the worktable; this physical characteristic reduces the vibration amplitude during processing to below 5 microns. In contrast, under single-sided force on a traditional milling machine, the cantilever beam structure produces an invisible tool deflection amount of 0.05mm.

The dimensional tolerance dispersion of the same batch of 100 parts is usually controlled within 0.015mm. Manual operation will show obvious normal distribution deviations, and dimensions often drift gradually toward the positive tolerance direction as the technician's physical strength decreases in the afternoon.

The design angle of the chip flutes is usually greater than 45 degrees, combined with high-flow water flushing, ensuring there are no residual iron chips in the processing area. If iron chips are pressed into the workpiece surface, it will cause 0.1mm deep mechanical indentations. The automation design of the duplex milling machine reduces this scrap rate to below 0.1%. In the field of traditional milling machines, this data usually hovers between 2% and 5%, and is highly dependent on the operator's cleaning care.

When processing large square pieces over 300mm, the machine's geometric precision compensation function will automatically correct the slight straightness error of the guide rails due to long-distance movement based on real-time readings from the grating scales.

The Cost Versatility

Efficiency & Labor

Processing a 200mm×200mm×50mm S50C mold steel piece, a single clamping and alignment consumes at least 120 seconds. Combined with blowing chips, tool setting, and locking bolts, the non-cutting auxiliary labor time accounts for over 65% of the total cycle time.

The duplex milling machine adopts a dual-spindle opposed layout, with the workpiece locked once on the hydraulic table. Two 250mm diameter disc milling cutters on the left and right feed simultaneously, removing the allowance of two parallel surfaces at one time. For steel plates of the same specification, the duplex milling machine only requires two clampings to complete the rough and finish processing of four side faces.

Measurement data shows that processing the above workpiece on a traditional radial milling machine takes a total of about 22 minutes. The duplex milling machine, in cooperation with coated carbide inserts, maintains the cutting speed at 150m/min, and the total time is compressed to 4.5 minutes. Production efficiency has achieved a jump of nearly 5 times in a single process.

Turning attention to labor costs, traditional milling machines require operators to perform high-frequency manual interventions. Every 3 minutes, the worker must loosen the vise and manually flip the steel block weighing over ten kilograms. In an 8-hour shift, a single worker's effective cutting supervision capacity is limited to one machine.

The duplex milling machine's automatic feed system reduces physical expenditure; the gap between processes only requires pressing the control panel. A skilled worker can monitor 3 to 4 TH-800NC level devices simultaneously. Based on a monthly salary of 9,000 RMB for a first-tier city technician, the direct labor cost allocated to a single product drops from 18.5 RMB to 4.2 RMB.

The table below records the efficiency allocation of the two types of equipment in a small batch order of 50 pieces:

Besides time, tool loss is a significant expense. In traditional single-sided cutting, uneven force on the workpiece leads to vibration, and the insert durability is about 120 minutes. The radial cutting forces generated by duplex milling cancel each other out at the center point of the workpiece, making the worktable run steadily.

Field practice has found that the same TiAlN coated inserts can have a life of up to 170 minutes on a duplex milling machine. This change in physical force characteristics has reduced the tool procurement cost per ten thousand products by 24%. At the same time, the surface roughness after processing is stable at Ra 1.6μm, reducing the allowance for subsequent surface grinders.

A standard horizontal milling machine occupies about 8 square meters, but its output efficiency is only one-fifth that of a duplex milling machine. To achieve the same annual output value, using traditional equipment would require 40 square meters of space, increasing annual fixed rent costs.

Although the purchase price of a duplex milling machine is about 2 times higher than that of ordinary machines, its output return per square meter is higher. In a first-tier industrial park, where the monthly rent per square meter is about 50 RMB, a single duplex milling machine can save nearly 18,000 RMB in space expenditure annually compared to a traditional machine set.

Data feedback on energy consumption reveals deeper differences. An ordinary milling machine consumes about 3.2kWh of electricity to process a single 10kg square piece. Because the duplex milling machine shortens spindle idling and return travel time, the electricity consumption per piece is only 0.85kWh. When annual output reaches 20,000 pieces, the electricity bill difference exceeds 46,000 RMB.

Below are operating cost detail comparisons based on an 18-month operation cycle:

Traditional milling machines retain flexibility when processing non-regular geometric parts. They can perform drilling, reaming, or angular milling, which ordinary duplex milling machines cannot handle. If the workshop takes on many jobs involving complex mold cavities, the "multifunctionality" of ordinary milling machines offsets the efficiency disadvantage.

Facing high-standardization square material pre-processing, the duplex milling machine is a specialized output tool. Its focus lies in quickly establishing high-precision reference surfaces. After duplex milling, the perpendicularity error of parts is controlled within 0.015mm/300mm, allowing them to skip the rough grinding step directly.

High-intensity continuous cutting requires extremely high machine rigidity. Duplex milling machine beds are mostly made of Meehanite cast iron, with a self-weight of over 6 tons, absorbing the impact of dual-directional cutting. This structure ensures that geometric precision does not drift even at a rapid traverse speed of 2000mm per minute.

Geometric Precision & Scrap Rate

When processing square material on ordinary milling machines, the operator needs to repeat alignment actions constantly. For a 300mm by 300mm 45# steel piece, the perpendicularity after single-side milling usually drifts by over 0.05mm. Every time the workpiece is flipped, fine chips at the bottom of the vise will magnify the error, resulting in finished products whose squareness fails to meet assembly requirements.

During the processing of traditional machines, the physical rigidity of the worktable limits the cutting depth. Faced with an allowance of over 2mm, ordinary vertical milling heads are prone to tool deflection. This physical deviation forces the subsequent addition of surface grinding processes. Field practice has found that after ordinary milling, the allowance reserved for the grinder usually needs to be 0.3mm to 0.5mm.

The duplex milling machine adopts two horizontally opposed spindles; this layout allows cutting forces to cancel each other out within the workpiece. The left and right cutter discs cut in synchronously at a linear speed of 120 meters per minute, and the workpiece experiences extremely balanced forces. Parallelism is stably controlled within 0.01mm. This geometric stability originates from its integrated cast heavy-duty 6-ton bed.

Because there is no need to loosen the vise repeatedly, the workpiece always maintains the initial positioning datum during processing. For an order of 50 mold plate pieces, the dimensional consistency deviation of the duplex milling machine is less than 0.02mm. In contrast, on traditional milling machines, because of operator fatigue and uneven clamping force, the batch qualification rate often hovers around 85%.

The following are several physical variables that affect precision in an actual workshop:

· Clamping tilt error caused by residual chips: about 0.02mm to 0.08mm

· Vise repeat positioning accuracy fluctuation: plus or minus 0.03mm

· Spindle thermal elongation: about 0.015mm per hour

· Visual error in manual indicator alignment: about 0.01mm

· Dimensional shrinkage caused by tool wear: about 0.02mm per 10 pieces processed

The automatic measuring system standard on duplex milling machines can probe the actual size of the blank before cutting. The probe acquires data with a resolution of 0.002mm. The system automatically allocates the dual-side feed amount; even if the blank has a serious deformation of 3mm, the geometric center after processing is still precisely aligned. This automated intervention suppresses the scrap rate to below 1%.

When processing easily deformable materials such as aluminum alloy 7075, the advantage of duplex synchronous milling is even more obvious. Single-sided cutting releases internal stresses in the material, causing the plate to bend toward one side. Duplex milling allows stress to be released on both sides simultaneously, maintaining the flatness of the workpiece. Measured 20mm thick aluminum plates after processing can maintain a flatness of 0.03mm/1000mm.

The maintenance frequency of traditional machines is also a hidden source of precision loss. Frequent heavy-load face milling will cause non-uniform wear on the Y-axis guide rails of ordinary milling machines. After two years of use, the operating accuracy of an ordinary milling machine's middle section is usually 0.04mm lower than that of the two ends. The guide rail design of duplex milling machines is optimized for linear feed, making wear distribution extremely uniform.

We can see the technical generation gap between the two through a set of inspection data:

· Perpendicularity within a 300mm span: duplex mill 0.015mm vs. traditional mill 0.07mm

· Diagonal dimension difference: duplex mill 0.02mm vs. traditional mill 0.12mm

· Surface texture consistency: duplex mill Ra 1.6 vs. traditional mill Ra 3.2

· Scrap reprocessing ratio: duplex mill 2% vs. traditional mill 15%

For factories pursuing high output, the scrap rate is directly related to the loss cost of raw materials. Based on mold steel at 12,000 RMB per ton, a 15% scrap or rework rate is a huge waste of funds. The duplex milling machine locks the precision upper limit through its mechanical structure, no longer relying excessively on the feel and experience of the operator.

This type of equipment is usually equipped with large-diameter disc milling cutters, with the number of inserts reaching more than 12. Multiple cutting edges participate in cutting simultaneously, reducing the load on a single insert. After continuous operation for 12 hours, the spindle temperature rise of the duplex milling machine remains within 15 degrees Celsius. Stable thermal characteristics ensure that the dimensions of parts processed in the early morning and afternoon match perfectly.

The duplex milling machine has enclosed protective covers and high-flow spray systems. Chips are quickly flushed away, avoiding thermal deformation caused by secondary cutting. Traditional machines process in an open environment, where the local temperature of the workpiece often rises to over 80 degrees Celsius, causing measured dimensions to shrink after cooling.

Dimensional changes caused by such physical temperature differences are unacceptable in precision mold base manufacturing. The duplex milling machine monitors the spindle through a constant-temperature oil cooling system, keeping precision under control at all times.

The table below shows a comparison of the performance of the two types of equipment under extreme high loads:

· Precision drift after 24 hours of continuous operation: duplex mill 0.02mm | traditional mill 0.15mm

· Effect of operator experience on quality: duplex mill extremely low | traditional mill extremely high

· Heat accumulation generated by a single piece: duplex mill low (water cooling cycle) | traditional mill high (air heat dissipation)

· Tool run-out: duplex mill 0.005mm | traditional mill 0.02mm

In actual production processes, square material processed by duplex milling machines can go directly into precision machining centers. Since the side faces have already achieved extremely high perpendicularity, the CNC machine can quickly find alignment during the secondary clamping.

Considering high raw material costs, this precision control capability is actually a form of insurance. When processing a piece of special steel worth 5,000 RMB, any single mistake in manual clamping could cause the entire piece to be scrapped.
