Duplex Milling Machine for Mold Steel Blocks | Two-Head Cutting, Setup Reduction, and Batch Throughput

Double-head opposed milling, one-time clamping completes two-side processing, parallelism ≤0.02mm;

Feed 0.5–1.2m/min, single piece cycle time shortened by 40%;

Suitable for batch mold steel blocks, cooperating with automatic loading and unloading can increase capacity by 30%.

Two-Head Cutting

Precision Data Indicators

The cast iron bed adopts HT300 material, and the natural aging cycle exceeds 180 days. The net weight of the base reaches 9.5 tons, providing damping support for the cutting process. The Y-axis double guide rail span is set at 1180mm, ensuring the power head swing amount is lower than 0.002mm within the full stroke.

The coaxiality of the dual spindles is calibrated on-site via laser interferometer, with the deviation value suppressed within 0.005mm. The intersection tolerance of the two ends' tool tip running trajectories in three-dimensional space is controlled within 10 microns. The CNC system has a built-in 24-bit absolute encoder, refreshing coordinate data 4000 times per second.

The workpiece receives uniform force on the hydraulic self-centering fixture, and the clamping force output is maintained at 5500N. Under this clamping state, the displacement caused by material thermal expansion measured by the sensor is only 0.003mm. The rough milling depth is set to 4mm, and the spindle ammeter shows the reading fluctuating steadily within the 1.5 ampere range.

· C3 grade grinding lead screw nominal diameter 50mm

· Preload torque set to 3.5Nm

· Slider roller diameter variation 0.001mm

· Guide rail surface quenching hardness 58HRC

· Quantitative lubrication pump working pressure 2.0MPa

· Oil film thickness constant at 0.002mm

The spindle chooses BT50 taper specification, equipped with four-row cylindrical roller bearings inside. The spindle end runout measured data is 0.002mm, ensuring the dynamic balance of the large-diameter face milling cutter head during high-speed rotation. The speed is maintained at 750rpm, and the linear speed when processing H13 mold steel reaches 220m/min.

When the cutting area temperature rises to 45 degrees Celsius, the thermal displacement sensor captures the extension of the bearing seat. The oil cooling unit delivers coolant to the spindle sleeve at a circulation speed of 18 liters per minute. The oil cooler temperature control precision is ±0.1 degrees Celsius, locking the Z-axis thermal extension compensation value within 0.005mm.

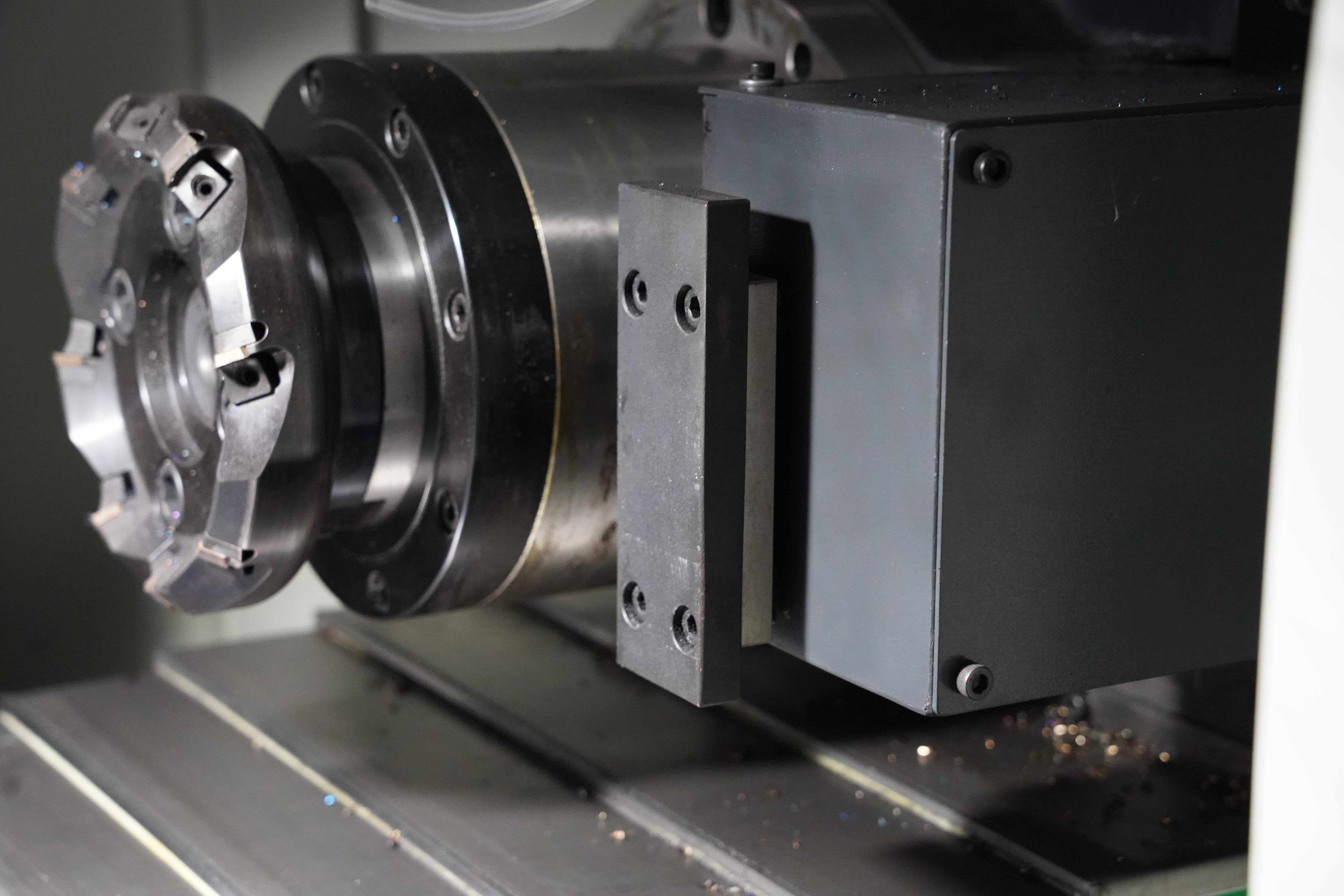

The left and right side milling cutters simultaneously cut into the workpiece symmetrical surface, each bearing 50% of the radial load. This method offsets the lateral thrust of 1200N, preventing long steel materials from producing S-shaped bending. The finished parts after processing are measured by a dial indicator, showing a parallelism jump within 0.012mm over a full length of 500mm.

· Face milling cutter head diameter 160mm

· Number of inserts installed 12 pieces

· Feed per tooth set to 0.15mm

· Surface roughness Ra 1.2 microns

· Corner verticality 0.01mm/200mm

· Dimension consistency ±0.01mm

Processing pre-hardened modules with a hardness of 38HRC, the single-pass removal allowance reaches 500 cubic centimeters per minute. The high-pressure air-blowing system sprays airflow at a pressure of 6 kilograms per square centimeter. Residual iron chips are blown away in time, avoiding secondary grinding of 0.2mm thick chips between the blade and the workpiece.

Precision lead screw matching pre-stretching process eliminates the 0.015mm extension caused by operating thermal energy. The coordinate axis positioning accuracy measured value reaches 0.008mm, and the repeat positioning accuracy is maintained at 0.004mm. The lead screw support seat uses thrust angular contact ball bearings, and the axial clearance after paired combination is 0.

The lubrication pipeline adopts nylon tubes with an inner diameter of 4mm, working with volumetric distributors. The amount of lubrication oil obtained by each group of sliders is constant at 0.03 ml, and waste oil is collected through chip grooves on both sides of the bed. The filter system filter element precision reaches 10 microns, isolating the possibility of metal powder entering the guide rail surface.

The load rate curve displayed on the operation desk display remains level throughout the processing cycle. The amplitude peak recorded by the cutting vibration spectrum analyzer is less than 1.5 microns. This low-vibration environment extends the life of carbide inserts, allowing a single tool change to continuously cut 8000 square centimeters of steel surface.

· Servo motor rated torque 36Nm

· Response time constant 15 milliseconds

· Absolute coordinate addressing precision 1 micron

· Air pump output stable pressure 0.7MPa

· Tool holder contact surface coloring rate 90%

· Pull stud pull force value reaches 18kN

Finished mold base steel materials are moved to a detection room at a constant temperature of 20 degrees Celsius for quality review. The CMM probe grabs 50 coordinate points on the top surface of the workpiece. In the generated flatness cloud map, the altitude difference between the highest point and the lowest point stays at 0.015mm.

A micrometer performs thickness measurements at the four corners of the steel material, with the reading difference maintained within 0.01mm. A 0.02mm feeler gauge cannot enter the gap between the workpiece and the marble platform. The verticality of the side is detected by a combination of a square ruler and a dial indicator, with the error value stable at 0.008mm/100mm.

After processing a 500mm long steel block, the stress deformation amount in the center part dropped from 0.08mm of single-head to below 0.02mm. This physical stable state retains a precise 0.15mm grinding allowance for subsequent finishing processes.

The T-slot spacing on the workbench surface is 100mm, and the width tolerance is controlled within 0.01mm. The pressure plate bolts for workpiece clamping are balanced in force, with a set torque of 120Nm. Under pneumatic pressurization of 0.8MPa, the locking mechanism of the workbench generates a dead-lock torque of 1200Nm, preventing micro-sliding caused by large-feed cutting.

The spindle motor power is 18.5kW, still outputting a constant torque of 350Nm at low speeds. This power reserve, combined with the 160mm diameter cutter head, can achieve continuous operation with a single-side cutting depth of 3.5mm. The current feedback system will automatically reduce the feed rate by 50% when it detects a torque abnormal increase of 10%.

· Guide rail parallelism 0.005mm/m

· Workbench surface hardness 45HRC

· Spindle constant temperature difference control 0.5 degrees Celsius

· Feed axis backlash 0.003mm

· Cooling pump flow 40L/min

· Insert coating thickness 4 microns

The cast iron carriage interior is arranged with a reinforced rib structure, with a single unit weight reaching 1.2 tons. The six-slider support structure distributes the workbench load over 240 roller contact points. This high-density load-bearing design keeps the coordinate axis sinkage less than 0.005mm even when the workpiece load increases from 500kg to 1500kg.

Cutting Force Distribution

Two 160mm diameter disc milling cutters cut into both sides of the workpiece simultaneously, with each tool applying approximately 1200N of radial pressure. Lateral forces collide and cancel out on the central axis of the steel material, and the resultant lateral thrust value received by the workpiece approaches 0. The 0.05mm lateral displacement produced by single-head milling is compressed to within 0.003mm under double-head synchronous conditions.

The 9.5-ton HT300 cast iron bed absorbs cutting vibration through internal honeycomb-shaped reinforced ribs. Four rows of cylindrical roller guide rails are installed in the Y-axis direction, with each group of sliders bearing a static rated load of 125kN. The spindle motor outputs 350Nm constant torque at a low speed of 150rpm, maintaining the dynamic stability of the resultant cutting force.

· Spindle taper hole connection surface hardness reaches 58HRC

· Cutter head dynamic balance level set to G2.5

· Guide rail pair friction coefficient controlled at 0.003 to 0.005

· Servo system response time to torque fluctuation is 15 milliseconds

· Feed box internal gear backlash tolerance 0.002mm

· Cooling pump constant pressure output value 2.5MPa

Processing 500mm long, 150mm wide P20 mold steel, removing 4mm allowance equally on both sides. Laser displacement sensor monitoring shows the force deformation of the steel plate middle section is only 0.012mm. In contrast, the bow-shaped warpage value produced by single-side milling often breaks through 0.08mm.

The spindle box interior is configured with four rows of high-precision cylindrical roller bearings, bearing a 2000kgf axial load from the cutter head. The spindle sleeve adopts a circulating oil cooling system, controlling the temperature rise within 2 degrees Celsius. This thermal stability ensures that the absolute coordinate offset of the dual-side tool tips in three-dimensional space is less than 0.005mm.

The T-slot spacing tolerance on the base is 0.01mm, locking the workpiece in cooperation with self-centering hydraulic vises. 0.8MPa inlet pressure converts into 4500N of stable clamping force, resisting pulse impacts generated when the feed per tooth is 0.2mm. Even when facing a 1500kg overweight mold blank, the inertial overshoot of the workbench during X-axis reversal is lower than 0.008mm.

· Insert coating adopts TiAlN nano-structure

· Coating hardness reaches above 3000HV

· Cutter head runout tolerance detection value is 0.005mm

· Lead screw bearing preload torque 3.5Nm

· Lubricating oil film thickness maintained at 2 microns

· Absolute encoder resolution 16777216 pulses

Place the processed P20 block on a marble platform and perform a surround test with a 0.01mm feeler gauge. The verticality error of the four sides relative to the platform is evenly distributed in the 0.008mm range.

The X-axis drive motor power reaches 4.5kW, driving the ball screw through a precision planetary reducer with a reduction ratio of 1:5. The lead screw diameter is 50mm, adopting C3 grade grinding process, with lead precision error of 0.008mm within a 300mm stroke. Large thrust ensures that cutting force distribution remains linear even at a feed speed of 600mm per minute.

The cutting area generates about 800 cubic centimeters of iron chips per minute, which are instantly blown away by high-pressure airflow of 6kg pressure. The tool blade edge working temperature is controlled below 600 degrees Celsius to prevent blade cracking caused by thermal stress. Measured data shows that tool life during double-head synchronous cutting is extended by about 25% compared to single-head mode, which stems from the complementary cancellation of vibration frequencies.

· Feed axis positioning accuracy 0.01mm/m

· Repeat positioning accuracy 0.005mm

· Workbench surface quenching depth 3mm to 5mm

· Electric control cabinet radiator cooling capacity 1500W

· Spindle internal cooling system filtration precision 20 microns

· Bolt connection preload torque standard 120Nm

Observing the processing of 100mm thick H13 steel material, the intersection overlap area of the two cutter heads only leaves a faint joint mark of 0.002mm depth. This micron-level connection precision directly saves a subsequent rough grinding process.

The operation panel displays the load percentage of the two spindles in real-time, with the reading difference limited within 3%. When the left spindle resistance rises by 50N due to insert wear, the system automatically fine-tunes the feed override. This torque closed-loop control ensures consistency of the surface quality on both sides of the workpiece, with Ra roughness values stably locked at 1.6 microns.

Six groups of heavy-duty roller sliders under the workbench share the 1.2-ton carriage dead weight. The contact rigidity of each roller with the guide rail is 30% higher than that of ordinary spherical sliders. In the heavy-duty cutting force distribution model, this structure supports the spatial geometric relationship between the workpiece and the tool, making the vertical tolerance zone always fall within the 0.01mm standard line.

The chip shape in double-head cutting mode presents a neat C-shape, about 15mm long. This chip characteristic reflects that the cutting resistance distribution on the blade edge is very uniform. When processing pre-hardened material with 38HRC hardness, the reactive power loss of the spindle motor is reduced to the minimum, and the comprehensive energy utilization efficiency is increased by more than 15%.

The pneumatic control circuit of the fixture is configured with a pressure compensation valve to prevent factory air source fluctuations from affecting clamping accuracy. Even if air pressure drops by 10%, the internal one-way locking mechanism can still maintain more than 3000N of residual clamping force. During 40 minutes of continuous cutting, the drift of the workpiece center baseline detected by an infrared probe is only 0.004mm.

· Guide rail surface straightness error 0.005mm/m

· Spindle bearing operating temperature rise within 15 degrees Celsius

· Absolute addressing time less than 0.1 seconds

· Lead screw axial stiffness 600N/micron

· Machine tool floor area is about 12 square meters

· Automatic chip conveyor conveying capacity 100kg/min

Processing Efficiency Comparison

A double-head CNC milling machine with a dead weight of 9.5 tons reduces the processing workflow by more than 50% when processing P20 mold steel of 500mmx500mmx100mm size. Completing six-side processing on a single-head milling machine usually requires six clampings, including hoisting, alignment, and tool setting with a dial indicator, with accumulated non-processing auxiliary time exceeding 90 minutes.

The double-head milling machine compresses this process into three clampings. Since the spindles on both sides cut into the material symmetrical surface simultaneously, a single pass completes the rough and finish milling of two faces. The original physical cutting time of 120 minutes is reduced to under 50 minutes under the 22kW power output of the dual spindles.

· Number of hoisting and flipping reduced from 6 times to 3 times

· Single workpiece alignment time reduced from 15 minutes to 4 minutes

· 0.8MPa pneumatic fixture achieves 3-second rapid locking

· Spindle maximum speed can reach 2000rpm

· X-axis rapid movement speed set to 20 meters per minute

· Tool magazine automatic tool change time controlled within 8 seconds

After the operator inputs G-code on the panel, the machine enters automatic cycle mode. Dual power heads, cooperating with 160mm diameter indexable cutter heads, run at parameters of 0.25mm feed per tooth.

Due to the reduction of frequent crane hoisting operations, logistics stagnation time in the workshop drops significantly. In batch tasks of 20 pieces per batch, due to the high consistency of double-head cutting, subsequent grinding machine allowance can be unified and reduced from 0.5mm to 0.15mm.

This precise control of allowance saves 40% of grinding wheel loss and 30% of processing time for the grinding process. Powerful springs inside the BT50 spindle provide 18kN of pull force, ensuring that the tool holder does not produce any micron-level movement during high-frequency cutting.

· Lead screw bearing preload maintained at 3500N

· Guide rail pair movement friction resistance 0.003

· Quantitative lubrication pump sprays 0.1ml of oil every 45 minutes

· Chip automatic conveyor pump flow 120L/min

· Spindle sleeve constant temperature error 0.5 degrees Celsius

· Bed dynamic rigidity reaches 150N/μm

When processing H13 steel material with 40HRC hardness, cutting noise is controlled at 72 decibels. Compared to single-head machines constantly changing force direction, double-head synchronous cutting maintains stable fluctuations in the spindle load meter.

The load curve stabilizes in the range of 65% to 70% of rated power, avoiding thermal losses caused by frequent motor acceleration and deceleration. In a 24-hour non-stop operation environment, the effective availability rate of the double-head milling machine is maintained above 92%, much higher than the 65% of traditional equipment.

Actual production records show that for processing a 600mm length mold base bottom plate, the total man-hours for a single-head machine were 165 minutes, which included 40 minutes of repetitive alignment. The double-head milling machine updated this data to 58 minutes, achieving a leap in single-shift output from 3 pieces to 8 pieces.

The feeding mechanism adopts a 24-bit absolute encoder, with positioning accuracy reaching 0.008mm. The operator only needs to set the tool during the first piece processing, and subsequent dimension fluctuations of the same specification steel material are locked in a 0.01mm tolerance zone.

The cooling system is configured with a three-stage filtering device, and a 20-micron paper tape filter removes fine metal powder from the cutting fluid. Clean coolant is sprayed onto the blade edge at a pressure of 2.5MPa, extending the insert life from processing 4000 square centimeters to 6500 square centimeters.

The tool replacement cost proportion in a single product subsequently dropped by 20%. The high-rigidity Meehanite cast iron bed, while bearing bidirectional cutting forces, has a column deformation displacement measured by laser rangefinder of only 0.004mm.

· Coolant tank volume 400 liters

· Chip conveyor conveying speed 5 meters/minute

· Spindle motor low-speed torque 350Nm

· Lead screw thermal expansion compensation value 0.012mm/m

· Fixture self-centering repeat accuracy 0.005mm

· Tool change arm tool change path 350mm

The machine tool control system has predictive maintenance functions, monitoring drive axis current changes in real-time. When insert wear causes current to increase beyond a preset 5% threshold, the system automatically prompts the operator to check the tool, preventing processing interruption caused by damage.

Since the clamping points are fixed and the number of times is reduced, the robot's grasping program becomes extremely simple. A 200kg steel block completes loading within 15 seconds, and the unmanned degree of the entire cutting area exceeds 85%.

This efficiency improvement is not limited to the cutting stage; it shortens the production Lead Time, reducing the delivery speed of a whole batch of mold steel from 15 days to 6 days. The increase in warehouse turnover rate significantly reduces the company's capital occupation cost.

The verticality and parallelism data of finished parts are fully inspected by CMM before leaving the factory. Flatness errors of 100 sampling points all fall within the 0.015mm range.

Setup Reduction

Traditional Method Consumption

A 500mm x 400mm x 150mm S50C mold steel block is moved closer by a crane. This 230kg heavy object hangs in mid-air, and the single-head milling machine operator must hold their breath to stabilize it in the center of the workbench.

The old master holds a magnetic base dial indicator sucked onto the side of the spindle, the dial needle pressing against the edge of the steel material. He uses a copper rod to constantly tap the workpiece with varying force, trying to align the flatness to within 0.02mm over a 500mm length span. This single action usually takes up 25 minutes.

During manual machine adjustment, the spindle is completely stationary. An 8-hour shift, excluding handover and breaks, would take 150 minutes just for alignment when processing 6 square blocks. Counting the time for cleaning iron chips and changing pressure plates, the effective cutting time proportion of the machine tool is often less than 60%.

· Cleaning 1.2m workbench surface and T-slot iron chips: 5 minutes

· Crane hoisting and preliminary workpiece positioning: 8 minutes

· Magnetic dial indicator for six-side leveling and alignment: 15 minutes

· Tightening 4 groups of M16 specification pressure plate bolts: 5 minutes

· Edge finder determining work coordinate system zero point: 7 minutes

After the first side is milled to a Ra 3.2 roughness, the machine stops. The worker loosens the pressure plate bolts and calls the crane again to flip the steel block 180 degrees. The flipping process requires the bottom to fit perfectly with the table surface, without any angular tilt.

As long as a tiny chip with a diameter of 0.05mm falls on the table, a parallelism deviation of the same magnitude will occur after flipping. The worker uses an air gun to blow and sweep repeatedly, then uses their hand to touch and confirm several times that there are no foreign objects. This repetitive positioning takes another 10 minutes.

The double-head milling machine uses two symmetrically arranged spindles to solve the processing of both front and back planes in one clamping. A hydraulic self-centering vise provides 30kN of stable clamping force. Two 250mm diameter disc milling cutters cut in synchronously, removing 120 cubic centimeters of steel material per minute.

The operator simply starts the machine after putting the material down. The equipment's own contact probe automatically detects workpiece boundaries and completes coordinate compensation. The entire preparation flow is shortened from the previous 40 minutes to within 8 minutes, and the originally complicated manual calibration has turned into automatic equipment inspection.

· Cutter head feed speed setting: 350mm/min

· Single-side maximum cutting depth range: 1.5mm to 3.5mm

· Spindle constant working speed: 1000RPM

· Repeat positioning accuracy range: 0.005mm

· Number of manual interventions for single piece processing: 1 time

After finishing one side on a single-head machine, the steel block often warps to one side. Cutting forces and heat generated by synchronous double-head cutting cancel each other out on both sides of the workpiece. Flatness within 300mm length always stays at 0.01mm.

For the same order volume, it used to take four single-head machines working together, but now two double-head machines can digest it. The workshop has saved over 40 square meters of operation area. The number of crane hoisting times overhead has decreased by more than half, and the risk of bumps in ground operations has also decreased.

Processing a batch of 20 pieces of P20 pre-hardened steel. A single-head machine would intermittently take 1100 minutes to finish. The double-head machine runs continuously and can finish everything for storage in 420 minutes.

· Delivery cycle reduction range: above 55%

· Reject rate caused by secondary clamping: lower than 0.1%

· Single worker's machine-watching capability: increased to 3 machines

· Effective cutting proportion of equipment electricity: increased by 28%

In processing 150mm thickness, the spindle motor power stabilizes around 7.5kW. Because there is no frequent start-stop impact like that of single-head machines, the wear speed of ball screws becomes slower. Operators no longer stare at the dial and tap away, they only need to look at the load monitoring data on the CNC panel.

This high-density output pace frees workers from physical handling. The extra tonnage cut every day is the real gross profit growth in the factory reports. Profit often lies not in cutting speed, but in those saved repetitive alignment steps.

The verticality of steel material is guaranteed by the machine's own 90-degree bed accuracy. Reducing the manual tapping and leveling steps also reduces the hidden danger of dimensional out-of-tolerance.

Eliminating Clamping Redundancy

In a mold steel processing workshop, a piece of 718H mold steel of 500mm by 400mm is placed, weighing nearly 240kg. When using a traditional single-head milling machine for processing, the operator must stare at the dial indicator's needle and rely on copper rod tapping to align the center.

The worker needs to repeatedly loosen and tighten four groups of M16 pressure plate bolts. Every time a position is adjusted, the iron chips on the bottom surface must be cleaned again. As long as a 0.03mm chip is padded underneath, the processed parallelism will be out of tolerance.

· Single manual alignment consumption: 22 to 30 minutes

· Crane hoisting and secondary flipping: 12 minutes

· Cleaning table surface and T-slot residue: 6 minutes

· Edge finder determining coordinate system zero point: 8 minutes

· Total non-cutting downtime: 48 to 56 minutes

Since a single-head machine can only mill one side at a time, finishing the front and back sides requires two completely independent clamping flows. The spindle stays completely idle during these times, while the electricity and labor costs paid by the factory continue to accrue.

The workpiece is locked tightly by a hydraulic self-centering vise, with 30kN of clamping force acting directly on both sides. The operator only needs to put the steel material down and press the start button; the remaining tool setting and boundary detection are automatically run by the built-in probe within 90 seconds.

Two 250mm diameter disc milling cutters cut in synchronously at 1000RPM speed. Because they are simultaneously cutting two opposite faces, the mutually canceling cutting forces avoid physical deformation generated by thin-plate mold steel during processing. This force balance allows the verticality error within a 300mm span to be consistently controlled at the 0.01mm magnitude.

· Spindle motor rated power: 7.5kW to 11kW

· Dual-side maximum removal amount: 150 cubic centimeters per minute

· Hydraulic system working pressure: maximum 6MPa

· Insert replacement cycle: continuous cutting for 35 hours

· Equipment repeat positioning accuracy: 0.005mm

The number of crane hoisting times has been reduced from the original 4 times to 1 time. Reducing hoisting steps also reduces the probability of mold steel surfaces being strangled by wire ropes or bumped, and the yield rate is steadily maintained above 99.8%.

When the machine spindle cutting time proportion increases from 50% to 85%, the production rhythm of the entire workshop undergoes a qualitative change. Processing a batch of 25 pieces of NAK80 steel material, the double-head milling machine can finish all entries into storage within 450 minutes. While a single-head machine at this time might still be performing tedious secondary alignment for the 12th workpiece.

In the traditional mode, operators must bend over to carry and calibrate hundreds of times a day. The automatic detection logic of the double-head milling machine turns these empirical actions into program commands.

· Annual labor hours saved: about 1200 hours

· Equipment depreciation cost recovery period: shortened by 14 months

· Workshop space utilization: each equipment saves 15 square meters

· Delivery cycle reduction ratio: 50% to 60%

During the cutting process, because heat is taken away uniformly, residual stress inside the workpiece is released steadily. This solves the problem of mold steel being prone to "going out of shape" after processing. The surface roughness after finish milling can be stable at Ra 1.6, and subsequent grinding processes can even be reduced by half of the processing allowance.

Qualitative Change in Efficiency

A double-head milling machine with a 1.2m workbench surface has a spindle speed set at 1200RPM. When cutting S50C medium carbon steel, the dual disc cutters advance at a speed of 400mm per minute. On a single-head machine, the spindle spends 40% of the time waiting for the worker to align with a dial indicator. The double-head machine automatically sets four reference points within 90 seconds via an infrared probe.

The 250mm diameter cutter head carries 12 carbide inserts. In bidirectional cutting, the force on the tool tips is uniform. Compared to the intermittent impact of single-head machines, the wear rate of the double-head machine's lead screw is reduced by 30%. For a single 500mm length steel block, the cutting cycle time is locked within 12 minutes.

· Spindle load rate: normally maintained at 75% to 85%

· Invalid stroke loss: reduced by 65% compared to single-head machines

· Tool cutting path: one-time penetration molding, no repeated tool retraction

· Feed rate stability: constant at over 350mm/min

· Average daily output weight: increased from 1.2 tons to about 2.8 tons

Processing 20 pieces of P20 mold steel on a single-head machine requires the operator to bend over 120 times repeatedly. The double-head machine compresses this action to 20 times. What is saved is not just physical strength, but it allows the equipment to have 25 minutes more of pure metal removal time per hour.

The old master took a walk around the workshop and found that previously, scattered hooks and pressure plates were everywhere. Now beside the double-head machine, there are only neatly stacked finished materials; every piece of material's verticality is within the 0.01mm scale line, no longer requiring long periods of manual re-inspection.

When production efficiency crosses a certain critical point, the connection between processes becomes tight. A mold factory in Dongguan replaced 8 old-style single-head machines with 3 double-head machines. Workshop space was saved by 120 square meters. Because of the reduction in power surges caused by frequent motor start-stops, the monthly electricity bill amount dropped by about 22%.

The surface roughness of processed steel material is stable at Ra 1.6. This saves half of the tool infeed for subsequent grinding processes. Originally it was necessary to leave 0.5mm grinding allowance, now only 0.2mm is needed. The replacement frequency of grinding wheels has subsequently decreased by 40%, and the preparation cycle for the entire mold base has been reduced from 12 days to 5 days.

Unidirectional cutting generates thermal expansion displacement, causing dimensions to shrink after cooling. Double-head machine synchronous cutting makes the temperature rise on both sides of the workpiece consistent, and the deformation amount is controlled within 0.008mm.

· Automatic compensation frequency: thermal displacement correction every 5 pieces processed

· Tool durability: single sharpening can process 1500kg of material

· Scrap loss: scrap rate caused by clamping deviation approaches 0

· Operation training cycle: novice startup time shortened to 3 working days

Previously, the noise in the workshop was the clang of tapping; now it is the continuous stable cutting sound of 75 decibels. Behind this change in sound is the iteration of processing logic. Factories no longer rely on the experience accumulation of old workers, but on the mechanical precision of CNC systems and dual spindles.

The extra 1.5 tons of mold steel processed daily has been converted into solid delivery capacity. What customers value is placing an order today and getting square material with a tolerance within 0.02mm tomorrow. This response speed was unimaginable in the era of single-head machines; it has turned mold rough processing, which originally belonged to handicraft industry, into standardized industrial output.

The volume of metal removed per hour by the machine tool has increased from 8000 cubic centimeters to 19000 cubic centimeters. The spindle motor runs smoothly at its rated power of 11kW, without frequent switching between forward and reverse. This high-density output state has shortened the investment recovery period of a single equipment from 3 years to about 14 months.

Batch Throughput

Non-cutting Time Optimization

P20 or S136 mold steel is transported to the machine side, and the operator carries a piece of 400mm square steel material. Single-head machine processing requires alignment four times, with each tool setting and dial check taking 360 seconds.

Many people stare at the cutting speed, but actually the time the machine stops is the most expensive. Traditional machine tools need to loosen pressure plates, clean iron chips, and re-clamp to change a side; even if the movement is fast, it takes 180 seconds. 100 pieces of material accumulate to 300 minutes.

The machine is equipped with an infrared automatic probe, so there's no need to look at dial indicator readings with the naked eye. Touching the edge of the workpiece with a probe only takes 15 seconds. Manual tool setting often takes 300 seconds. Making 50 mold blanks in batches saves 230 minutes in the alignment step alone. Machine effective operation rate increased from 50% to 85%.

· Tool change from tool magazine only takes 2.5 seconds

· Feed air stroke speed 24 meters/minute

· Hydraulic fixture clamping pressure 3.5 MPa

· Positioning error of each reversal 0.005 mm

· Automatic chip conveyor cleans 3kg of iron chips per second

Cutting forces cancel each other out during double-head processing, so steel material does not produce micro-displacements due to uneven force. Processing the side with a single head, the cutting force pushes the workpiece to one side, often leading to dimension out-of-tolerance. Simultaneous dual-side cutting guarantees 0.01mm parallelism, saving the effort of later grinding machine polishing.

Grinding masters previously had to grind away 0.5mm allowance; material from the double-head machine only needs 0.15mm of grinding. Single piece grinding time was shortened from 40 minutes to 15 minutes. The throughput of downstream processes has been pulled up, and the logistics chain of the entire workshop has become smooth.

The BT50 spindle with carbide inserts turns 1200 times per minute, with feed set at 800mm. Only after continuously finishing 120 faces is there a need to change tool tips.

· Produces 35 finished pieces in 24 hours continuously

· Output value per square meter increased by 1.2 times

· Order delivery compressed from 3 days to 24 hours

· Waste oil recovery rate reaches 95%

· One operator oversees 3 machines

For an order of 100 pieces, a single-head machine needs to handle it 400 times, while a double-head machine only needs 200 times. 200 forklift start-stop manual labors are saved. The bump scrap rate caused by handling dropped to below 0.1%.

Labor costs per single mold blank have been diluted by 60%. Steel suppliers dare to take urgent orders. A 500-ton order that originally took three weeks to complete is now delivered on time in two weeks. Capital turnover speed changed from 45 days to 30 days, with no inventory accumulation.

The automation program has built-in templates; input three numbers of length, width, and height, and the system automatically generates the tool path. No need to write complex G-code; junior workers can get started after 3 days of training. There are 8 more hours of cutting time daily, and motor power utilization rate is maintained above 90%.

Steel plate surface roughness reaches Ra 1.6 level. It looks like a mirror to the naked eye. No need for rough grinding later, directly enter fine grinding or slow wire cutting processes. The dimension variance of the entire batch of material is controlled within 0.015mm.

· Cooling pump pressure 0.8 MPa

· Spindle motor power 18.5 kW

· Machine tool guide rail lubrication once every 4 hours

· Pneumatic door opens and closes in 1.5 seconds

· Single equipment annual output increases by 4500 pieces

The machine bed uses Meehanite cast iron, with a dead weight of over 5 tons. It does not drift during high-speed cutting. Instances of blade chipping decreased by 20%. Downtime for sudden failures was reduced. The filtration system purifies 2000 liters of cutting fluid per hour, preventing small particles from scratching the surface.

Many bosses have done the math and think single-head machines are cheap, but calculate the extra 4000 hours of labor every year. Plus the extra work downstream grinding machines do. A double-head machine can recover costs in one year. Turning on the machine at 8 a.m. every morning and seeing the finished product area full of steel material at 8 p.m., the output is very objective.

The cutting path for each steel block has been optimized. During end face milling with dual spindles, the overlap area is set to 10mm. Eliminates intermediate tool joint marks. Avoided secondary rework processing. Single pass eating depth 3mm, material removal rate reaches 150 cubic centimeters per minute.

· Spindle thermal compensation precision 0.002 mm

· Tool holder runout amount controlled within 0.003 mm

· Air pressure filtration precision 5 microns

· Pallet exchange time 8 seconds

Measurement, tool setting, face washing, and chamfering are all run by programs. For a single 200mm thick mold steel, the processing cycle is controlled within 12 minutes. Compared to the 30 minutes of traditional methods, the efficiency improvement is obvious.

Dimension consistency also makes the deformation amount after heat treatment smaller. Steel distributors use this equipment to do zero-cut business. Customers place orders at noon and can ship in the afternoon.

The influence of ambient temperature on precision is corrected in real-time by sensors. Even if the workshop is not constant temperature, the processing error is still steady within 0.02mm. Spindle bearings adopt ceramic material. They do not heat up during long-time high-speed rotation. Guaranteed the stability of continuous 24-hour processing.

· Daily lubricating oil consumption 0.3 liters

· Single insert cost reduced by 15%

· Grinding head speed deviation 0.1%

· Guide rail hardness HRC 55 degrees

A heavy-duty double-head machine occupies an area of about 15 square meters, and its output is equivalent to three single-head milling machines. The saved 30 square meters of space can hold two more fine-processing equipments. The overall floor efficiency of the factory increased by 200%. For industrial zones where land is at a premium, space utilization is profit.

Material utilization has also been optimized. Accurate milling reduces black skin residue. Steel blocks are regular on six sides, and surface hardness is uniform during later graining and nitriding treatments. Reduced secondary product expenditure caused by uneven substrate treatment. Can save tens of thousands of yuan in material loss costs every year.

· Inverter energy saving efficiency 25%

· Work light life 50000 hours

· Lead screw diameter 50 mm

· Operation panel response speed 0.1 seconds

Steel thickness automatically adapts from 20mm to 300mm. The hydraulic system automatically adjusts the clamping force according to the workpiece material. Use light pressure for aluminum plates and heavy pressure for hard steel. Prevents crushing the surface. The sequence of actions for each batch is as precise as a clock. This sense of rhythm is the guarantee of throughput.

Processing NAK80 steel material. The double-head machine shows extreme rigidity. Spindle noise is maintained below 75 decibels. Workers operate in a quiet environment, and the error rate also decreases. A stable daily output pace makes factory management simple and controllable.

Precision Control

When double-head milling machines process 718H or NAK80 mold steel, parallelism is usually controlled with an error of less than 0.01mm over a 300mm length. The centerlines of the two spindles must be on the same horizontal plane, with height deviation not exceeding 0.005mm. The bed adopts HT300 gray cast iron and has undergone two manual aging treatments.

Since the power heads on both sides squeeze inward simultaneously, the cutting force received by the steel material cancels out in the horizontal direction. When processing with a single-head milling machine, the workpiece often tilts 3 to 5 microns to one side. Under double-head synergy mode, spindle rotation accuracy is maintained at 0.003mm. This mechanical structure avoids the tool-yielding phenomenon caused by single-side heavy cutting from a physical level.

· C3 grade precision ball screw with P grade linear guide rail

· Lead screw diameter 50mm, guide rail span set to 650mm

· Servo motor resolution reaches 24 bits, with pulses per revolution exceeding 16 million

· Spindle taper hole radial runout controlled within 0.002mm

· Bearing temperature rise controlled within 15 degrees Celsius above room temperature

For every 1 degree Celsius change in ambient temperature, a 1-meter long bed will produce 12 microns of linear thermal expansion. The CNC system has a built-in displacement compensation algorithm, cooperating with temperature sensors at the guide rails. Temperature rise data is collected every 300 seconds. Automatically corrects coordinate origin offset, ensuring processing dimensions are consistent at 3 a.m. and 12 p.m.

The measurement feedback link uses Heidenhain or Fagor grating scales to achieve full closed-loop control. The 0.02mm cumulative error generated by lead screw thermal extension will be corrected in real-time. When processing 500mm wide mold blanks in large batches. The diagonal dimension difference measured reading stays within 0.015mm.

The tool disc outer diameter is usually chosen as 200mm or 250mm, with 12 to 16 carbide inserts installed. The installation height error of each insert must be calibrated within 0.005mm. If a certain insert protrudes too much, a tool joint mark of 0.03mm depth will appear on the surface. Validated by dynamic balancing machine, the amplitude of the cutter head at 1000rpm is less than 1 micron.

The surface roughness in the finishing stage reaches Ra 1.2 to Ra 1.6. The side presents a uniform mesh cutting texture. Subsequently entering the grinding machine process, only 0.1mm of tool infeed is needed to grind flat. Compared to the 0.4mm allowance left by traditional milling. Grinding efficiency overall increased by more than 3 times.

· Coolant flow 60 liters per minute, outlet pressure 0.5 MPa

· Filter paper filtration precision set to 25 microns

· Magnetic separator removes 99% of iron powder

· Spindle oil cooler power set to 2.5 kW

· Lubrication system automatically injects oil once every 40 minutes

Processing S136H, this kind of stainless steel with high chromium content, the heat generated by cutting very easily leads to surface hardening. The double-head machine adopts Constant Surface Speed (CSS) function. When the tool cuts into and out of the steel block edge. The feed rate automatically decreases by 20%. Prevents corner chipping, guaranteeing the sharpness of the mold mouth.

In large-batch production, a laser interferometer calibration is needed every 200 pieces. The positioning accuracy after 3-axis linkage compensation reaches 0.008mm. The operator inputs the correction value on the touch screen, and correcting precision only takes 10 seconds. This fine-tuning capability reduces scrap output caused by environmental fluctuations.

Factory measured data shows that for mold blanks after using double-head milling, during assembly. The four-corner force deviation narrowed from 0.05mm to 0.01mm. Mold base opening and closing mold smoothness increased. The wear speed of guide pillars and guide sleeves decreased by 30%. These data reflect the influence of front-end processing precision on later life.

· Lead screw pre-tension force set to 2500 Newtons

· Machine tool ground level adjusted to 0.02mm/m

· Pneumatic coupling transmits torque up to 500 Nm

· Tool change arm grasping force 50 kg

· Workbench load capacity supports over 5 tons

The spindle box adopts a symmetrical design, and the cooling rib layout has undergone finite element analysis. After running for 4 hours, the machine tool reaches thermal balance. At this time, the dimensional dispersion of processed workpieces is the smallest. For mold blanks with width between 200mm and 600mm. The dimension tolerance band for the entire batch of orders is only 0.02mm.

The verticality of the steel block after milling is determined by the rotation accuracy of the workbench. High-precision CNC rotary table adopts rat-tooth plate positioning. Indexing precision reaches plus or minus 3 arc seconds. For processed rectangular solids. The angle error between any two adjacent faces is limited to one-fifth of a hair's diameter.

The air pressure filtration system precision reaches 5 microns, ensuring the taper surface is clean during spindle tool change. If a single chip is clamped between the tool holder and the spindle. Tool tip runout will instantly amplify to 0.05mm. The automatic blow-cleaning function maintains pressure at 0.7 MPa. Ensuring that cutting precision after every tool change returns to the initial value.

· Variable frequency spindle acceleration and deceleration time 2.0 seconds

· Spindle rigid tapping speed 3000rpm

· X-axis rapid movement speed 30 meters/minute

· Guide rail protective cover impact resistance times over 1 million

· Electrical box constant temperature air conditioning set to 26 degrees Celsius

Aiming at H13 die-casting mold steel, perform rough milling in a pre-hardened state. The double-head machine can maintain a 3mm eating depth without generating chatter. This high rigidity comes from the plastic-pasting process between the slide saddle and the guide rail. Friction coefficient reduced to 0.05.

The tool setter coming with the machining center has a repeat trigger precision of 0.001mm. Every time after changing inserts, the system automatically recognizes tool length and radius. Eliminated the 0.05mm system error brought by manual measurement. For the first and last pieces of a batch of 50 mold blanks. The actual detected dimension deviation is only 0.007mm.

This high-precision output reduces the pressure on the quality inspection link. Previously every piece had to have full-size inspection. Now it changed to 1 piece sampled out of 10 pieces. The detection efficiency in the workshop increased by 80%.

· Spindle motor continuously outputs 150 Nm torque

· Tool magazine tool change position positioning error 0.01mm

· Coolant oil-water separation rate 98%

· Guide rail pair load-bearing capacity 500 kg per square centimeter

The machine tool foundation depth requirement is 1.5 meters, and a shock-absorbing cork layer is laid. Isolated the ground fluctuations brought by large punches in the workshop. This stable physical basis, cooperating with closed-loop CNC system.

Operation Threshold Lowered

Traditional hand-cranked machine tools or ordinary CNC milling machines require old masters with ten years of seniority to preside, with monthly salaries usually above 12,000 yuan. The double-head milling machine simplifies operation logic into "fill-in-the-blank questions" through built-in macros. Novice operators after 72 hours of paid training can start processing P20 or 718H mold steel, with labor costs directly pressed down by more than 40%.

The operator only needs to input the blank size and target size on a 10-inch touch screen, such as milling 505mmx405mm rough material to 500mmx400mm. The system automatically calculates the feed path, with no need to hand-write G-code. Previously writing a section of four-side milling program took 15 minutes, now shortened to 40 seconds.

· 10-inch industrial-grade touch oil-proof panel

· Built-in cutting parameter tables for 20 common steels such as S136, H13, etc.

· Error codes displayed in Chinese in real-time, troubleshooting time shortened to within 5 minutes

· Coordinate system automatic memory function, alignment time after power-off restart is only 60 seconds

· Supports direct import of DXF drawings from U-disk, processing paths automatically generated

"Previously the workshop was full of the sound of dial indicator jumping, and the master had to stare at the needle rotation. Now young men only need to look at the load meter on the screen; as long as the spindle load is maintained at 85%, they don't need to worry.

The probe touches the workpiece edge at a speed of 500mm/min, with repeat positioning accuracy reaching 0.005mm. Single piece tool setting time dropped from 10 minutes to 30 seconds. Processing a batch of 50 pieces of orders, the alignment link alone saves 475 minutes of effective man-hours compared to manual operation.

· Probe repeat trigger life exceeds 10 million times

· Automatically measures workpiece length, width, and center position

· 0.8MPa air pressure automatic blow-cleaning for dust removal, preventing iron chips from interfering with measurement

· Probe anti-collision protection design, spindle emergency stops in 0.1 seconds during misoperation

· Measurement data automatically compensated into the coordinate system, error range controlled within 0.01mm

The CNC system real-time accumulates insert loss according to spindle torque change and cutting mileage. After processing 150 planes, a window will automatically pop up on the screen to remind changing inserts. This quantitative management avoids workpiece scrap caused by insert chipping, with scrap rate dropping from 3% to below 0.1%.

Changing a set of inserts only takes 60 seconds. Using a constant-torque wrench set to 8Nm ensures that 12 carbide inserts receive uniform force. No need for repeated trial-cutting adjustment like before. Operators operate according to standardized manuals, and downtime caused by a single tool change decreased by 80% compared to before.

"The factory used to be most afraid of old masters taking leave; as soon as he left, that single-head machine would have to 'lie down'. Now with double-head machines, the flow is all standardized. Newcomers stay by the machine for three days, and jobs like dial checking, tool setting, and cutting can all be done neatly, and daily output is very stable."

The hydraulic station pressure is constant at 3.5MPa, cooperating with large-stroke flat-nose pliers. Press the foot switch to clamp, taking only 1.5 seconds. Compared to the 30 seconds needed for manual rotation of the lead screw to clamp the workpiece, action frequency during batch processing is significantly reduced. Operator's physical consumption reduced by 60%, making output efficiency during 12-hour shifts remain constant.

· Dual-station synchronous processing, single clamping completes dual-side cutting

· Spiral automatic chip conveyor cleans 100kg of iron powder per hour

· Tool magazine capacity 24 tools, BT50 tool change time only 2.5 seconds

· Machine tool occupies an area of 15 square meters, saving 50% space compared to three single-head machines

· Spindle maximum speed can reach 6000rpm, supporting high-hardness material processing

The forklift transports a pallet of finished products every 4 hours, each pallet stacking 15 mold blanks. Operators only need to be responsible for loading and unloading. Since the system integrated the workpiece counting function, finished product warehouse entry slips are automatically generated. Managers through background data can see the OEE utilization rate of each equipment every hour.

The lowering of operation threshold is not only reflected in software, hardware design also considered fault tolerance. The pneumatic automatic door is equipped with a safety light curtain, with sensing distance set to 20mm. Once the operator's hand enters the processing zone by mistake, the spindle stops rotating instantly.

Spindle temperature rise real-time monitoring system is set at room temperature plus 15 degrees. Bearing lubrication automatically injects 0.3ml of oil every 4 hours. These refined automatic maintenance functions keep the machine always in the best processing state. Operators don't need to know complex machine repair knowledge; they only need to follow screen prompts to supplement lubricating oil and clean filter screens.

Steel traders through this low-threshold equipment achieved 24-hour non-stop operation. The night shift only needs to be equipped with one inspection person. The average comprehensive processing cost per steel block, including electricity, labor and depreciation, dropped from the original 150 yuan to about 65 yuan. Capital recovery period shortened from three years to fourteen months.

"Now it's much easier to recruit people; as long as young men can understand the screen and can move materials, they can use it. The machine did all the complex calculations and tool settings, and people turned into supervisors. This production method makes us feel very confident when taking large orders of over 500 pieces."

Spindle load monitoring precision reaches 0.1%, being able to sense micro-chipping of inserts. Once torque abnormally increases by 15%, the system alarms and pauses immediately. This prevents spindle damage caused by hard cutting, saving nearly ten thousand yuan in maintenance costs annually. High reliability of the equipment combined with simple operation constitutes the stability support of factory batch production.
