CNC Tool Holder Stuck in Spindle | Causes, Safe Removal, Prevention

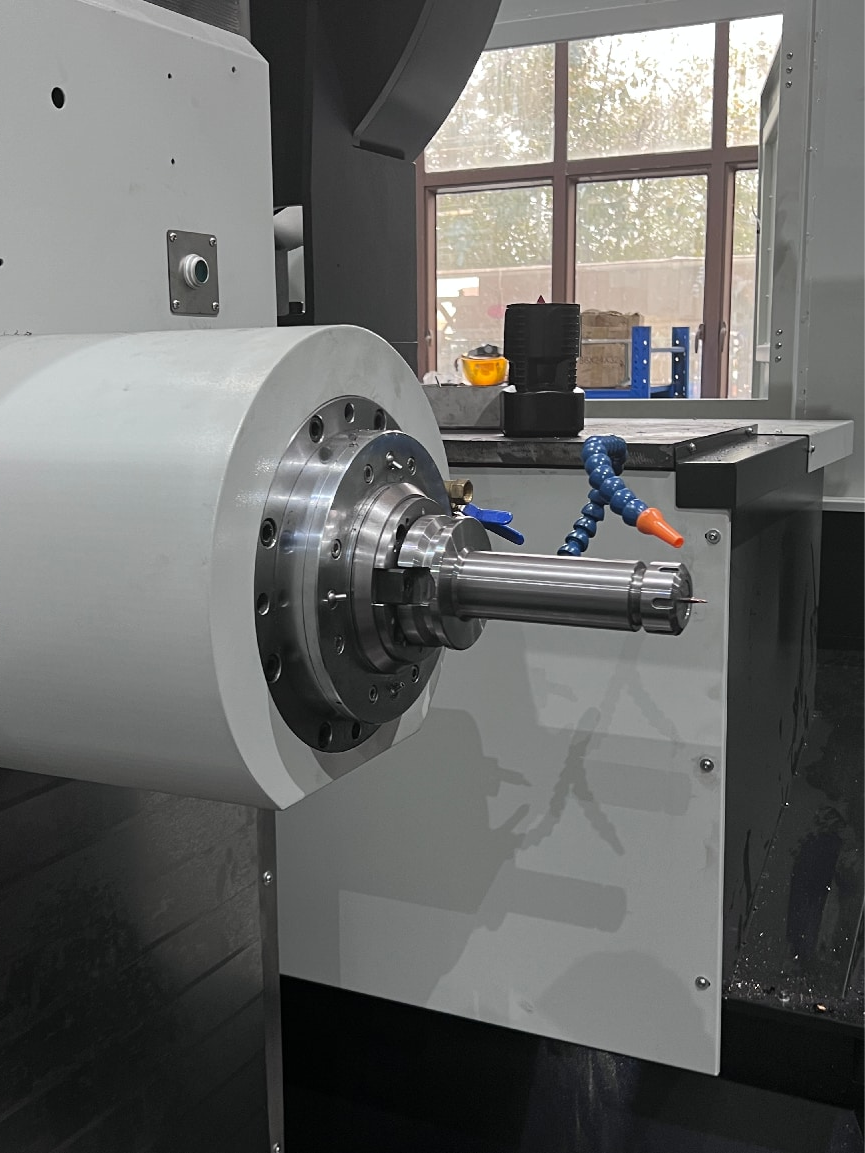

If a CNC tool holder is stuck in the spindle, first check how it behaves during the release command. No movement usually points to the drawbar, gripper, release piston, air or hydraulic supply, pull stud, or sensor. If the holder moves slightly but stays in the spindle, check the taper for chips, dried coolant, rust, fretting, burrs, heat, or ATC side pressure.

If the ATC is jammed against the tool, the holder could fall, or troubleshooting requires entering a hazardous machine area, stop operator-level work. Servicing that can expose a worker to unexpected machine movement or stored energy requires proper energy control.^[1]

Check Whether the Holder Actually Released

On many CAT, BT, and similar machining-center spindles, the drawbar grips a pull stud at the back of the tool holder. The gripping parts may use balls, fingers, segments, or a CNC spindle pull claw.

During release, the drawbar must move far enough for the gripper to let go.

• No holder movement: the gripper may still be holding the pull stud.
• Small axial movement: some release movement has occurred, so the taper and ATC deserve closer inspection.
• Control shows “unclamped” but holder stays locked: do not rely on the screen alone. A sensor can switch before the mechanical system reaches full release.

A release piston that moves is not automatically good. It can move too little to fully open the gripping mechanism.

Check Whether the Fault Follows One Holder

If one holder repeatedly sticks while other known-good holders release normally, inspect that holder before taking apart the spindle.

• Taper scratches
• Rust or pitting
• Burrs or raised metal
• Crash damage
• Wrong holder type
• Wrong pull stud
• Loose or damaged pull stud

If several unrelated holders develop the same problem, move the check to the parts they share:

• Spindle taper
• Drawbar
• Gripper
• Tool-release piston
• Air or hydraulic supply
• Clamp/unclamp sensors
• ATC alignment

Do not repeatedly test a visibly damaged holder in a good spindle. Raised damage on the holder can mark the spindle taper.

Inspect the Spindle and Holder Tapers

Clean both the holder taper and the spindle contact surface, then inspect them under good light.

Look for:

• Fine chips
• Dried coolant
• Sticky residue
• Grinding dust
• Long scratches
• Circular wear marks
• Burrs
• Dents
• Rust or pitting
• Dark contact patches
• Polished spots
• Transferred metal

Burrs are more serious than simple scratches. A scratch removes or marks material; a burr leaves raised material that can stop the holder from seating correctly.

Fretting often appears as reddish-brown or dark marks, polished patches, or fine metallic debris. It indicates very small repeated movement between the holder and spindle.

Galling is heavier surface damage where metal smears or transfers between the two parts.

Coolant can also create a problem without obvious metal damage. Fine chips can remain in dried coolant film and become pressed into the taper during clamping.

If sticking starts soon after a coolant product or concentration change, include that change in the fault record.

Do not grind, sand, stone, or aggressively polish the spindle taper as a general repair. Removing material changes the fit.

Inspect the Pull Stud

Do not judge a pull stud only by whether its thread fits the holder.

Check:

• Correct part number
• Head shape
• Neck shape
• Projection length
• Gripper contact area
• Pitting
• Cracks
• Bending
• Damaged threads
• Loose installation
• Unusual gripping marks

Two retention knobs can use the same mounting thread but have different head or neck geometry. The spindle grips the head and neck area, so those differences can change clamp and release position.

ISO 7388-3:2016 defines retention-knob dimensions for specified 7/24 automatic-tool-change shanks.^[2]

If sticking starts immediately after pull studs are replaced, verify the pull studs before replacing spindle components.

Measure Drawbar Force

If several holders are affected or fretting appears on several holders, check drawbar clamping force with the correct gauge.

Possible drawbar faults include:

• Weak or damaged spring stack
• Worn gripping parts
• Drawbar wear
• Damaged guides
• Seal problems
• Crash damage

Weak clamping can allow small movement during cutting. That can lead to fretting, chatter, changing tool position, poor finish, and uneven taper contact.

Do not use a generic force value based only on CAT40, BT40, CAT50, or HSK size. Use the value for the exact spindle.

For example, if a machine's specified drawbar force is 2,000 lbf and a later test measures 1,600 lbf, the measured force has dropped by 20%. The numbers are an example only; the percentage calculation shows why recording force over time is useful.

Check Air Supply During Release

If the machine uses pneumatic tool release, do not check only the idle pressure gauge.

Check for:

• Blocked filter
• Restricted supply line
• Faulty regulator
• Air leak
• Damaged hose
• Restricted fitting
• Solenoid-valve problem
• Water in the air system
• Insufficient shop-air capacity

A system can show normal pressure at rest and still lose too much pressure when the release piston moves.

For example, a machine might show 90 psi at idle but fall to 65 psi during release. These are not recommended CNC pressure values. They simply show how a large pressure drop can reveal a supply problem that an idle reading misses.

Use the OEM test method and pressure requirement for the machine. Do not increase pressure above specification to force a holder out.

Check TRP Travel

On machines that use a tool-release piston (TRP), check whether it completes the required movement.

A TRP can:

• Fail to move
• Move slowly
• Stop short
• Leak
• Stick
• Receive too little air or hydraulic pressure
• Have incorrect pushout adjustment

If the piston moves but the holder remains fully clamped, insufficient release travel is one possible cause.

Do not use a TRP pushout or travel number taken from another CNC machine. Pushout, shims, sensor position, and drawbar adjustment are spindle-specific.

Check Sensor Signals Against Actual Movement

A tool-change system may use sensors for:

• Clamp position
• Unclamp position
• TRP position
• Tool presence
• Spindle orientation
• ATC position

A failed sensor gives the wrong or no signal. A misadjusted sensor can give a valid signal at the wrong mechanical position.

If the control reports “unclamped” but the holder is still rigidly locked, compare the actual mechanical movement with the sensor state.

Do not move sensor brackets simply to clear an alarm. Incorrect sensor position can let the tool-change sequence continue before the holder is fully released.

Check ATC Side Load

Watch the holder and changer arm during the failed part of the sequence without placing hands inside the machine.

Check for:

• Changer arm pushing sideways
• Wrong spindle orientation
• Misaligned tool pocket
• Bent ATC arm
• Incorrect tool-change timing
• Sensor sequence errors

If the holder never unclamps, the ATC jam is probably a result of the release fault.

If the holder releases but the ATC pushes it sideways, the changer itself may be causing the holder to bind.

Stop automatic cycling if the arm is visibly loaded against the holder.

Check Heat Only When the Pattern Fits

Temperature is worth checking when the machine releases tools normally while cold but begins sticking after long spindle operation.

Typical steel expands by about 11–13 µm per meter for each 1°C rise in temperature.

For scale, a 100 mm steel dimension changes by roughly 22–26 µm over a 20°C temperature increase:

• 22 µm = 0.022 mm
• 26 µm = 0.026 mm

This is only a size example. It is not the expected clearance change inside a spindle. The spindle, holder, bearings, and surrounding structure do not all heat by the same amount.

ISO 230-3 covers testing of thermal effects in machine tools, including effects associated with rotating spindles.^[3]

Record the spindle operating time, approximate speed, cutting load, holder involved, and whether the fault disappears after cooldown.

Do not use a torch, dry ice, or uncontrolled heating or cooling to release the holder.

After a Crash, Check More Than the Holder

Check all parts that may have carried the impact load:

• Cutting tool
• Tool holder
• Pull stud
• Spindle taper
• Drawbar
• Gripper
• Spindle runout
• Spindle orientation
• ATC arm and alignment

A holder can look normal and still be bent. A spindle can still rotate while tool seating, runout, or ATC alignment is no longer correct.

If sticking starts immediately after a crash, do not treat it as an unrelated cleaning problem until the spindle and tool-change system have been checked.

CAT and BT: Check the 7/24 Interface

CAT and BT holder families commonly use a 7:24 steep taper.

The taper diameter changes by 7 units over 24 units of axial length. This gives an included taper angle of about 16.59°, or about 8.30° per side.

ISO 9270-1 specifies dimensions and tolerances for 7/24 spindle noses used with automatic tool changers and corresponding ISO 7388 tool shanks.^[4]

For a CAT or BT holder that has released but remains stuck, check:

• Taper contamination
• Rust
• Burrs
• Fretting
• Taper damage
• Temperature pattern
• ATC side load

The 7/24 taper does not make CAT and BT pull studs interchangeable. Match the complete holder and retention-knob specification to the spindle.

Some steep-taper systems also use spindle-face contact. If the machine uses a dual-contact interface, inspect both the taper and the intended face-contact area.

HSK: Check the Taper, Face, and Internal Grip

HSK uses a hollow 1:10 taper with flange-face contact.

A 1:10 taper has an included angle of about 5.72°, or about 2.86° per side.

ISO 12164-1 defines HSK hollow-taper shanks with flange contact, and ISO 12164-2 defines matching receivers with taper and flange contact surfaces.^[5][6]

Check:

• Hollow taper surface
• Flange-face contact surface
• Internal gripping parts
• Holder orientation
• Drive features
• Release movement
• Clamp/unclamp sensors

Do not apply CAT or BT pull-stud troubleshooting logic to an HSK clamping unit. HSK grips internally and depends on both taper and face contact.

Use the OEM Release Procedure

1. Stop repeated automatic tool-change attempts.
2. Record the alarm before resetting it.
3. Record where the ATC sequence stopped.
4. Check whether the holder moved during release.
5. Check whether the ATC is pushing sideways.
6. Verify normal pneumatic or hydraulic supply.
7. Use the machine's documented manual-release or recovery procedure.
8. Stop if the approved procedure does not release the holder.

Keep hands away from the holder's drop path, spindle interface, changer arm, and other pinch points.

Turning off the CNC control does not necessarily remove mechanical, hydraulic, pneumatic, or electrical stored energy during service work.^[7]

ISO 16090-1 covers safety requirements for machining centres, milling machines, and transfer machines.^[8]

Internal drawbar repair, TRP adjustment, sensor realignment, spindle repair, and mechanical ATC alignment should follow the machine manufacturer's service procedure.

Do Not Force the Holder Out

If an OEM service procedure specifies a controlled mechanical removal method, follow that method rather than replacing it with a generic technique.

Inspect the Holder Before Reuse

After removal, clean and check:

• Holder taper
• Pull stud
• Spindle taper
• Face-contact surface where applicable
• Fretting marks
• Burrs
• Dents
• Corrosion
• Crash marks
• Transferred metal

Do not return the holder to normal use if it has:

• Repeated sticking
• Raised taper damage
• Heavy corrosion
• Cracks
• Crash damage that has not been checked
• An unknown or questionable pull stud

If the problem was only removable dirt and the holder has no physical damage, clean it, verify the correct pull stud, and check several normal tool-change cycles before returning it to production.

Check Runout After a Crash or Taper Damage

Use the machine manufacturer's test setup when spindle condition is in question.

For scale, 0.005 mm equals 5 µm. This does not mean 0.005 mm is an acceptable limit for every spindle.

A reading taken at the cutting edge can include error from:

• Cutter
• Collet
• Chuck
• Tool holder
• Assembly
• Taper seating
• Spindle

ISO 230-1 covers geometric accuracy testing of machine tools under no-load or quasi-static conditions.^[9]

Do not condemn the spindle from one cutter measurement without separating the holder and tooling errors from the spindle measurement.

Use the Failure Pattern to Narrow the Cause

Record the machine, holder ID, tool number, alarm, spindle temperature condition, tool-change position, recent maintenance, coolant changes, and whether the fault returned.

If the same holder appears in 4 of 5 recorded failures while other holders work normally, inspect that holder first. The 4-of-5 example is not a service limit; it shows how maintenance records can separate a repeated holder fault from a random machine fault.

Prevent Repeat Sticking

• Clean the holder taper before loading it.
• Keep the spindle taper free of chips and dried coolant.
• Confirm the correct pull stud before installing new holders.
• Remove crashed, corroded, burred, or repeatedly sticking holders from normal use.
• Record drawbar-force measurements at the machine manufacturer's maintenance interval.
• Maintain air filters, regulators, hoses, valves, and water separators.
• Record tool-change alarms instead of repeatedly resetting them.
• Check the spindle and ATC after a crash before normal production resumes.

Keep taper surfaces away from dirty benches and loose chips. Where several holder families share one tool room, clear HSK, BT, CAT, and SK tool-holder organization reduces the chance of damaged or incorrect holders returning to the wrong machine.

Using dedicated CNC tool holder carts also keeps precision tapers off workbenches and separates holder types during storage.

For drawbar-force records, compare measurements with the machine's own reference value. For example, readings of 100%, 96%, and 89% of the original reference show a clear downward trend. Those percentages are an example of trend tracking, not universal pass/fail limits.

Call for Service When These Conditions Appear

• The OEM release procedure does not free the holder.
• The ATC is physically jammed against the holder.
• The holder can fall unexpectedly.
• Several known-good holders have the same fault.
• The spindle taper has visible damage.
• The fault started after a serious crash.
• Drawbar force is outside the machine specification.
• TRP adjustment is required.
• Sensor realignment is required.
• The drawbar or spindle must be disassembled.
• A safety interlock would need to be bypassed to continue.

Common Questions

Can coolant make a tool holder stick?
Yes. Dried coolant can leave a film, and coolant can carry fine chips into the taper. Inspect both contact surfaces if sticking appears after a coolant or concentration change.

Can the wrong pull stud cause a stuck holder?
Yes. Two pull studs can share the same thread but have different head, neck, or projection geometry. The gripping geometry must match the spindle system.

Why does the holder release with a pop?
Check dirt, dried coolant, fretting, corrosion, taper damage, and whether the sound appears mainly when the spindle is hot.

Should I oil the spindle taper?
Not unless the machine or tooling manufacturer specifically requires it. Lubrication requirements for internal clamping parts do not automatically apply to the taper contact surface.

Can I sand a damaged taper?
Not as a general repair. Sanding removes material and can change the contact geometry.

Can I hammer the holder out?
Do not use uncontrolled hammering. First confirm whether the holder is still mechanically clamped and use the machine manufacturer's release procedure.

Why does manual release work but automatic tool change fail?
Check ATC alignment, spindle orientation, tool-change timing, sensor sequence, and pneumatic performance during the automatic cycle.

Can I reuse a holder after it sticks once?
Only after the cause is known. Removable dirt without physical damage may be corrected by cleaning. Repeated sticking, burrs, corrosion, crash damage, or questionable pull studs require further inspection.

How do I know the repair worked?
Run several normal tool-change cycles. Confirm that the original alarm does not return, the holder releases normally, the ATC does not push sideways, and any drawbar-force or runout problem found during diagnosis is within the machine manufacturer's limit.

Finally

Use four checks to narrow a stuck tool holder quickly: movement, holder pattern, contact condition, and release-system condition. No movement points first to the drawbar, gripper, TRP, supply, pull stud, or sensors; slight movement shifts attention toward the taper and ATC. CAT and BT commonly use a 7:24 taper with about a 16.59° included angle, while HSK uses a 1:10 taper of about 5.72° with face contact. A 20°C temperature change can move a 100 mm steel dimension by roughly 22–26 µm. Never substitute generic air-pressure, drawbar-force, TRP-travel, or runout numbers for the limits specified for the exact spindle.
