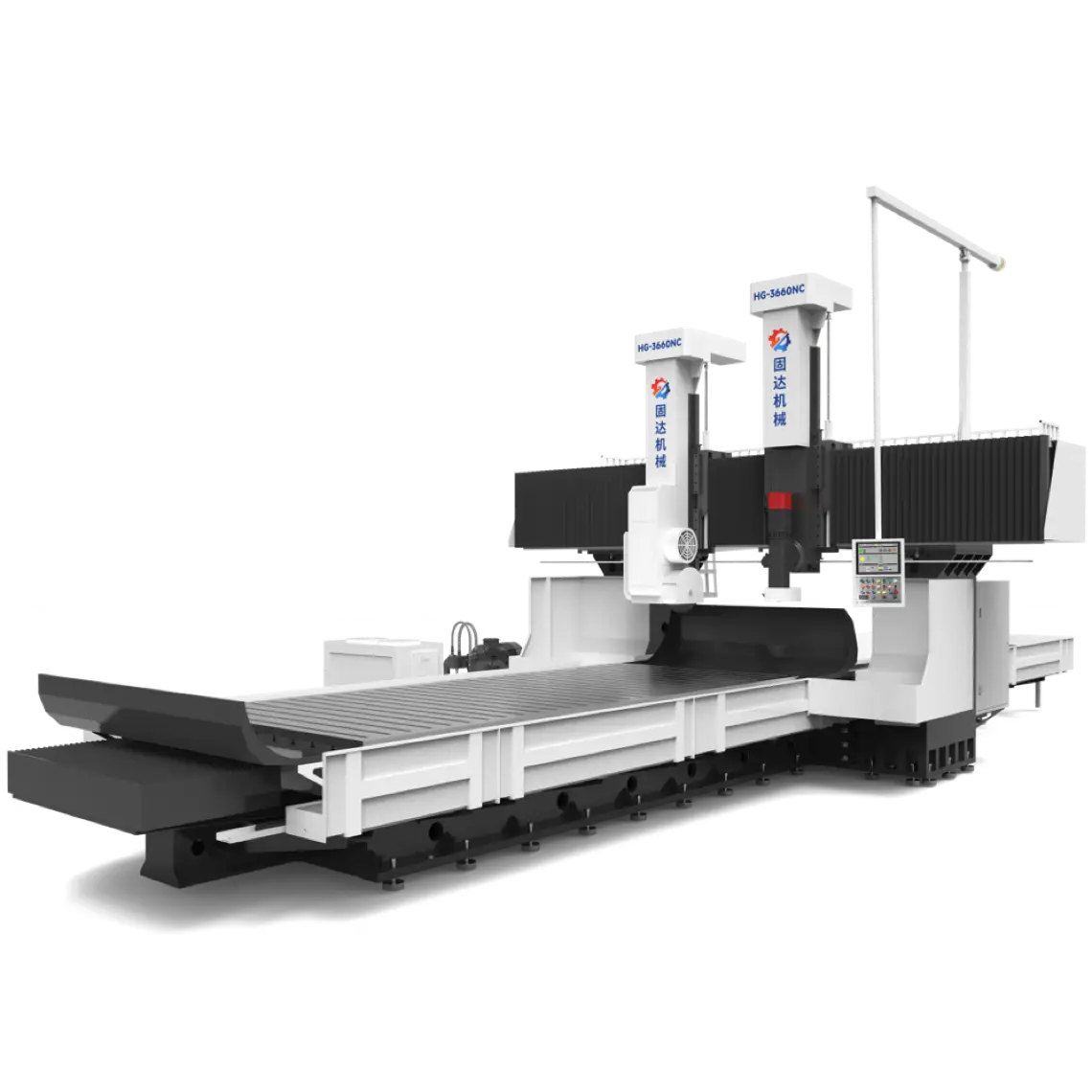

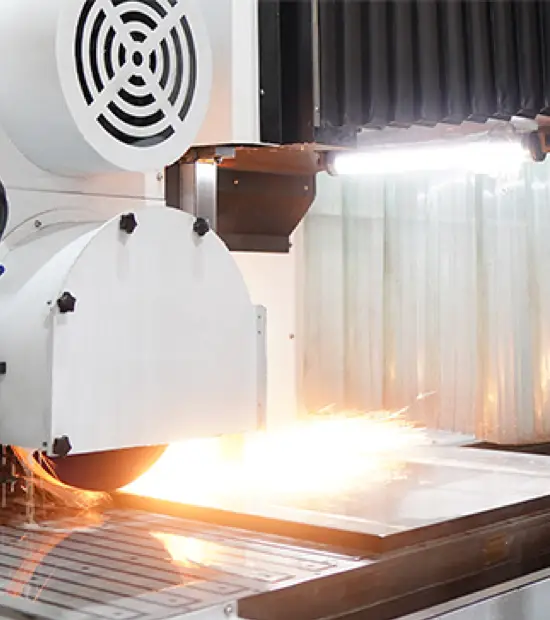

ASIATOOLS CNC Surface Grinding Machine Series is built on a rigid gantry frame (bed, columns, and crossbeam) for supreme grinding accuracy. The entire unit features a fully enclosed splash guard and an optional waterproof sliding door for easy, protected operation.

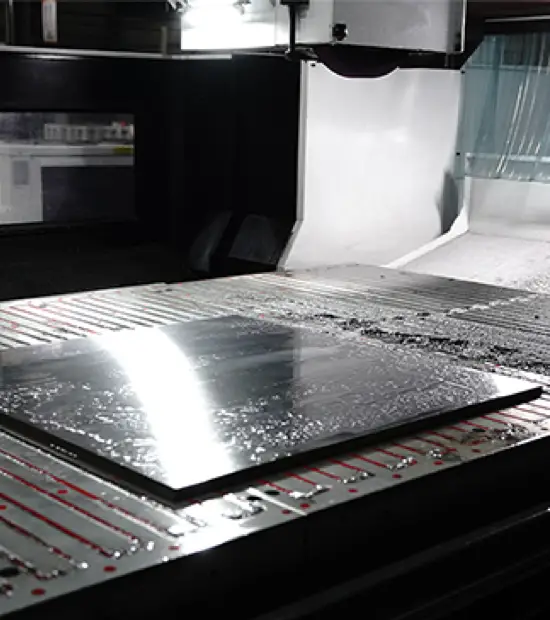

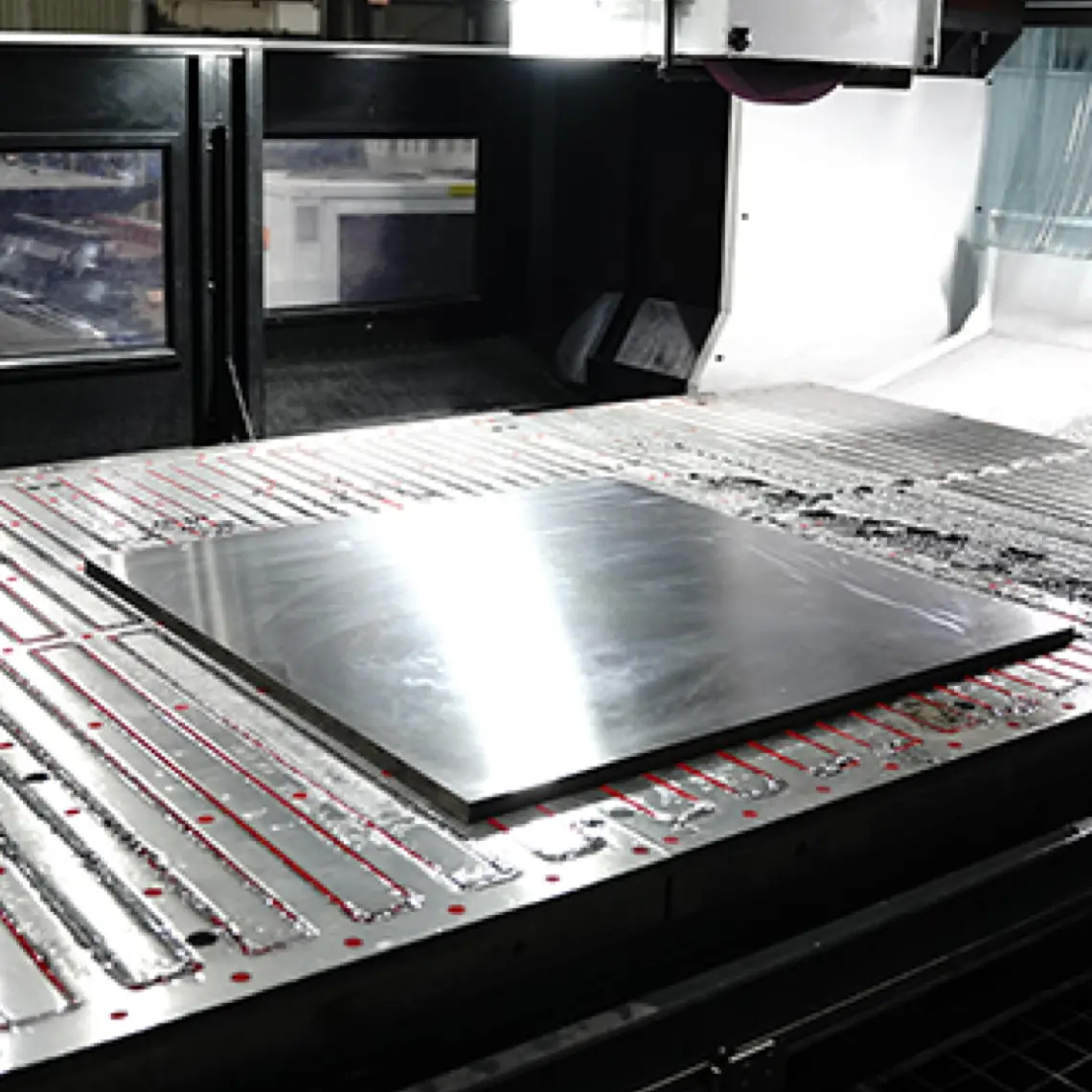

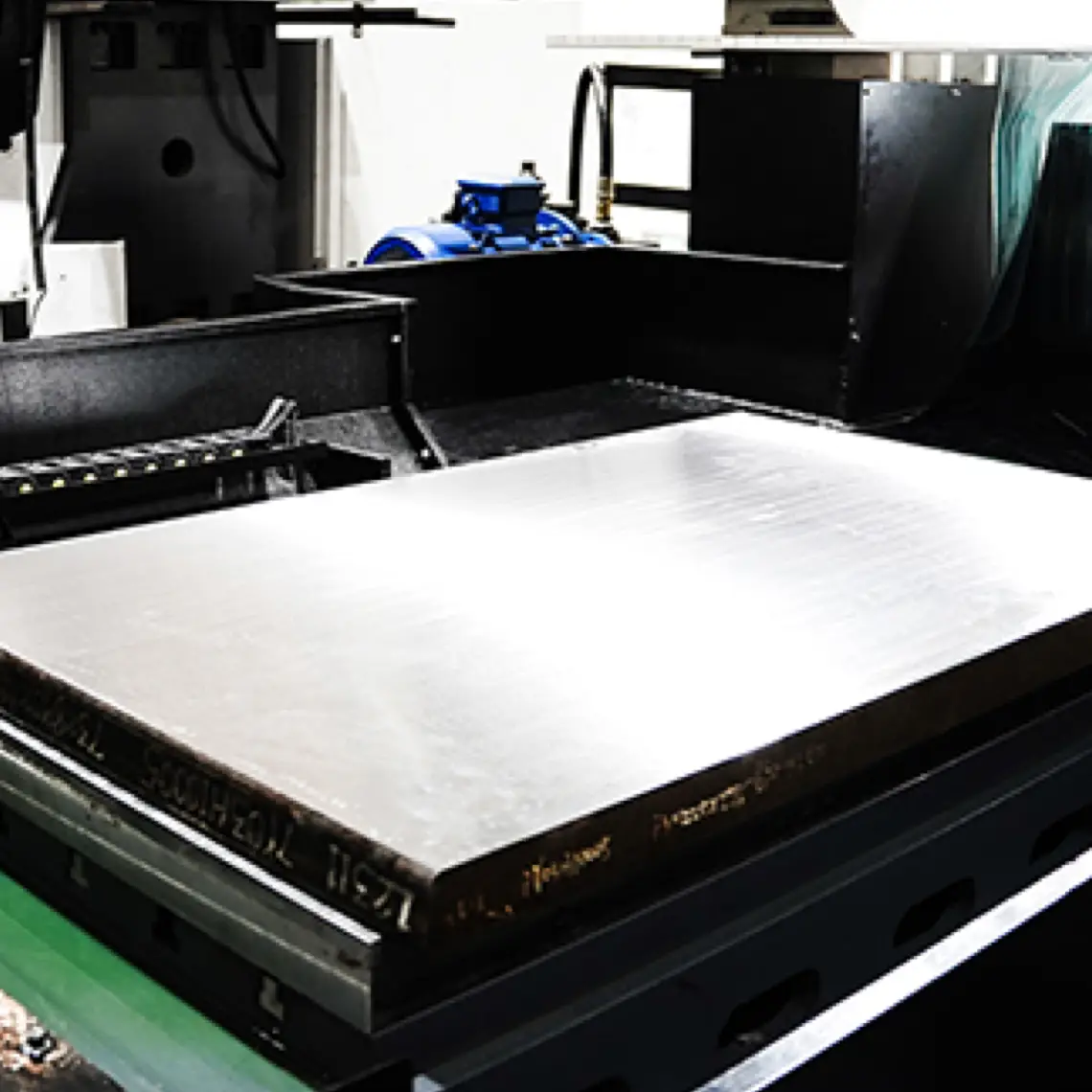

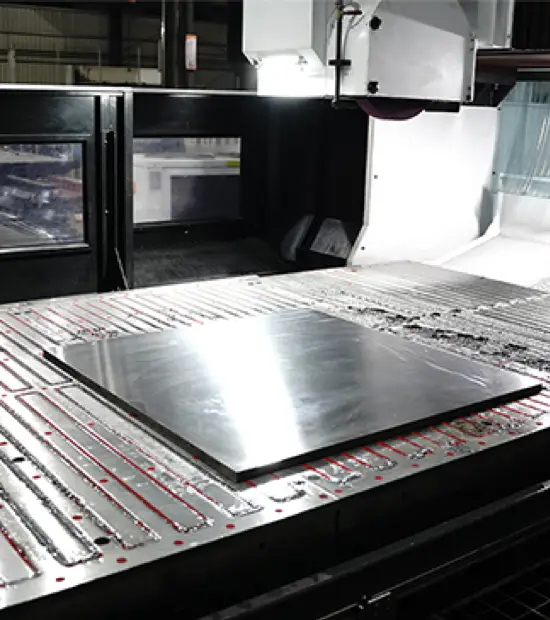

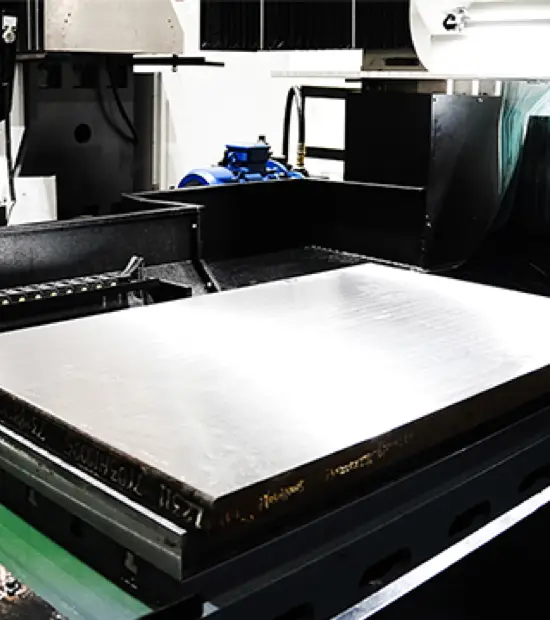

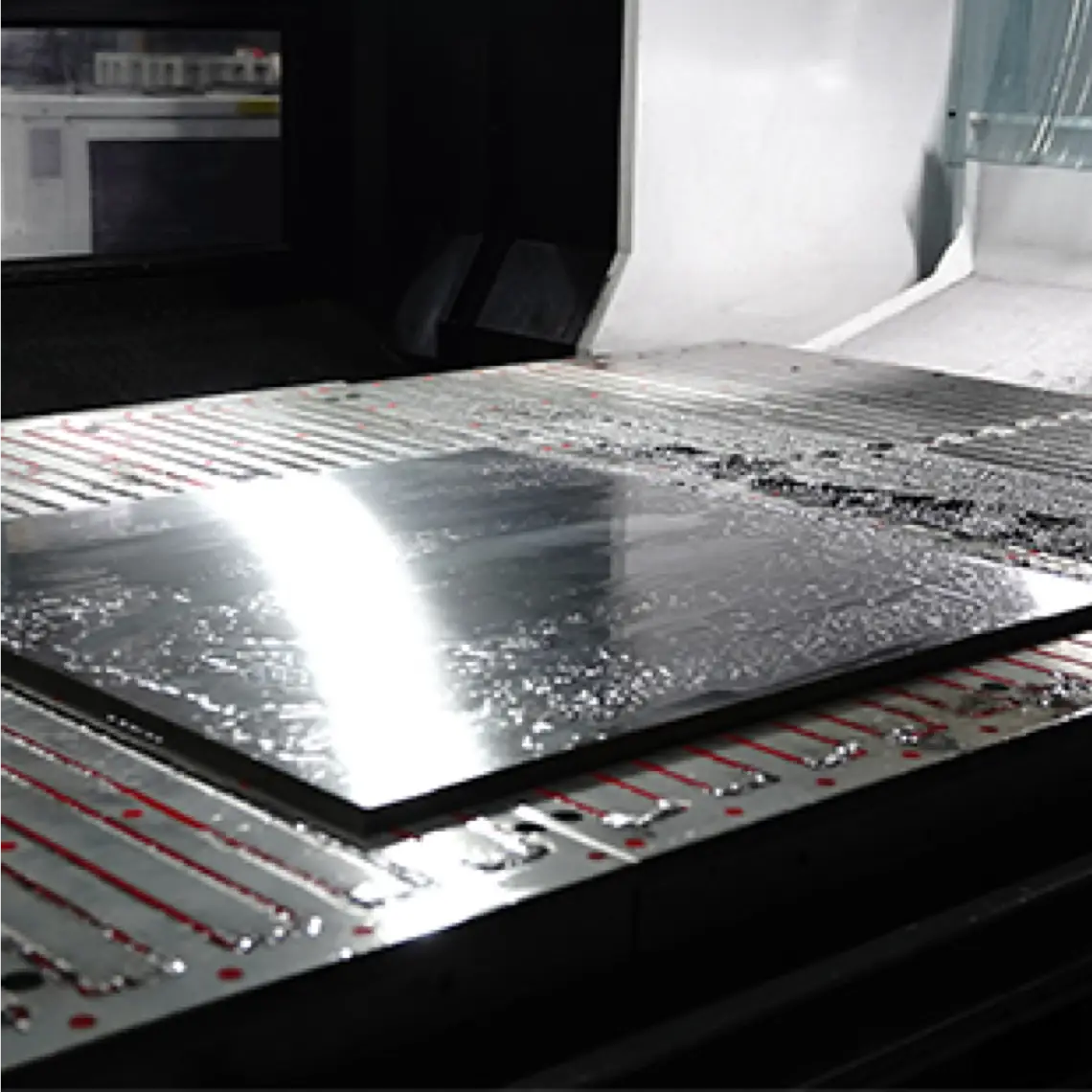

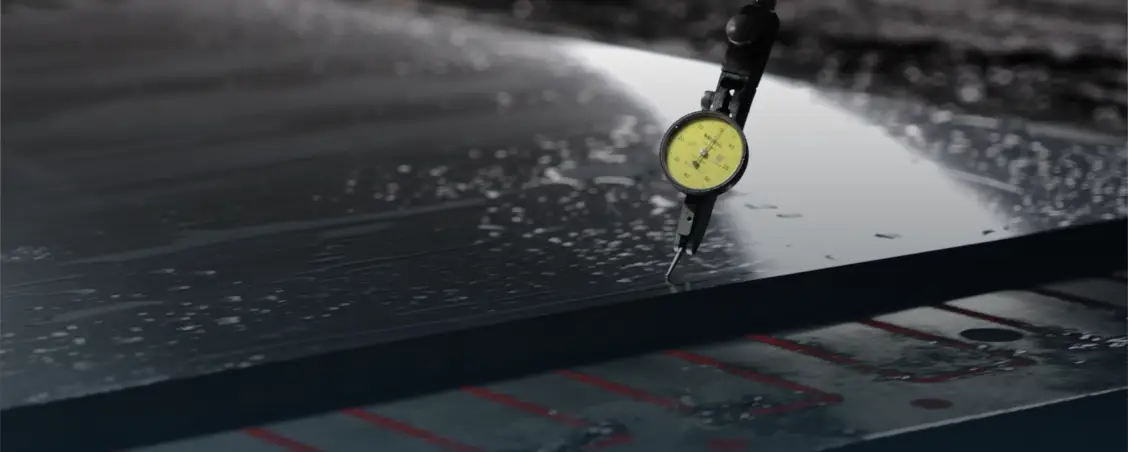

Achieves surface roughness up to Ra ≤ 0.8 with tolerance ≤ 0.01 mm / 1000 mm, delivering reliable accuracy for large and precision components.

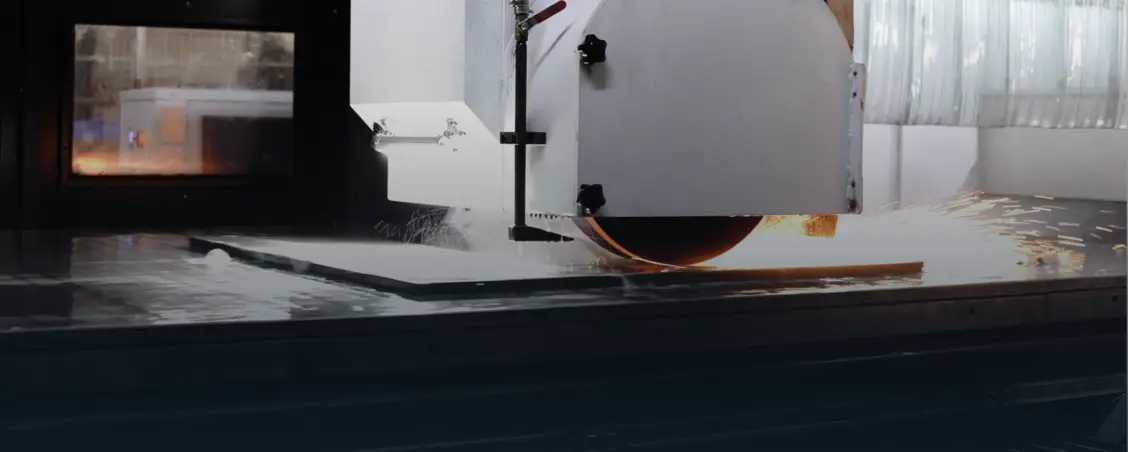

Wide grinding range from 1500 to 6000 mm, ideal for oversized workpieces and batch surface grinding applications.

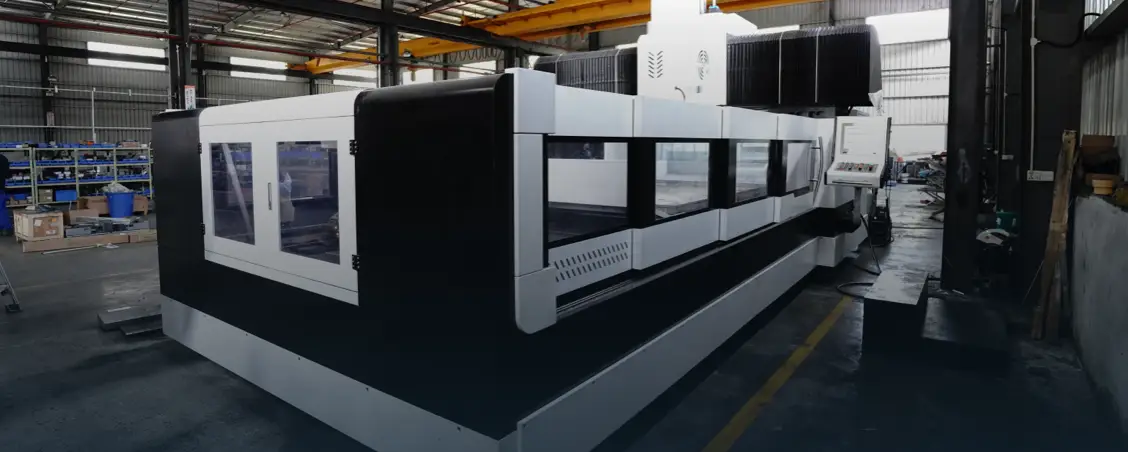

Fully enclosed splash guard with optional waterproof sliding door, ensuring clean, safe, and operator-friendly operation.

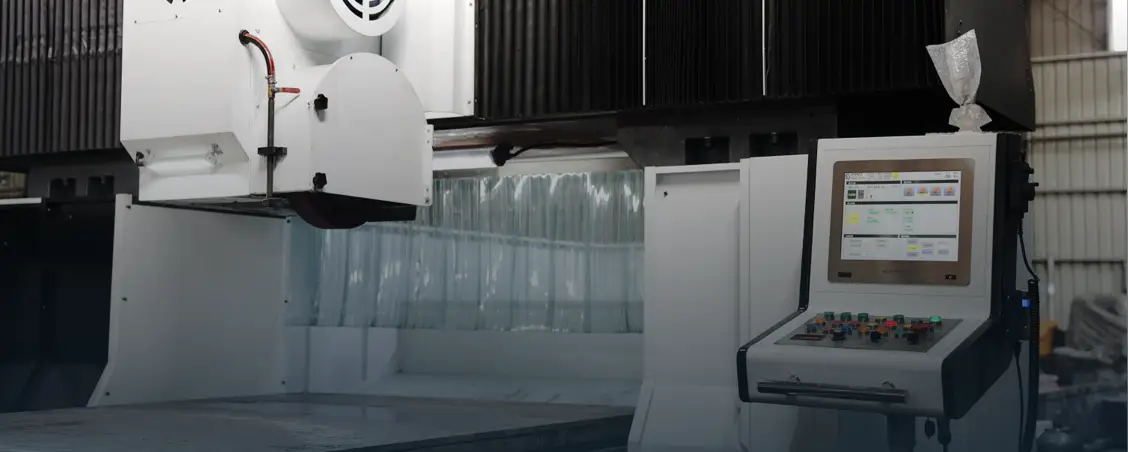

Multiple CNC systems and guarding options available to match different production needs and budgets.

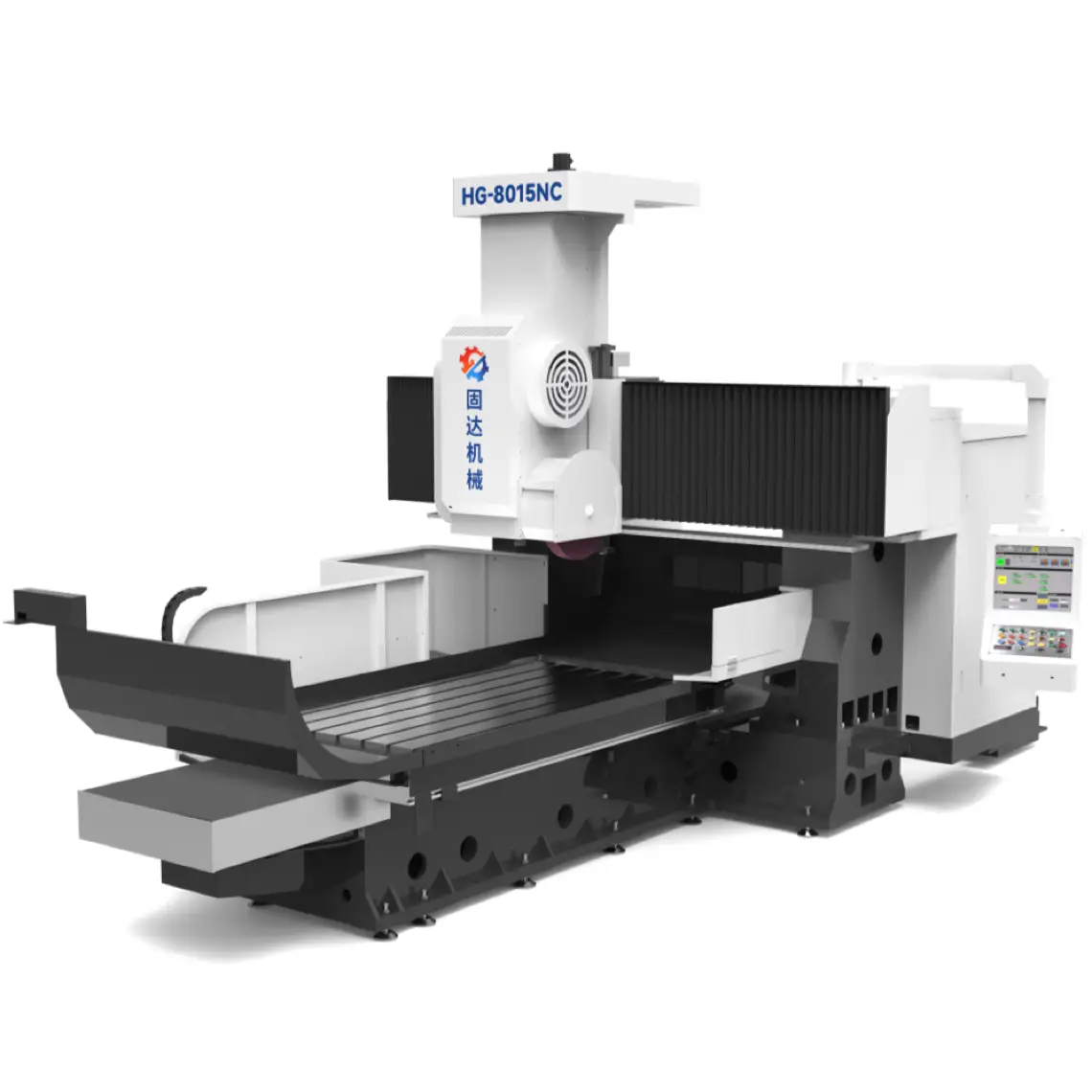

| Model | HG-8015NC |
|---|---|
| Max.grinding capacity | 1500*900mm |
| Max.grinding height | 350mm |
| Worktable size | 1500*800mm |
| Max.load capacity | 2000Kg |
| T-slot size | 22*140mm |
| Spindle motor power | 15kW |
| Spindle speed | 1400rpm |
| Grinding wheel size | 500*203*75mm |
| Xaxis rapid feed rate | 5-28m/min |
| Machine size | 5210*3450*3500mm |
| Machine weight | About 10000Kg |
Our machine portfolio offers the perfect fit for your work - from small parts to large-scale workpieces, ensuring you have the right capabilities for any project.
| Model | Max. grinding capacity | Max. grinding height | Worktable size | |
|---|---|---|---|---|
| HG-8015NC | 1500*900mm | 350mm | 1500*800mm | |
| HG-1420NC | 2000*1000mm | 450mm | 2000*1000mm | |
| HG-1825NC | 2500*1600mm | 600mm | 2500*1500mm | |
| HG-1830NC | 3000*1600mm | 600mm | 3000*1500mm | |
| HG-2330NC | 3000*2300mm | 700mm | 3000*1800mm | |
| HG-2340NC | 4000*2000mm | 700mm | 4000*1800mm | |
| HG-2640NC | 4000*2200mm | 700mm | 4000*2200mm | |
| HG-2650NC | 5000*2200mm | 700mm | 5000*2200mm | |
| HG-2660NC | 6000*2200mm | 700mm | 6000*2200mm | |
| HG-3260NC | 6000*2800mm | 1200mm | 6000*2600mm | |
| HG-3660NC | 6000*3200mm | 1200mm | 6000*3200mm |
| Key Area | Ordinary Machines | ASIATOOLS CNC Grinding Machine |
|---|---|---|
| Structure | Light frame | ✔ Heavy-duty gantry structure |
| Accuracy Stability | Short-term accuracy | ✔ Long-term stable accuracy |
| CNC Control | Basic CNC | ✔ Smart CNC, high automation |
| Large Workpiece | Limited | ✔ Up to 6000 mm |
| Protection | Partial | ✔ Fully enclosed option |
| Operation | Manual dependent | ✔ Automated & consistent |
Our partnership with customers continues long after the purchase. We provide comprehensive after-sales services to help you install, operate, and maintain your equipment with confidence.
