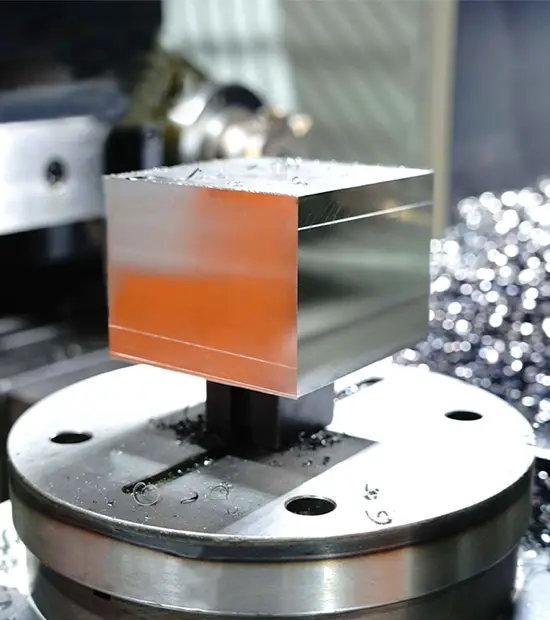

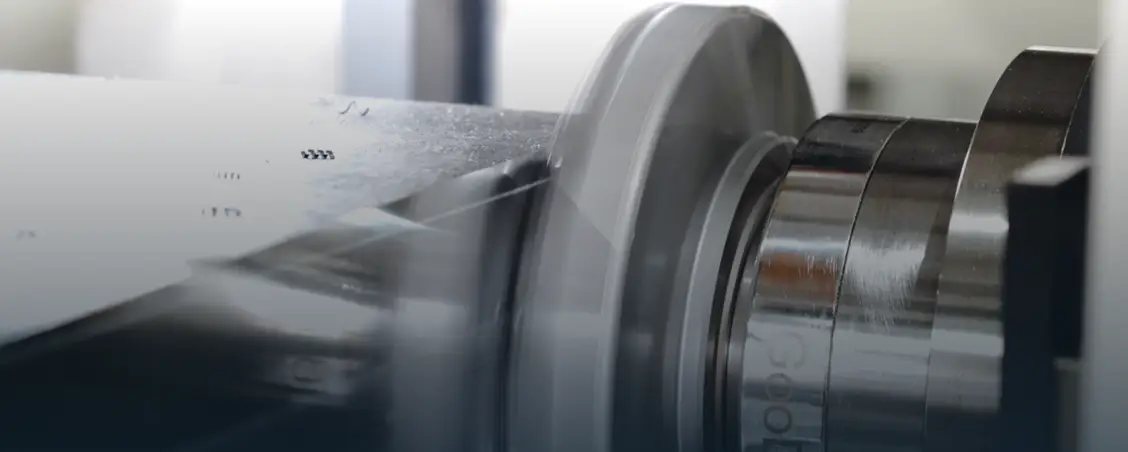

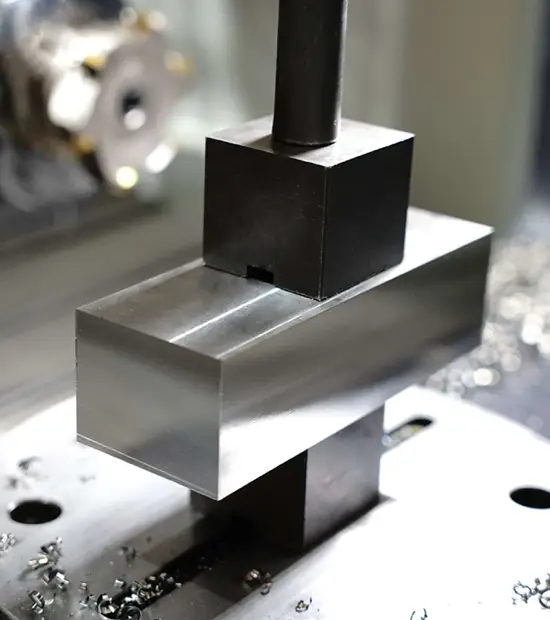

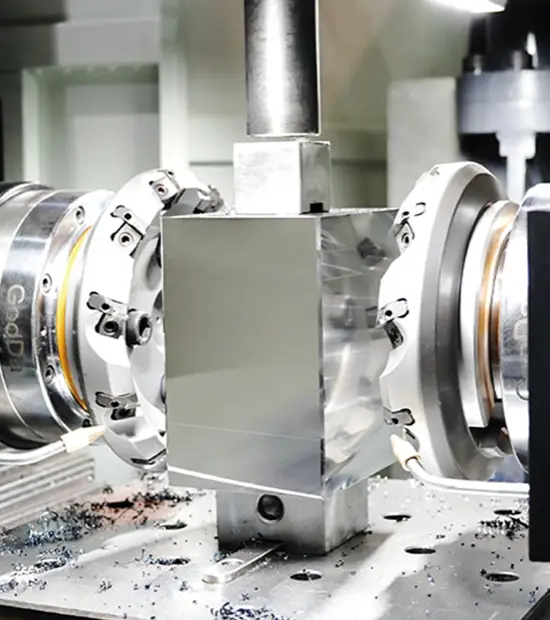

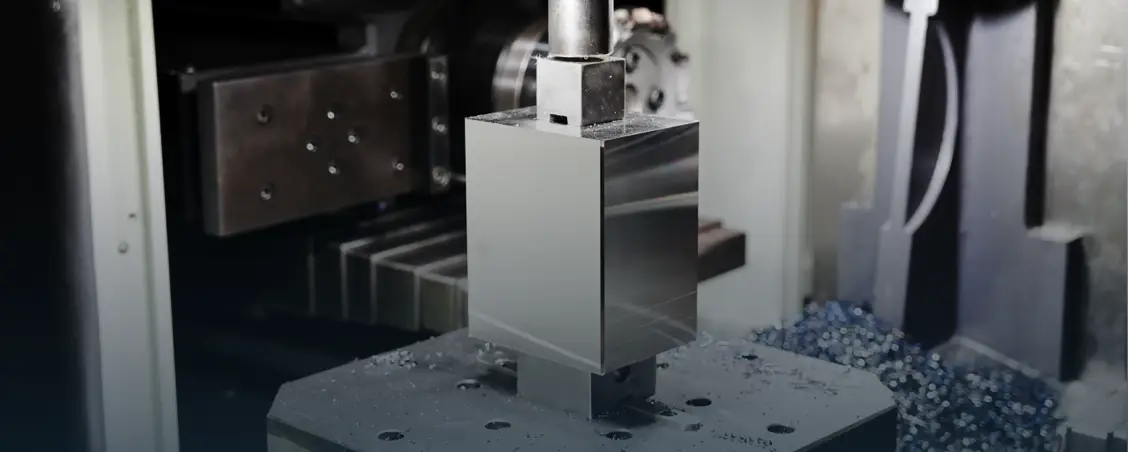

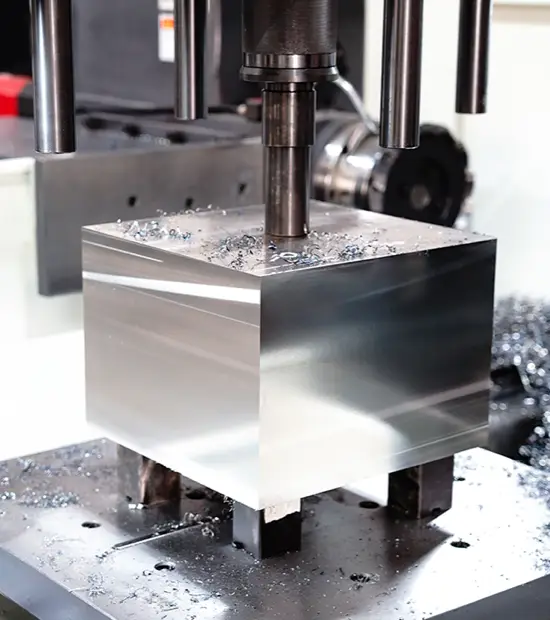

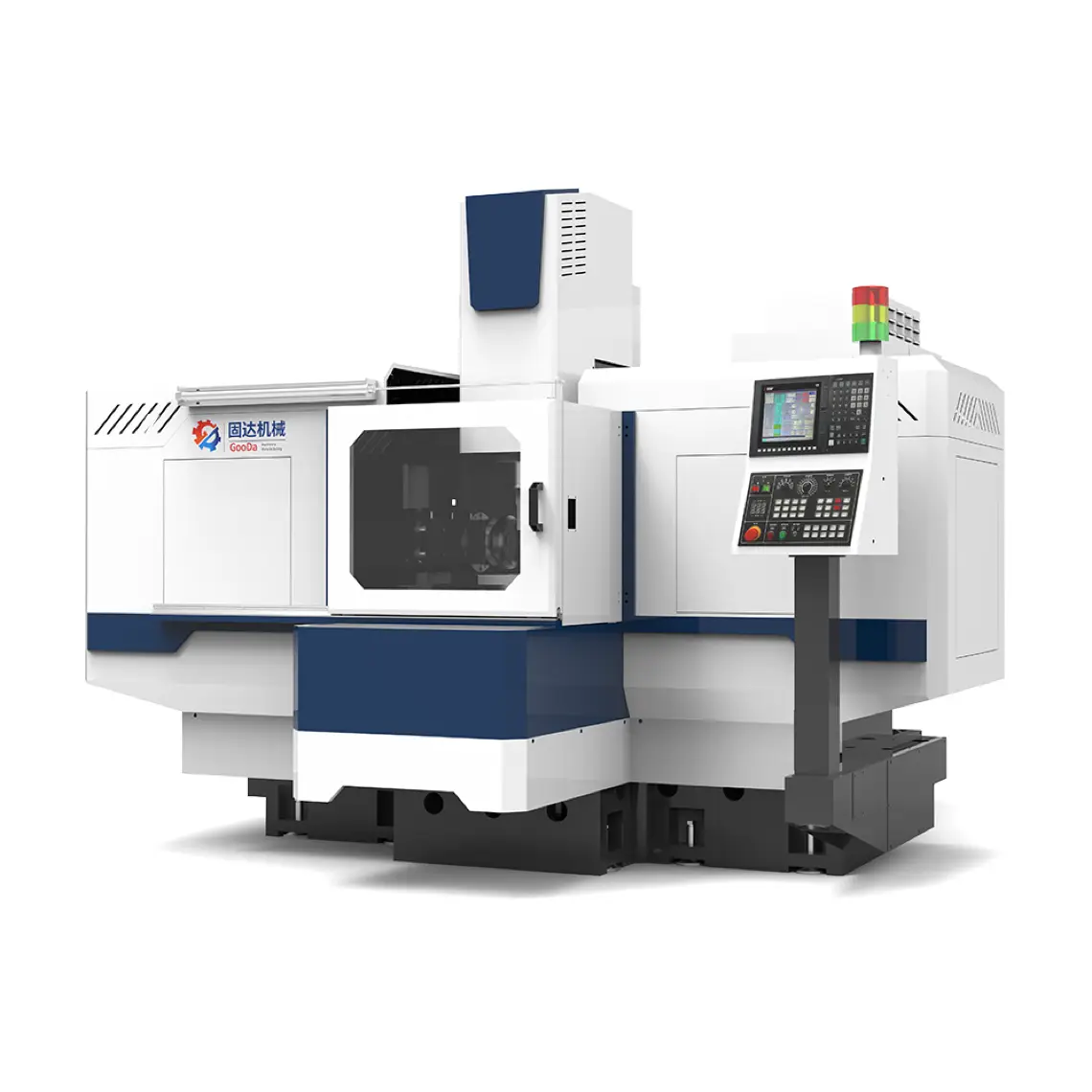

ASIATOOLS CNC Duplex Milling Machine Series features a rigid TH300 cast iron base for superior stability. Simply input the workpiece processing data, and it will perform four-sided milling and four-edge chamfering in a single setup.

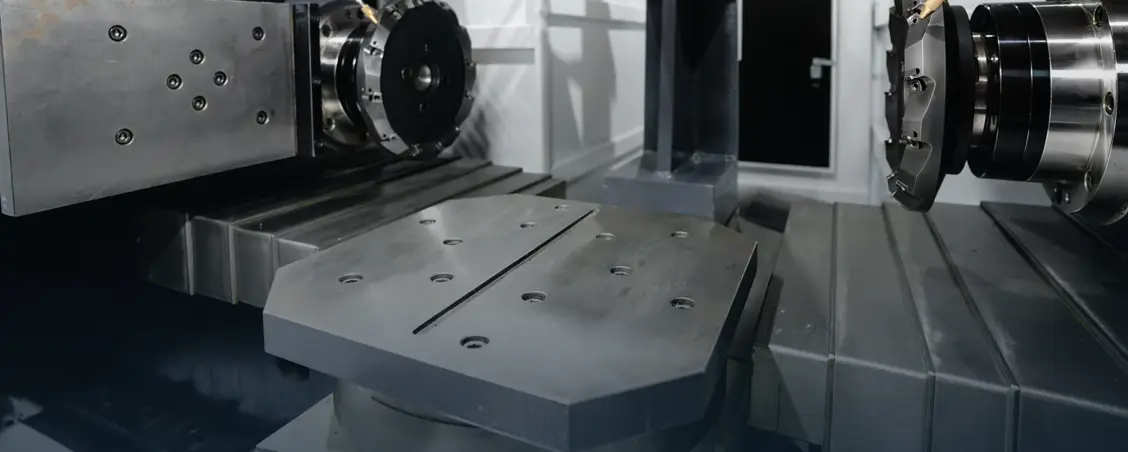

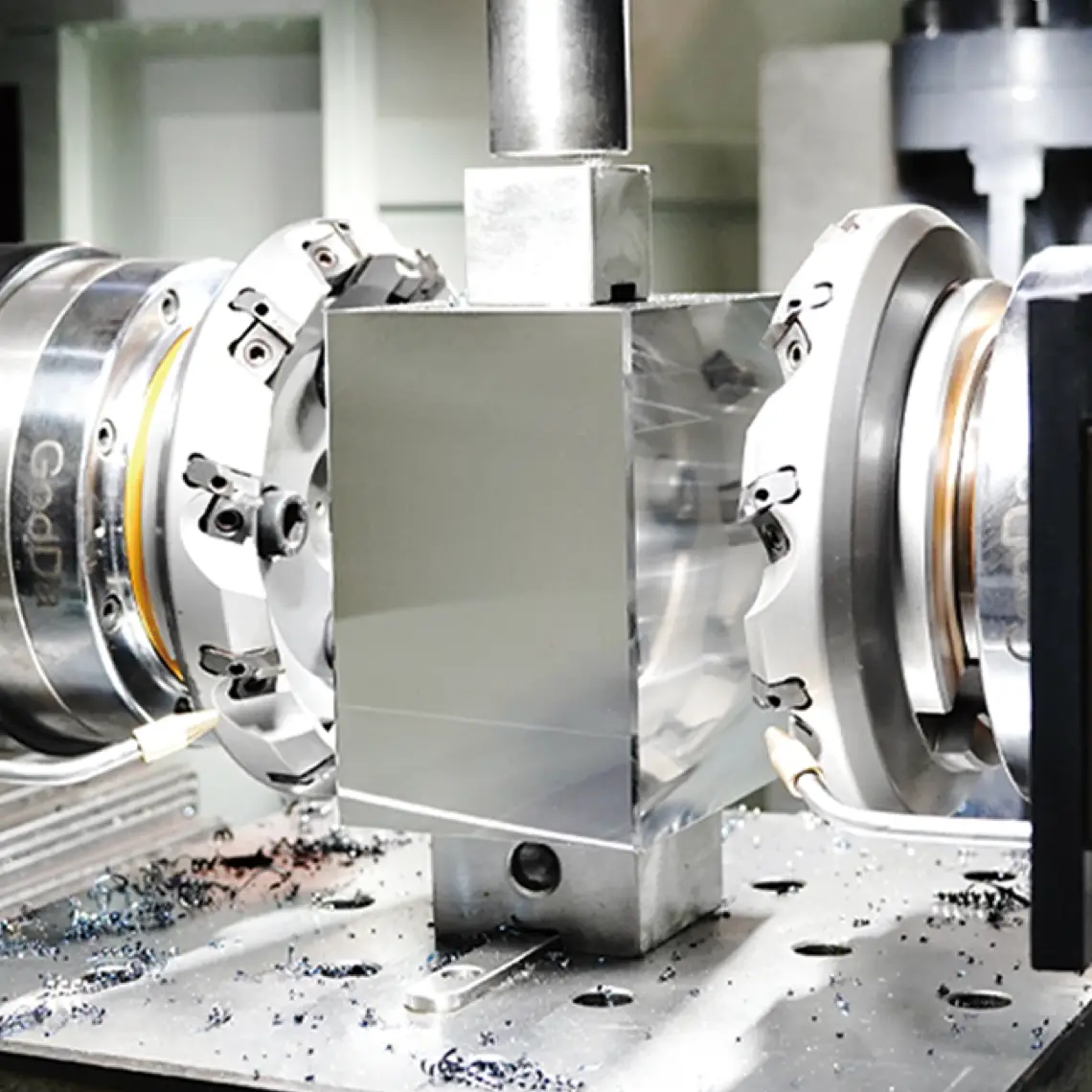

4 sides milling by 1 setup→ 30–60% cycle time reduction

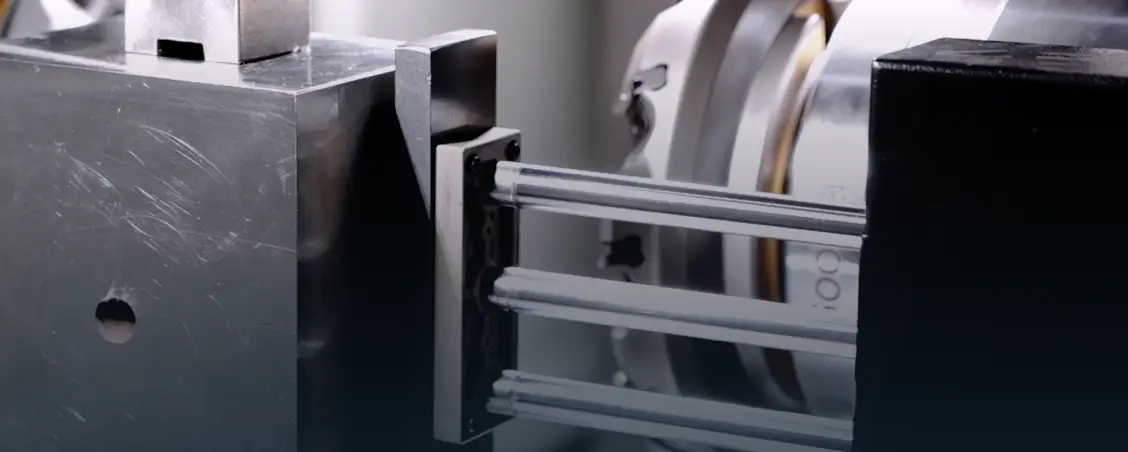

Squareness ≤0.02 over full travels, Ra≤0.8
| Model | TH-350NC |
|---|---|
| Number of control axes | 4 |
| Max.cutting capacity | 2*2mm |
| Processing capacity | 20-350mm |
| Worktable size | 260*260mm |
| Max.load capacity | 200Kg |
| Spindle motor power | 2*7.5kW/11kW |
| Spindle speed | 50-500rpm |
| Cutter diameter | φ150mm |
| X/Y/Z axis rapid feed | 8000*8000*8000mm/min |
| Machine size | 3075*2760*2300mm |
| Machine weight | About 5500Kg |

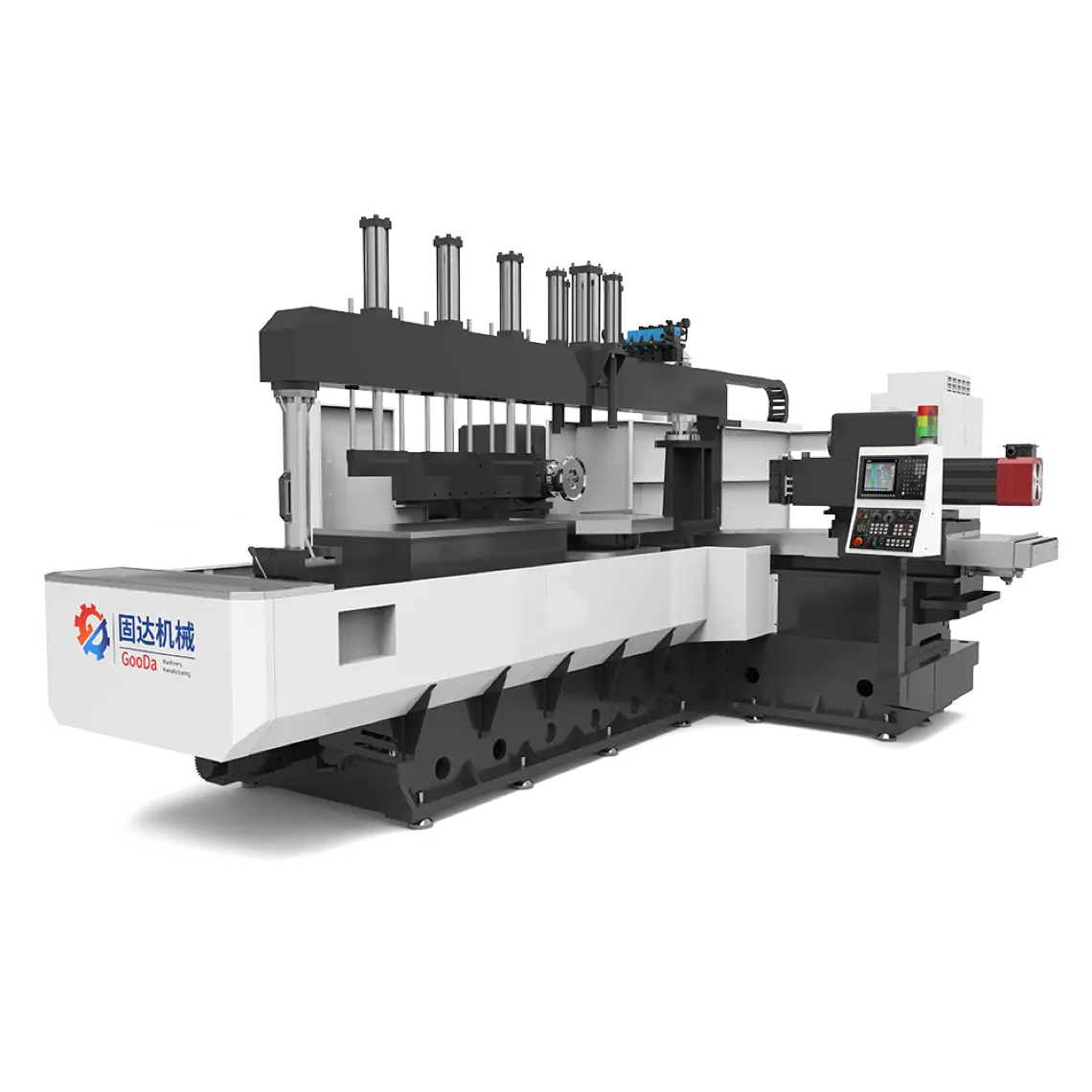

Our machine portfolio offers the perfect fit for your work - from small parts to large-scale workpieces, ensuring you have the right capabilities for any project.
| Model | Number of control axes | Processing capacity | Worktable size | |
|---|---|---|---|---|
| TH-220NC | 4 | 15-220mm | 200*200mm | |
| TH-350NC | 4 | 20-350mm | 260*260mm | |
| TH-430NC | 4 | 20-430mm | 330*330mm | |
| TH-450NC | 4 | 20-450mm | 330*330mm | |
| TH-600NC | 4 | 15-220mm | 200*200mm | |
| TH-220NC | 4 | 30-600mm | 400*400mm | |
| TH-700NC | 4 | 30-700mm | 520*520mm | |
| TH-7015NCH | 4 | Four-side mode 150-700mm Two-side mode 150-1500mm | 600*600mm | |
| TH-5015NC | 4 | Four-side mode 20-500mm Two-side mode W20-500mm L20-1500mm | 400*400mm+400*1000mm | |
| TH-9018NC | 4 | Four-side mode 30-900mm Two-side mode W30-900mm L30-1800mm | 700*700mm+550*440mm+420*440mm | |
| TH-850NC | 4 | 60-850mm | 600*600mm | |
| TH-1000NC | 4 | 60-1000mm | 650*650mm | |
| TH-1300NC | 5 | 80-1300mm | 900*900mm | |
| TH-1500NC | 5 | 80-1500mm | 900*900mm | |
| TH-1600NC | 5 | 80-1600mm | 1100*1100mm | |
| TH-2000NC | 5 | 500-3000mm | 1300*1300mm | |
| TH-1370NC | 4 | 30-700mm | 520*520mm | |
| TH-1570NC | 4 | Four-side mode 30-700mm Two-side mode W30-700mm L30-1300mm | 520*520mm | |
| TH-1370NCA | 4 | Four-side mode 60-700mm Two-side mode W60-700mm L60-1300mm | 520*520mm | |
| TH-1325NCA | 4 | Four-side mode 80-1300mm Two-side mode W80-1300mm L80-2500mm | 900*900mm | |
| TH-1585NC | 4 | Four-side mode 30-700mm Two-side mode W30-700mm L30-1500mm | 600*600mm | |
| TH-1885NC | 4 | Four-side mode 60-850mm Two-side mode W60-850mm L60-1800mm | 600*600mm |
| Item | Traditional Milling | Duplex Milling |
|---|---|---|
| Clamping Operations | 4–6 setups | ✔ Single setup |
| Parallelism | Inconsistent, requires rework | ✔ High stability, consistent accuracy |
| Cycle Time | Long cycle | ✔ 30–60% faster |
| Labor Requirement | Skilled labor, manual intervention | ✔ Low labor, simplified operation |
| Return on Investment | Slow payback | ✔ Faster ROI |
Our partnership with customers continues long after the purchase. We provide comprehensive after-sales services to help you install, operate, and maintain your equipment with confidence.
