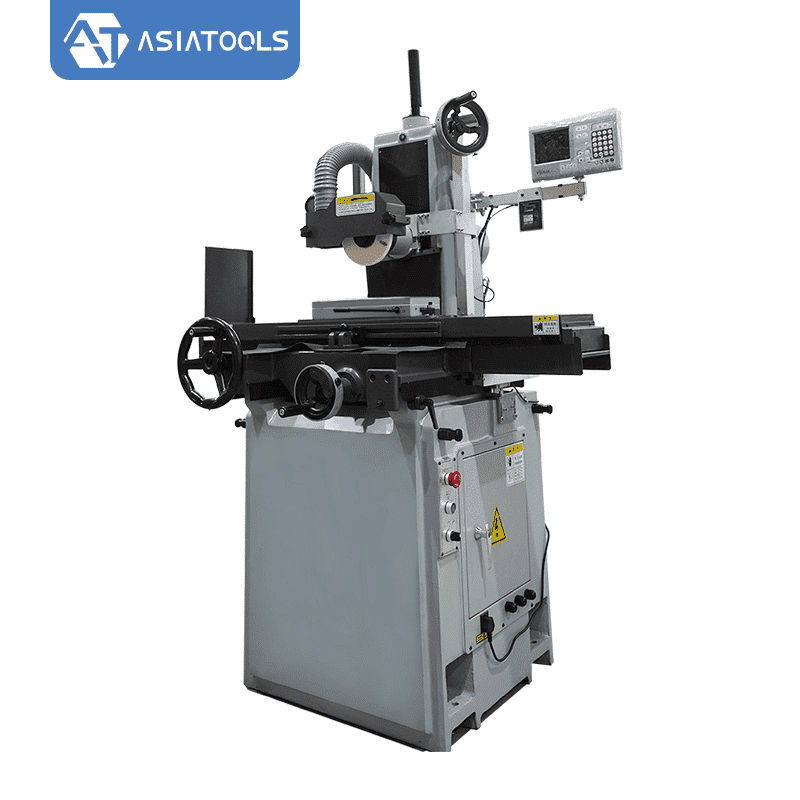

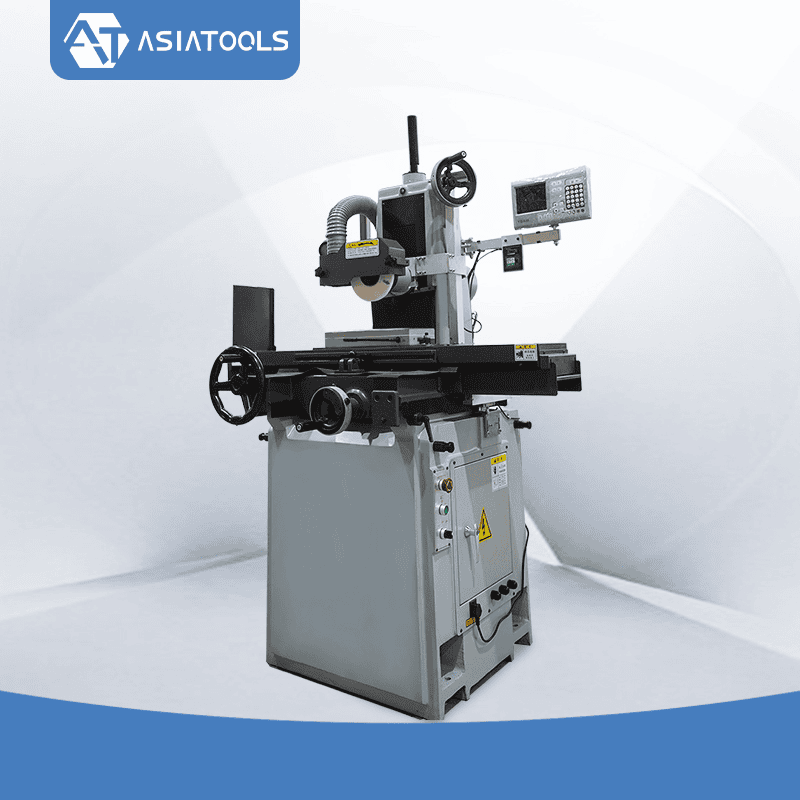

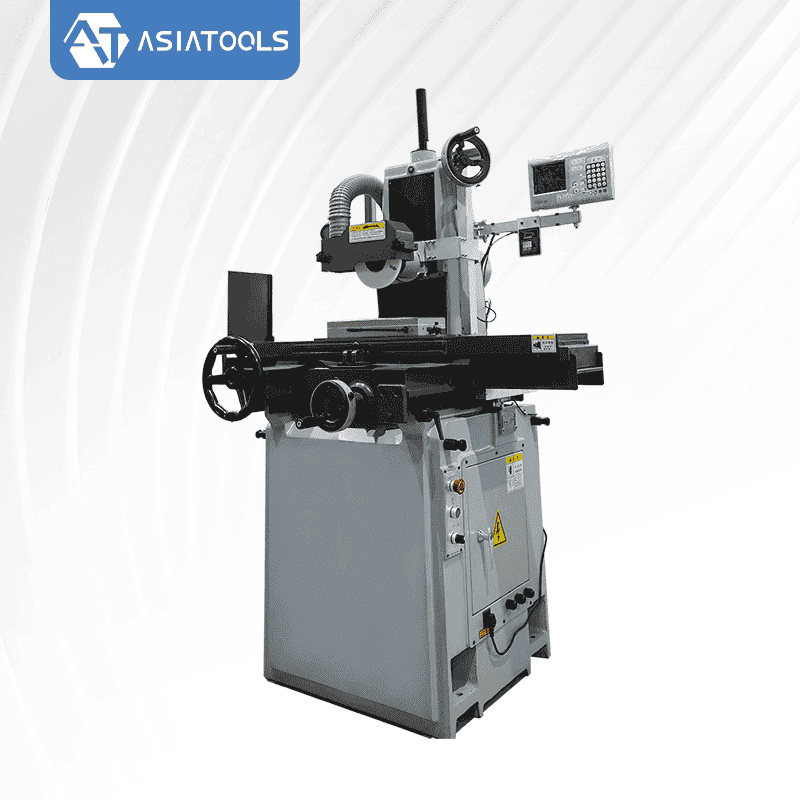

AGM-450G

High Precision Manual Surface Grinder

The table uses hardened steel linear rails with precision ball bearings for smooth, effortless hand-feeding, minimal maintenance, and ease of operation. Cast iron body and the reinforced base with a new box structure for enhanced rigidity, smooth performance, and extended durability. Its advanced dust-proof design and oil circulation system prevent dust accumulation. Weighing nearly 1 ton, this is the most stable precision grinder available. Enlarged machine tool sump with a double filtration system, helps extend the lifespan of both the machine and the pump.

Max. table travel 485mm
Max. cross travel 180mm
Spindle speed 3000rpm
Packing dimensions 1550*1150*1980mm

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS SERVICE & TRAINING

Contact

High Precision Manual Surface Grinder

Stability

The table uses hardened steel linear rails with precision ball bearings for smooth, effortless hand-feeding, minimal maintenance, and ease of operation.
Durability

Cast iron body and the reinforced base with a new box structure for enhanced rigidity, smooth performance, and extended durability.
Security

Its advanced dust-proof design and oil circulation system prevent dust accumulation.
Dual filtration system

Enlarged machine tool sump with a double filtration system, helps extend the lifespan of both the machine and the pump.

Basic Info

ltems	Value	Unit
Table Speed	Manual	mm
Working Surface of Table	150×457-6"×18"
Grinding Wheel Dimensions	180×16×32-7"×0.6"×1.3"
Distance Between Spindle Centre and Table Surface	380-450
	(Customized up to 450)
Longitudinal Handwheel Feed	485
Cross Handwheel Feed	180
Cross Handwheel Feed per Graduation	0.01
Vertical Handwheel Feed per Graduation	1
Spindle Speed	60Hz/50Hz-3600/3000	rpm
Spindle Motor	1.5/2	Hp
Packing Dimensions	1550×1150×1980	mm
Net Weight	900	KG

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

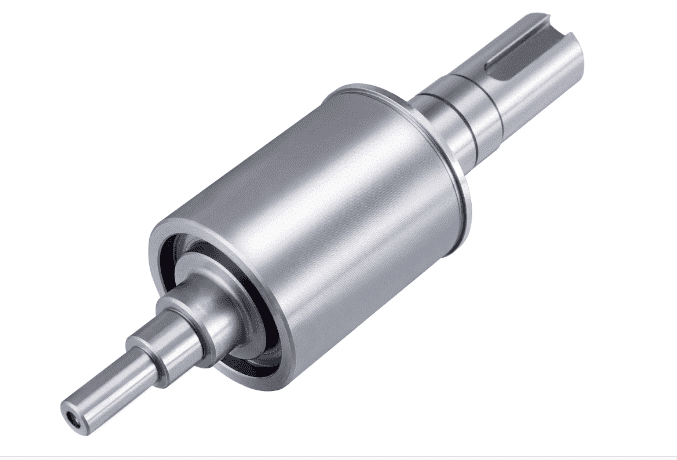

Precision shaft

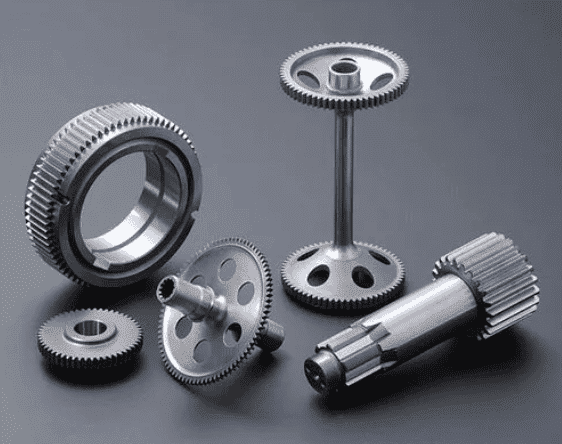

Gear

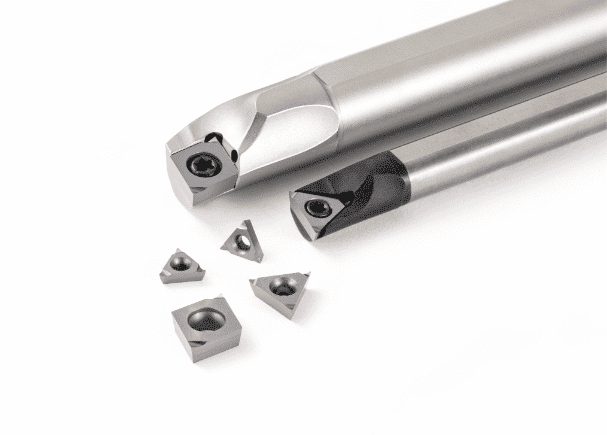

Cutting tools

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
