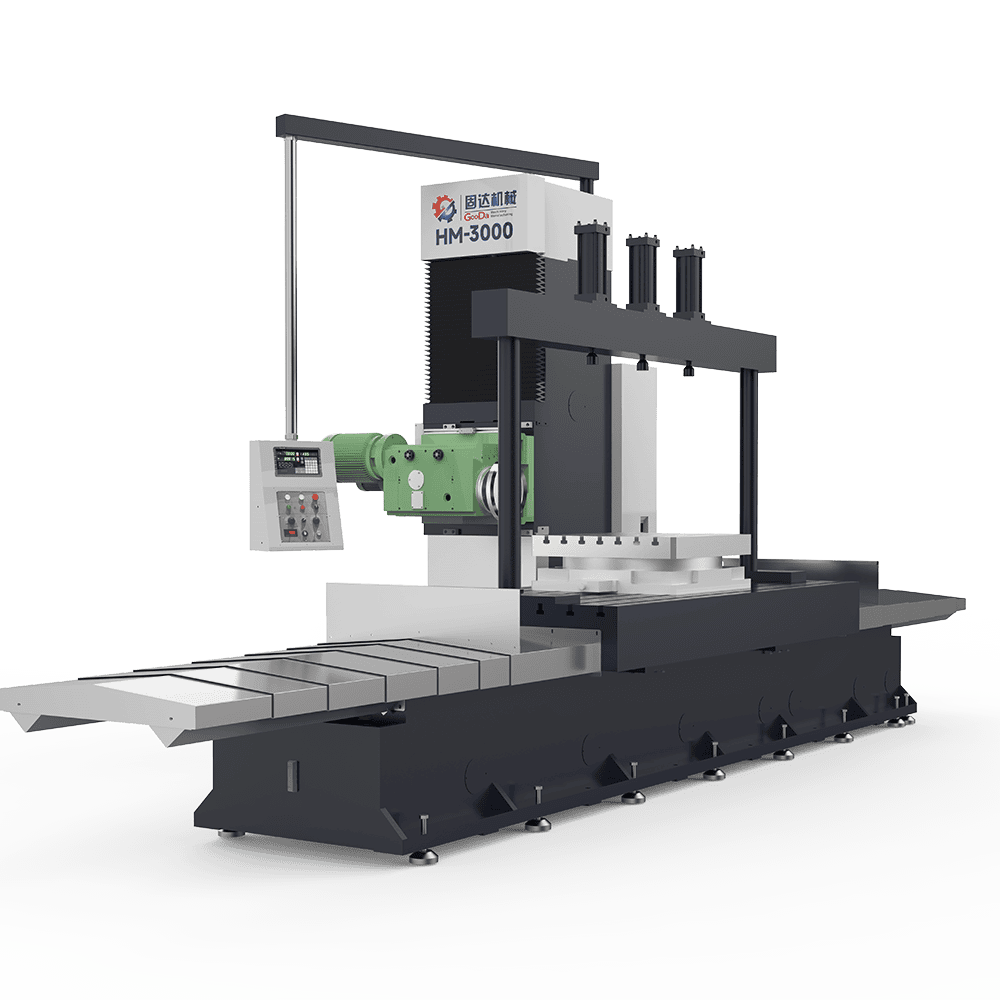

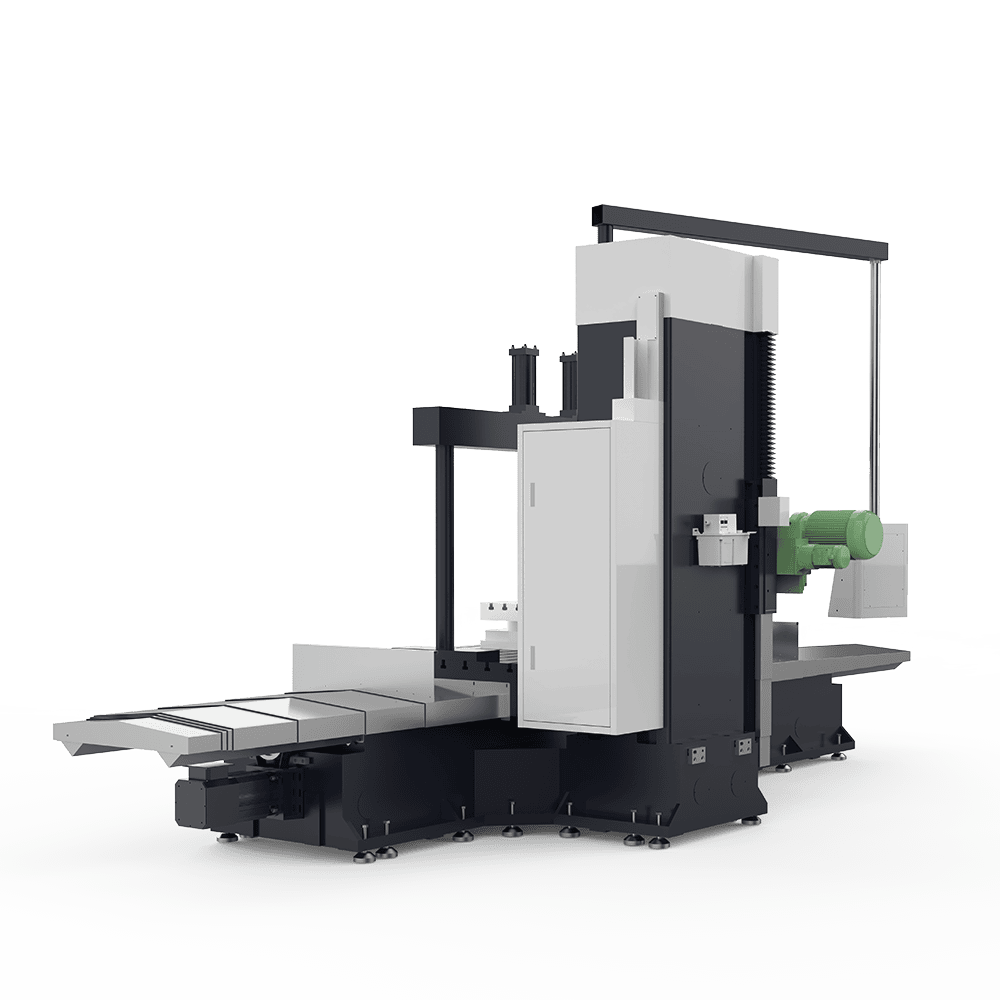

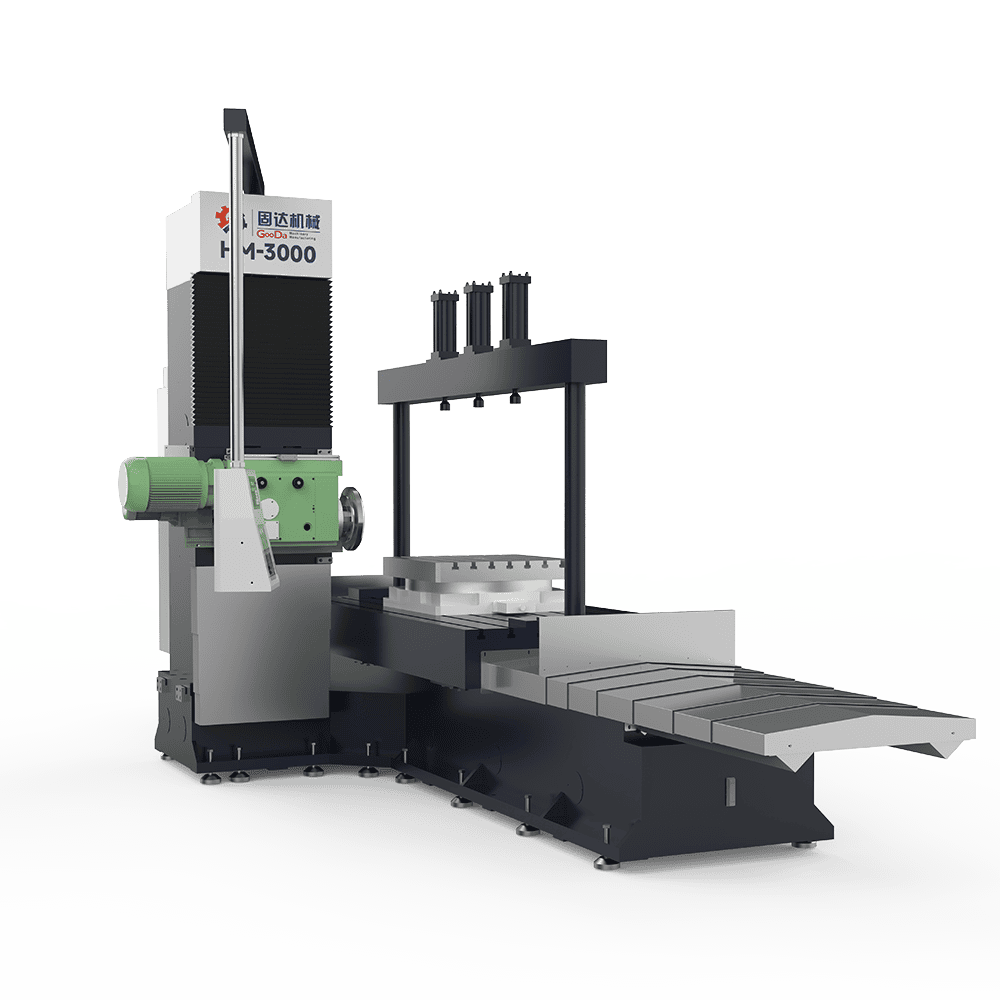

HM-3000

Horizontal Milling Machine

Single-column lifting precision milling machine, with a large processing range of end milling machines. Suitable for end cutting of large mold bases, large steel, and other metal materials cutting, widely used in machinery manufacturing. It is especially suitable for milling the end face of the mold industry, mold embryo, mold material, and plastic mold frame. It can be used to mill both ends of super-long workpieces.

Maximum machining length 2600mm
Maximum processing height 1200mm
Workpiece width 750-1450mm
Max. load capacity 8000KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

Horizontal Milling Machine

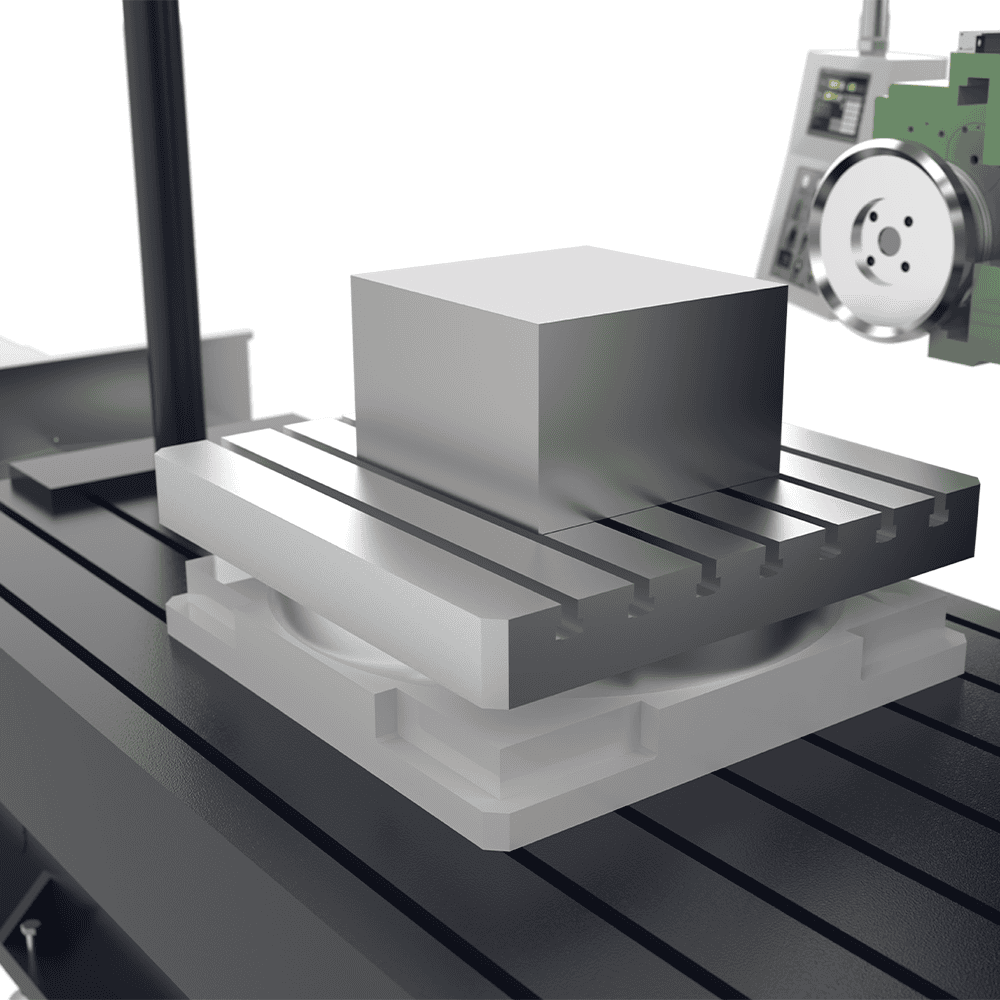

Powerful cutting

The turntable can mill the four end facesof the workpiece. The milling force is strong, which canmeet the machining requirements of parts.

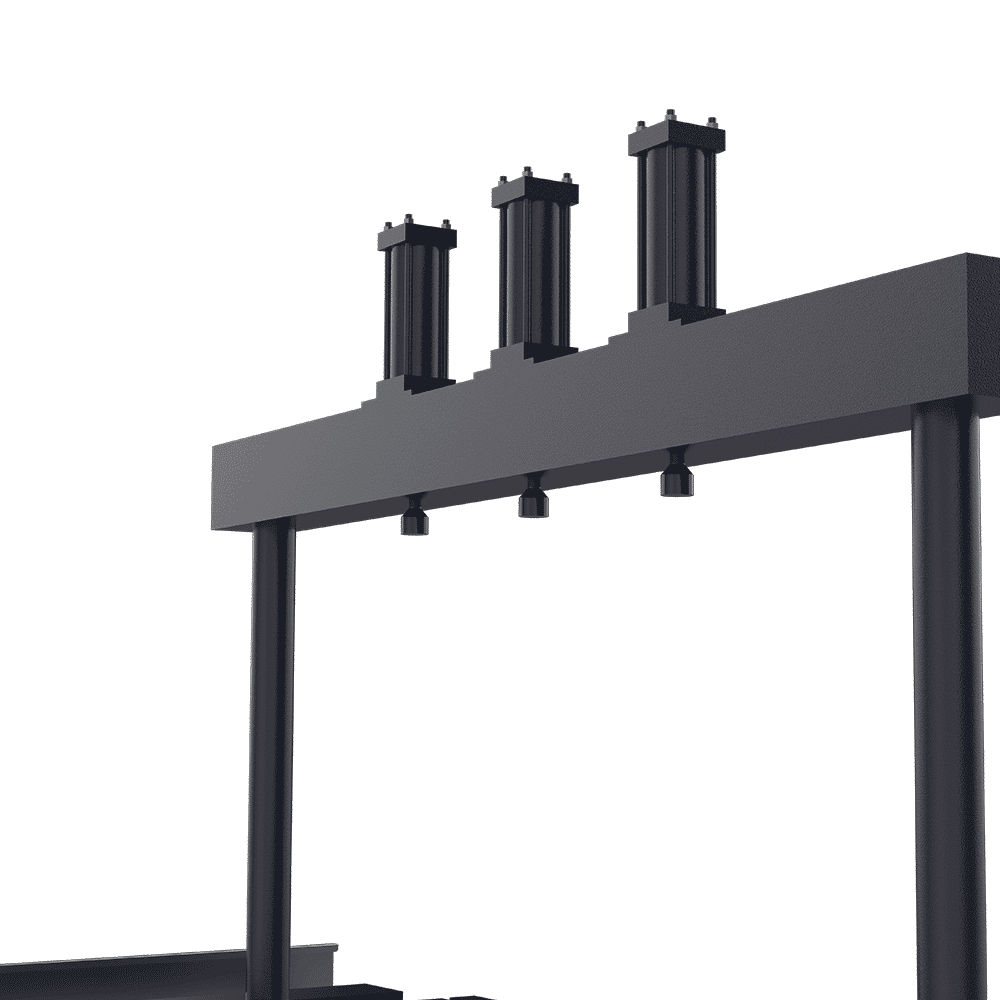

Hydraulic gantry, good stability

Hydraulic gantry, equipped with a three-cylinder pressing rack, pressing material the method is stable and stable.

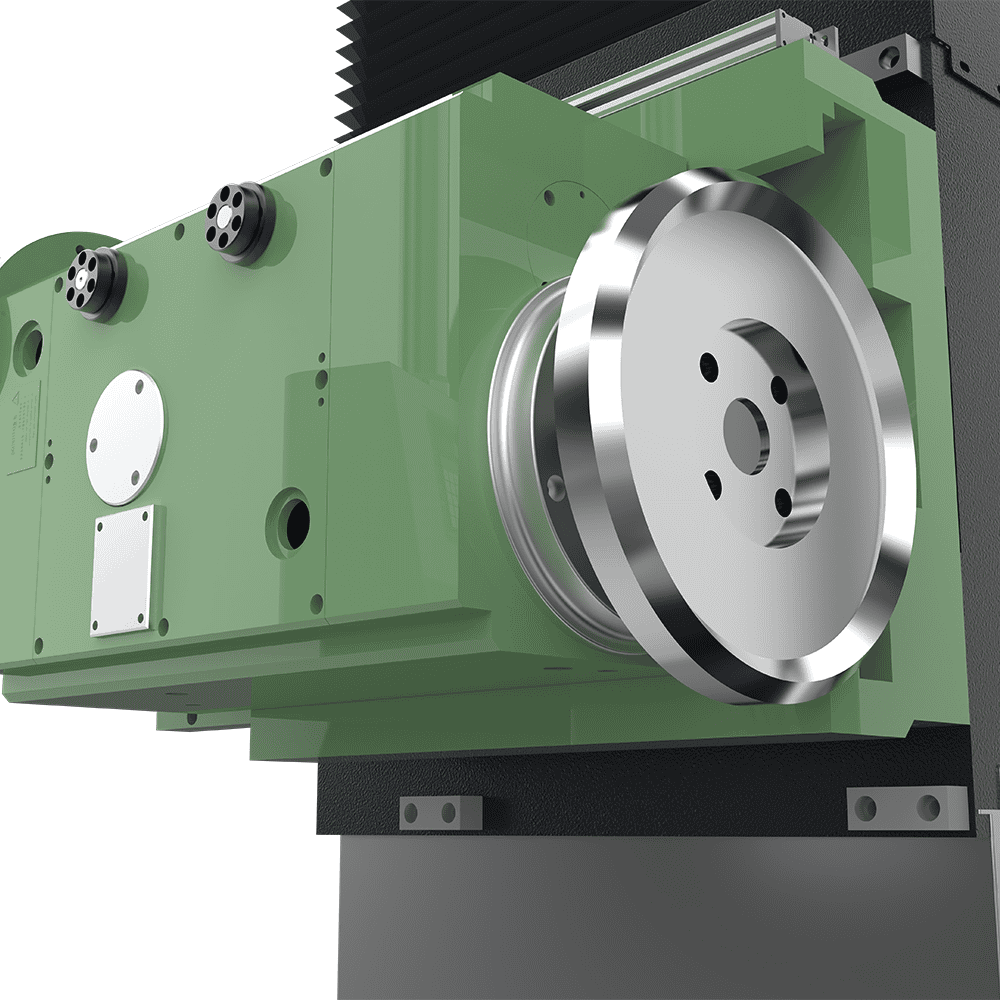

Precision milling and low noise

The milling unit adopts gear transmission, and the cutting and milling surface accuracy is high. Noise is low.

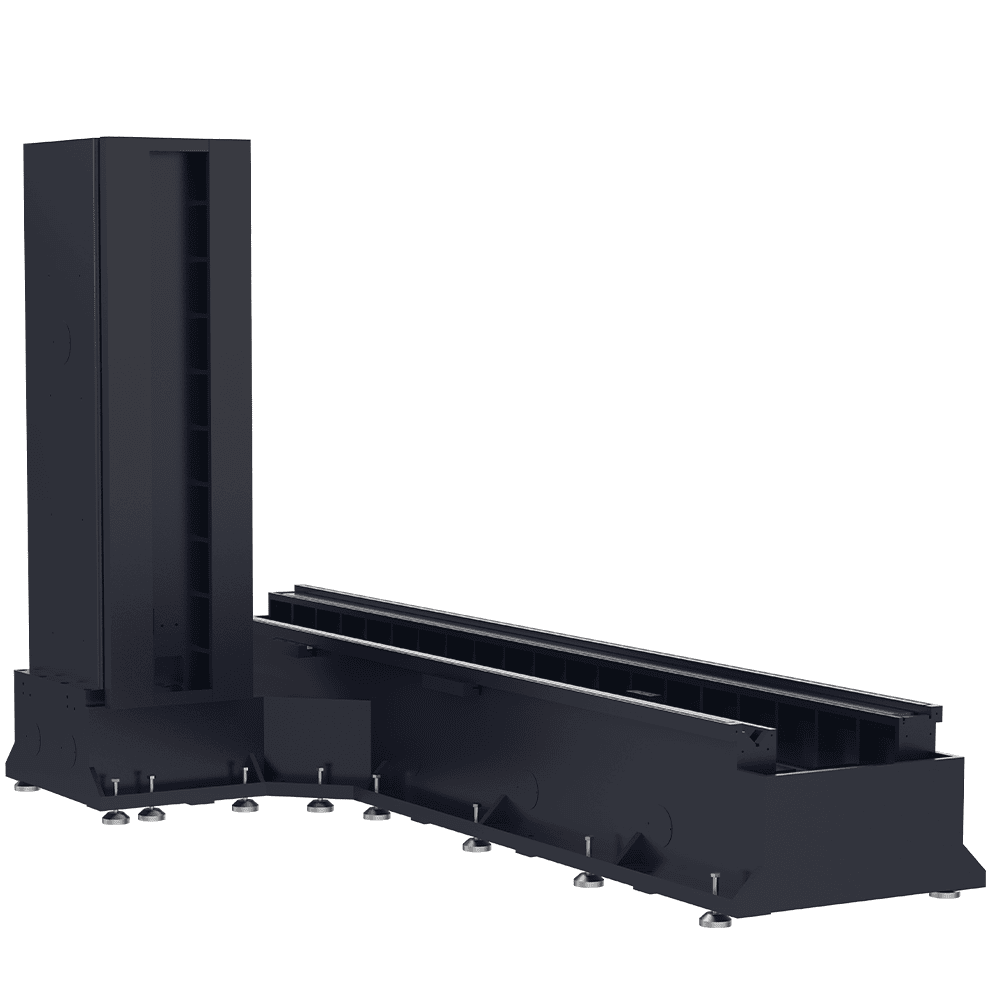

Strong rigidity

The whole machine is rigid, and not easy to damage. Easy to maintain, and functional Variety, large geometric size, ideal for machining prepare.

Basic Info

Items		Value	Unit
Processing capacity	Maximum machining length	2600(can't rotate the workpiece)	mm
	Maximum machining length	1450(can rotate the workpiece)	mm
	Maximum processing height	1200
	Workpiece width	750-1450
Worktable	Worktable size	1200*3000	mm
	Max. load capacity	8000	KG
	Precision pneumatic rotary table	1000*1000	/
Gear-driven spindle	Spindle speed	75-505	rpm
	Motor power	11	KW
	Spindle taper	BT50(7:24)	mm
	Cutter diameter	∅250	mm
	Number of spindle shift segments	6	grade
Feed rate	X-axis feed rate	Infinitely variable speed0-5000	mm / min
	Y-axis feed rate	Infinitely variable speed0-2000	mm / min
	Z-axis feed rate	Infinitely variable speed0-500	mm / min
Power	X/Y/Z axis motor	5.5/2.2/0.4	KW
Size & weight	Machine weight	About15000	KG
Size & weight	Machine size ( LWH )	780024003300	mm

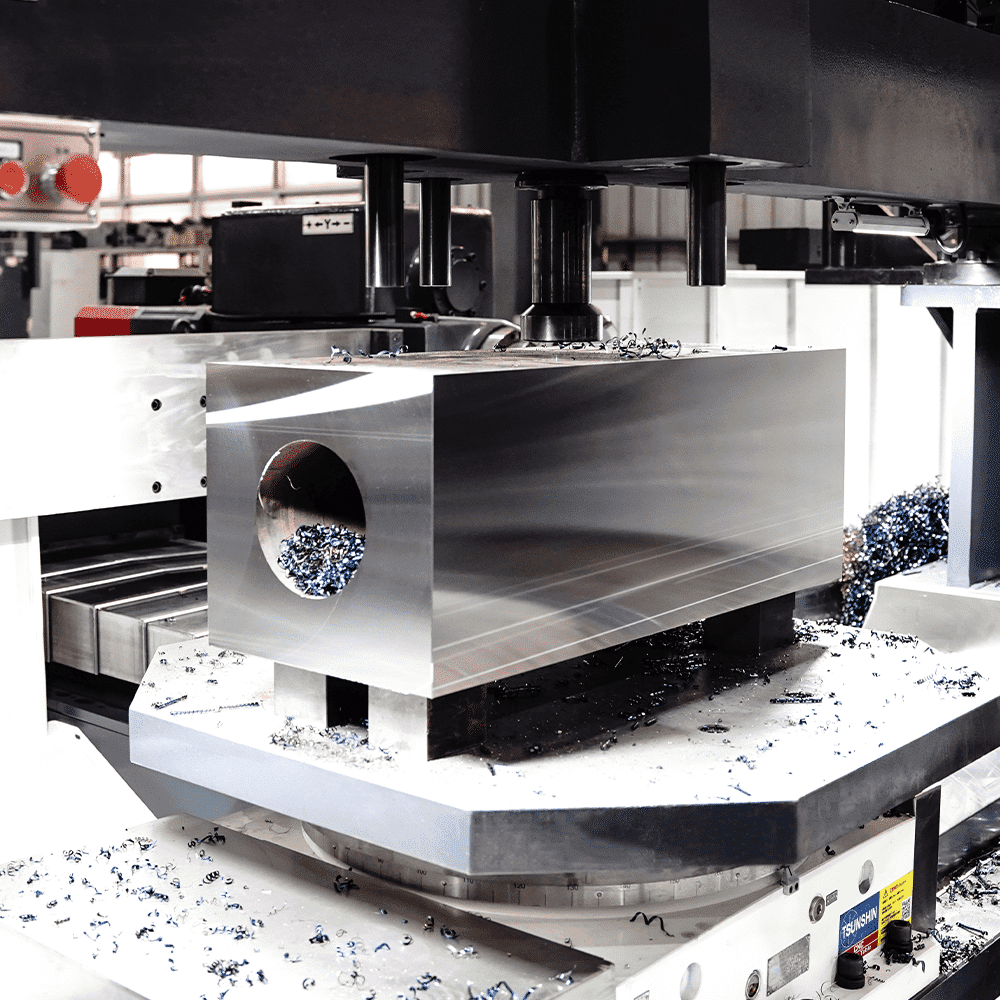

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

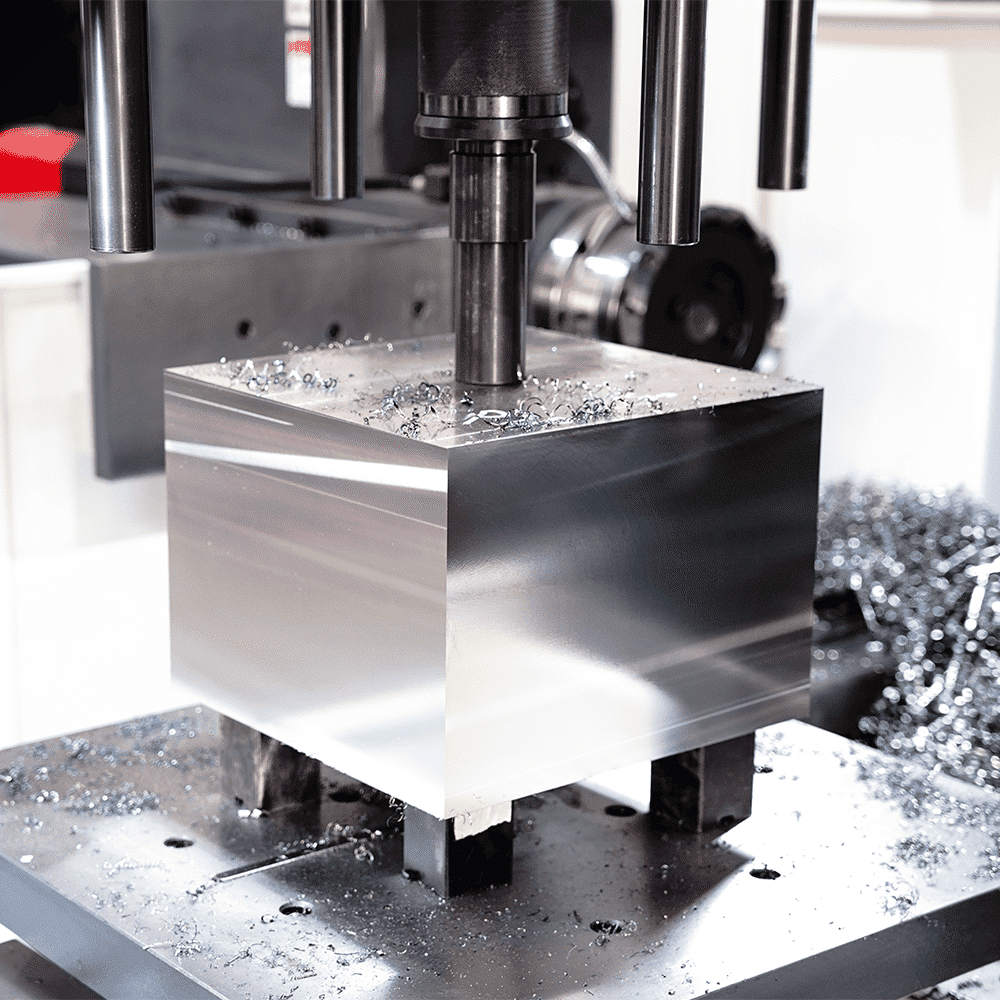

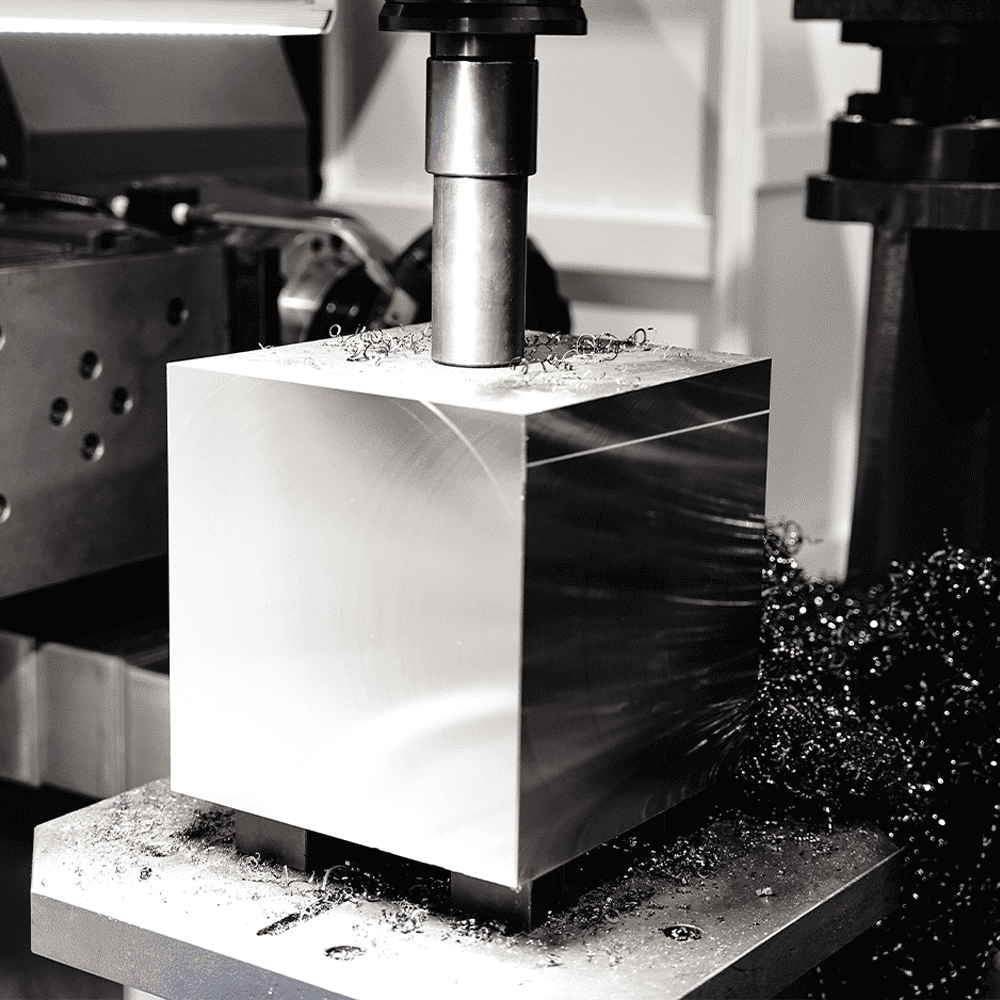

Metal machining

Steel machining

Die sets

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.
