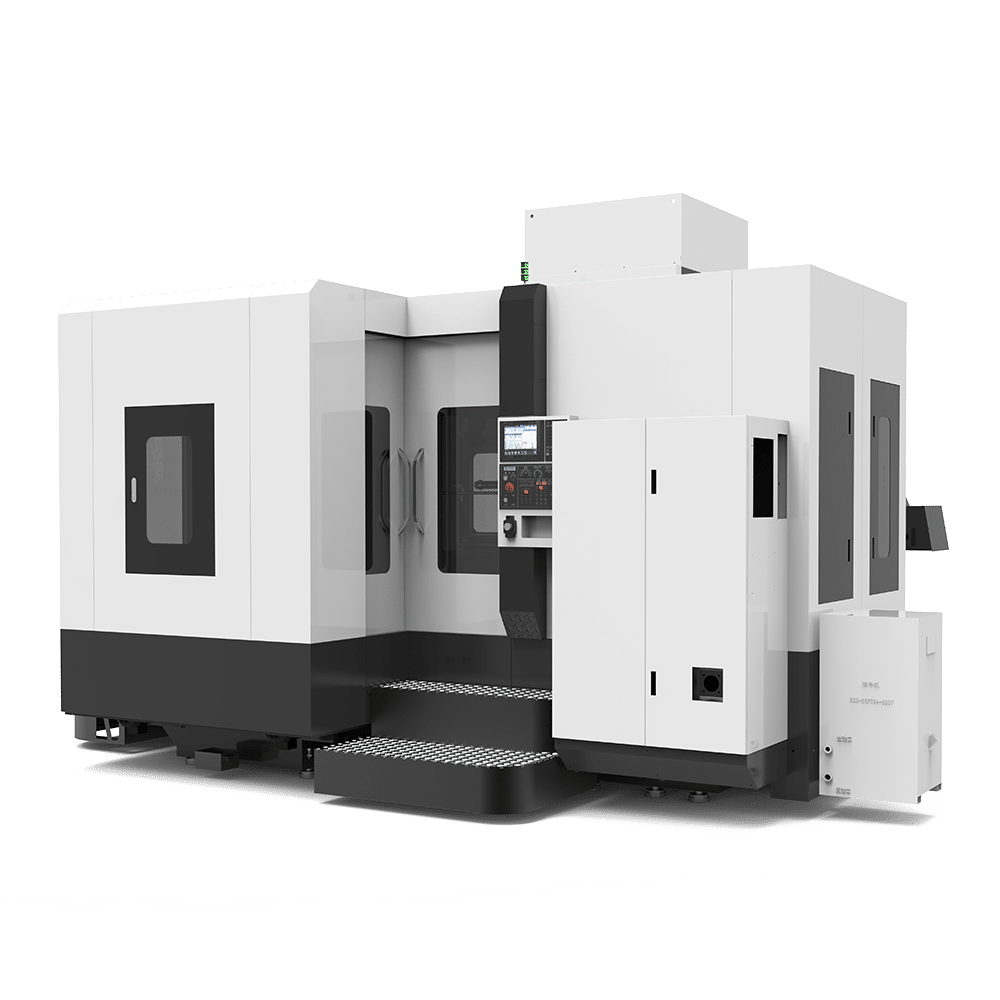

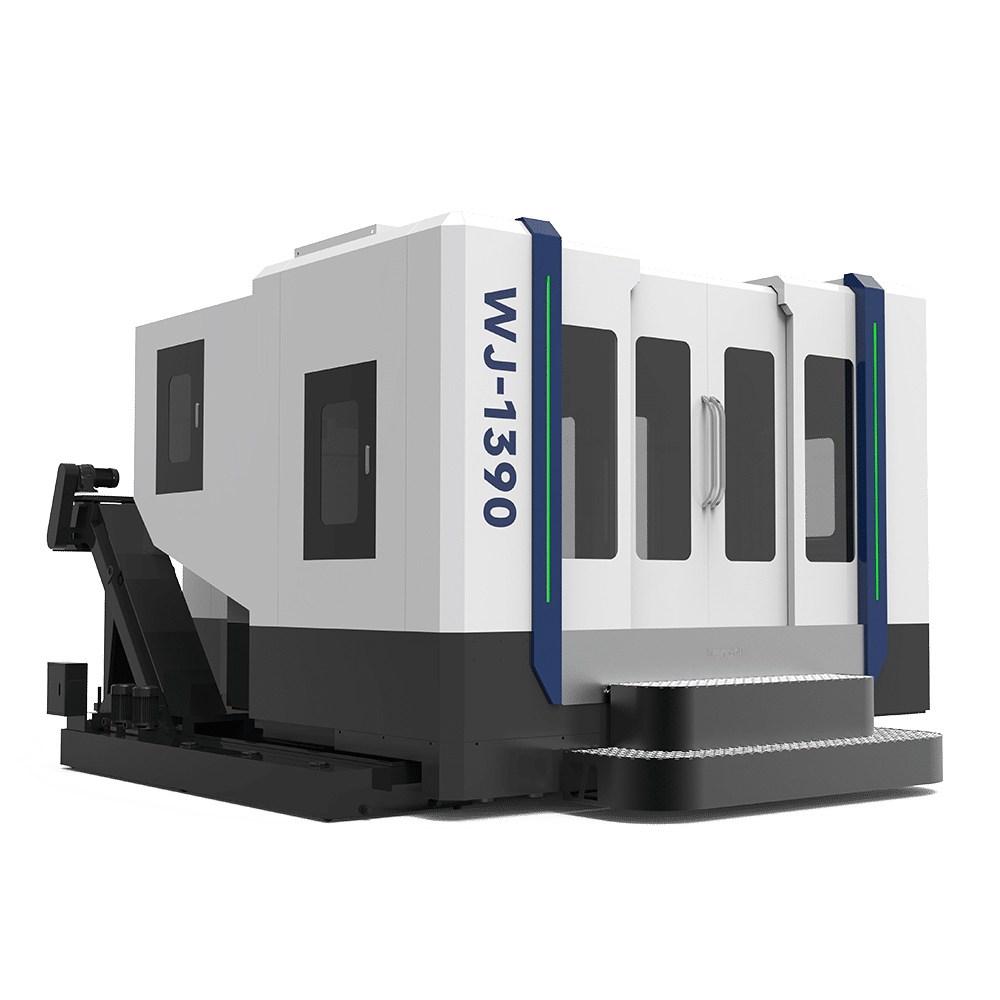

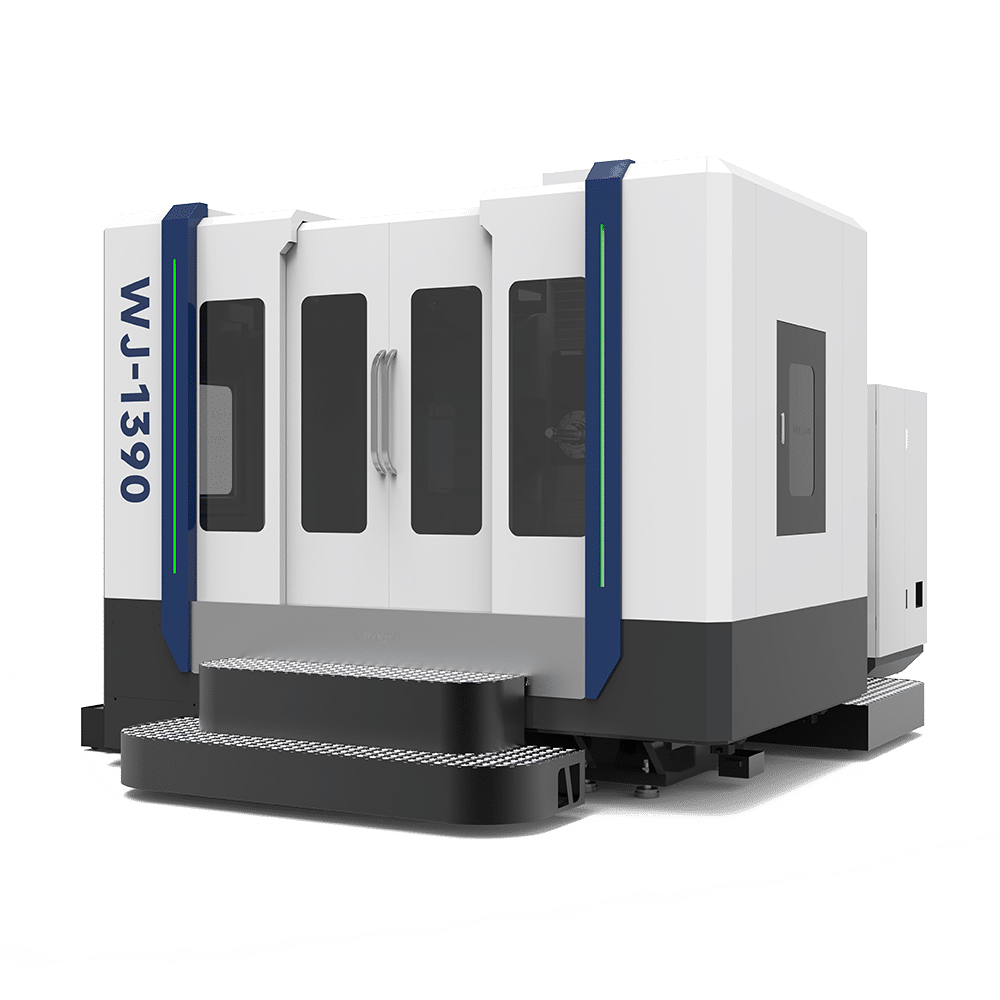

Machines adopt an oversized inverted" T" -shaped base, Y-axis overall double-walled moving column structure, and hanging spindle box casting structure. It is a heavy-duty cutting and heavy-loading tool that is durable for rough and hand-finish machines. It adopts a customized spindle and is equipped with a 30kw high-torque motor. It is suitable for precision molds, engineering machinery, automobile power, locomotives, ships, marine engineering, and other industries.
Machine base

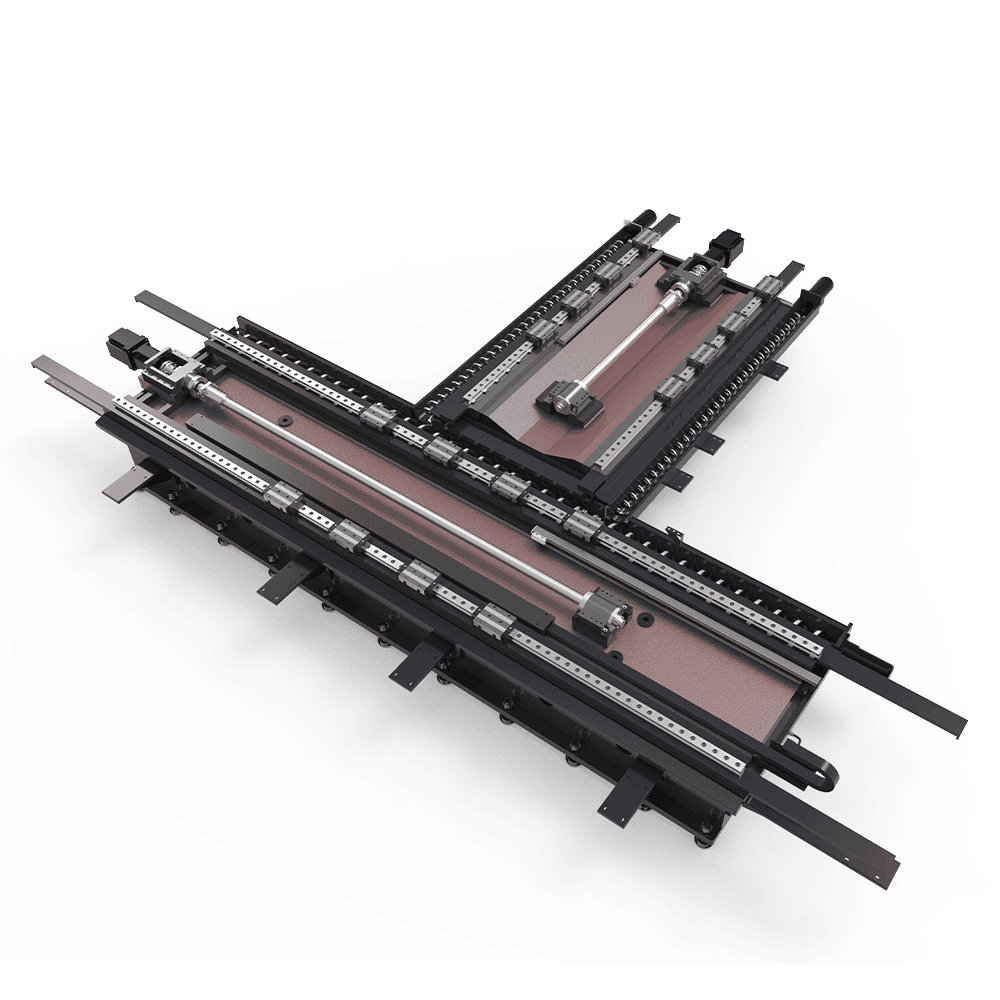

The inverted "T"-shaped bed structure ensures sufficient rigidity and stability when running; the whole machine uses ANSYS for static structural force analysis and vibration frequency analysis to ensure rigidity and reduce the vibration increasing the service life.
Column

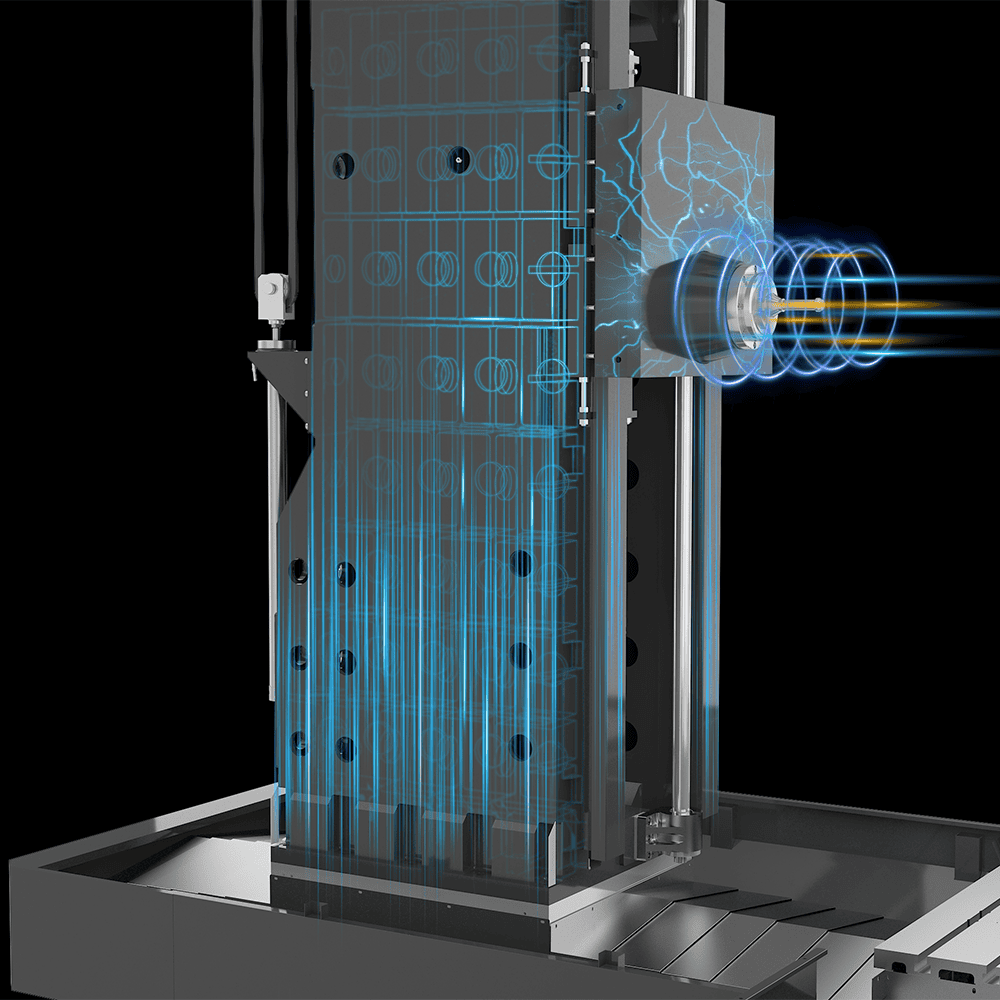

Y-axis overall double-walled moving column structure, high-quality HT-300 casting after secondary annealing treatment, to ensure long-term shock resistance without deformation, excellent precision and stability, and long service life.
Head

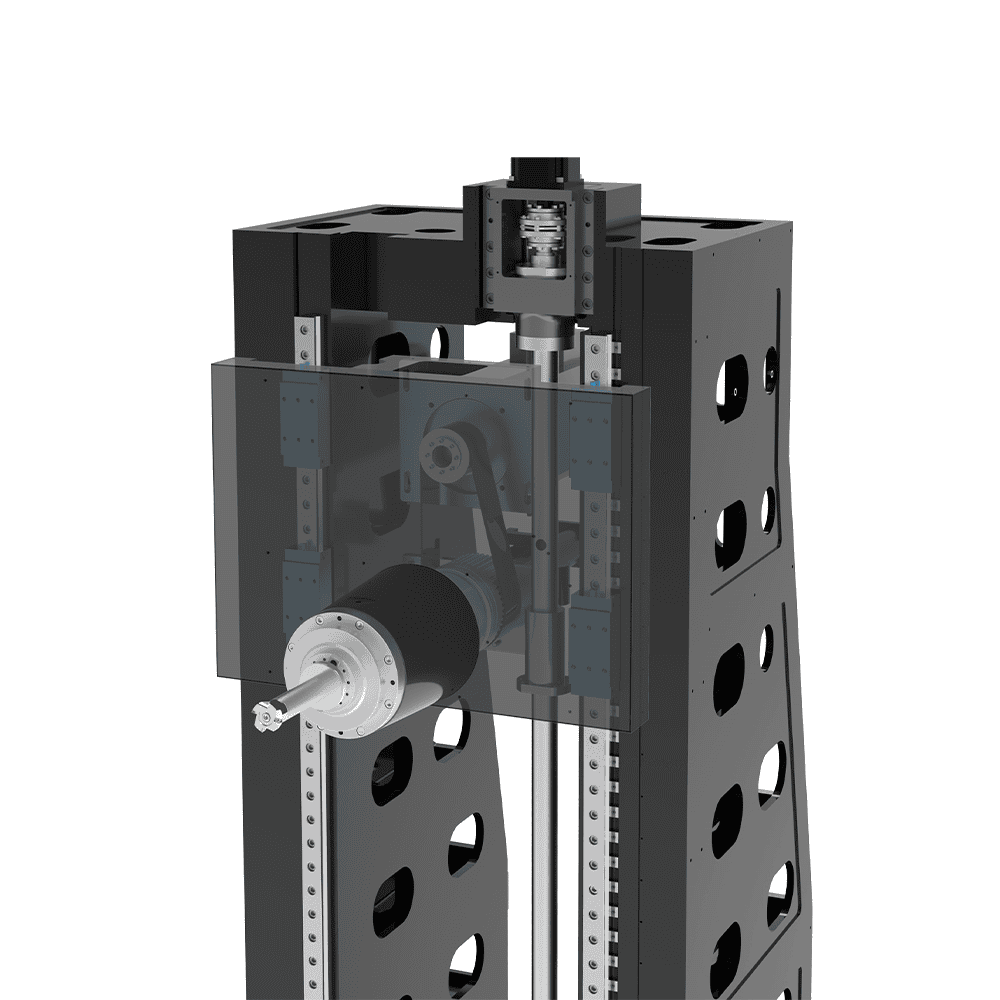

2Pcs 55# extended heavy-duty roller guide rails to ensure shock resistance for heavy cutting; the headstock is equipped with a nitrogen balance system to reduce wear and load on the vertical screw; improve the dynamic response speed and service life of the machine.
Spindle

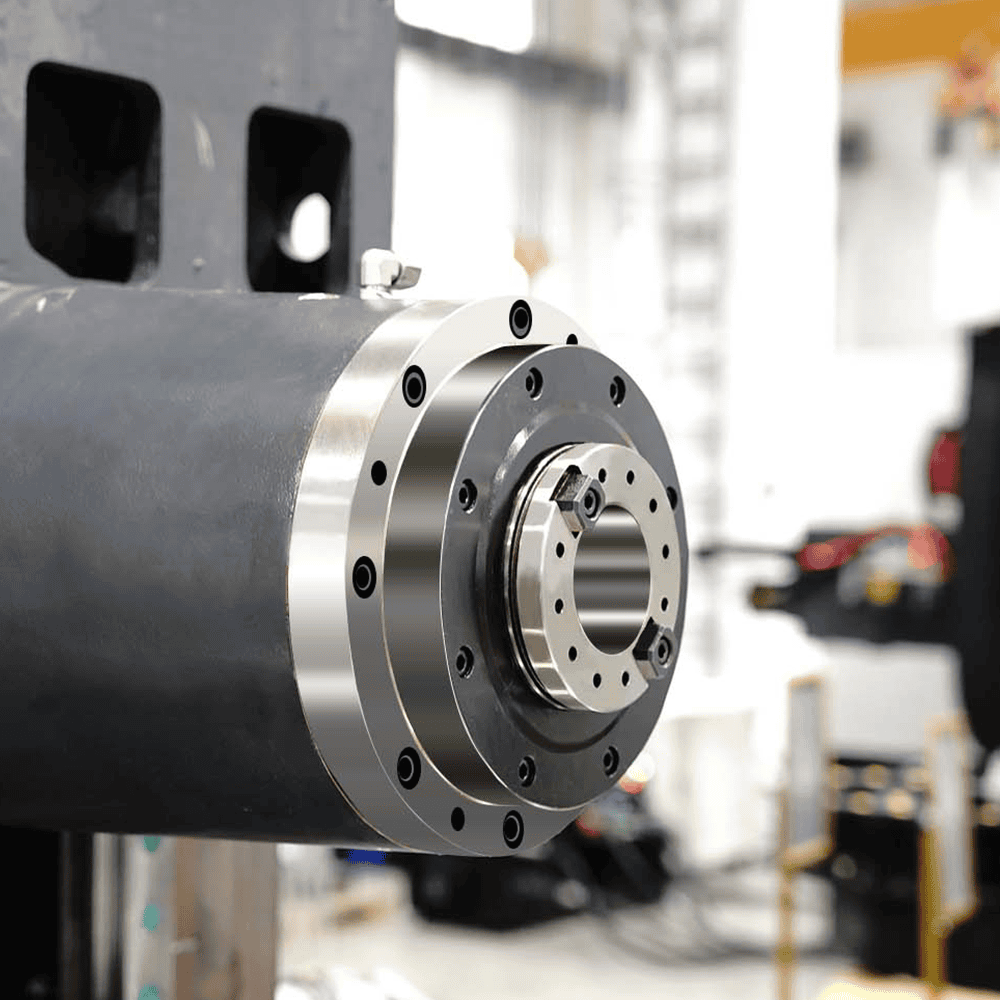

Enlarged spindle sleeve with a diameter of φ220mm enhances cutting rigidity. The spindle speed can re ach up to 3000 RPM/6000 RPM. The spindle is equipped with a high-flow cooling system, which can effectively control spindle temperature rise and ensure efficient and stable operation for a long time.
| Items | Value | Unit | |
| X/Y/Z-axis | X/Y/Z travel | 1300*900*800 | mm |
| Spindle speed | 2500 | rpm | |
| Worktable | Worktable size | 1360*1000 | mm |
| Max. load capacity | 5000 | KG | |
| Accuracy | Positioning accuracy | 0.02/1000 | mm |
| Repe at positioning accuracy | 0.015/1000 | mm | |
| Oil tank capacity | Lubrication oil tank | 4 | L |
| Power requirement | Power supply | AC380V/35KVA | V |
| Size & weight | Machine net weight | 12 | T |
| Machine space | 3900*5600 | mm | |
Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

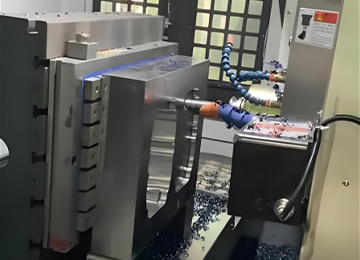

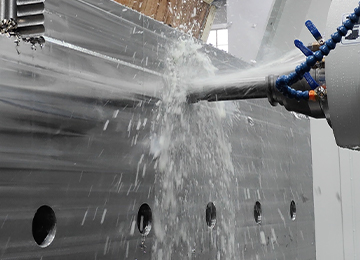

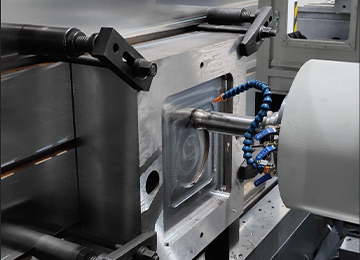

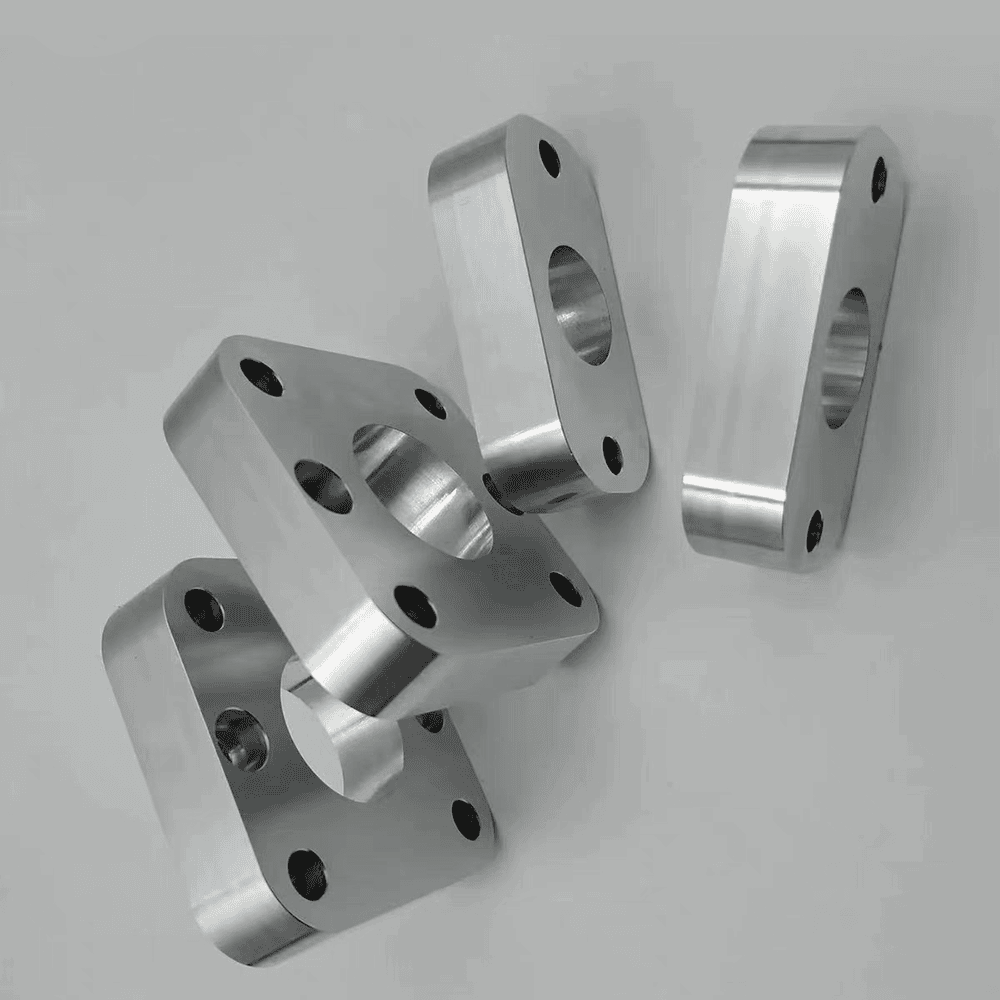

Mold processing

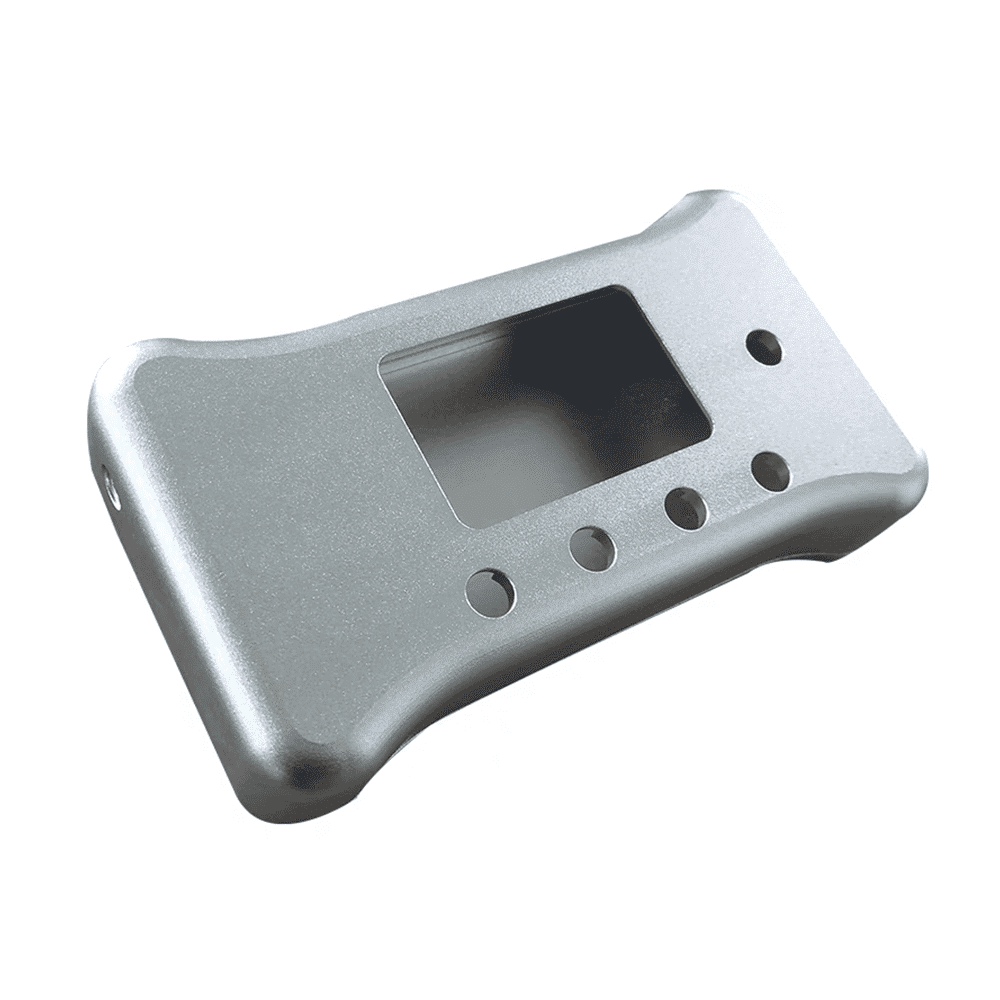

Aluminum processing
Semiconductor accessory
To meet your different processing needs, we provide three widely used systems on the market for you to choose.
FANUC CONTROLLER
Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.
MITSUBISHI CONTROLLER
Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.
CHINA CONTROLLER
JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
