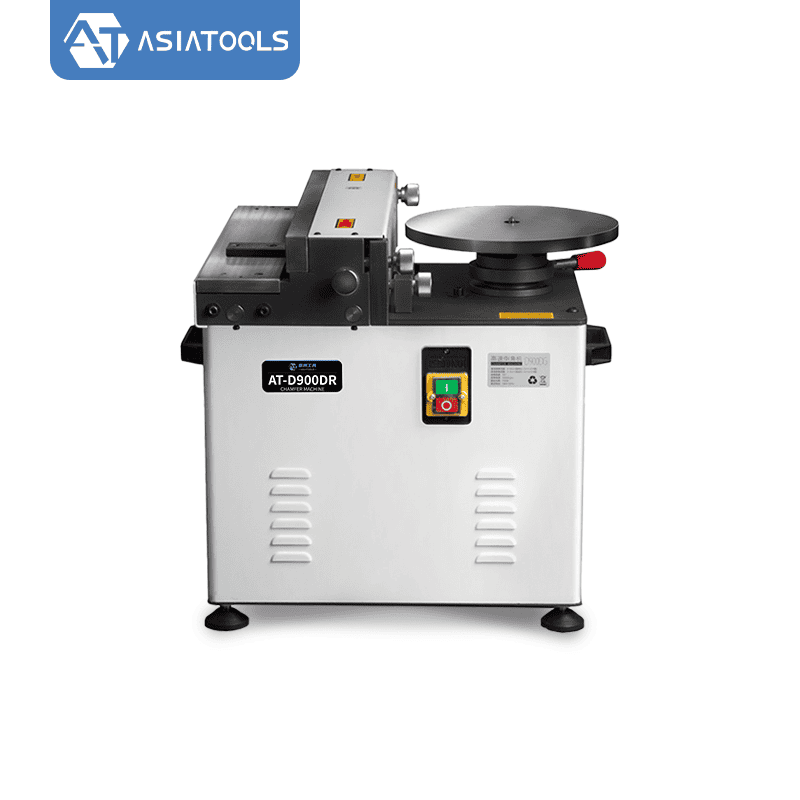

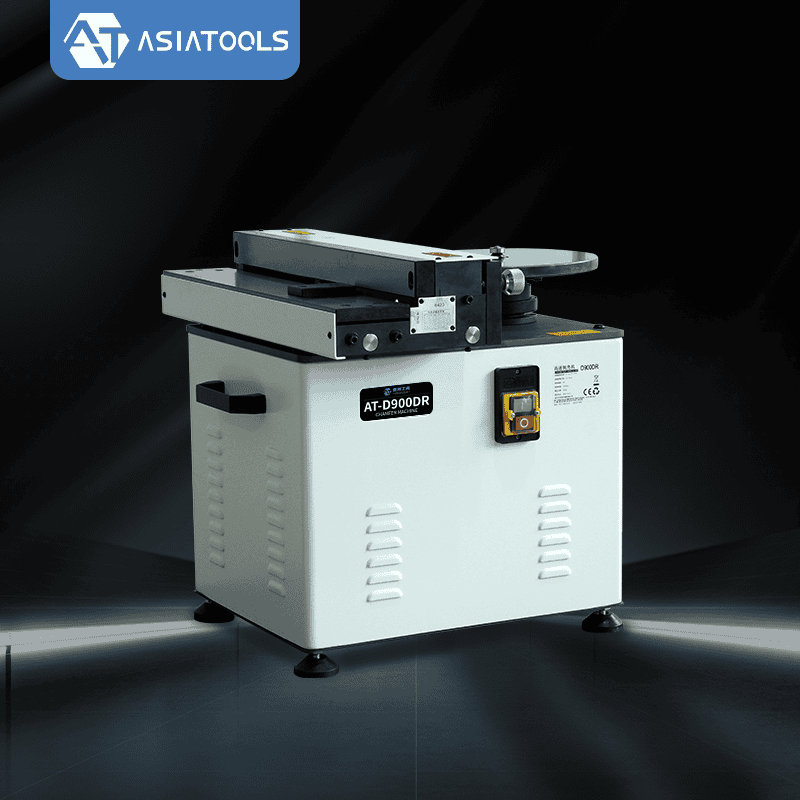

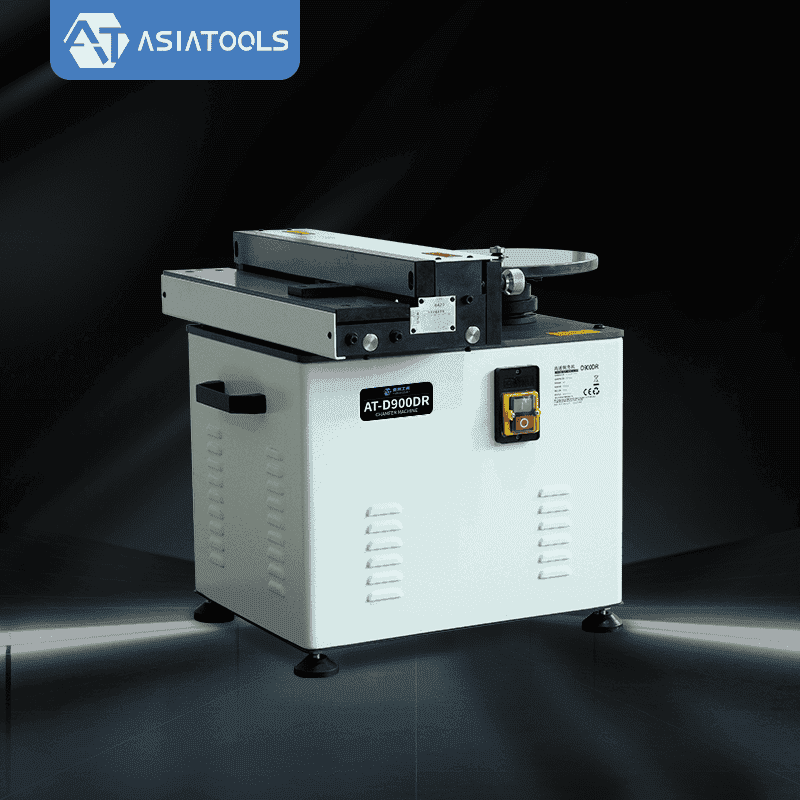

AT-D900DR

Compound Chamfering Machine

ASIATOOLS Compund Chamfering Machine AT-D900DG has a multi-functional design, integrating chamfering straight angles, arcs, and irregular curves on a single machine, which can replace CNC machining centers. This machine can chamfer and deburr various materials, such as iron, aluminum, copper, carbon steel, stainless steel, aluminum alloy, powder metallurgy materials, plastic, nylon, etc.

Input Voltage 380V/50Hz
Rated Power 750W
Rated Speed 10000rpm
Packing Dimensions 600×550×550mm

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS SERVICE & TRAINING

Contact

Compound Chamfering Machine

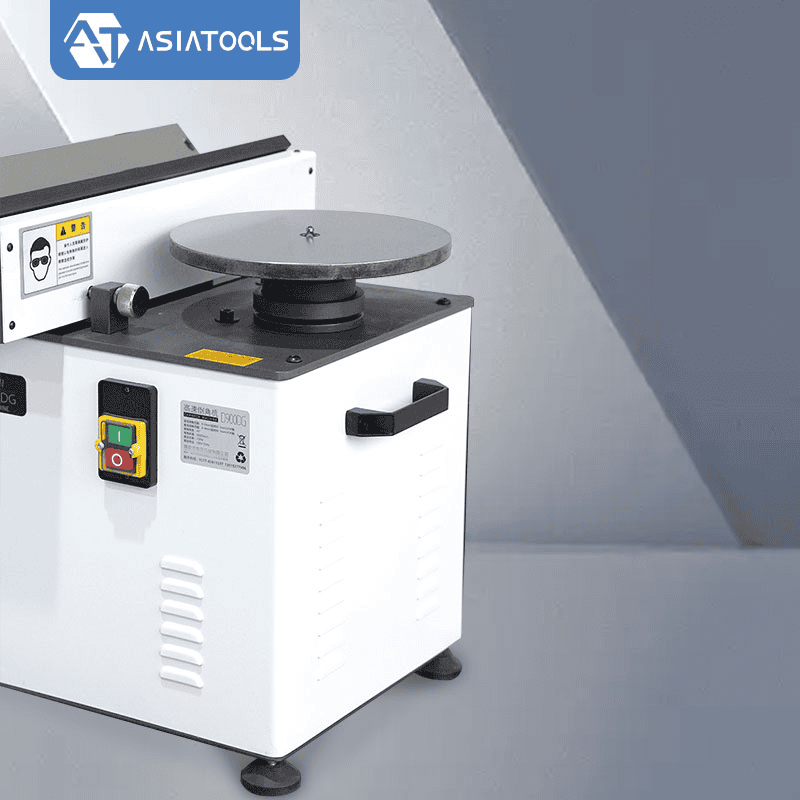

Adjustable Arc and Linear Trimming

The chamfering depth is adjustable between 0-6mm.

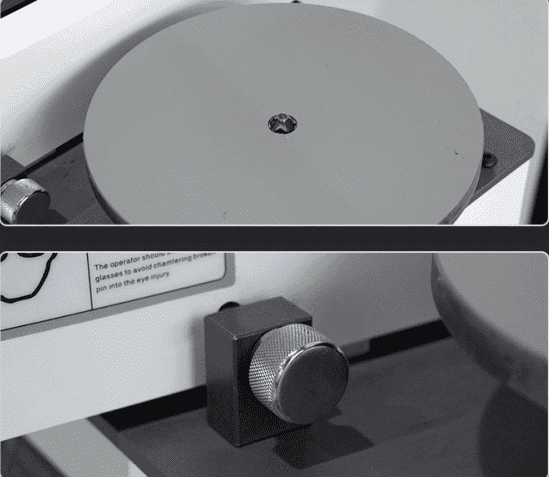

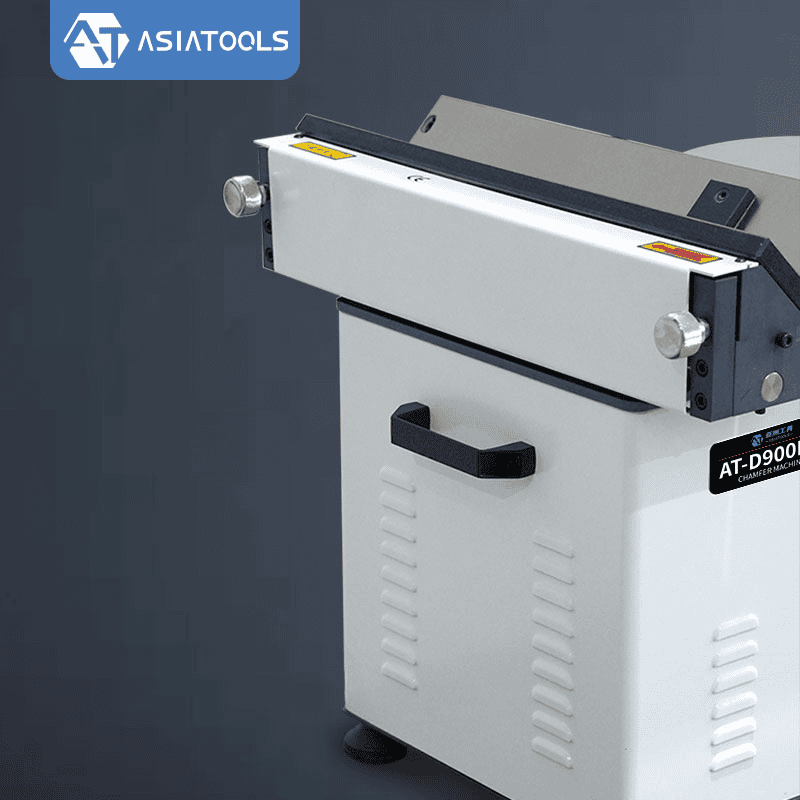

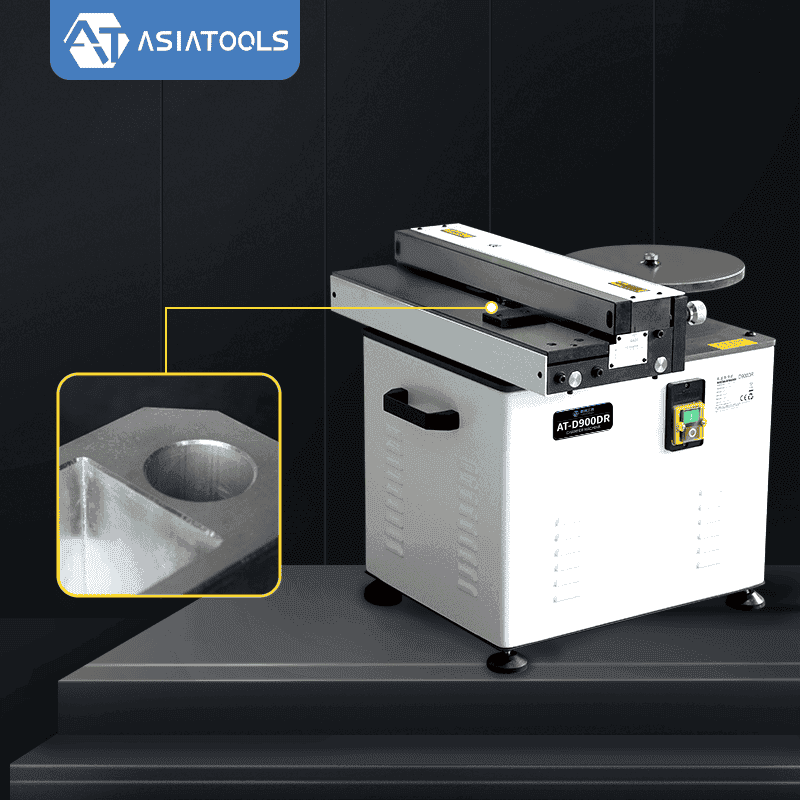

Sliding rail design

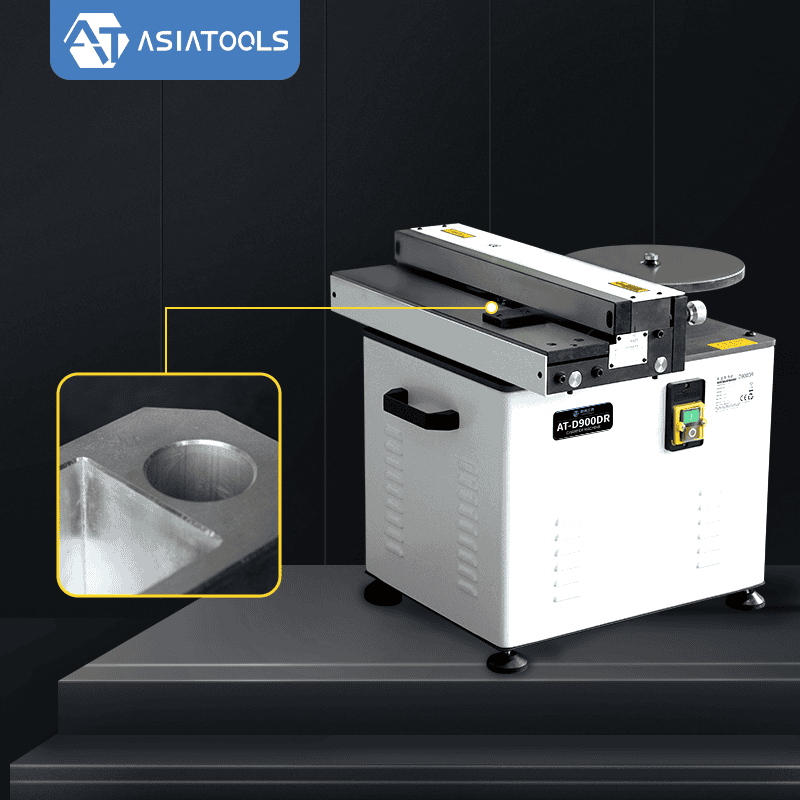

Sliding chamfers do not damage the surface of the workpiece, making work easier.

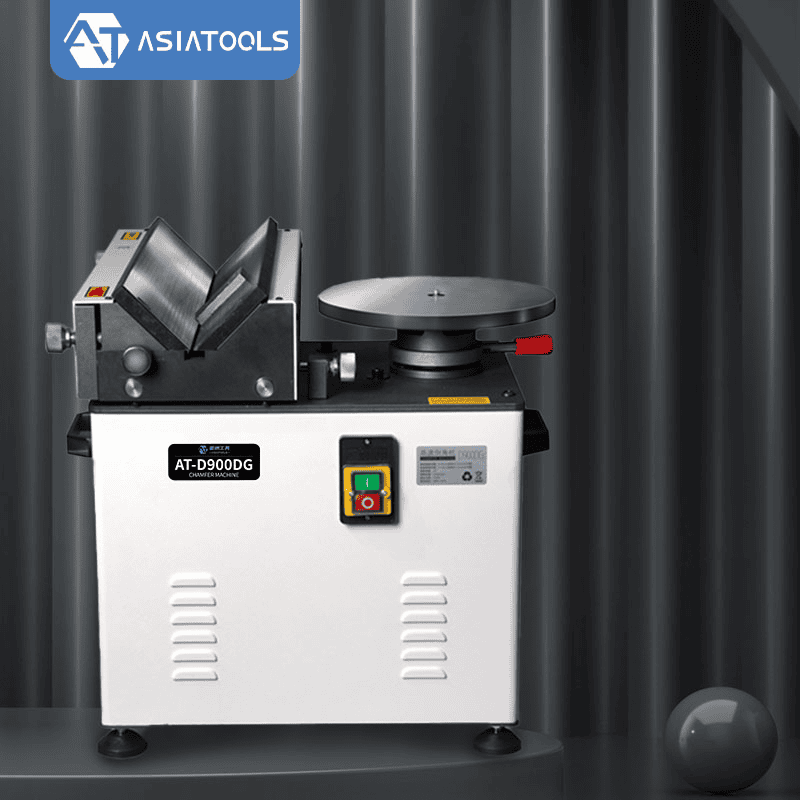

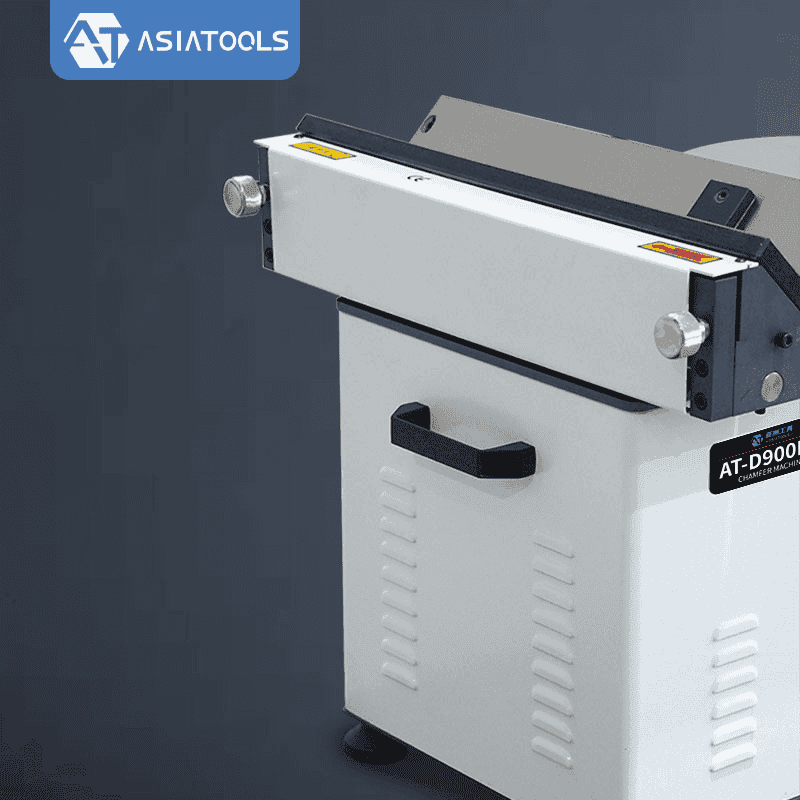

Multi-functional design

Integrating chamfering straight angles, arcs, and irregular curves on a single machine, which can replace CNC machining centers.
Efficient and Time-Saving

High precision, high speed, low noise, and high surface finish of the processed part.

Basic Info

ltems	Value	Unit
Guide Rail	V-groove slide/Disc	/
Chamfering Type	Straight/curved edge	/
Input Voltage	380/50	V/Hz
Rated Power	750	W
Rated Speed	10000	rpm
Chamfering Angle	45°	°
	Straight/curved edge	/
Chamfering Depth	Linear part: C0-C6(Al); C0-C5(steel‌)	mm
	Curved part: R2, R3/C0-3	mm
Blade Model	Linear part: SPHW120FN-4.4	/
	Curved part: DCMT070204	/
Slide Rail Travel	200	mm
Packing Dimensions	600×550×550
Net Weight	68	KG

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

Iron module

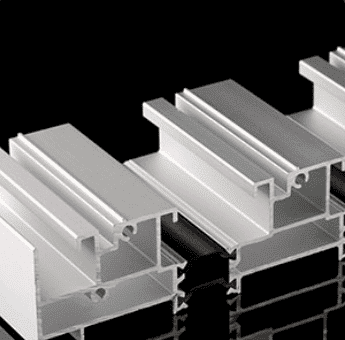

Aluminium alloy

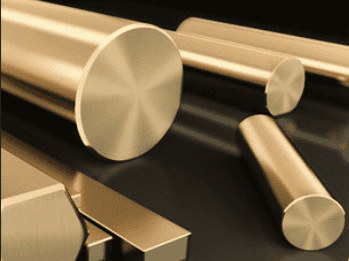

Copper material

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
