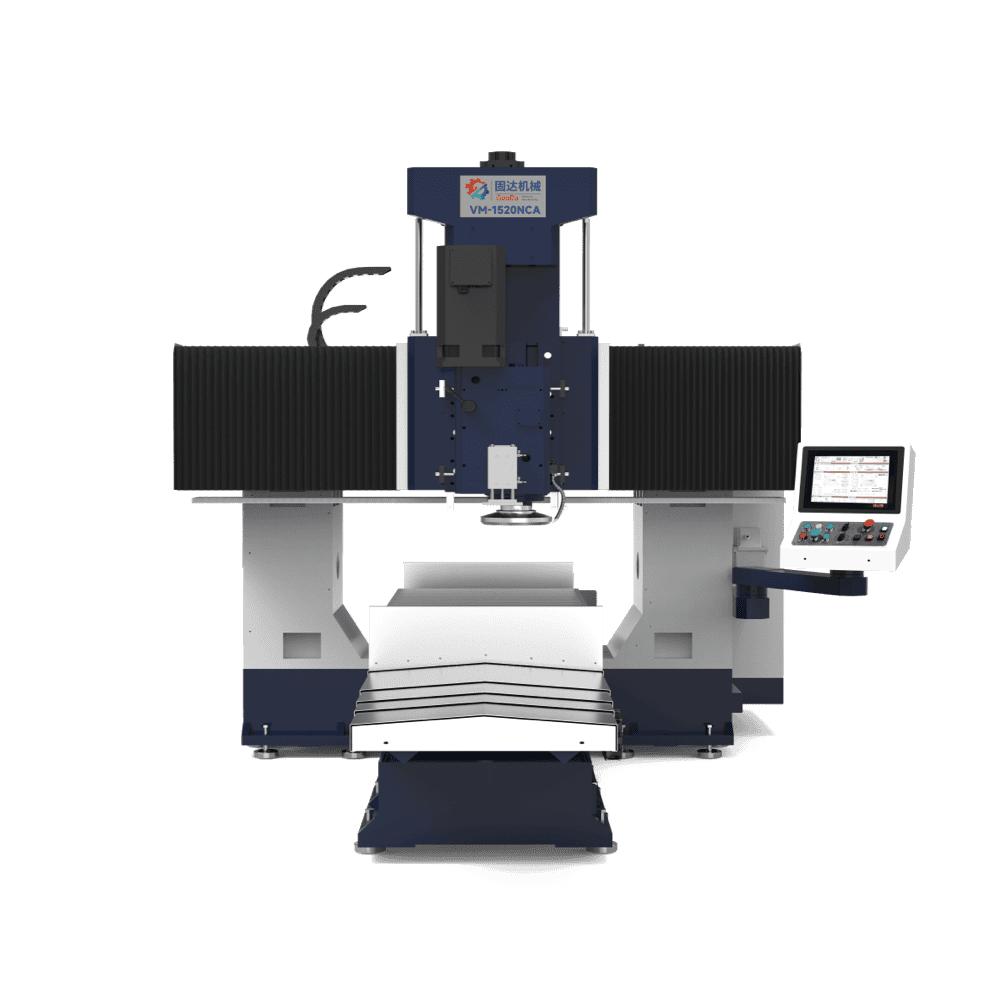

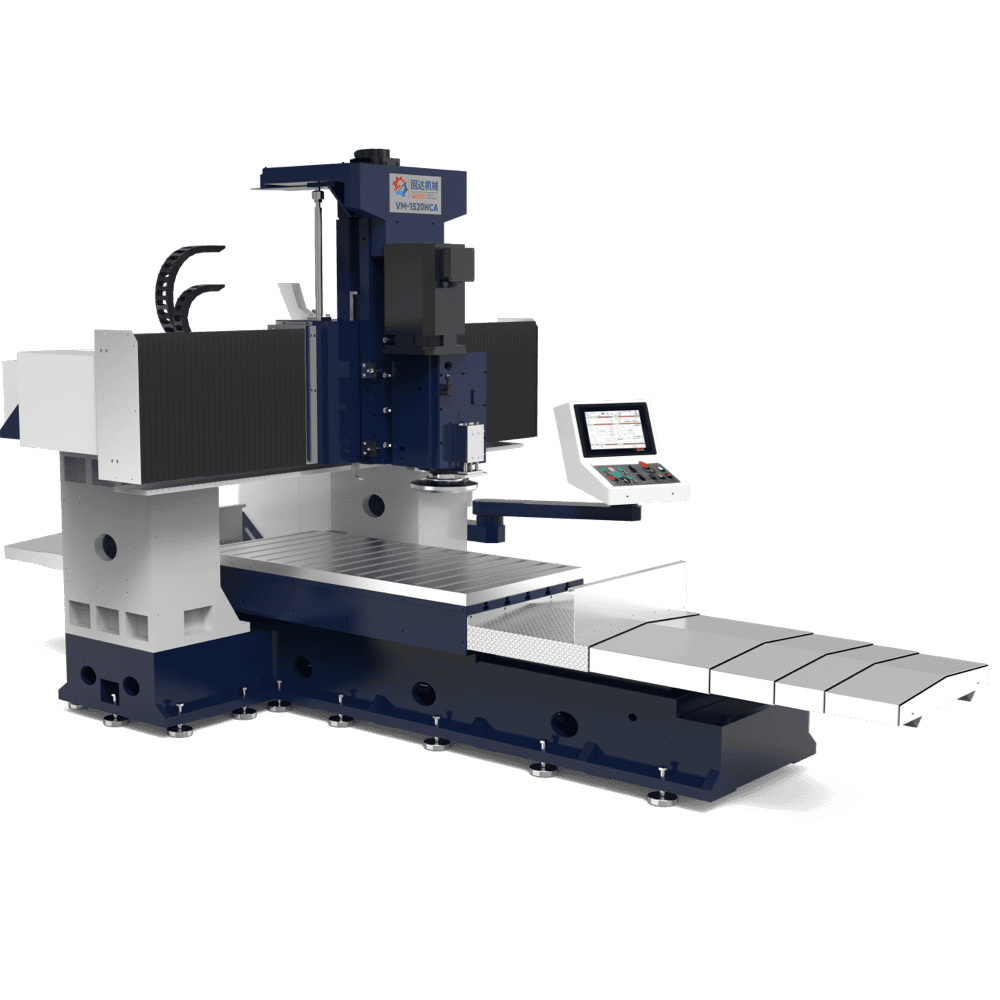

VM-1520NCA

CNC Gantry Milling Machine

Gear box type spindles with high torque spindle motors, suitable for heavy cutting and fine cutting needs. Machine size (L*W*H): 6730*3430*3400mm. Distance between columns: 1500mm.

Max. machine size(W*L) 1200*2500mm
Distance between two columns 1500mm
Max. machine height 500-550mm
Max. load capacity 7000KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

CNC Gantry Milling Machine

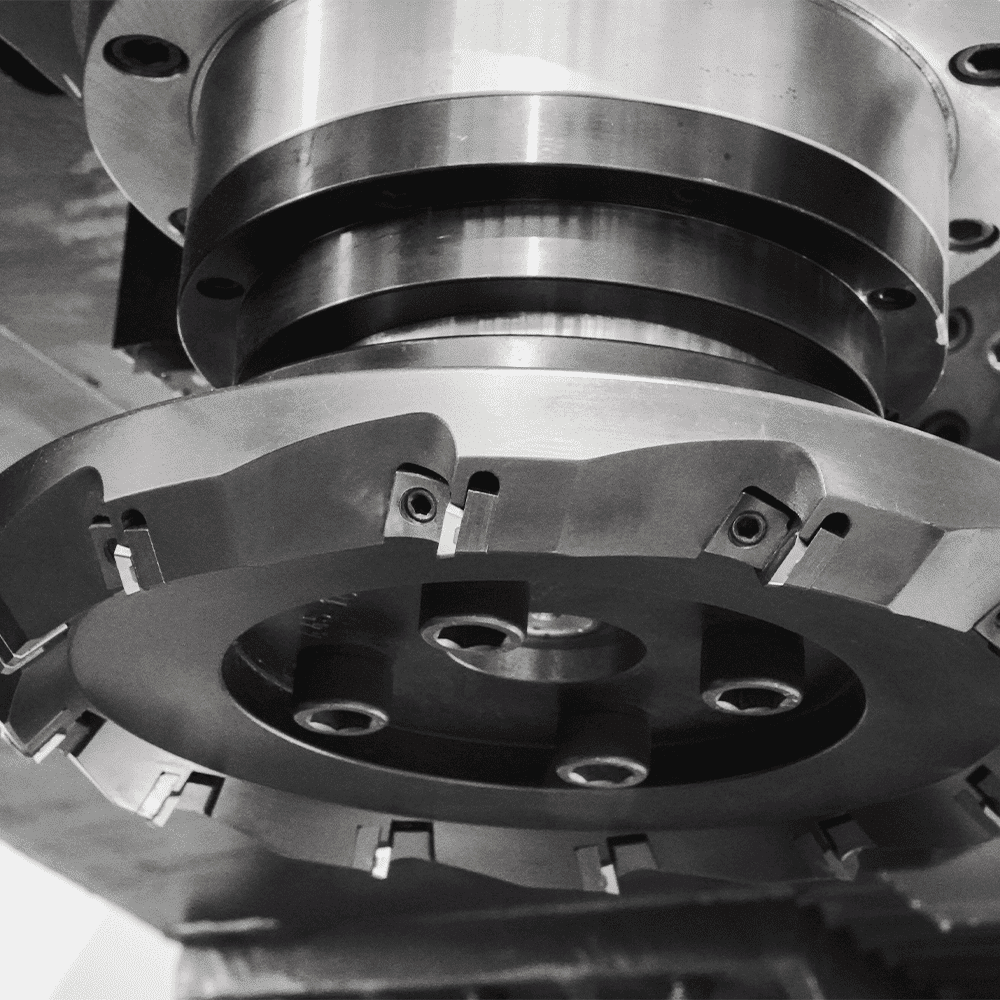

Rough milling cutter

Powerful gear-type spindle with rough milling cutter Extremely high chipping capacity, expressed in chips per minute.
Rigid box-way construction in the Z-axis

With a larger surface area and contact points on the carriage, to get more rigidity and heavier cuts.

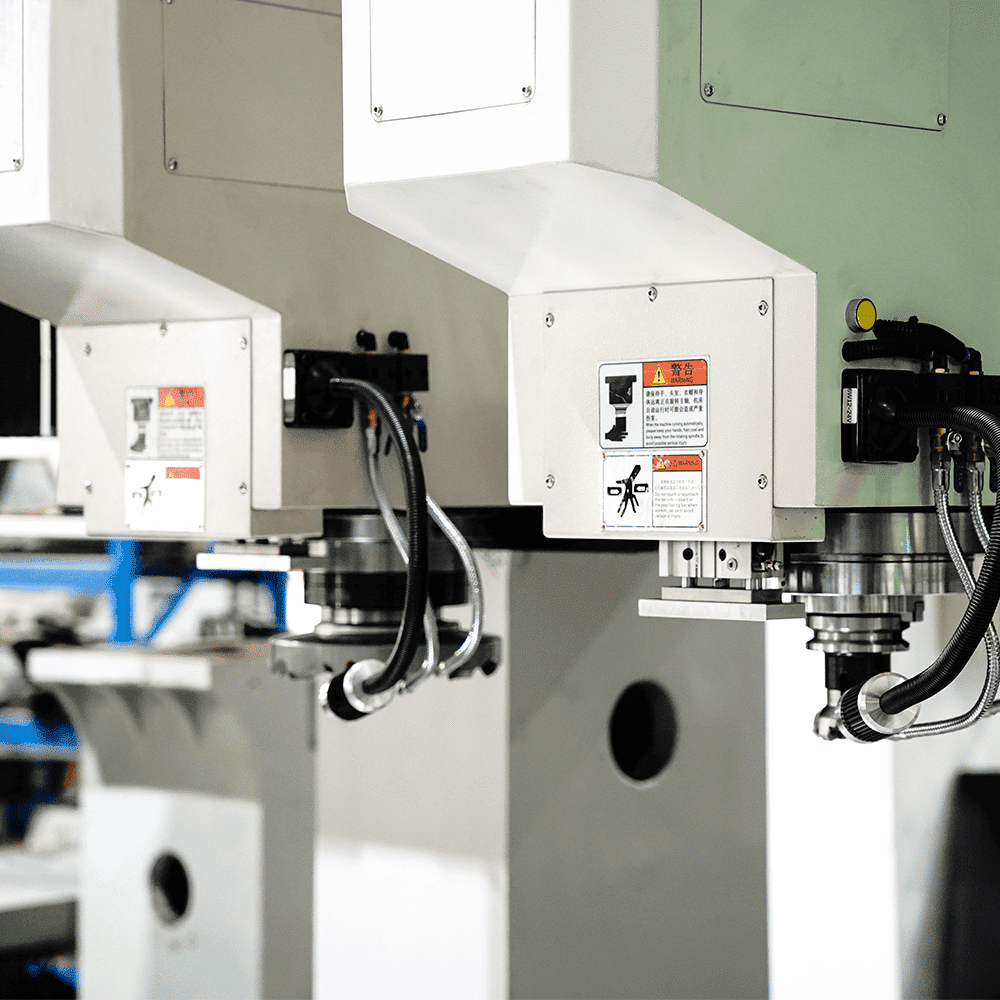

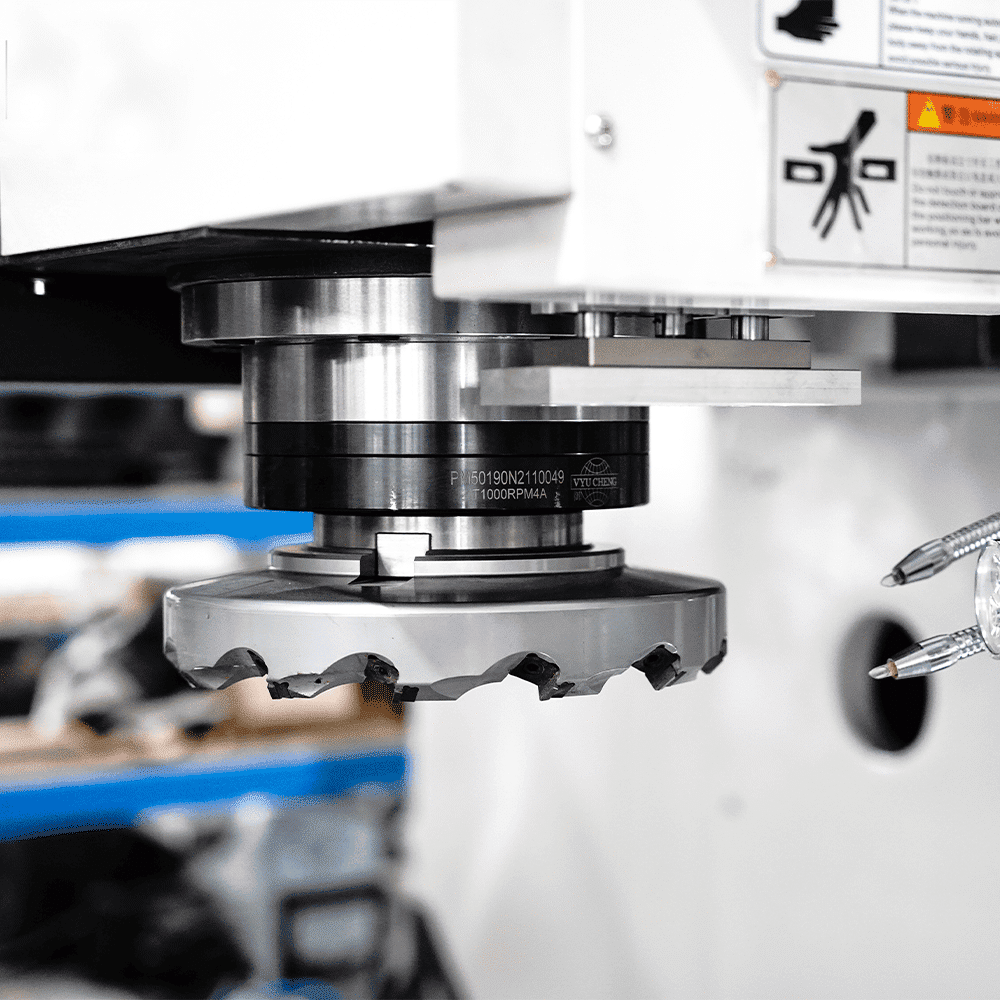

High torque and high horsepower spindle

The spindle has a high rotational rigidity under heavy duty intermittent cutting processes.

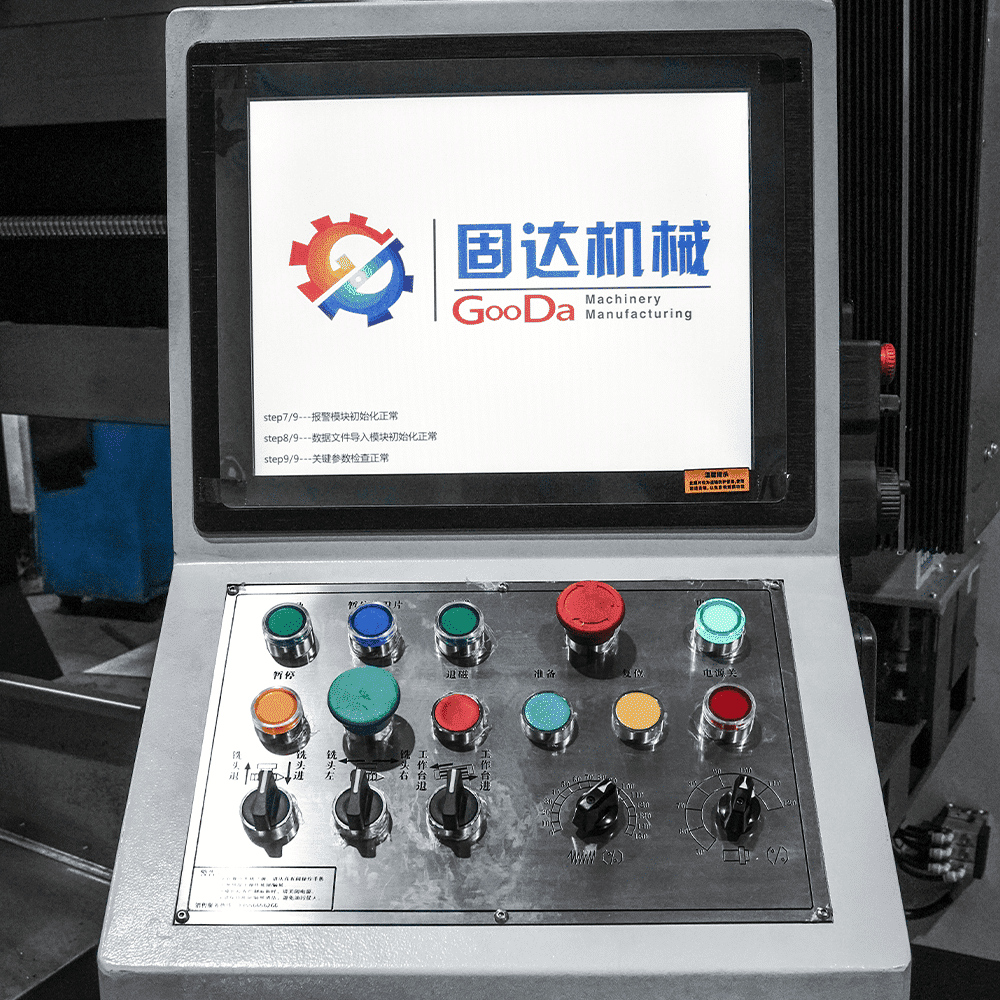

User-friendly design

High Performance FANUC oi-MF Plus Control with 10.4''touch Screen/Keyboard.

Basic Info

Items		Value	Unit
Feed speed	X/Y/Z feed speed	600060005000	mm/min
Processing capacity	Max machine size(W*L)	1200*2500	mm
	Distance between two columns	1500	mm
	Max machine height	500/550	mm
Worktable	Worktable size	1200*2500	mm
	Magnetic chuck size	1200*2500	mm
	Max. load capacity	7000	KG
	T-slot	22*150	mm
Gear-driven spindle	Spindle motor power	15/22	KW
	Spindle taper	BT50(7：24）	/
	Spindle speed	50-500	rpm
	Cutter diameter	Φ250	mm
Motor power	X/Y/Z servo motor power	5.5/3.6/2.3	KW
Size & weight	Machine weight	About 15500	KG
Size & weight	Machine size (LWH)	673034303400	mm

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

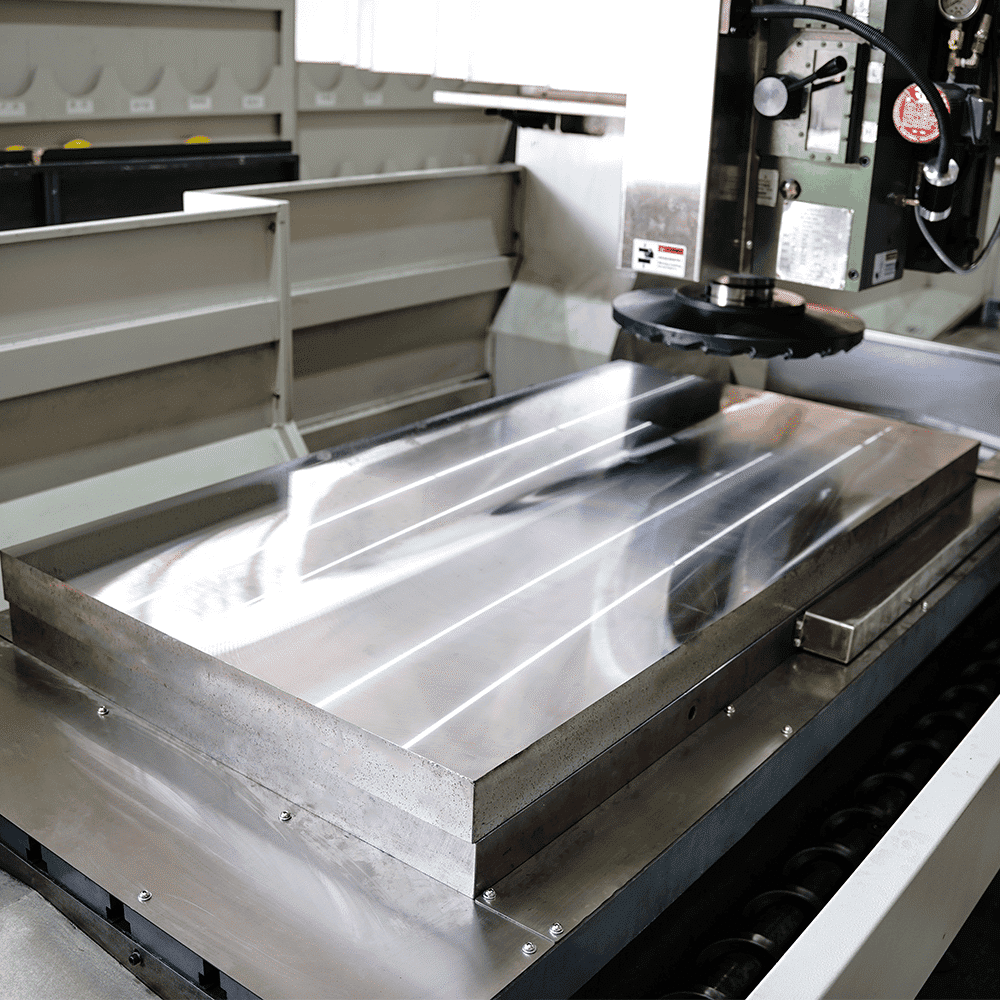

Precision (ground) plate

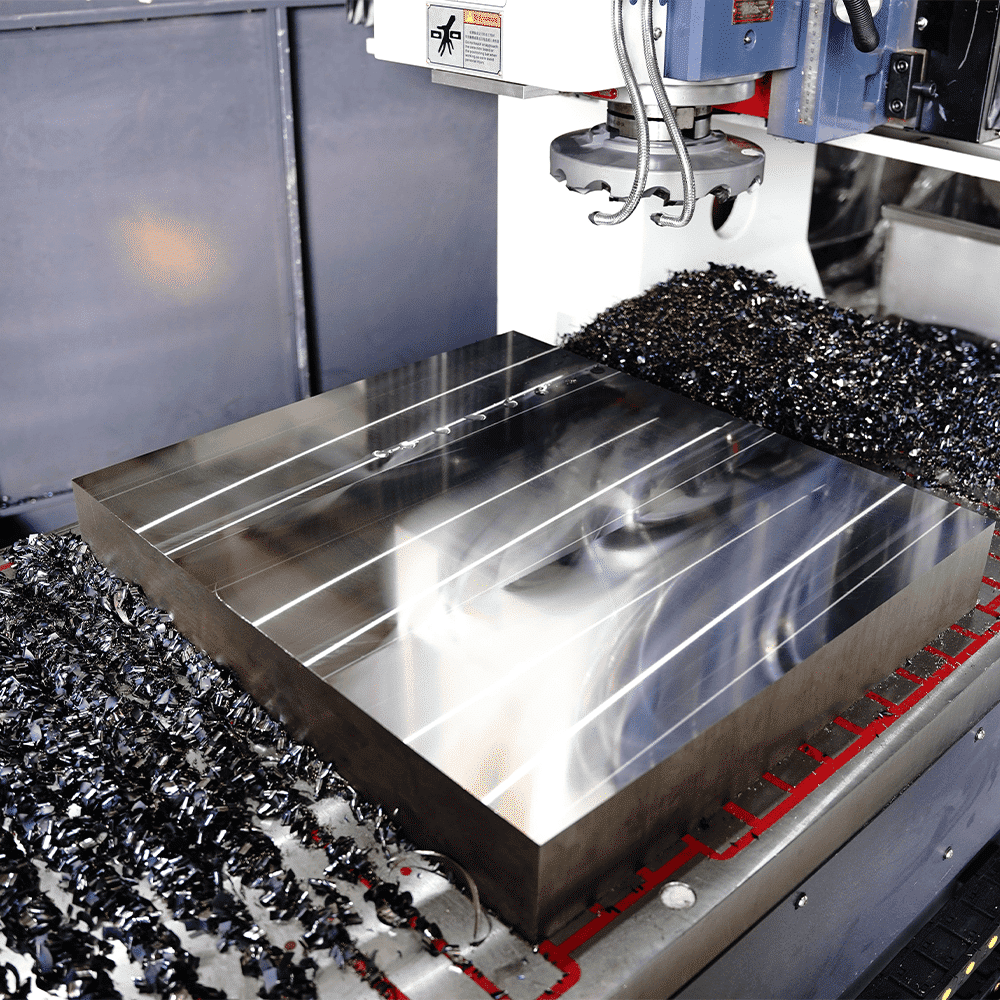

Machining plate

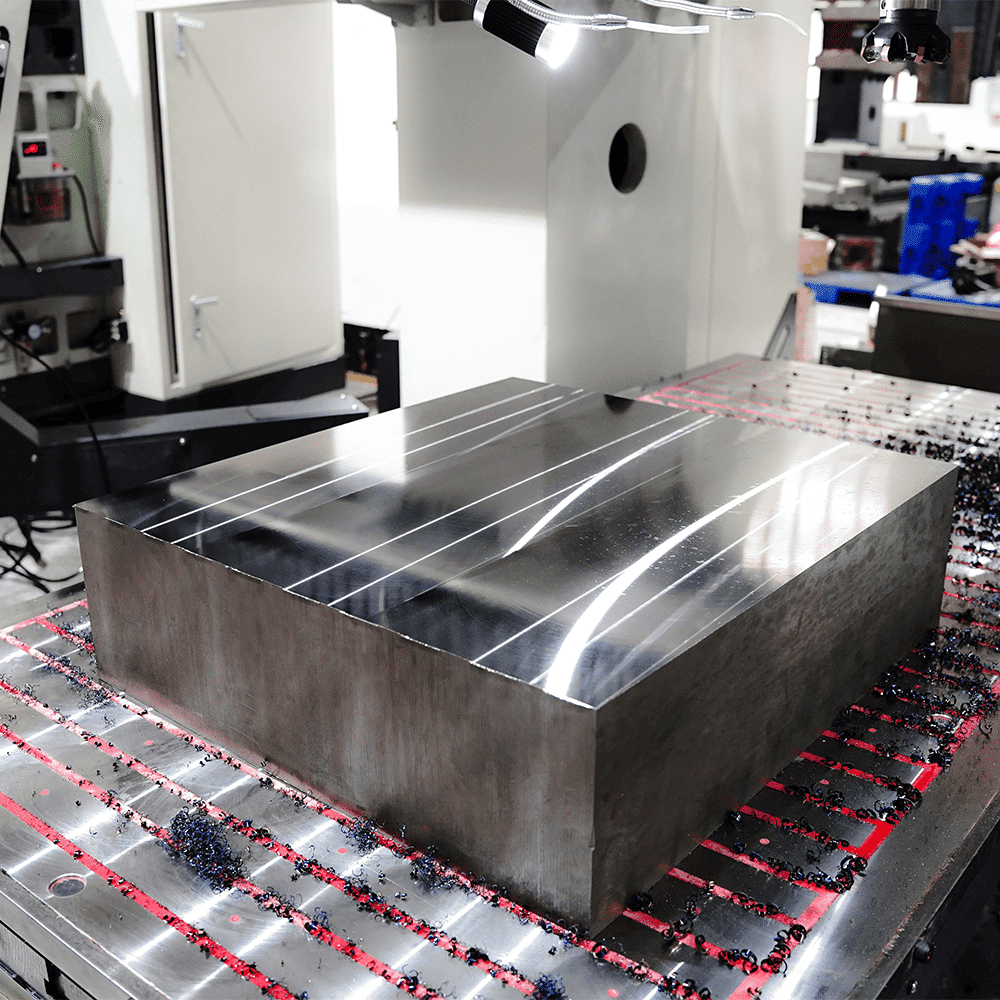

Custom (steel) plate

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
