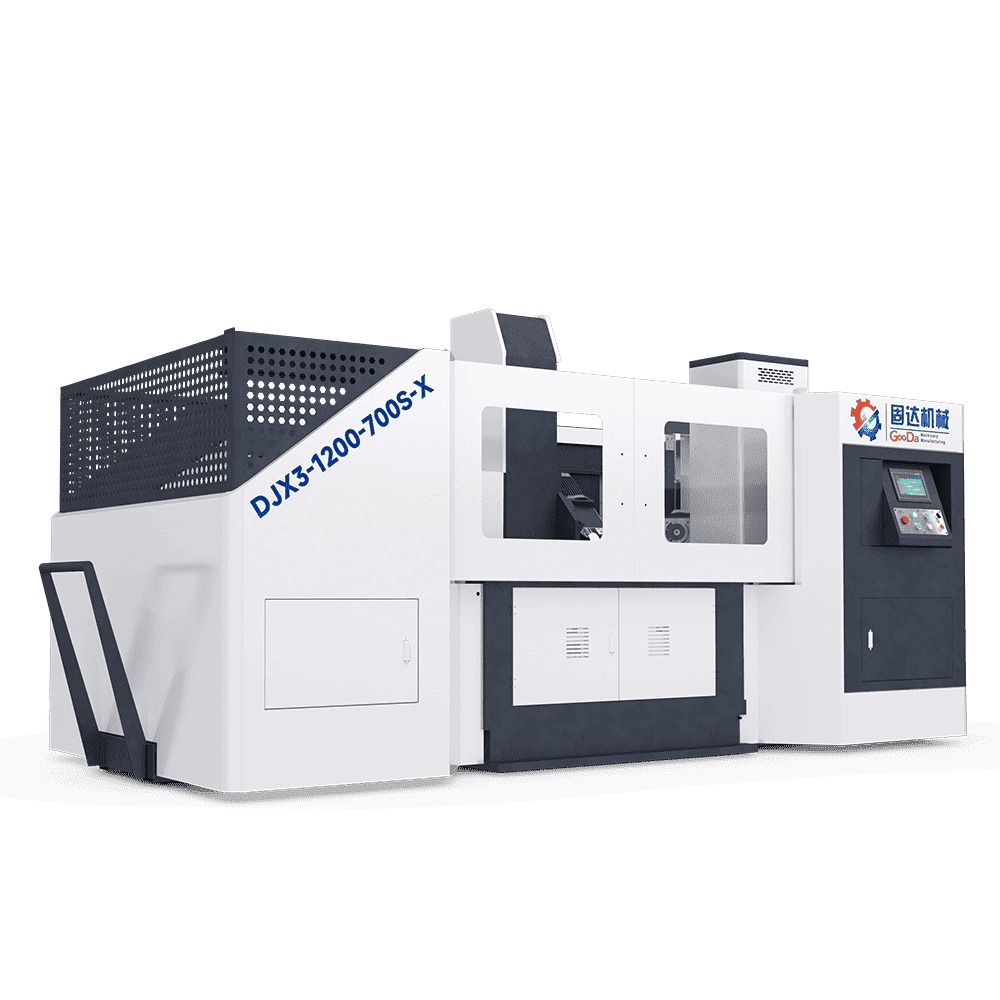

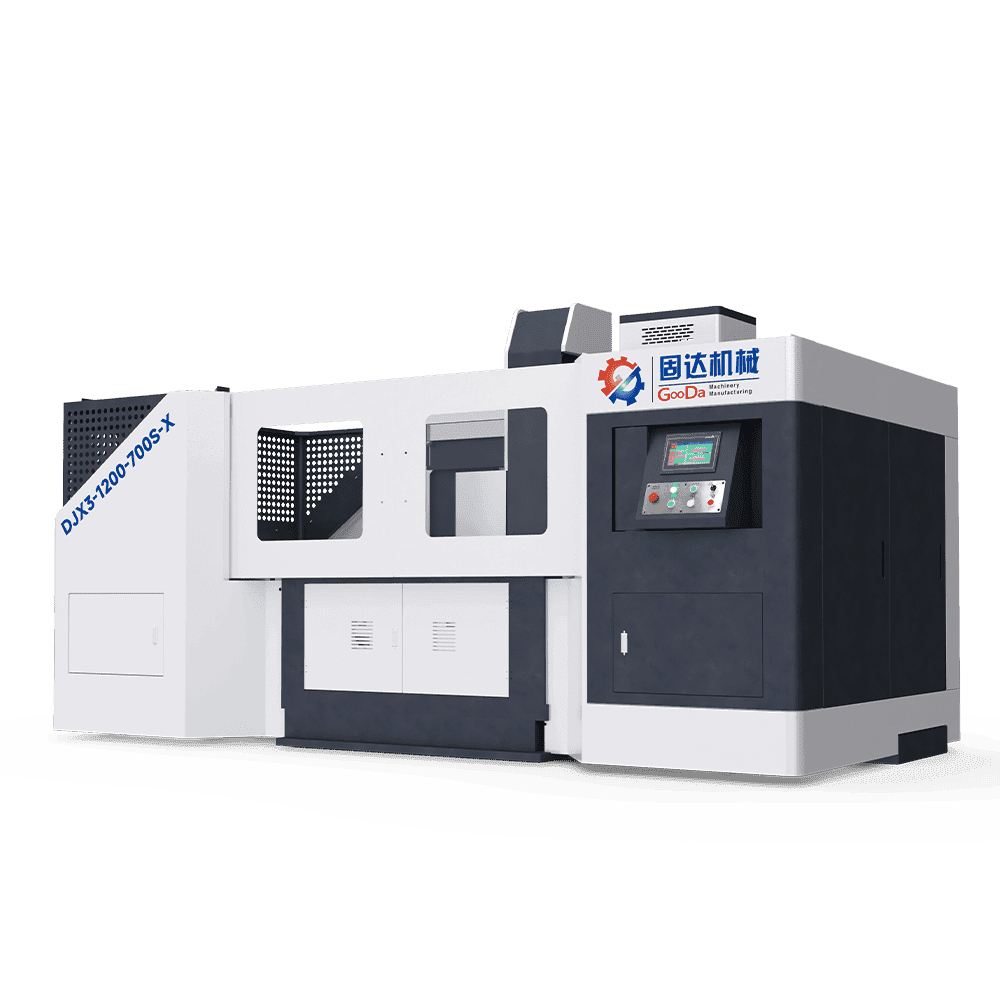

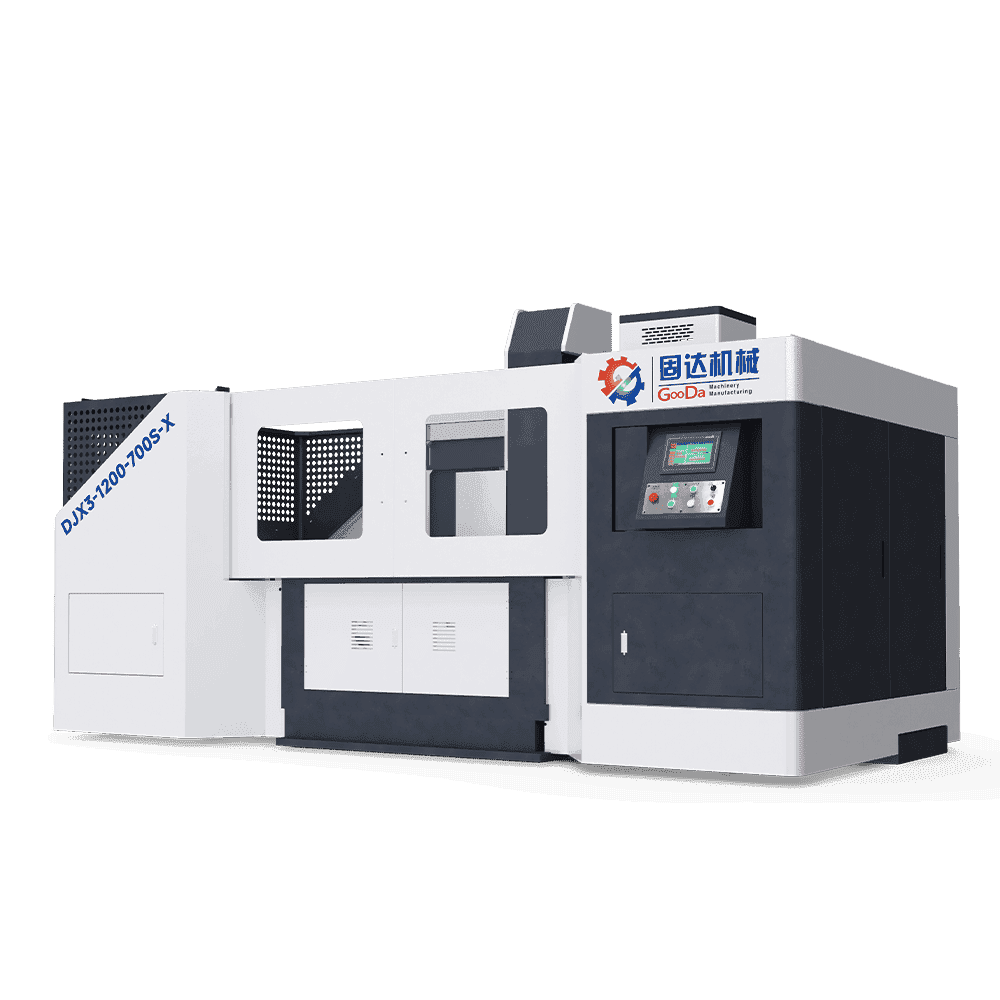

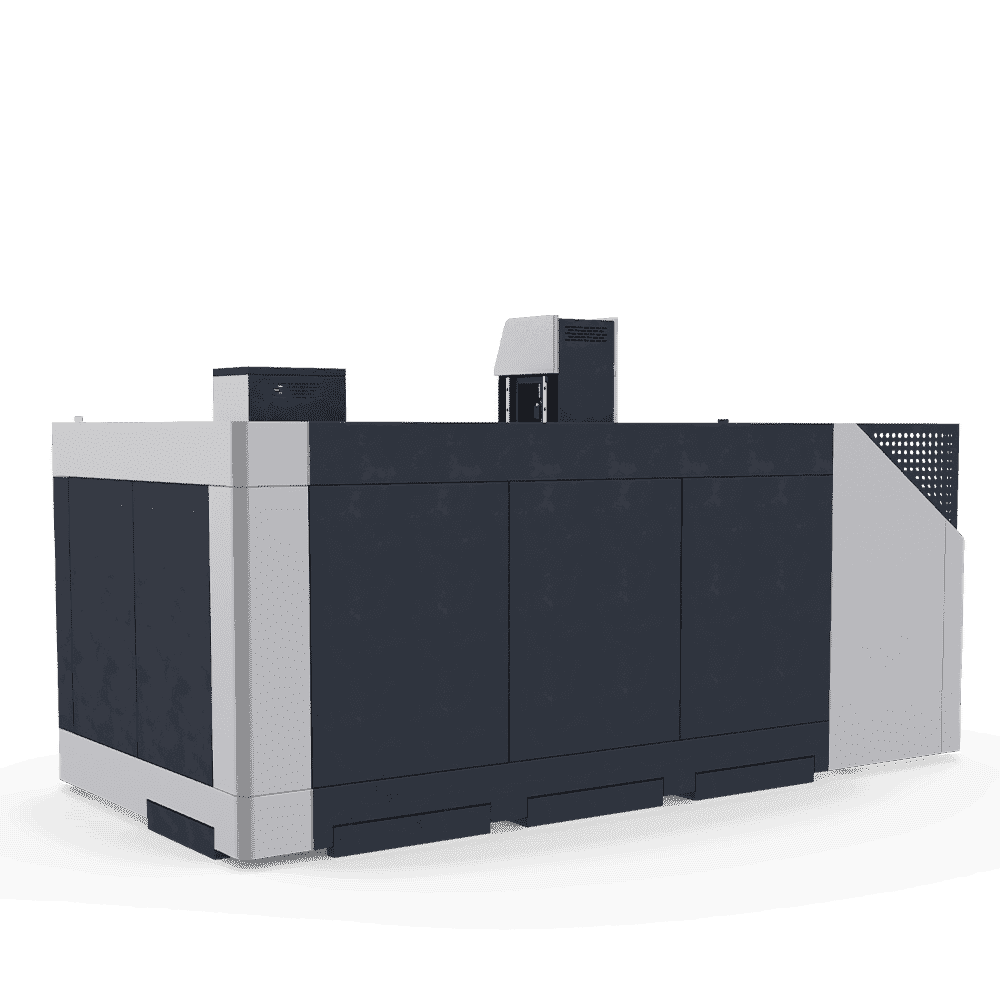

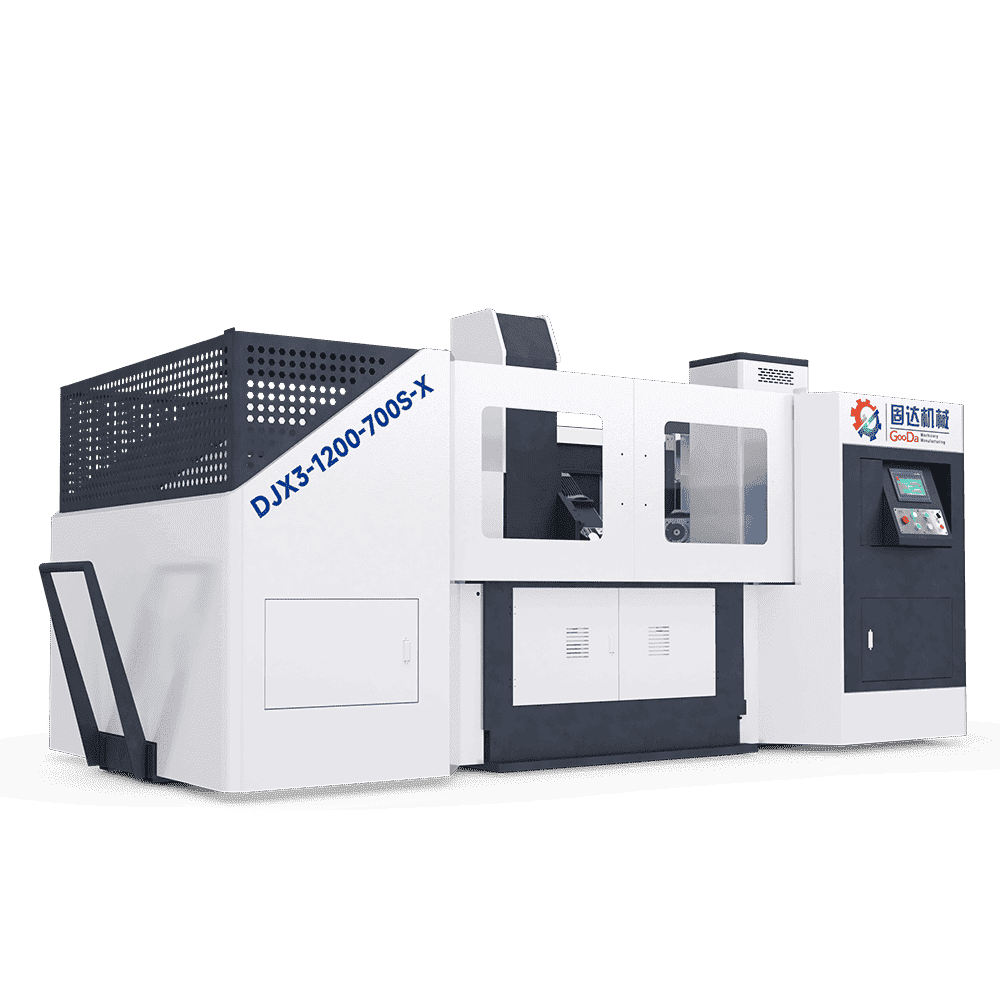

DJX3-1200-700S-X

CNC Chamfering Machine

This machine has been awarded a utility model patent with excellent performance and high cost-effectiveness. The compact layout, aesthetically pleasing appearance, advanced linear motion systems, frequency conversion technology, and CNC system, deliver users high efficiency and reliability. It's suitable for metal-cutting industries involving mold steel, aluminum, and mold processing.

Number of control axes 5
Maximum chamfer C4
Processing range (20-300)*(150-700)*(150-1200)
Max. load capacity 2000KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

CNC Chamfering Machine

High quality castings

It's suitable for metal cutting industries involving mold steel, aluminum, and mold processing.
Electrical control system

The compact layout, aesthetically pleasing appearance, advanced linear motion systems, frequency conversion technology, and CNC system, deliver users high efficiency and reliability.
Three-head linkage chamfering

This machine has been awarded a utility model patent with excellent performance and high cost-effectiveness.
Air-floating powerful magnetic workbench

Smooth movement and low noise.

Basic Info

Items		Value	Unit
Worktable	Worktable size	700*1350	mm
Worktable	Max. load capacity	2000	KG
Processing range	Number of control axes	5	/
	Maximum chamfer	c4	/
	Processing range	(20-300)(150-700)(150-1200)	mm
Spindle	Spindle speed	2825	rpm
	Spindle motor power	0.75	KW
	Cutter diameter	∮90	mm
Feed speed	Servo motor	1.0/1.0/1.0/1.0/1.5	kw
	Maximum rapid feed rate	10	mm / min
	Maximum cutting feed rate	4	mm / min
Suction cup	Specifications	700*1200	mm
Tank	Capacity	1.5	L
Size & weight	Machine weight	About3000	KG
Size & weight	Machine size ( LWH )	340017501930	mm

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

Mold steel

Aluminum material

Mold processing

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
