As the manufacturing industry develops towards refinement and automation, the trinity ganged chamfering machine has become a new favorite of many processing companies. This new type of equipment has quickly emerged in the metal processing industry with its high efficiency and precision. It has become an important force in promoting industrial upgrading.
Background
Traditional chamfering processes often rely on manual operation or semi-automated mechanical equipment. This method is not only time-consuming and inefficient but also difficult to meet modern industrial standards in terms of accuracy and consistency. With the intensification of market competition and technological progress, improving production efficiency and reducing costs have become urgent problems for various companies. Against this background, the trinity ganged chamfering machine, which integrates modern CNC technology and precision machinery manufacturing, came into being.
Common challenges and solutions in the chamfering process
Vibration during chamfering
Vibration problem: During the chamfering process, due to the instability of the tool or workpiece, vibration is easy to cause, resulting in ripples or unevenness on the machined surface. Vibration will lead to a decrease in the quality of the chamfered surface, affecting the aesthetics and function of the part.
Solution
Rigid structure: Use a strong and stable body structure to reduce the occurrence of vibration.
Optimize tool design: Use well-balanced tools to reduce the vibration of the tool when it rotates at high speed.
Servo control system: Use an advanced servo control system to monitor and adjust the tool position in real-time to ensure smooth relative movement between the tool and the workpiece.
Uneven chamfer width
Uneven width: During the chamfering process, due to inconsistent tool feed speed or loose clamping of the workpiece, uneven chamfer width is easy to occur. Uneven chamfer width will affect the assembly performance of the part and cause difficulties in subsequent processing and assembly.
Solution
Constant feed speed: By optimizing the feed speed control algorithm, ensure that the tool speed is constant during the chamfering process.
Firm clamping: Use the upper-pressure side top clamping system to ensure that the workpiece is firmly fixed during processing to prevent displacement.
Intelligent adjustment: Equipped with an intelligent adjustment system, the tool position is dynamically adjusted according to the actual processing situation to ensure uniform chamfer width.
Chip management during processing
Chip treatment: During the chamfering process, a large amount of chips will be generated. If not handled in time, it will affect the processing accuracy and the normal operation of the equipment. Chip accumulation will cause tool damage, affect the processing quality, and increase the difficulty of cleaning.
Solution
Automatic chip removal system: Equipped with an automatic chip removal system to clean up the chips generated during the processing in time to avoid chip accumulation.
Dust collection device: Install a dust collection device to collect and centrally process chips to reduce environmental pollution.
Optimize path planning: By optimizing the processing path planning, the amount of chips generated can be reduced and the processing efficiency can be improved.

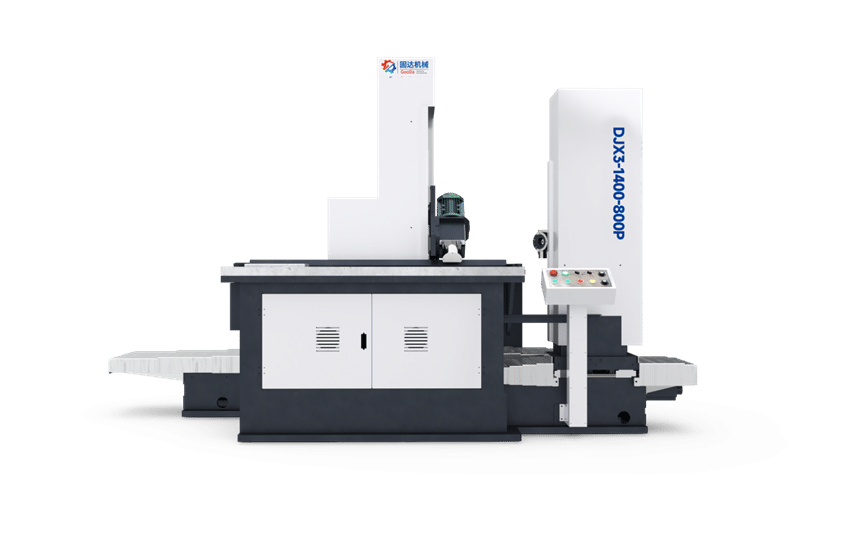

Featured recommendation——ASIATOOLS trinity ganged chamfering machine
Improve the efficiency and accuracy of chamfering applications:
Three-axis linkage: The unique three-axis linkage design significantly improves the processing efficiency
Electrical control system: The operation panel is simple, and you only need to press the corresponding operation button to enter the corresponding working state, without manual switching, and the processing is convenient and fast.
High-quality castings: The main components are made of high-quality castings, which have undergone strict stress relief annealing treatment, and the surface finish of the processed parts is high.
Improve the anti-vibration effect of chamfering applications: The innovative air-floating strong magnetic suction workbench design allows the workpiece to be easily moved, while greatly enhancing the anti-vibration ability of the workbench.
